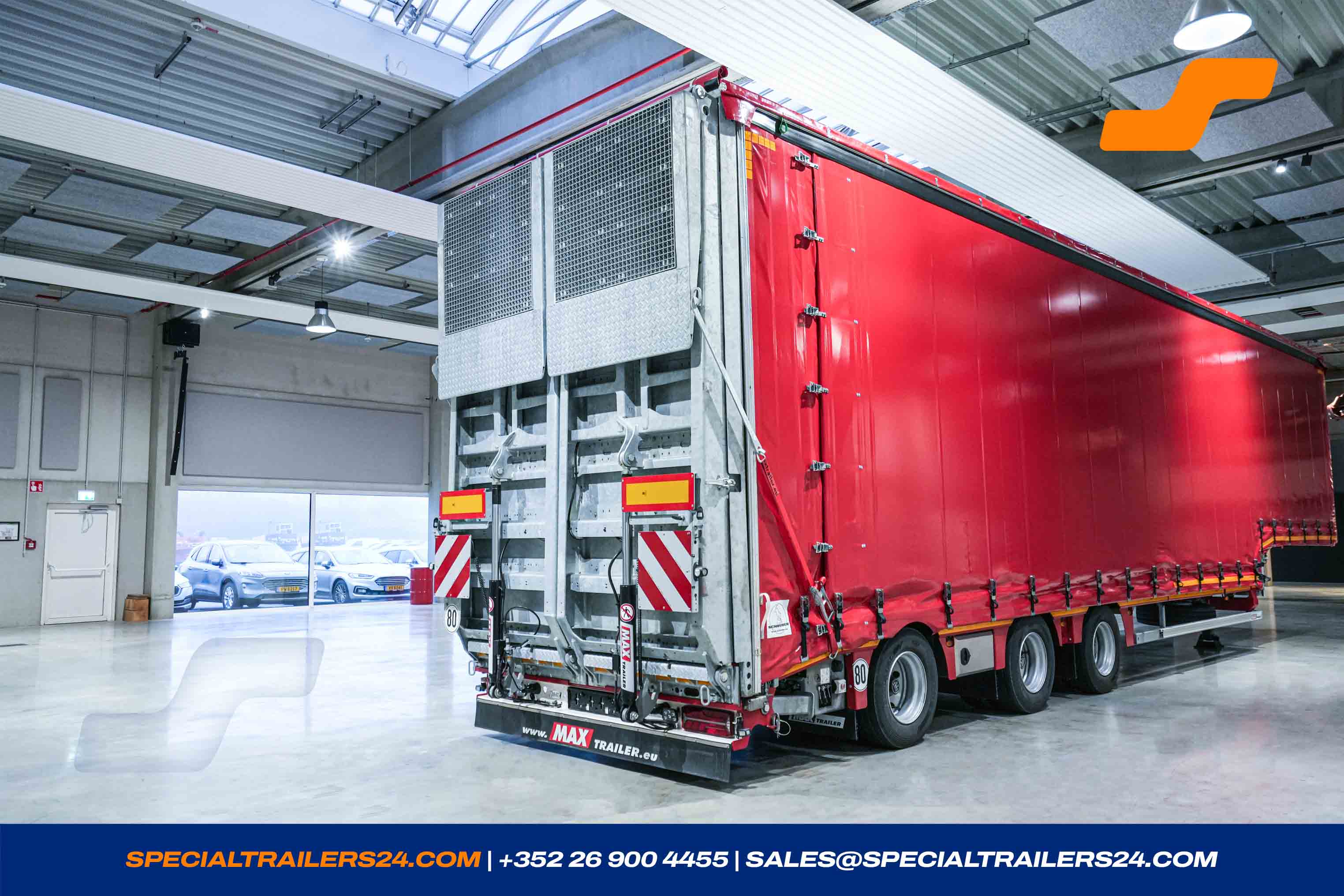

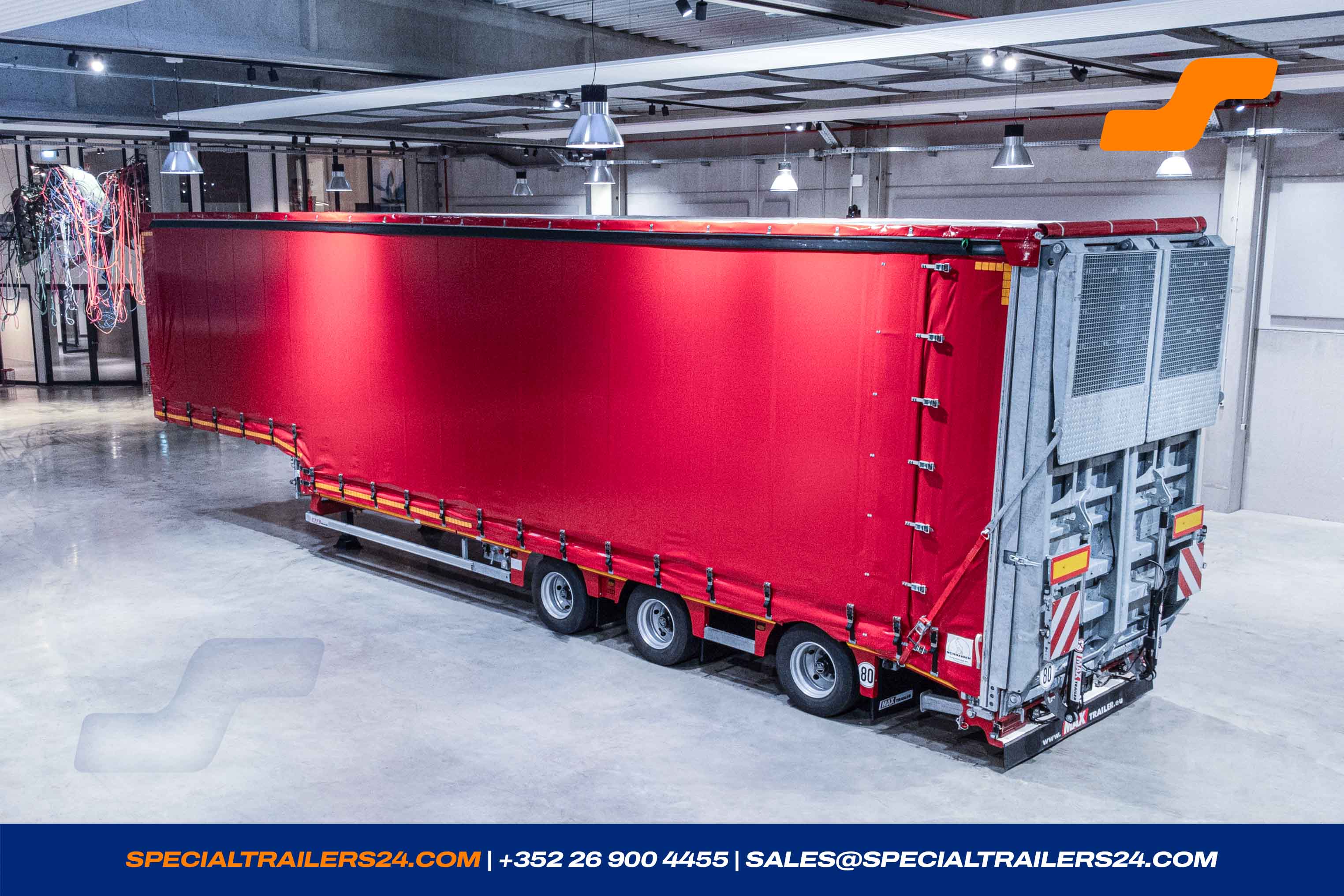

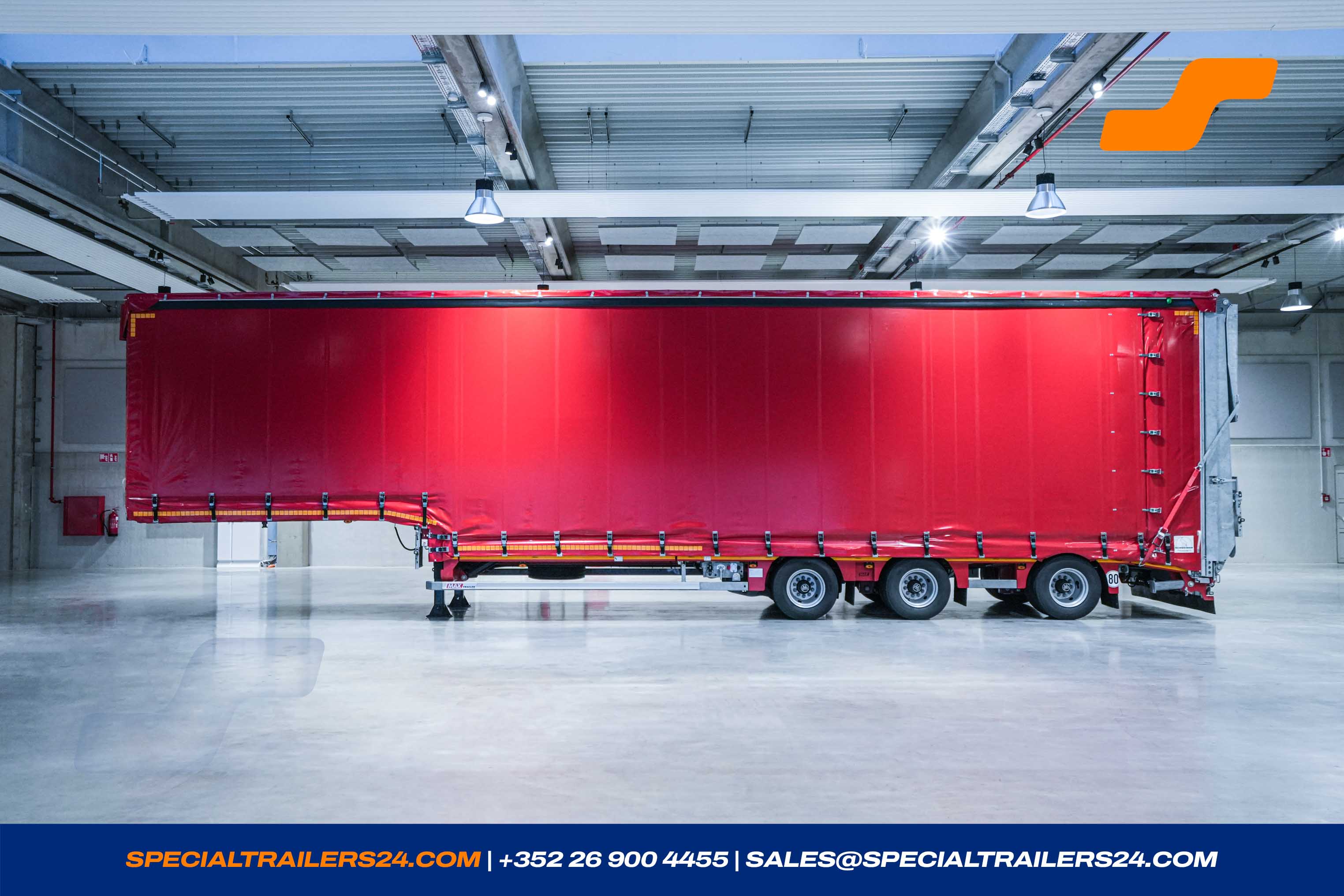

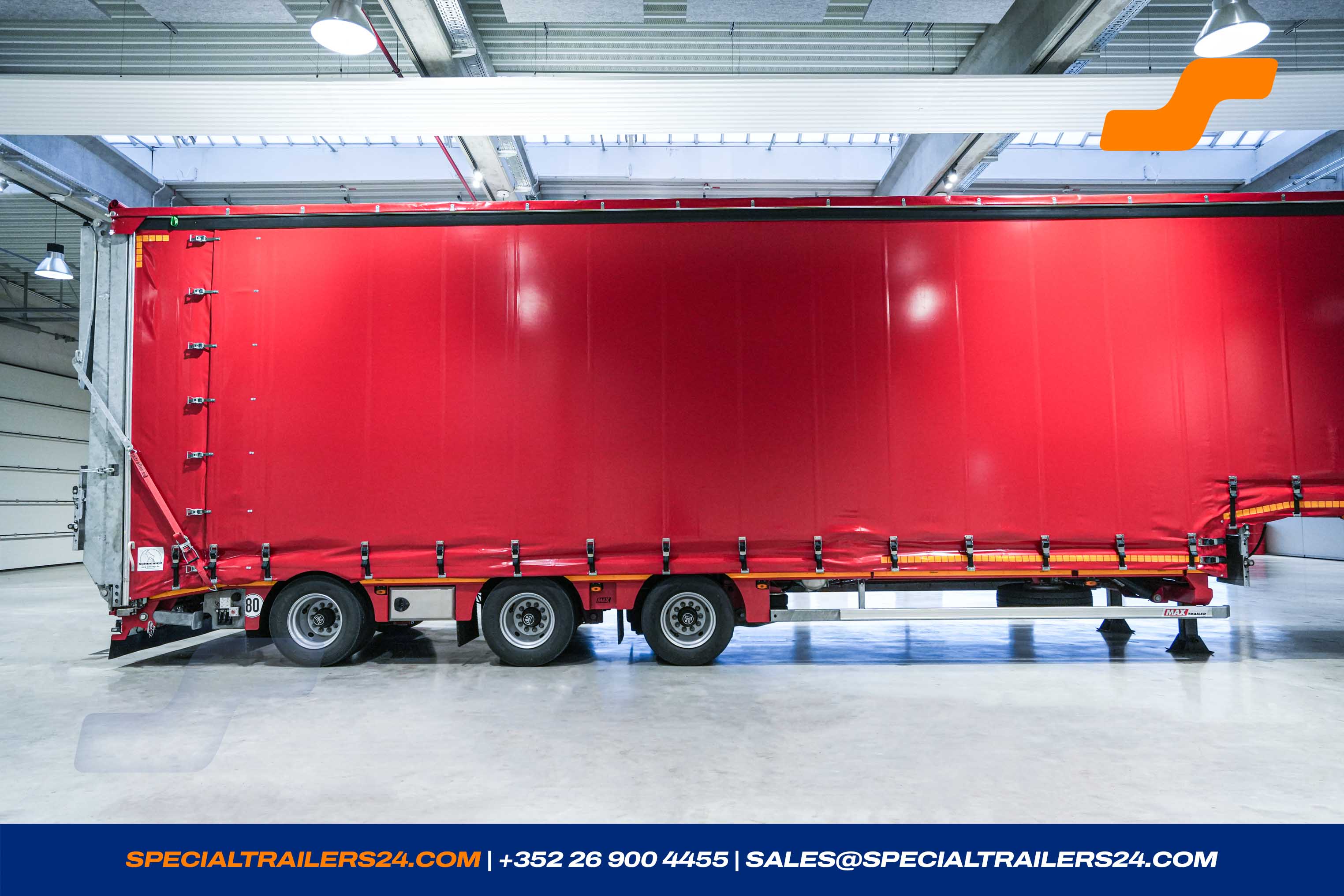

MAX Trailer MAX100
Die Farbe des Fahrzeugs auf dem Foto kann abweichen.
- Chassis number 111270
- Reference MAX100-N-3B-9.30-(CS)-U

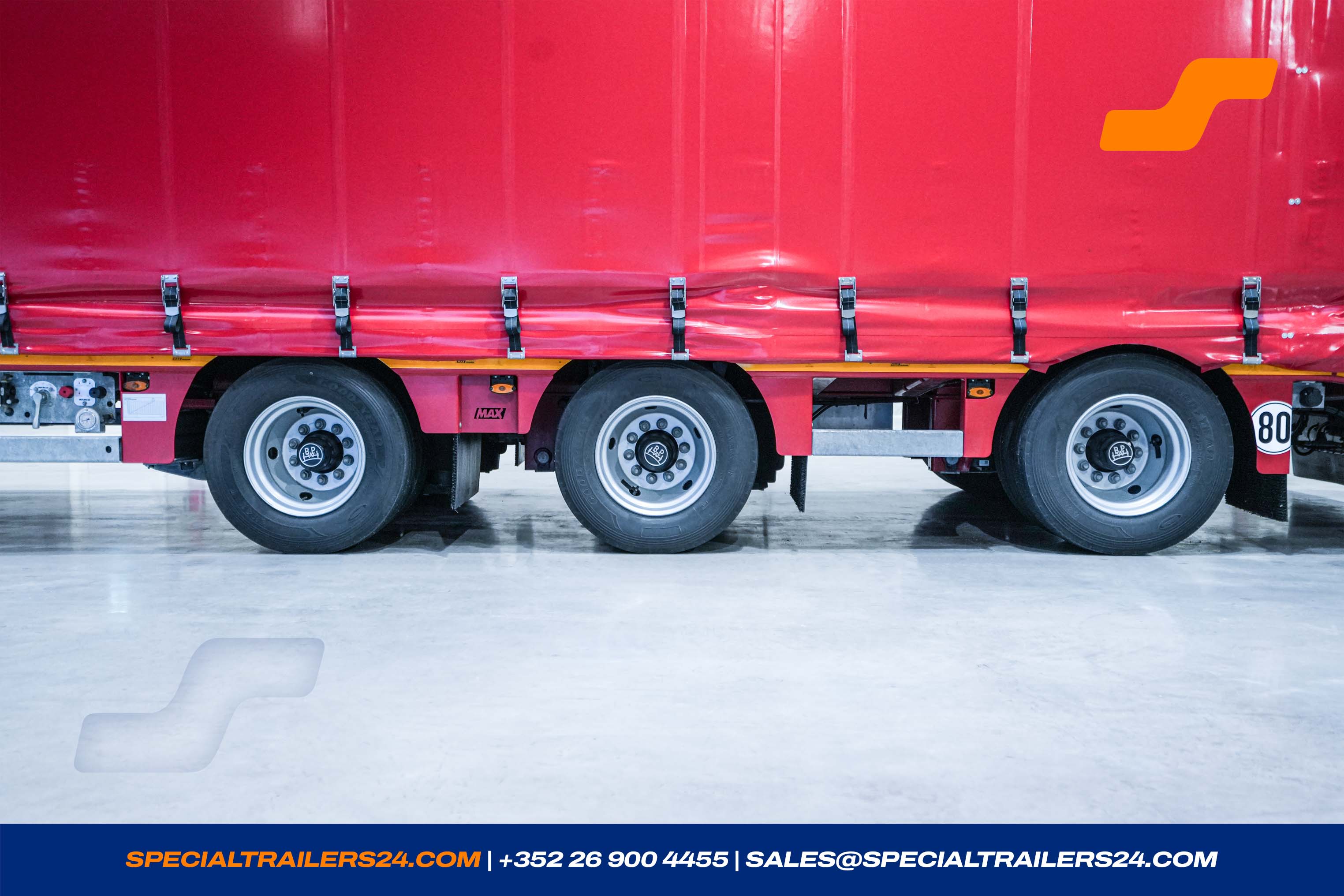

- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour DB 7350 - Nova grey
- Availability 04/2026
- Steering Type Friction
Die wichtigsten Unterlagen
Detailinformationen
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 31500 kg |
| Gross weight | 49500 kg |
| Tare weight +- 3% | 13236 kg |
| Payload | 36264 kg |
Dimensions
| Fifth wheel height loaded | 1150 mm |
| Gooseneck length | 3 800 mm |
| Turning circle reversing | 2 100 mm |
| Loading platform length | 9 300 mm |
| Extendable by | No |
| Wheelbase | 1360/1810 mm |
| Loading height at max. load | 860 mm |
| Total width | 2 480 mm |
| Suspension stroke | -55/ +145 mm |

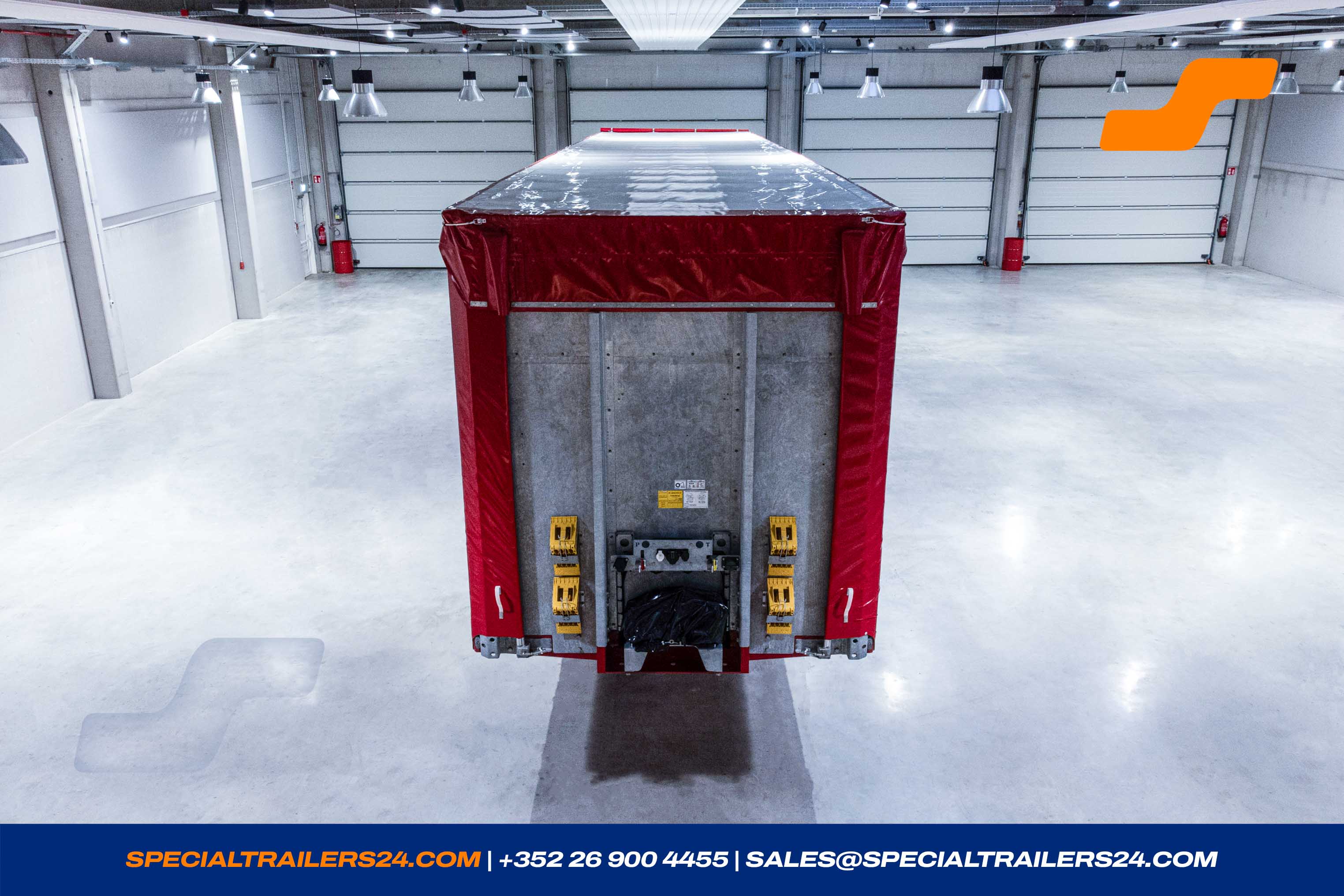

Gooseneck
1 x Gooseneck
Gooseneck with rear chamfered by ca. 750 mm x 10°.
3 pairs of lashing rings (LC 5 000 daN).
Hardwood cover thickness 30 mm.

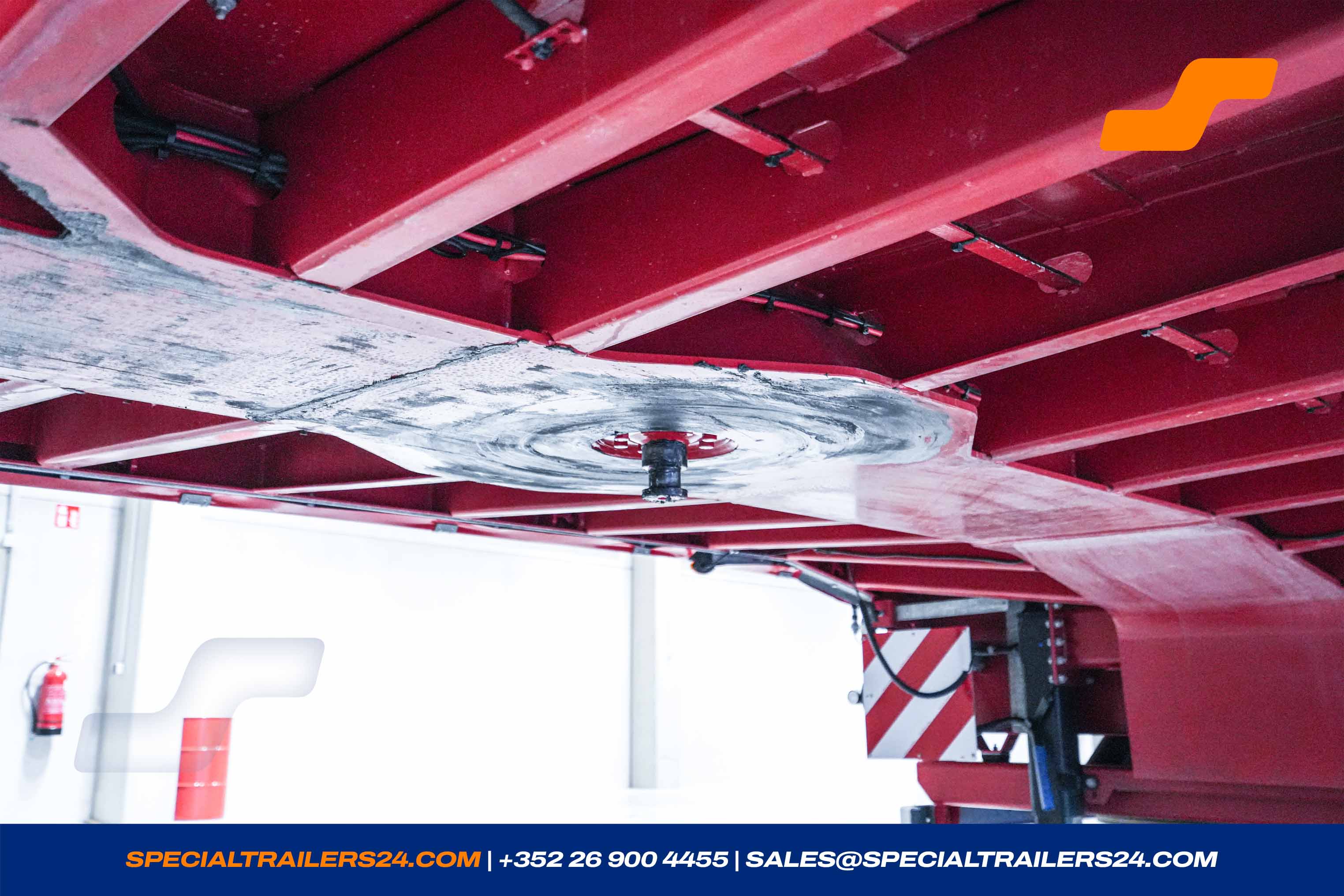

- 2 king-pin.

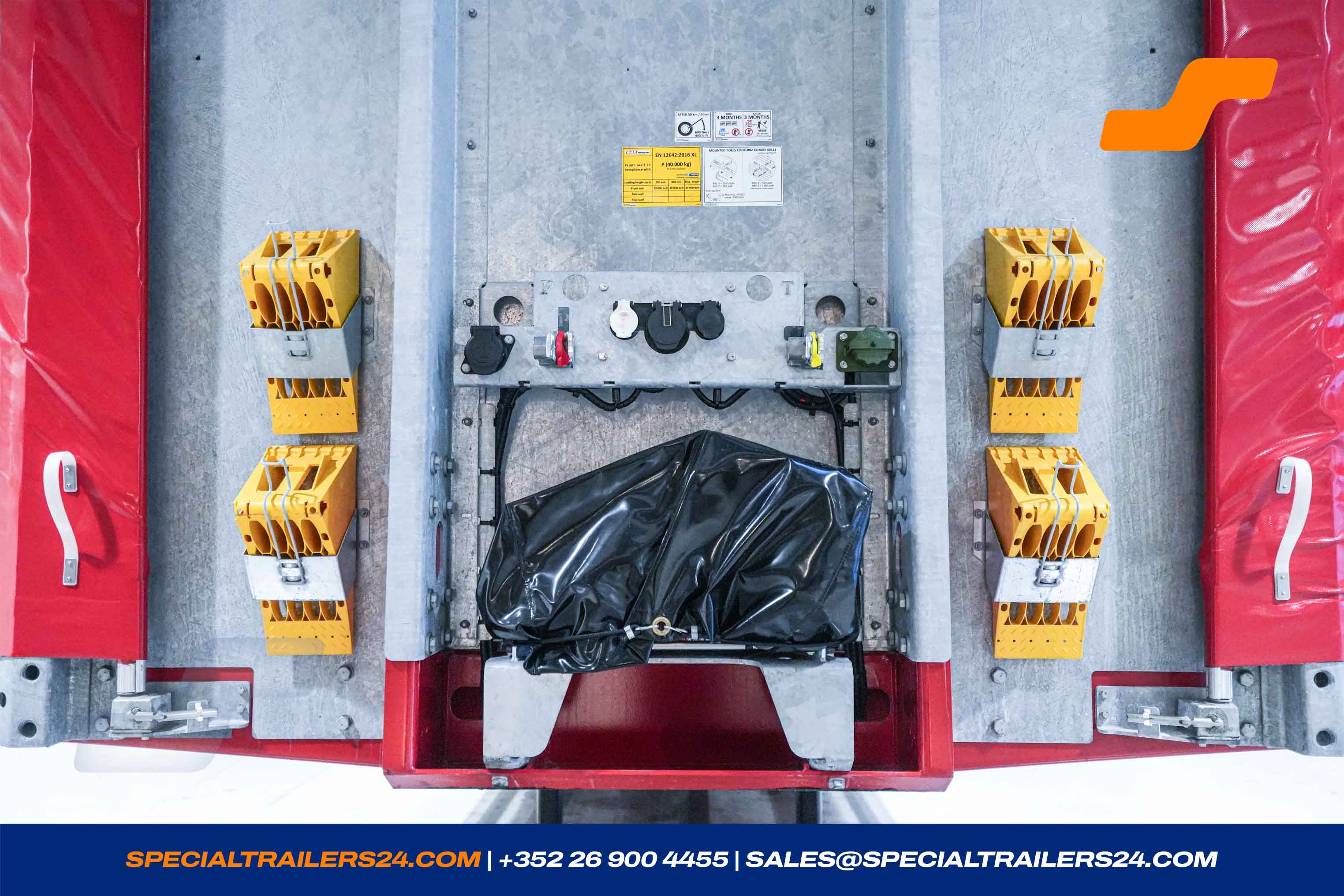

- Red and yellow air couplings on the galvanised front connection ledge.
- Grating floor on the gooseneck C30/3 (for point load of 2 to on a surface of 20 x 20 cm). (± 355 kg)
- 4 wheel chocks with carrier on the headboard (± 5kg).
- One powder fire extinguisher (6 kg) with a protective casing and holder on the headboard (± 15kg).
Loading deck

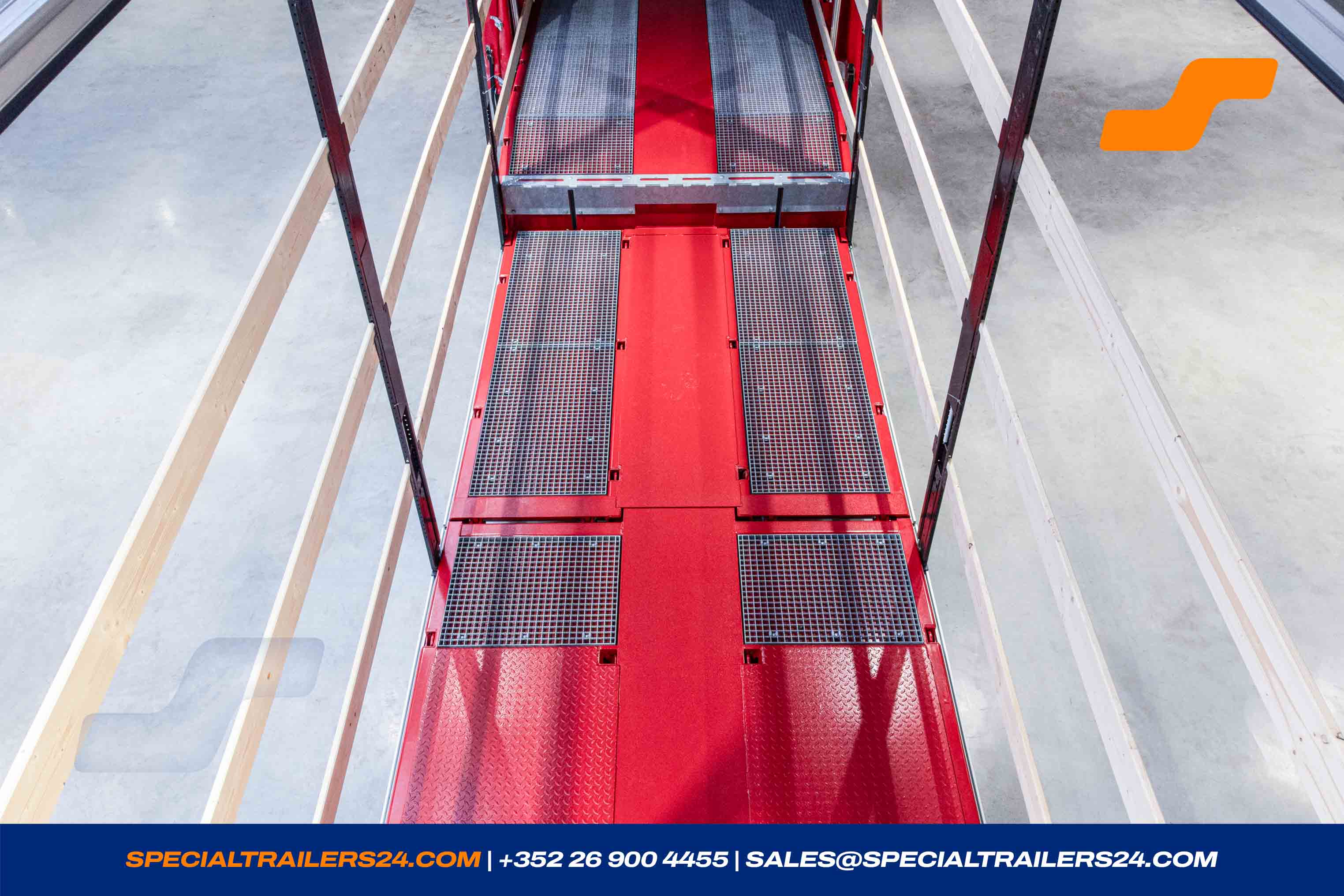

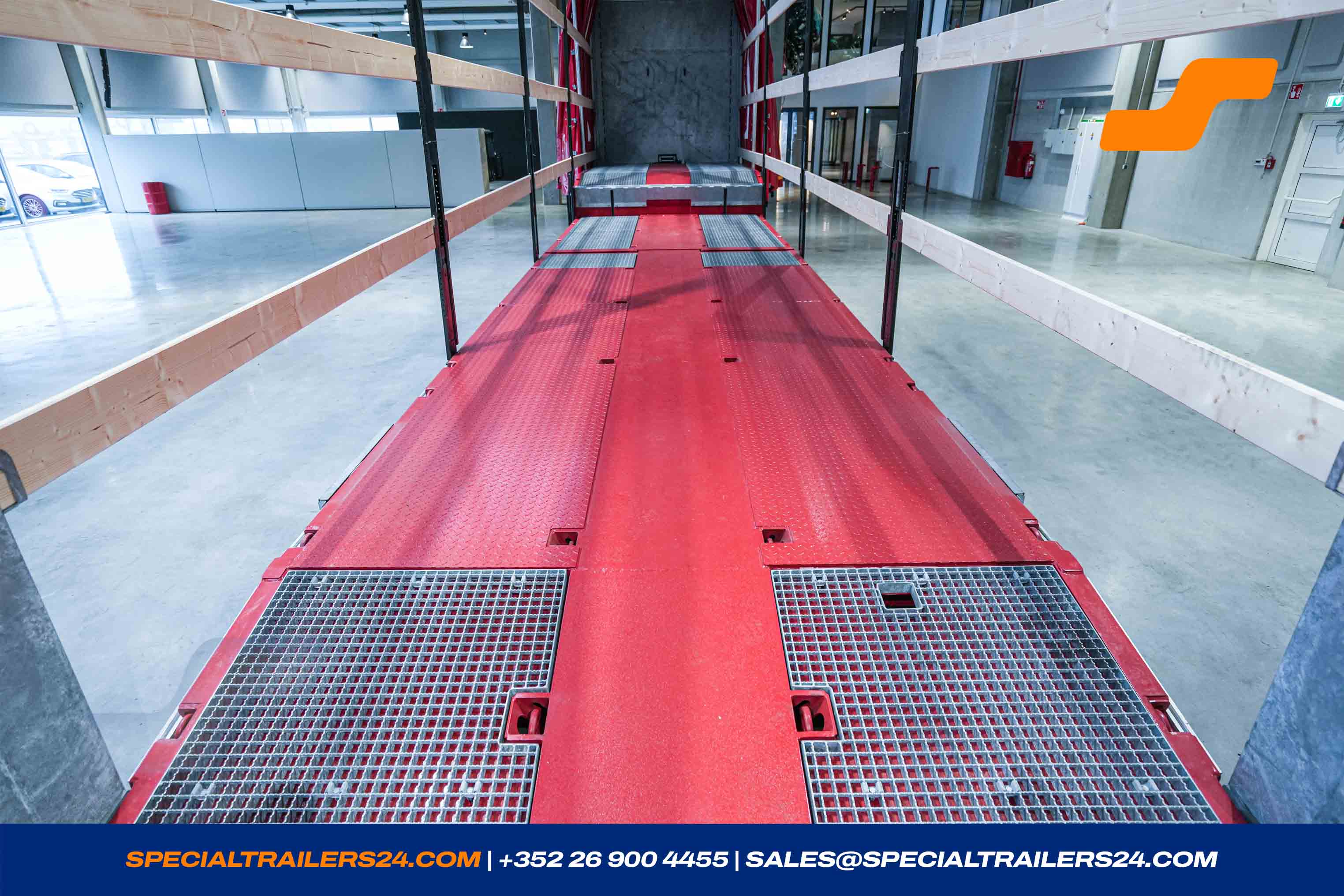

Loading platform
1 x Loading platform

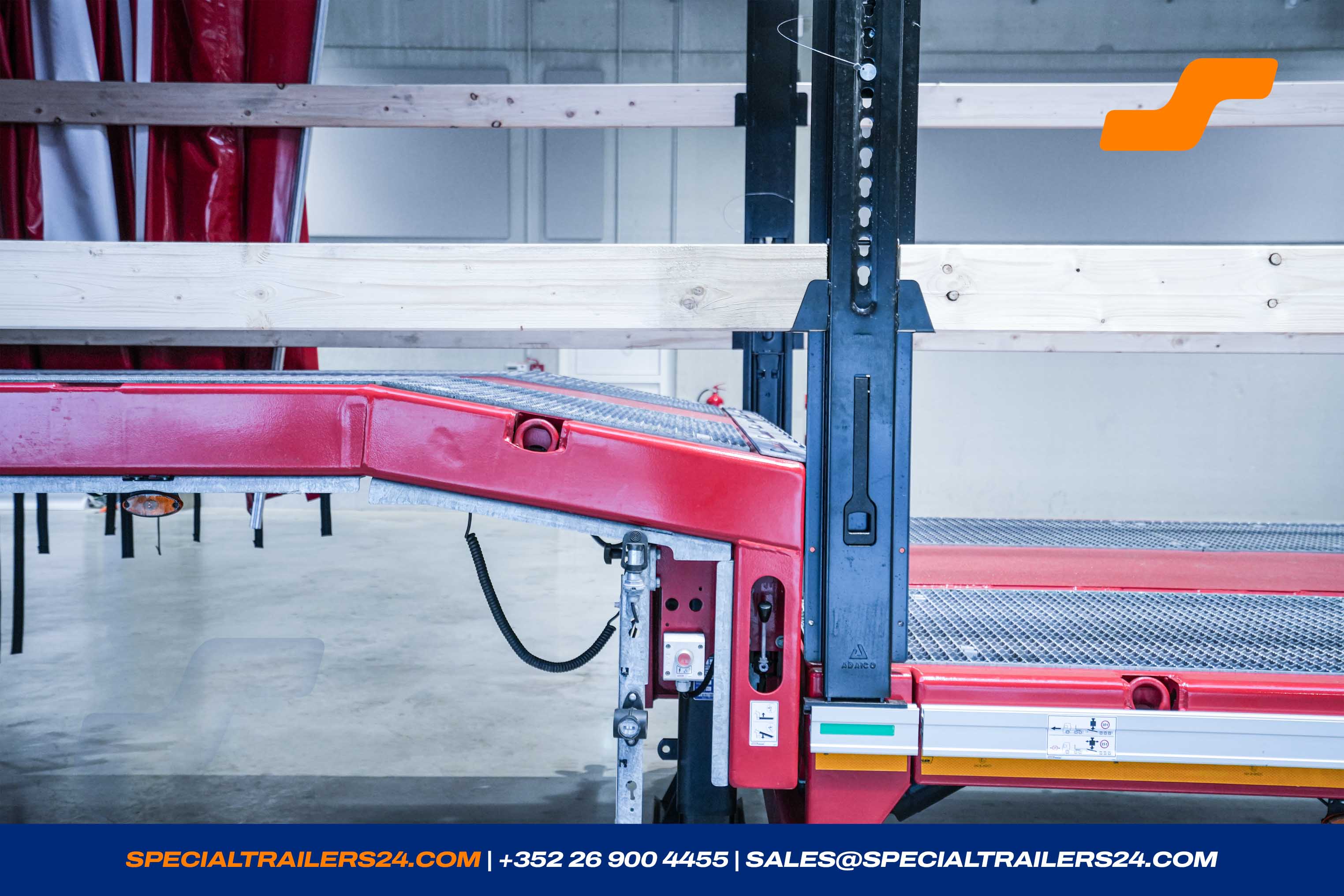

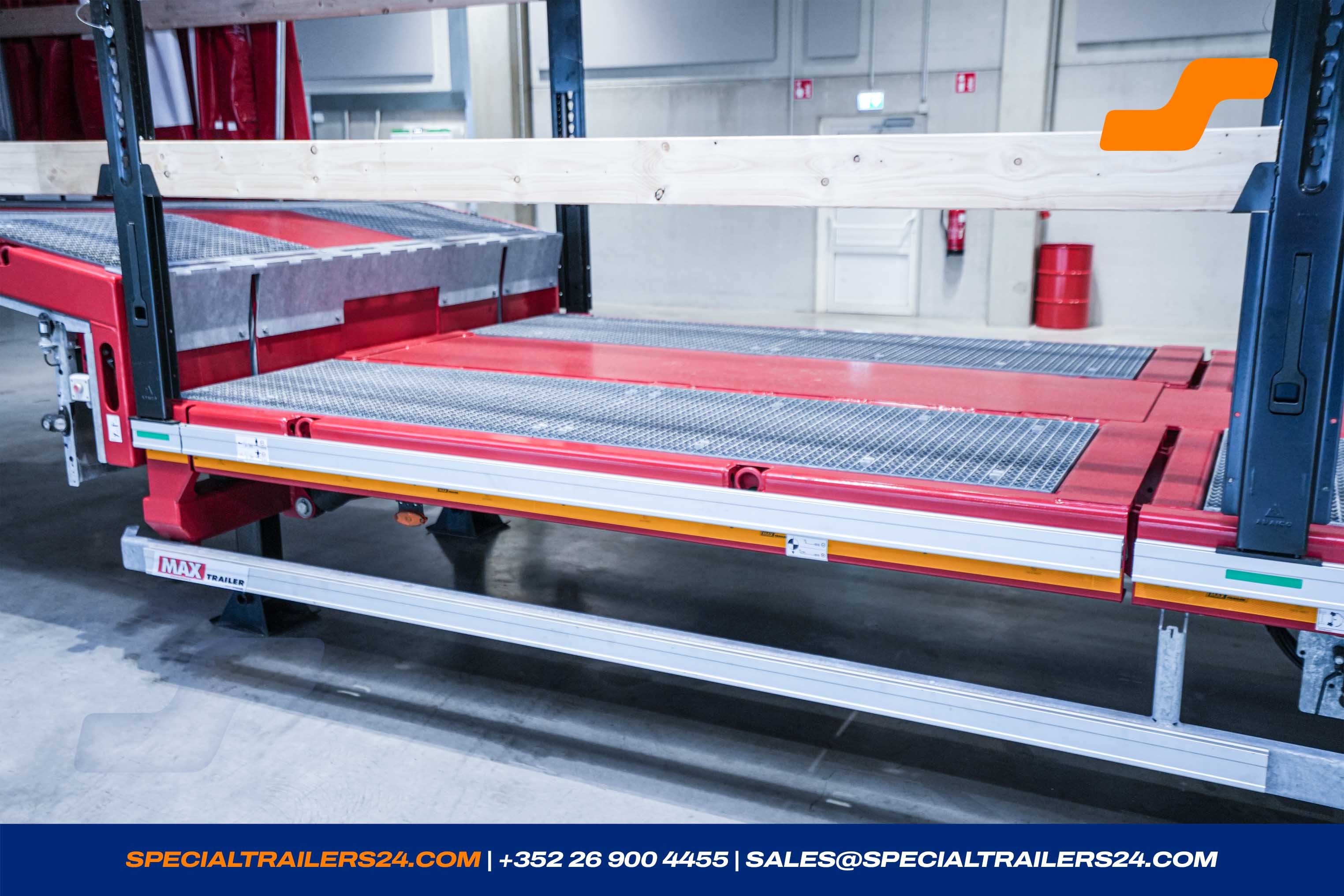

Loading platform behind the gooseneck with hydraulically lift- and lowerable loading area ca. 2 800 mm length, with chamfered beaver tail by about 1 000 mm x 8°.
6 pairs of lashing rings in the loading platform, hinged outwards (LC 5 000 daN).
2 pairs of lashing rings in the loading platform, hinged outwards (LC 10 000 daN).
1 pairs of lashing rings in the loading platform, hinged inwards at the front (LC 10 000 daN).

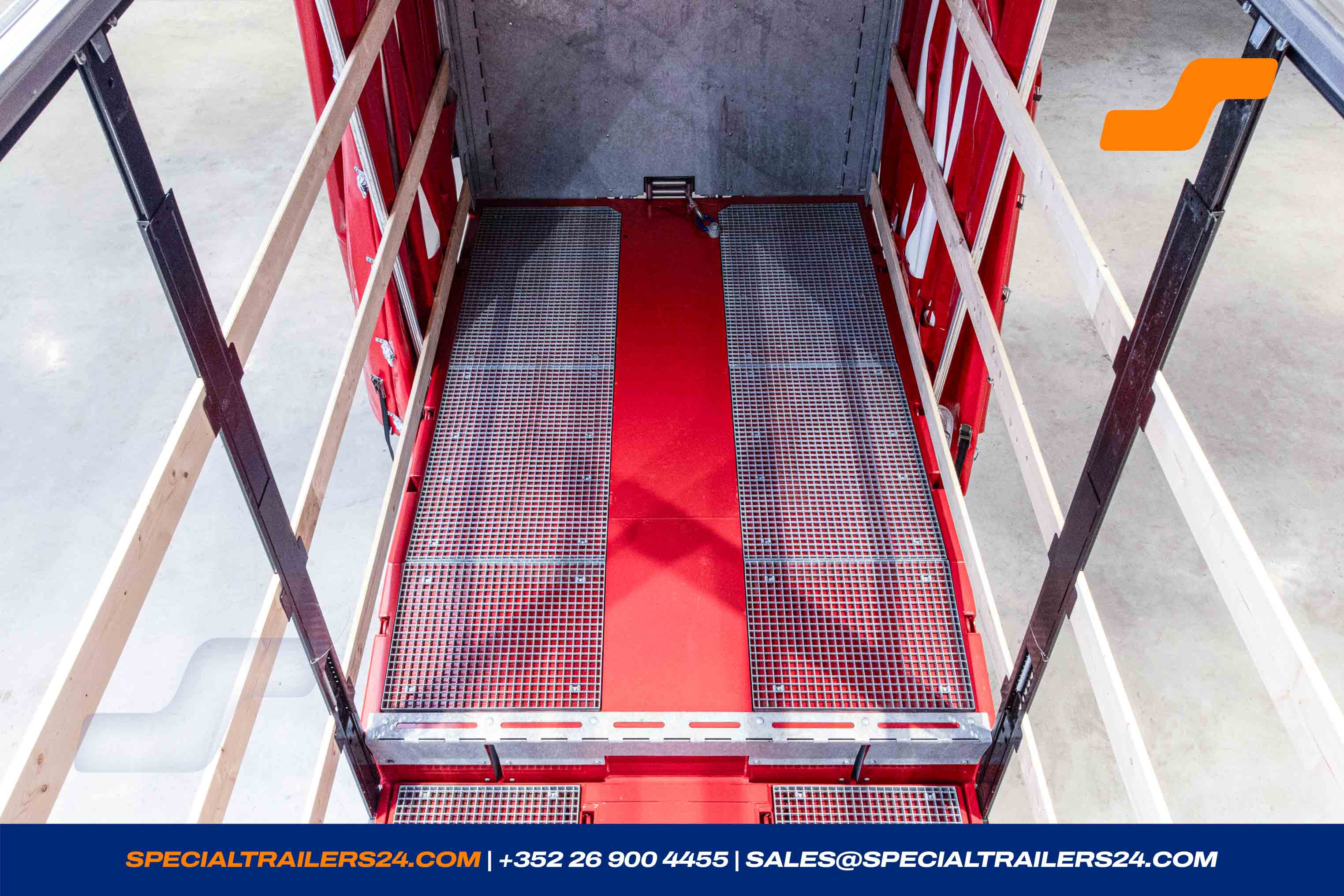

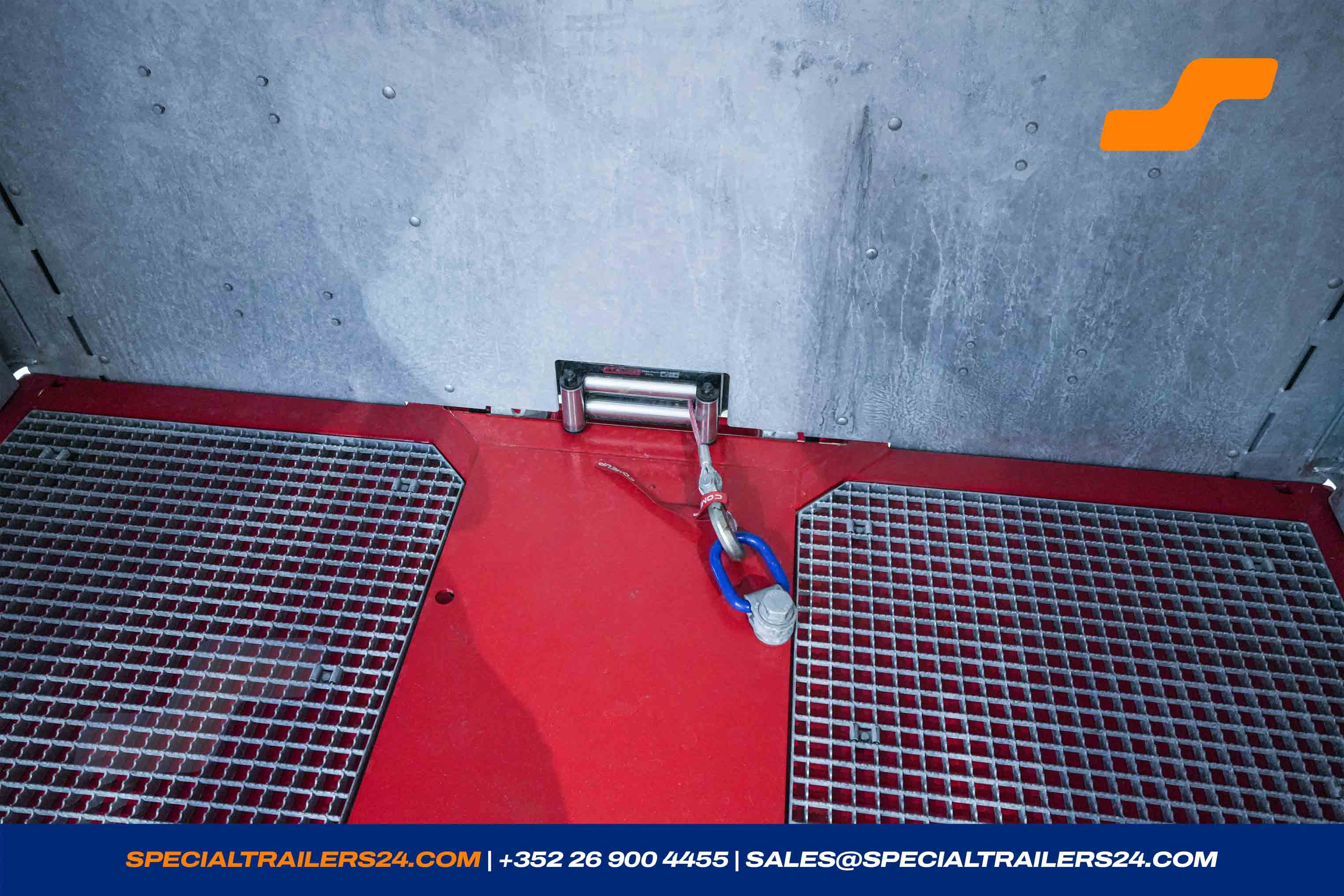

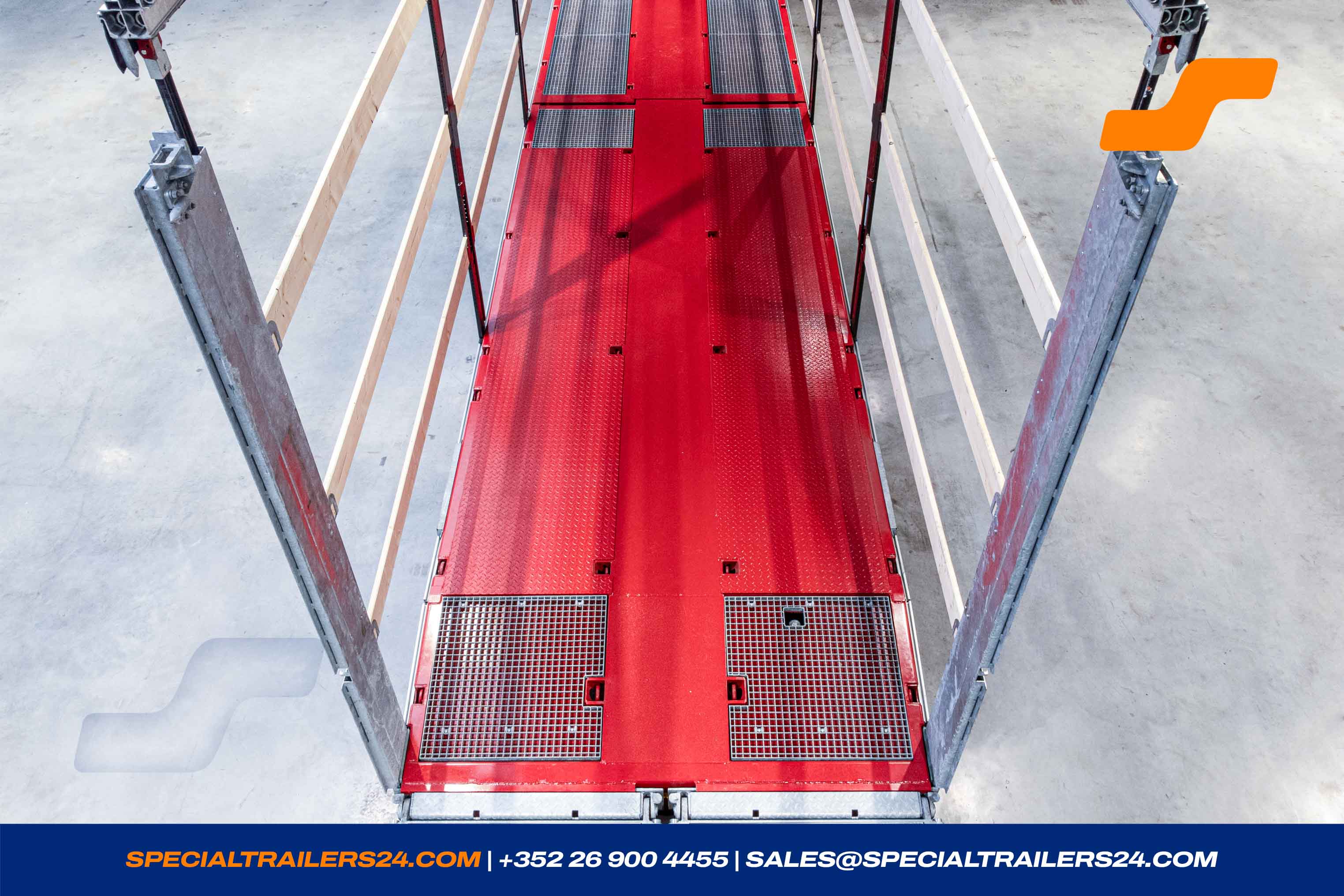

Grating floor C40/4 (for point load of 2.3to on a surface of 20 x 20 cm), above of the axles chequer plate.
-

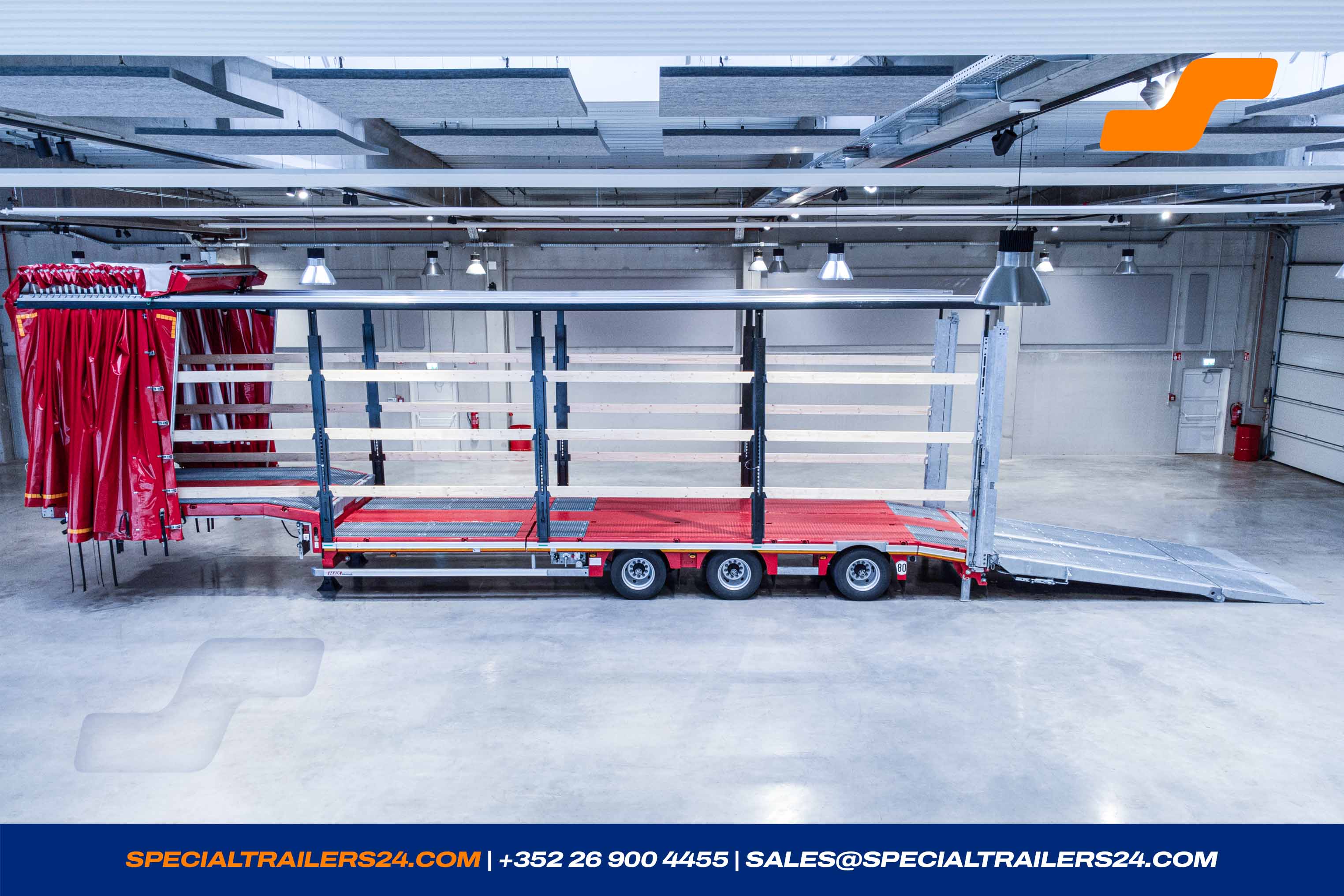

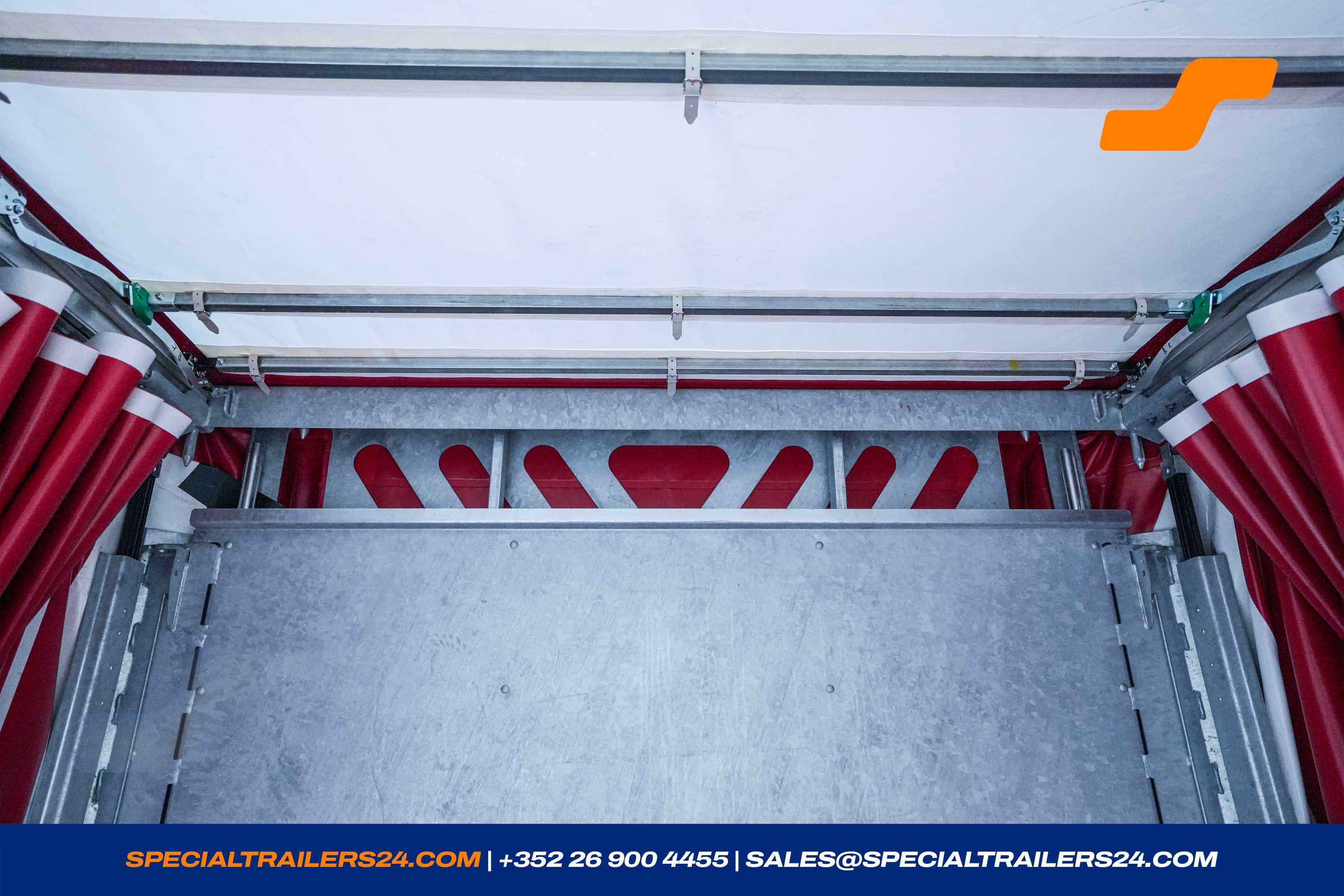

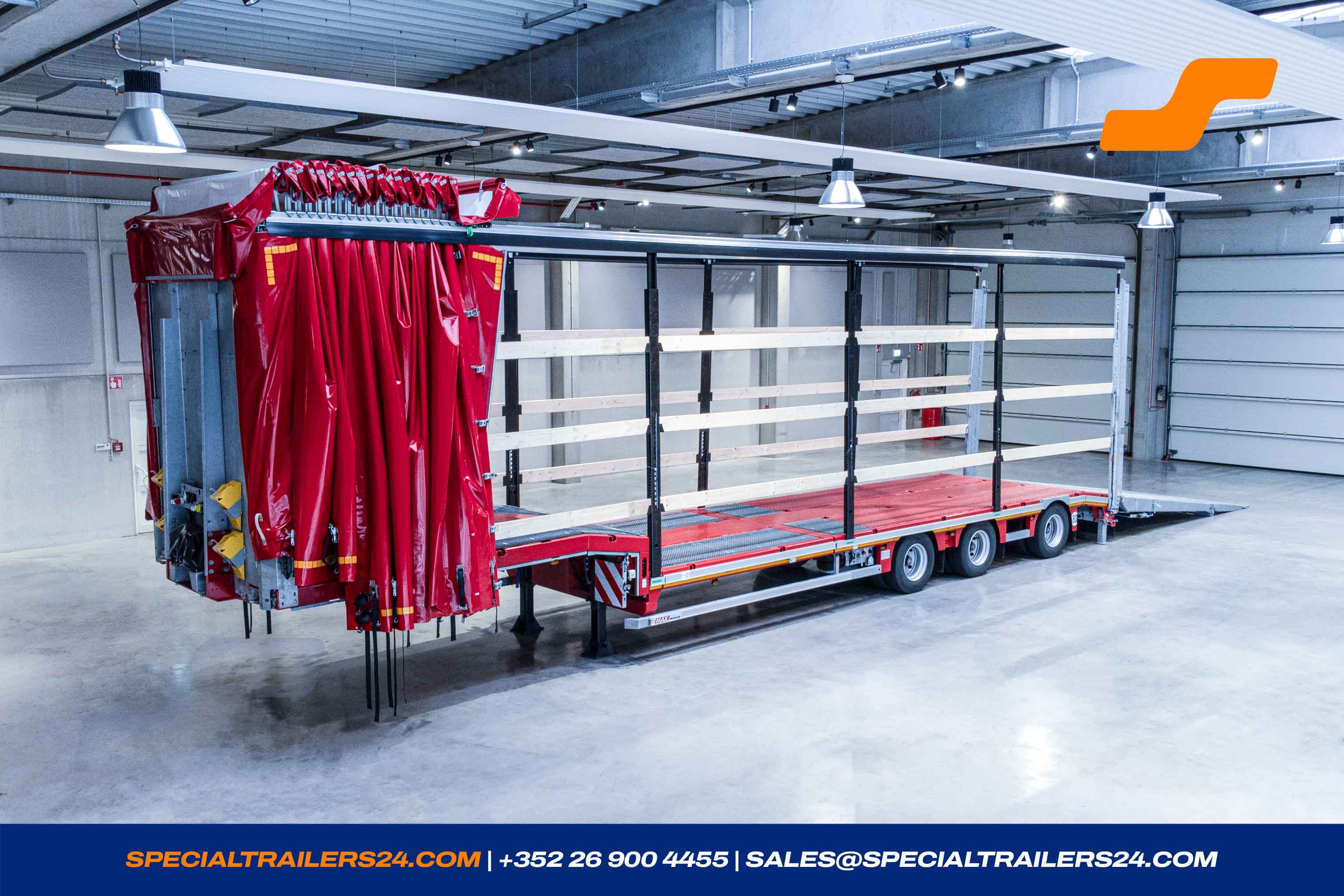

Height-ajustable superstructure ***3.960 mm***:

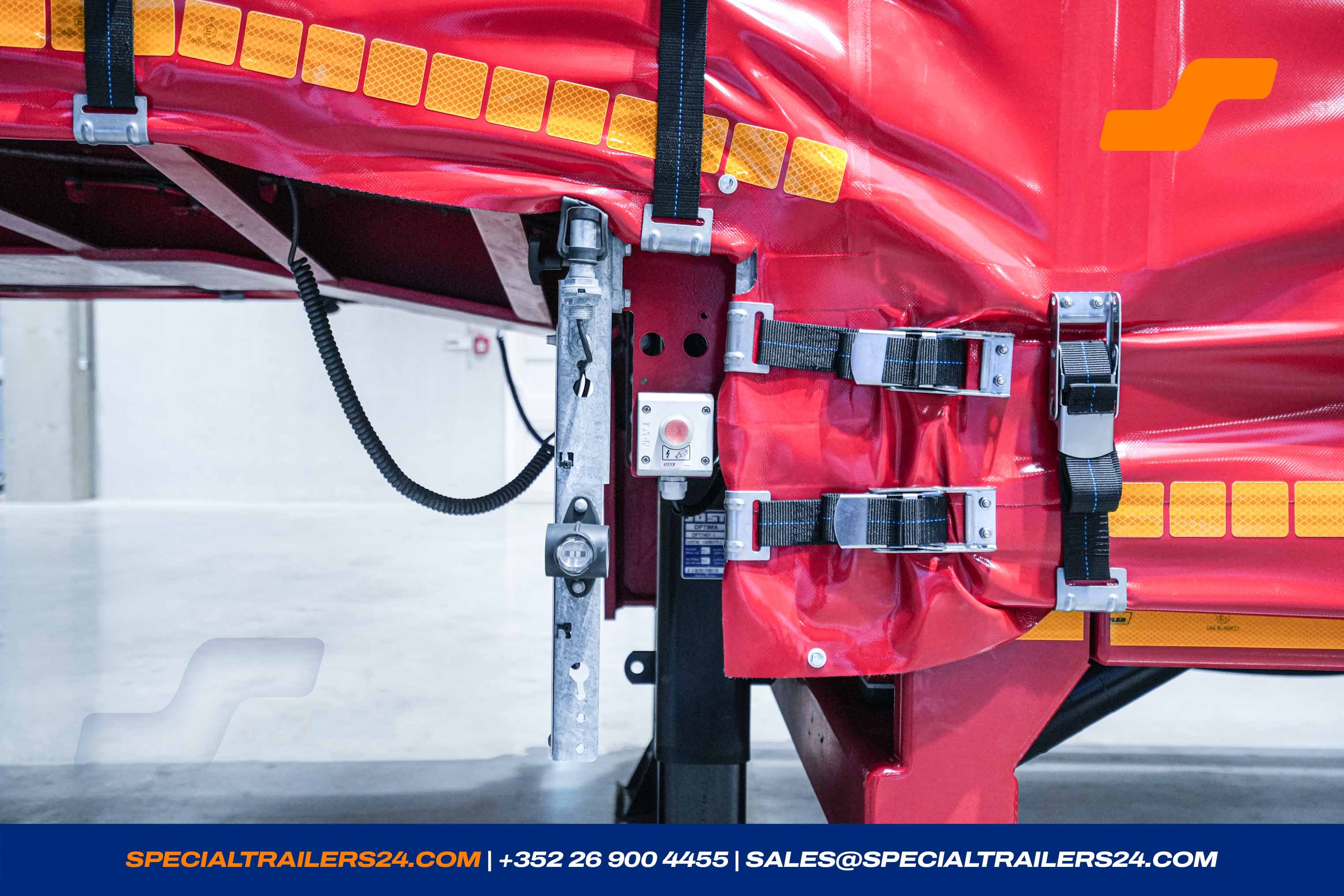

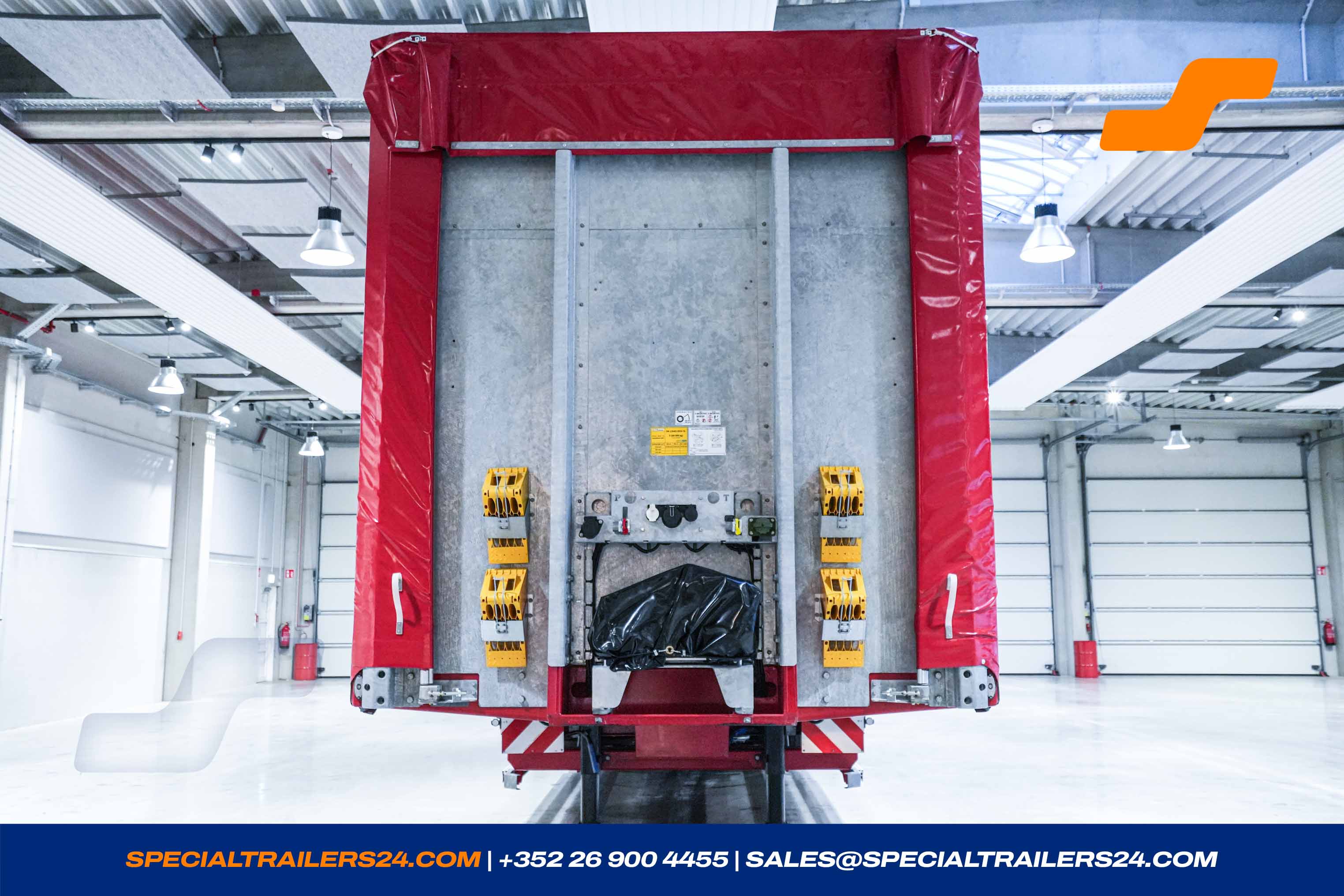

- Front headboard galvanised steel,with a tensioning mechanism for the curtainsider.

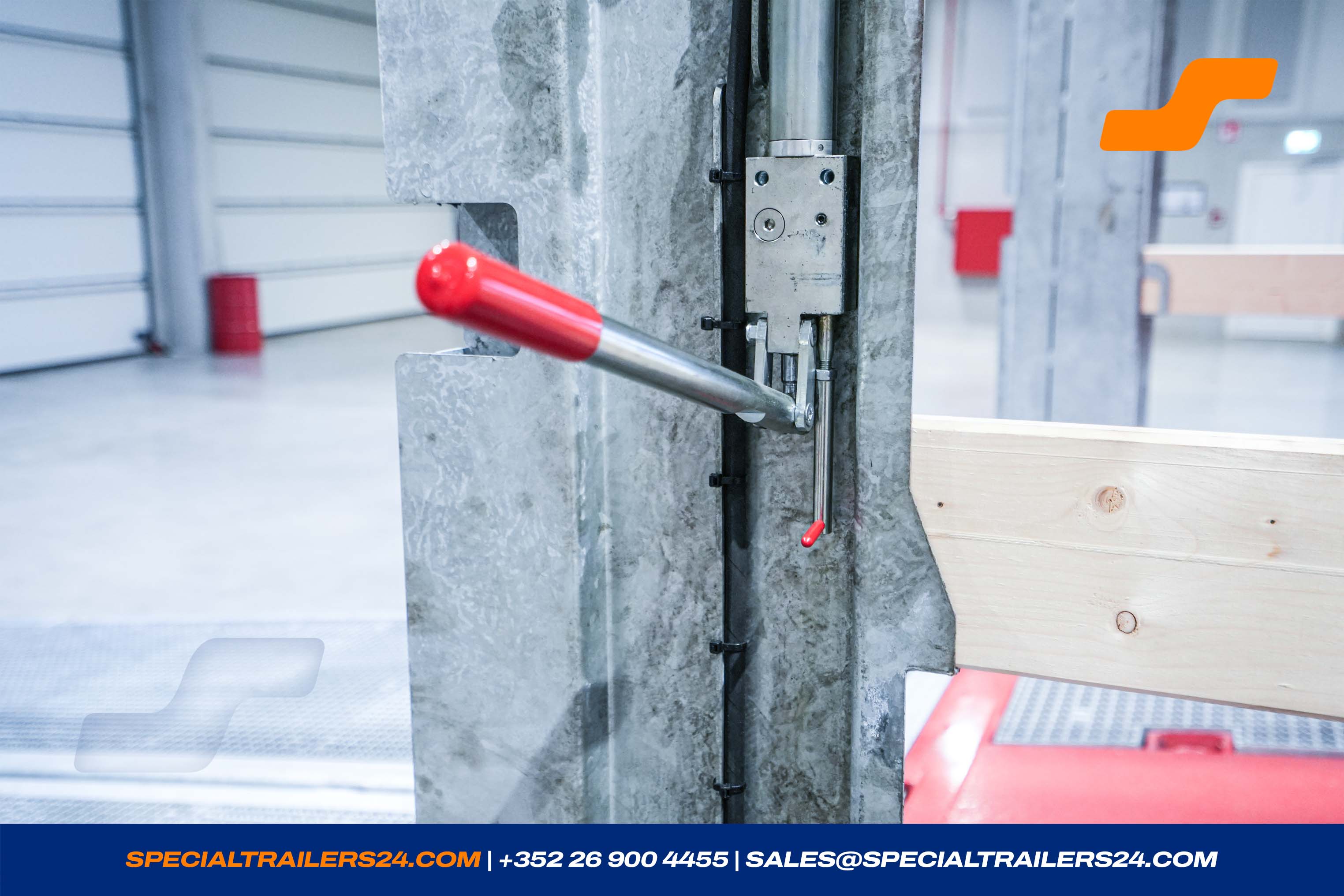

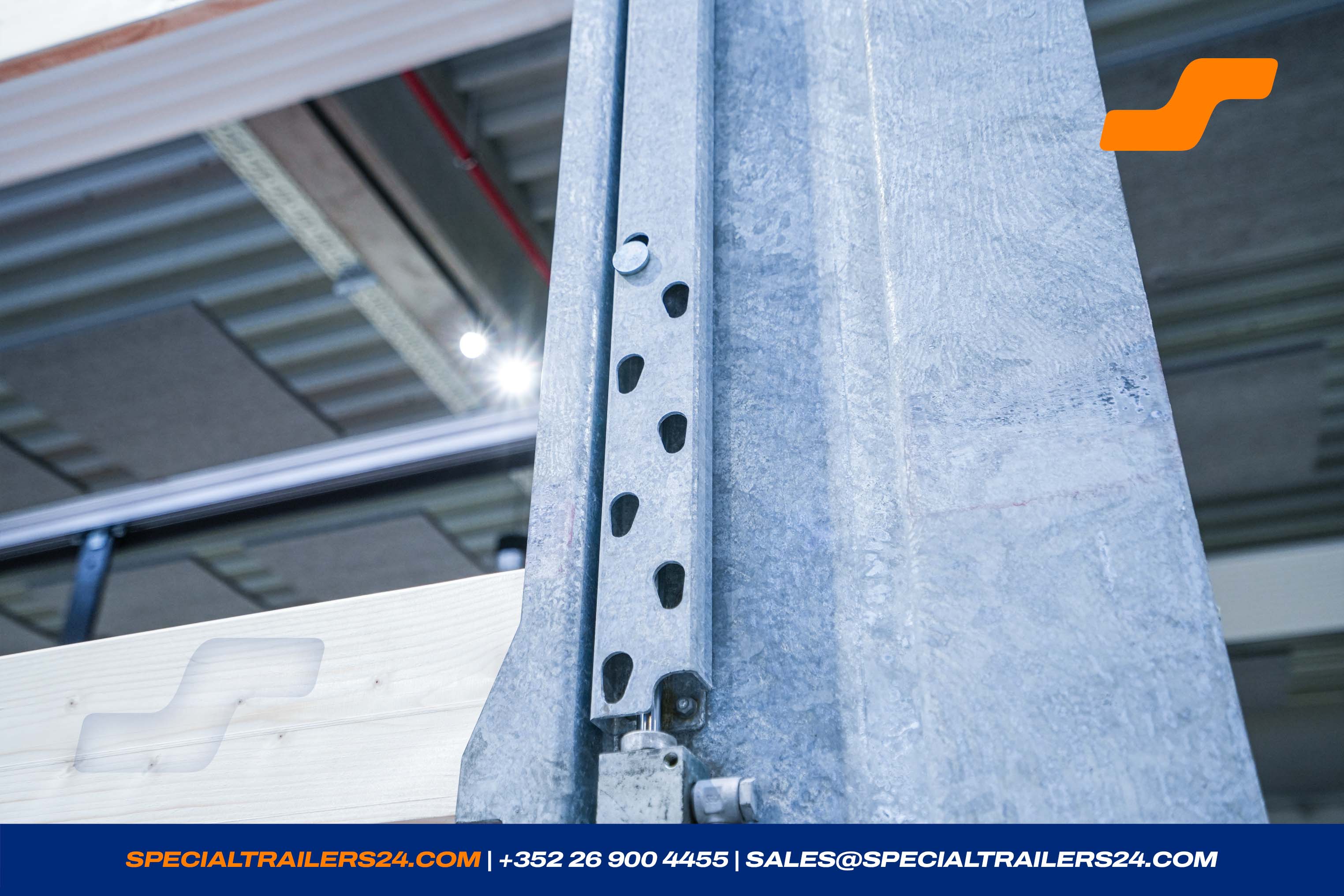

Height-adjustable by approx. 400 mm.
- EDSCHAroof sliding forwards on ALU roof belt profiles (bolted to front and rear wall).

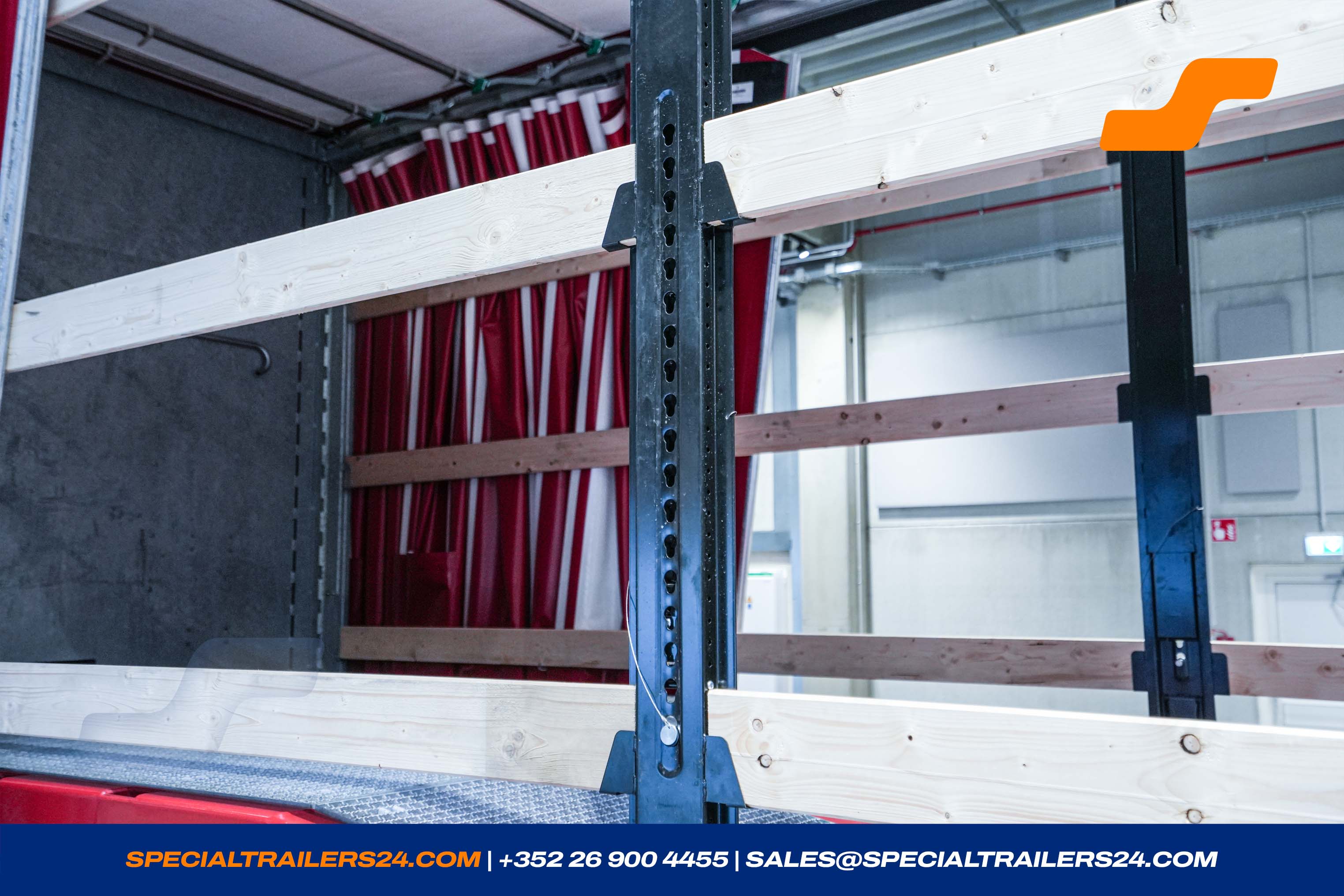

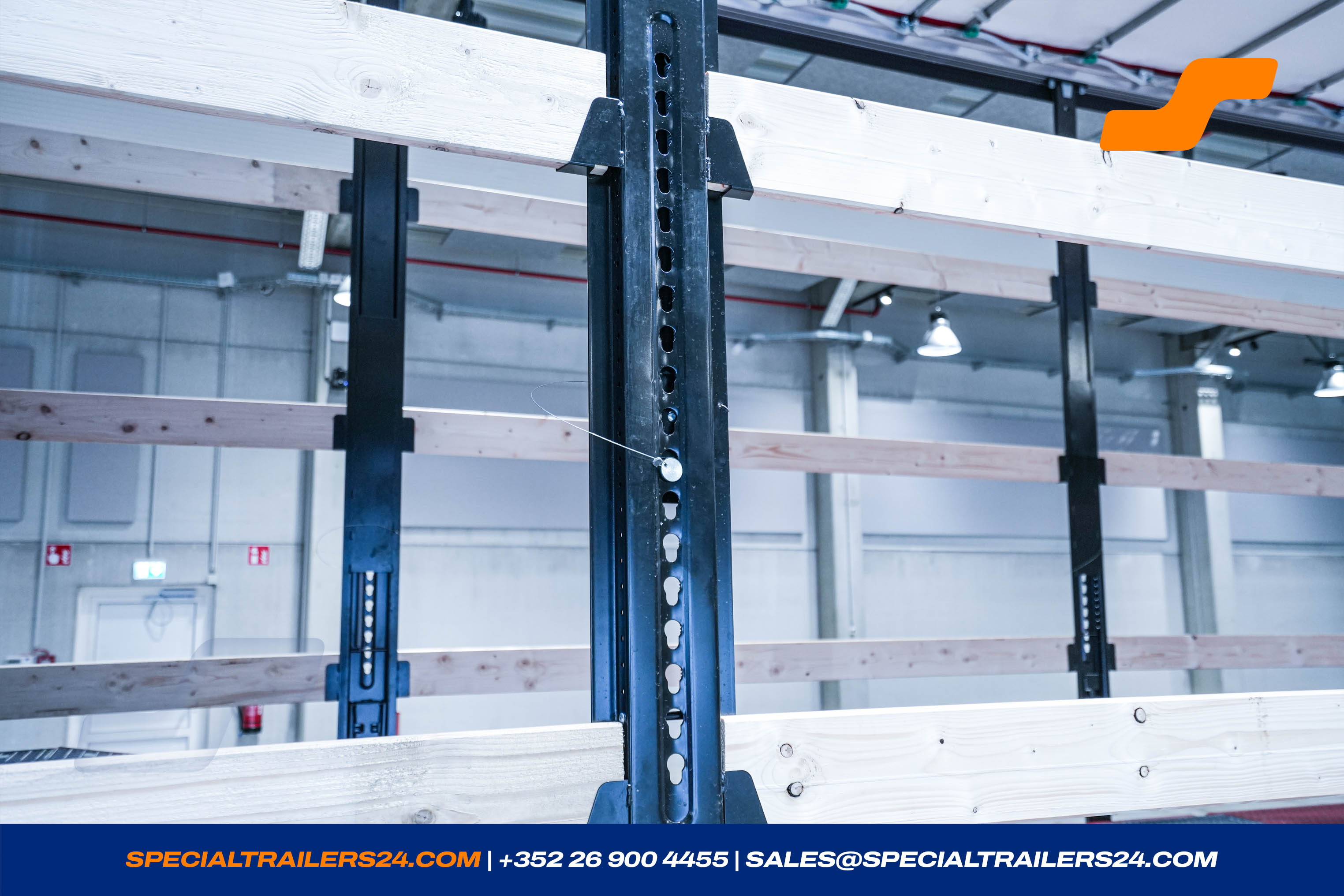

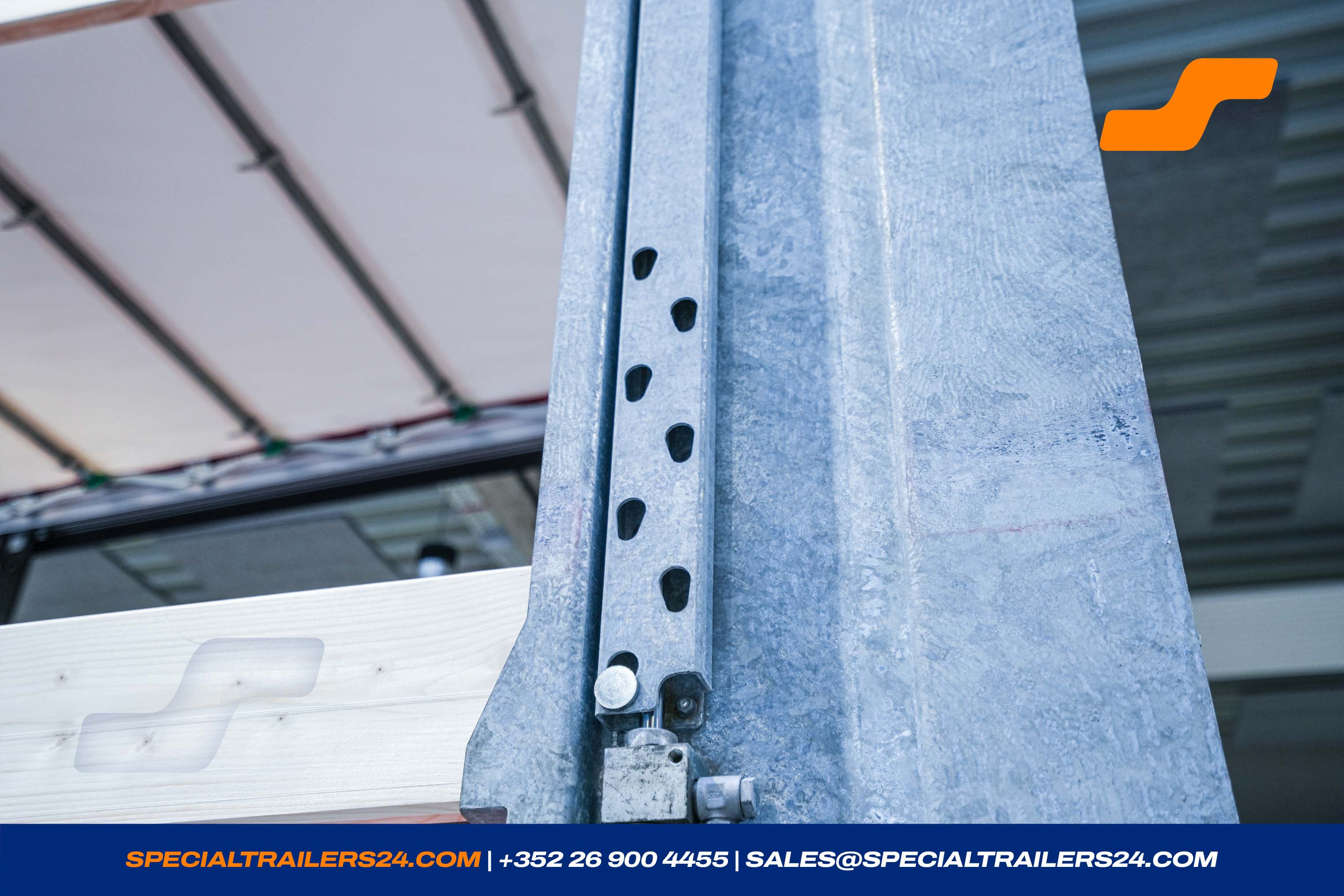

- On the loading area 3 pairs of sliding stakes.

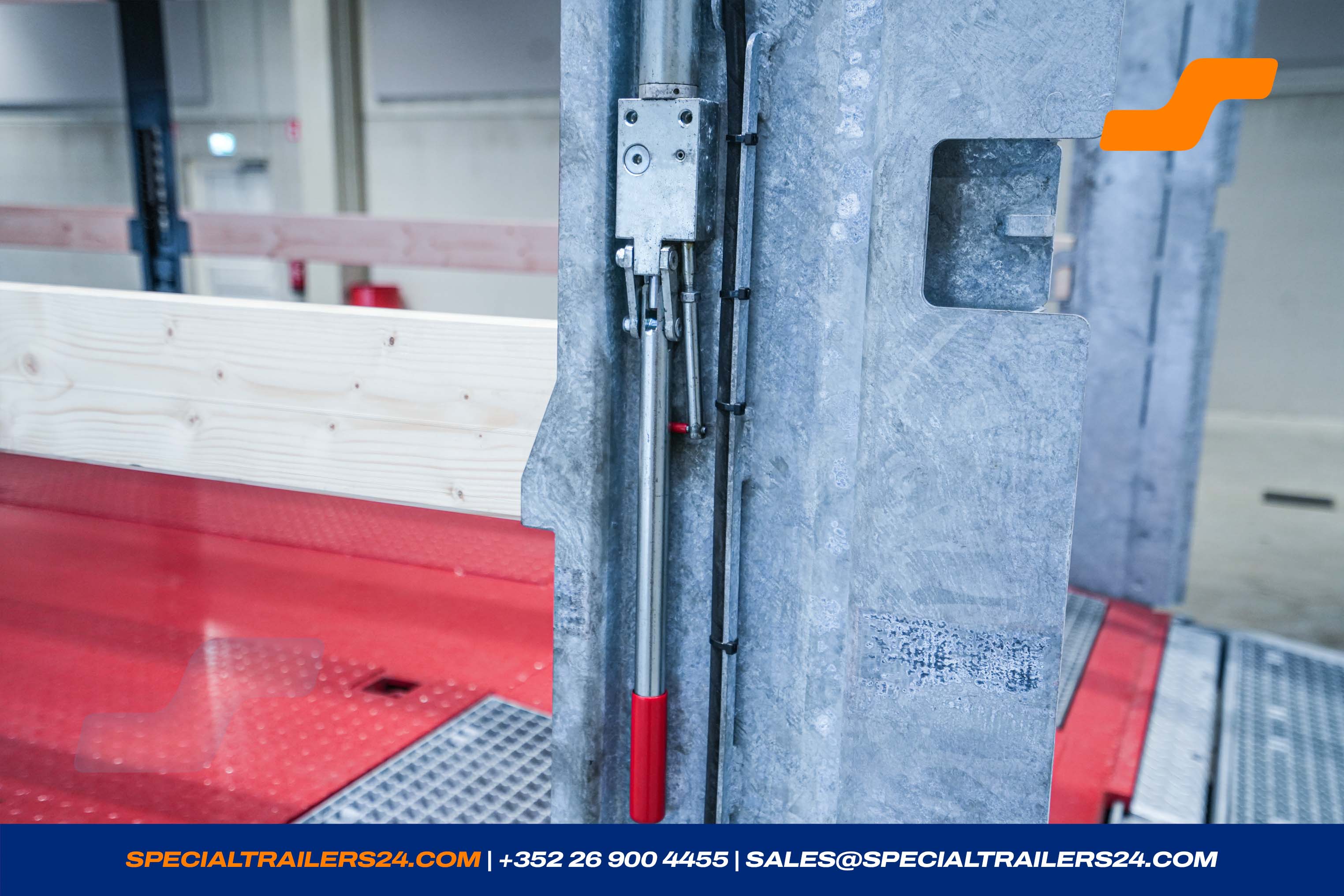

- The rear corner stakes can be hydraulically extended by 750 mm to the left and right.
- Sliding roof with high-swinging portal beam.

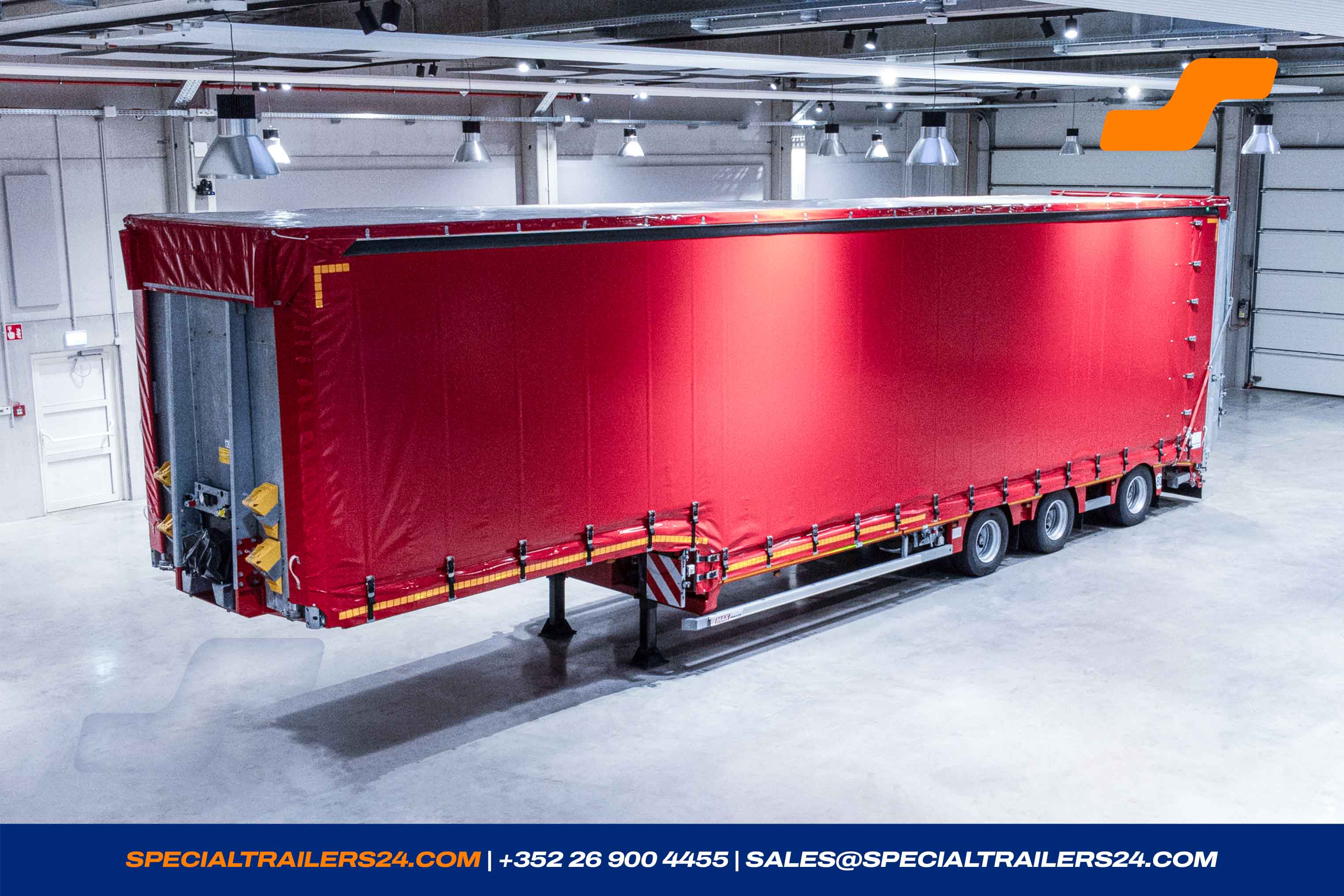

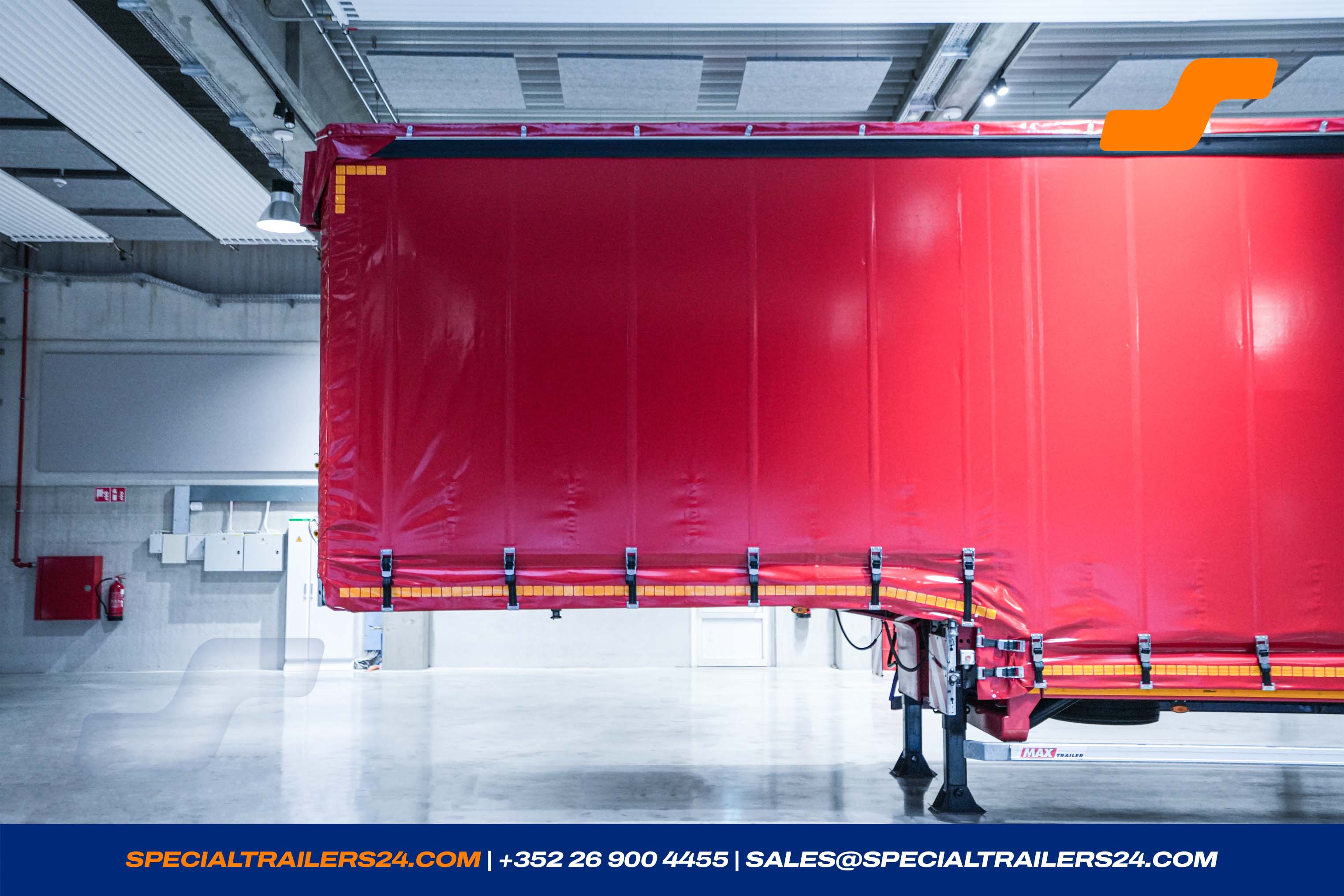

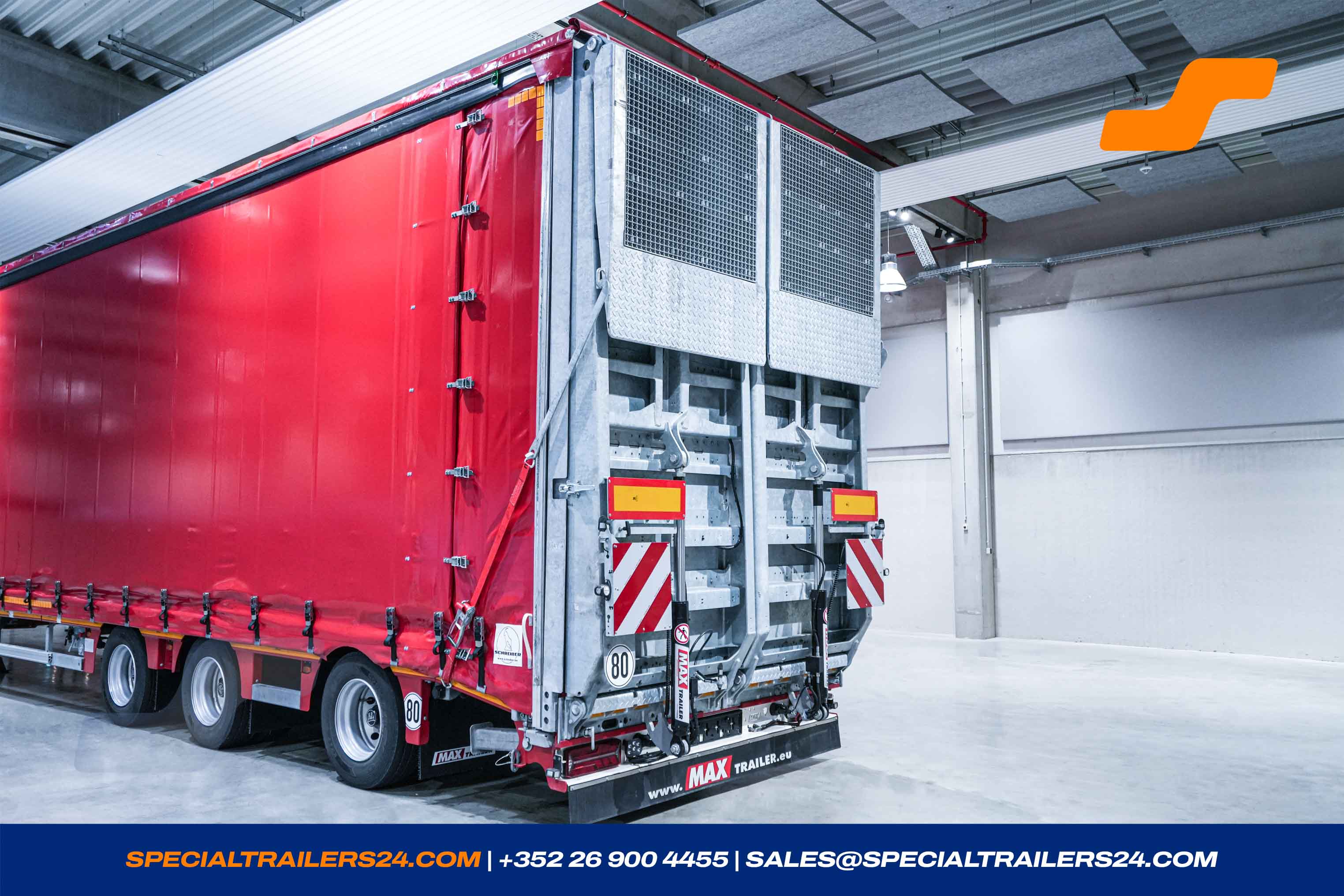

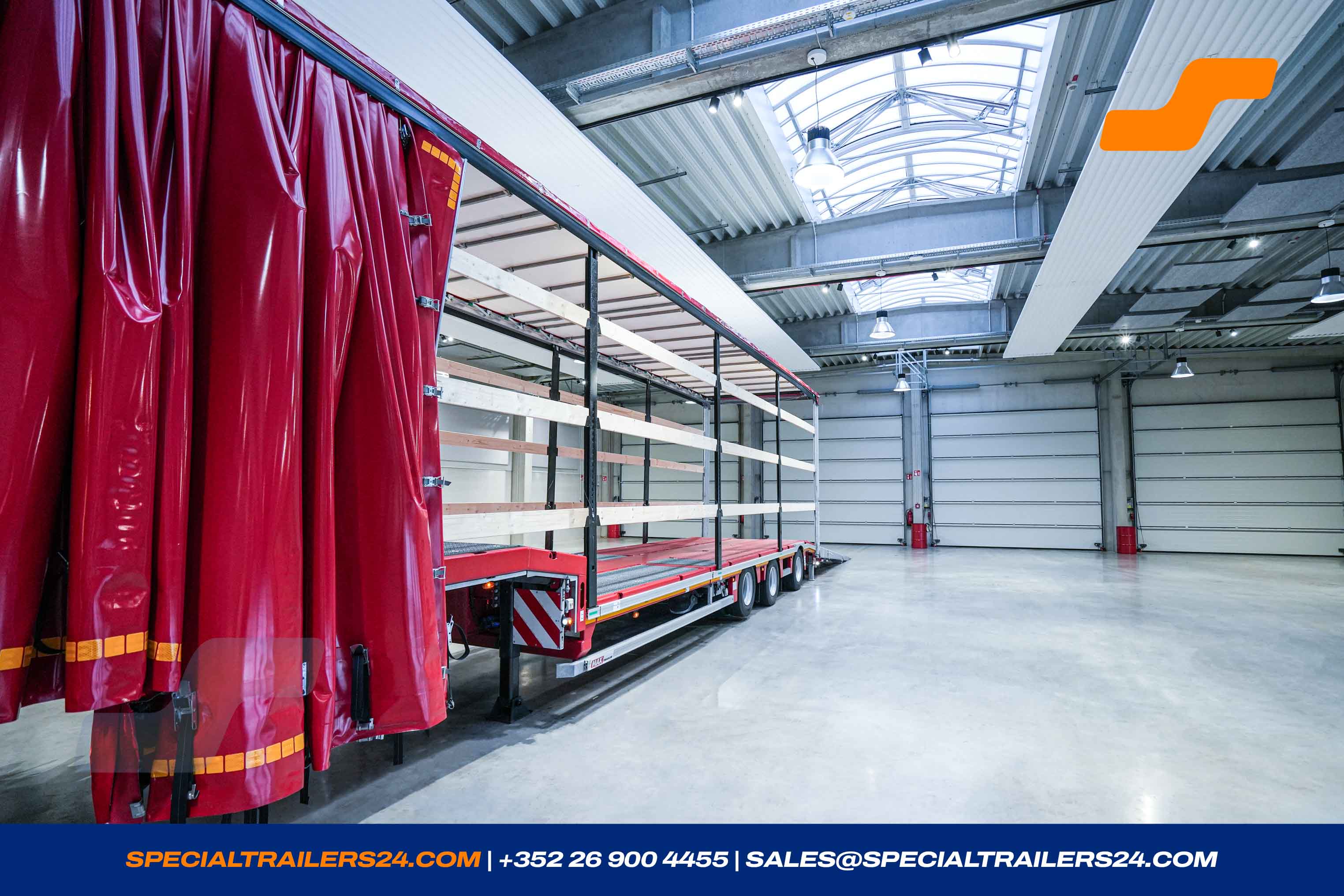

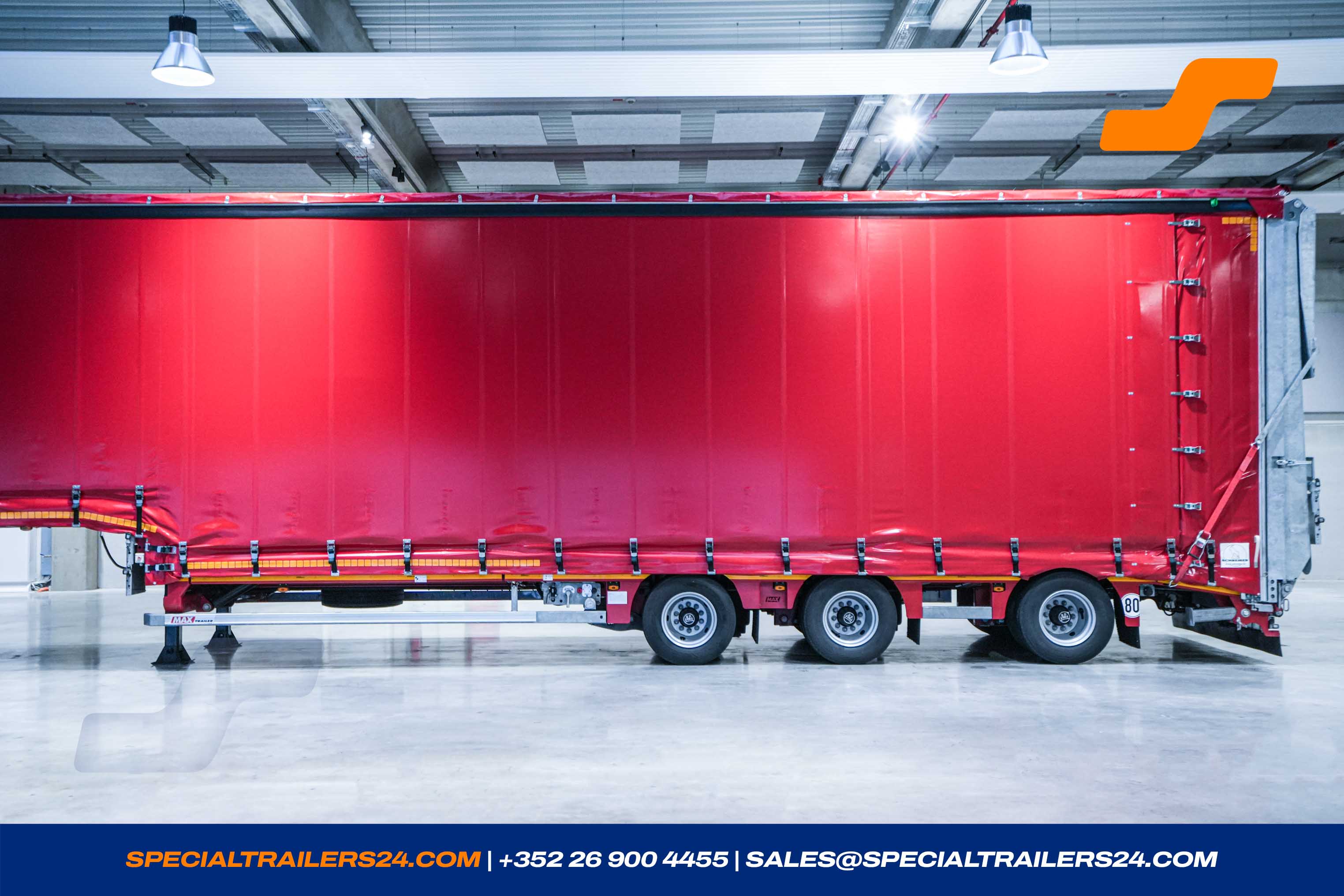

- Sliding tarpaulin with 700 mm reserve in length, with tensioning straps at intervals of approx. 600 mm.
Height of upper edge of construction 3.960 mm (Loaded).

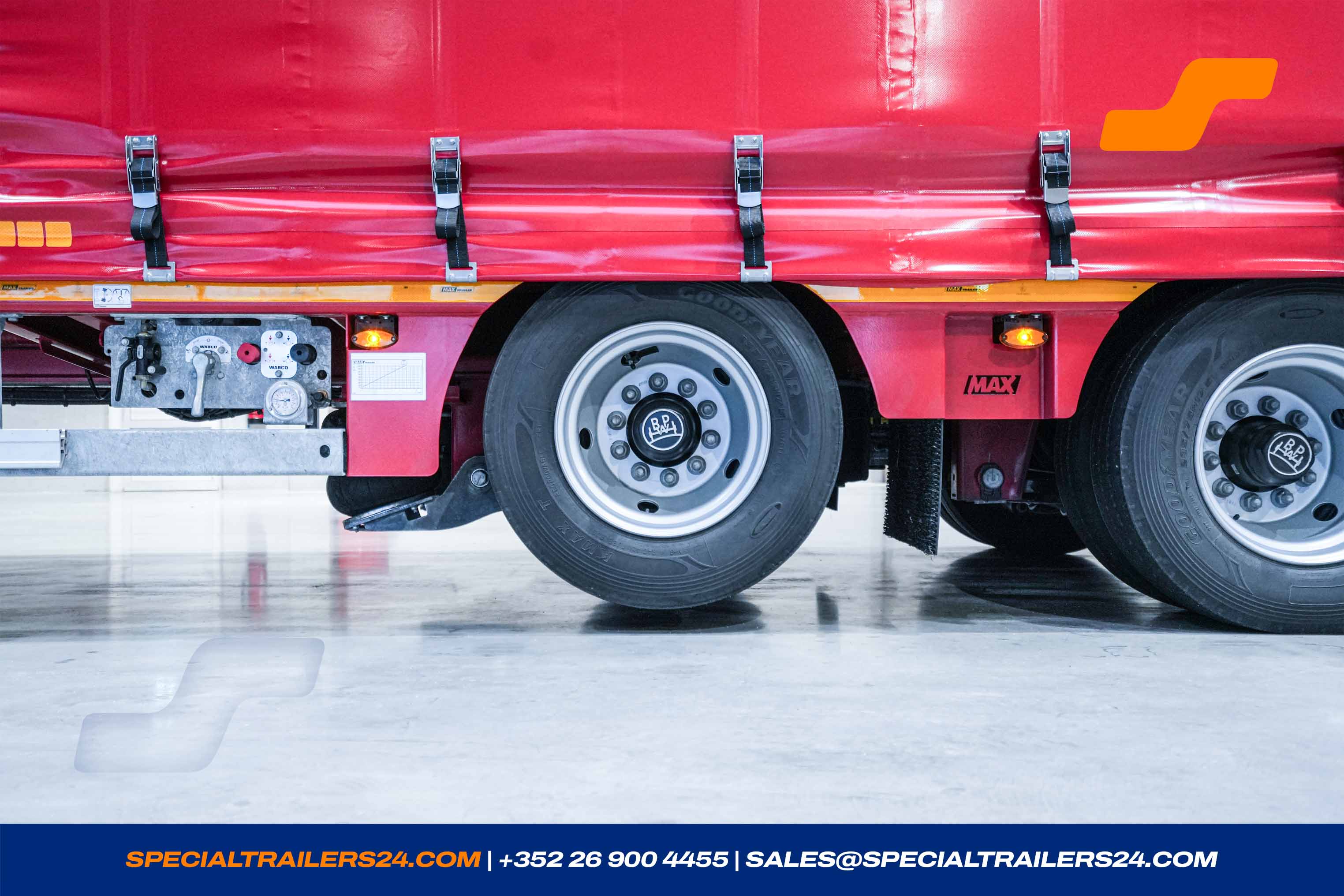

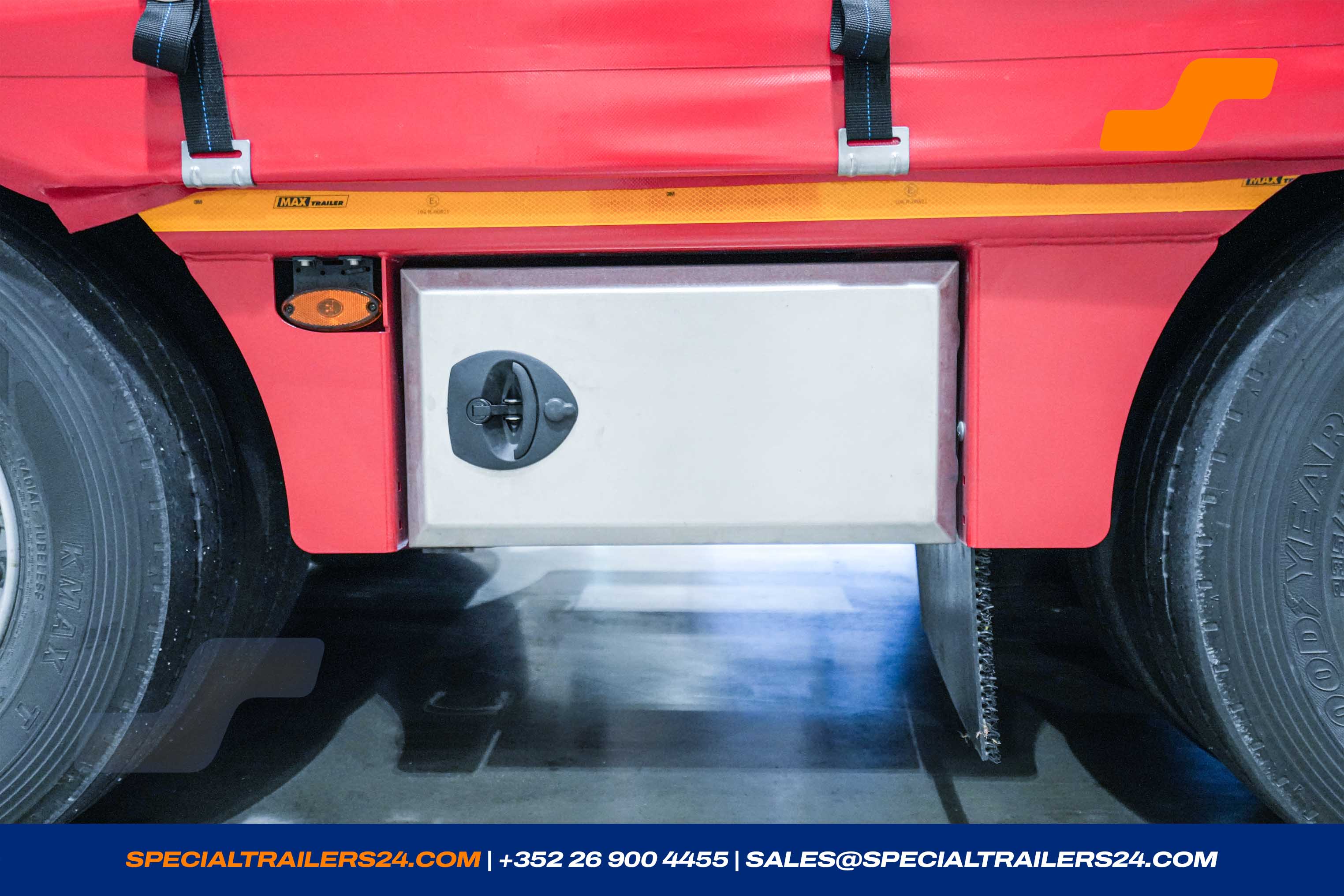

- Driving with the sliding roof open is not permitted and will damage the tarpaulin. - Tool box INOX 565 x 290 x 810 mm in driving direction on the right side, between the axles. (± 45 kg)
- 2 LED- reversing lights at the rear.
- 1 LED working lamp left and right inside the superstructure, operable via on-off switch .
- 1 LED reversing lamp left and right in front of the first axle.

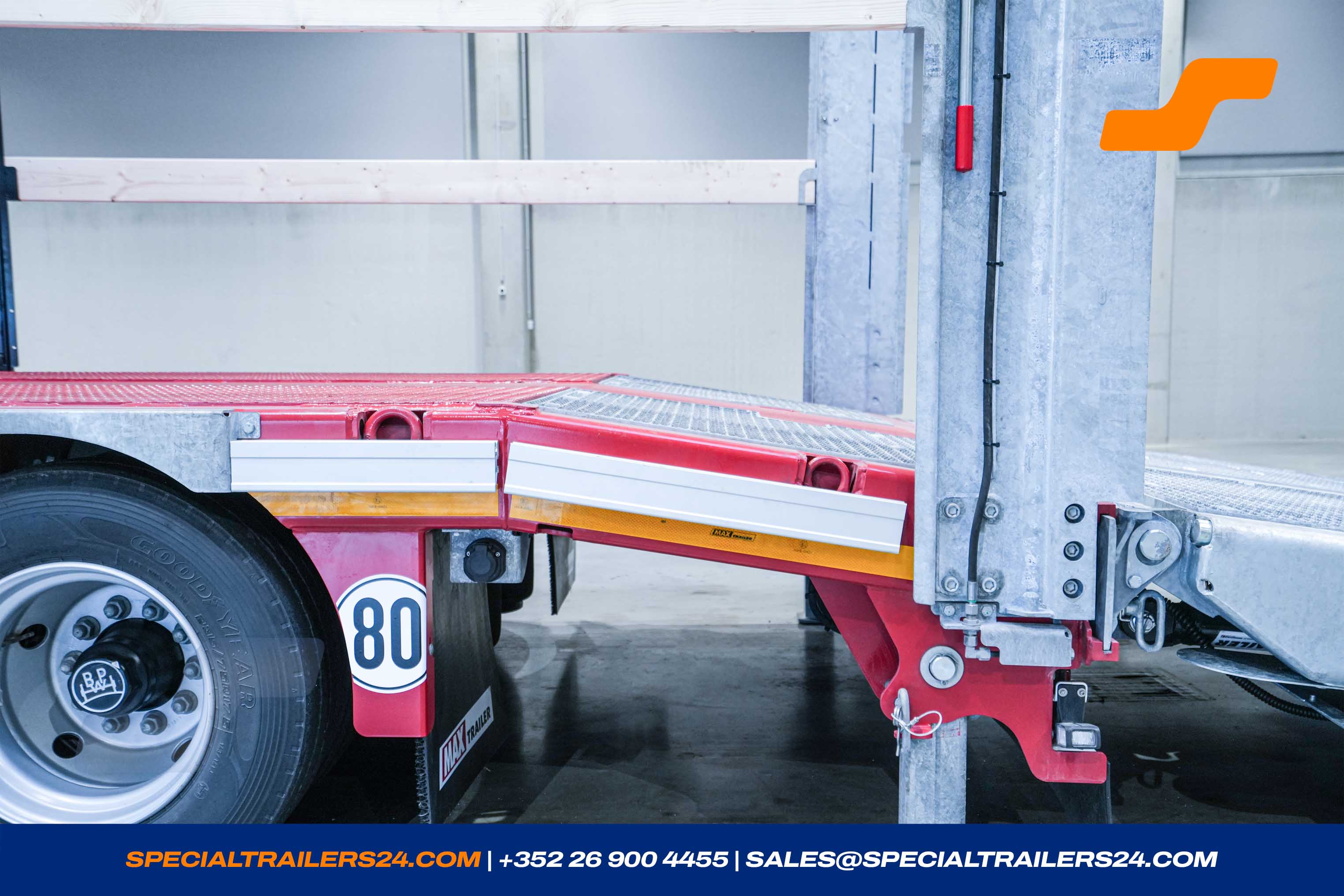

- Speed sticker 60, 80 & 90 km/h at the rear.
- Acoustic warning signal when reversing.

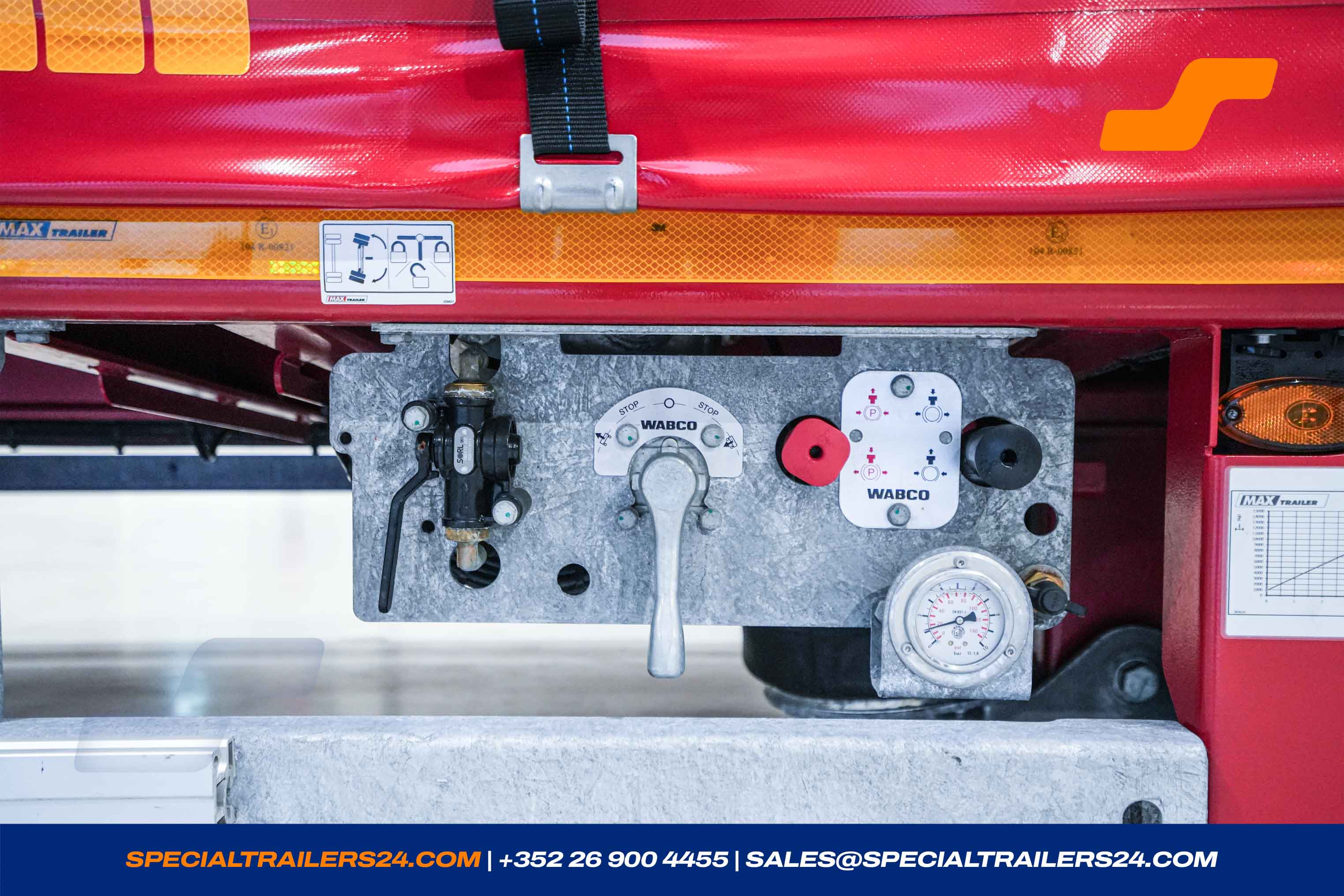

- Load manometer for determining the axle load, including load diagram.
Ramps

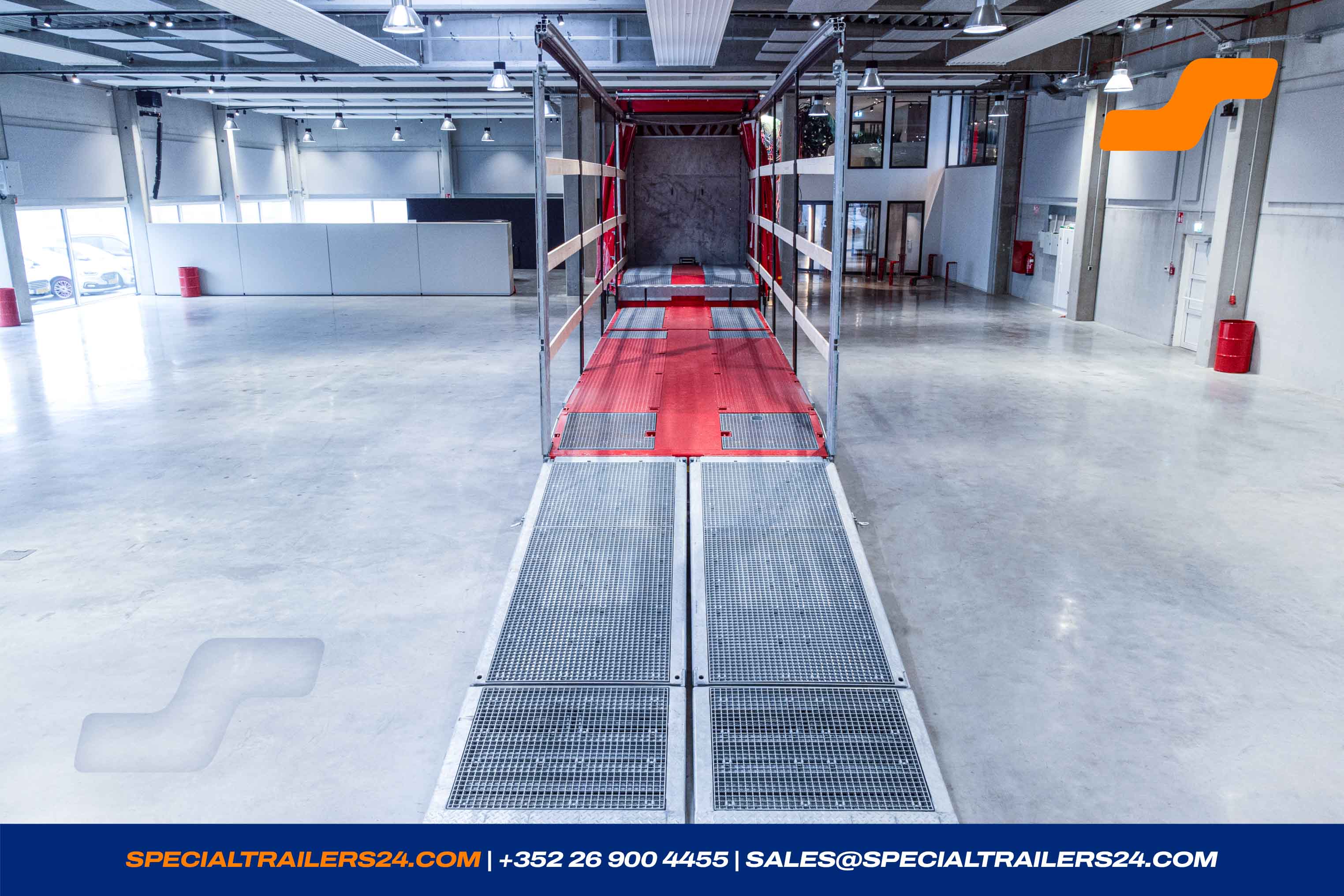

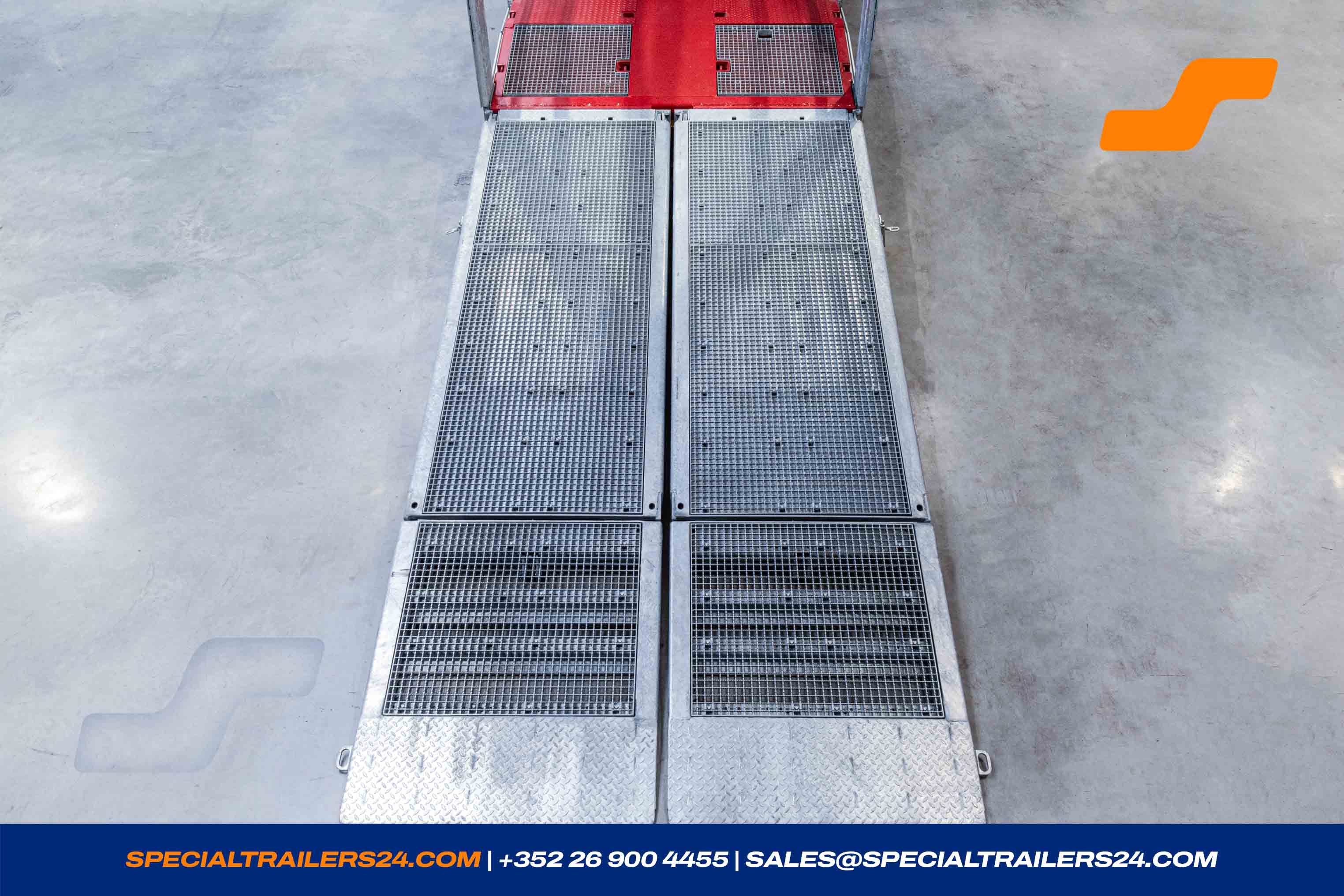

Hydraulic loading ramps

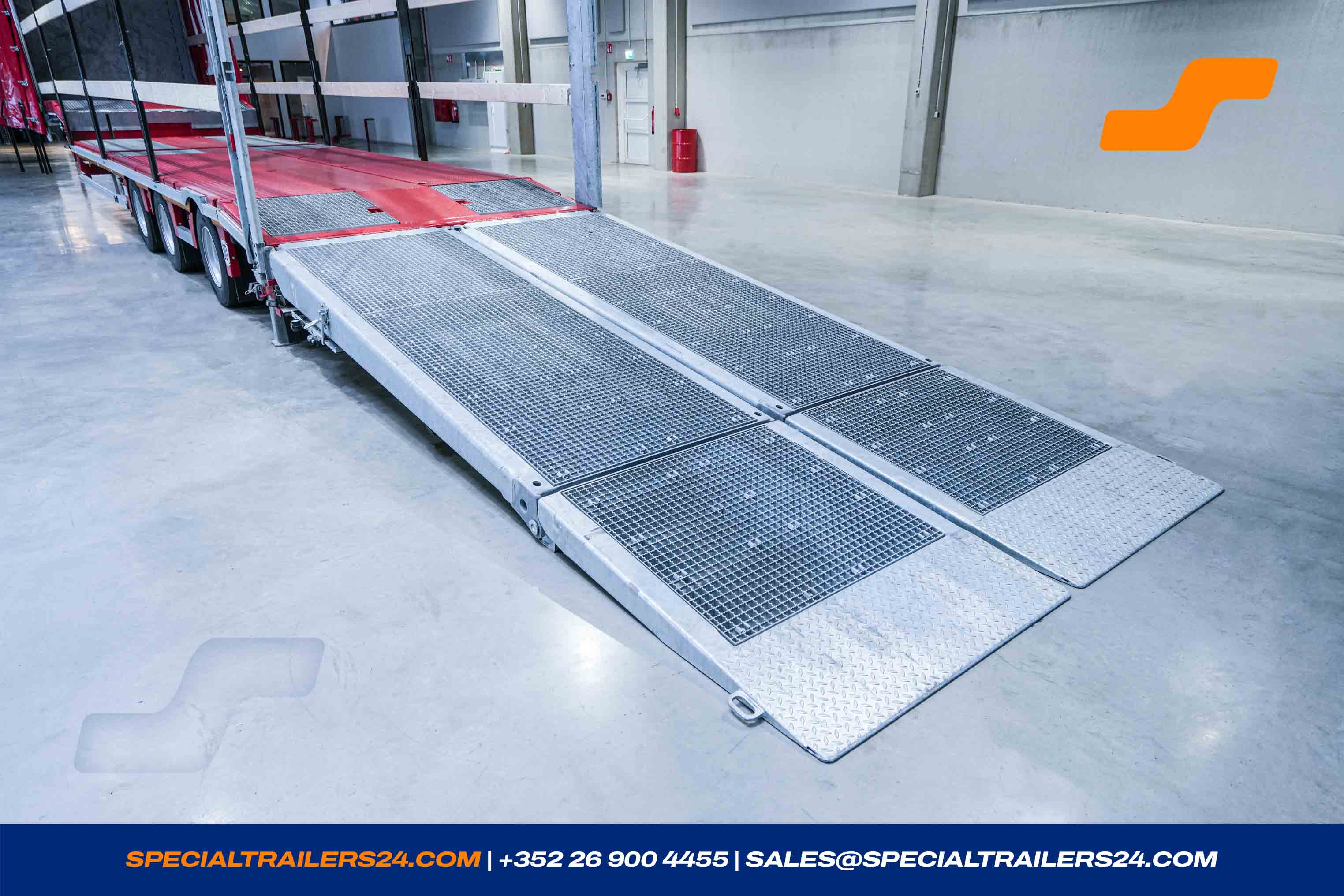

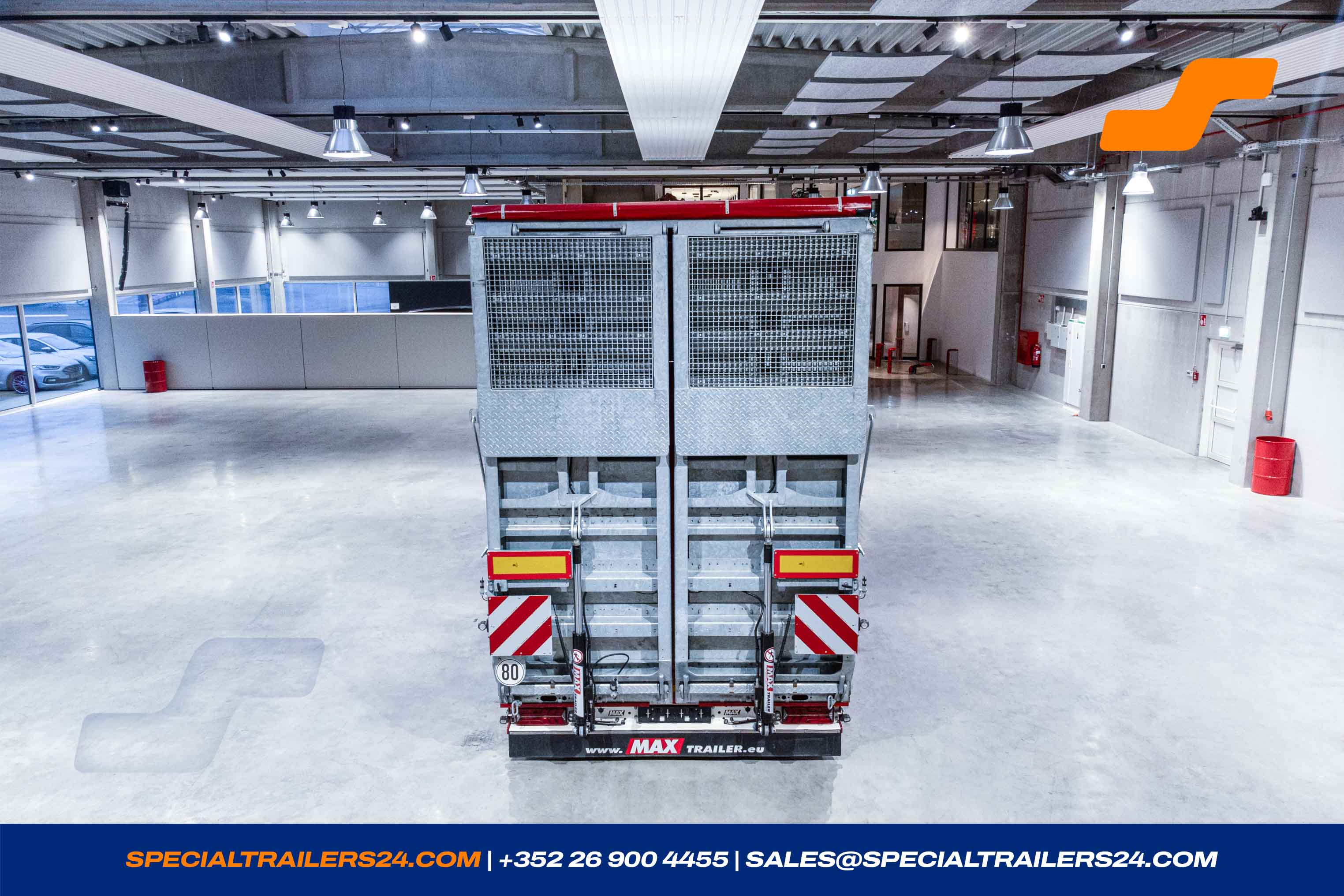

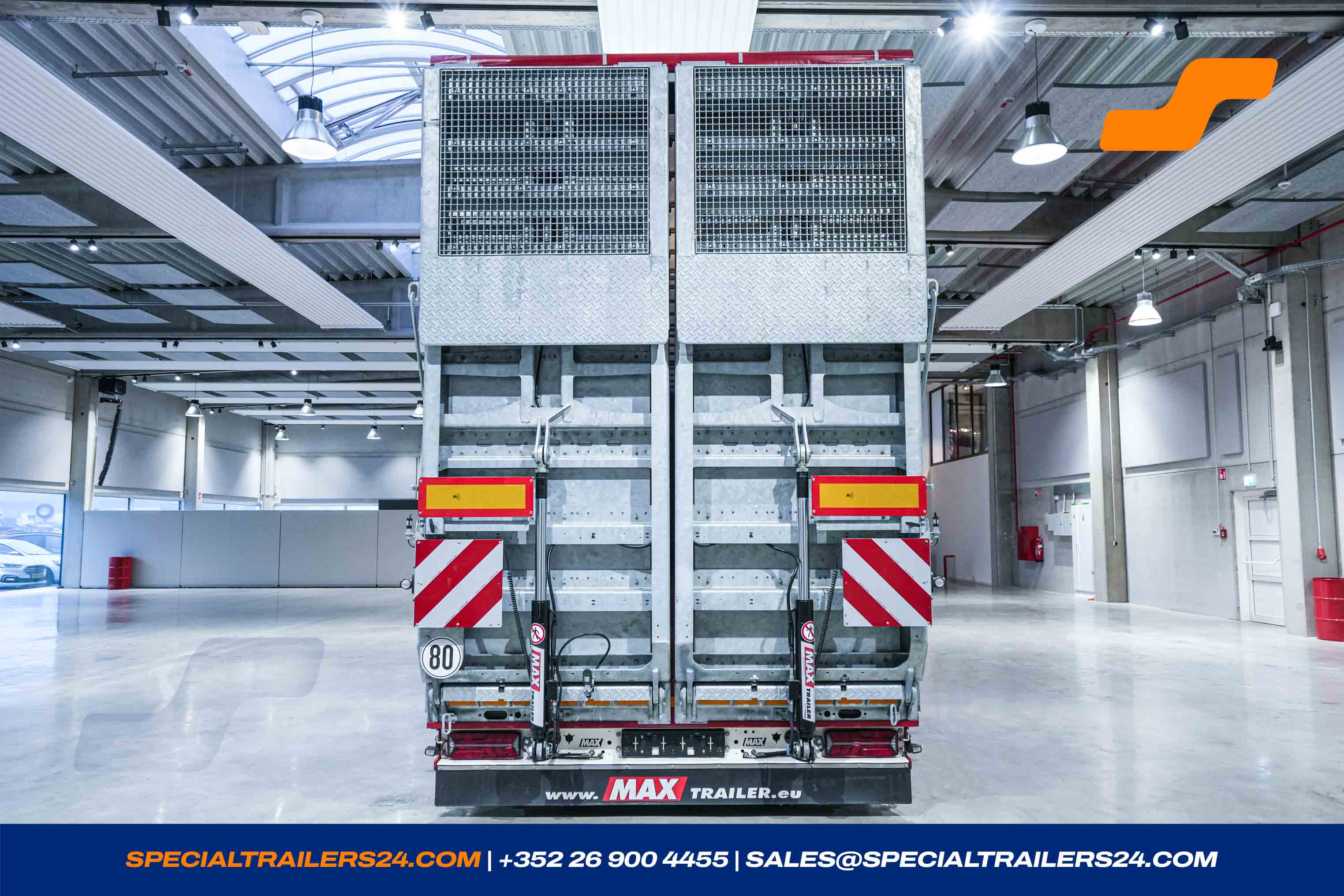

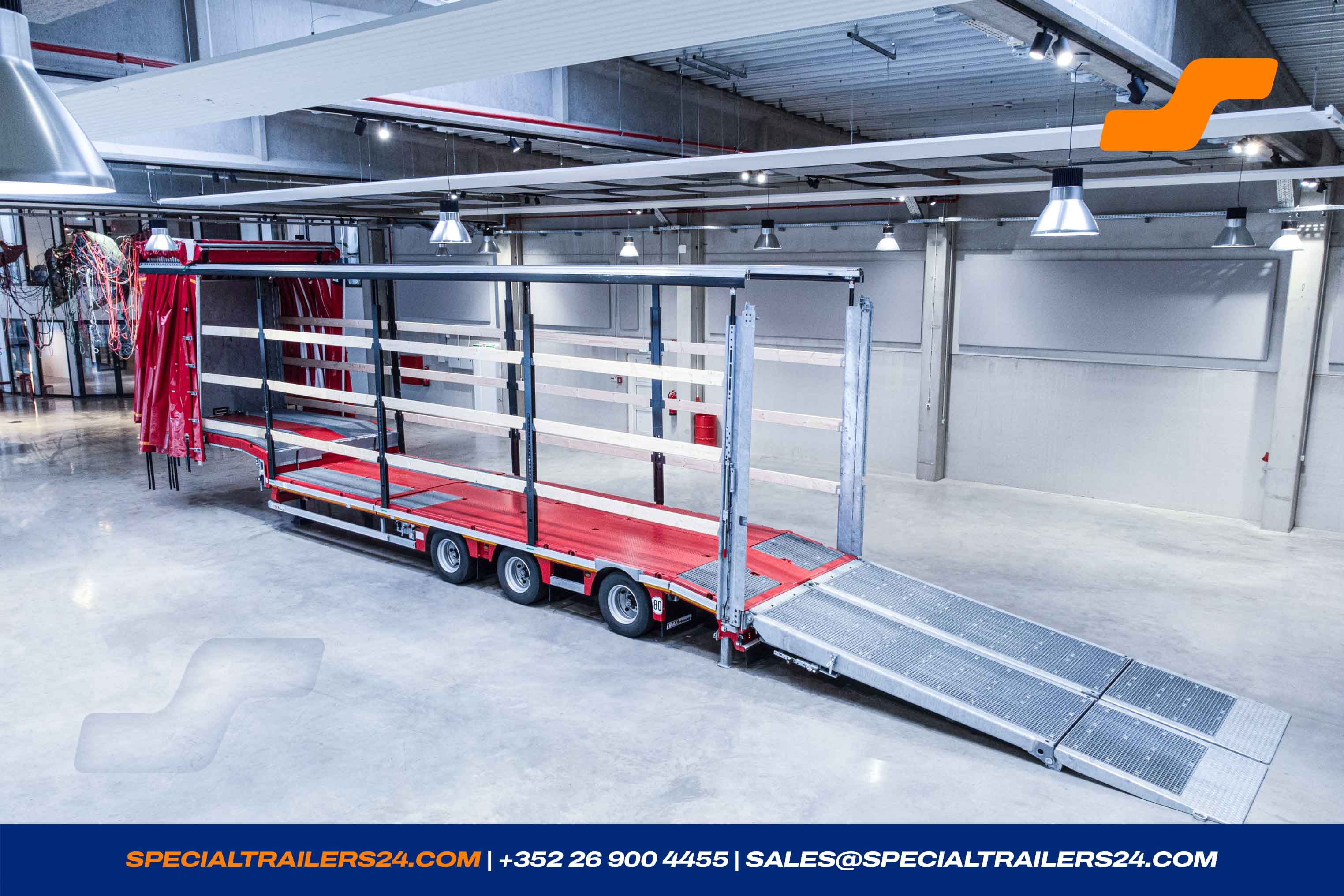

1 x Steel double flip ramps

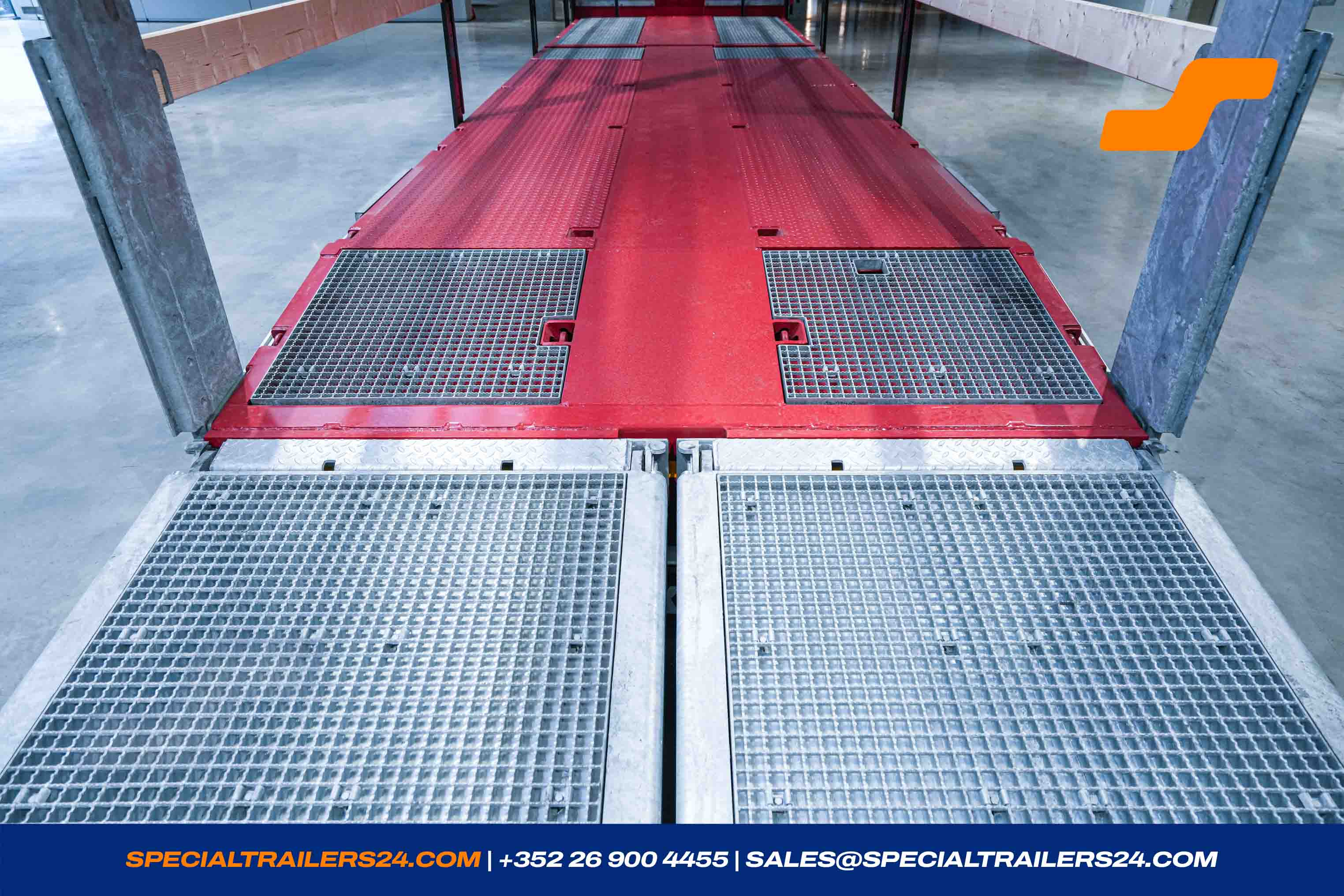

1 pair of galvanized steel double flip ramps ca. 3 185 +1 420 x1 250 mm with grating floor C40/5 (for point load of 8 to on a surface of 20 x 20 cm).
Ramps hydraulically operated.
Maximal charge for one pair: 40.000 kg

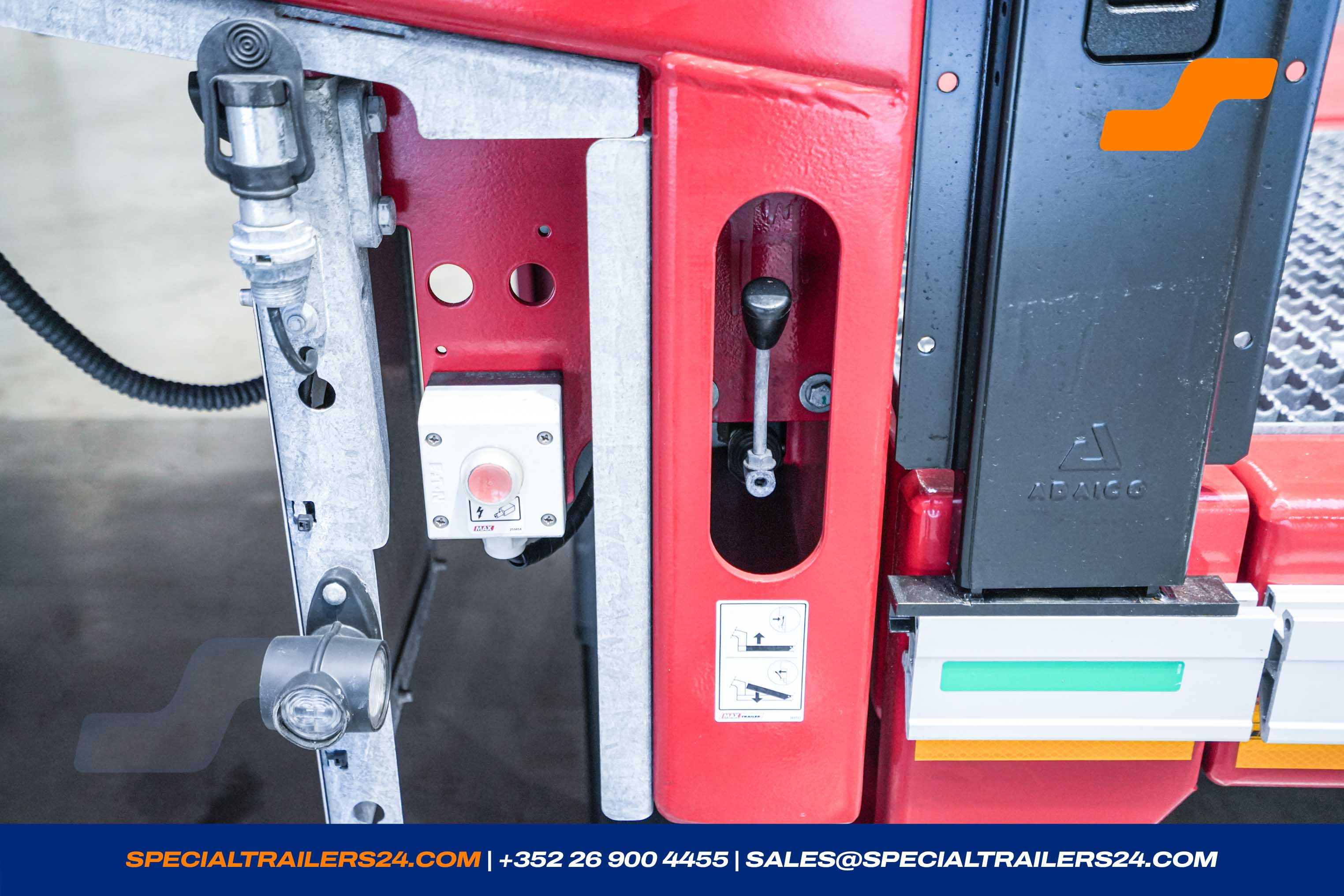

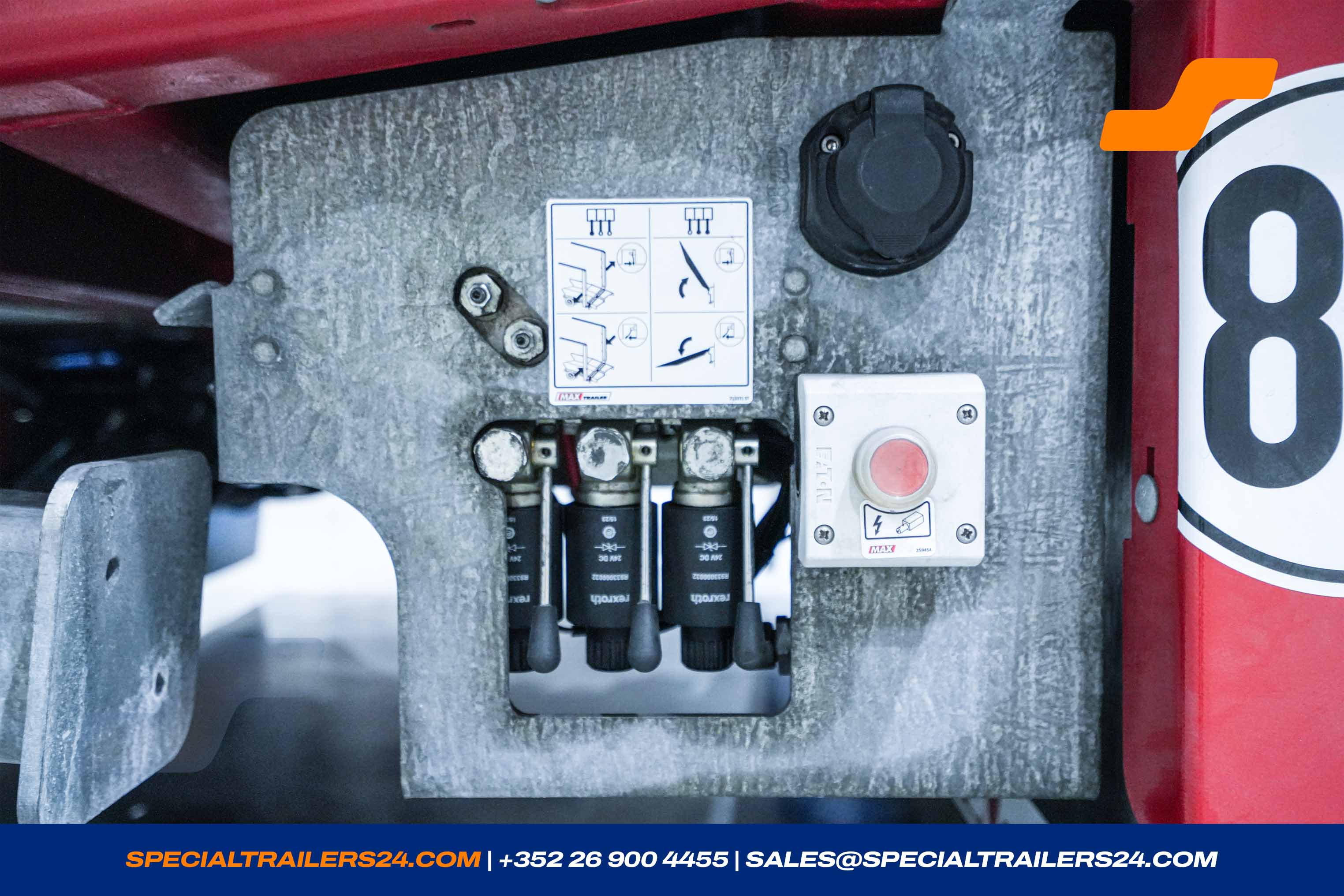

- Operated valve for ramps mounted on the right side (± 4 kg).
Accessories
1 x Accessories
- Manual and description on USB stick .
