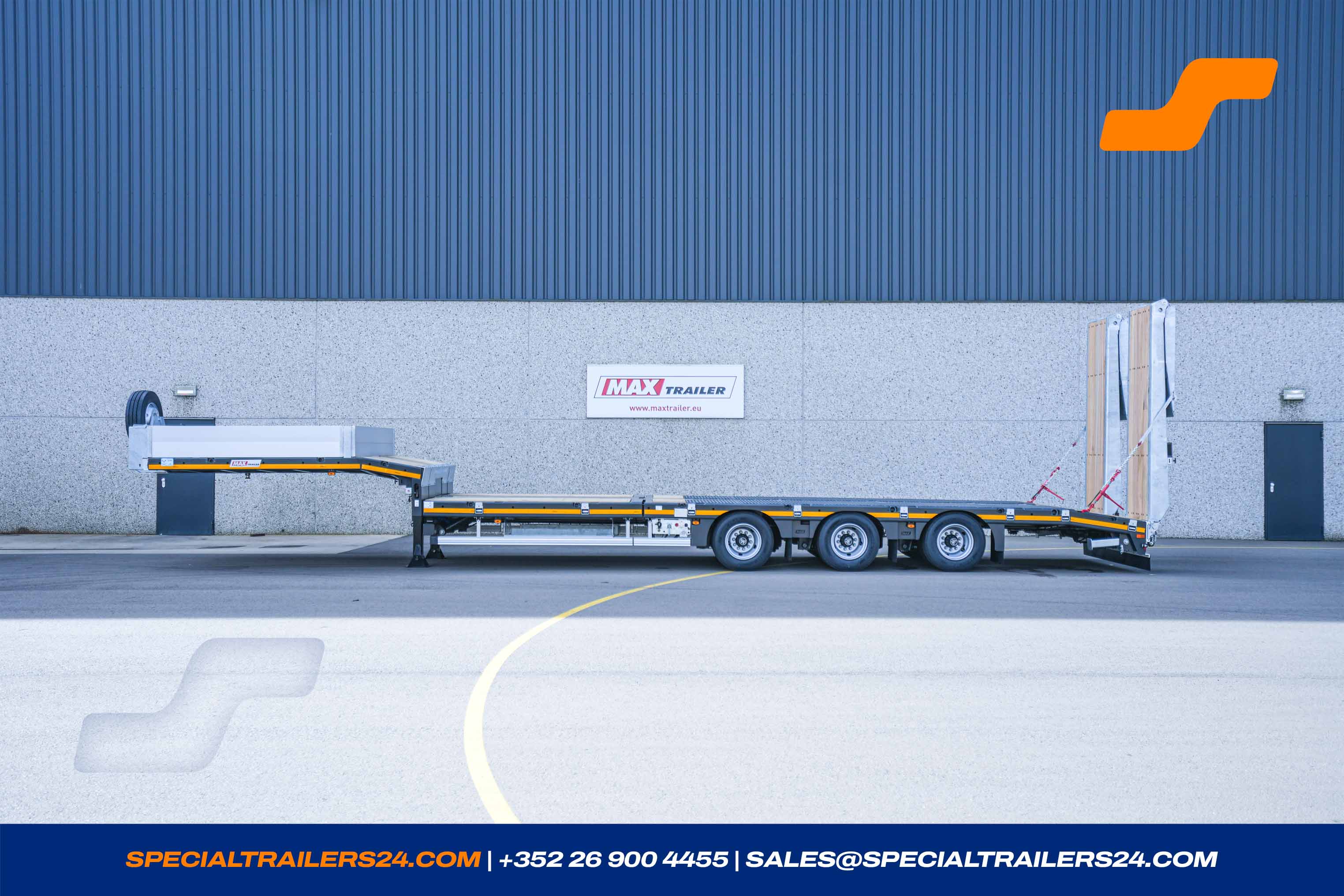

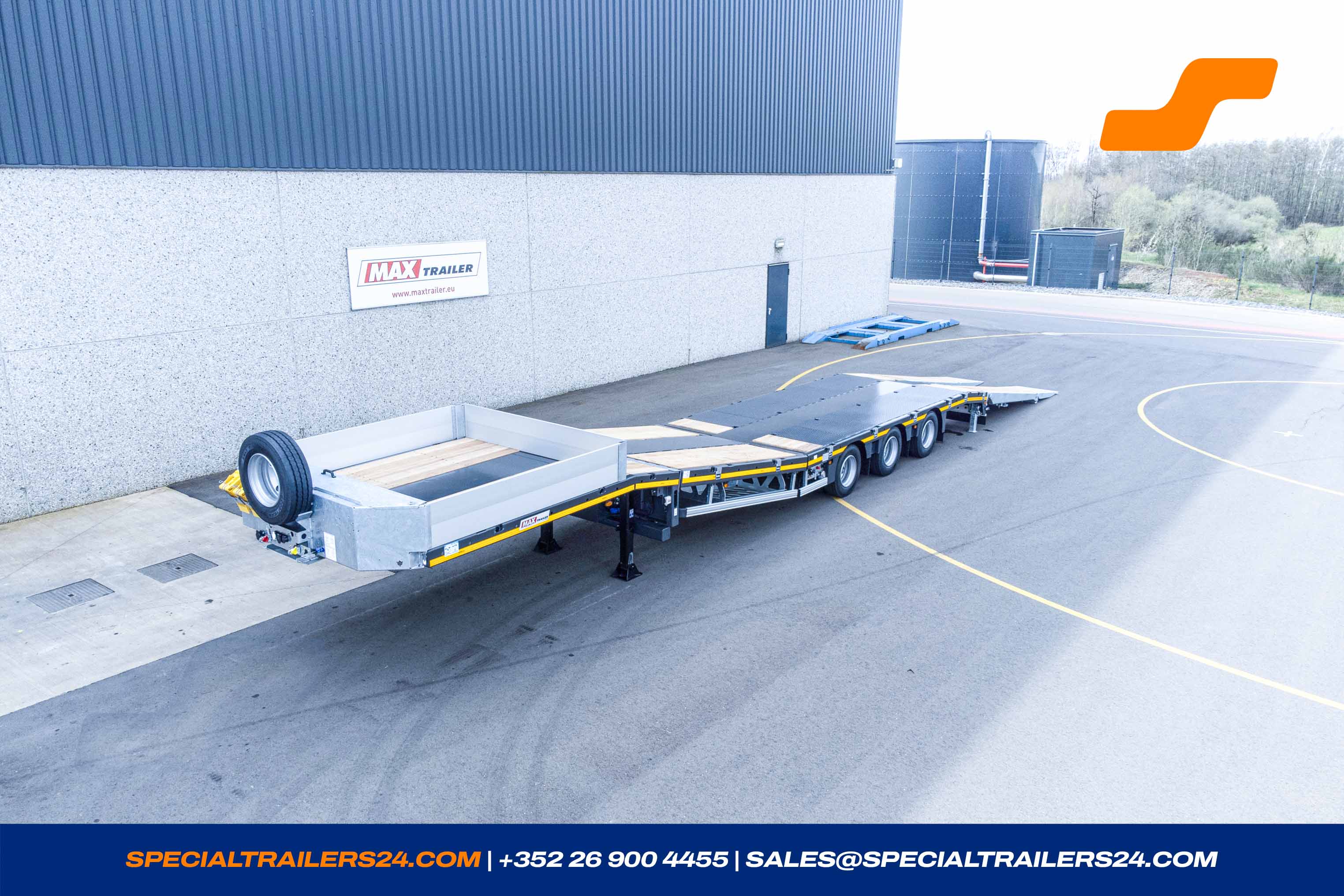

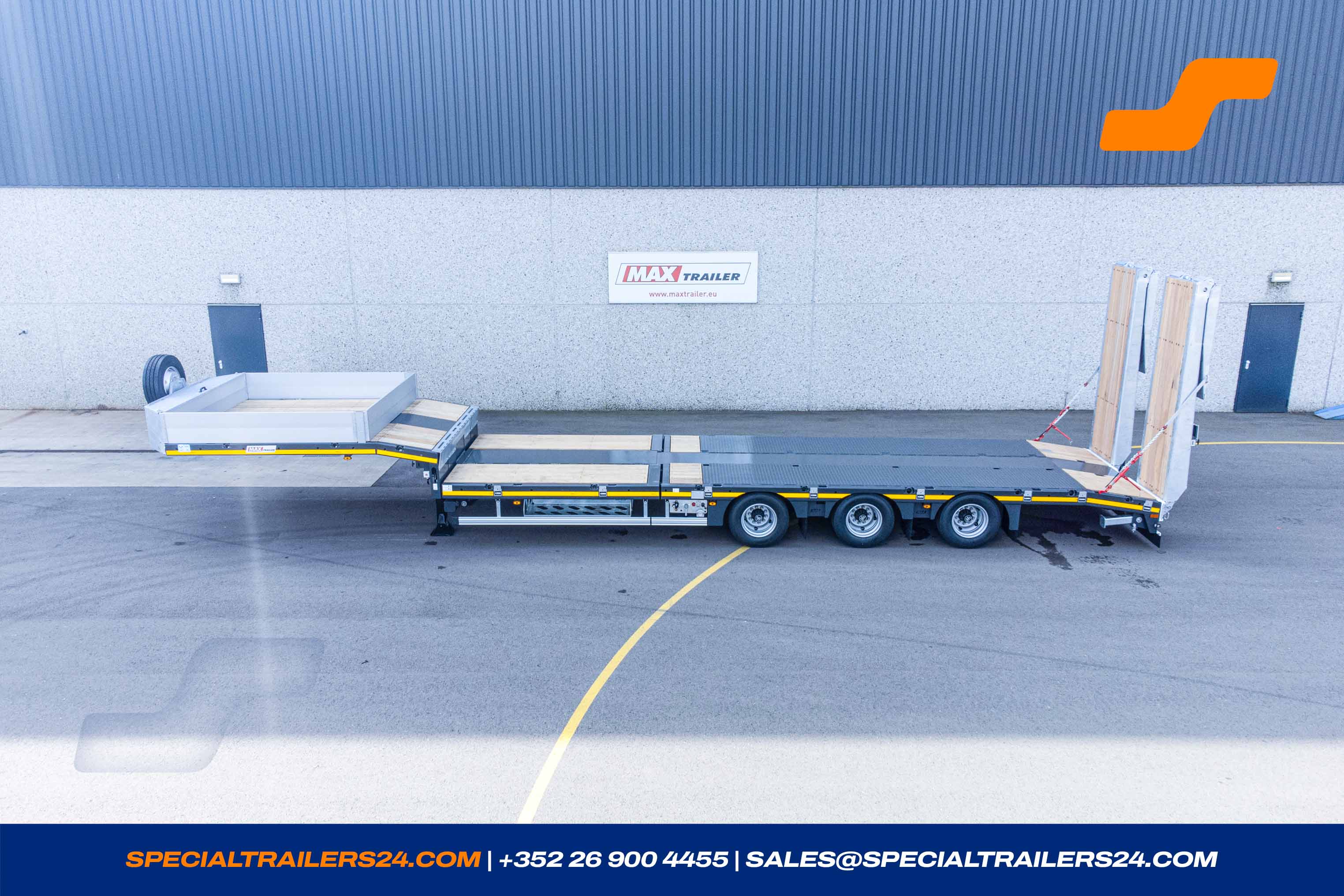

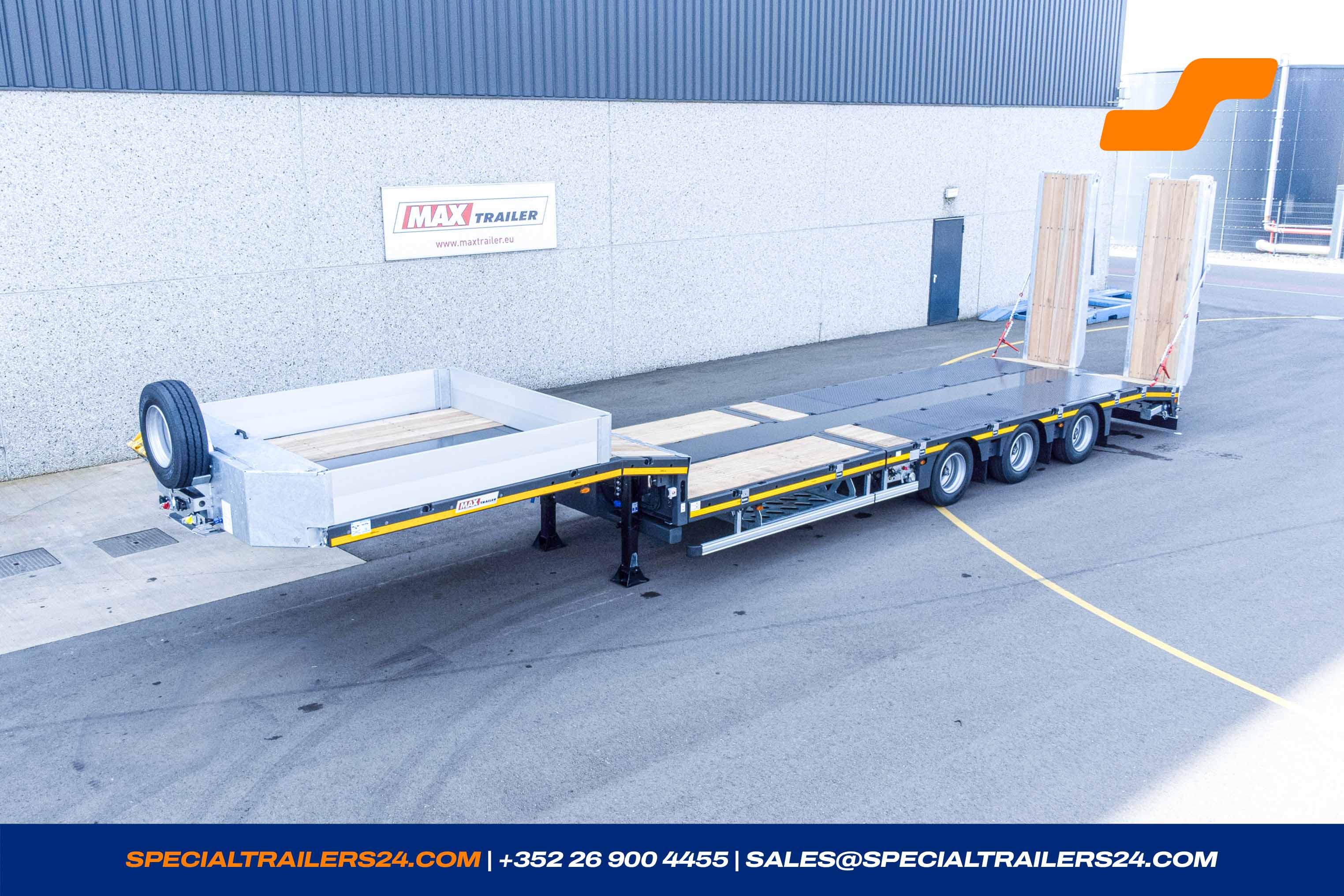

MAX Trailer MAX100
Die Farbe des Fahrzeugs auf dem Foto kann abweichen.
- Chassis number 110938
- Reference MAX100-N-3B-9.30-U

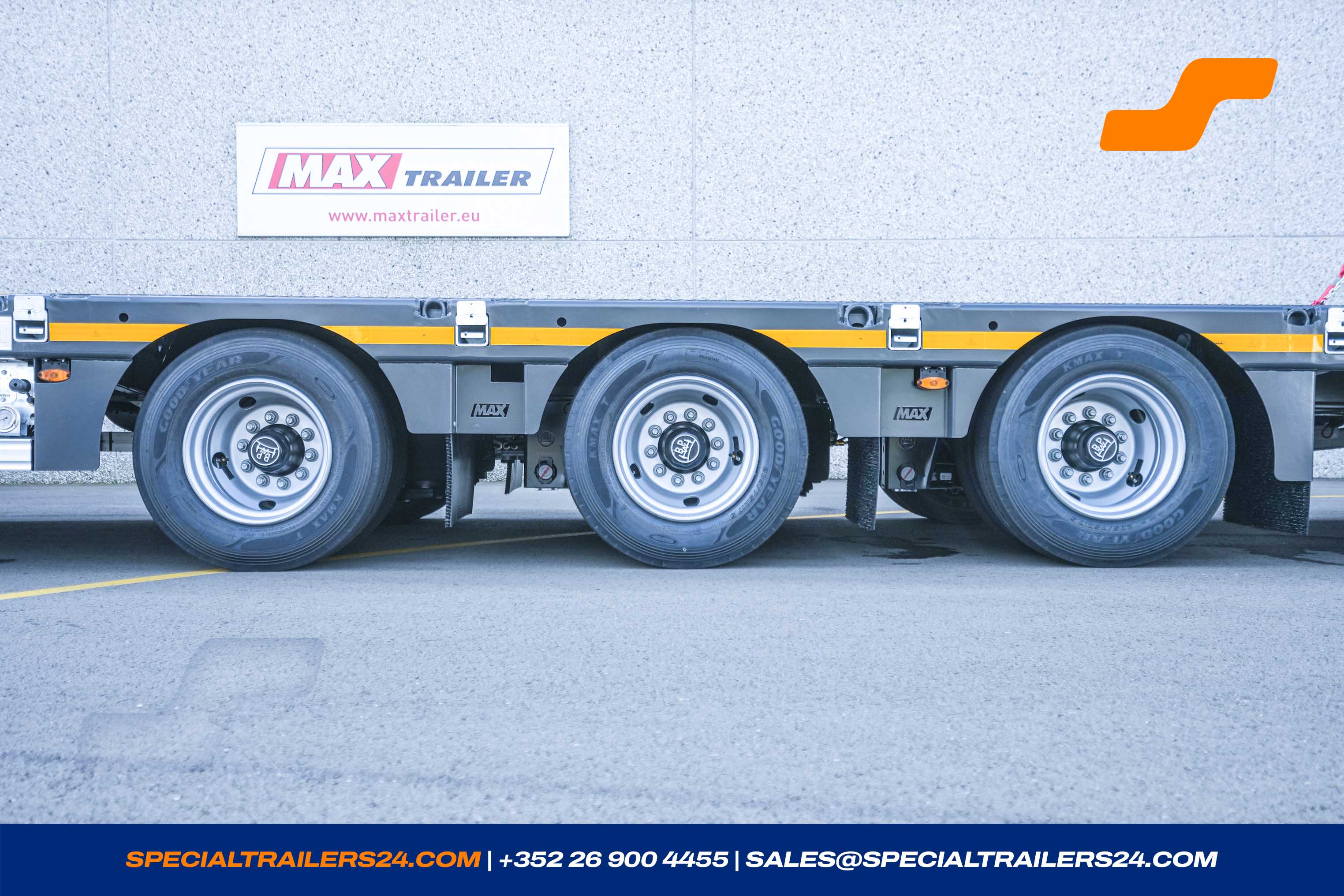

- Number of axles 3
- Condition New
- Year of manufacture 2025
- Colour DB 7350 - Nova grey
- Availability Directly available
- Steering Type Friction
Die wichtigsten Unterlagen
Detailinformationen
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 31500 kg |
| Gross weight | 49500 kg |
| Tare weight +- 3% | 10499 kg |
| Payload | 39001 kg |
Dimensions
| Fifth wheel height loaded | 1150 mm |
| Gooseneck length | 3 850 mm |
| Turning circle reversing | 2 300 mm |
| Loading platform length | 9 300 mm |
| Extendable by | No |
| Wheelbase | 1 360 mm |
| Loading height at max. load | 860 mm |
| Total width | 2 540 mm |
| Suspension stroke | -55/ +145 mm |

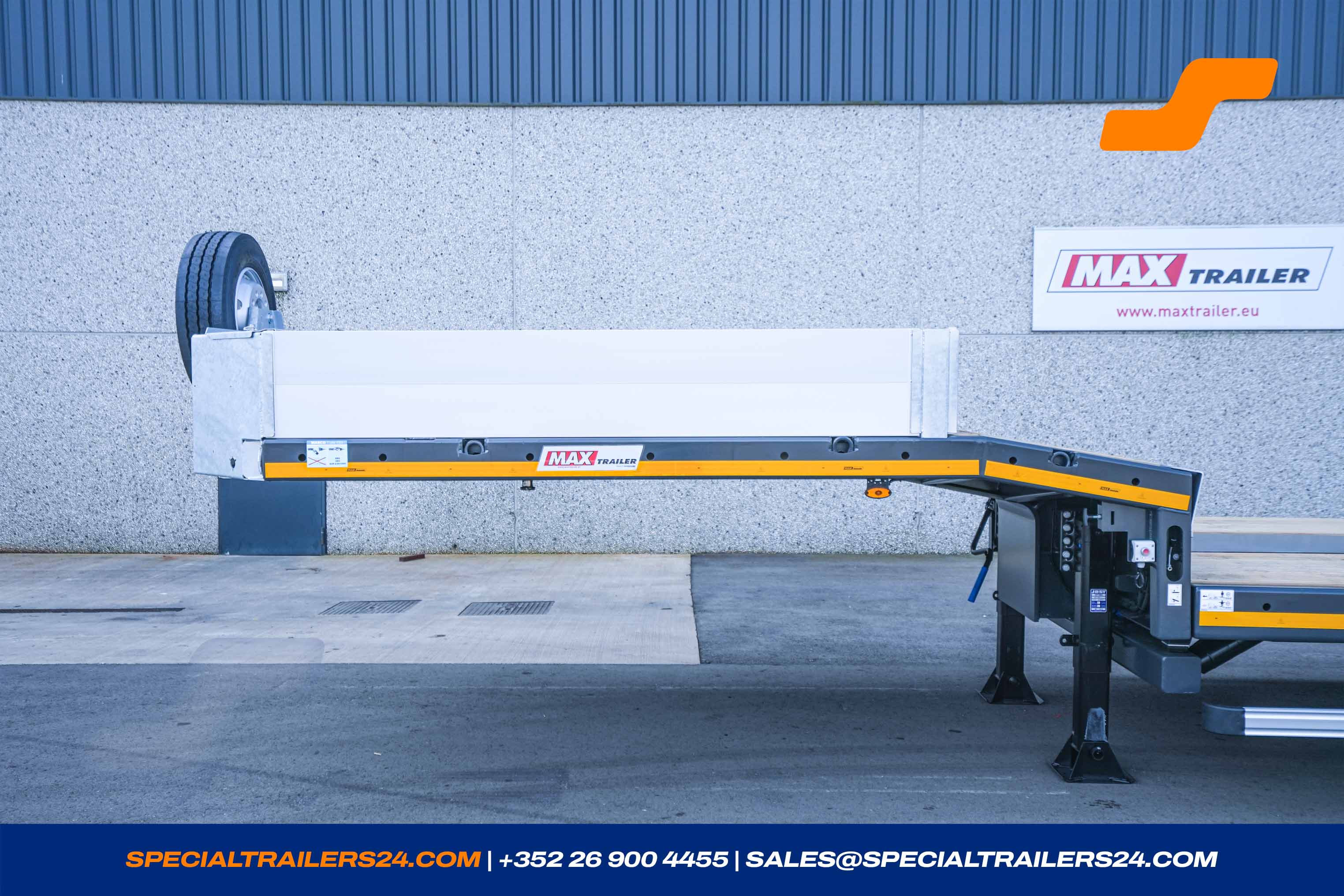

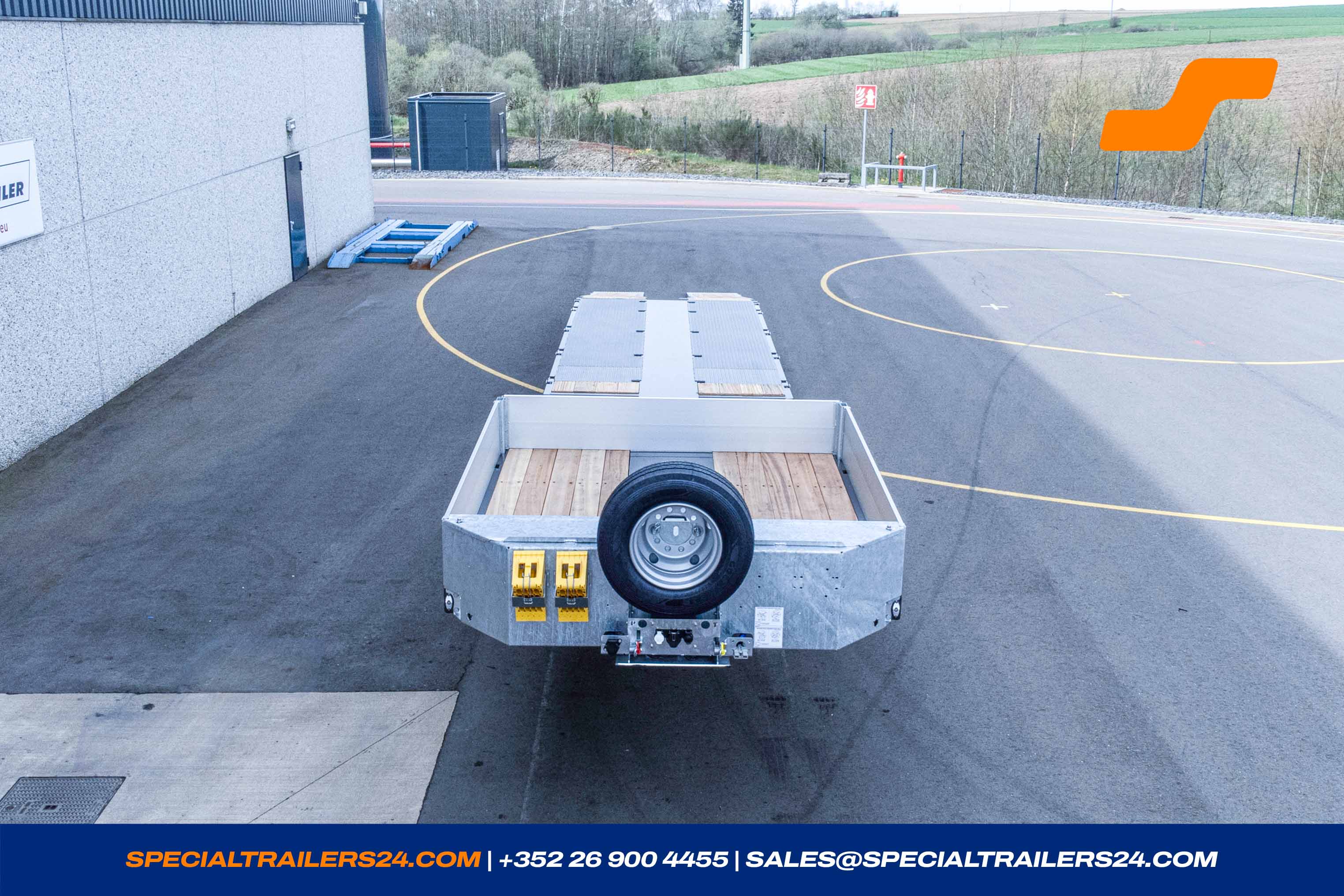

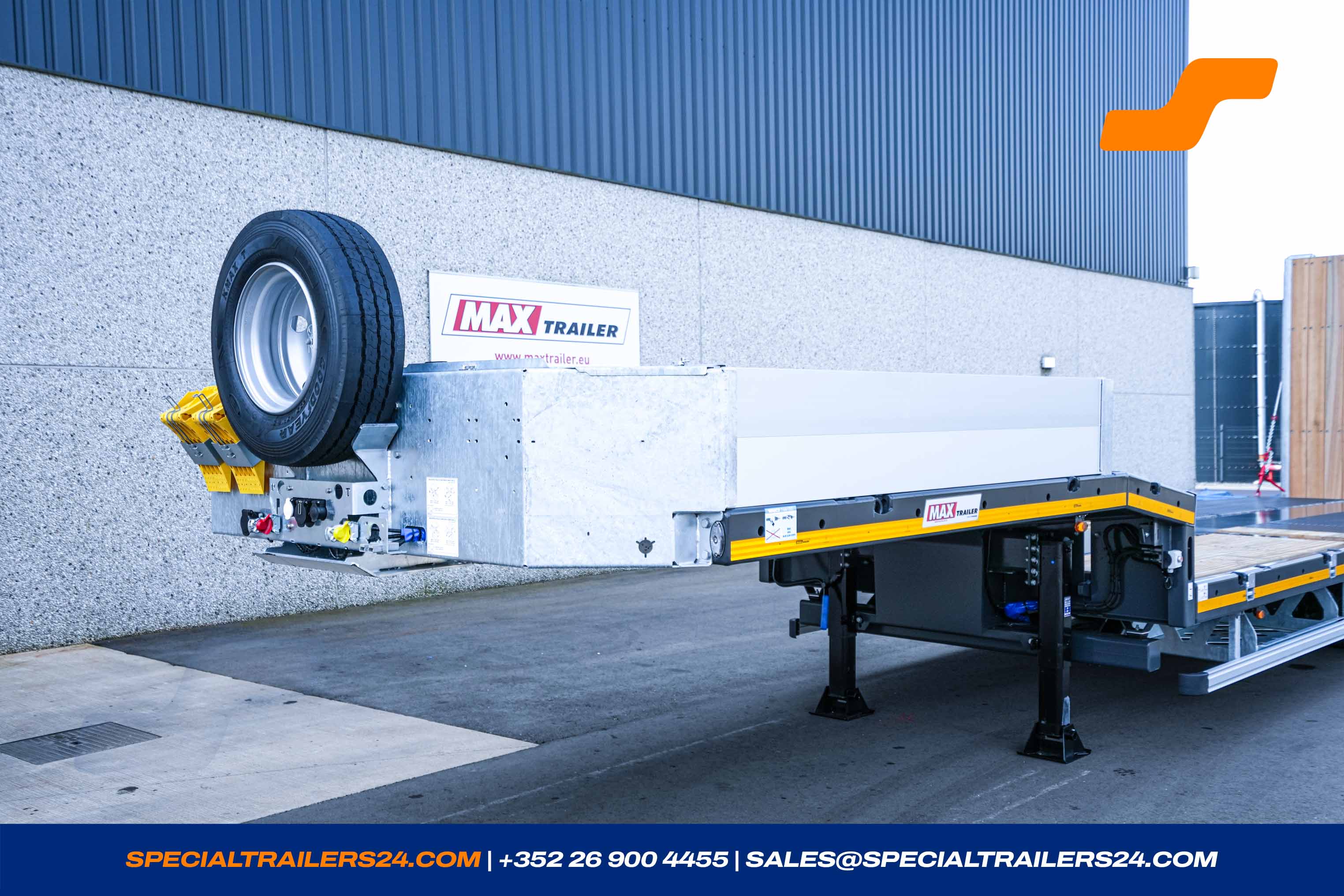

Gooseneck
1 x Gooseneck
Gooseneck with chamfered corners ± 45° in front and rear chamfered by ± 750 mm x 10°.
3 pairs of lashing rings (LC 5 000 daN).
Hardwood cover thickness 30 mm.

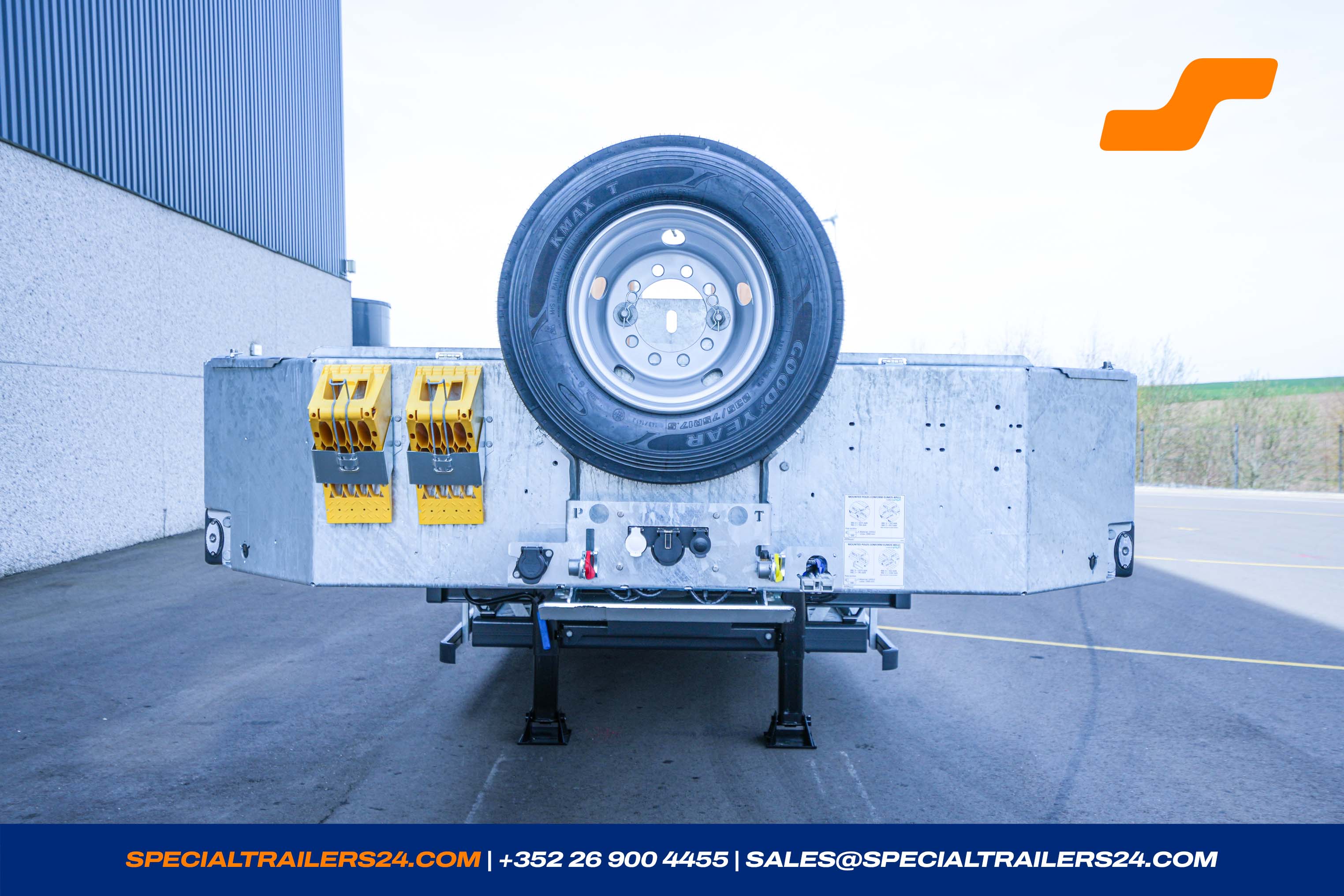

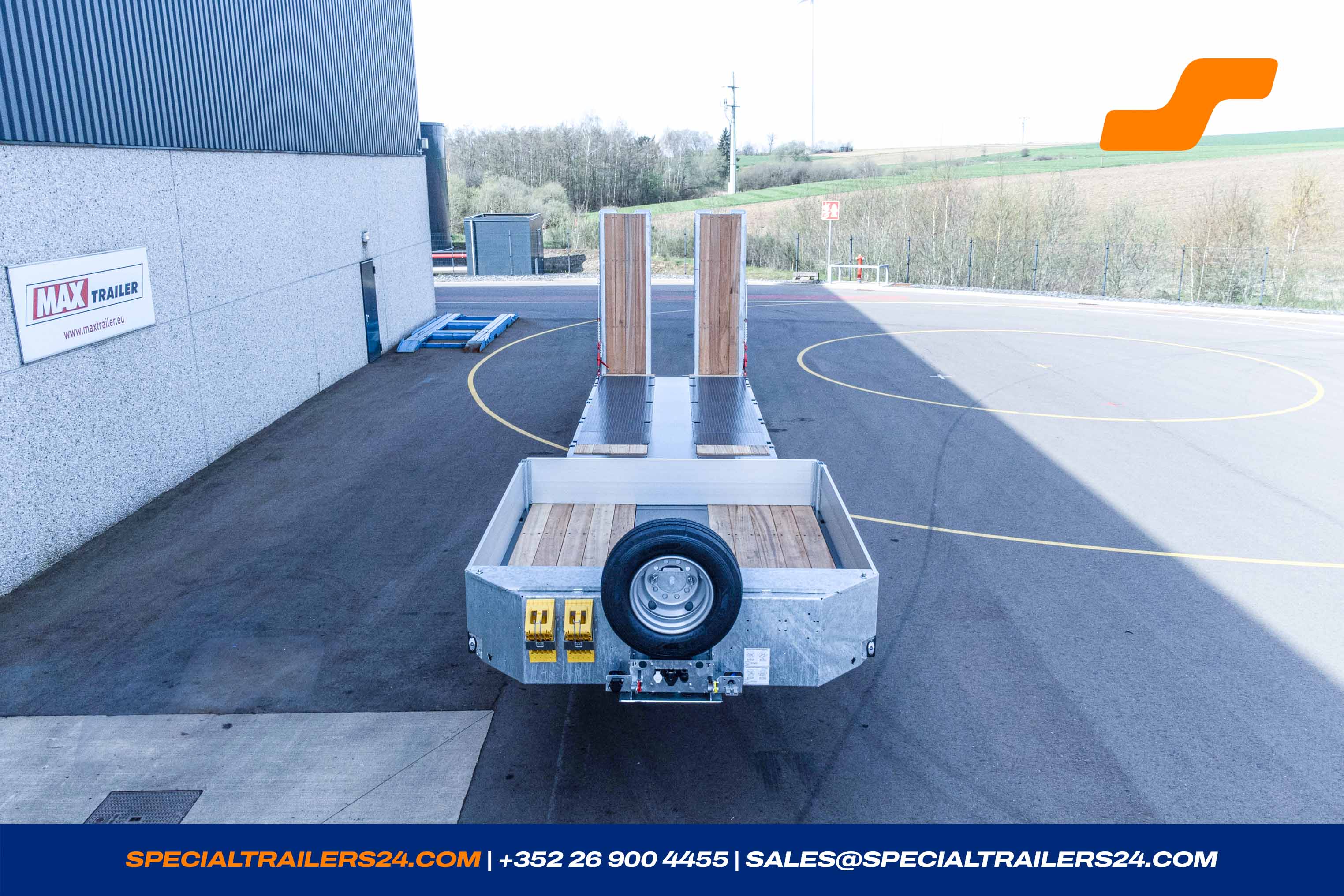

- One spare wheel with holder on the headboard.
- 2 king-pin.
- One galvanised steel headboard, height ± 400 mm.
- Red and yellow air couplings on the galvanised front connection ledge.
- 2 wheel chocks with carrier on the headboard.
-

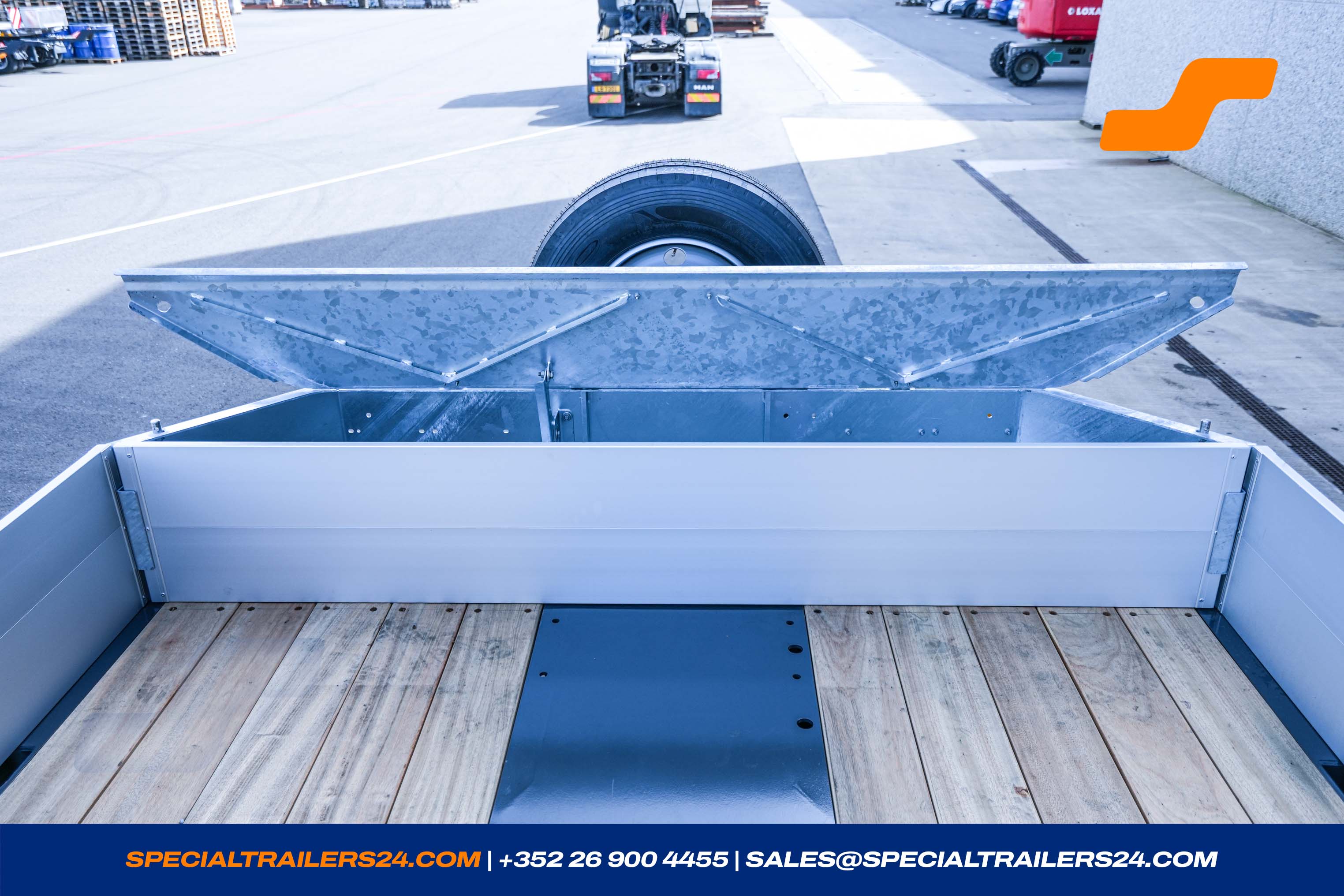

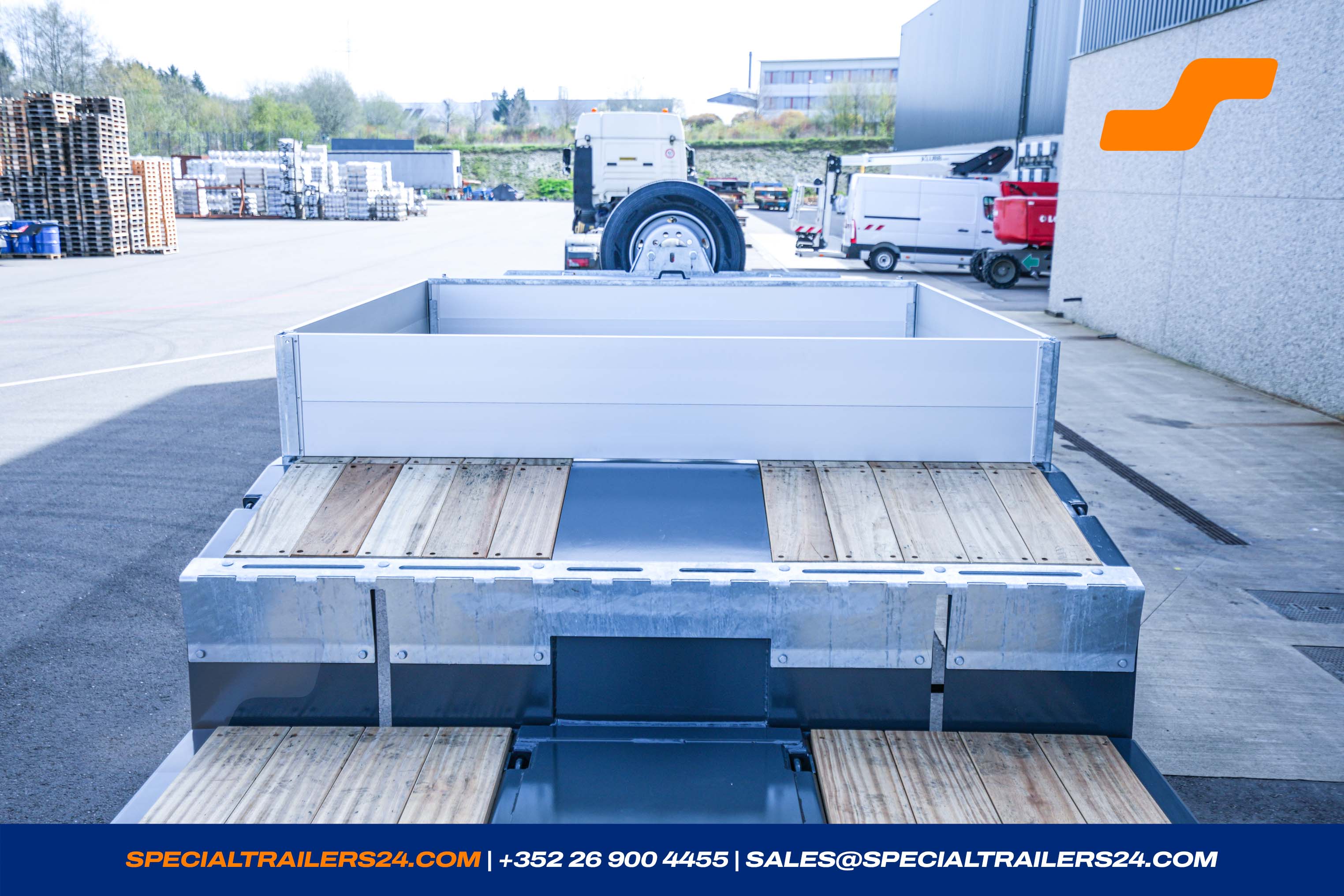

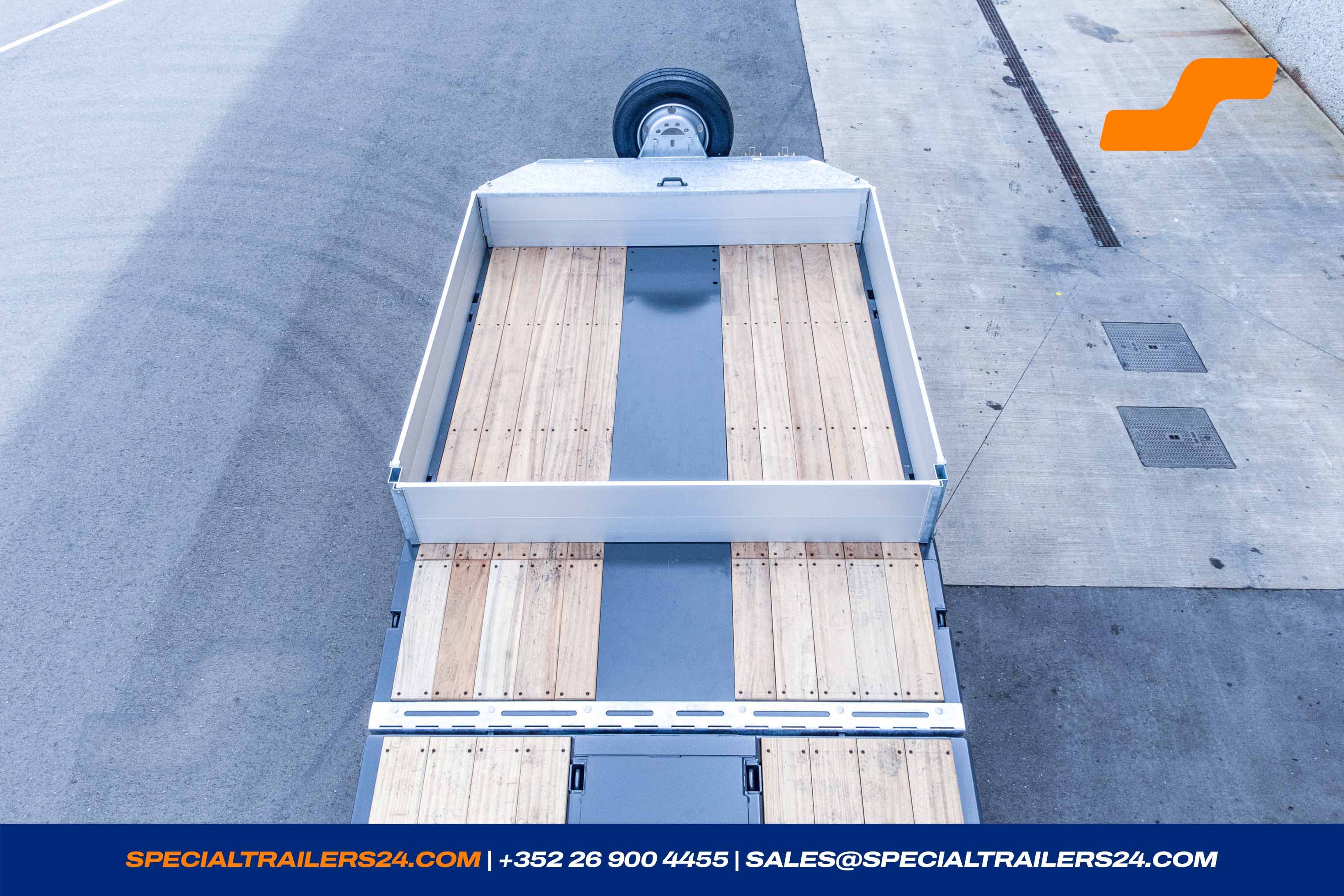

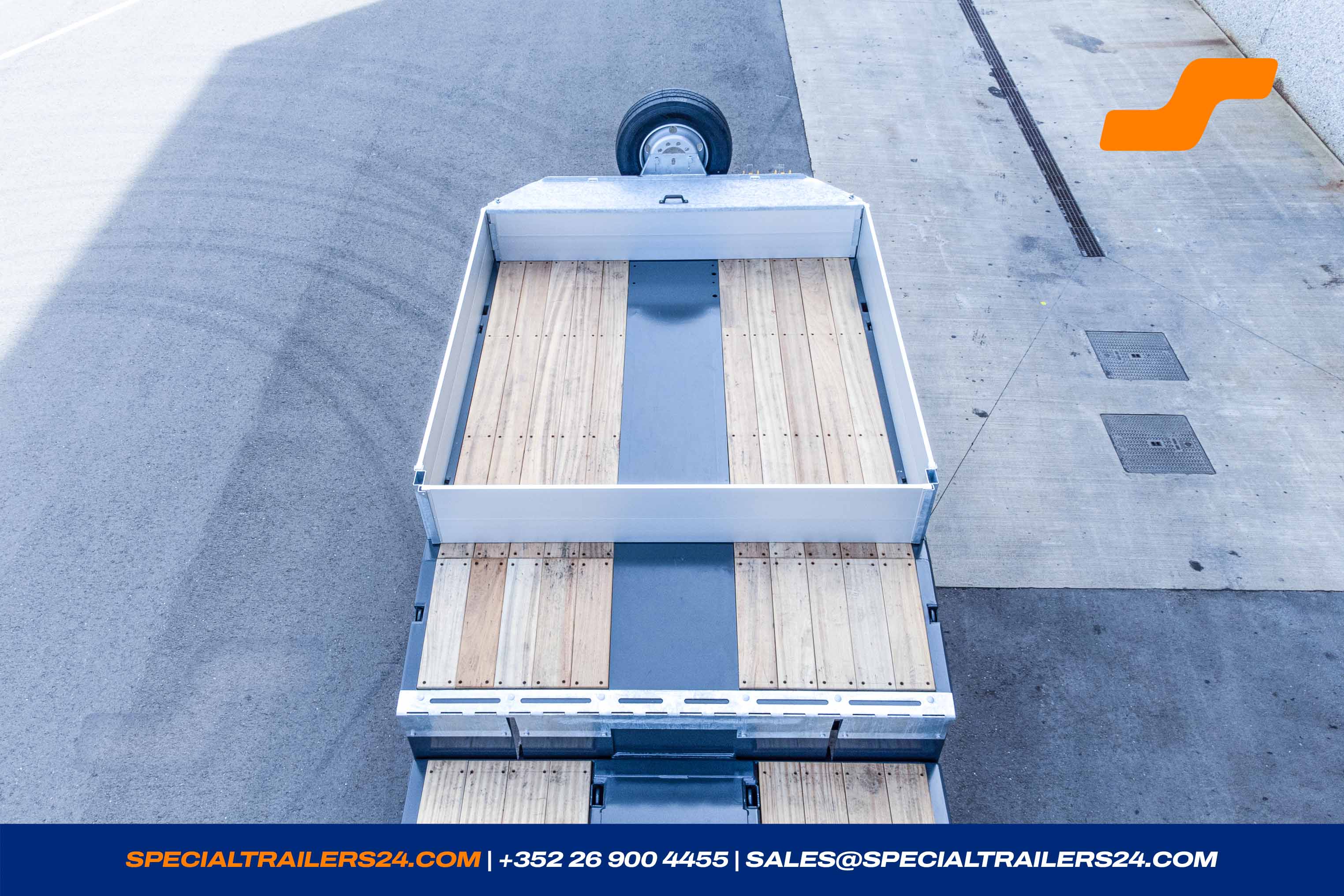

On the gooseneck removable sideboards and rearboard in alu ca. 2 400 x 400 mm (L x H).
The galvanised rear stakes are dismountable.
(Length of the structure ca. 2 560 mm) (± 46kg). - 1 galvanized toolbox integrated in the charmfered gooseneck (± 47 kg).
Loading deck

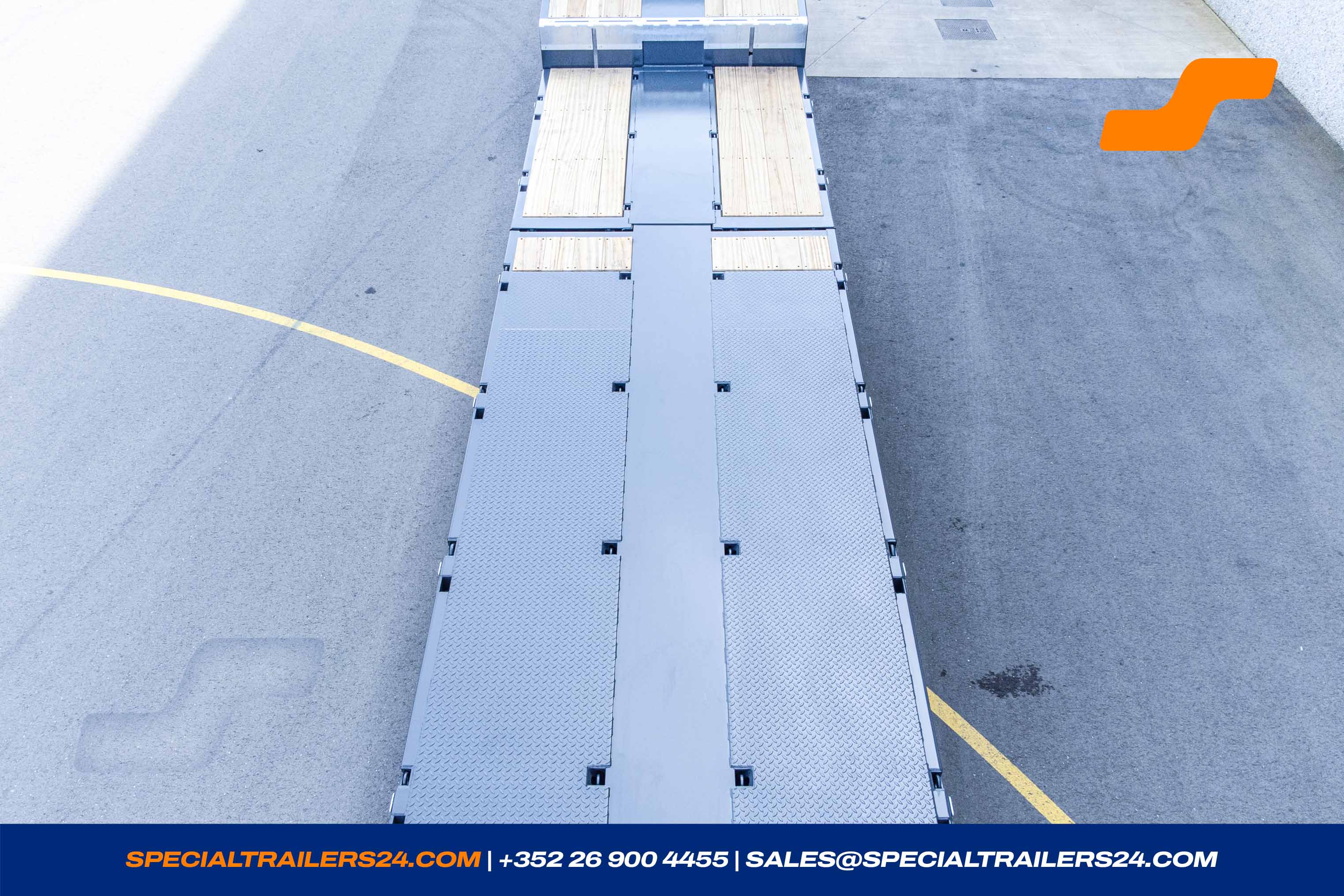

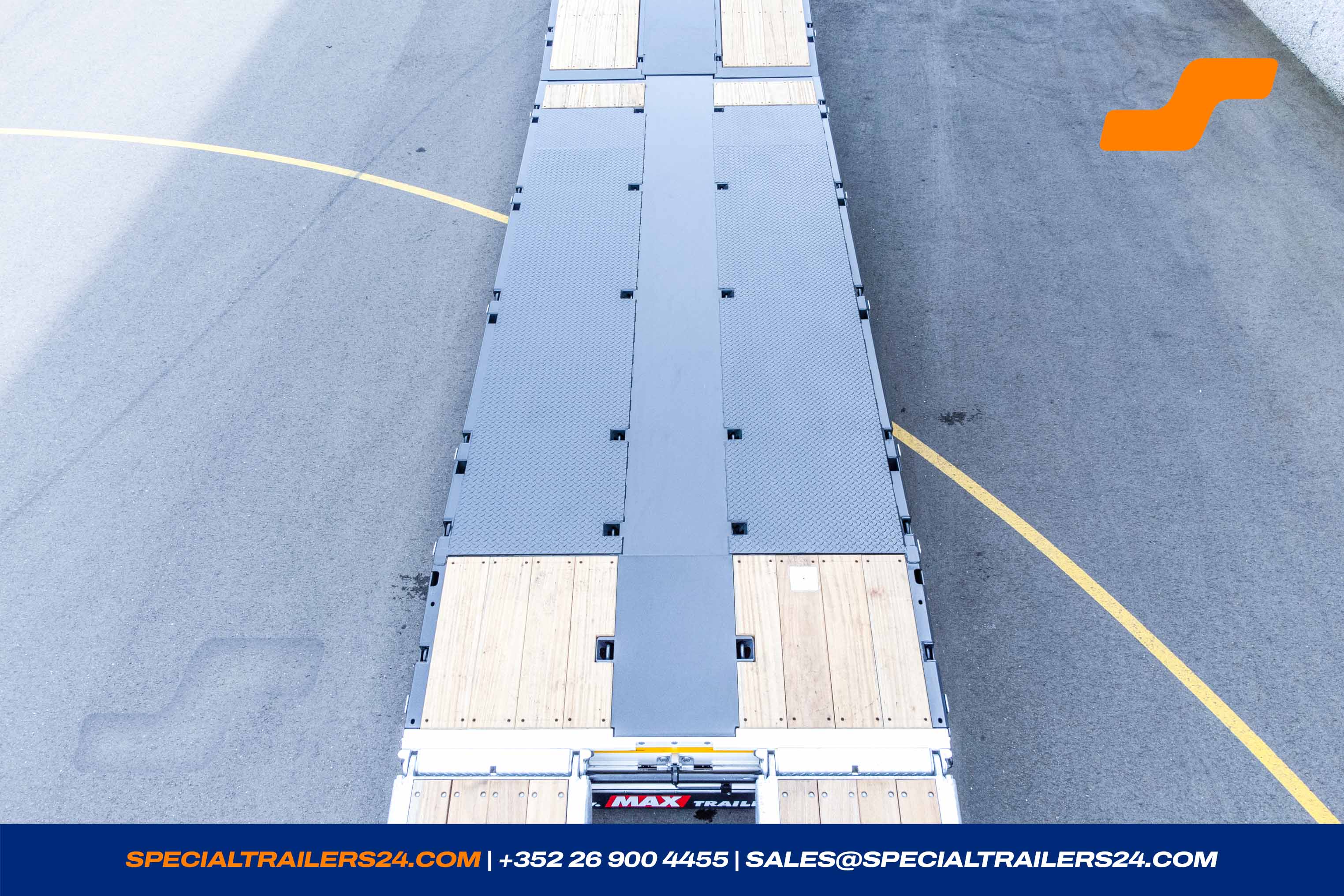

Loading platform
1 x Loading platform

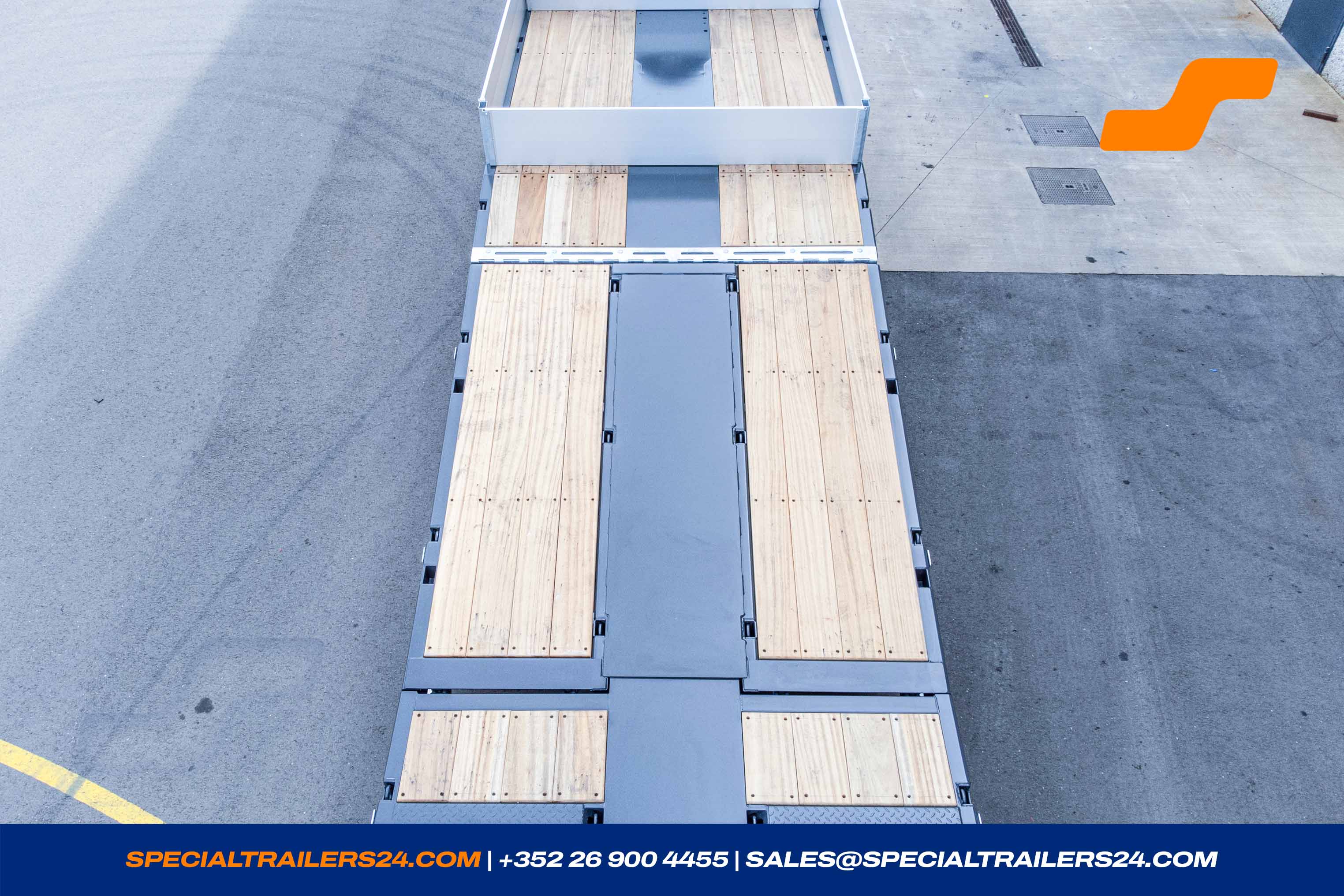

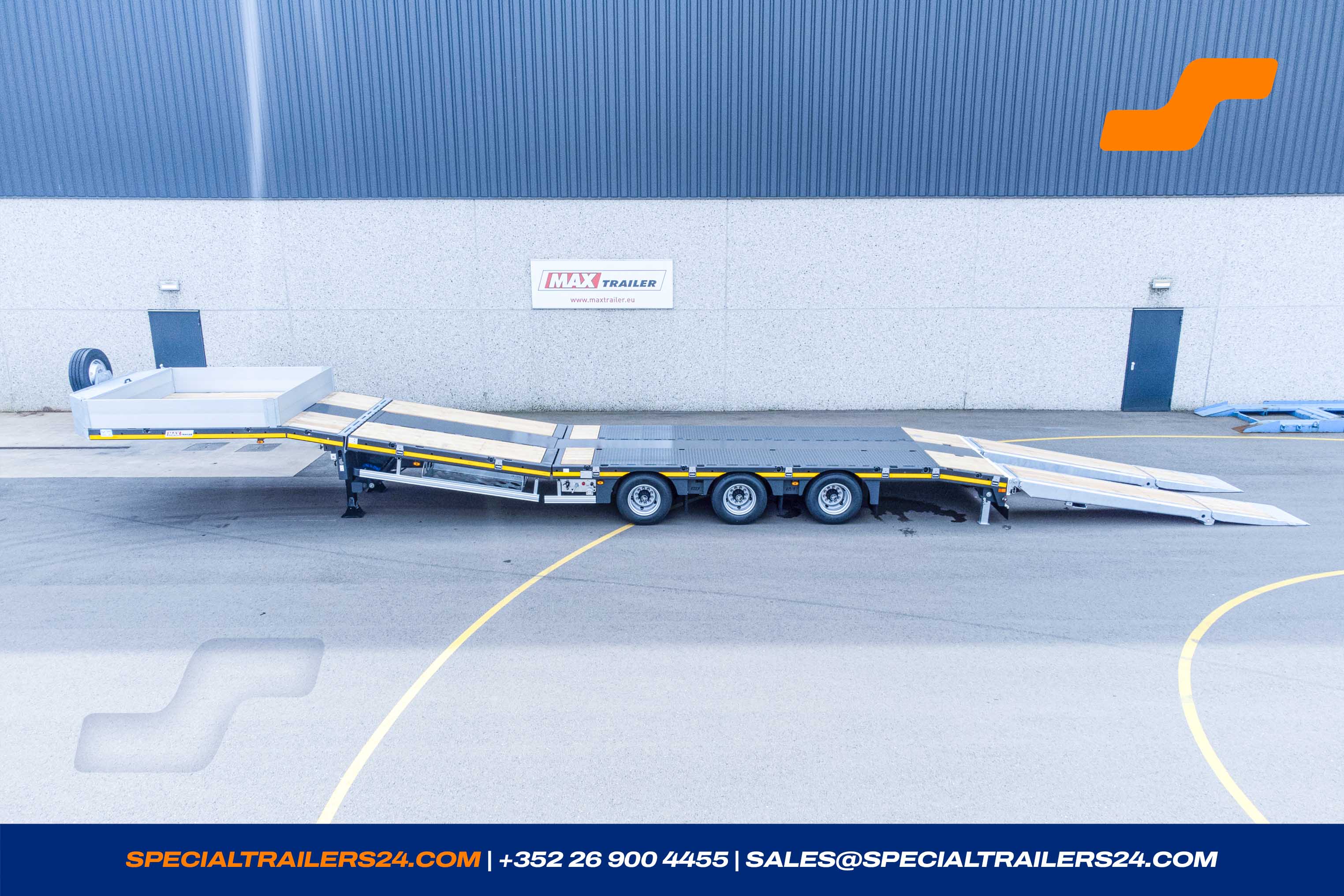

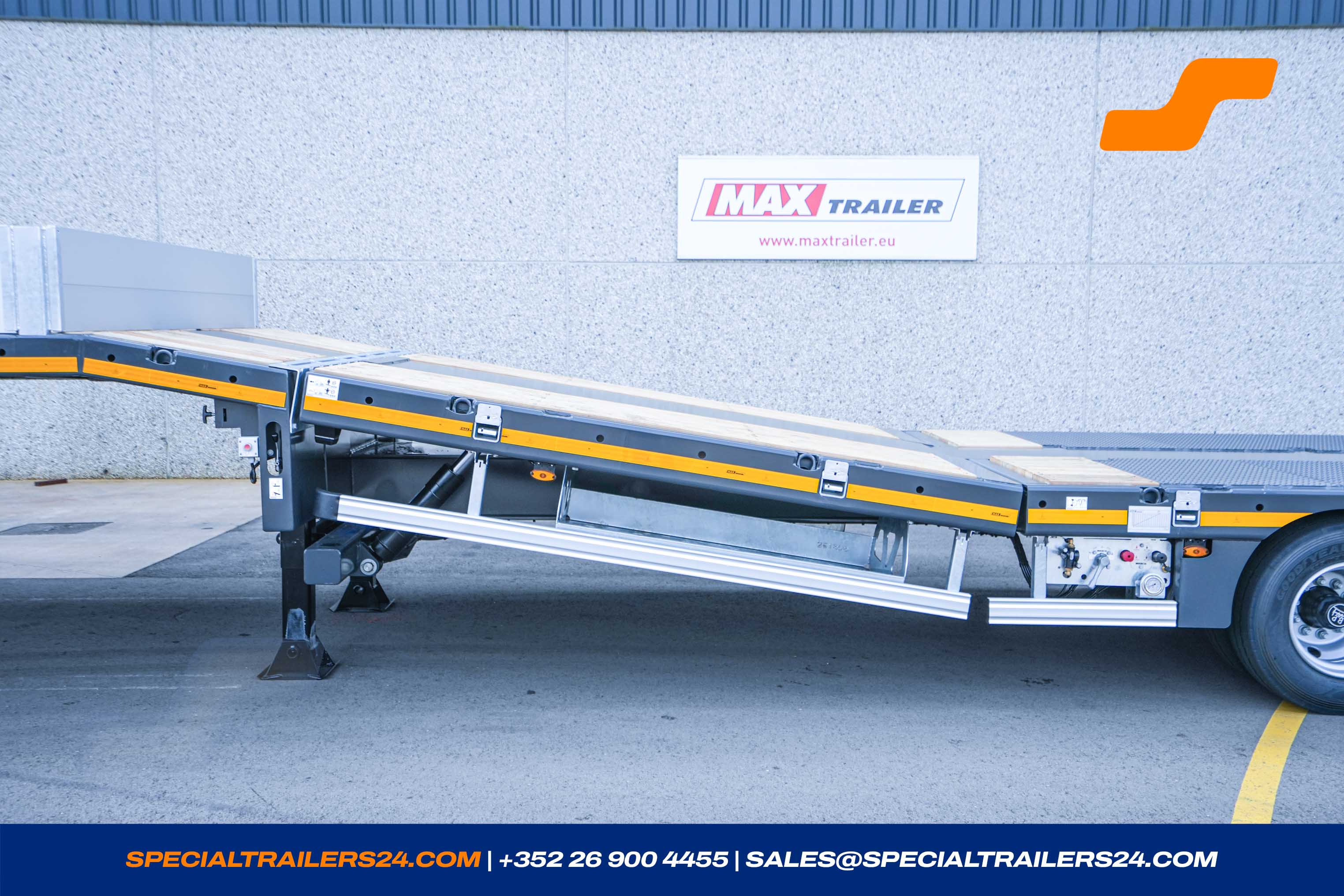

Loading platform behind the gooseneck with hydraulically lift- and lowerable loading area ca. 2 800 mm length, with chamfered beaver tail by about 1 000 mm x 8°.
6 pairs of lashing rings in the loading platform, hinged outwards (LC 5 000 daN).
2 pairs of lashing rings in the loading platform, hinged outwards (LC 10 000 daN).
1 pairs of lashing rings in the loading platform, hinged inwards at the front (LC 10 000 daN).
Cutouts in the border frame of the loading area for hooking in tension belts. (LC 2 000 daN).

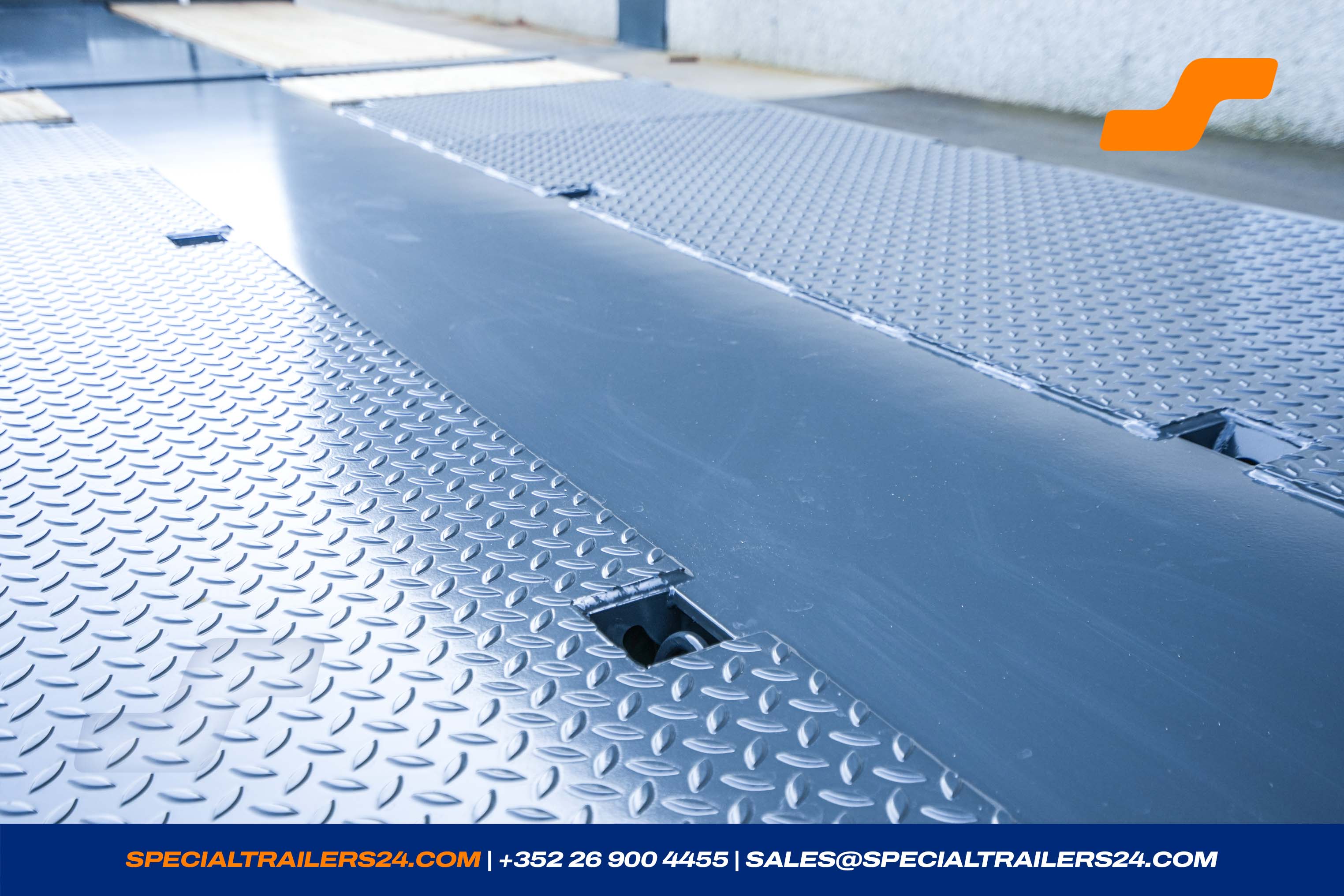

Hardwood cover thickness 48 mm above of the axles chequer plate.
- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.

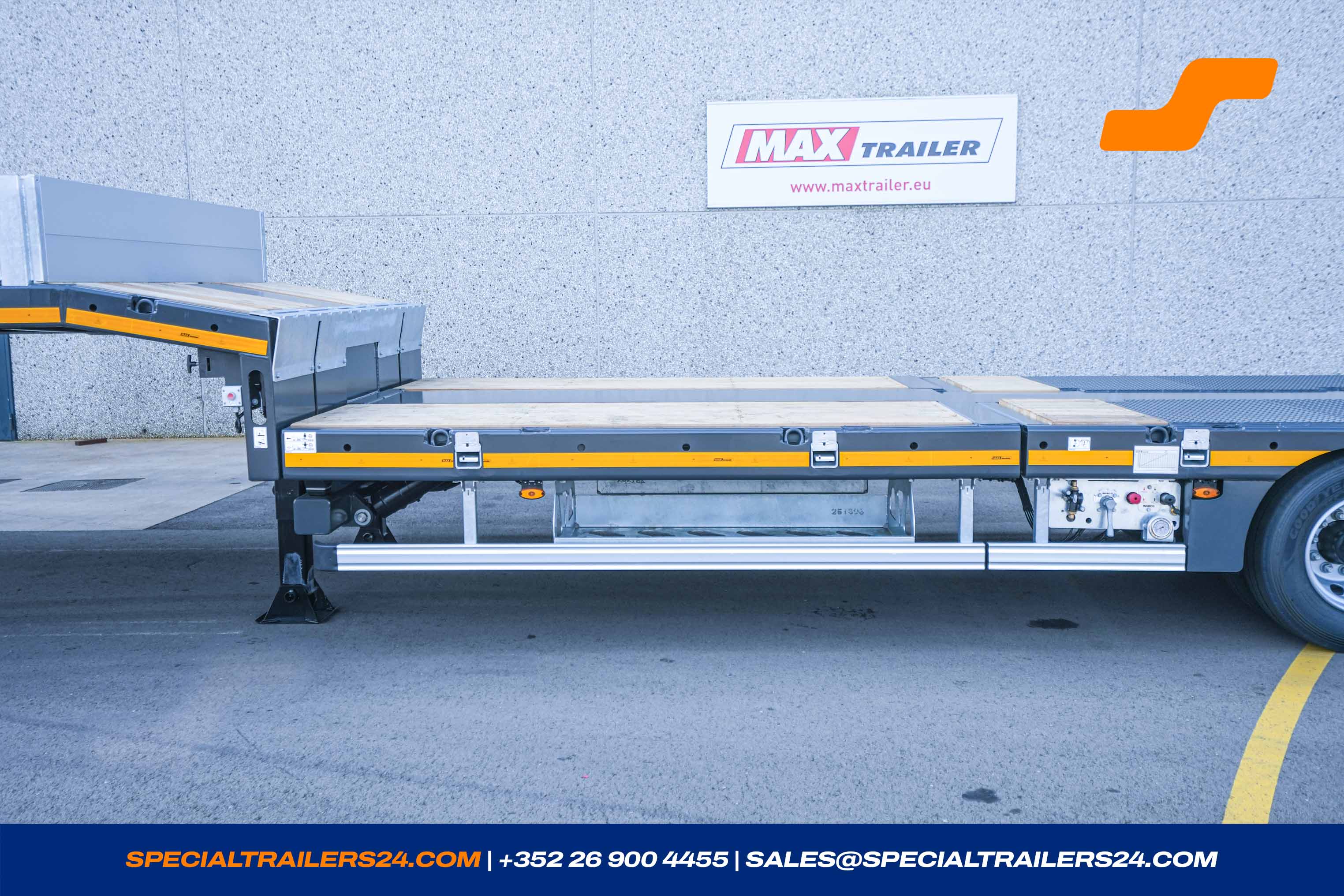

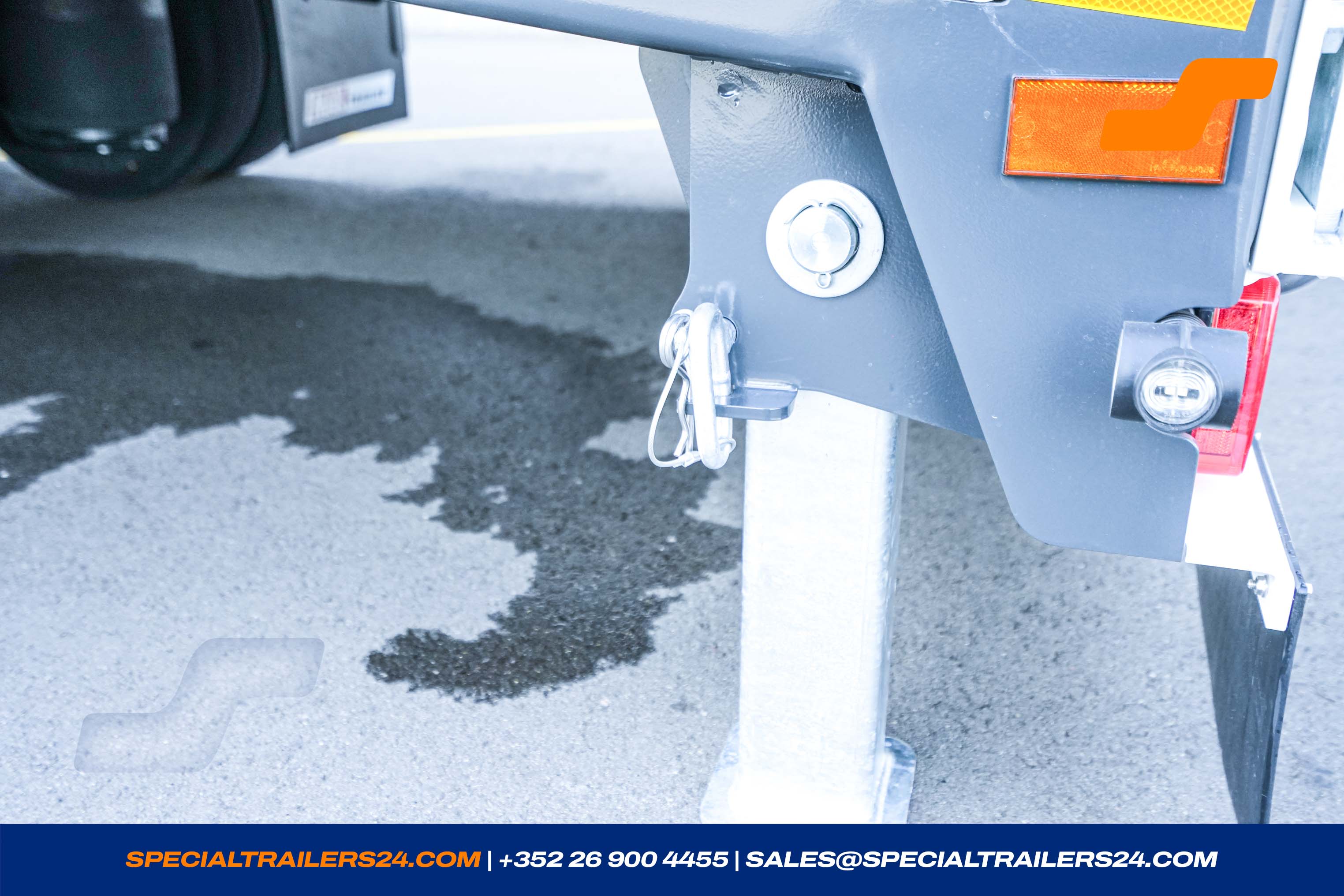

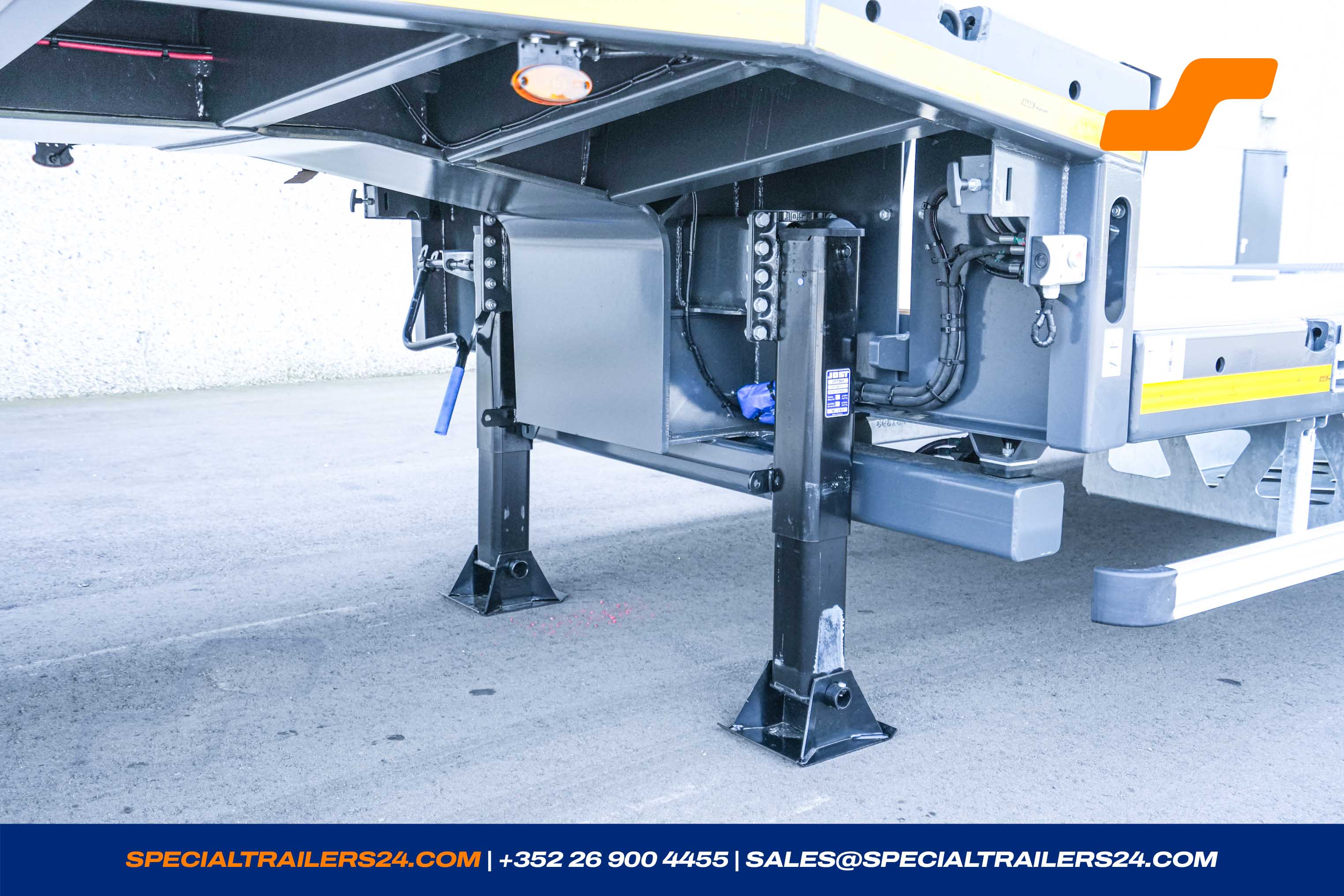

- Galvanised landing gears at the rear under the loading platform.
- Holder for one beacon light at the rear of the trailer.
- Yellow reflective tape according to the EU regulation over the entire length and at the rear.

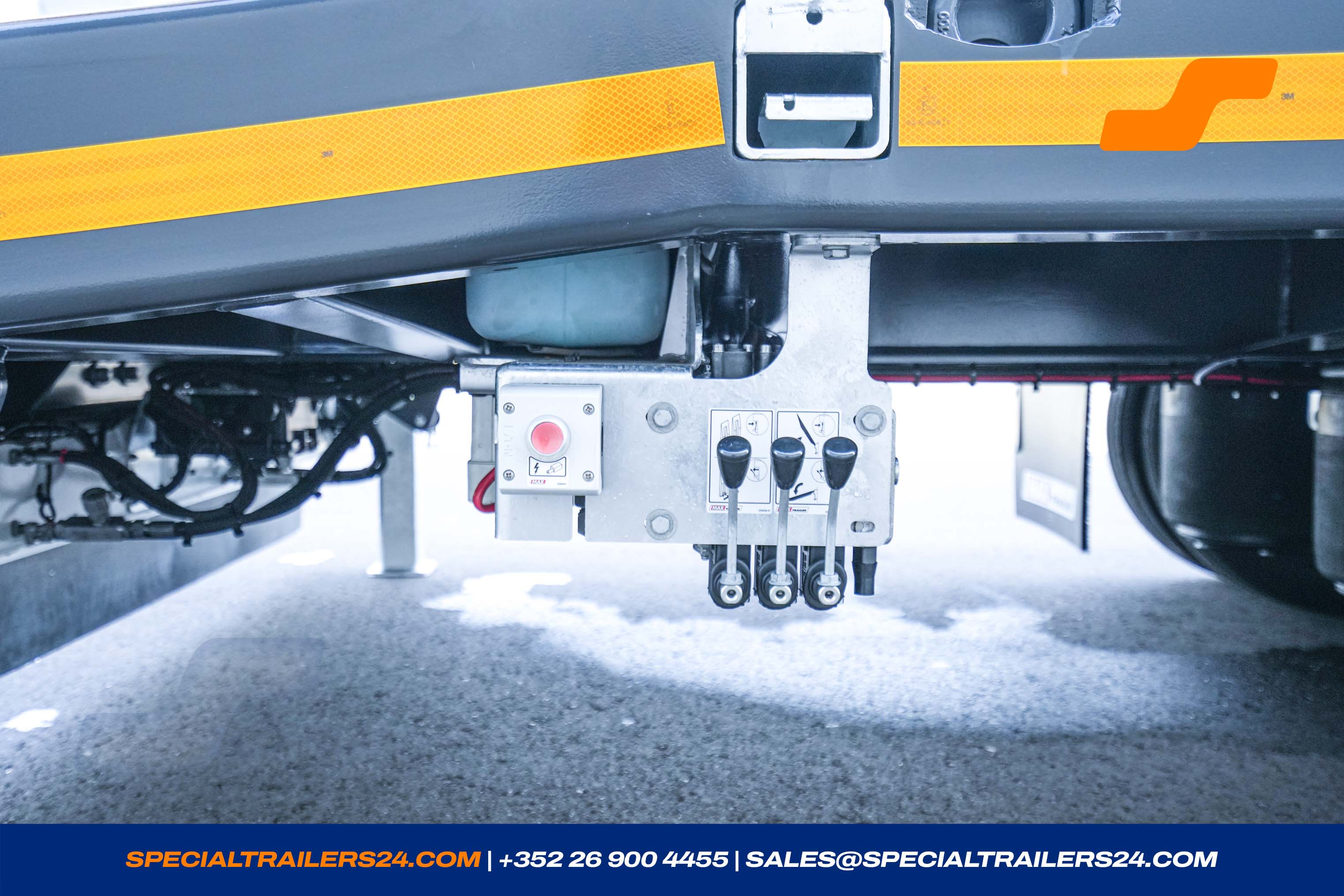

- Electrically operated hydraulic pump at the rear under the loading platform. (± 45 kg)
- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.
- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- On the warning boards a holder to put a flashing beacon.
- 6 pairs of pockets for stakes ca. 100 x 50 mm in the outer frame of the loading platform (± 18kg).

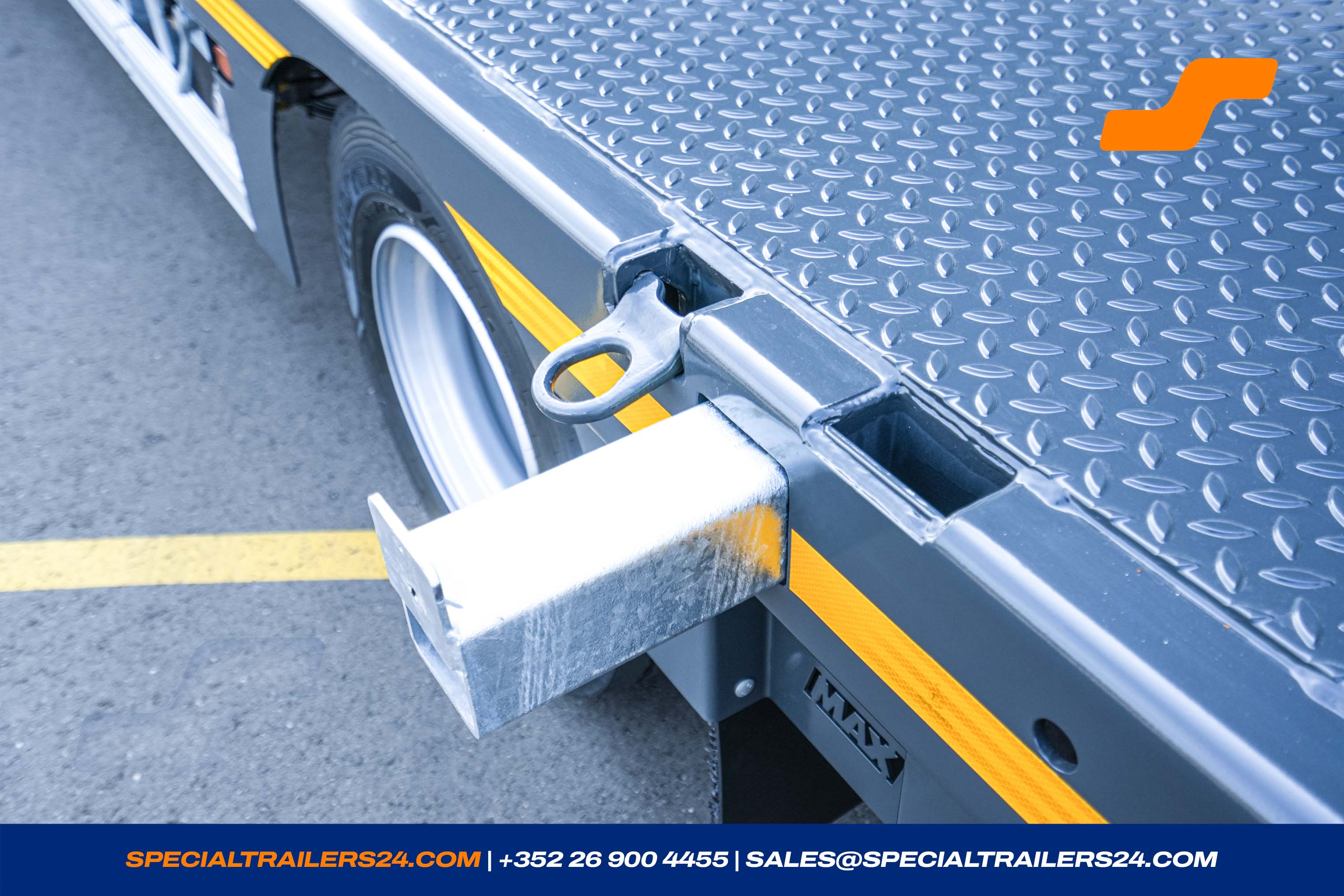

- Galvanised outriggers, extendable up to ± 230 mm per side (± 262 kg).

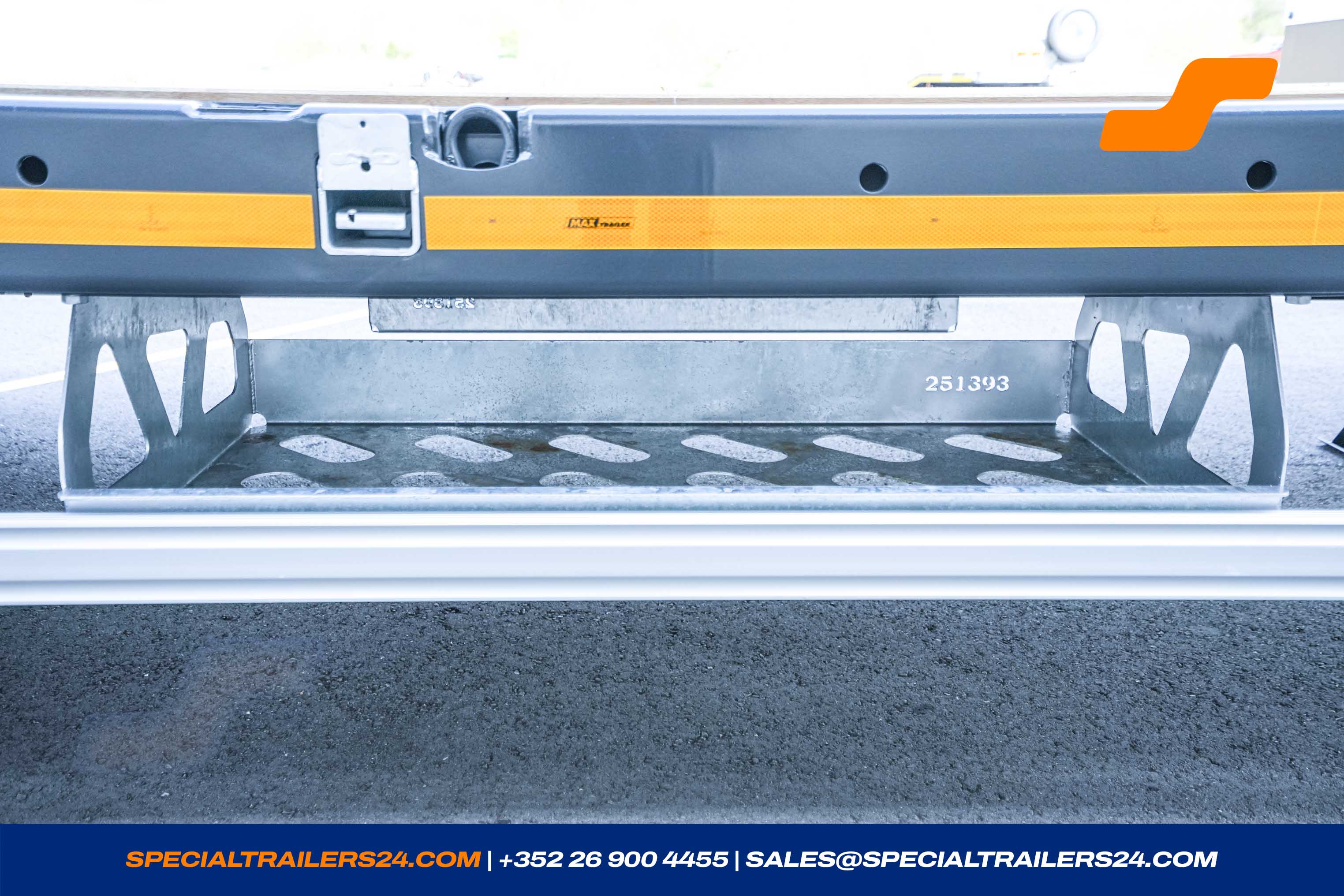

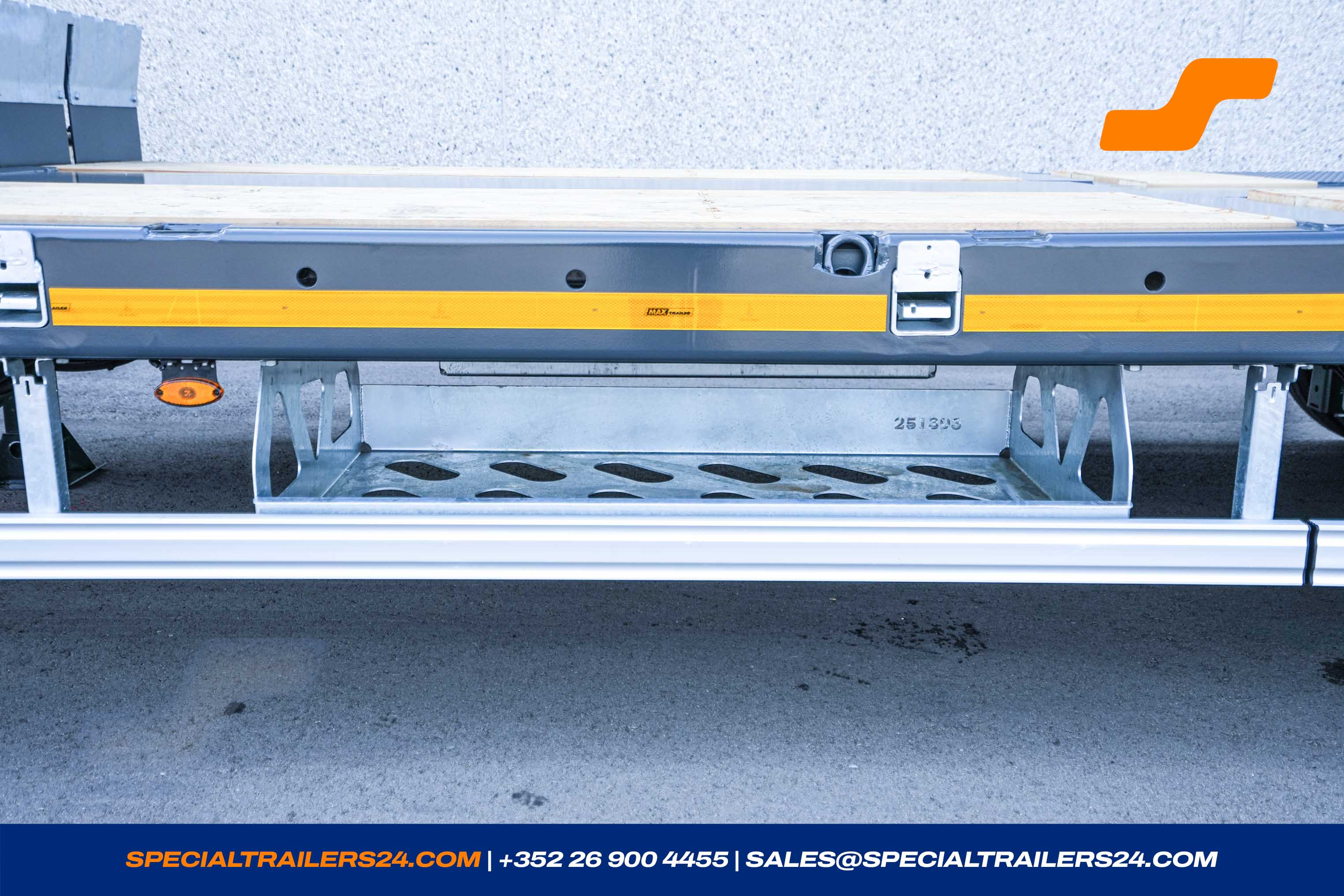

- Galvanised storage for timber, left and right under the loading platform (± 100kg).
-
7 pairs of inserted lashing rings along the central beam of the loading area (LC 5 000 daN).
- 2 pairs in the lifting floor.
- 5 pairs in the rear loading area.
1 pair of inserted lashing rings along the central beam at the back end of the chamfer (LC 10 000 daN). (± 25 kg) - 2 LED- reversing lights at the rear.

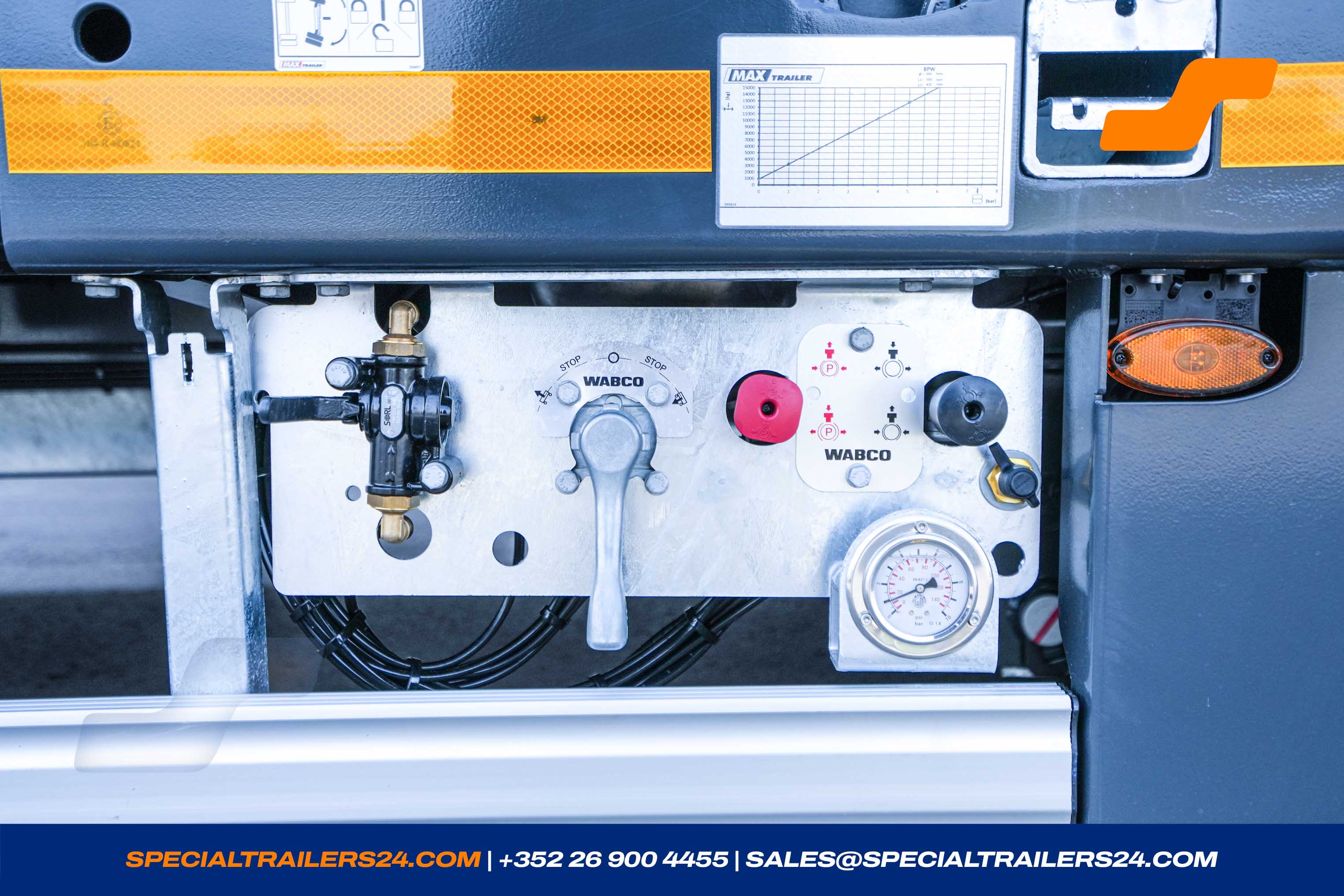

- Load manometer for determining the axle load, including load diagram.
Ramps
Hydraulic loading ramps

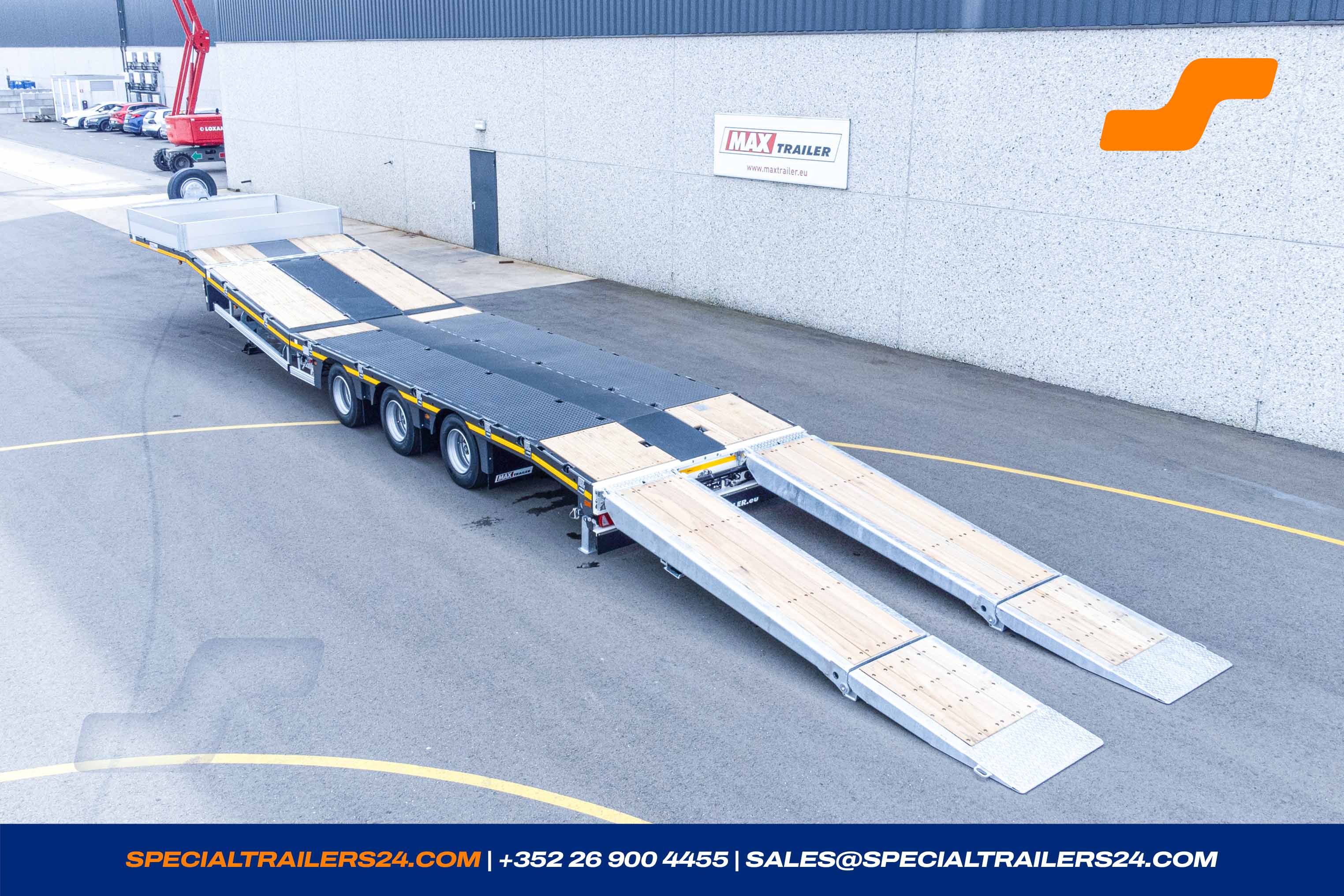

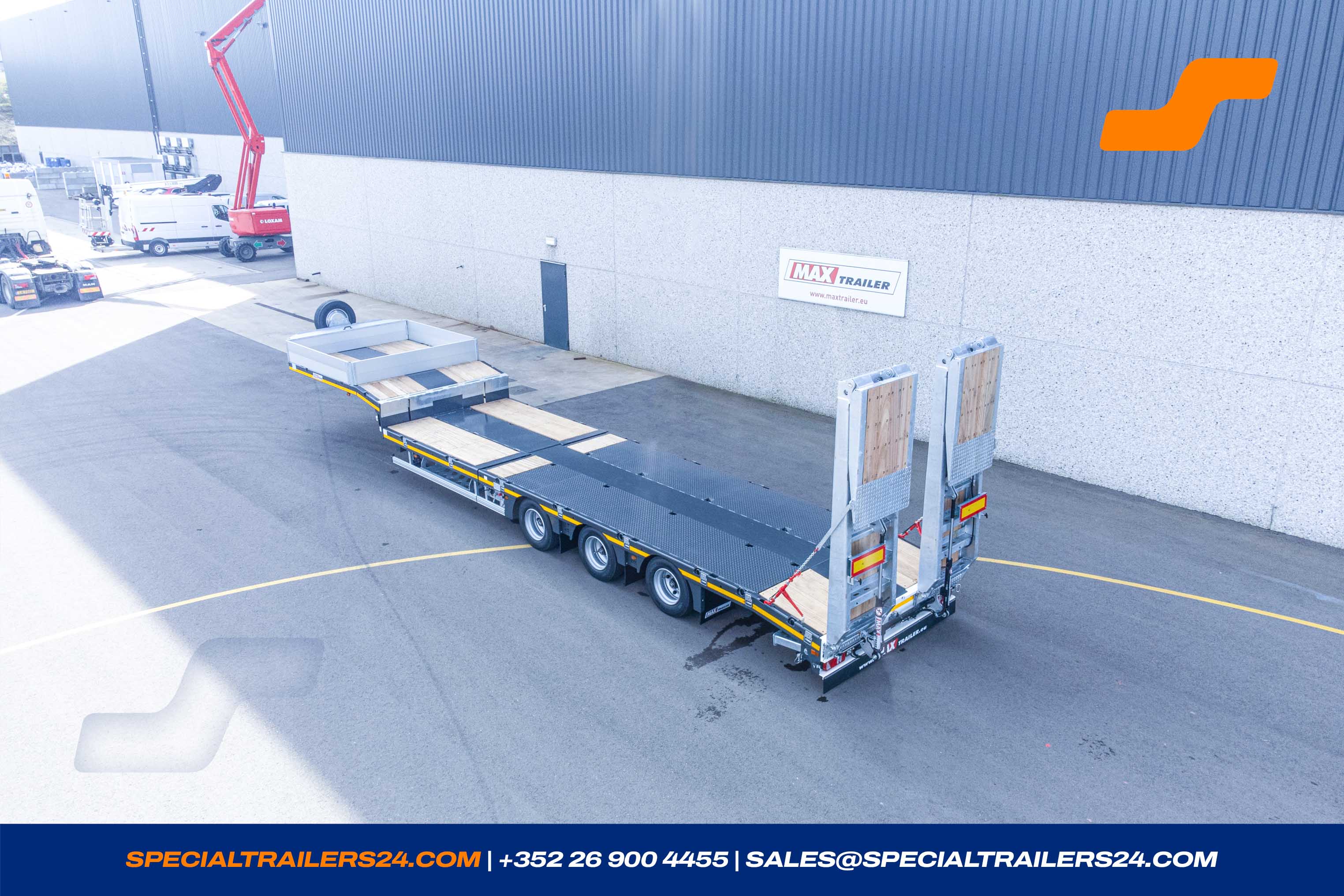

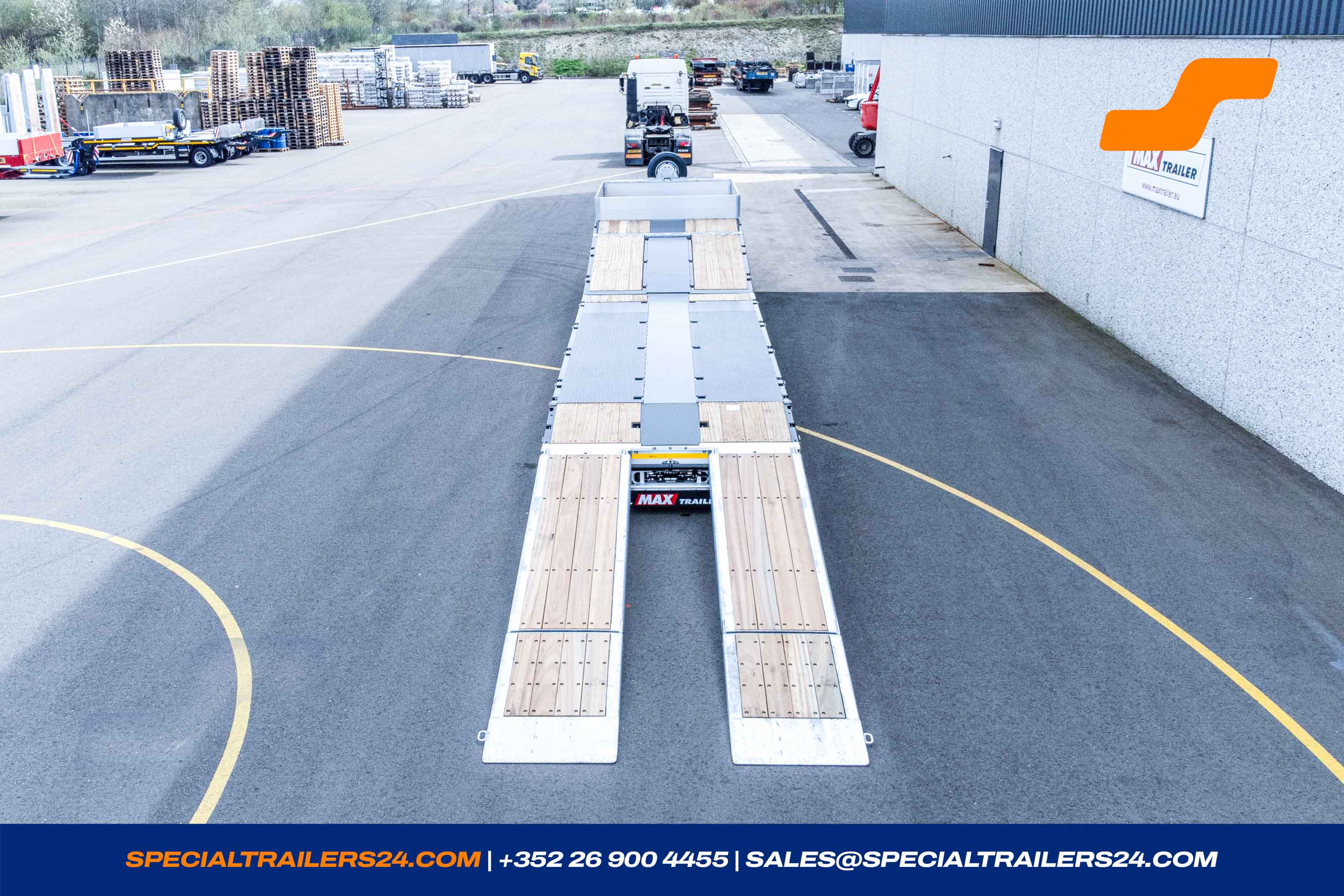

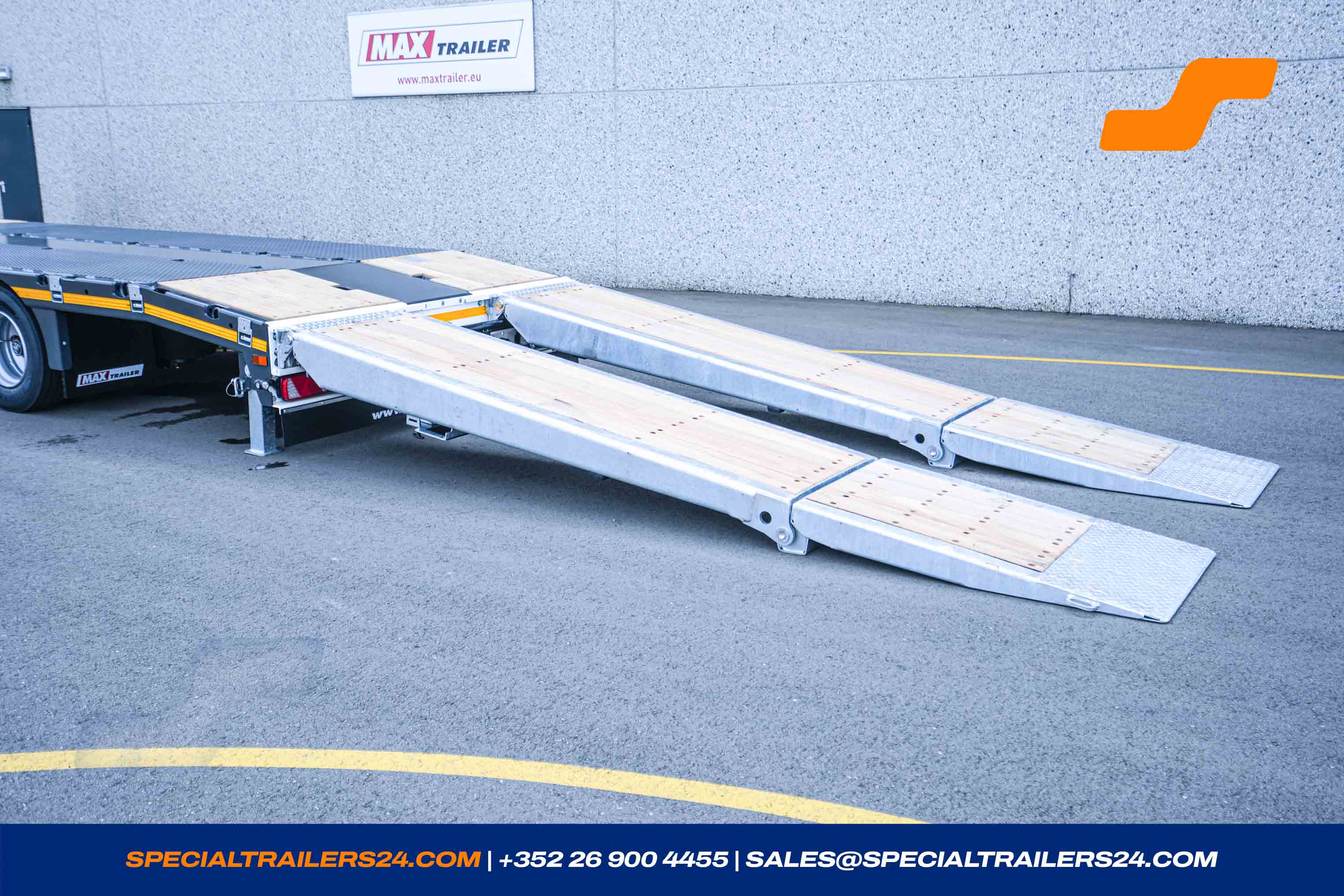

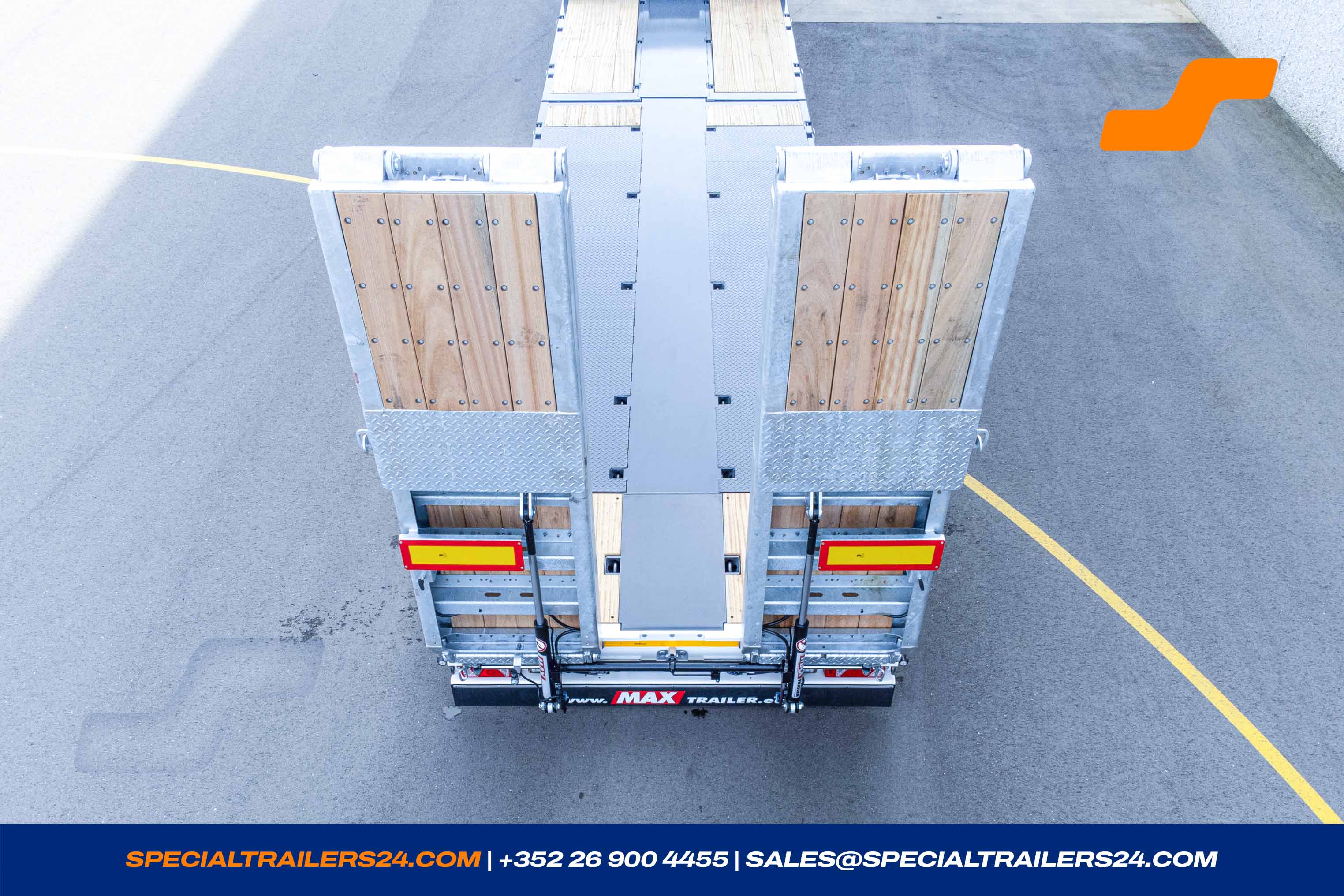

1 x Steel double flip ramps

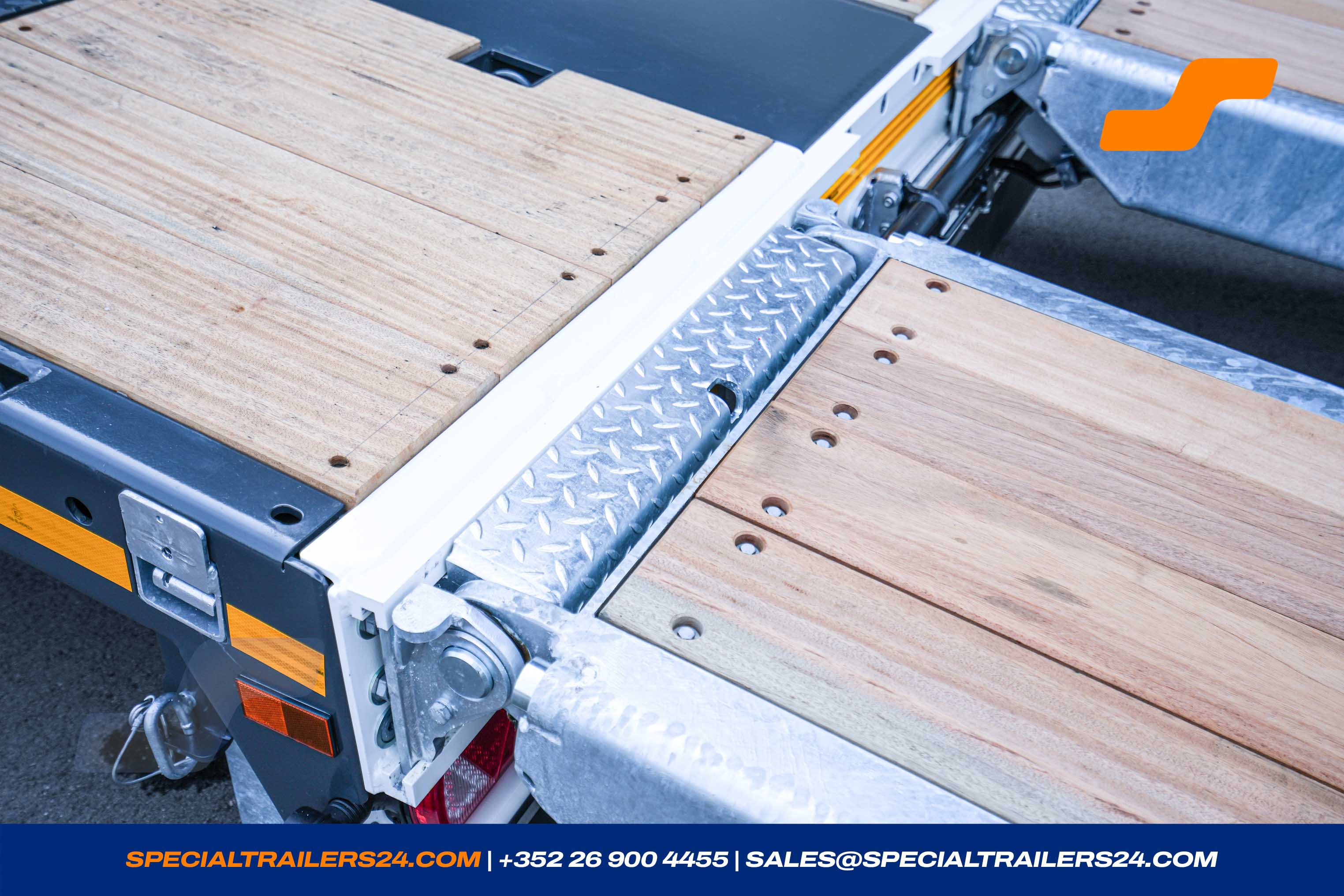

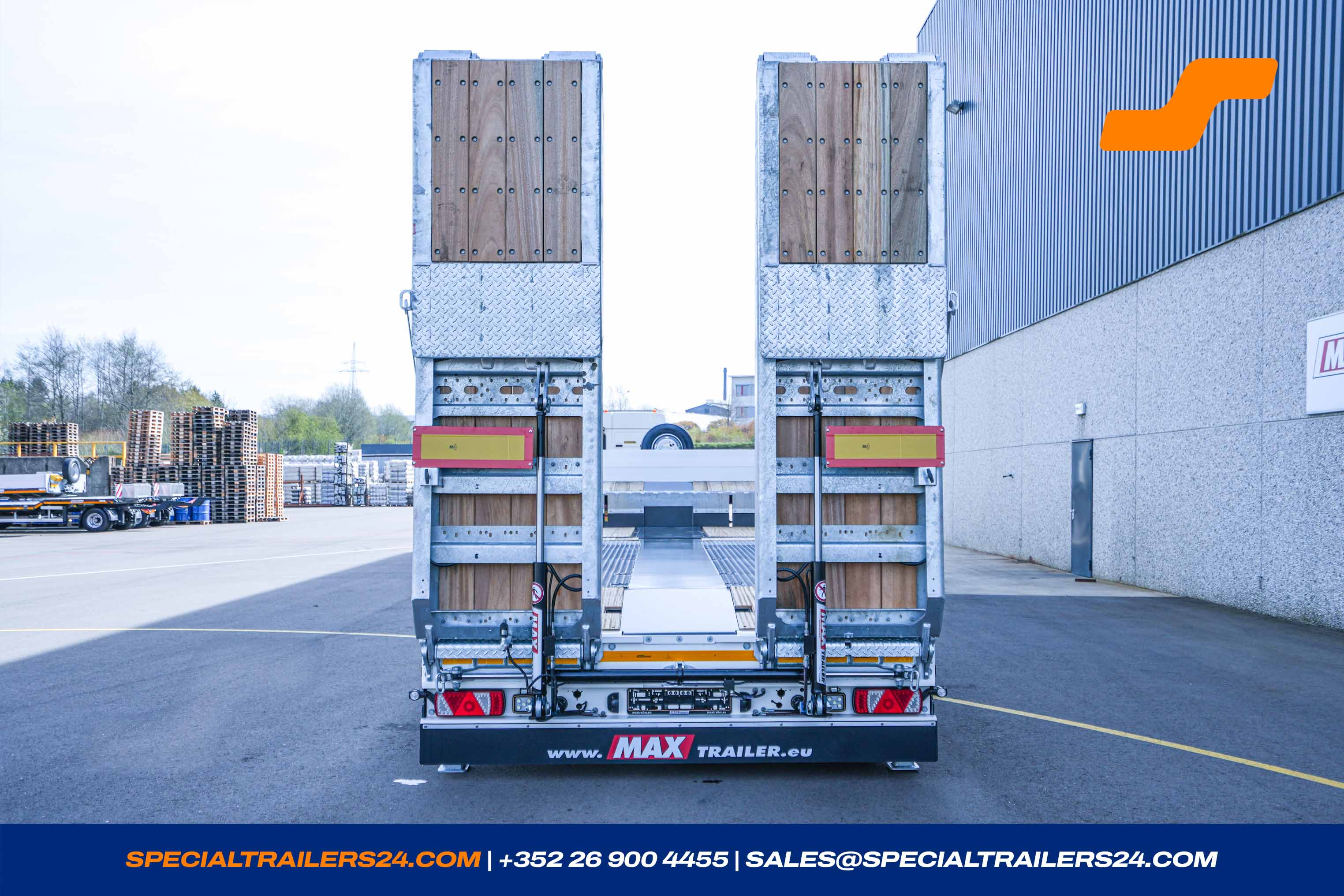

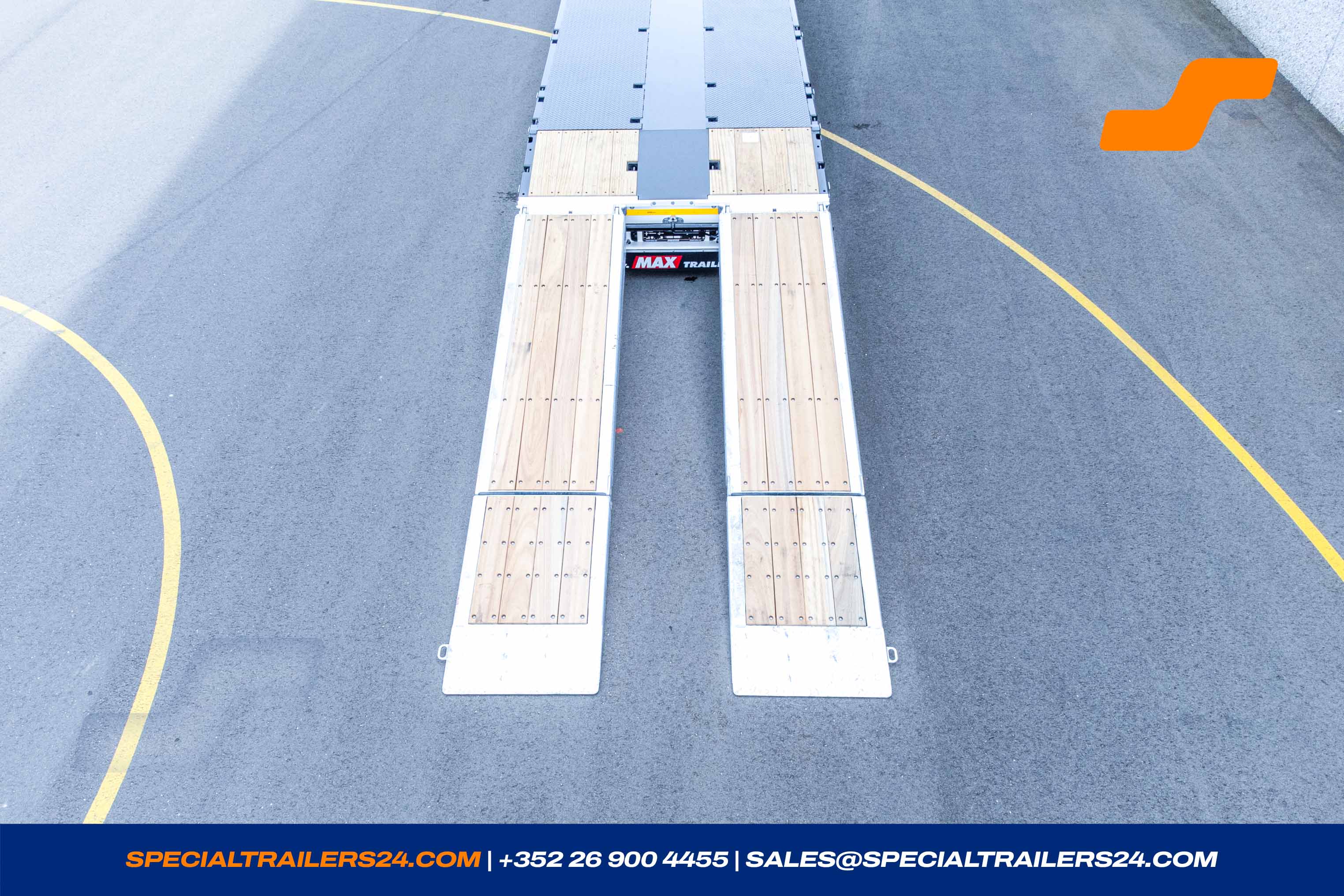

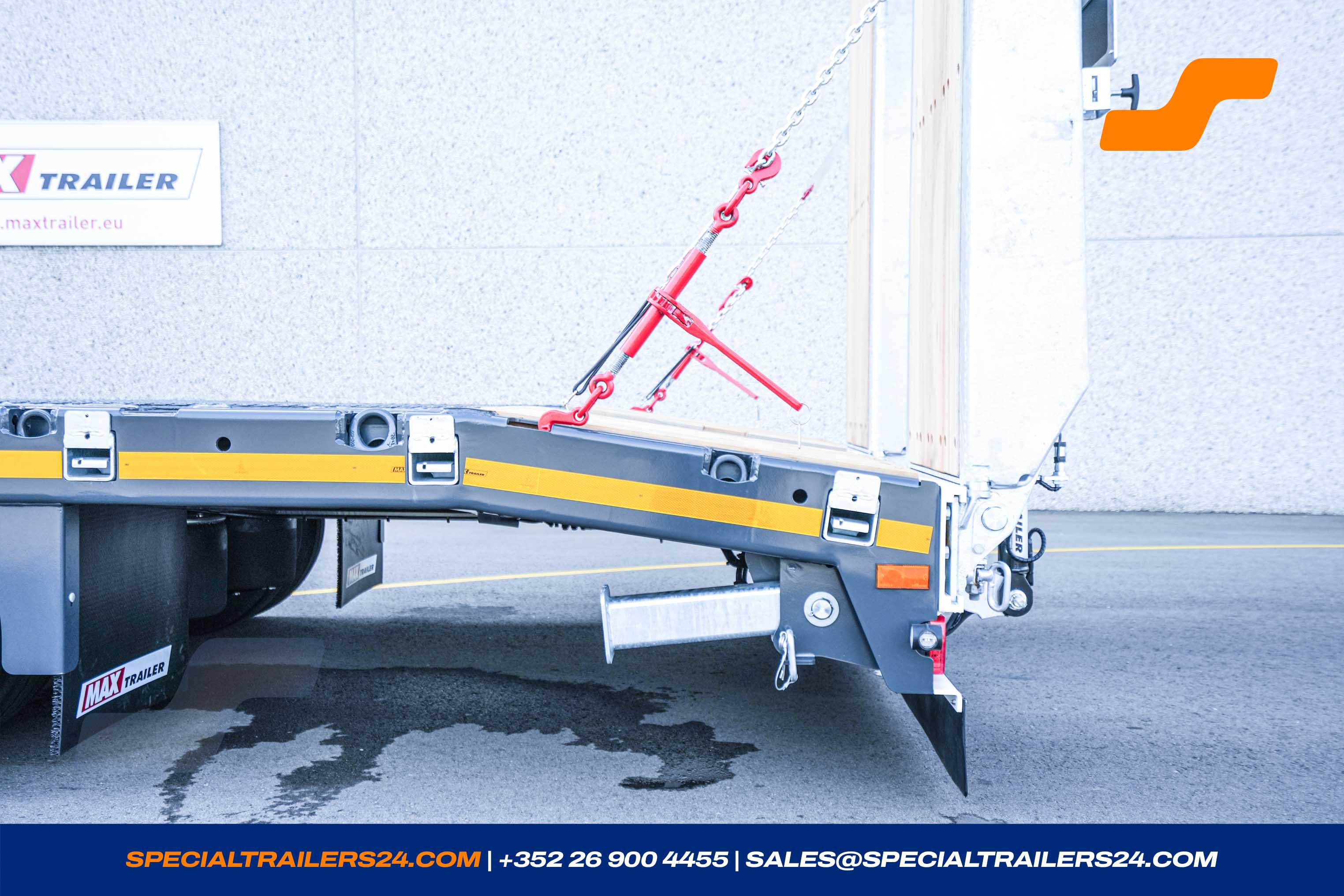

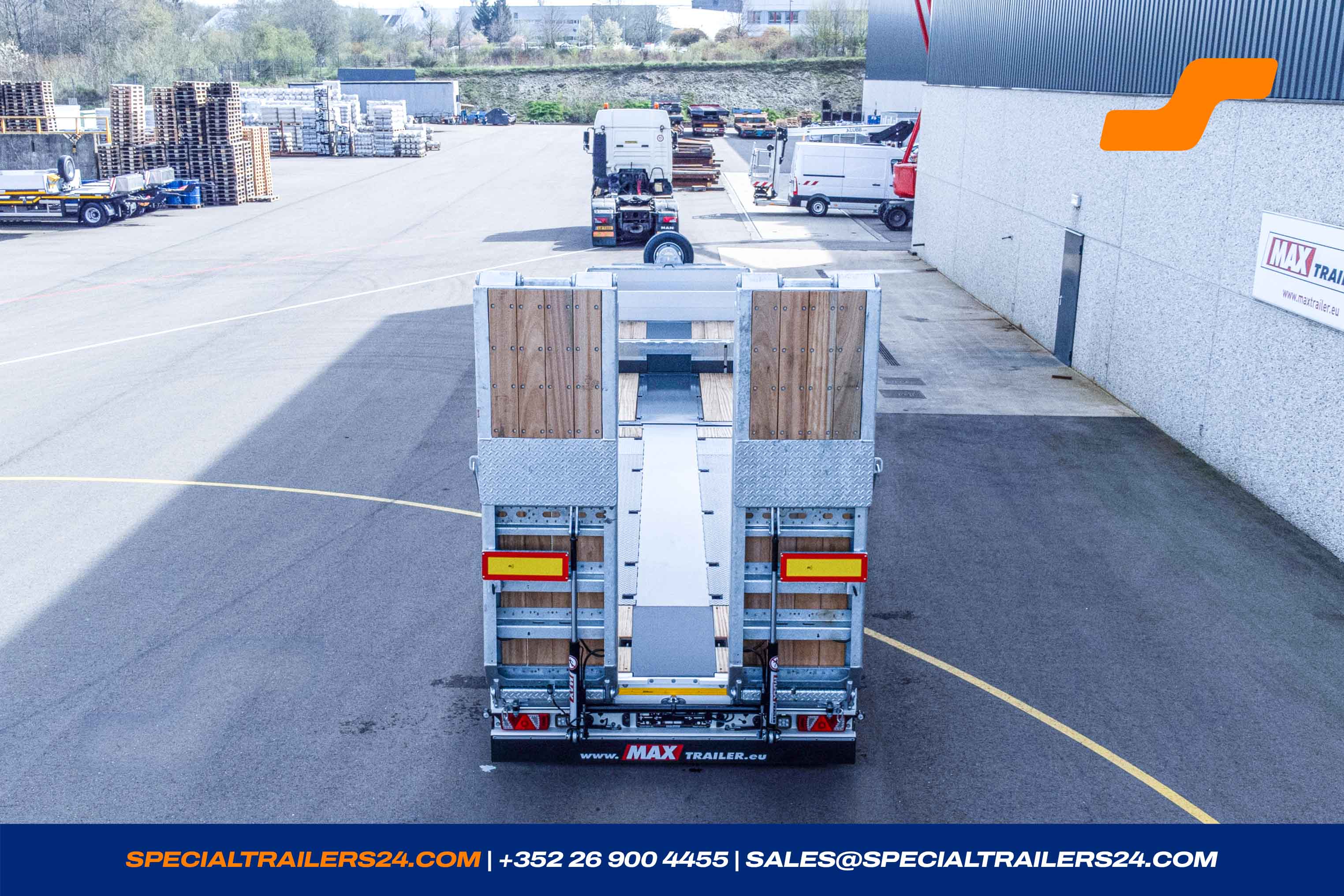

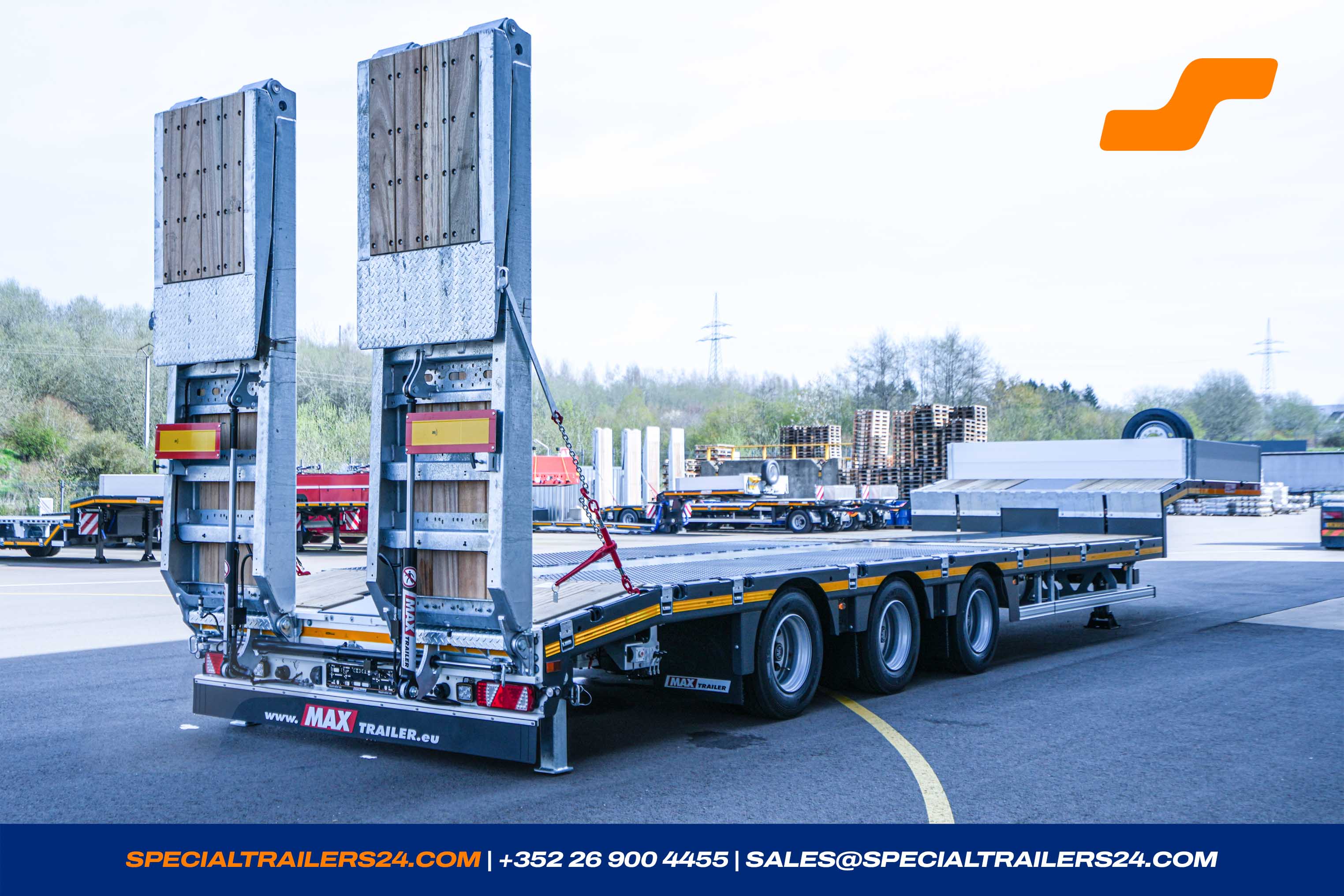

1 pair steel double flip ramps galvanized ca. 2 750 + 1 400 x 900 mm with ca. 48 mm hardwood cover.
Ramps hydraulically operated and hydraulic side shift.
Maximal charge for one pair: 40 000 kg
- Operated valve for ramps mounted on the right side (± 4 kg).
Accessories
1 x Accessories
- Manual and description on USB stick .
- Assembly of the double ramps on the semitrailer.
- Delivery from a trailer to factory Lentzweiler.
