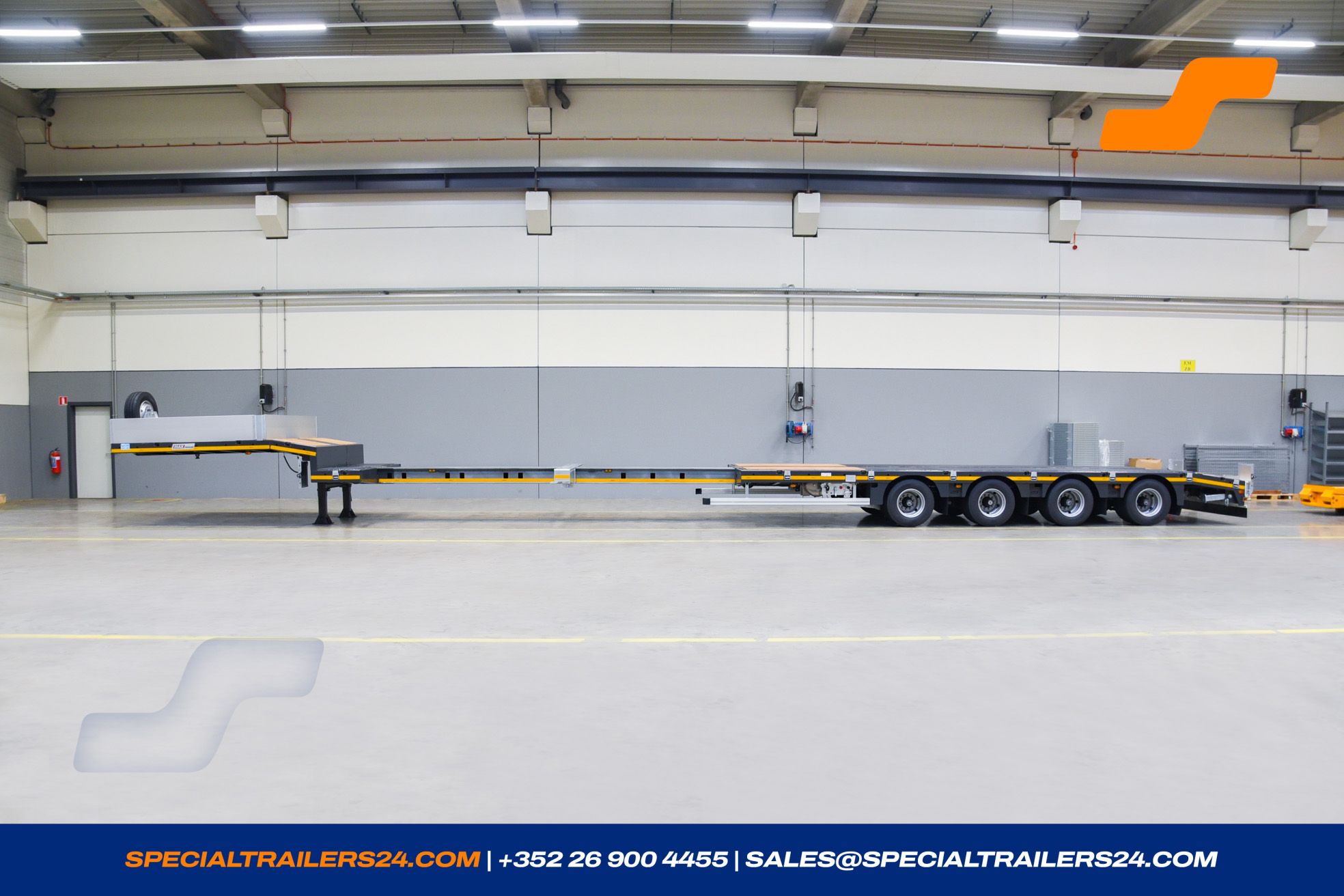

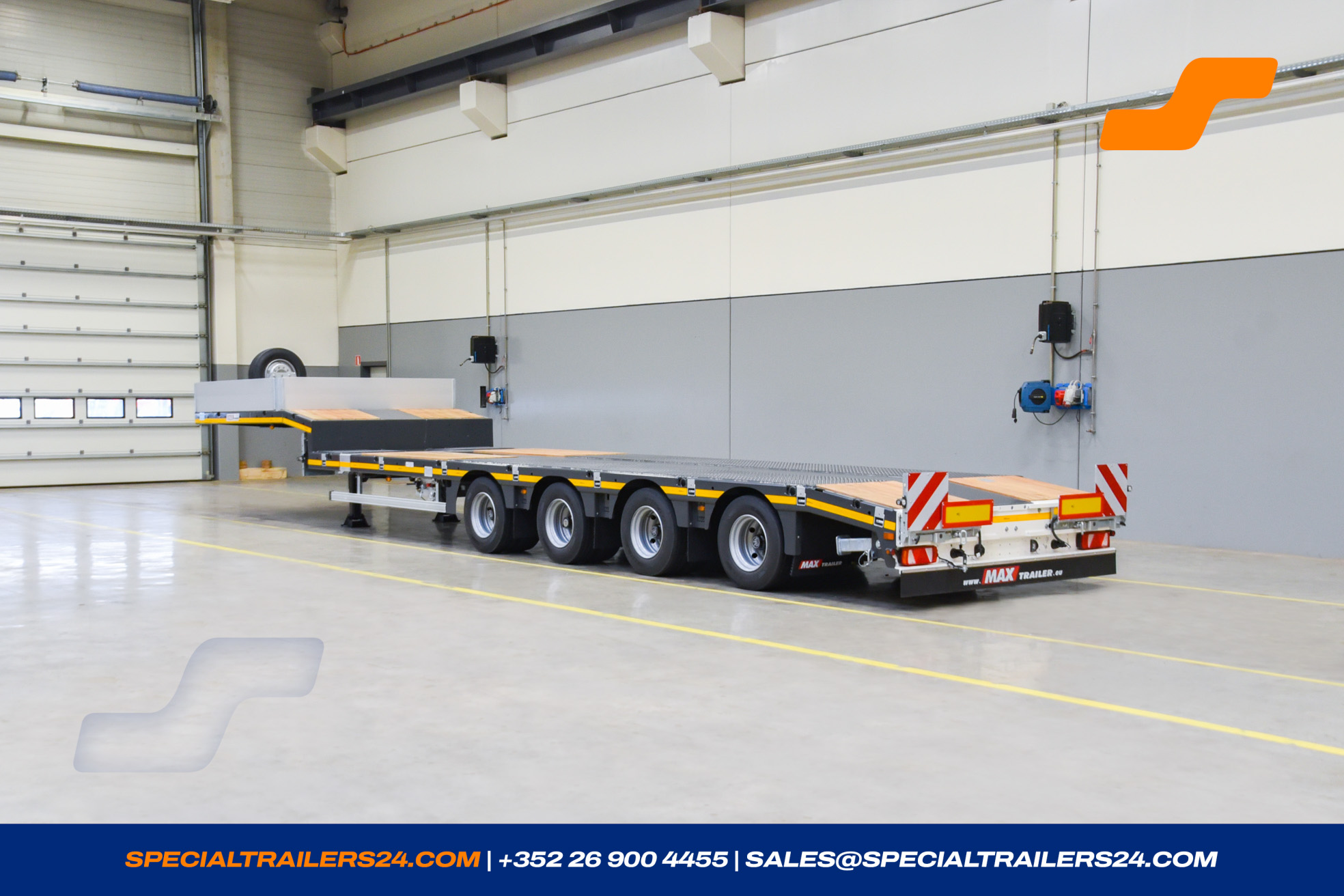

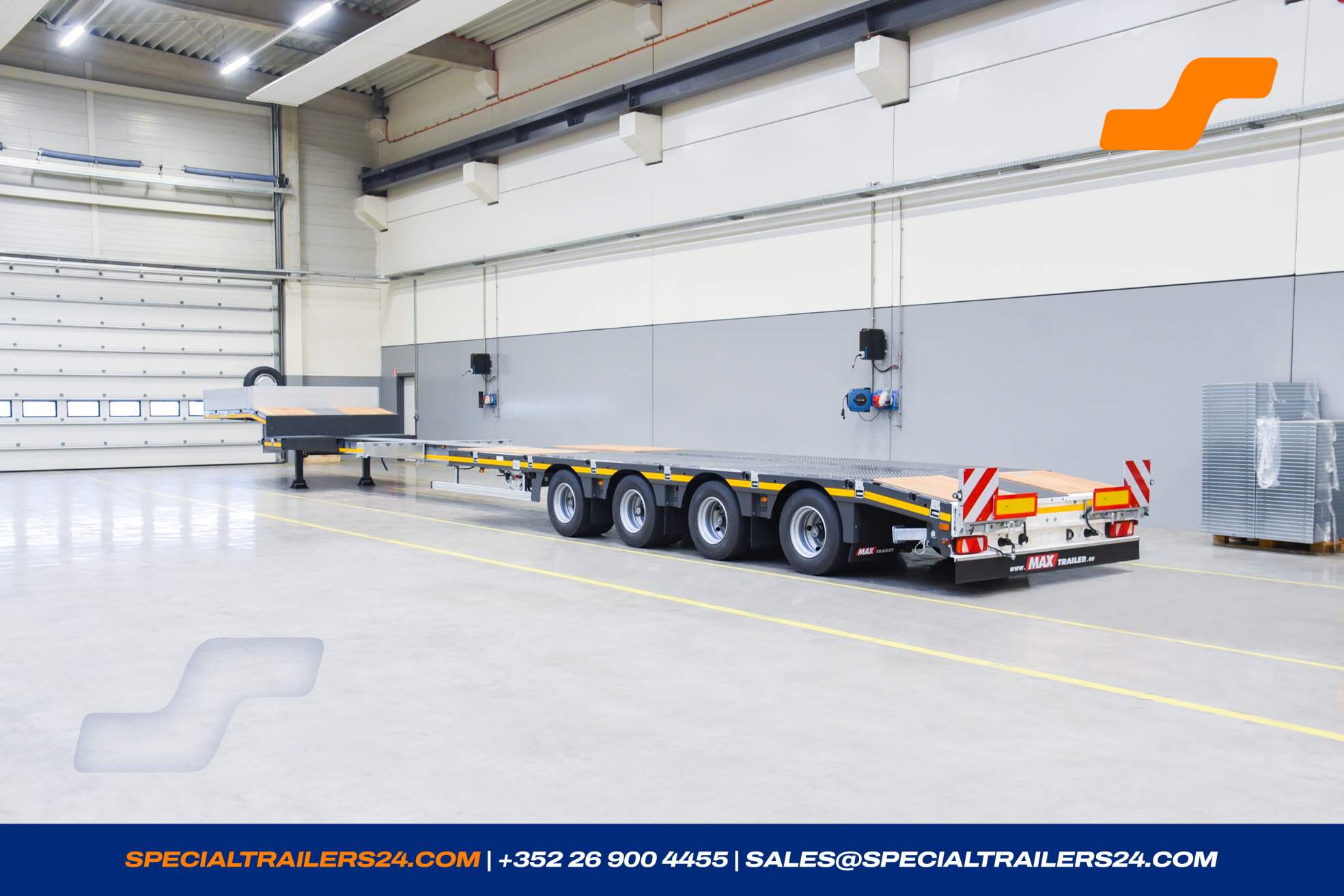

MAX Trailer MAX100
Die Farbe des Fahrzeugs auf dem Foto kann abweichen.
- Chassis number 110913
- Reference MAX100-N-4A-9.30

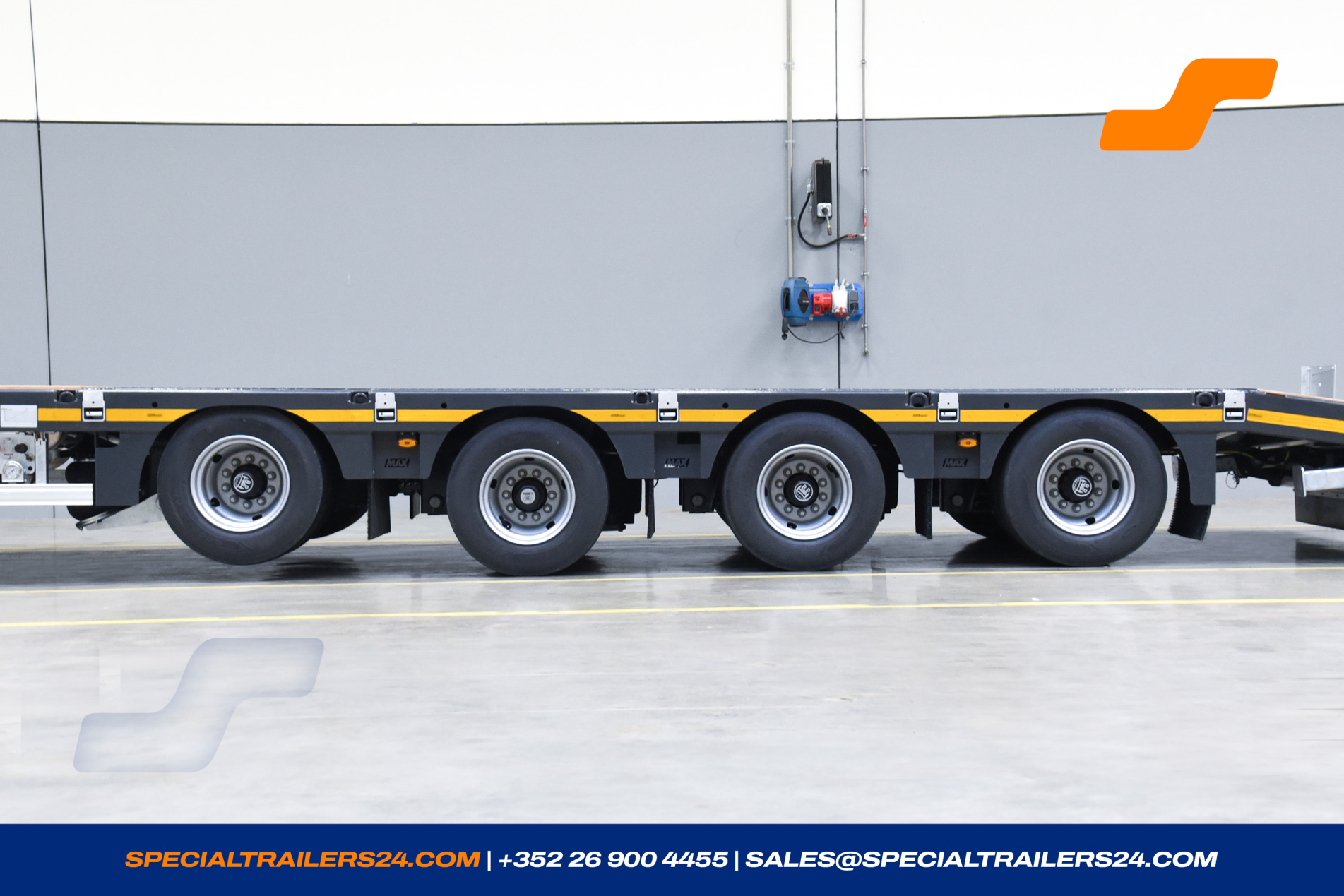

- Number of axles 4
- Condition New
- Year of manufacture 2025
- Colour Farbe wählbar
- Availability 05/2026
- Steering Type Friction
Die wichtigsten Unterlagen
Detailinformationen
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 42800 kg |
| Gross weight | 60800 kg |
| Tare weight +- 3% | 10684 kg |
| Payload | 50116 kg |
Dimensions
| Fifth wheel height loaded | 1150 mm |
| Gooseneck length | 3 450 mm |
| Turning circle reversing | 2 300 mm |
| Loading platform length | 9 300 mm |
| Extendable by | 6 100 mm |
| Wheelbase | 1 360 mm |
| Loading height at max. load | 860 mm |
| Total width | 2 540 mm |
| Suspension stroke | -55/ +145 mm |
Gooseneck
1 x Gooseneck

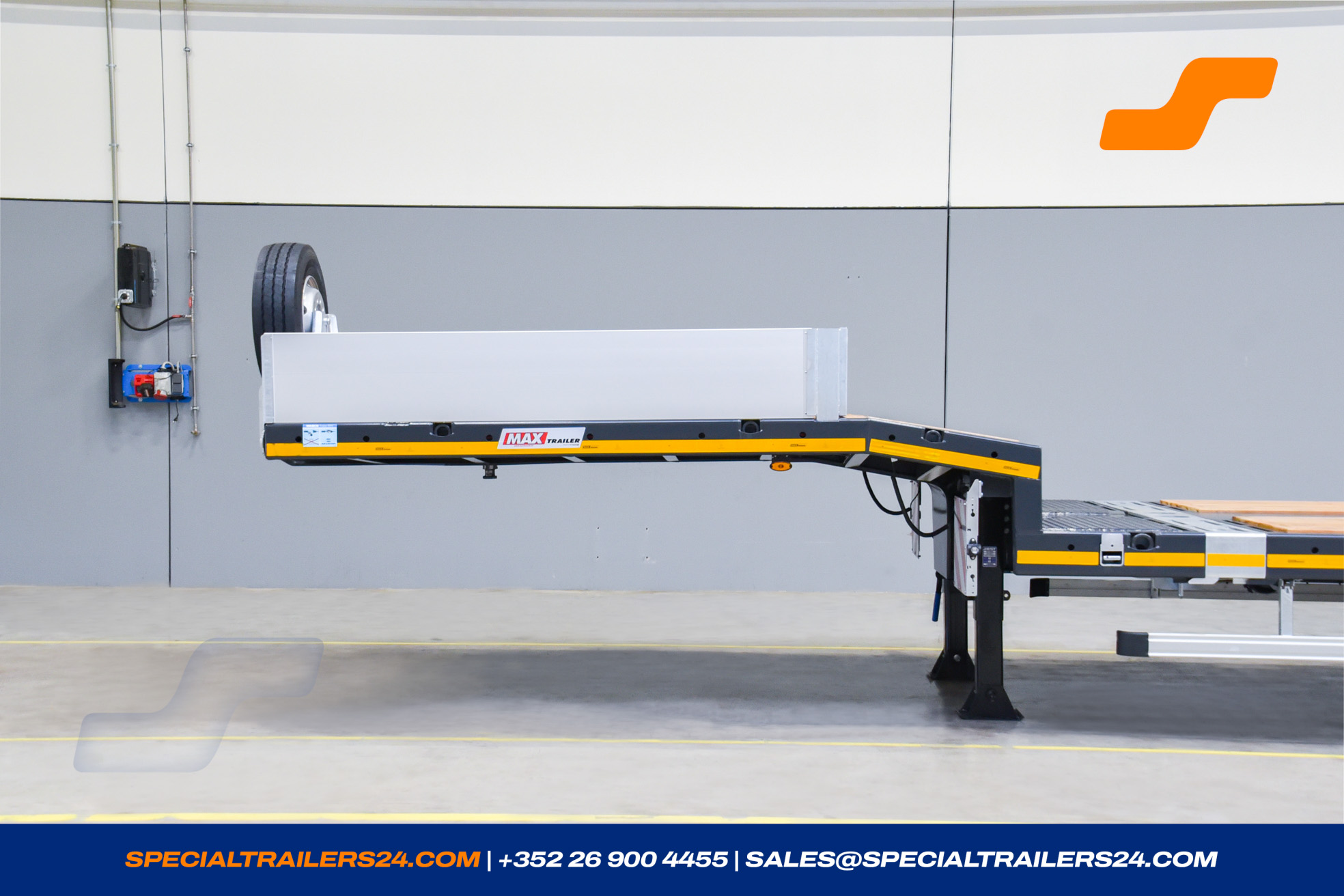

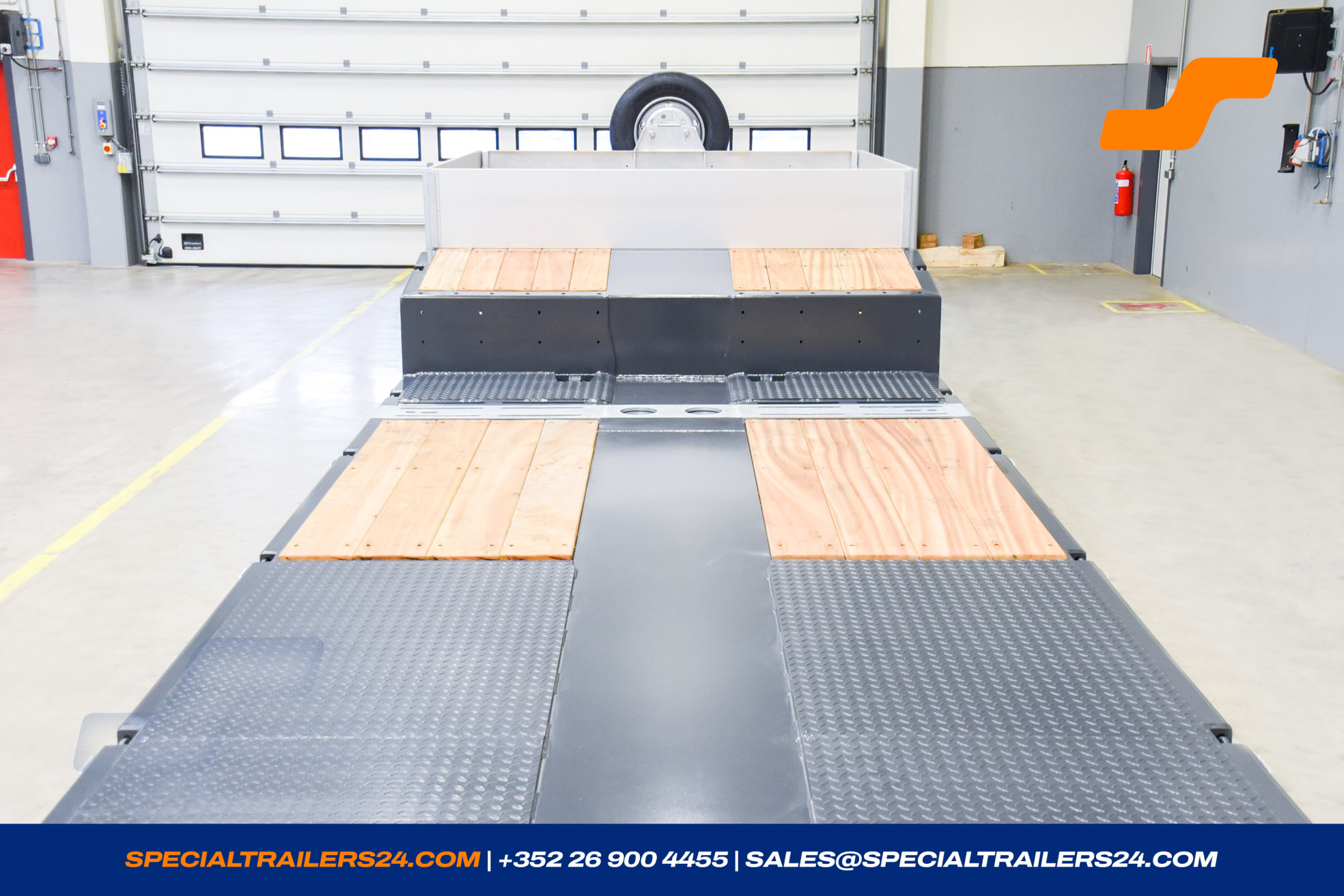

Gooseneck with rear chamfered by ca. 750 mm x 10°.
3 pairs of lashing rings (LC 5 000 daN).
Hardwood cover thickness 30 mm.

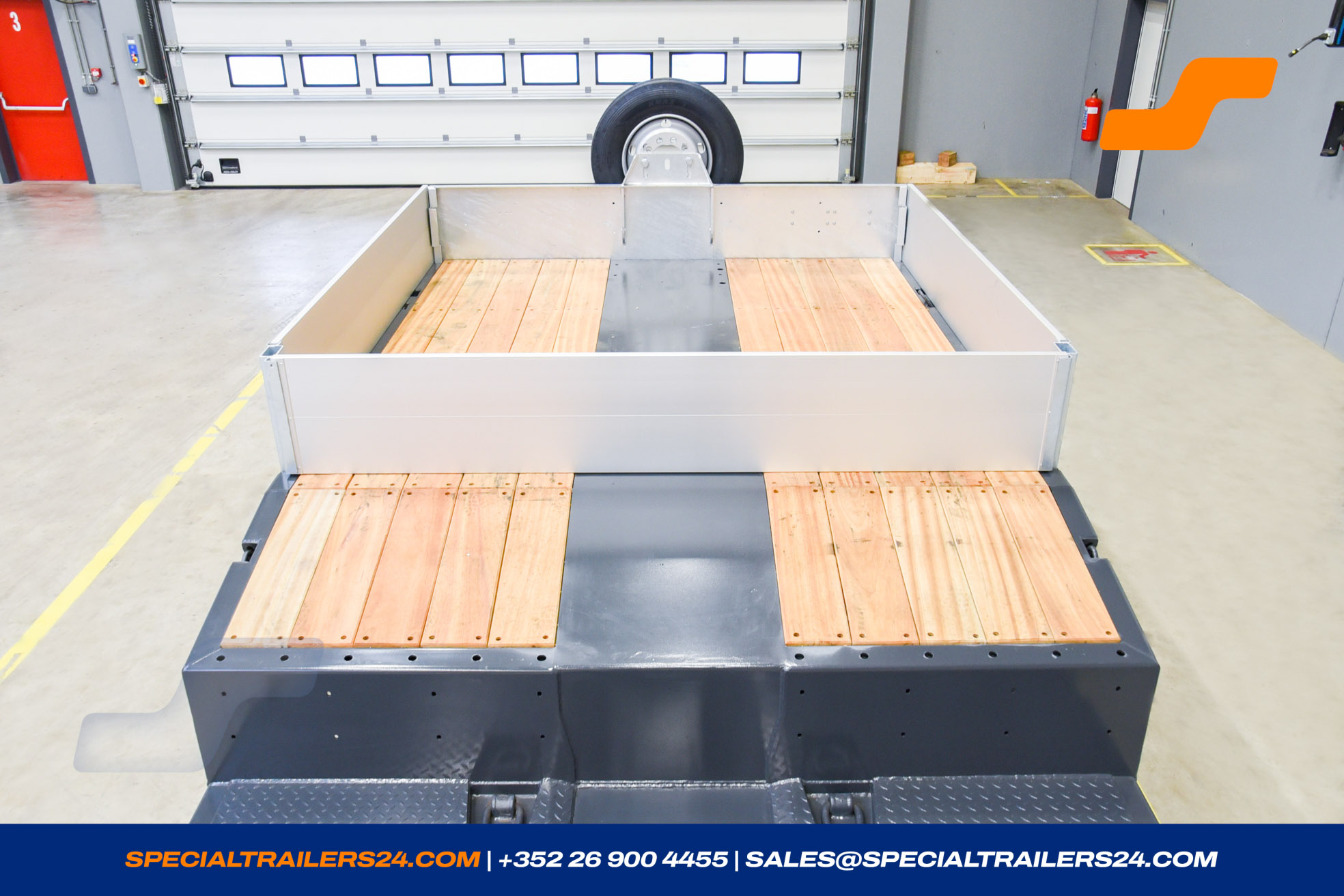

- 1 tool box INOX on the gooseneck ± 1 350 x 400 x 400 mm. (± 46 kg)
Loading deck
Loading platform
1 x Loading platform

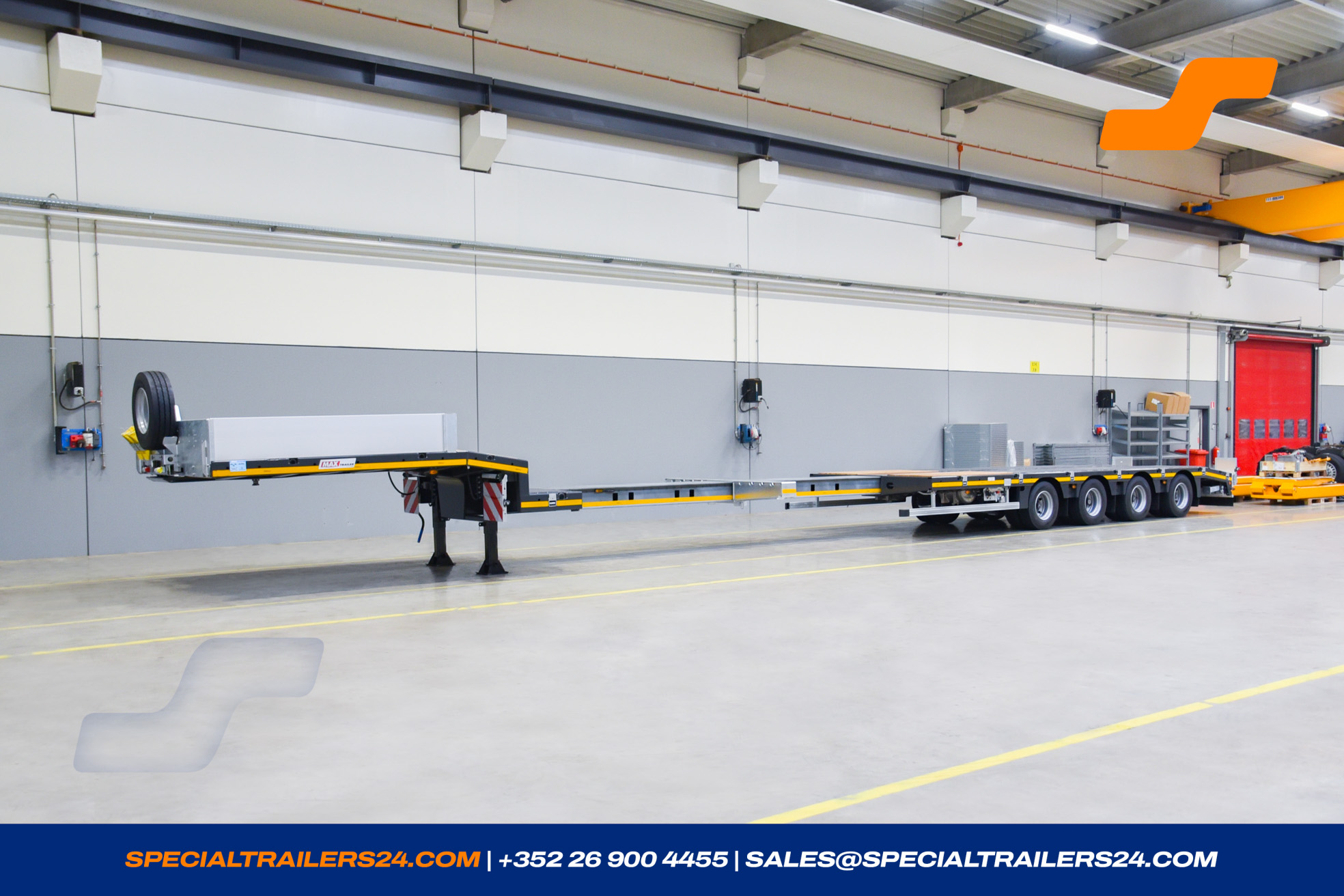

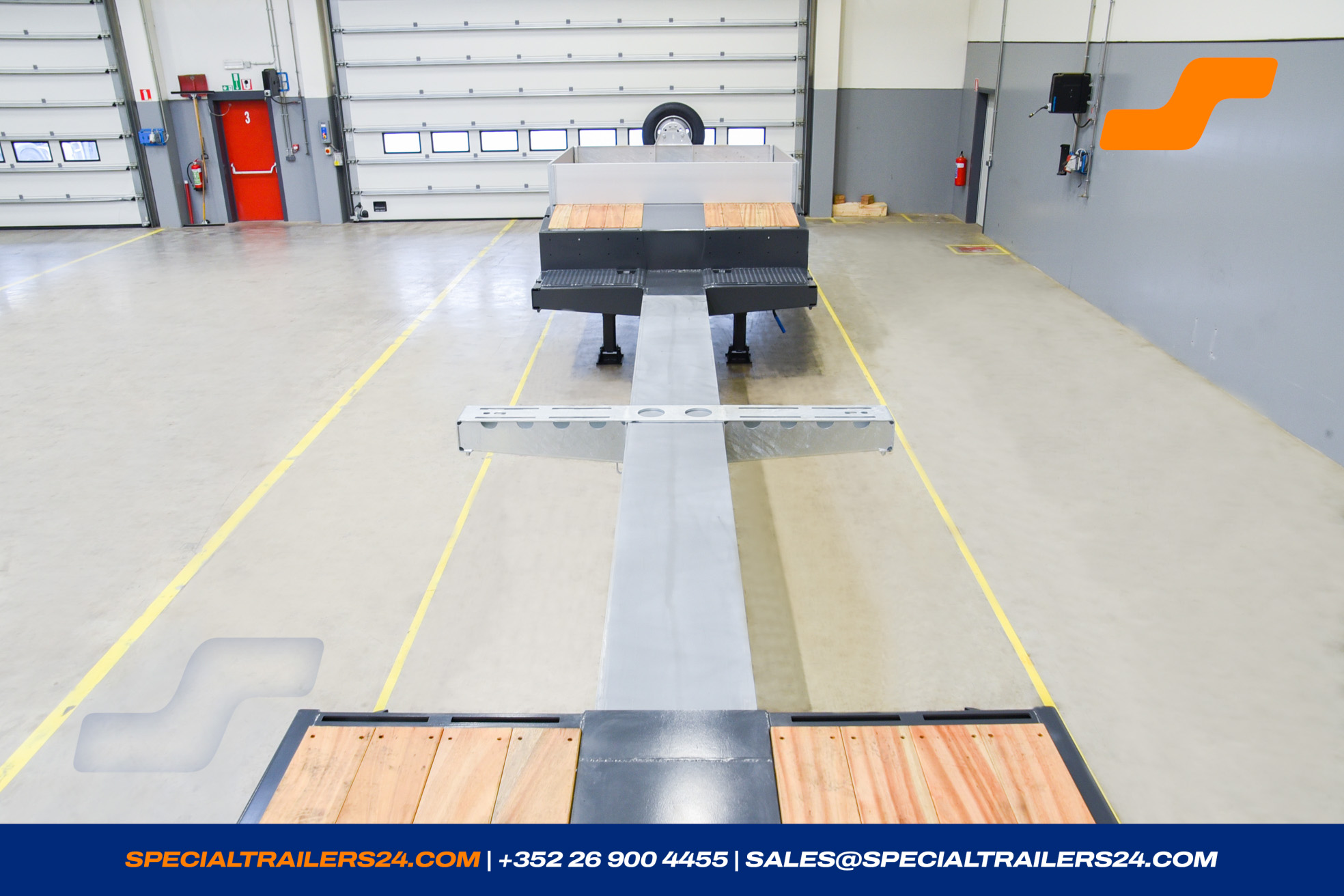

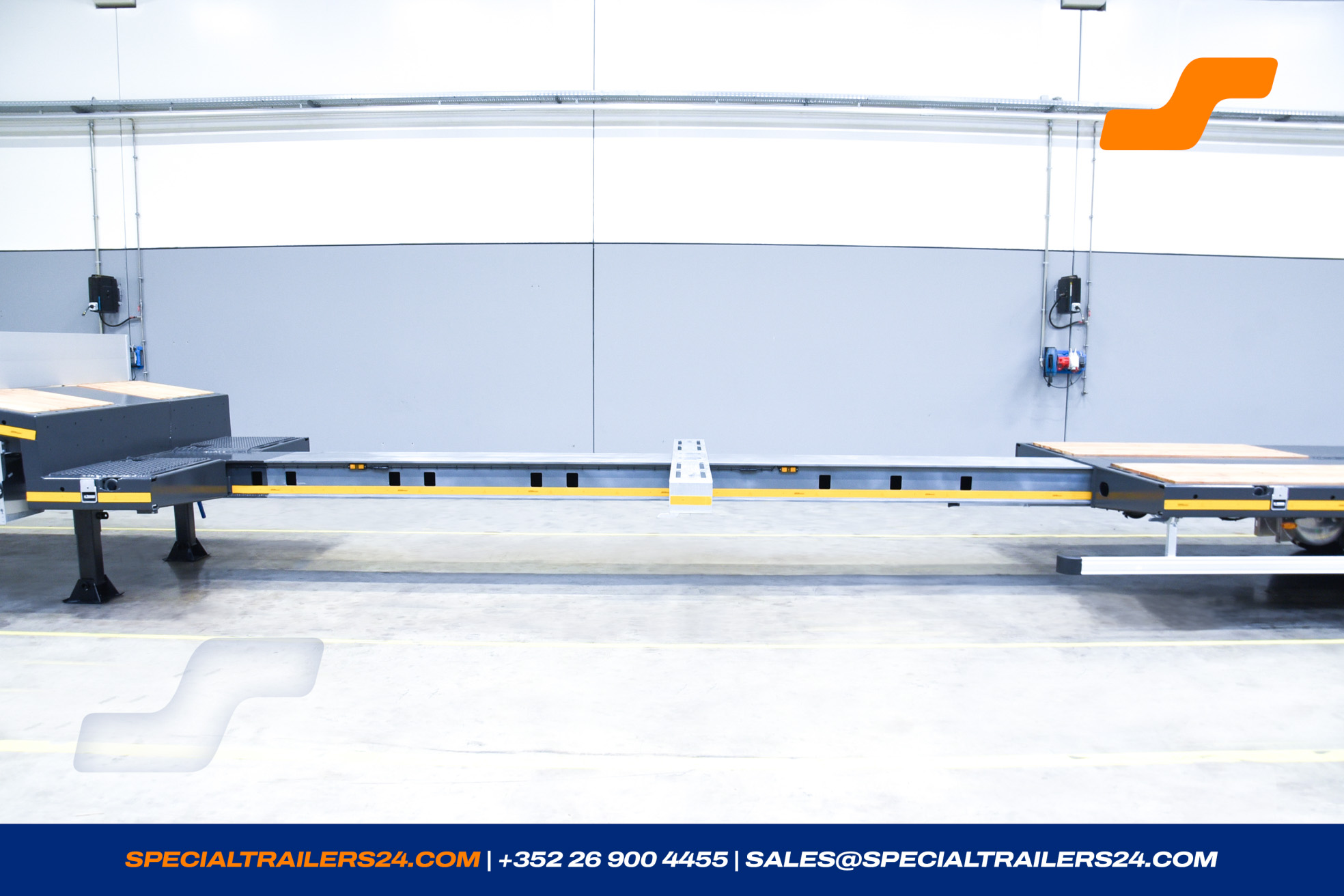

Loading platform in extendable version with chamfered beaver tail by about 1 000 mm x 8°.
5 pairs of lashing rings in the loading platform, hinged outwards (LC 5 000 daN).
3 pairs of lashing rings in the loading platform, hinged outwards (LC 10 000 daN).
1 pair of lashing rings in front in the firm part the loading platform (LC 10 000 daN).

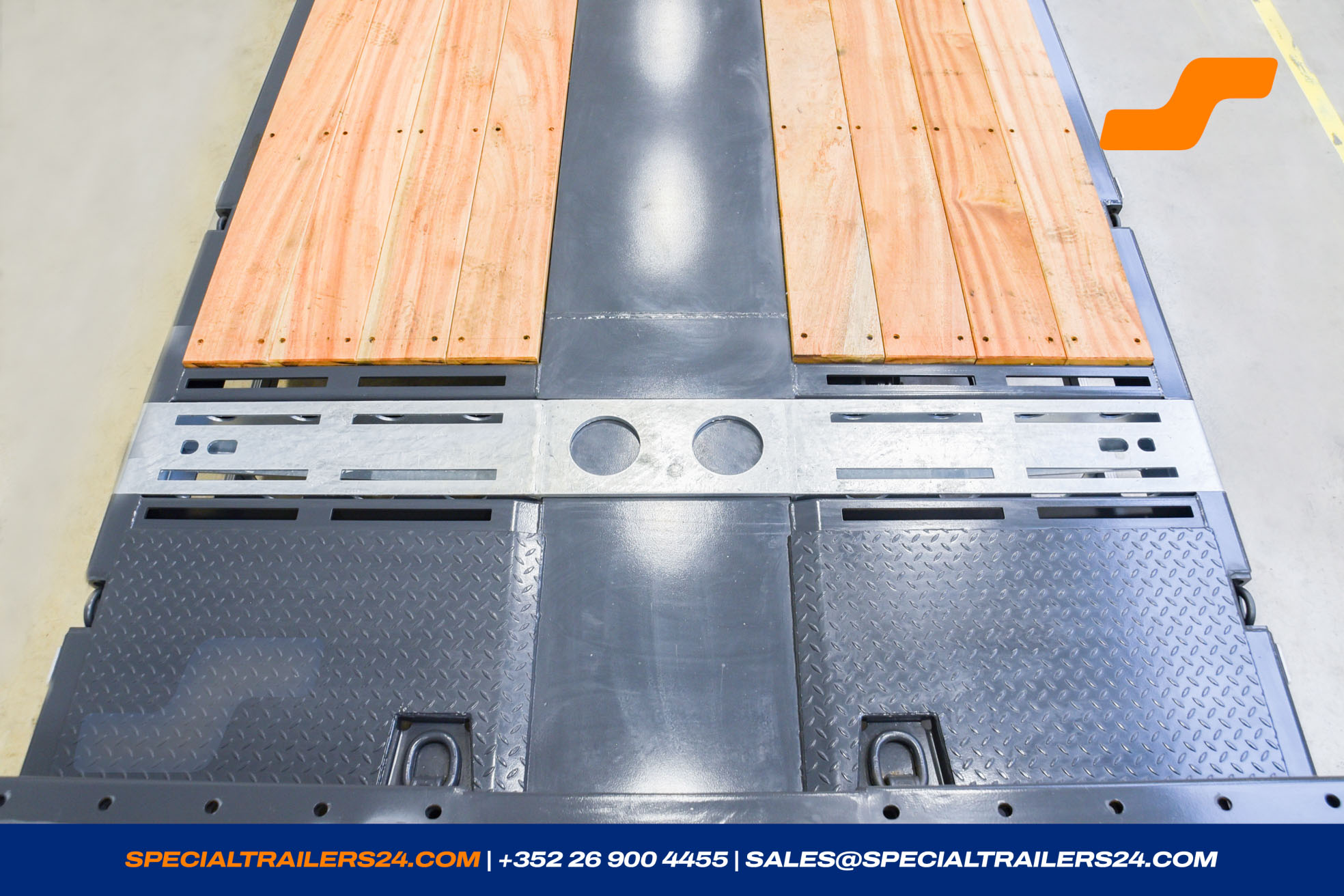

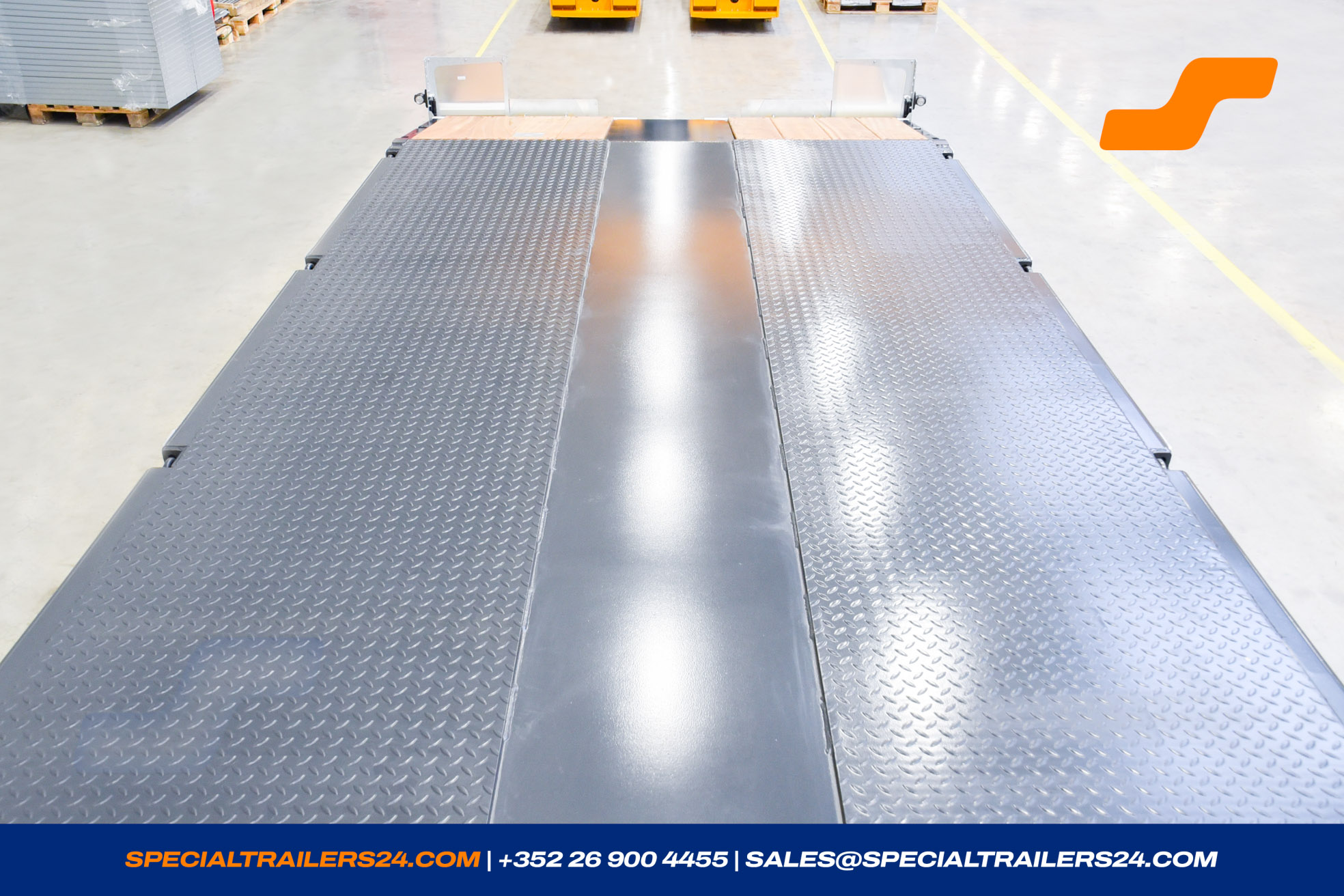

Hardwood cover thickness 48 mm above the axles chequer plate.

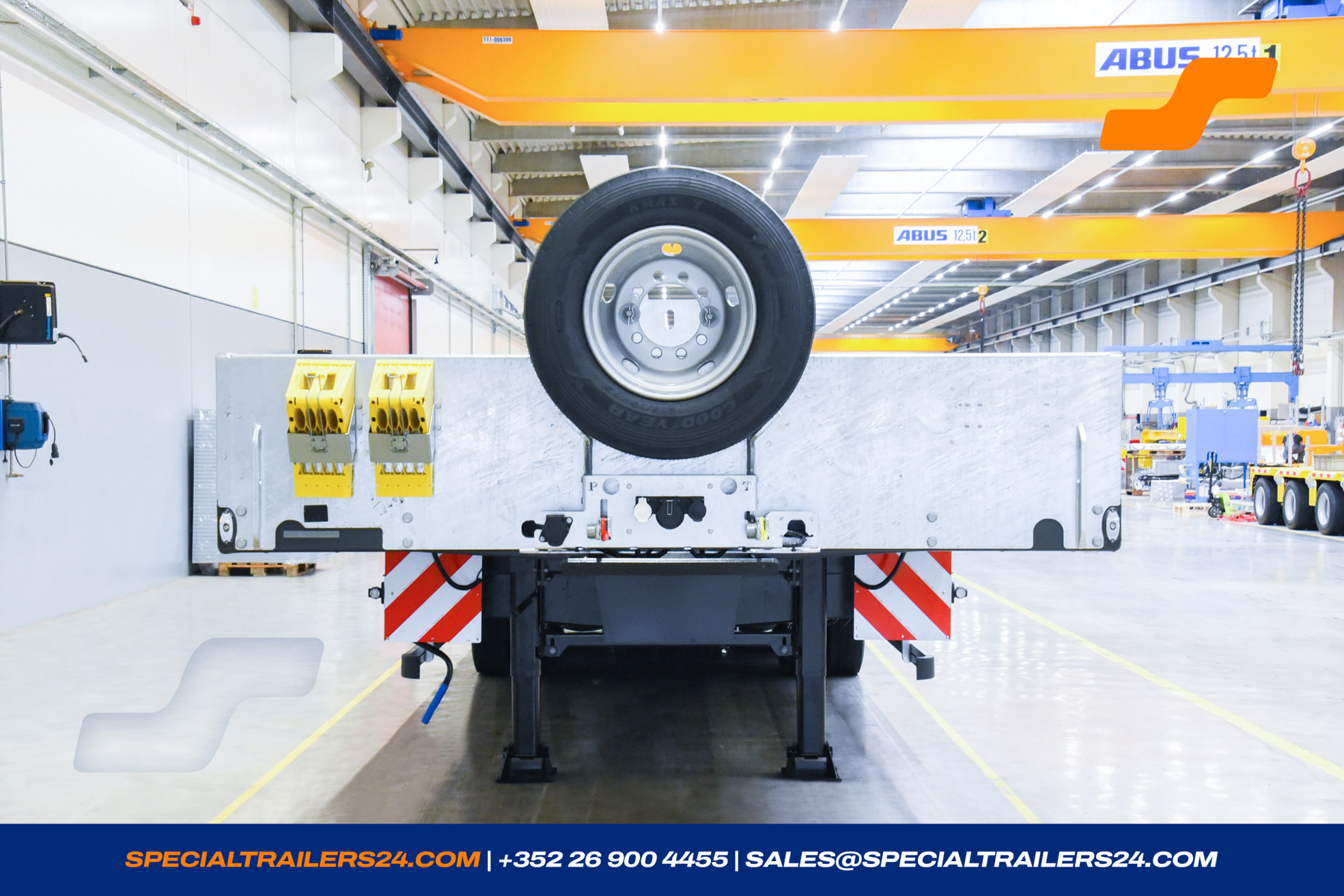

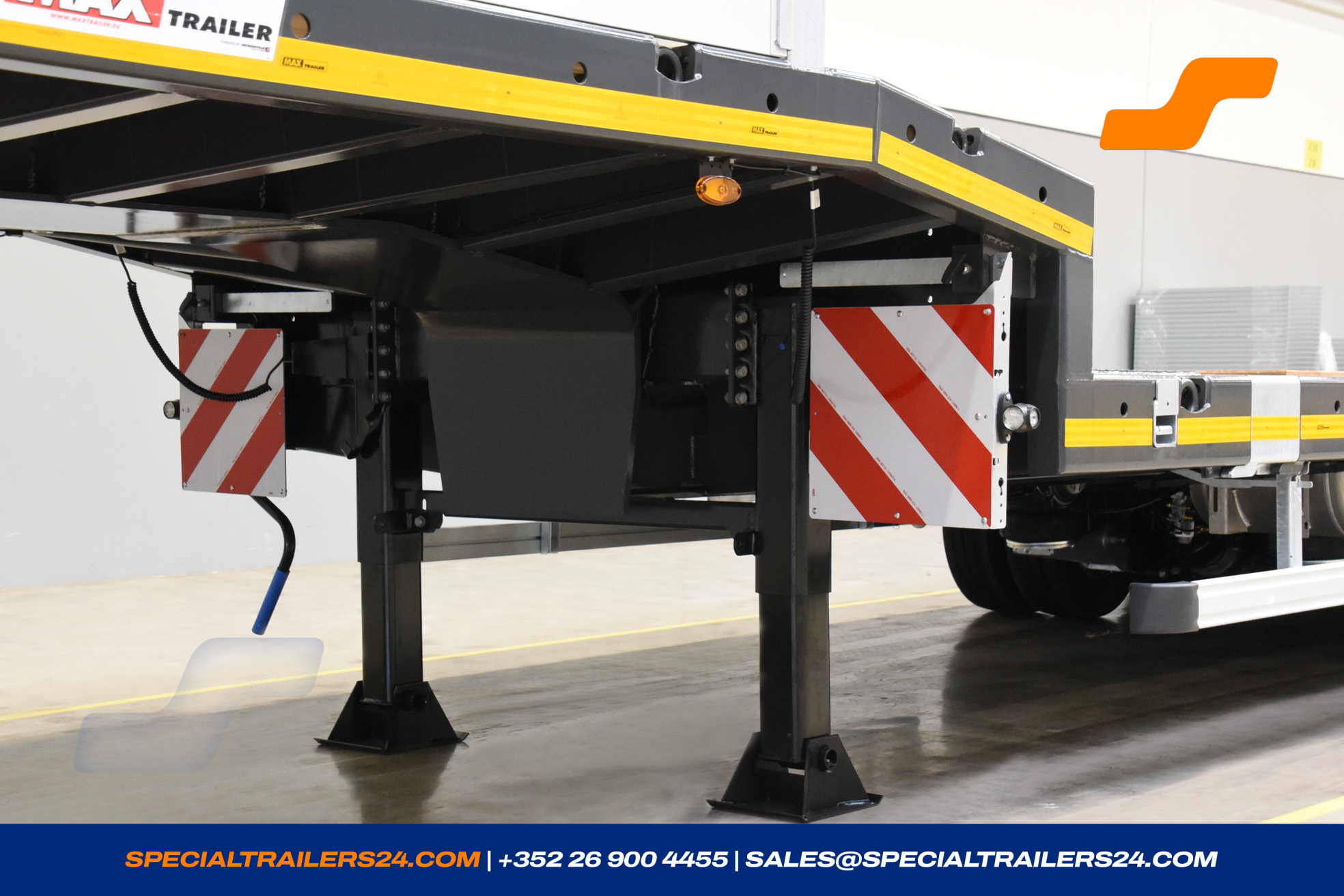

- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.

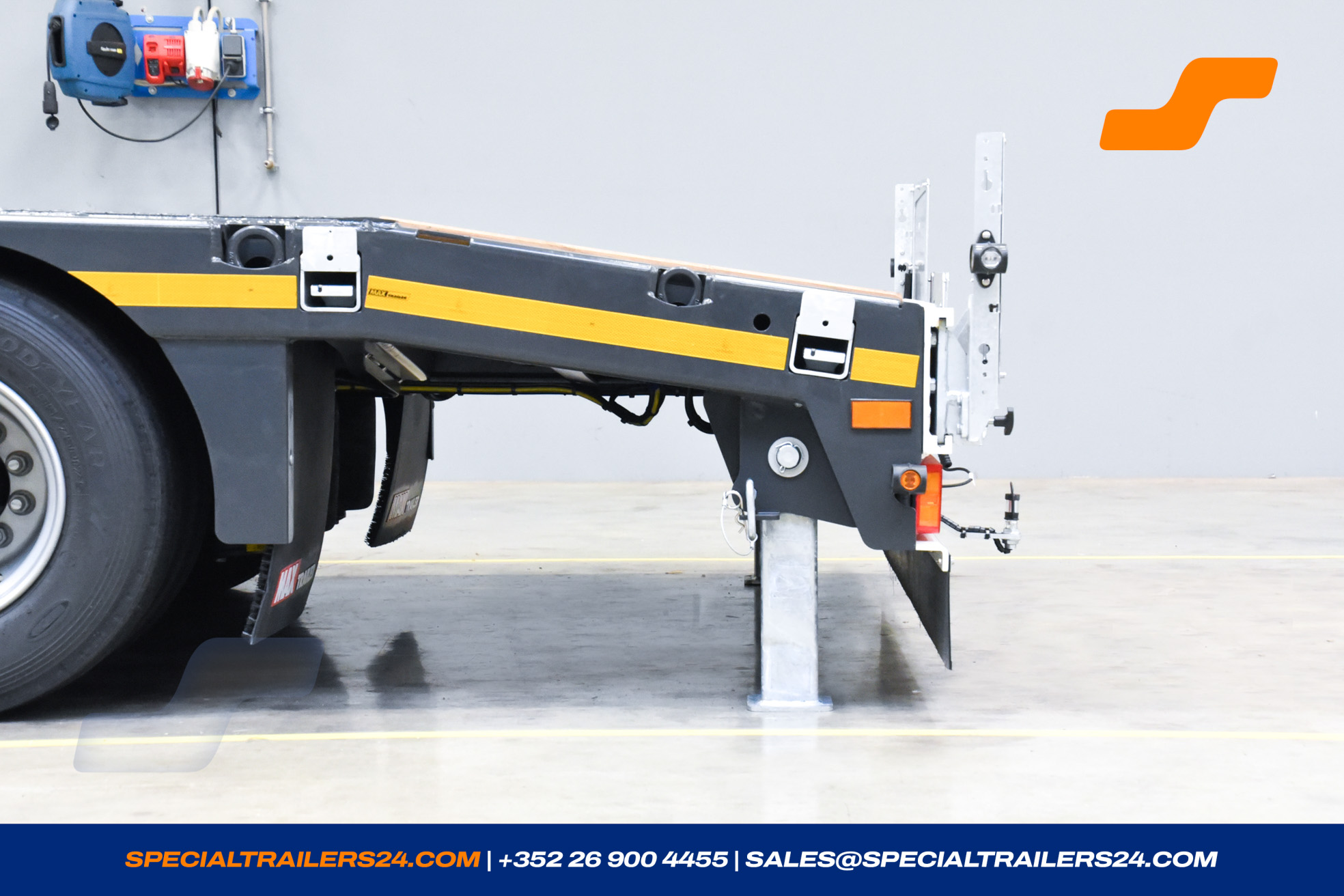

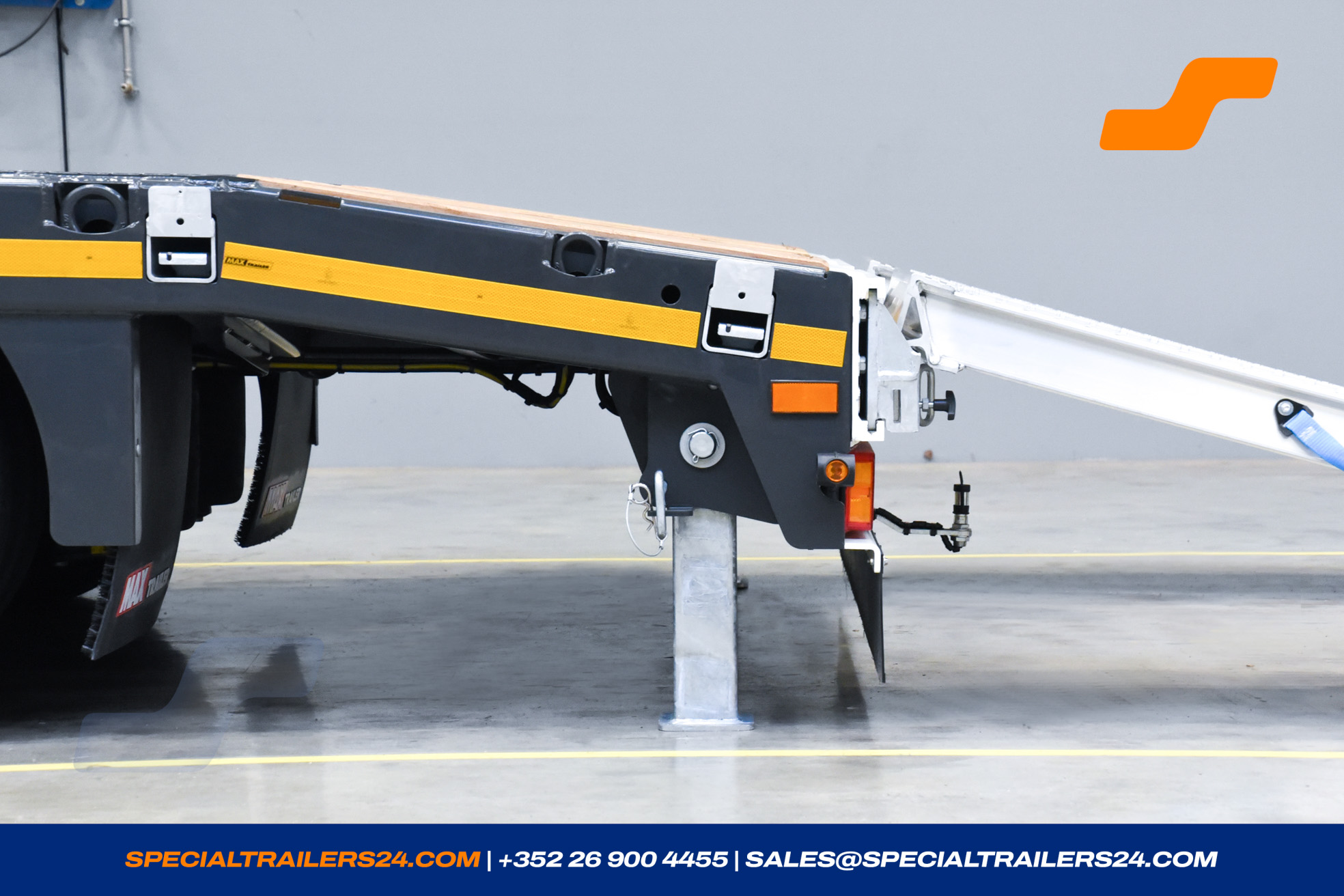

- Galvanised landing gears at the rear under the loading platform.
- Holder for one beacon light at the rear of the trailer.

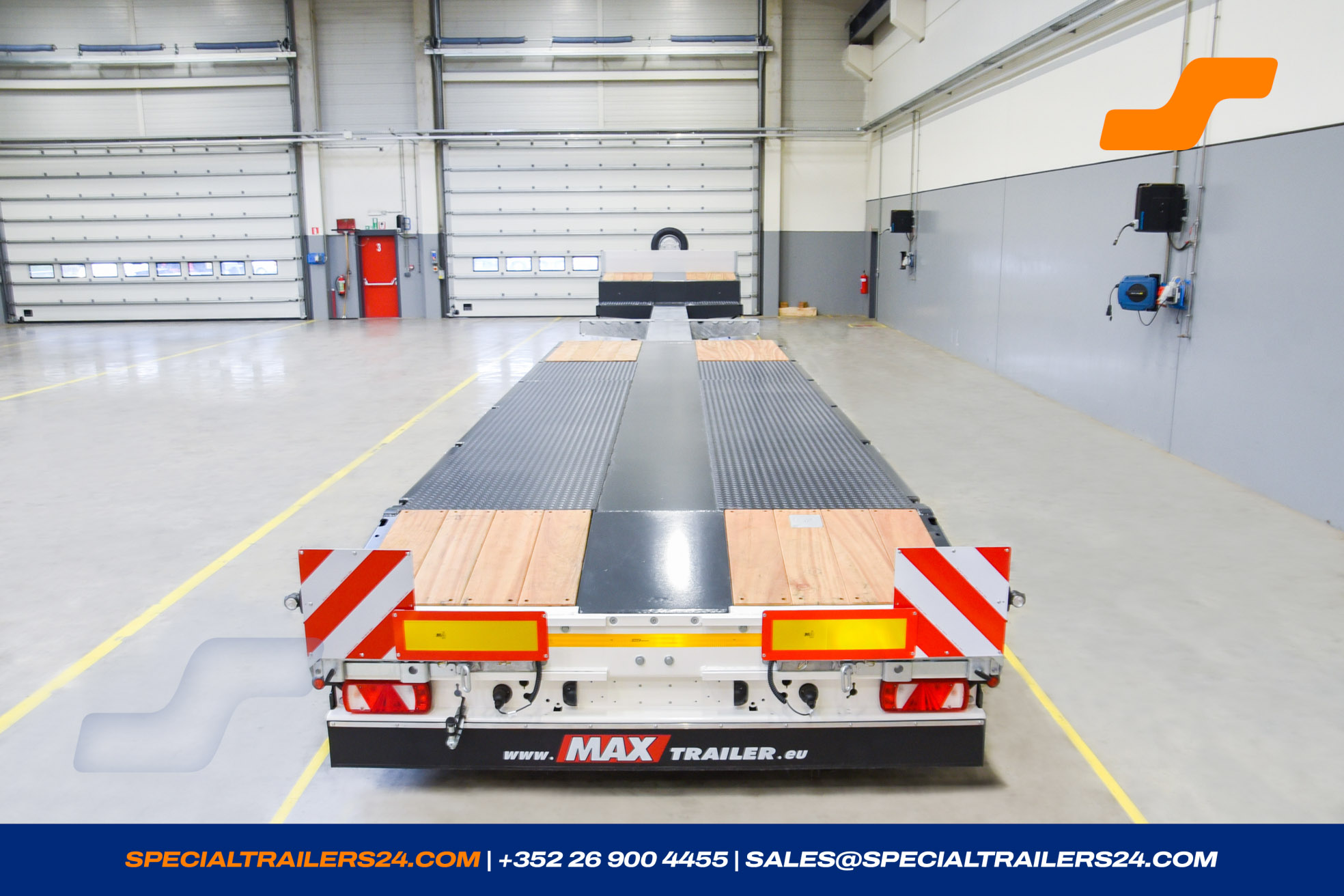

- Yellow reflective tape according to the EU regulation over the entire length, on the extension and at the rear.
- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.

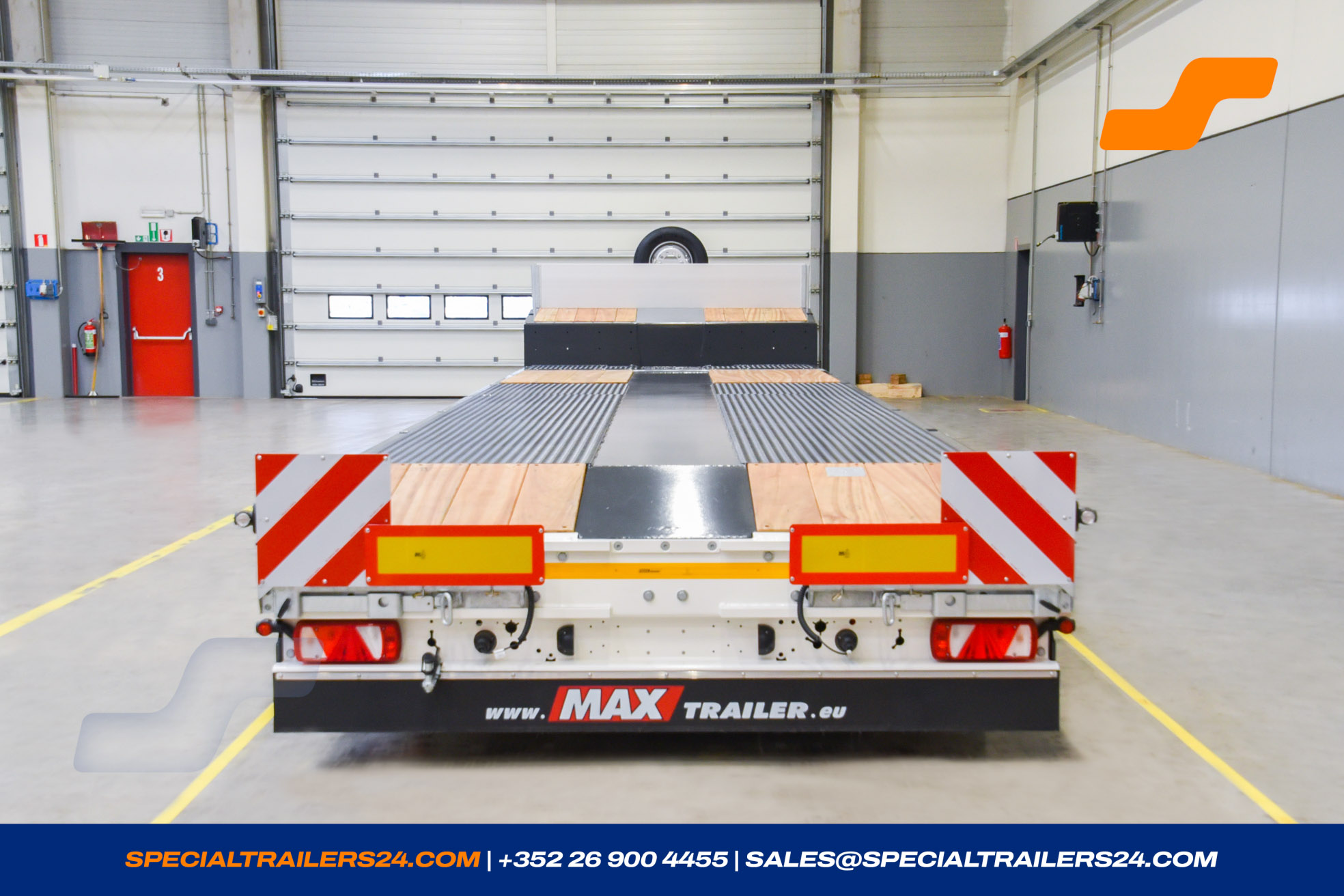

- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.

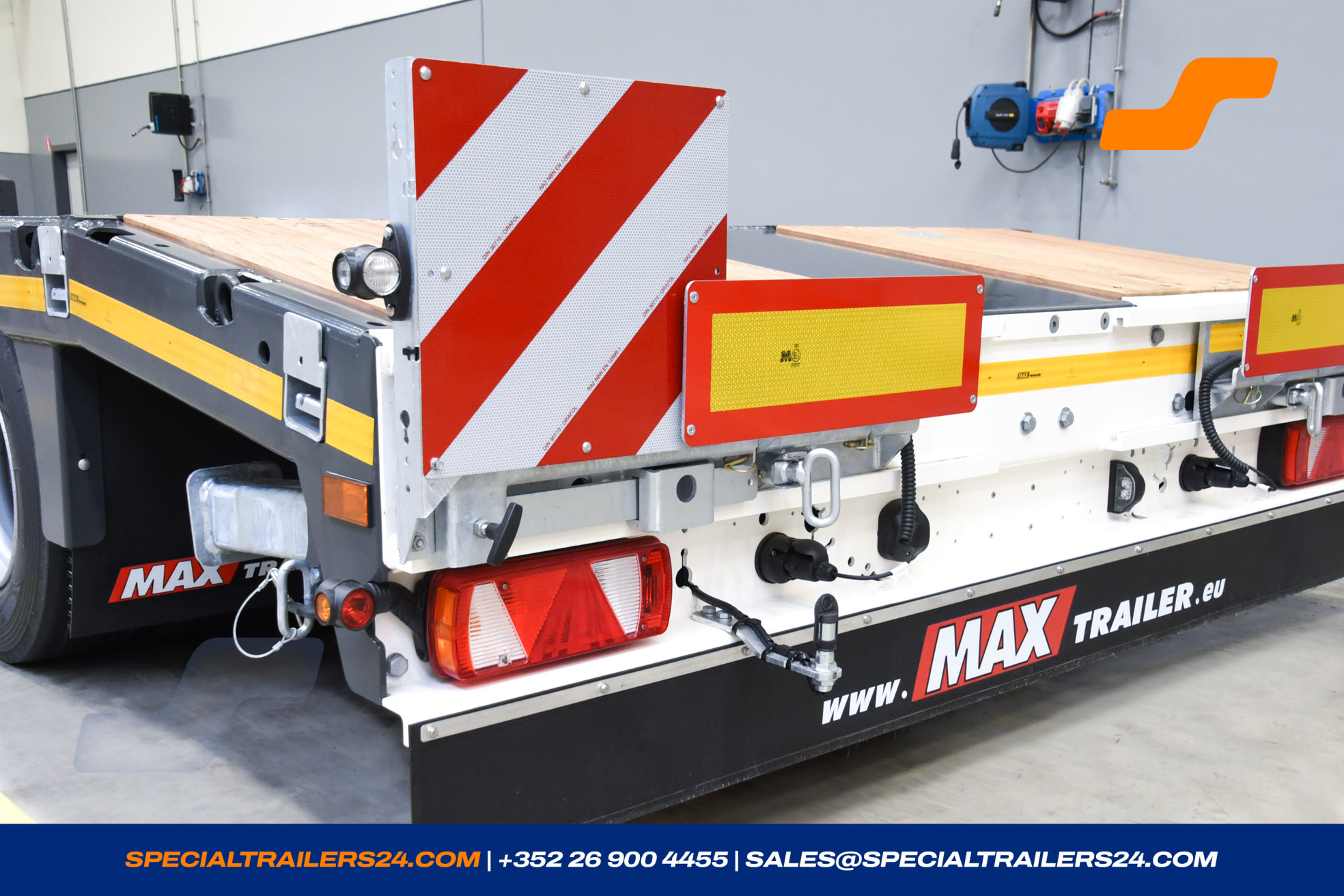

- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- On the warning boards a holder to put a flashing beacon.

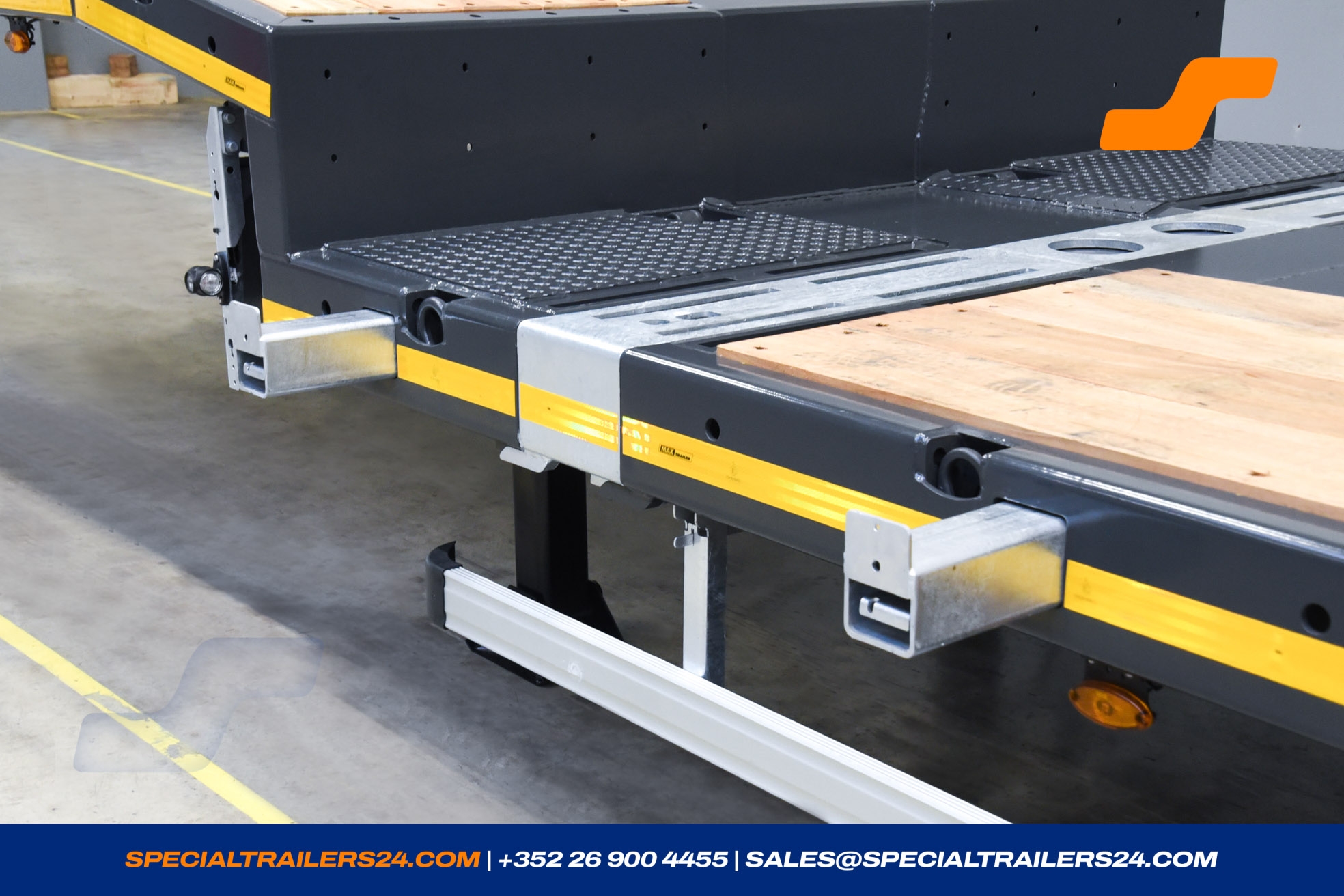

- Galvanised outriggers, extendable up to ± 230 mm per side (± 262 kg).

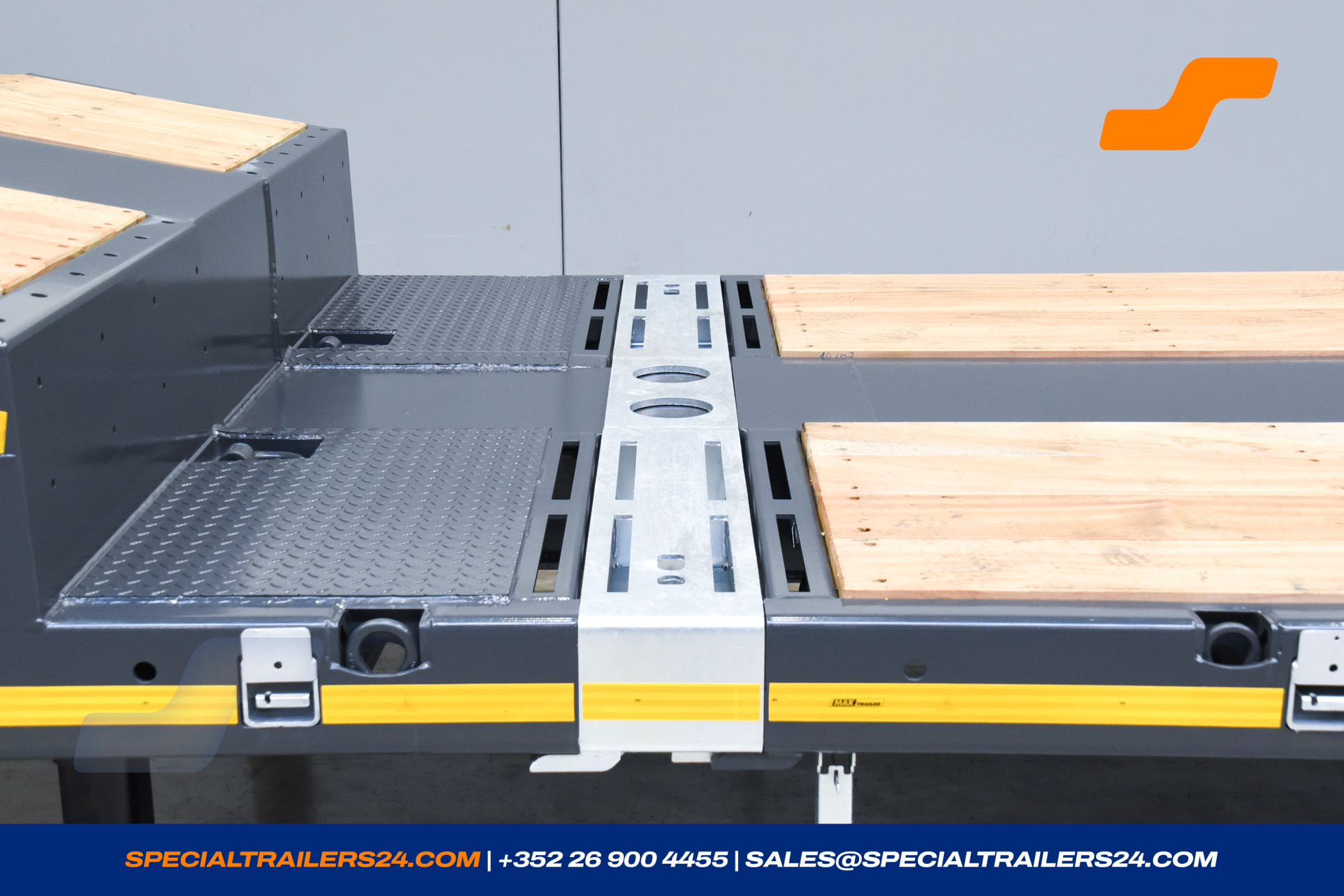

- One removable, galvanised sliding bolster, ± 250 mm wide (± 127 kg).

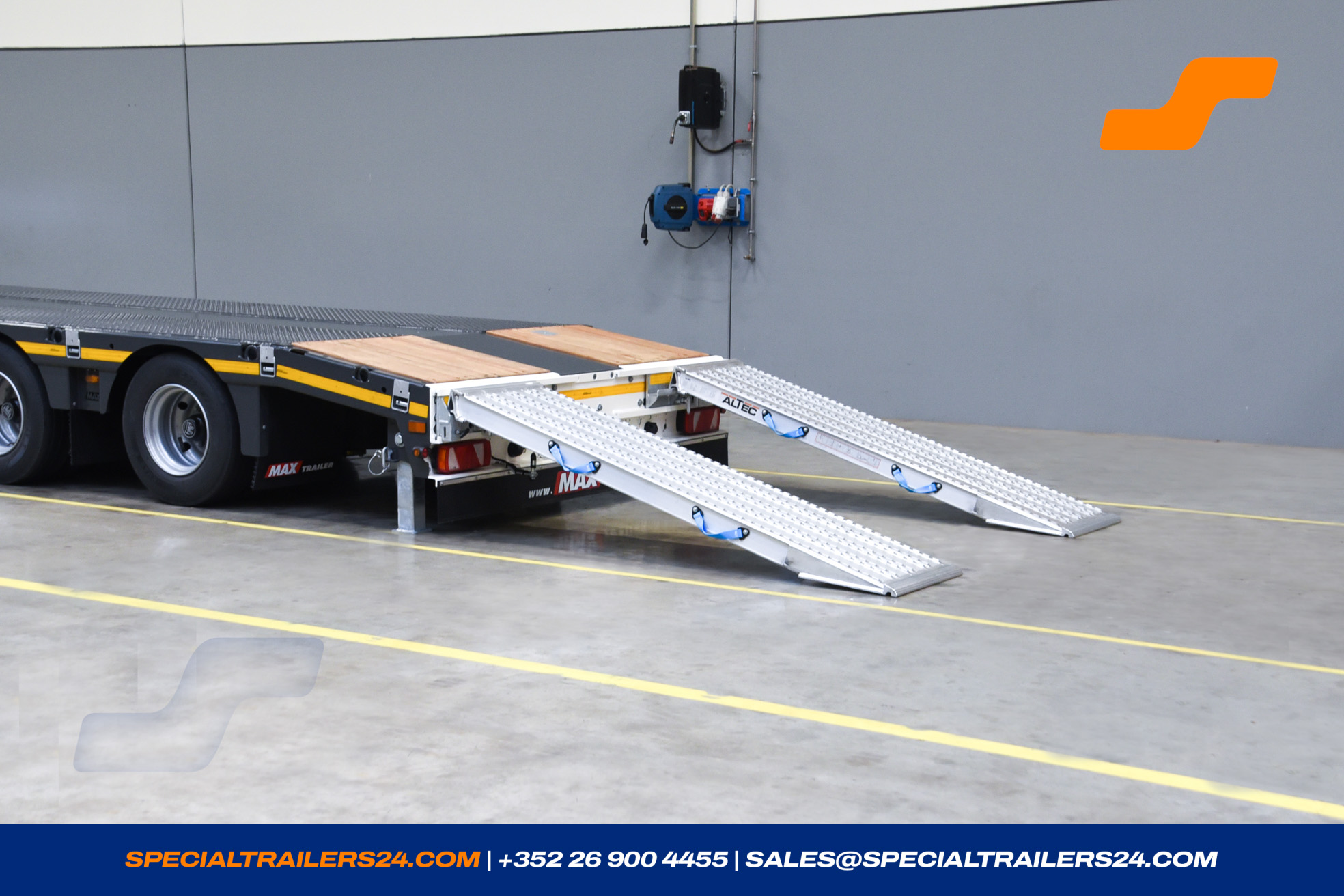

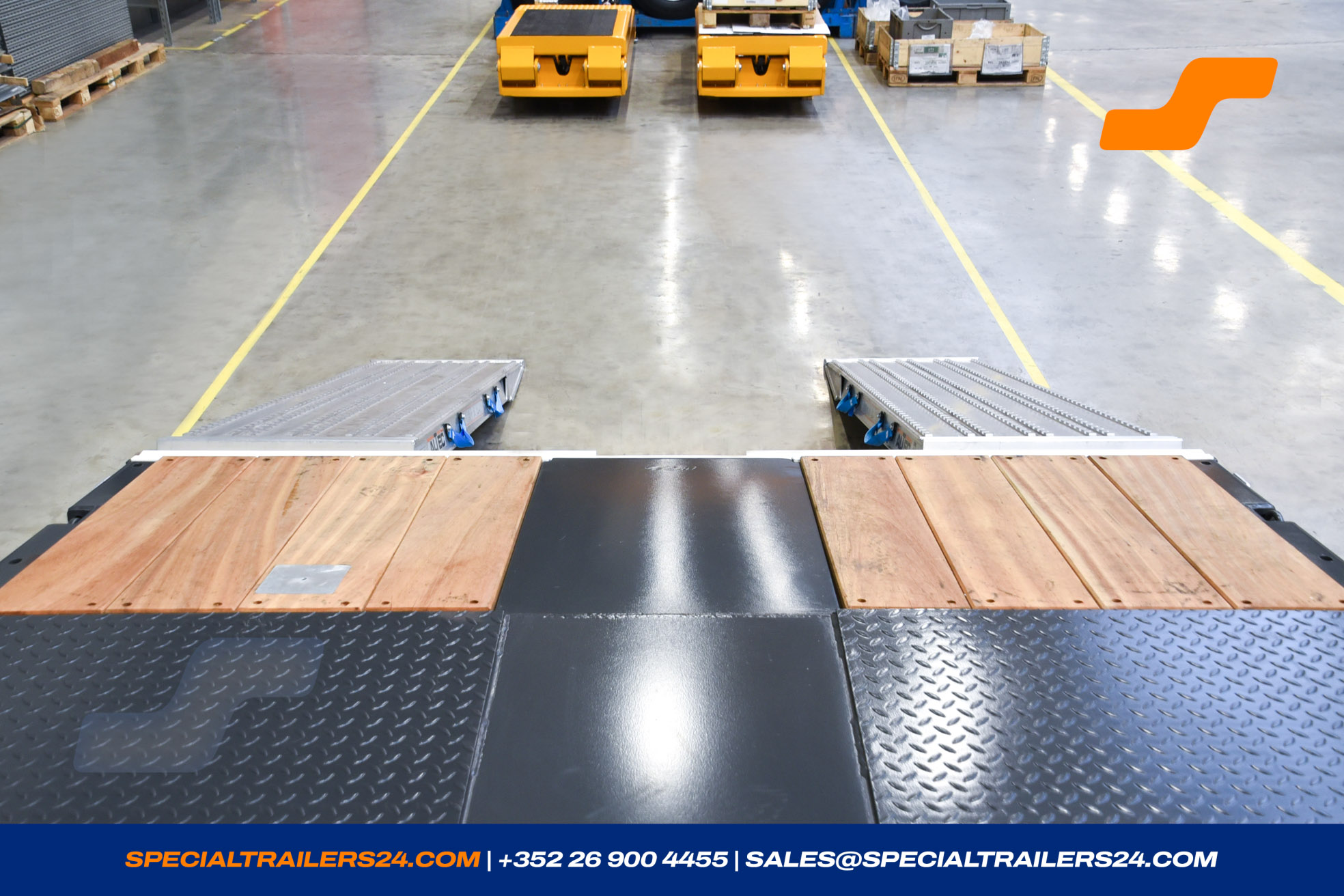

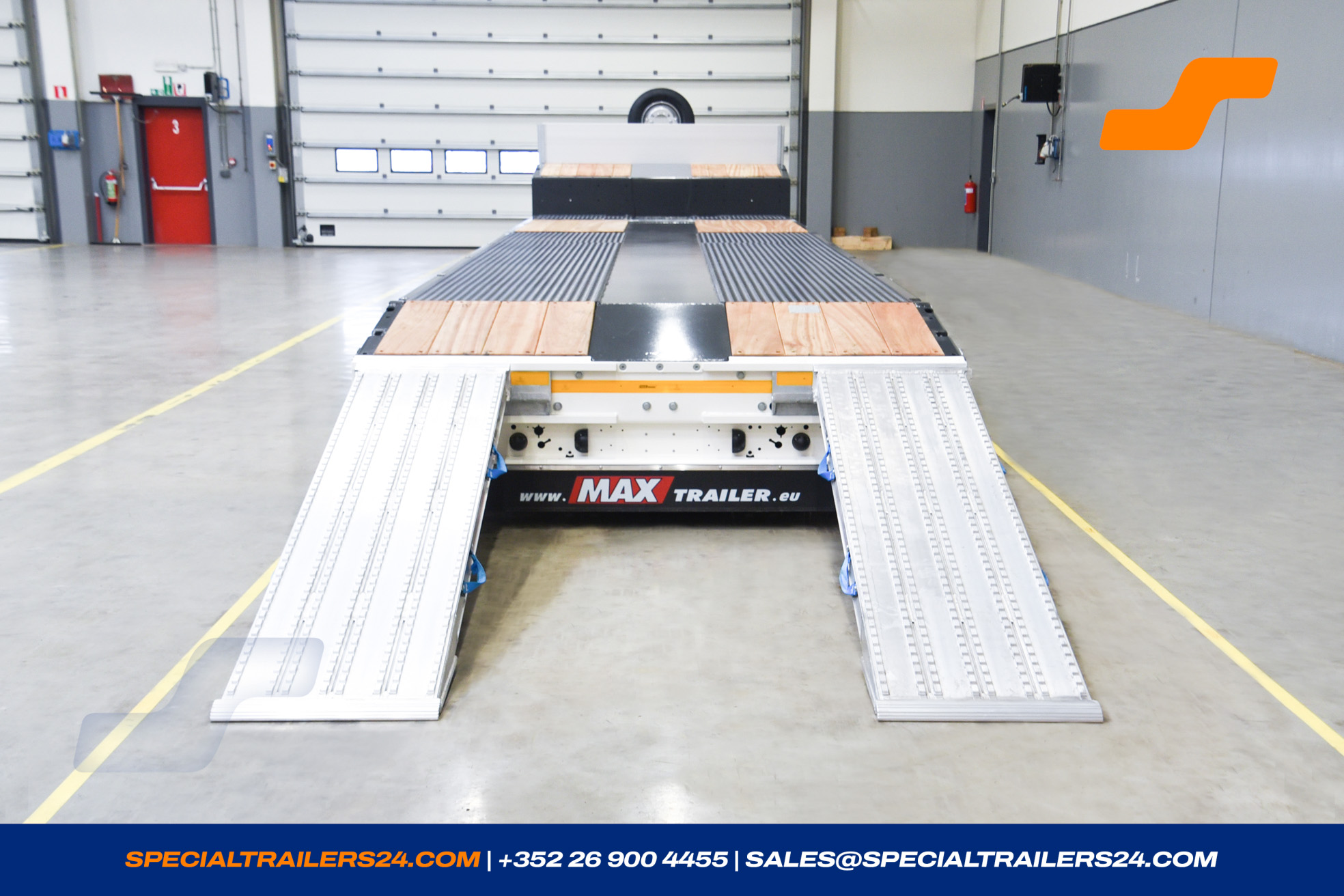

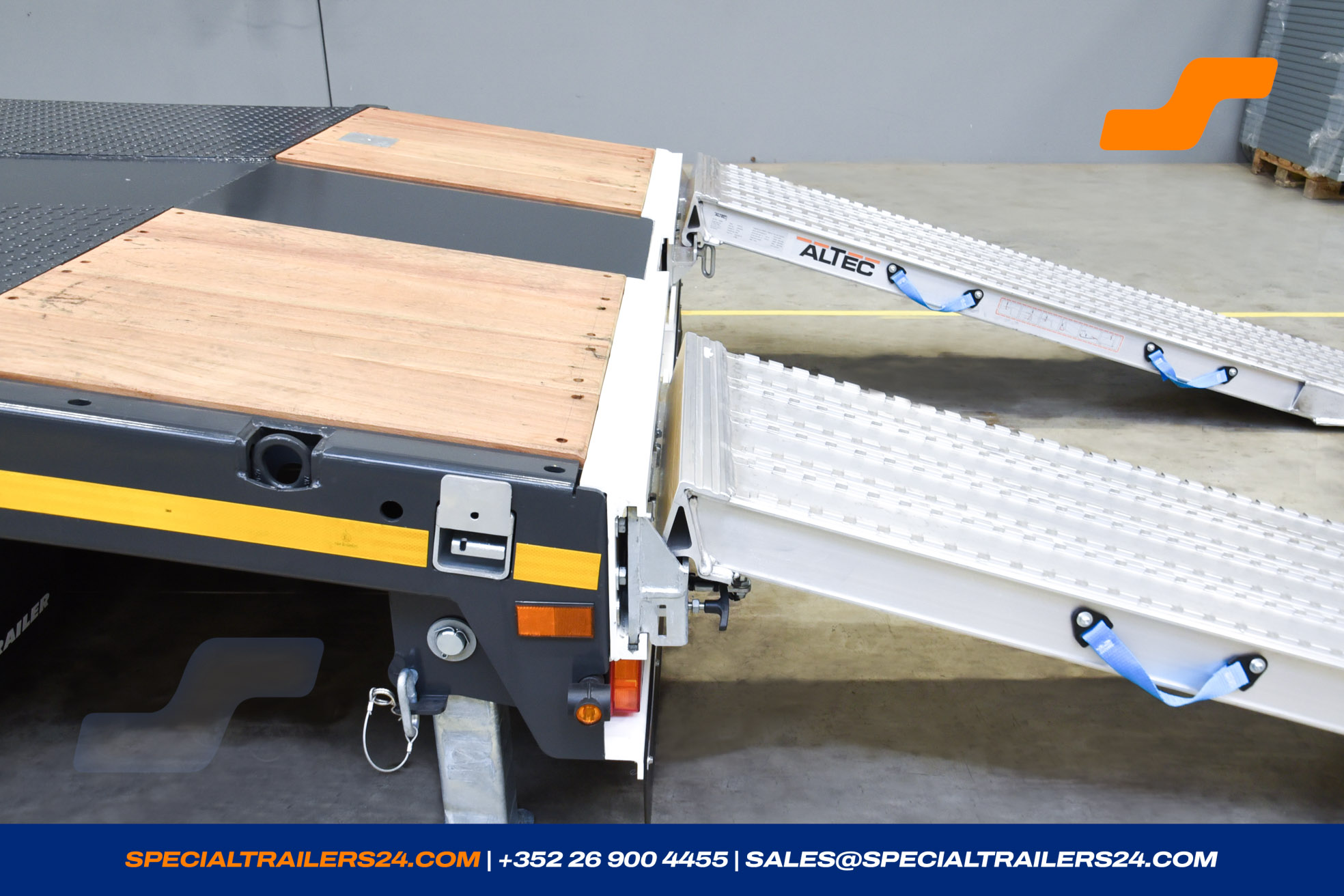

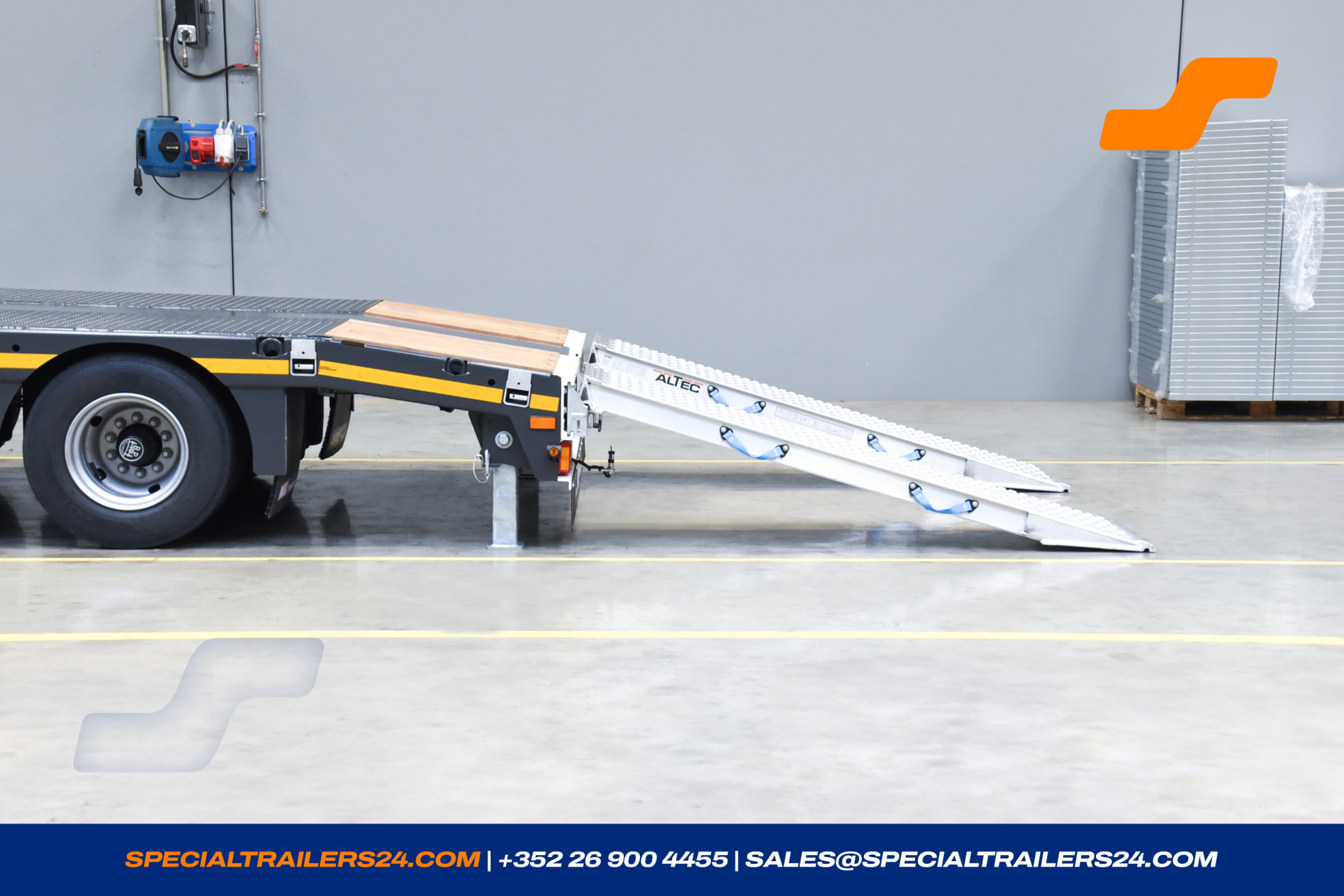

- Profile displaceable as hook-on device for alu-ramps at the rear.

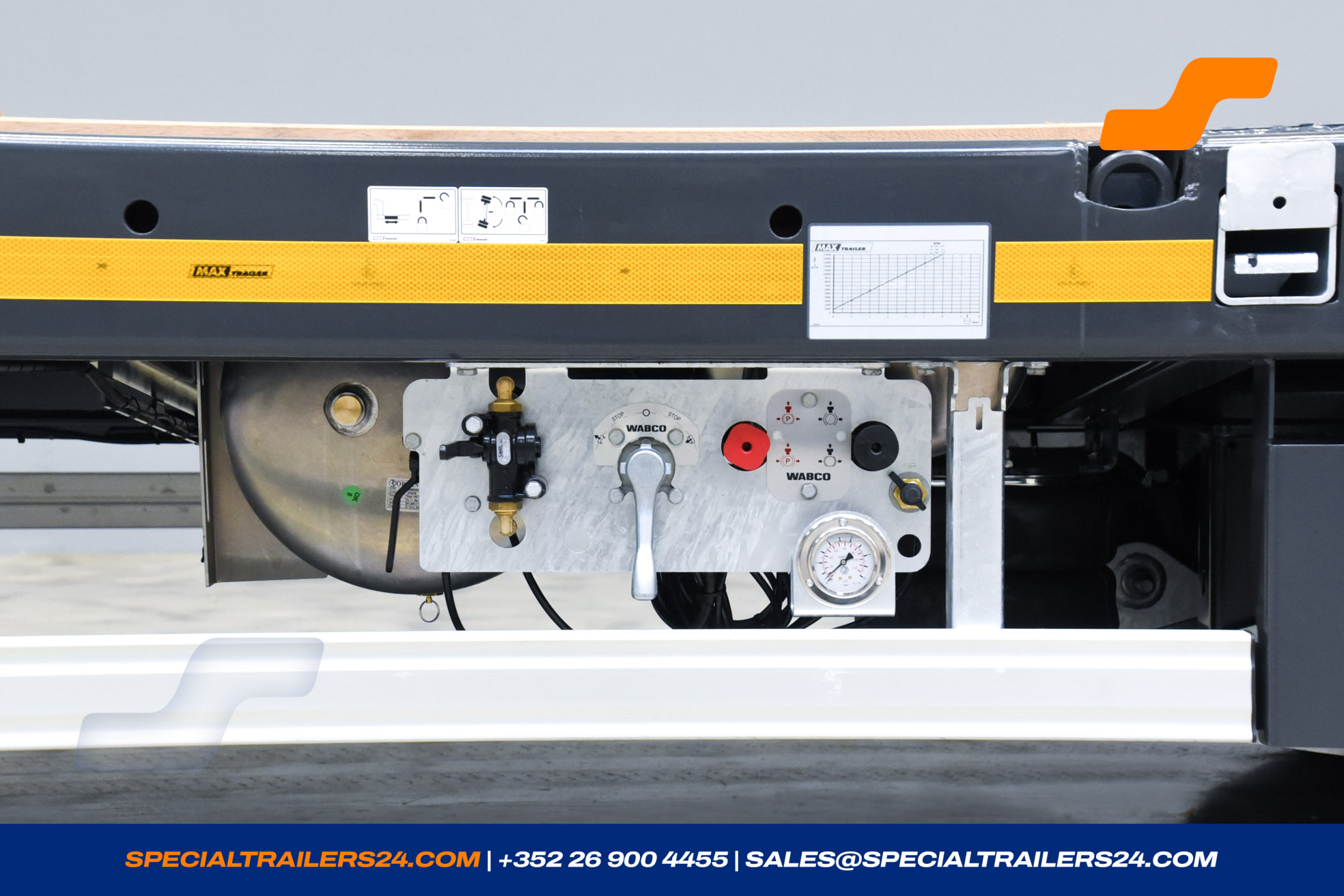

- Load manometer for determining the axle load, including load diagram.
Accessories
1 x Accessories
- Manual and description on USB stick .
