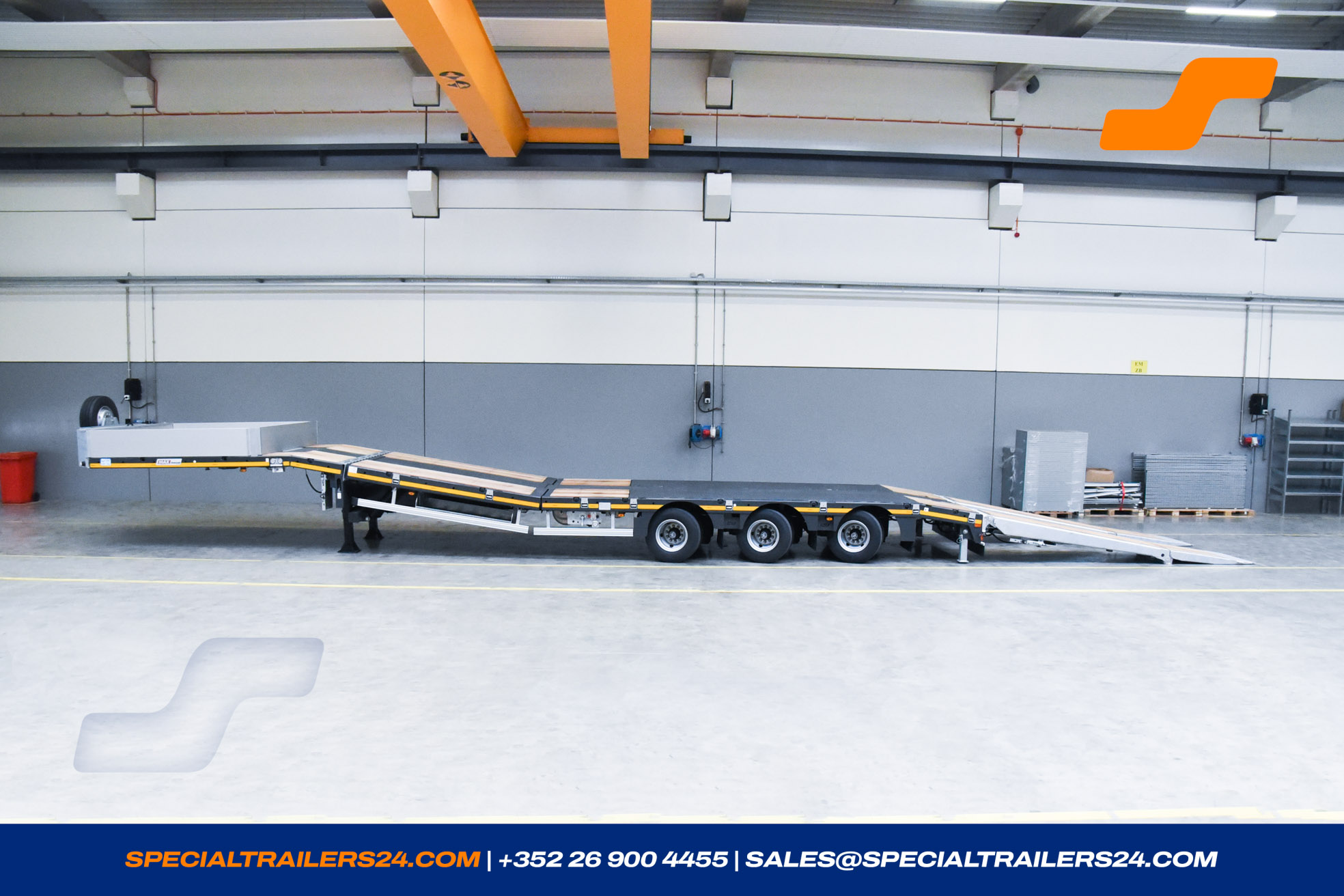

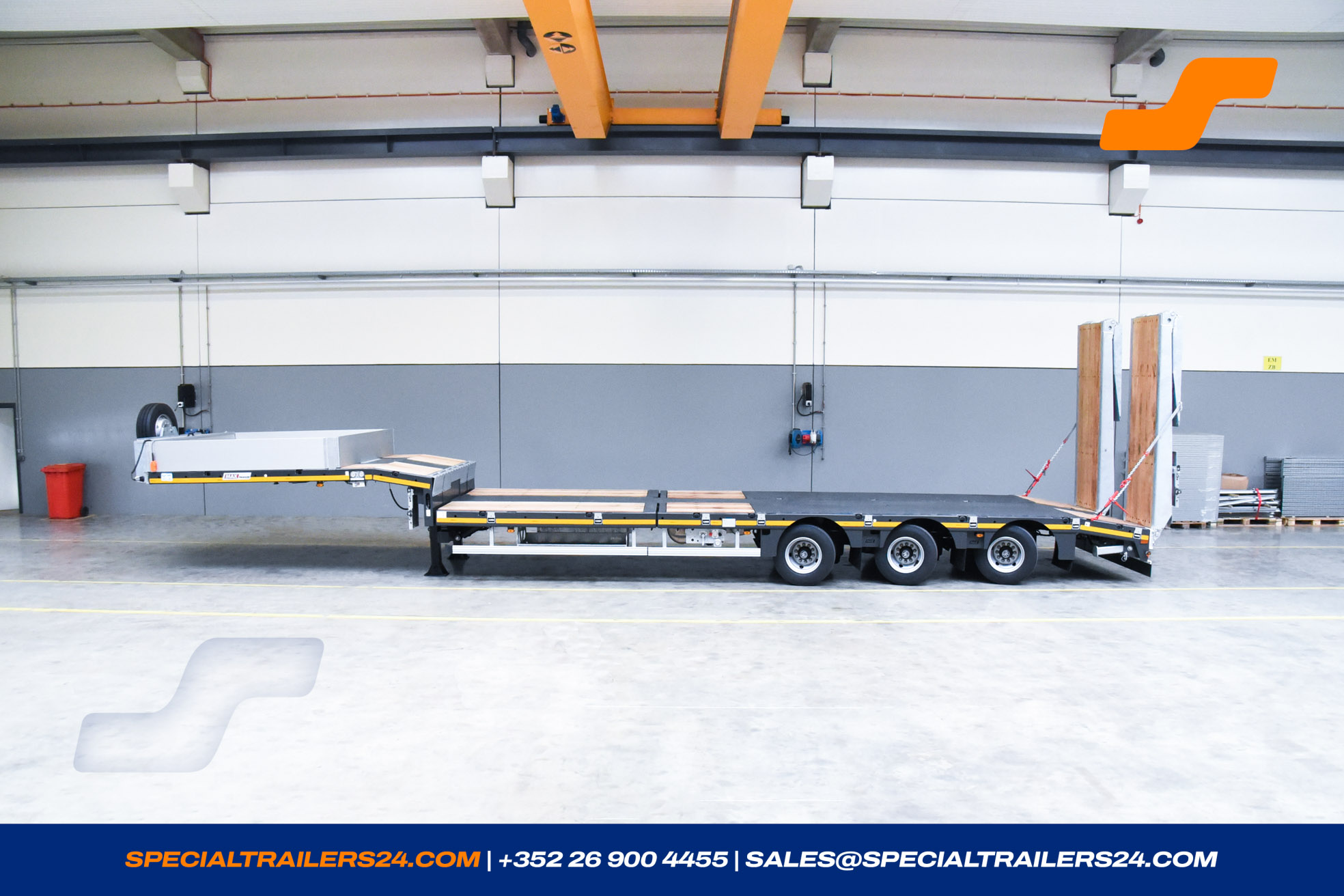

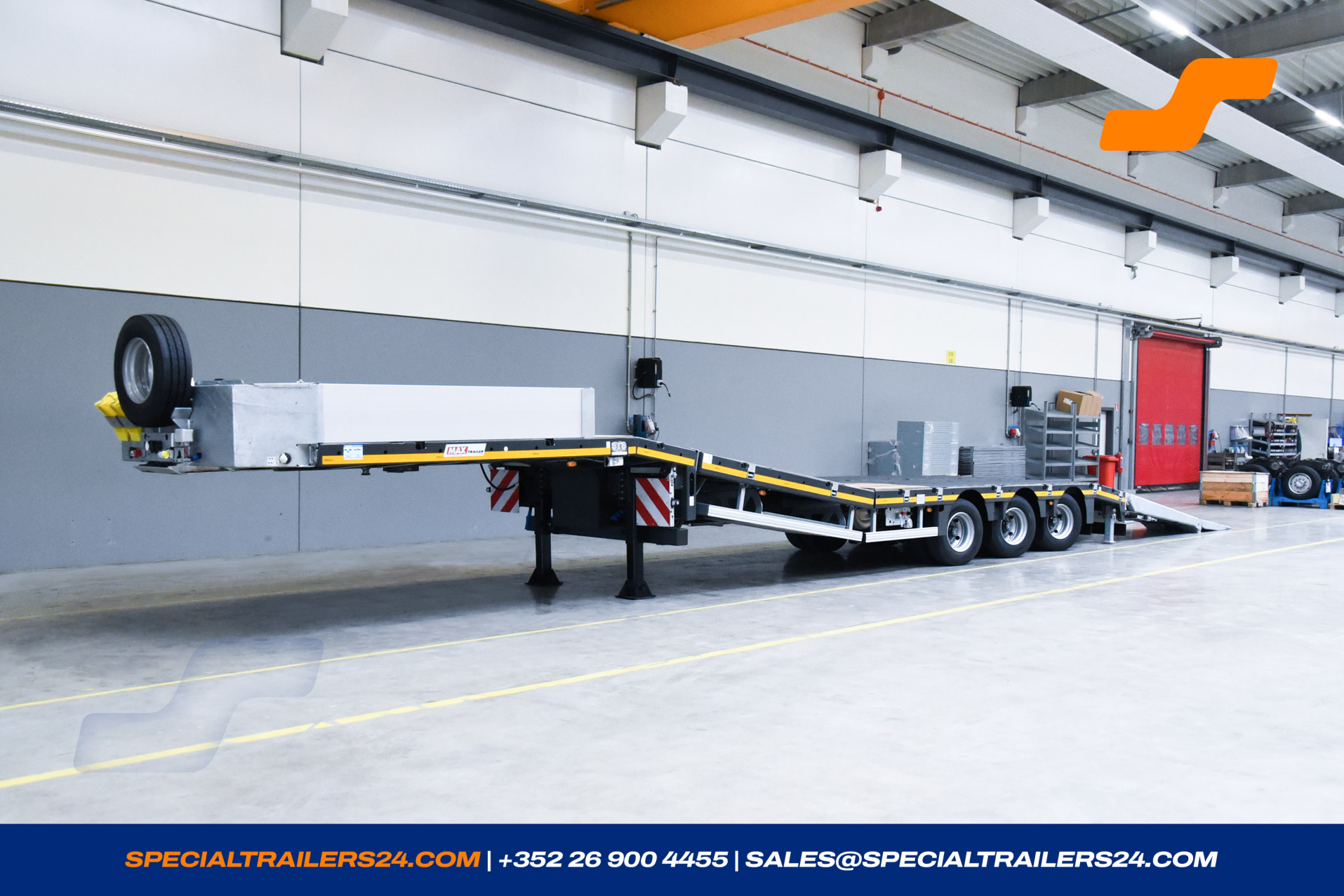

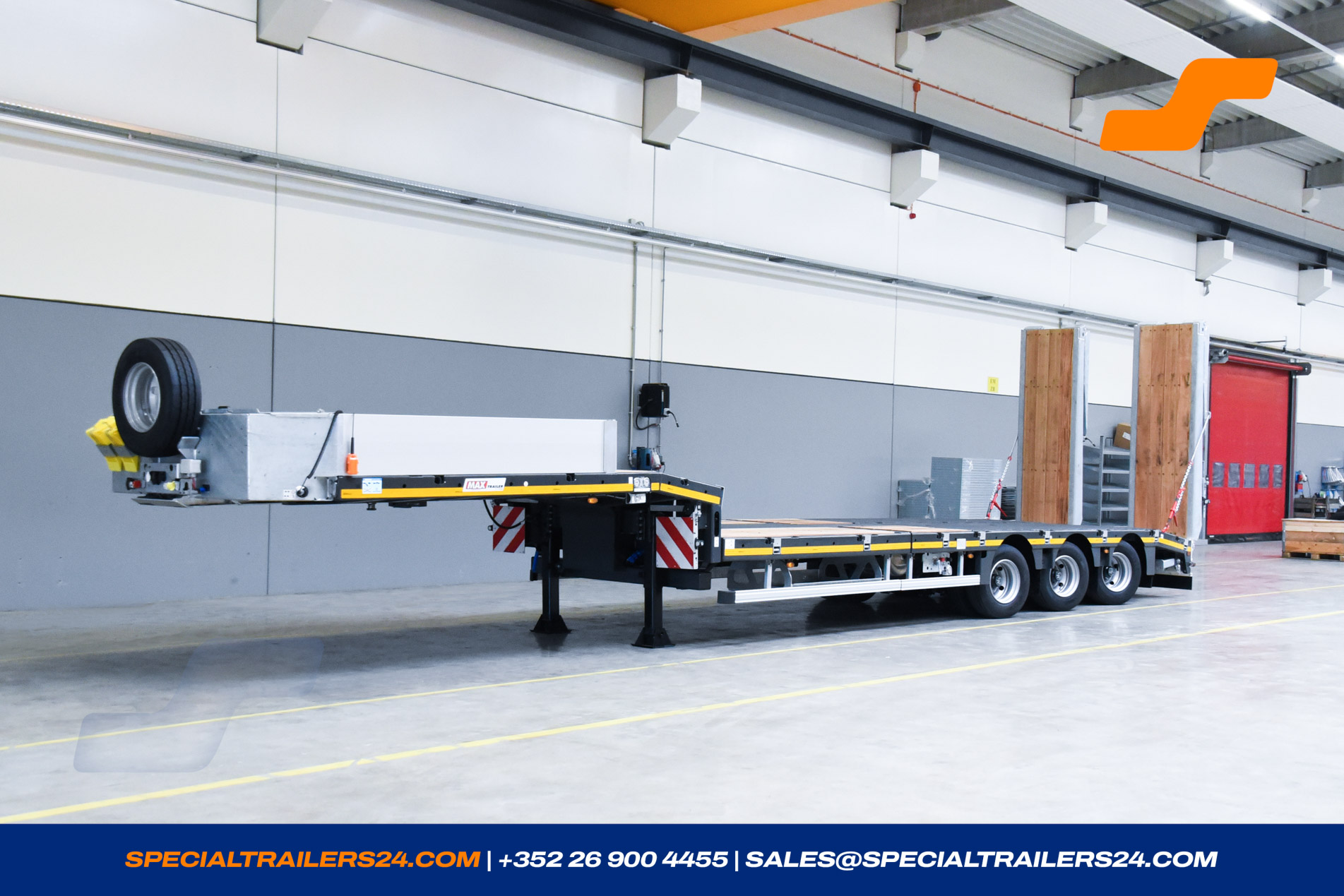

MAX Trailer MAX110
Die Farbe des Fahrzeugs auf dem Foto kann abweichen.
- Chassis number 111272
- Reference MAX110-Z-3B-9.30-U

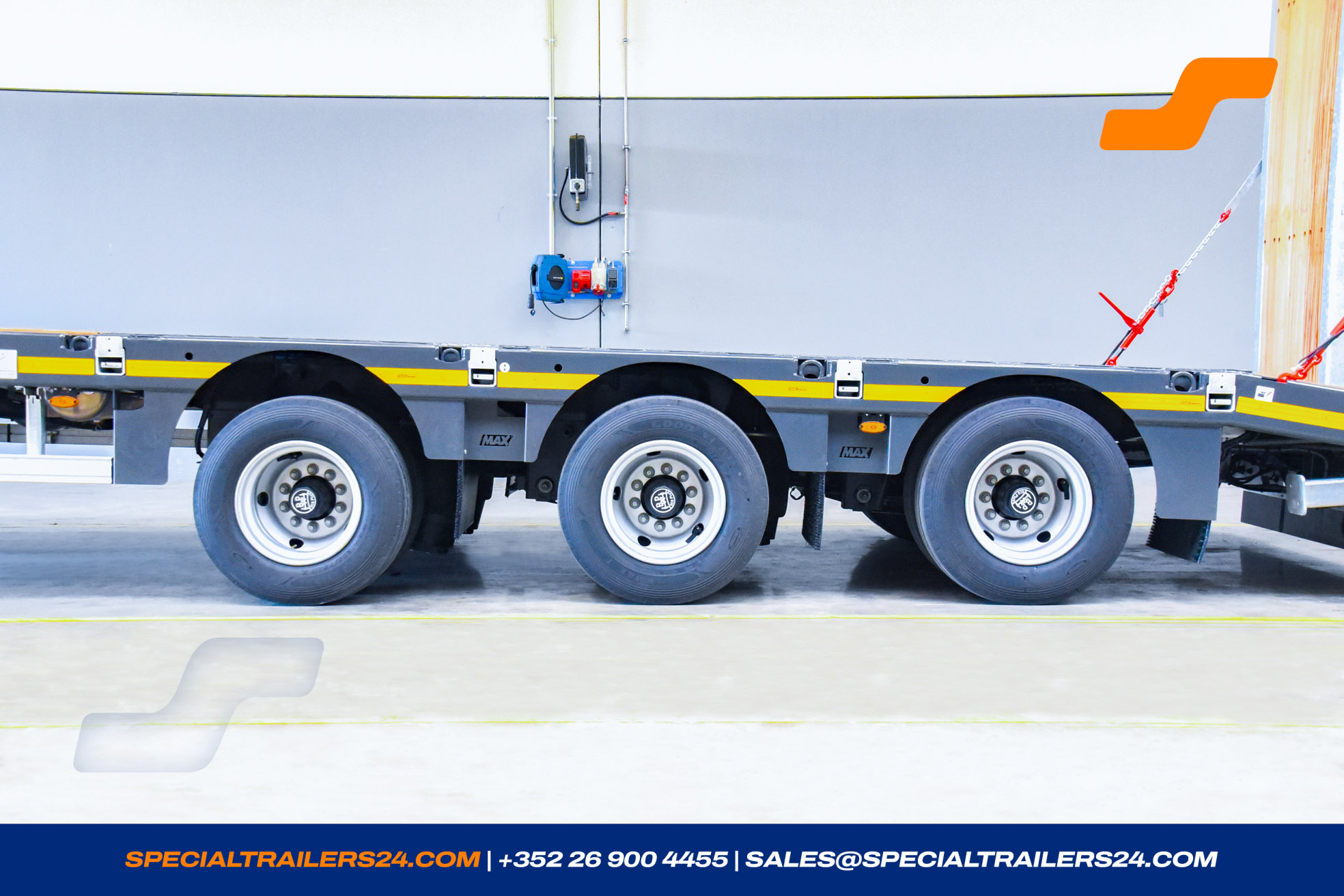

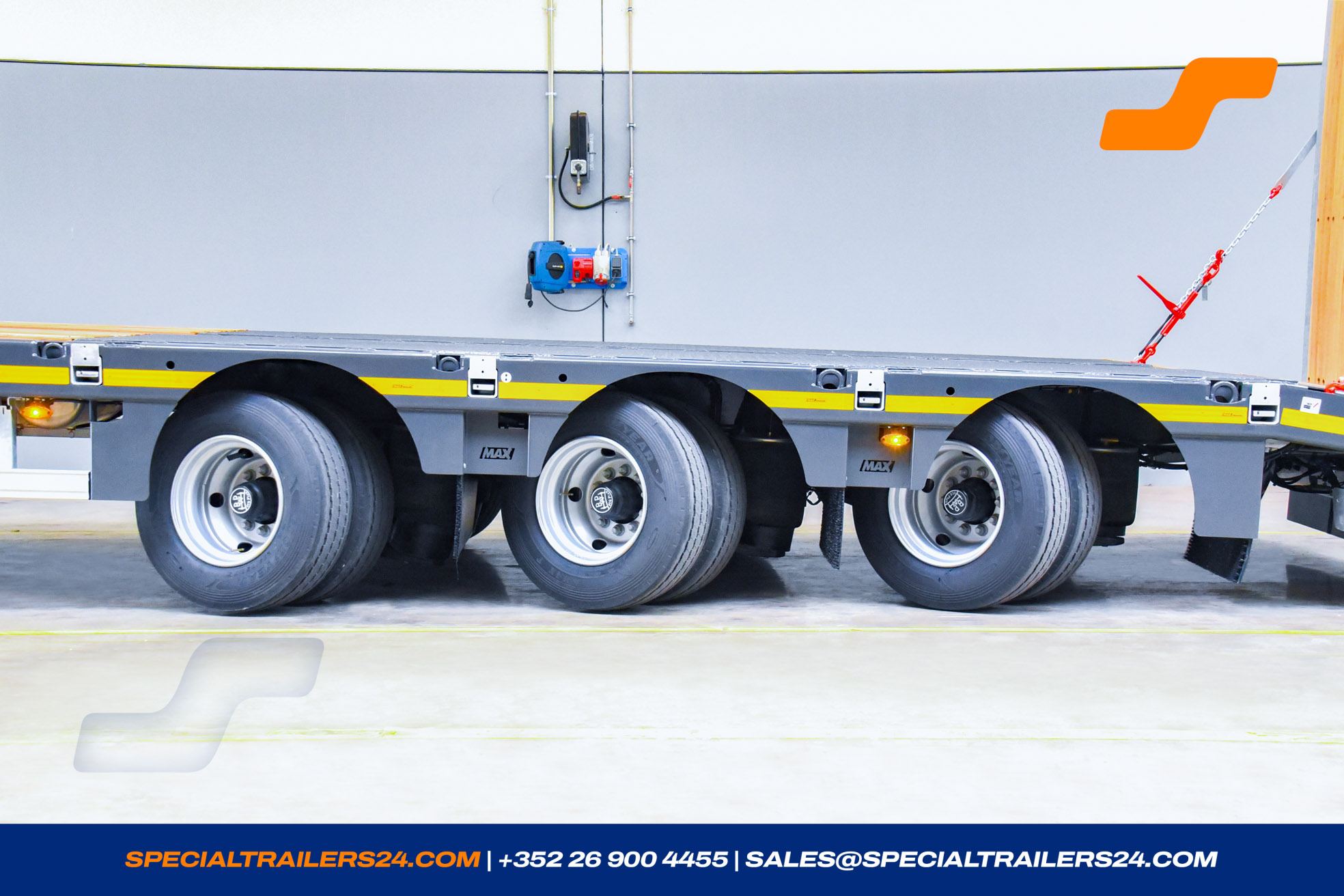

- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour RAL 9010 - Pure white
- Availability 04/2026
- Steering Type Hydraulic
Die wichtigsten Unterlagen
Detailinformationen
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 36000 kg |
| Gross weight | 54000 kg |
| Tare weight +- 3% | 11734 kg |
| Payload | 42266 kg |
Dimensions
| Fifth wheel height loaded | 1200 mm |
| Gooseneck length | 4 200 mm |
| Turning circle reversing | 2 300 mm |
| Loading platform length | 9 300 mm |
| Extendable by | No |
| Wheelbase | 1 360 mm |
| Loading height at max. load | 860 mm |
| Total width | 2 540 mm |
| Suspension stroke | -55/ +145 mm |

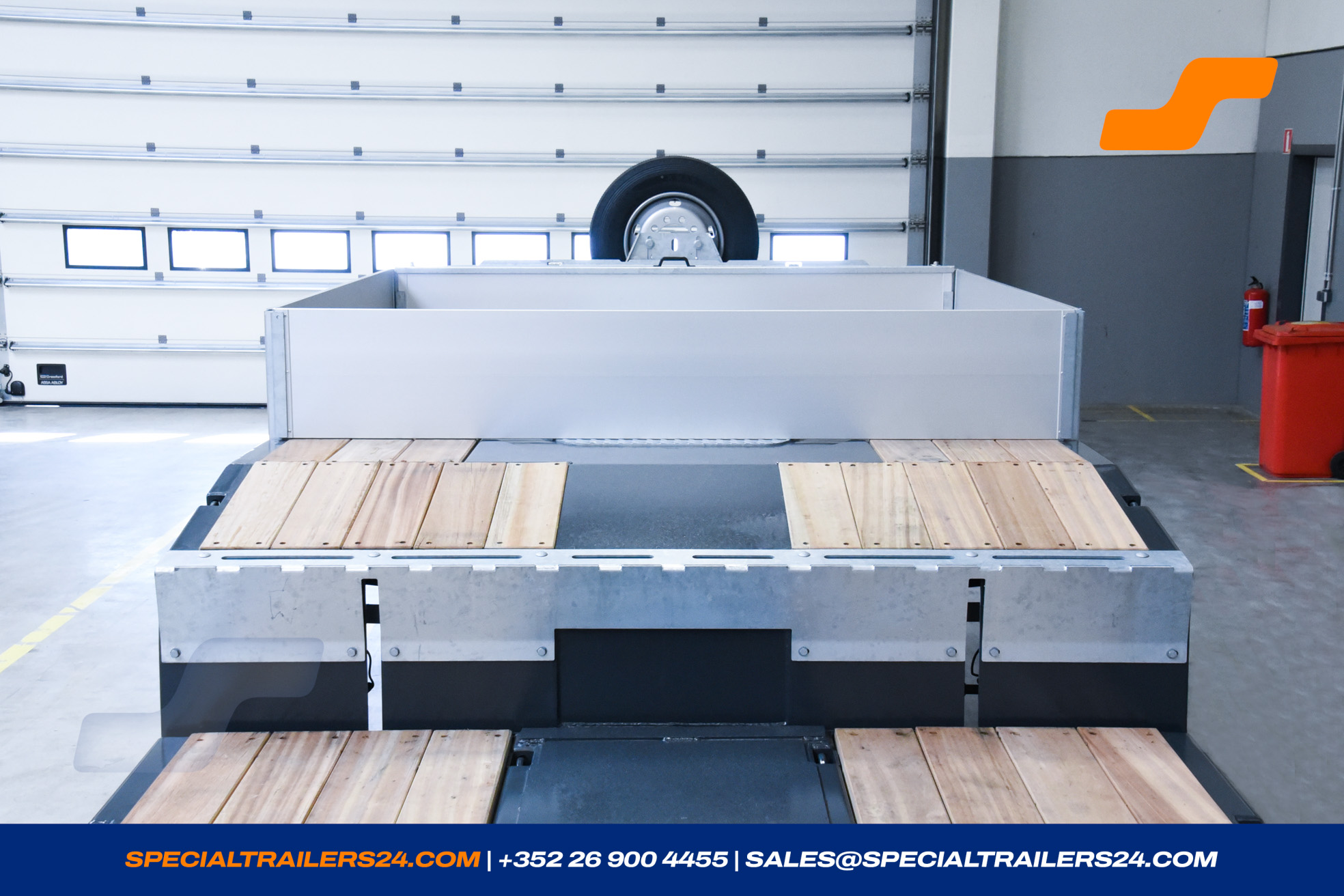

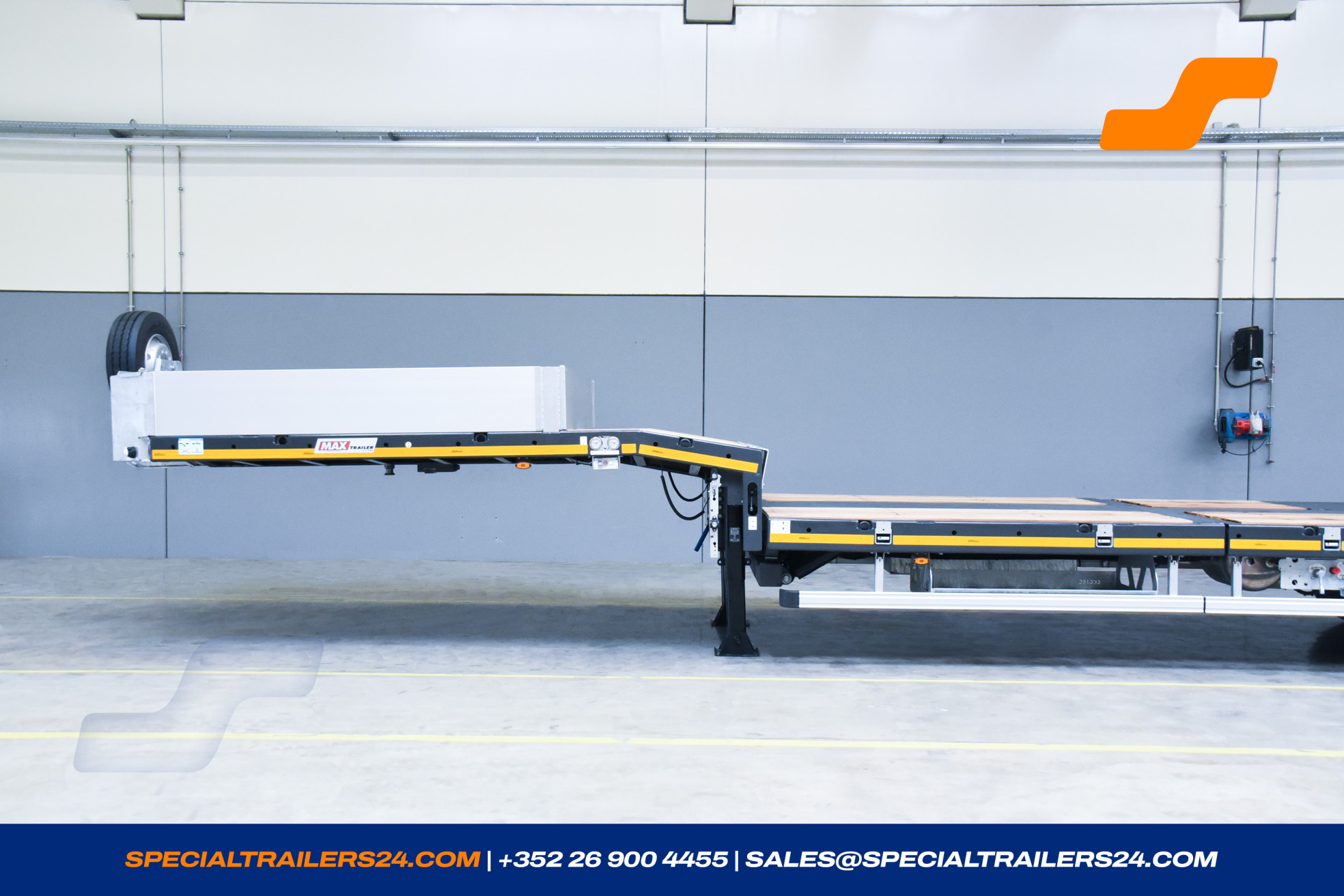

Gooseneck
1 x Gooseneck
Gooseneck with chamfered corners ± 45° in front and rear chamfered by ± 750 mm x 10°.
3 pairs of lashing rings (LC 5 000 daN).
Hardwood cover thickness 30 mm.

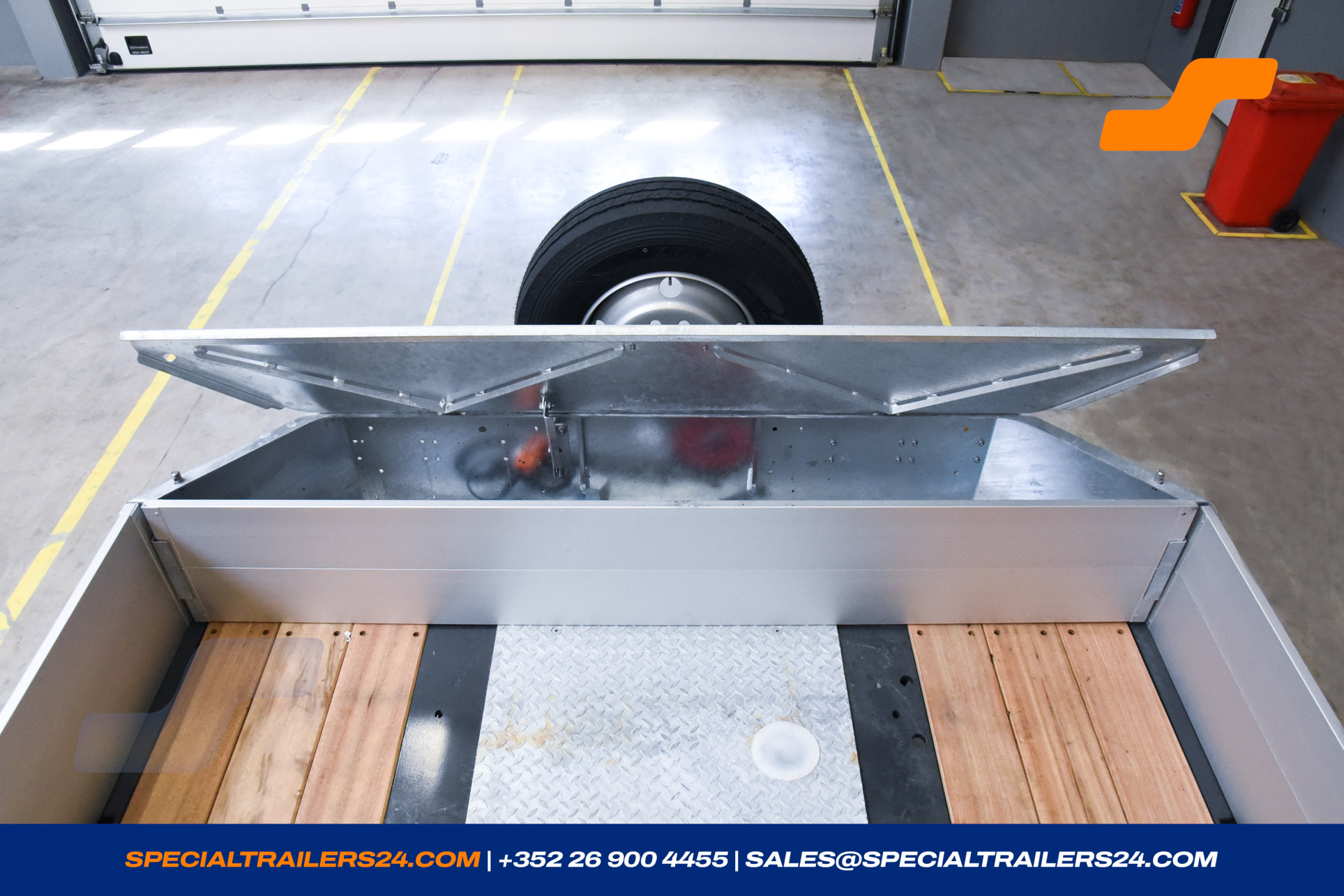

- 1 toolbox galvanized integrated into charmfered gooseneck included opening winch . (± 47kg)
- An electric cable winch with radio remote control, ± 5,400 kg lifting force, including 9.5 mm thick wire rope 24 m long with cable guide pulley. (± 88 kg)

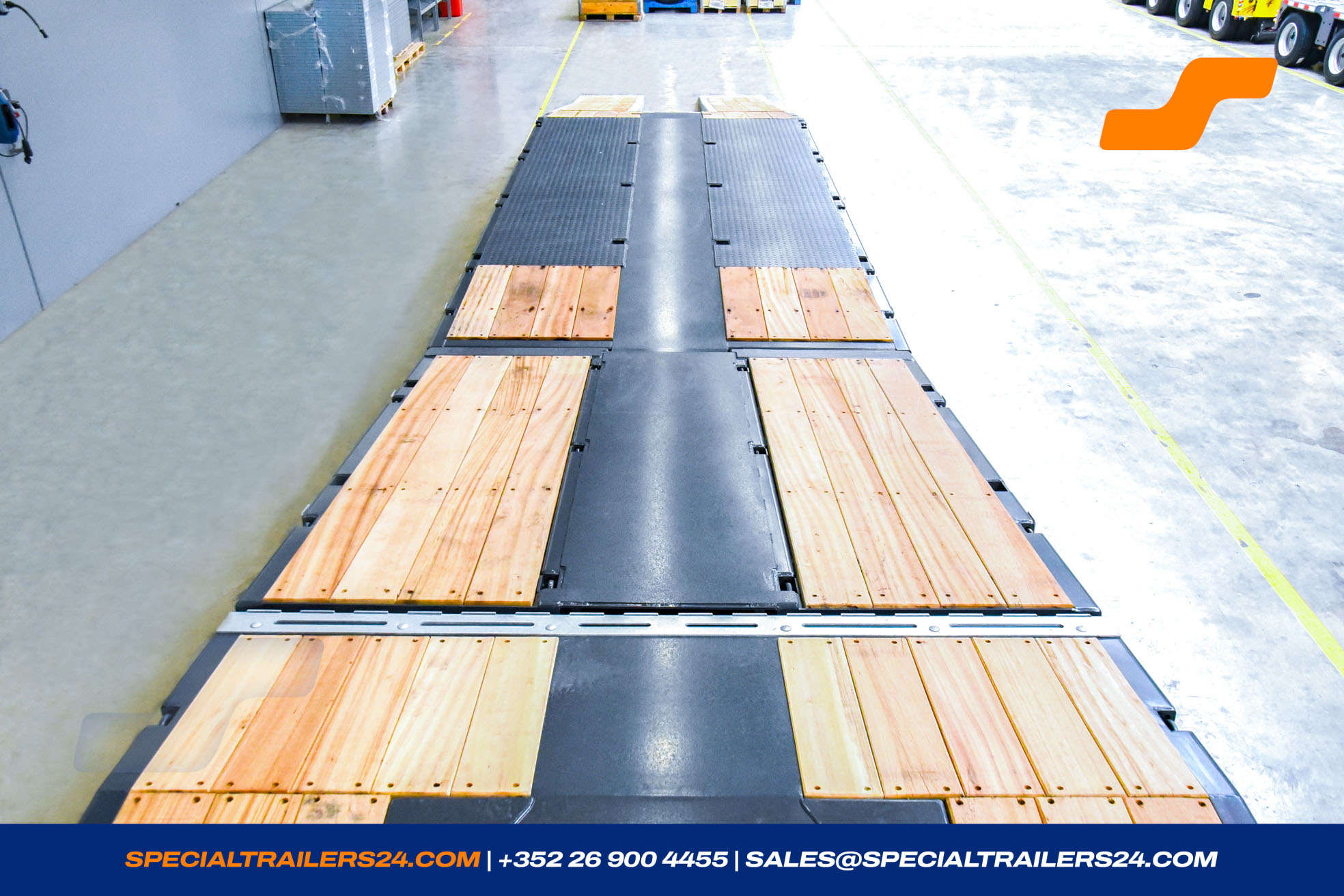

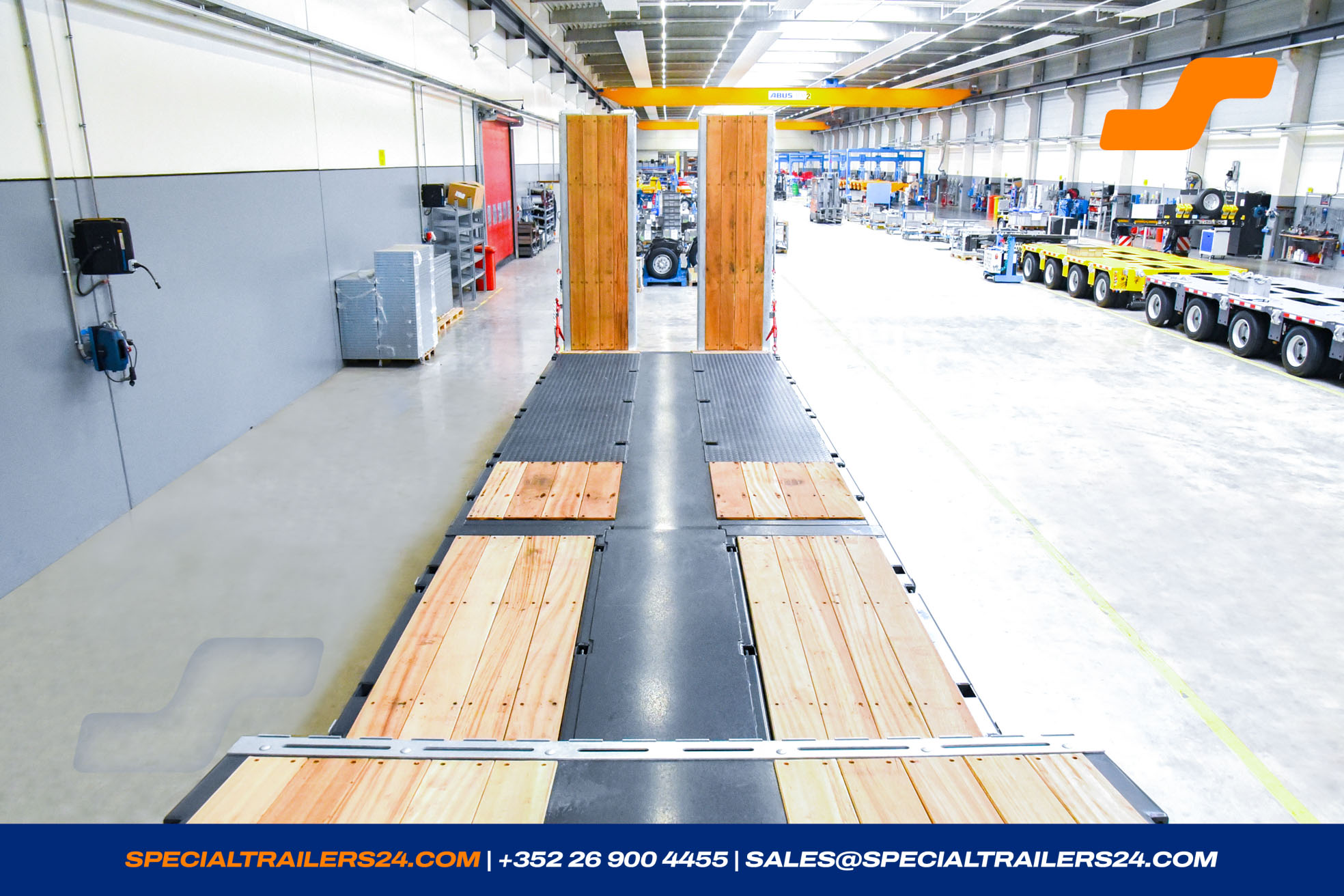

Loading deck
Loading platform
1 x Loading platform

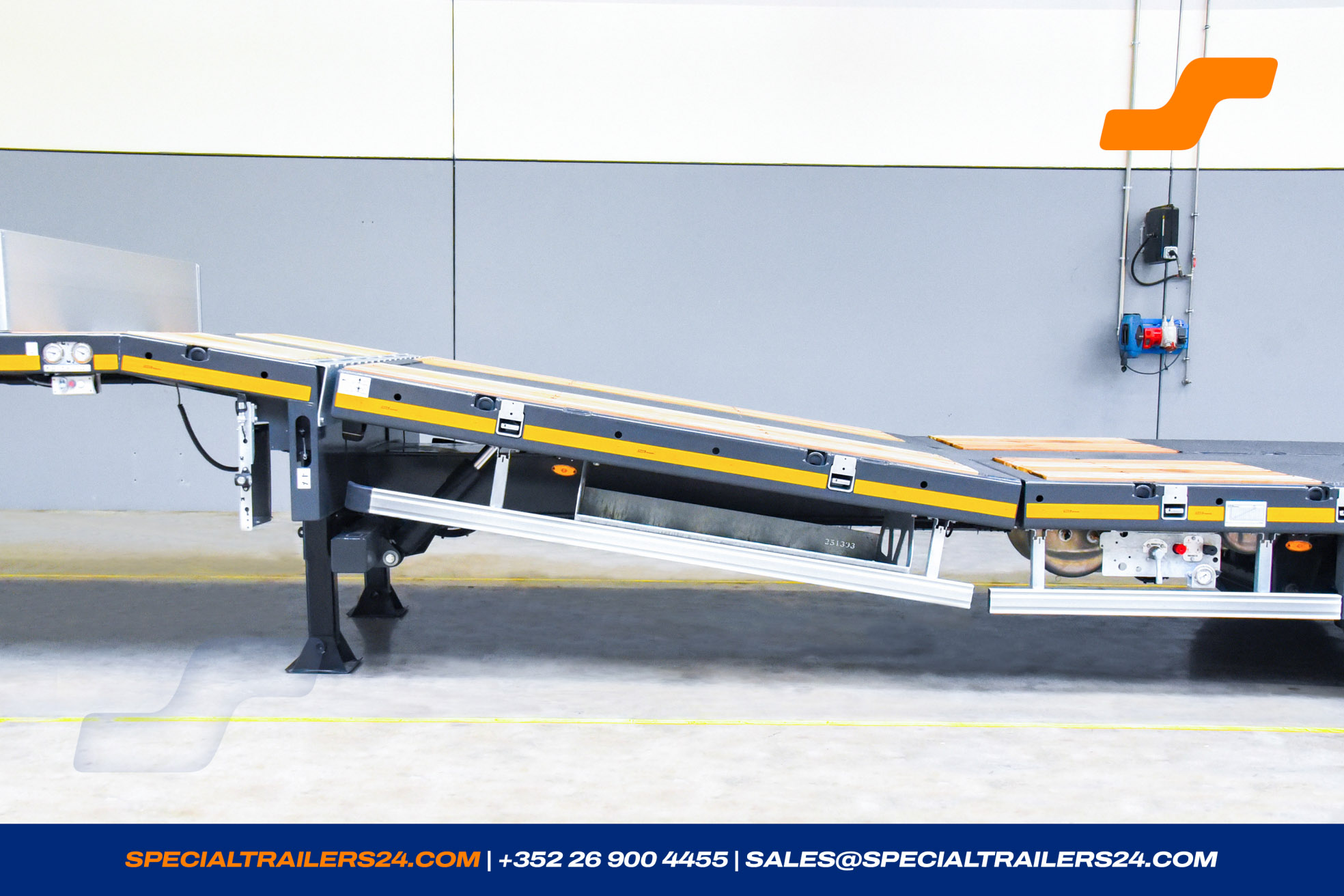

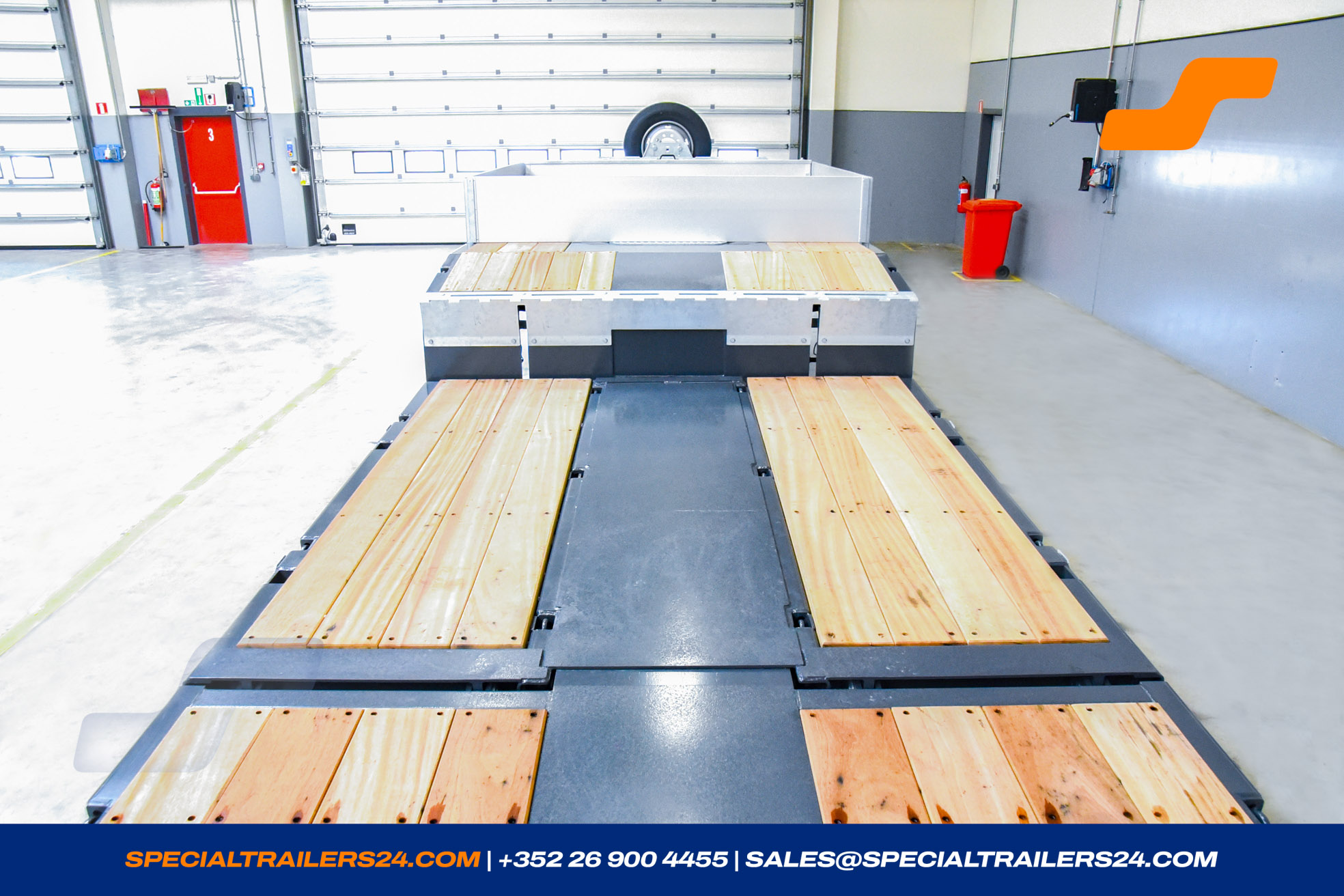

Loading platform behind the gooseneck with hydraulically lift- and lowerable loading area ca. 2 800 mm length, with chamfered beaver tail by about 1 000 mm x 8°.
6 pairs of lashing rings in the loading platform, hinged outwards (LC 5 000 daN).
2 pairs of lashing rings in the loading platform, hinged outwards (LC 10 000 daN).
1 pairs of lashing rings in the loading platform, hinged inwards at the front (LC 10 000 daN).
Hardwood cover thickness 48 mm above of the axles chequer plate.

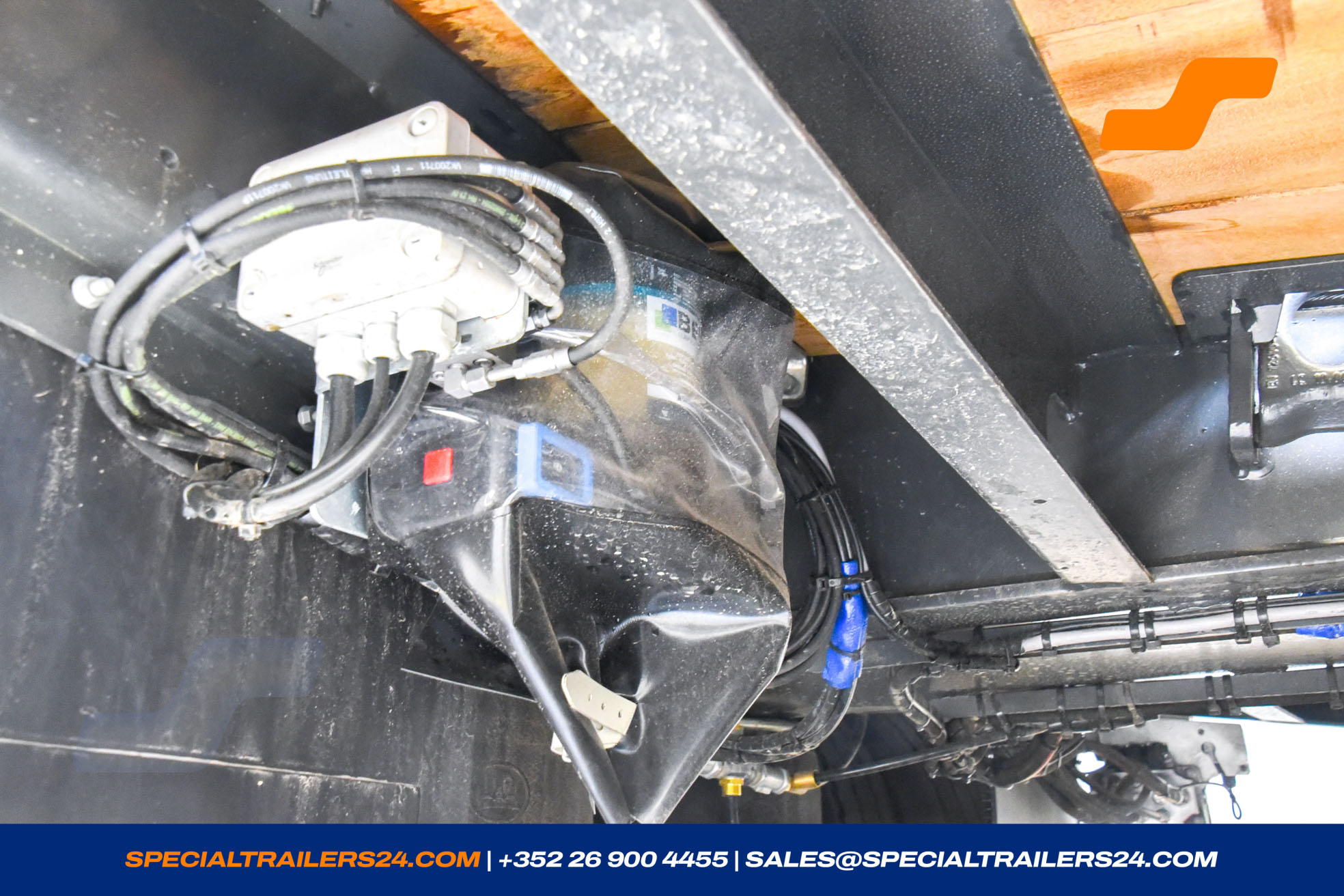

- Electrically operated hydraulic pump. (± 45kg)
-

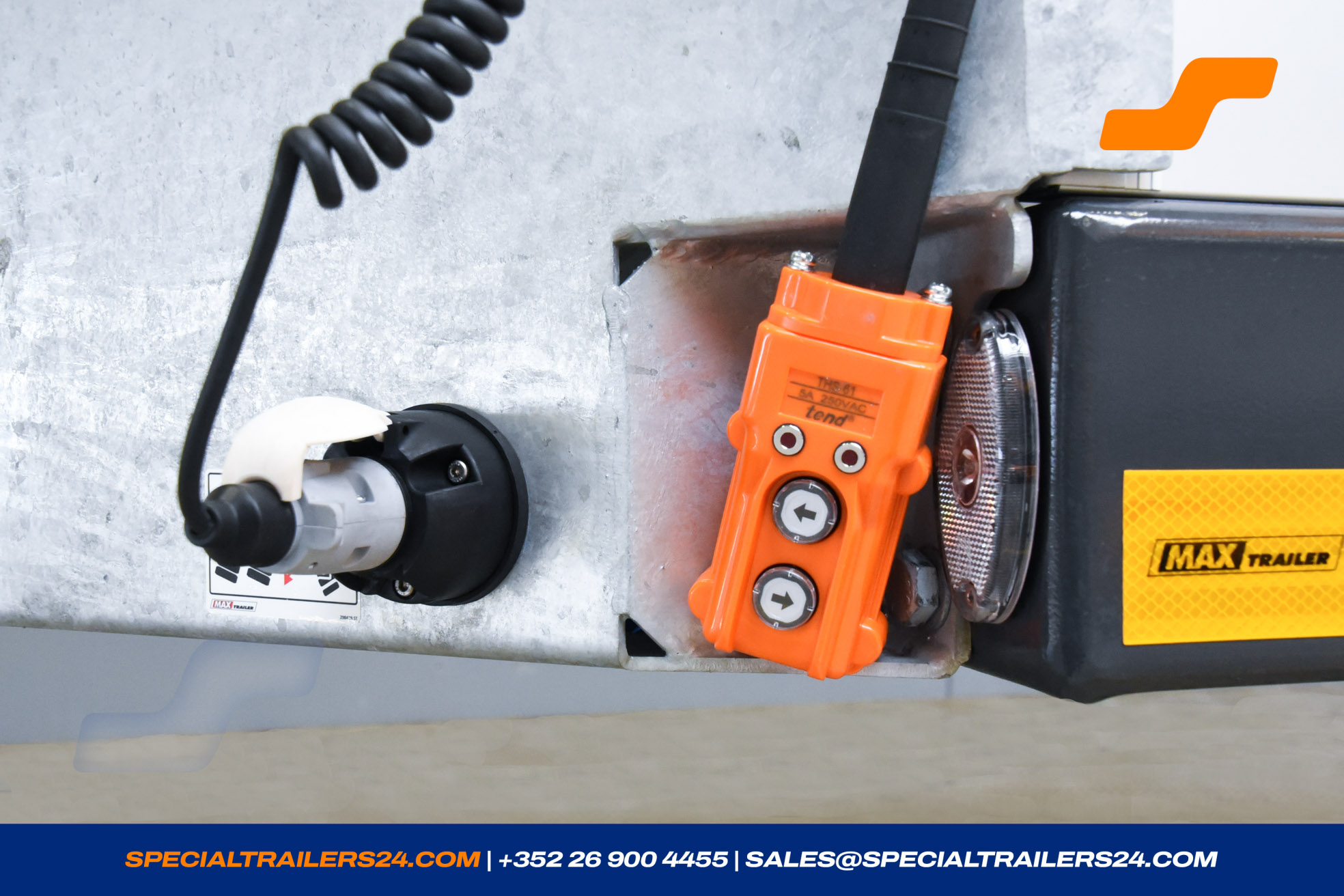

Manual-steering, handling with cable remote control from the front and the back, with PDC-light control for the realignement of the axles.

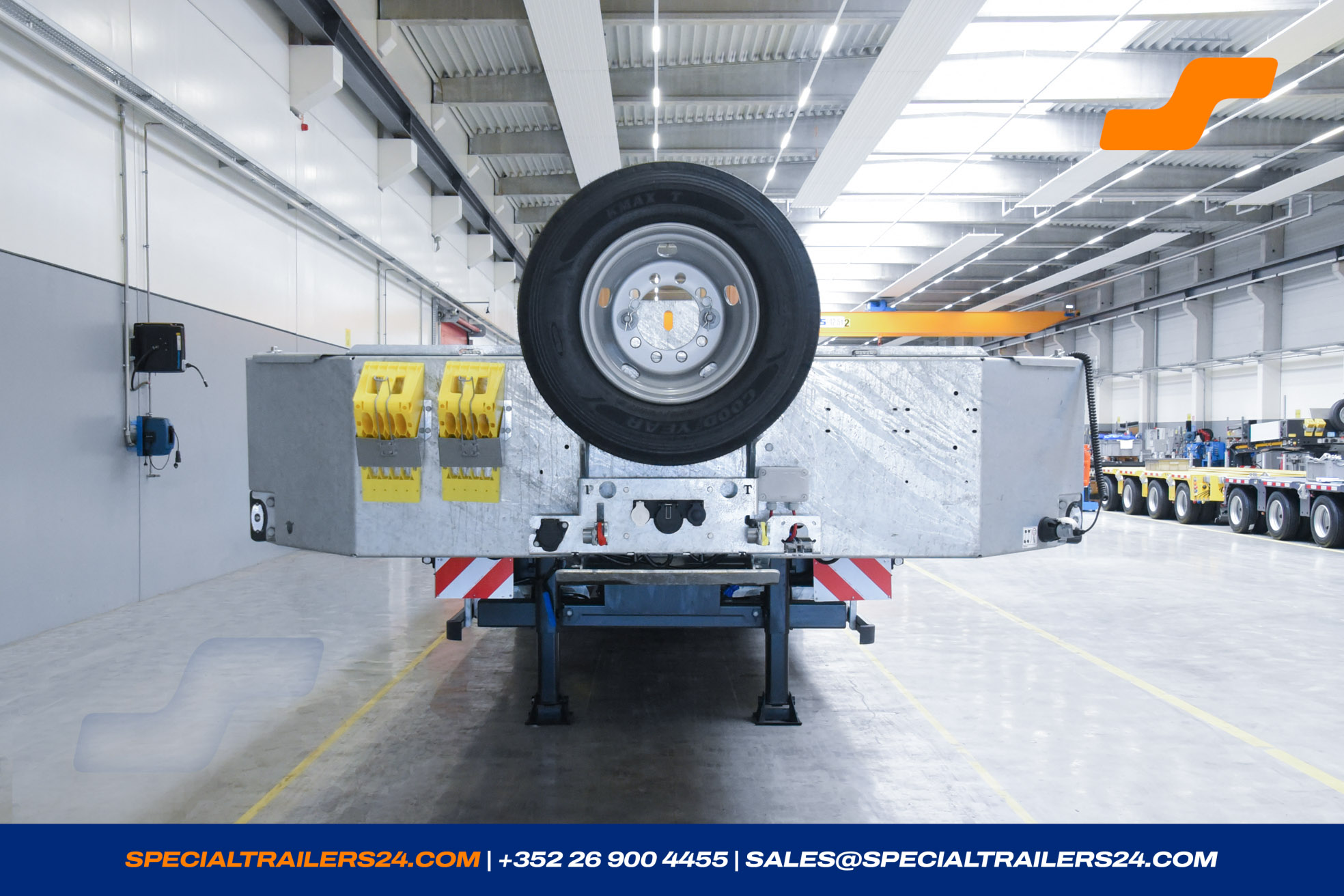

(without connection to the tractor). - Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.
- Yellow reflective tape according to the EU regulation over the entire length and at the rear.

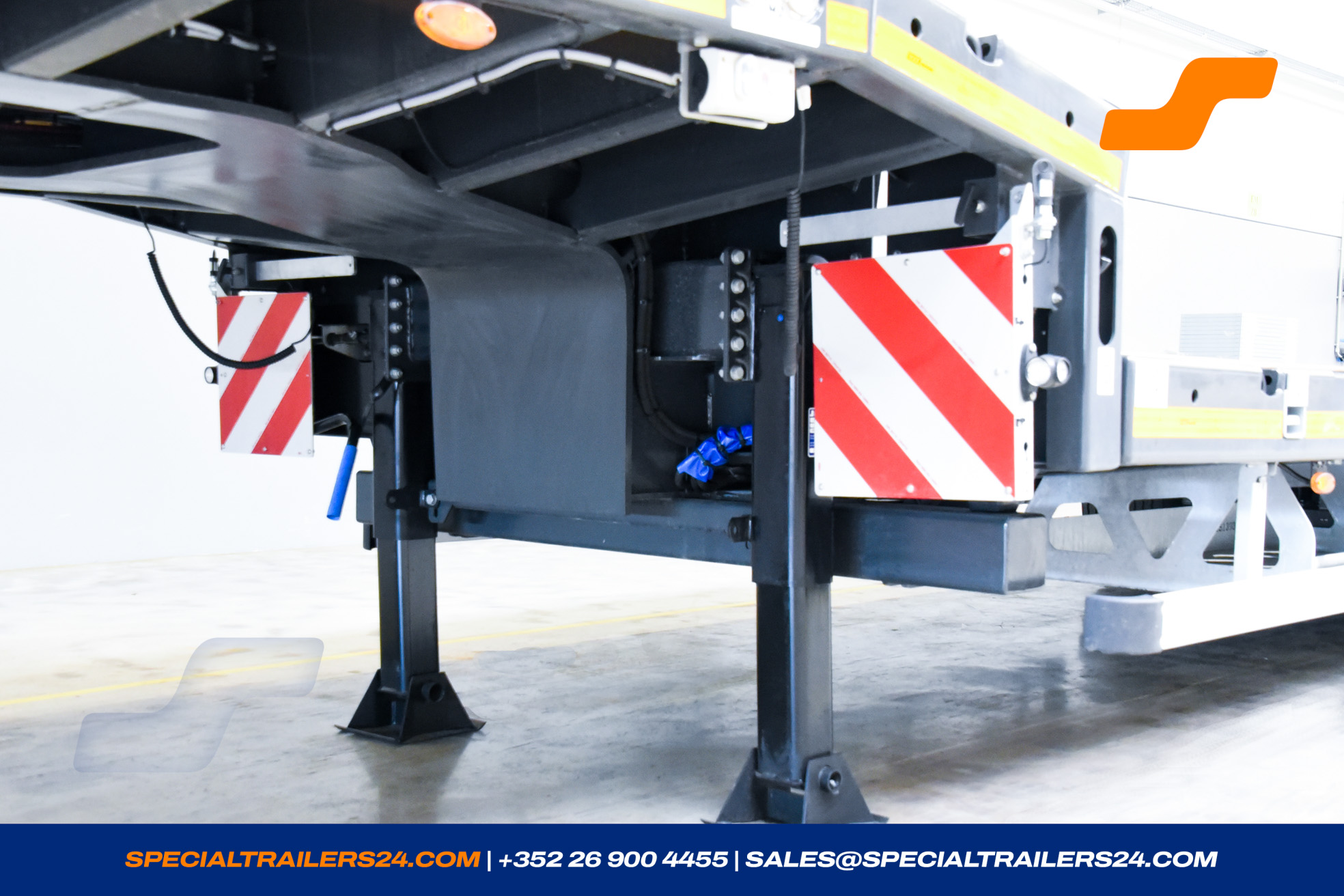

- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.
- Holder for one beacon light at the rear of the trailer.

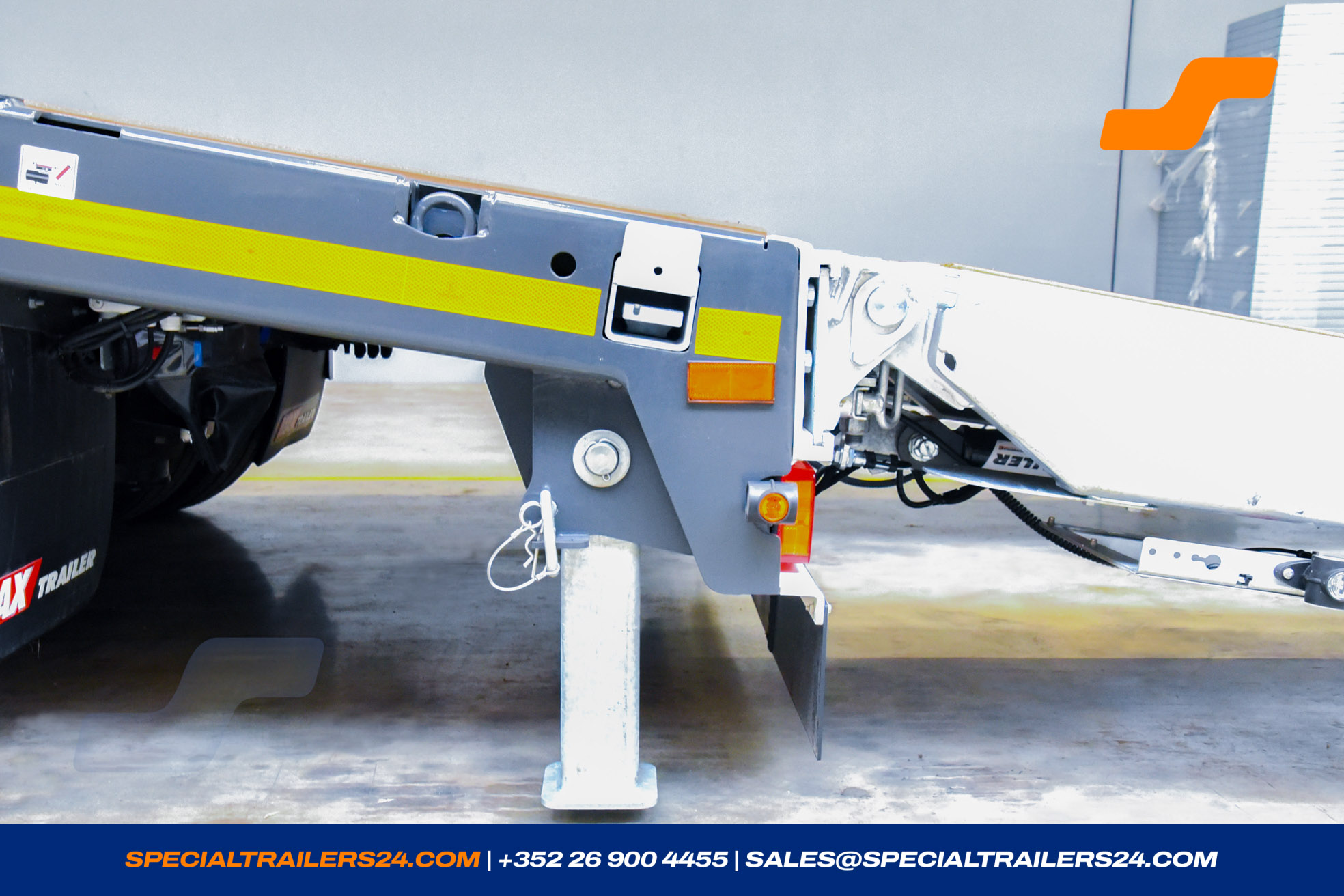

- Galvanised landing gears at the rear under the loading platform.
- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- 2 pairs of WADER containerpockets in the loading platform for one 20' container (± 20kg).
- 6 pairs of pockets for stakes ca. 100 x 50 mm in the outer frame of the loading platform (± 18kg).

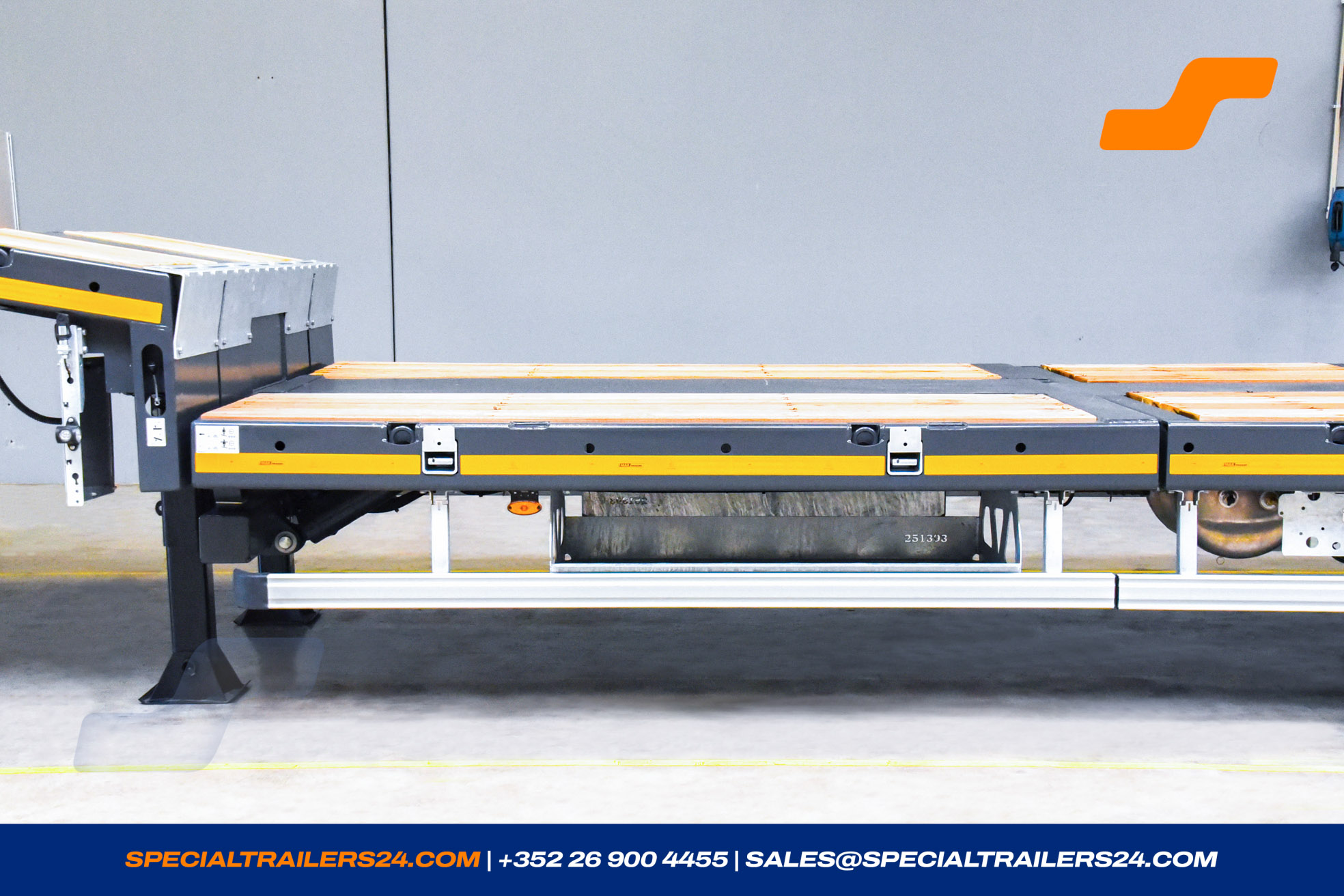

- Galvanised outriggers, extendable up to ± 230 mm per side (± 262 kg).
- Galvanised storage for timber, left and right under the loading platform (± 100kg).
-
6 pairs of inserted lashing rings along the central beam of the loading area (LC 5 000 daN).
- 3 pairs in the lifting floor.
- 3 pairs in the rear loading area.
1 pair of inserted lashing rings along the central beam at the back end of the chamfer (LC 10 000 daN). (± 22 kg) - 2nd holder for numberplate (520 x 110 mm) of the truck incl. lighting on the left side at the rear end of the trailer.

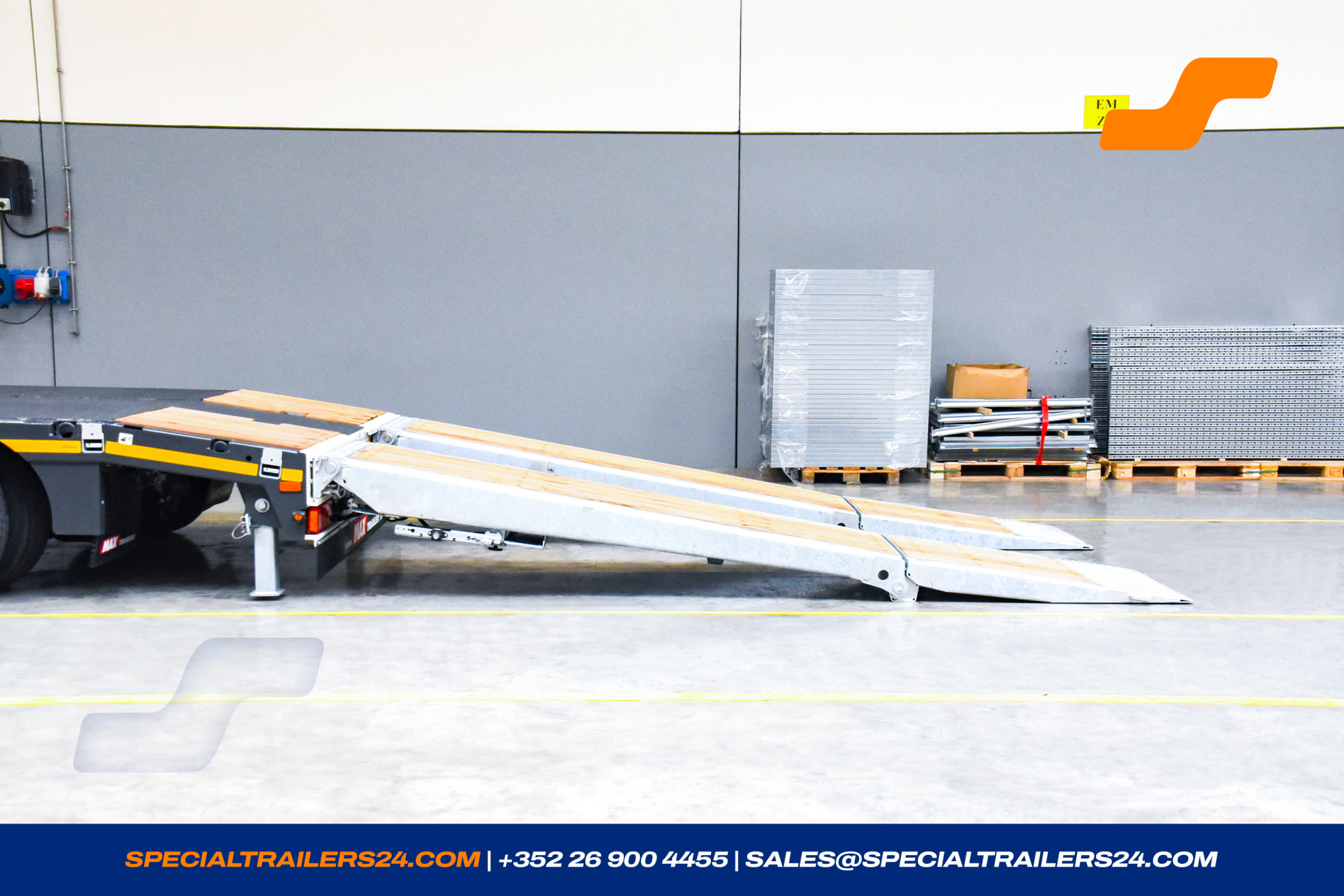

Ramps

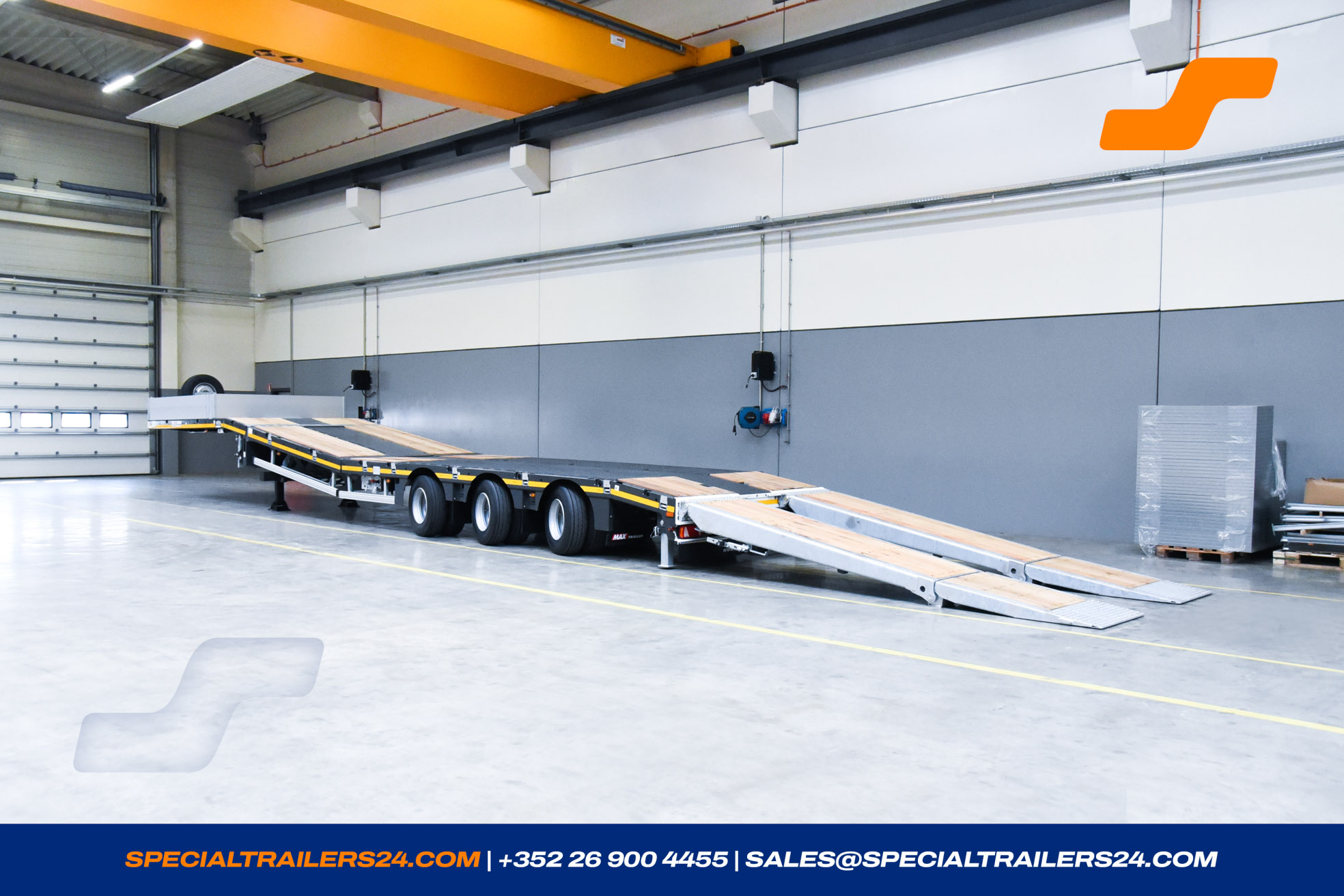

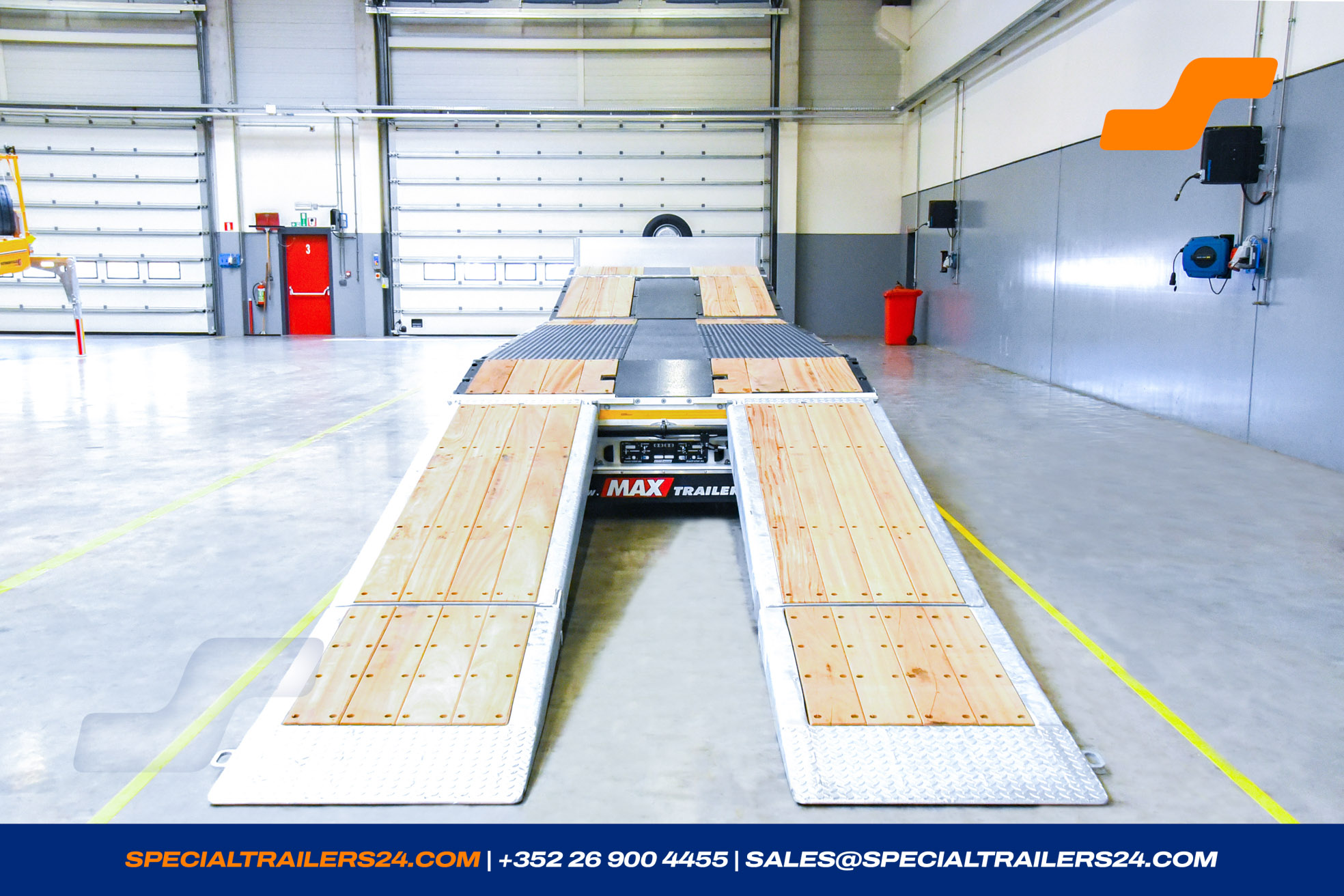

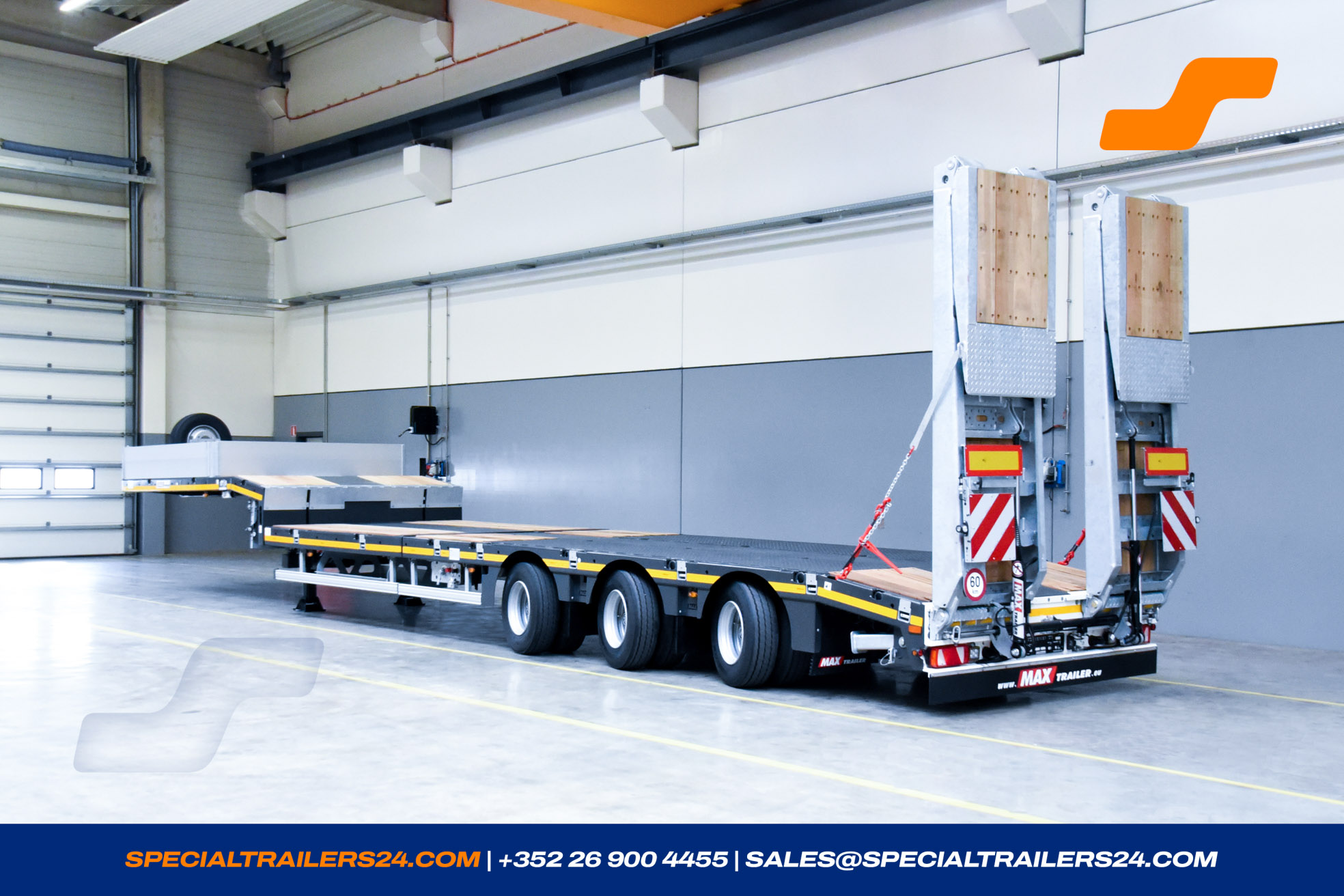

Hydraulic loading ramps

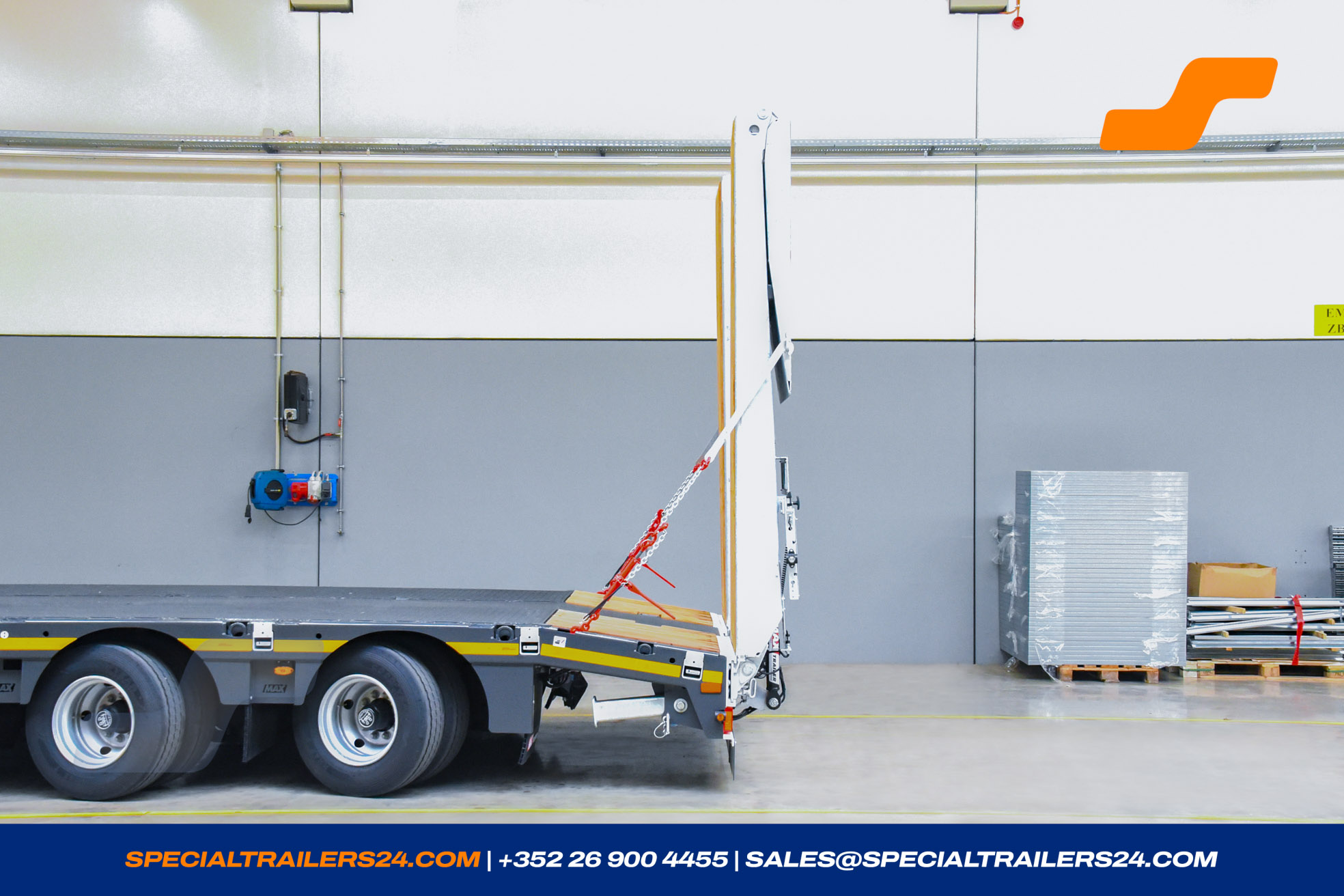

1 x Steel double flip ramps
1 pair steel double flip ramps galvanized ca. 2 750 + 1 400 x 900 mm with ca. 48 mm hardwood cover.
Ramps hydraulically operated and hydraulic side shift.
Maximal charge for one pair: 40 000 kg

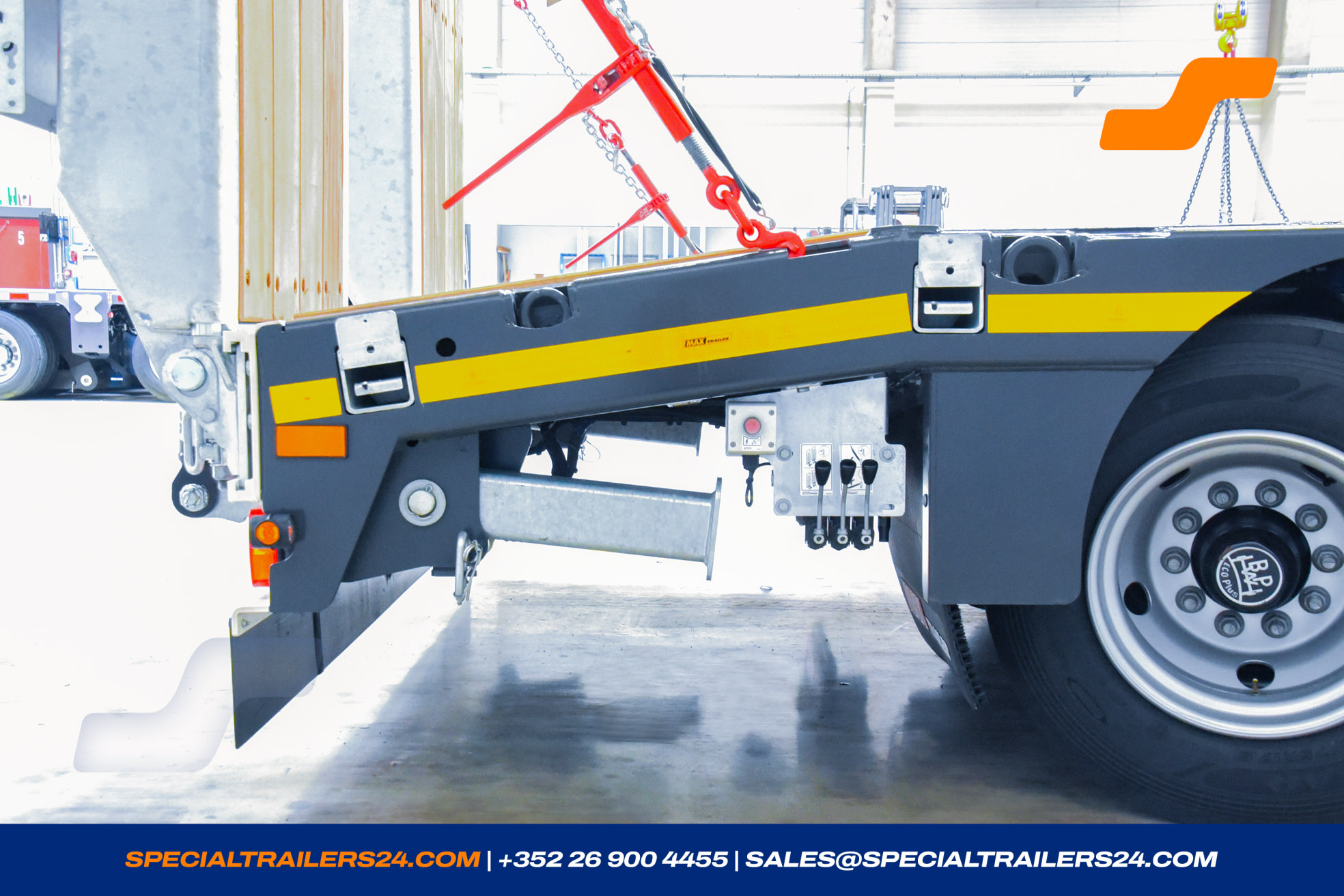

- Operated valve for ramps mounted on the right side (± 4 kg).
Accessories
1 x Accessories
- Manual and description on USB stick .
- Central greasing BEKAMAX (Pico) with NLGI-2 normal grease with removable protection around the pump. (± 18 kg)
- 4 warning boards ± 500 x 500 mm, extendable by ± 400 mm with 1 LED position light (± 25 kg).
- On the warning boards a holder to put a flashing beacon.
- 2 LED- reversing lights at the rear.
- Spiral cable for the the electric-hydraulic pump and/or electric winch (35 mm², 3.5 m length, max. 250 A) between the semi-trailer and the truck with socket (NATO-NATO).
- Speed sticker 60 km/h at the rear.
- Delivery from a trailer to factory Lentzweiler.

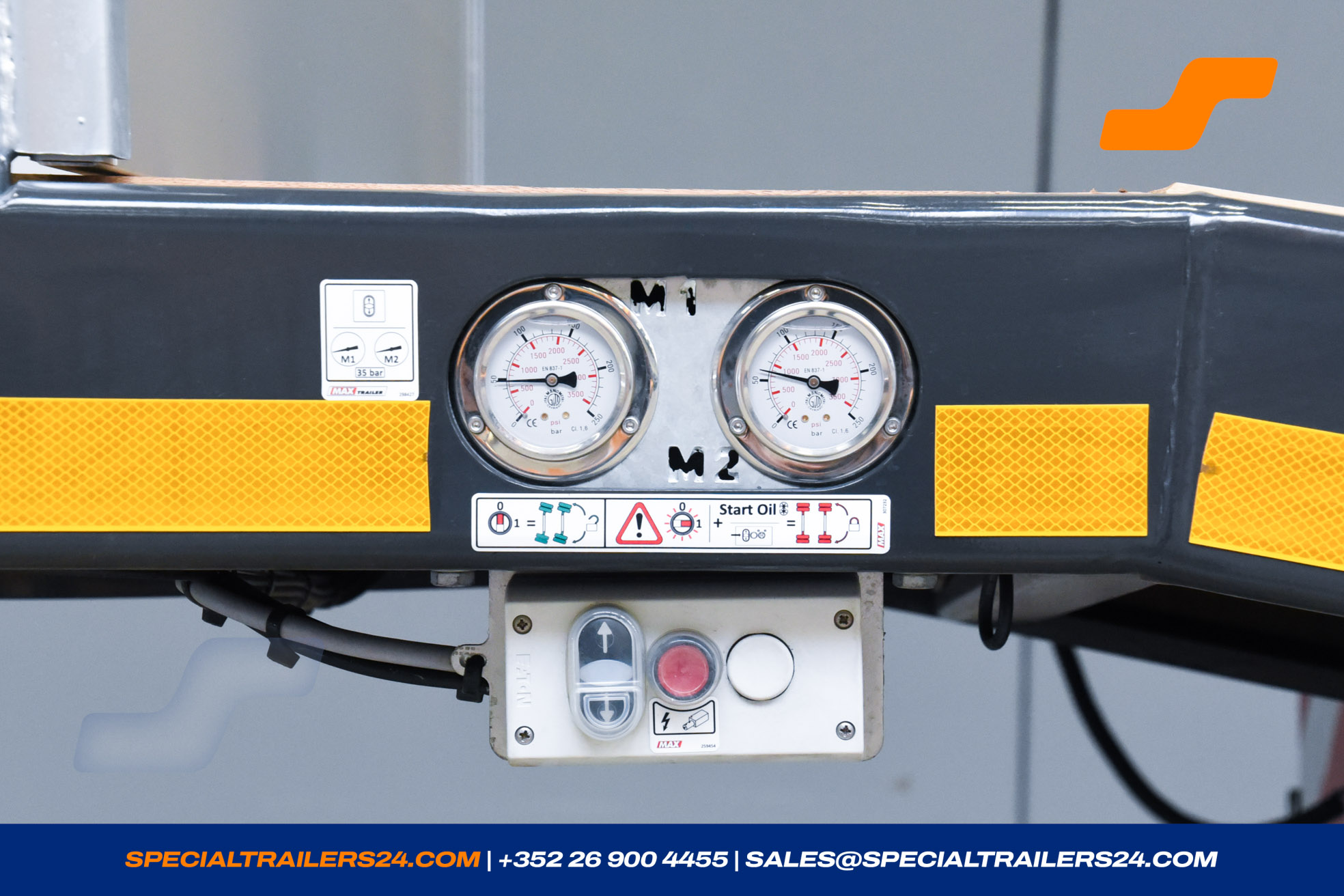

- Load manometer for determining the axle load, including load diagram.
Request a vehicle
We would be pleased if you send us an inquiry about your request. Arrange ellipse bold share group. Draft ellipse ipsum layer rotate.
- Chassis number 111272
- Reference MAX110-Z-3B-9.30-U
- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour RAL 9010 - Pure white
- Availability 04/2026
- Preis Auf Anfrage
-
Location
SpecialTrailers24
Z.A.E.R. Op der Sang,
16, Op der Bréimicht
9779 Lentzweiler
Luxembourg - AdId 000265
- Steering Type Hydraulic
