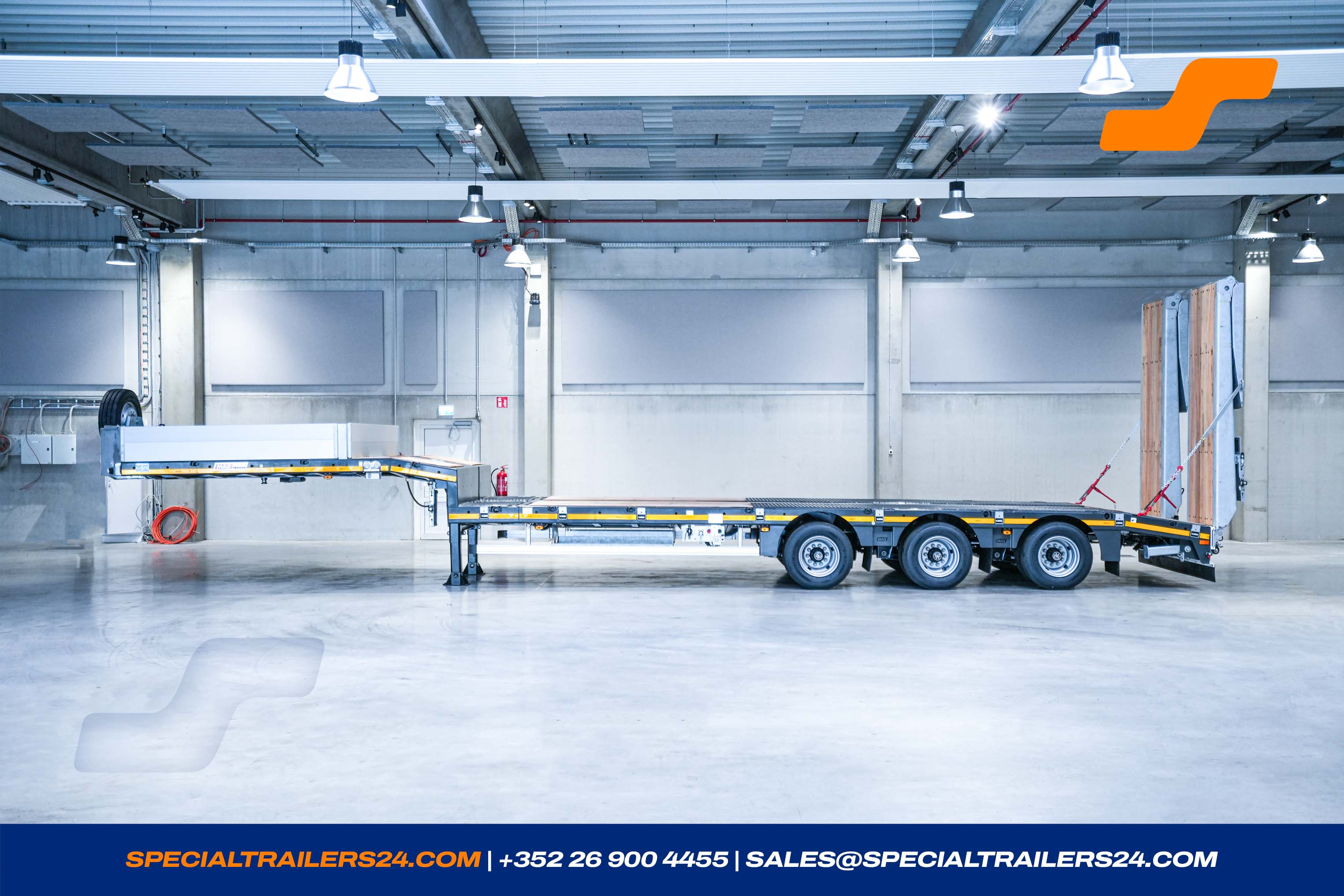

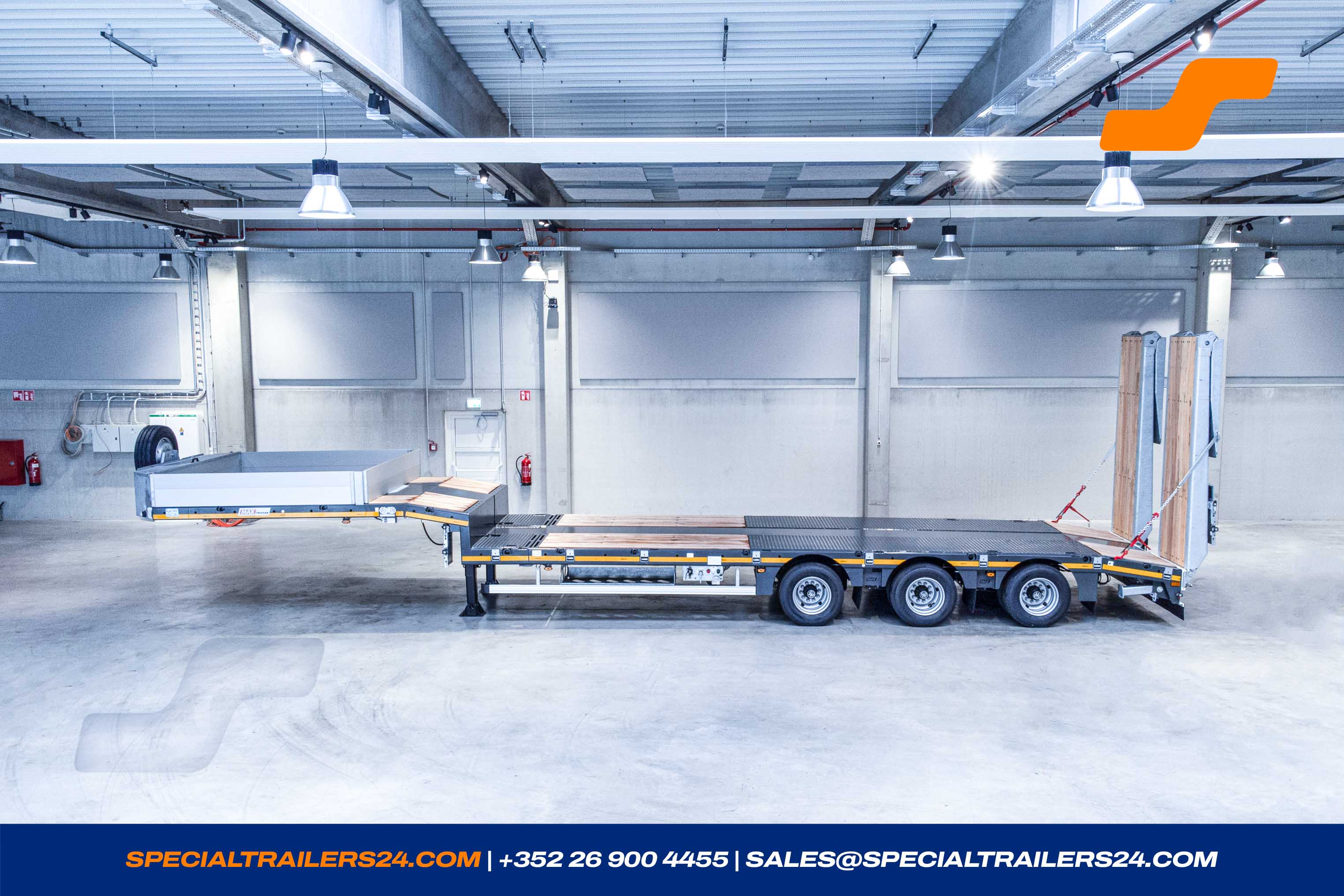

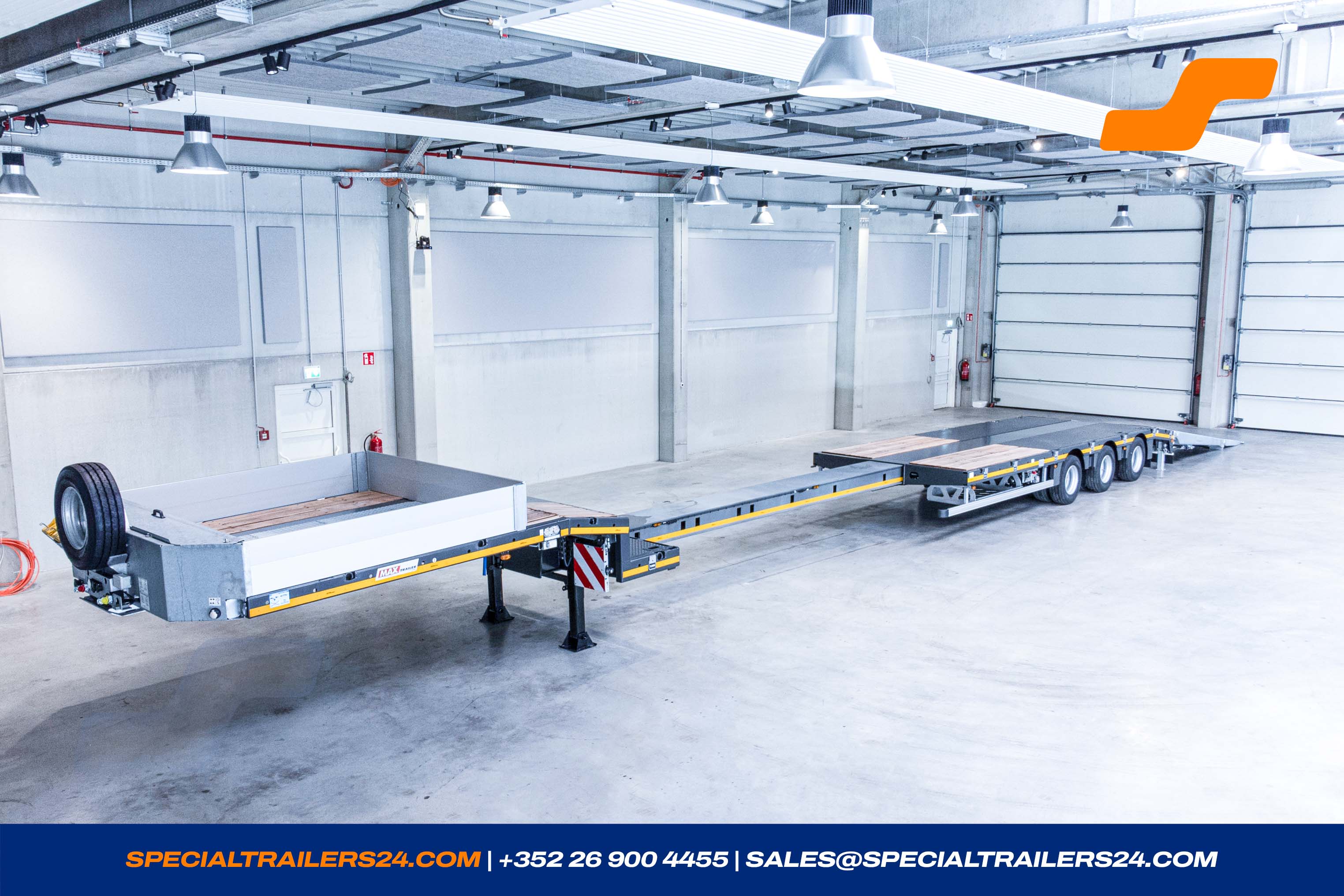

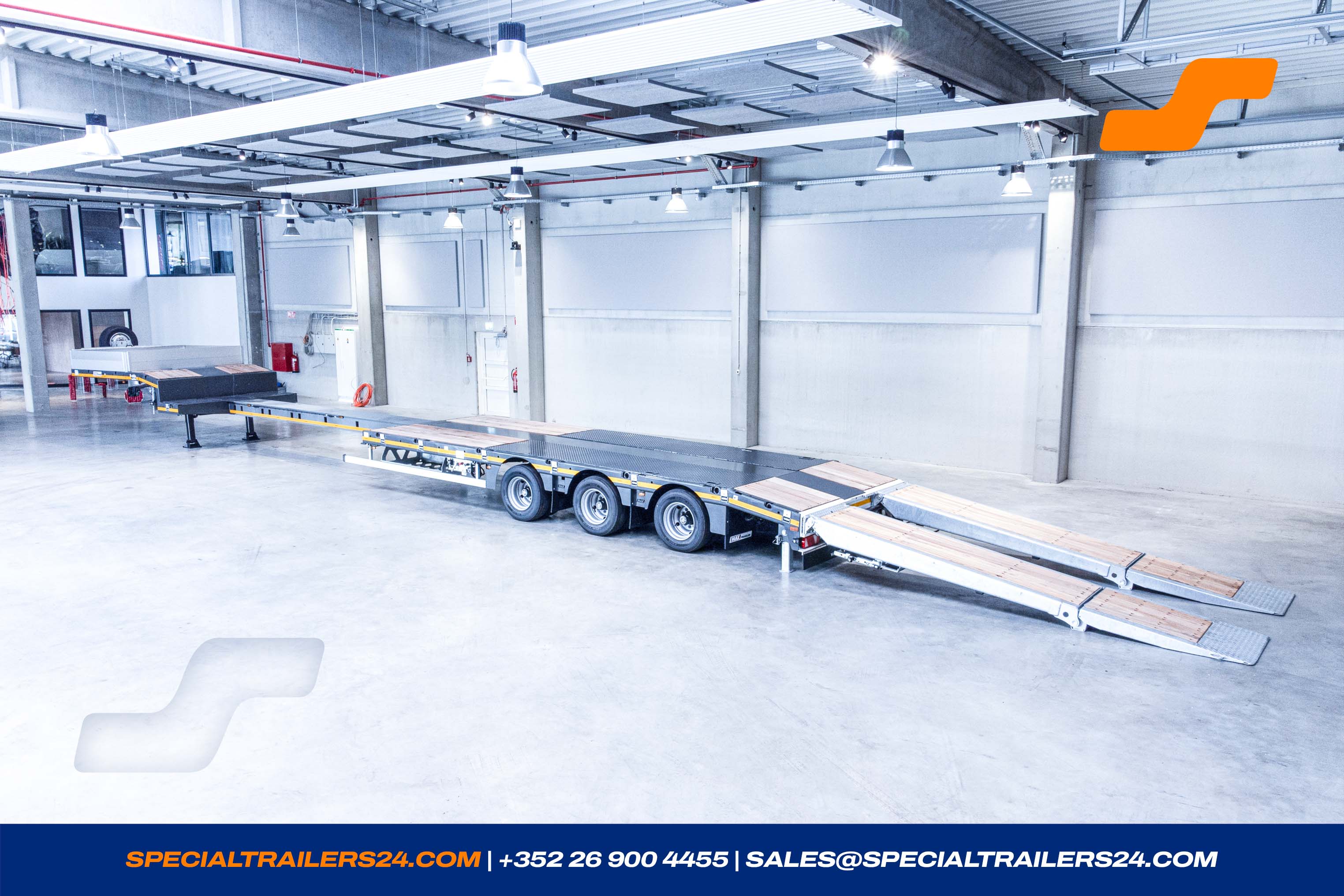

MAX Trailer MAX110
Die Farbe des Fahrzeugs auf dem Foto kann abweichen.
- Chassis number 110370
- Reference MAX110-Z-3A-8.60-U

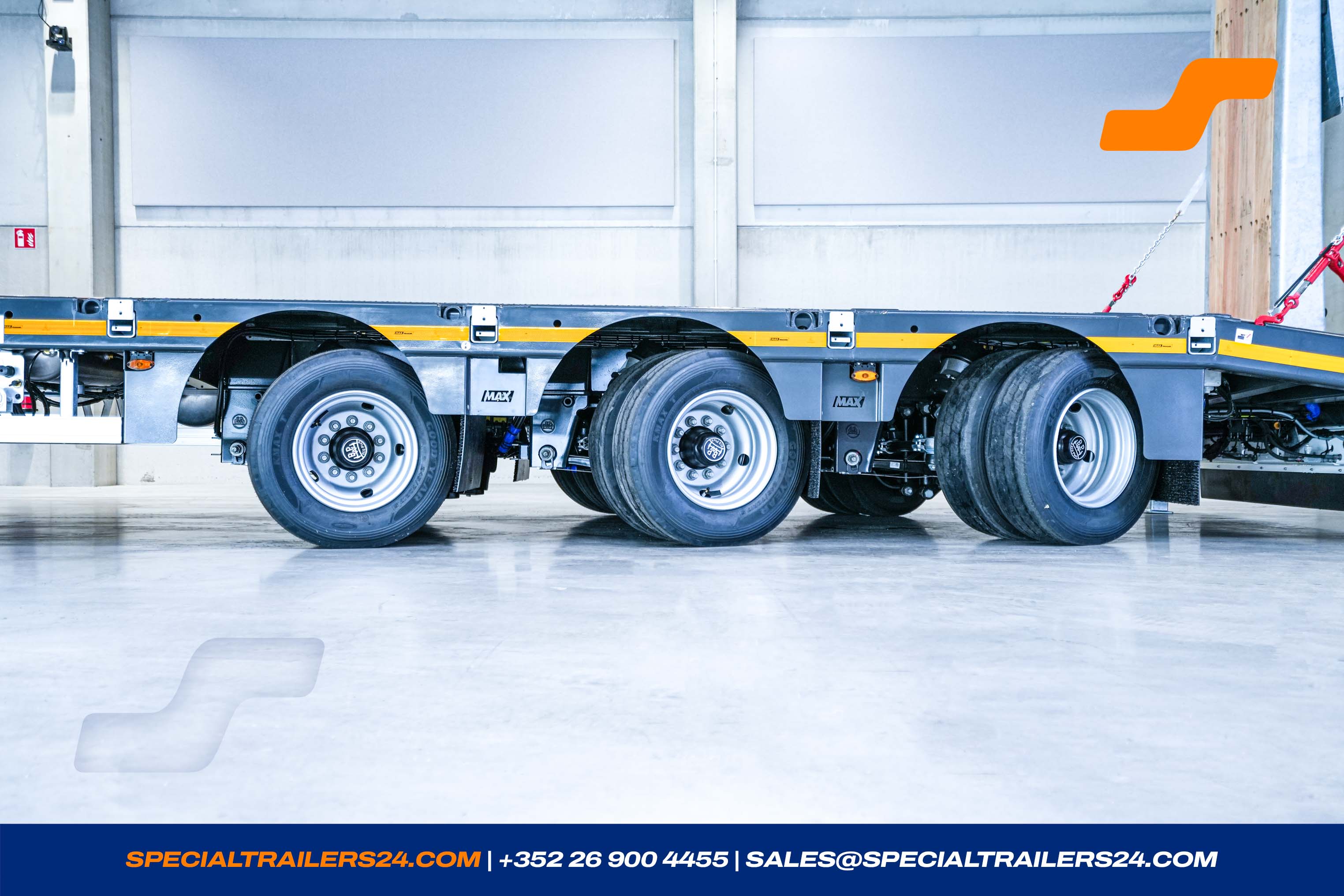

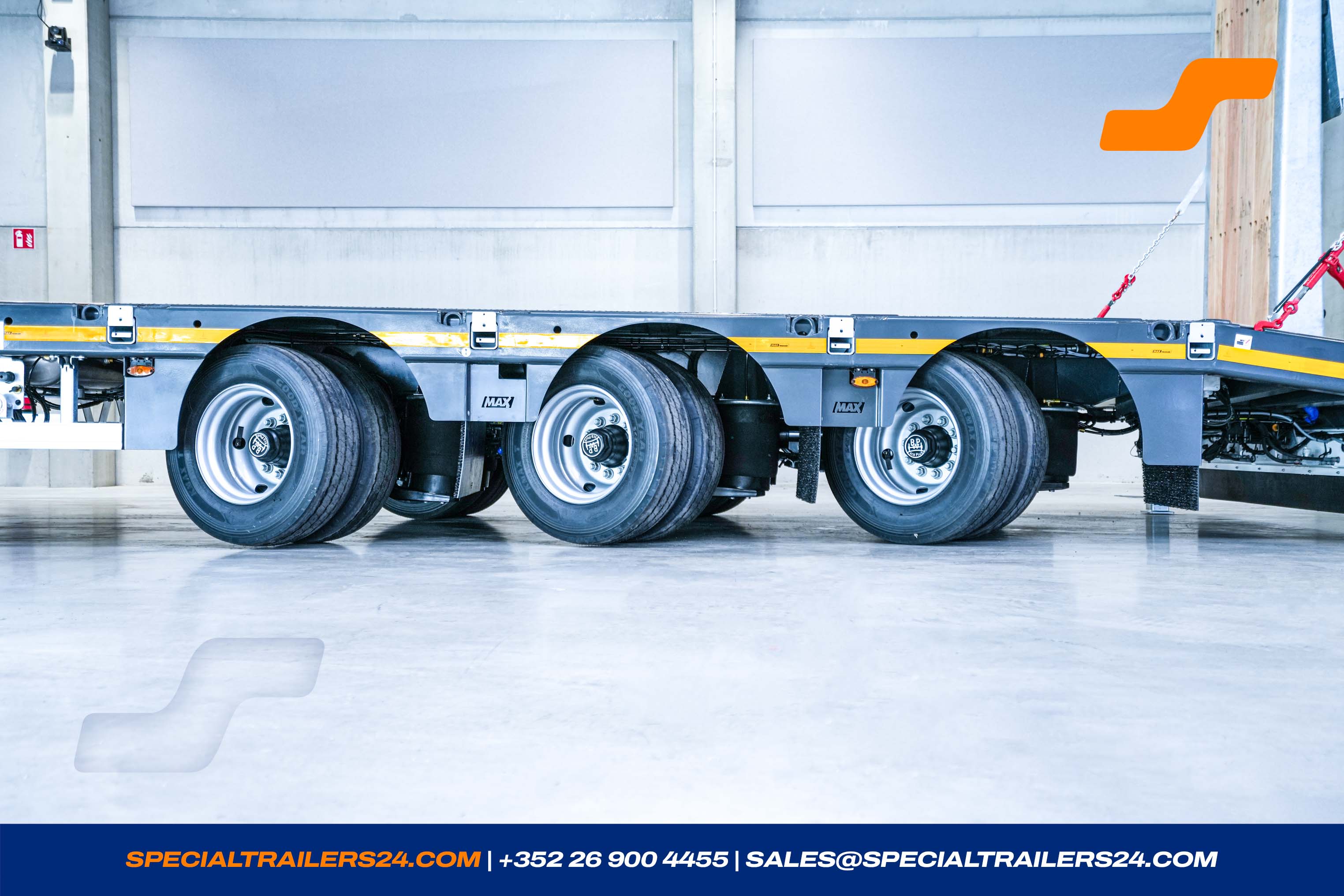

- Number of axles 3
- Condition New
- Year of manufacture 2025
- Colour DB 7350 - Nova grey
- Availability Directly available
- Steering Type Hydraulic
Die wichtigsten Unterlagen
Detailinformationen
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 36000 kg |
| Gross weight | 54000 kg |
| Tare weight +- 3% | 12195 kg |
| Payload | 41805 kg |
Dimensions
| Fifth wheel height loaded | 1200 mm |
| Gooseneck length | 4 200 mm |
| Turning circle reversing | 2 300 mm |
| Loading platform length | 8 600 mm |

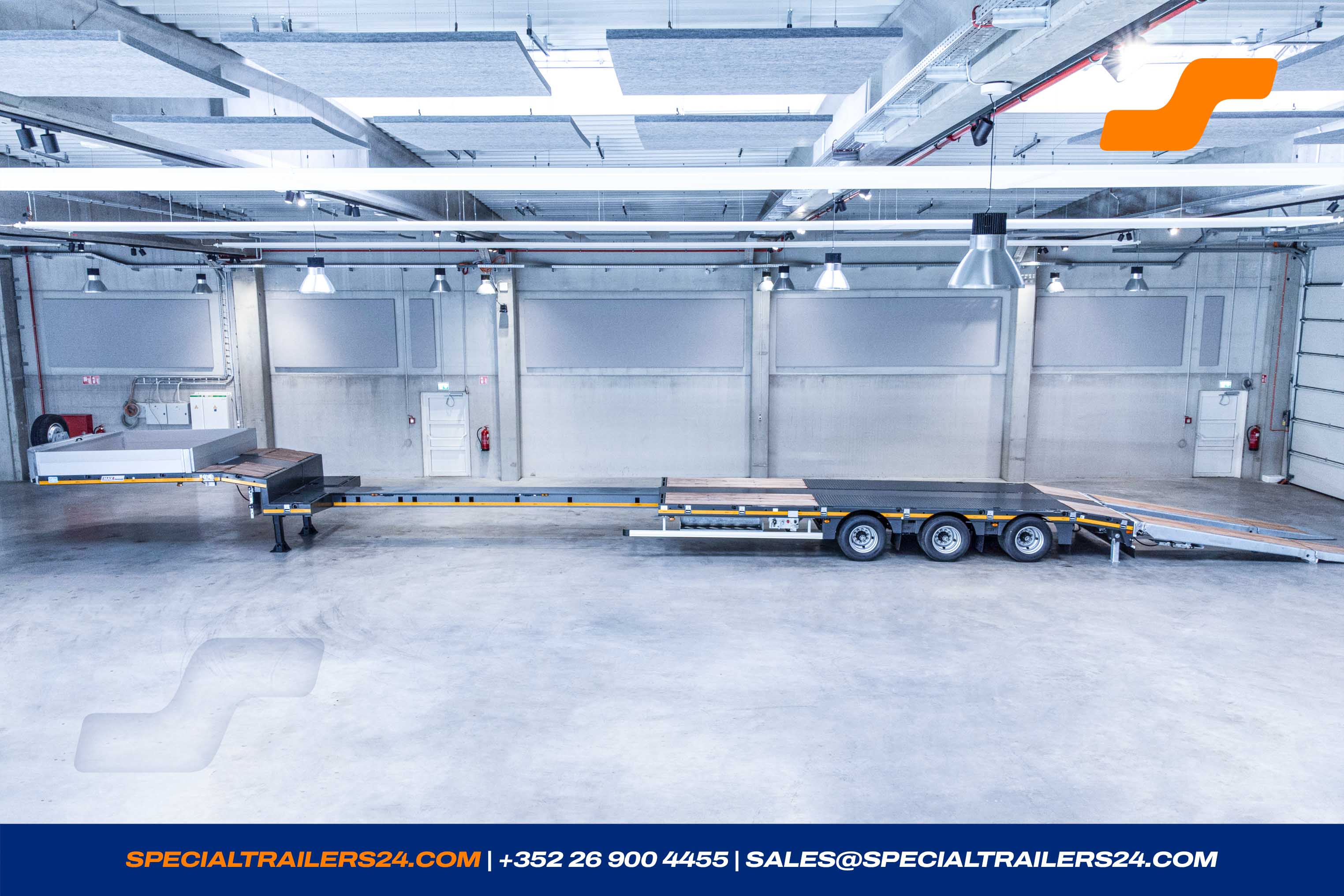

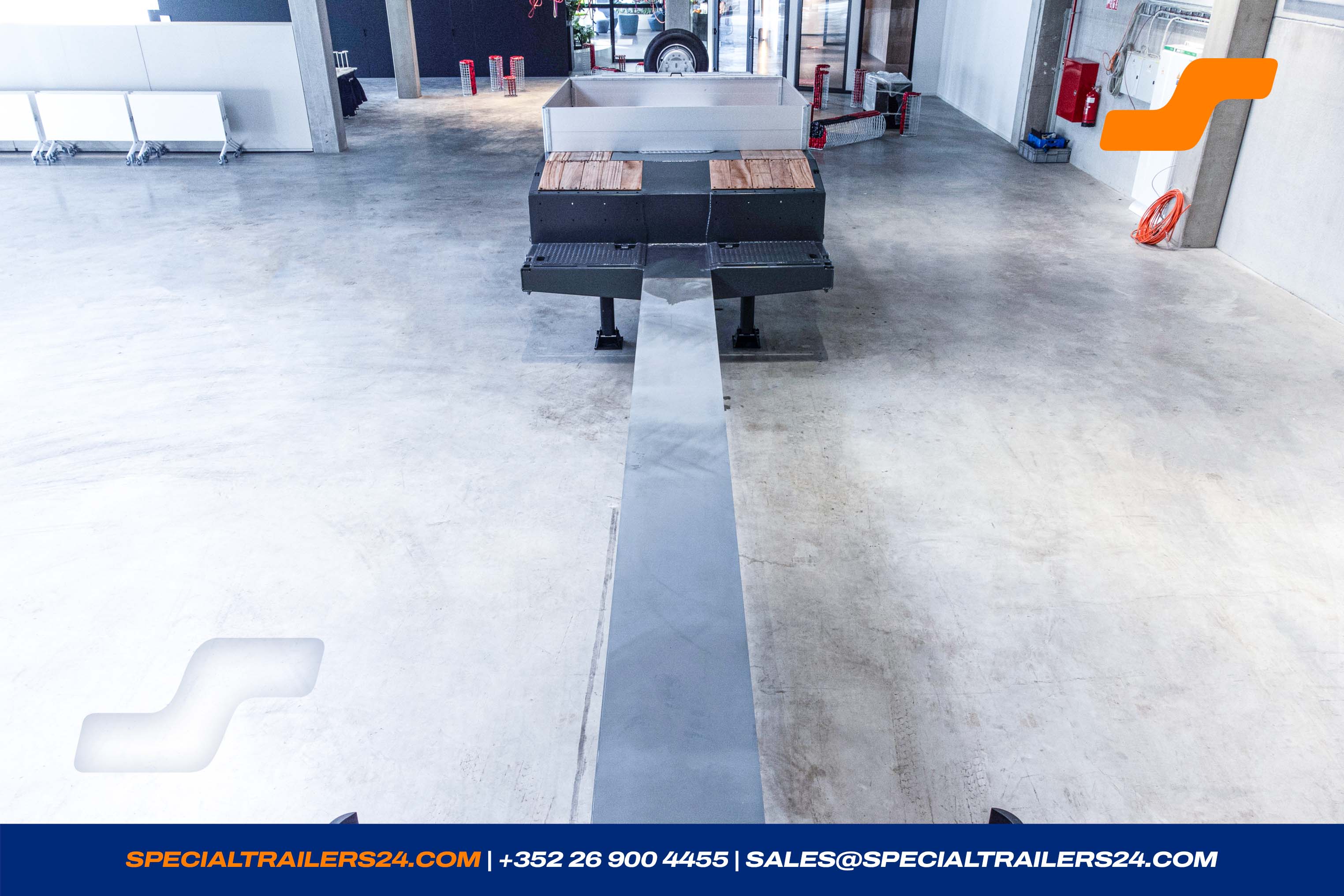

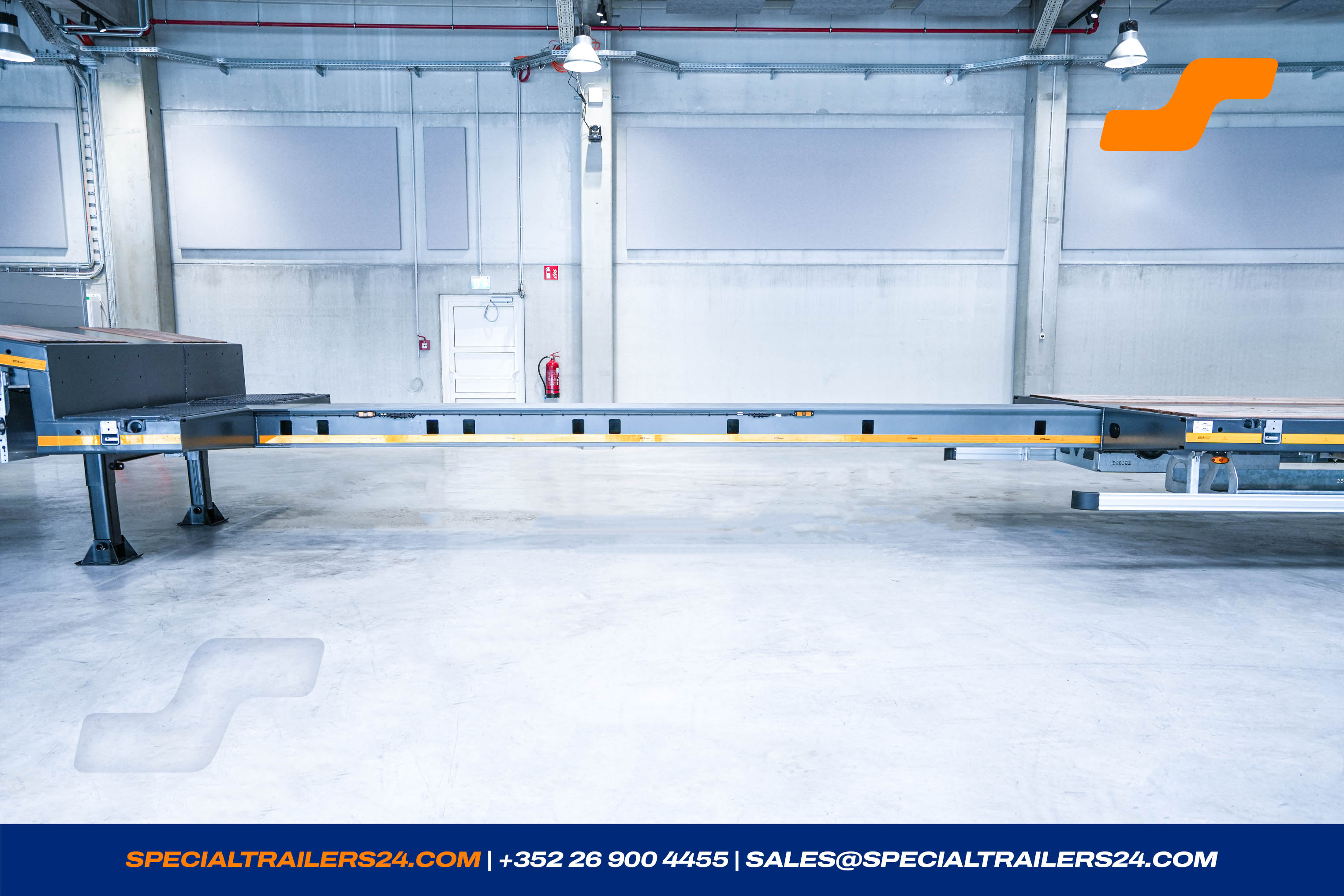

| Extendable by | 5 800 mm |
| Wheelbase | 1 360 mm |
| Loading height at max. load | 860 mm |
| Total width | 2 540 mm |
| Suspension stroke | -55/ +145 mm |

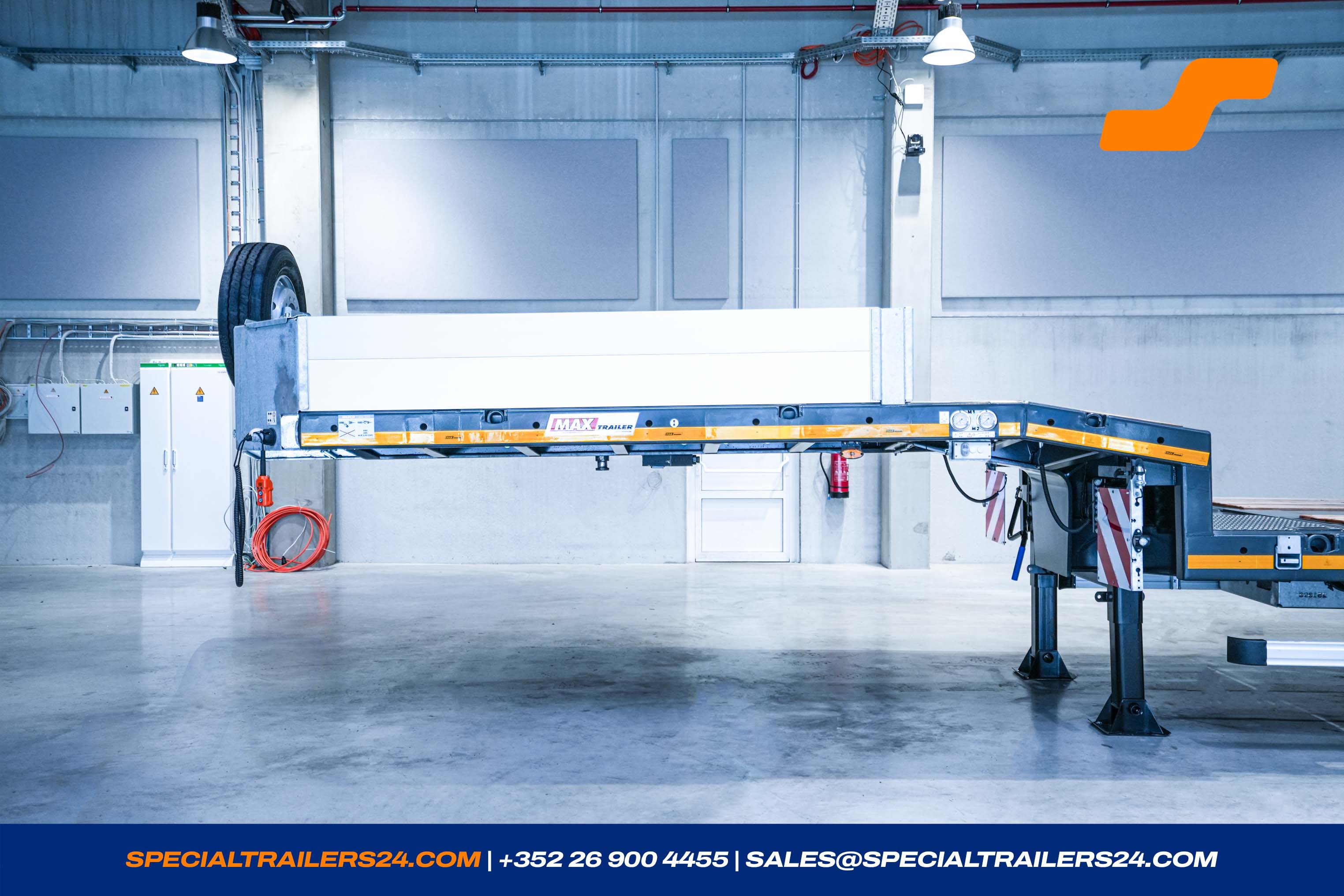

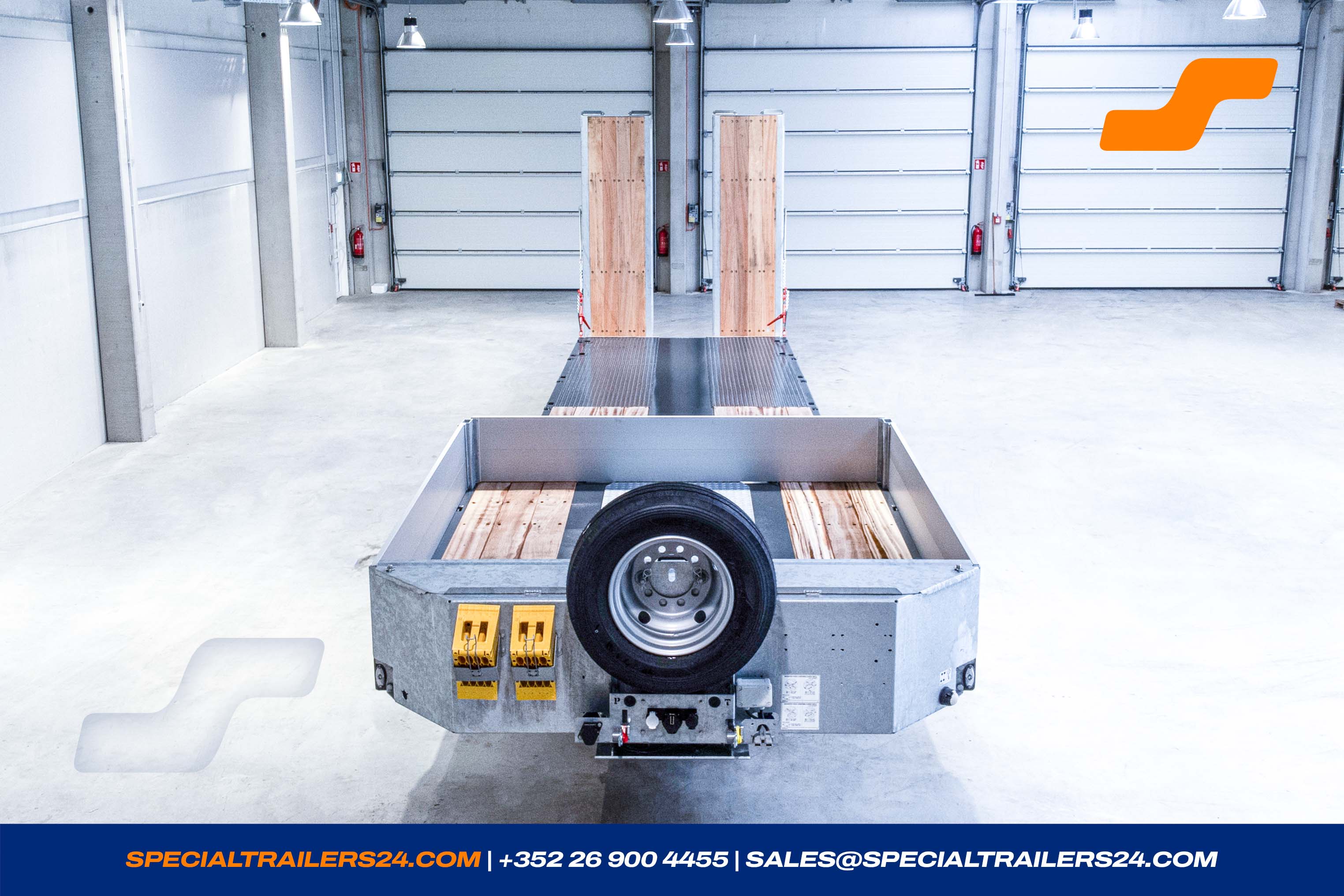

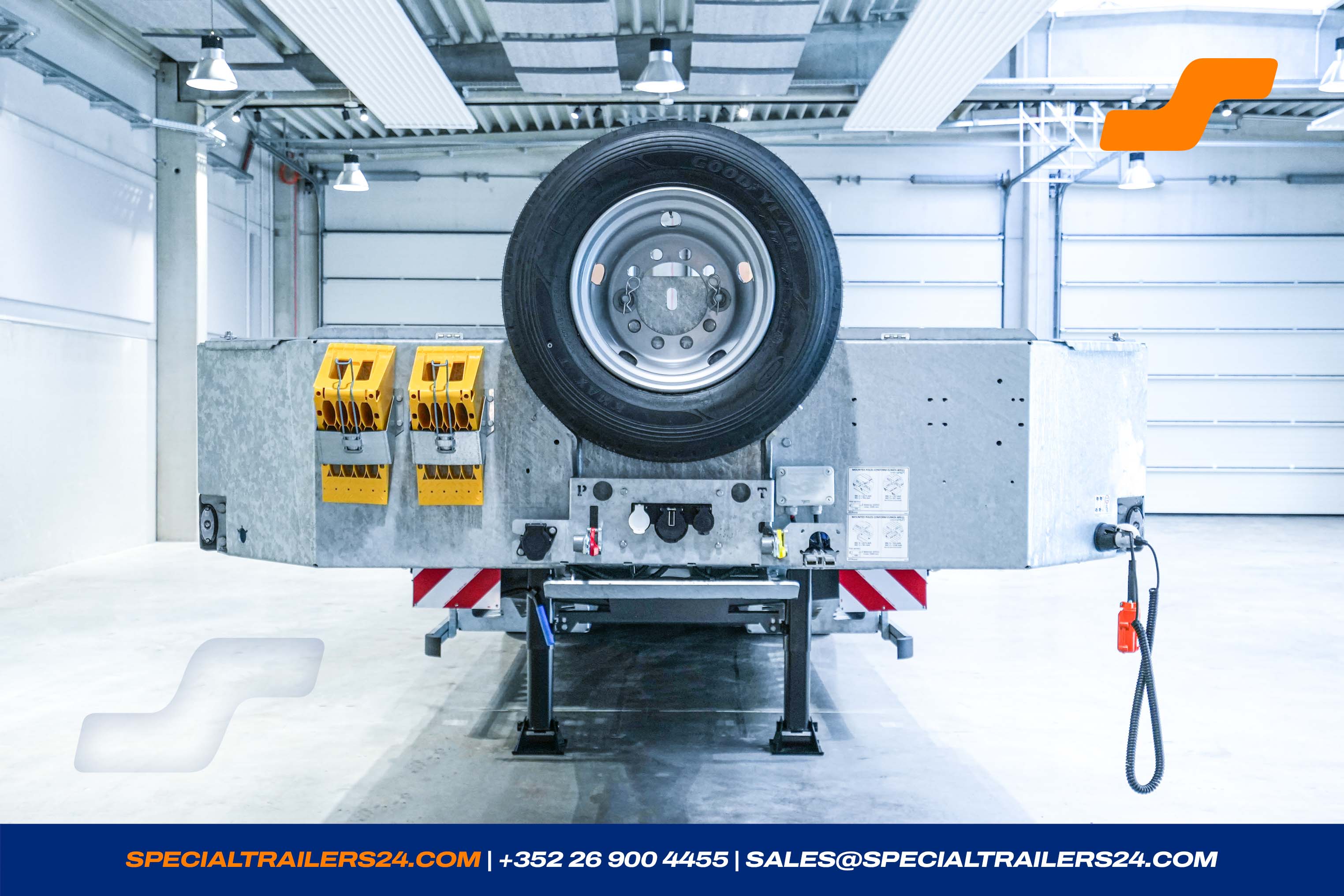

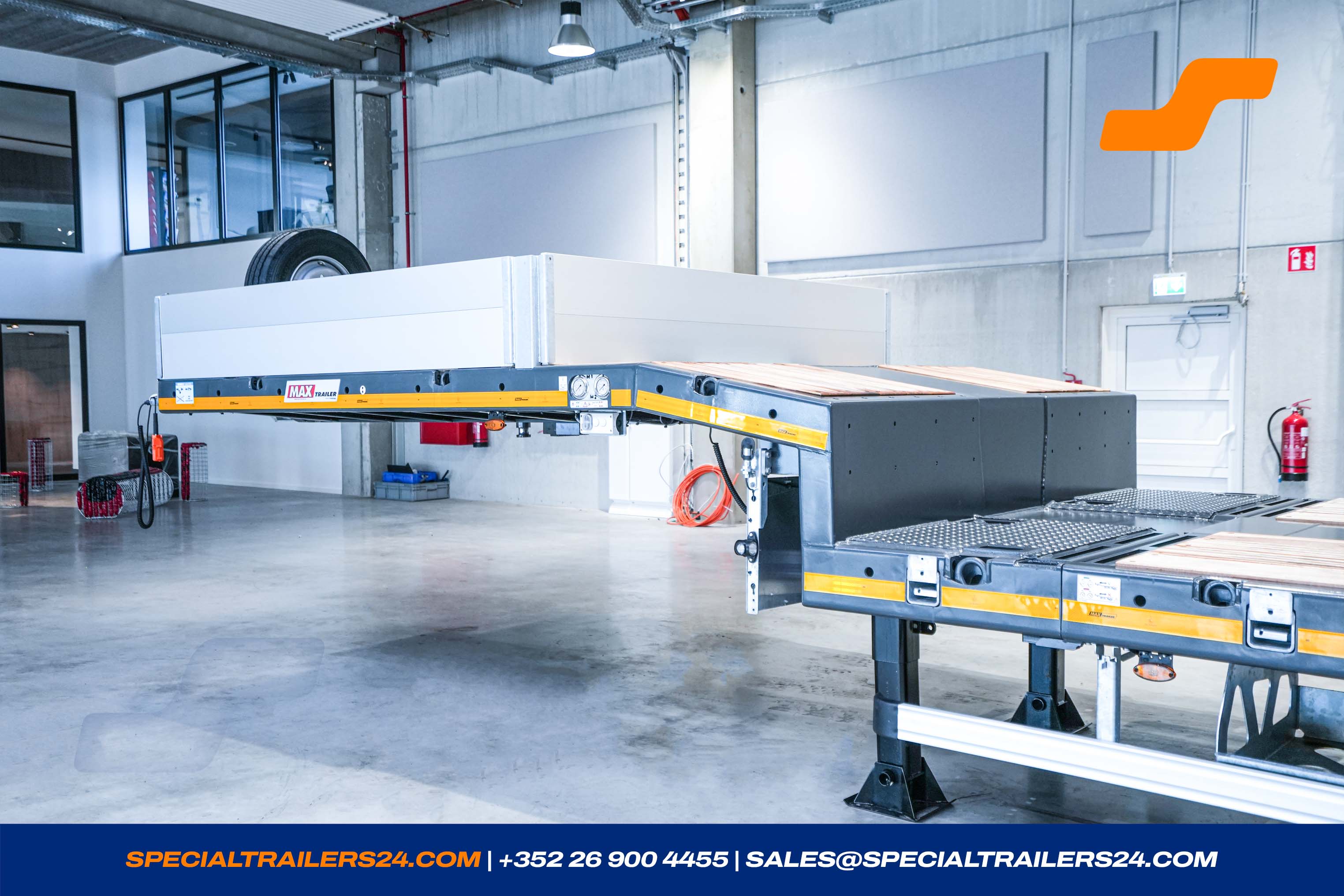

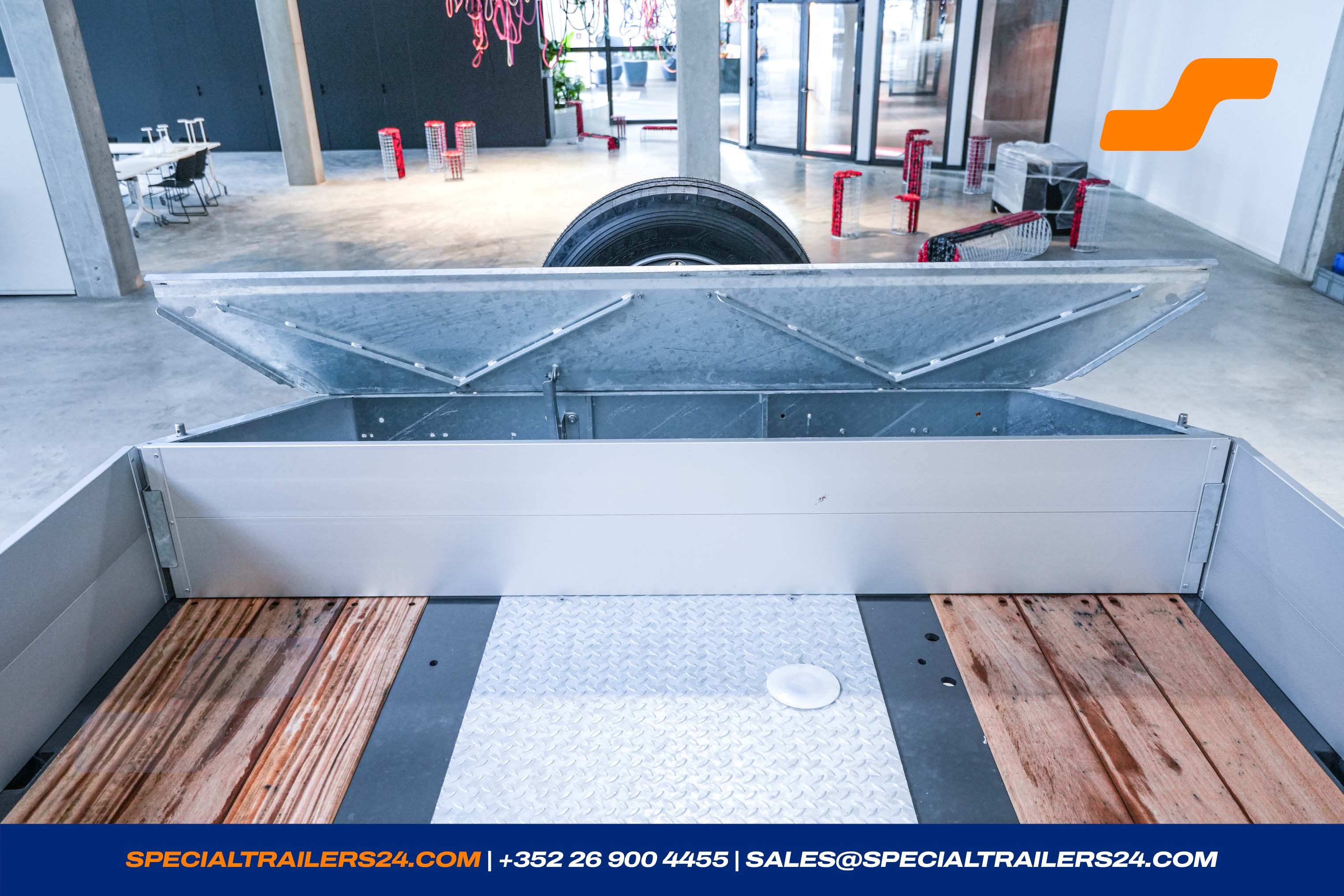

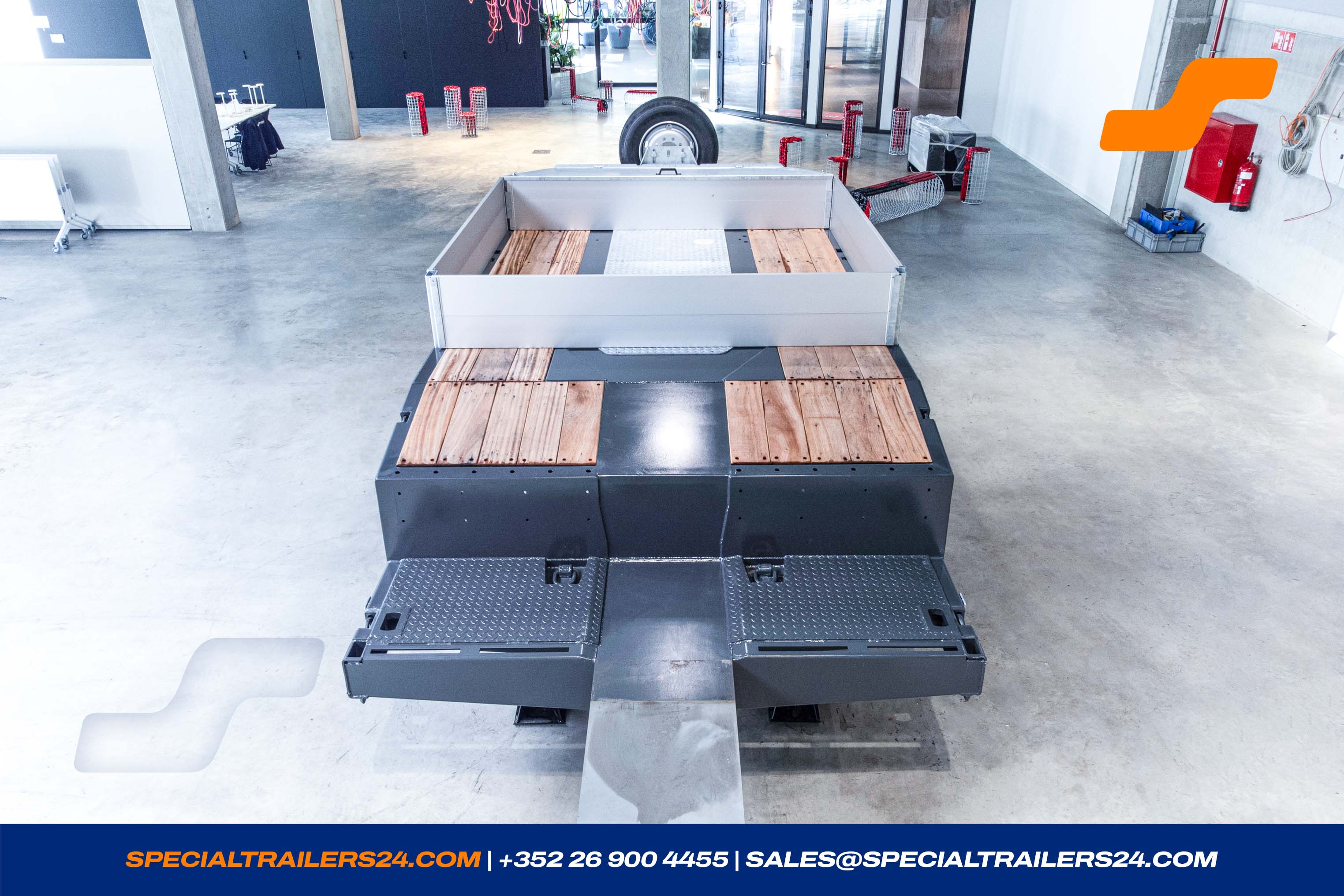

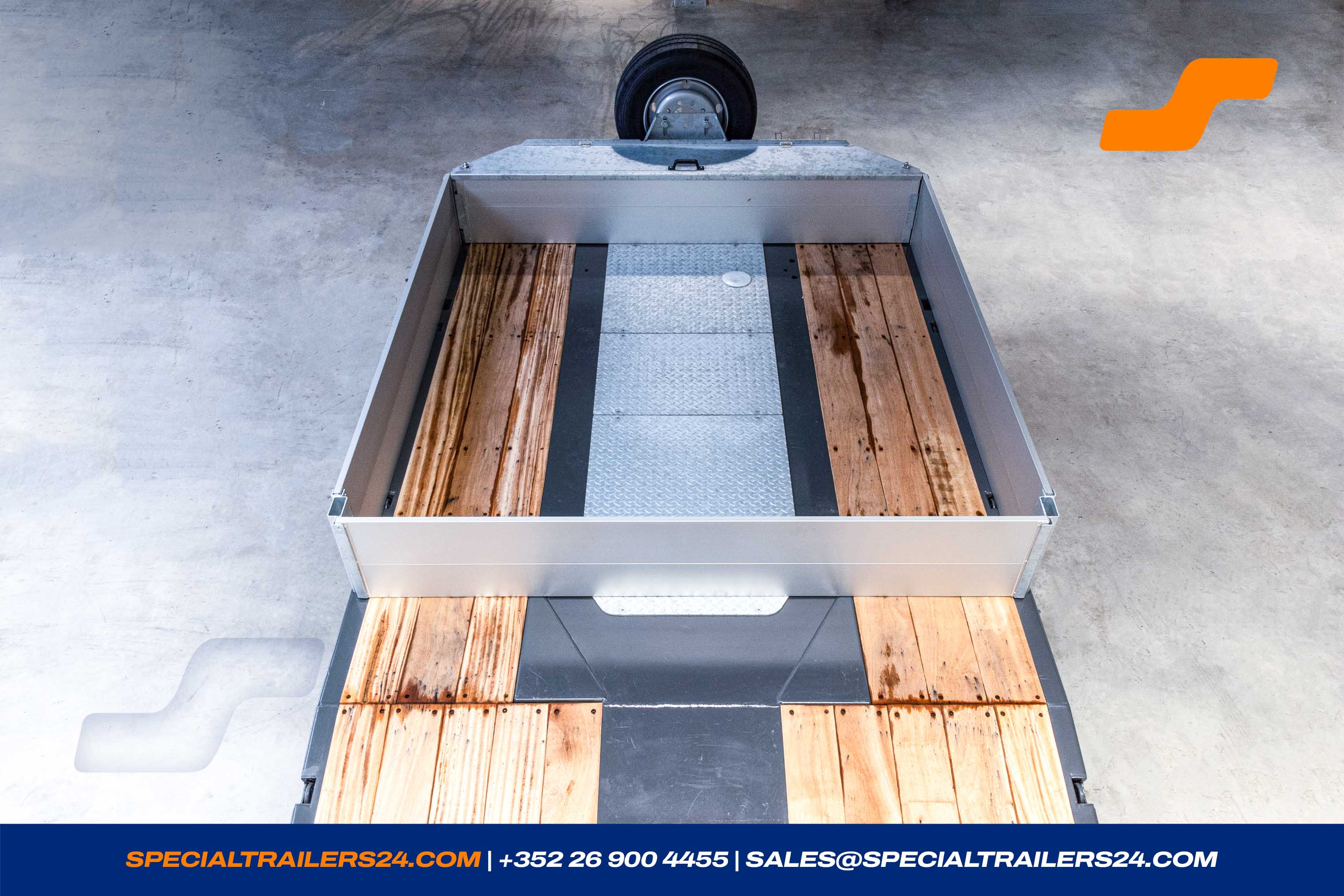

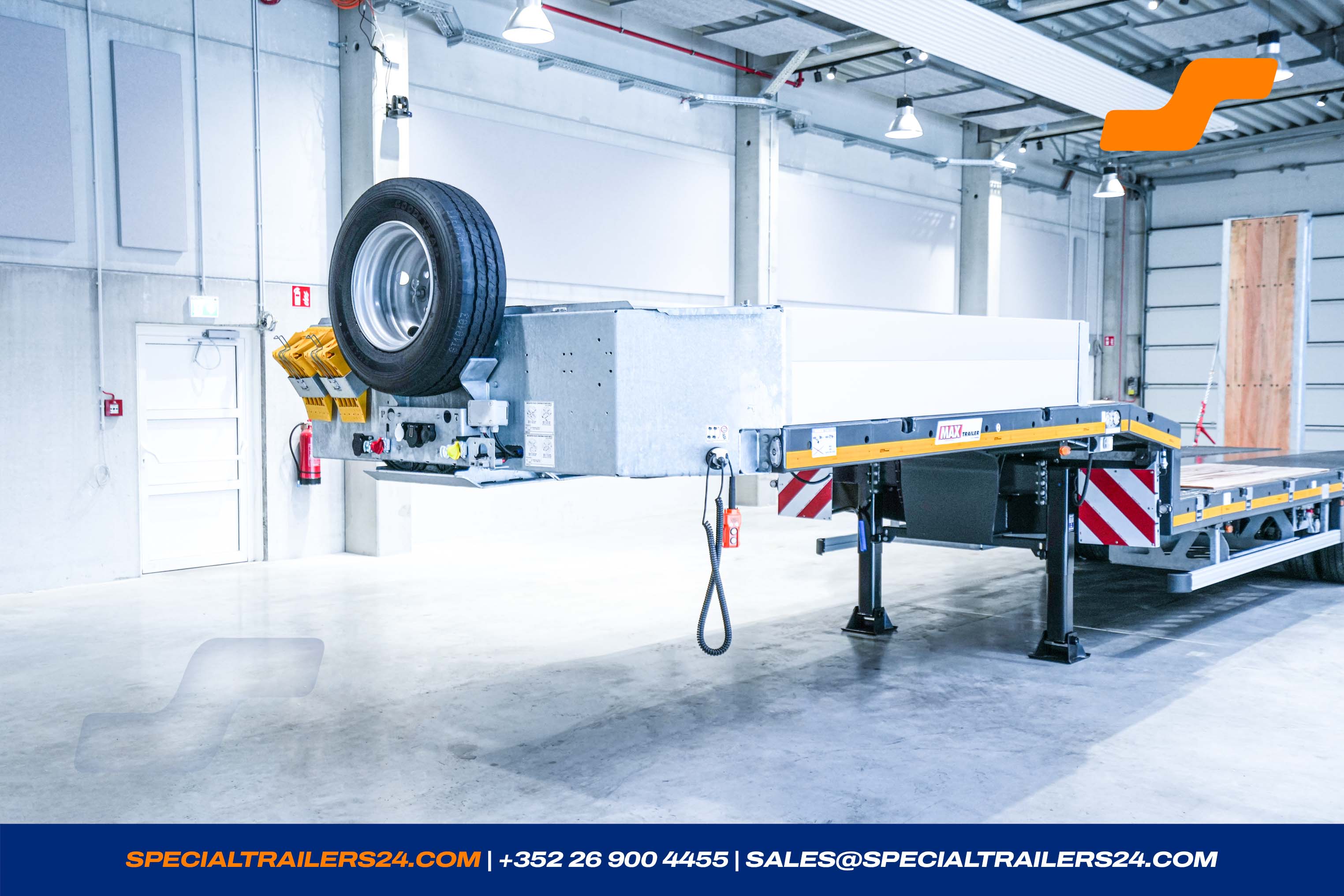

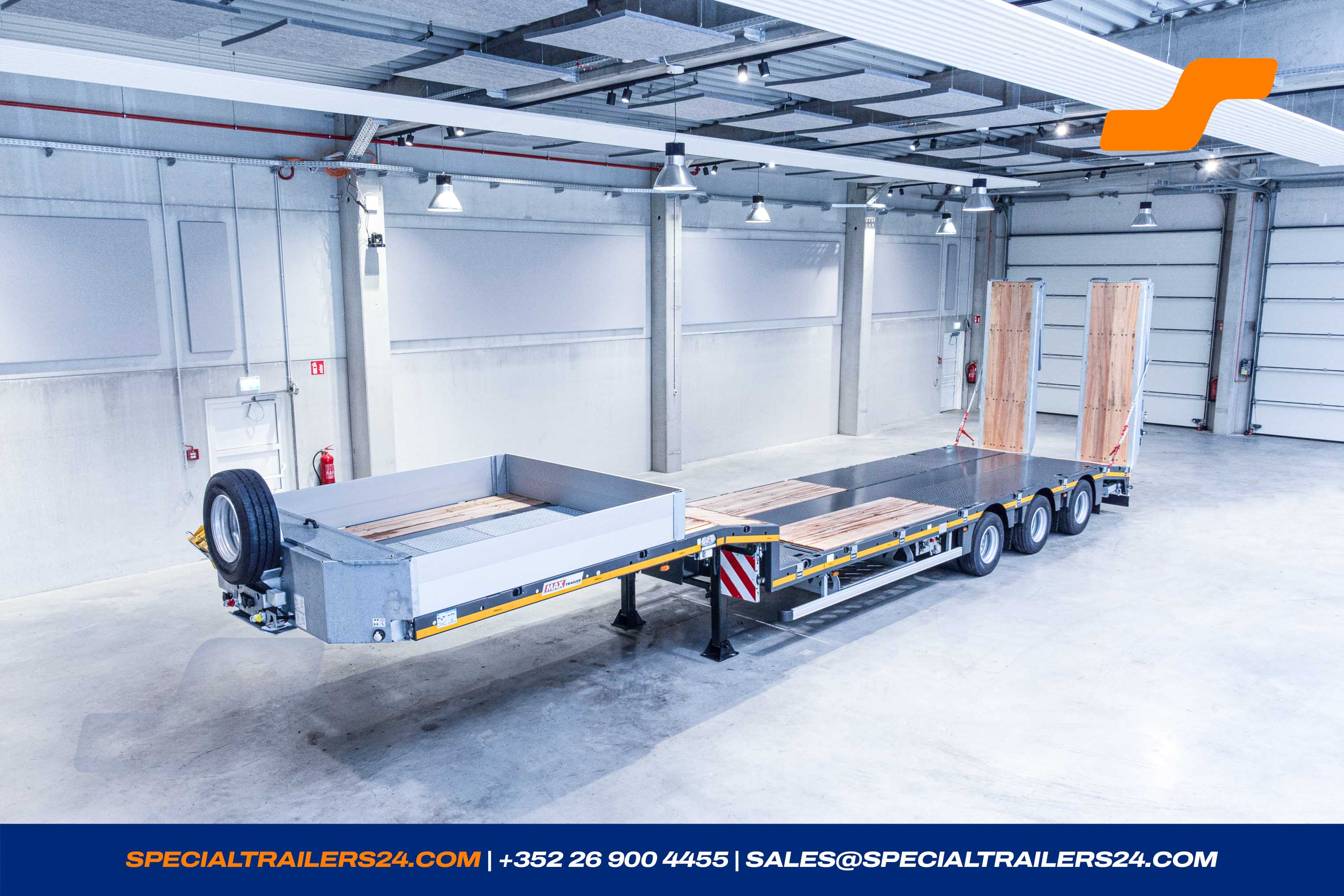

Gooseneck
1 x Gooseneck
Gooseneck with chamfered corners ± 45° in front and rear chamfered by ± 750 mm x 10°.
3 pairs of lashing rings (LC 5 000 daN).

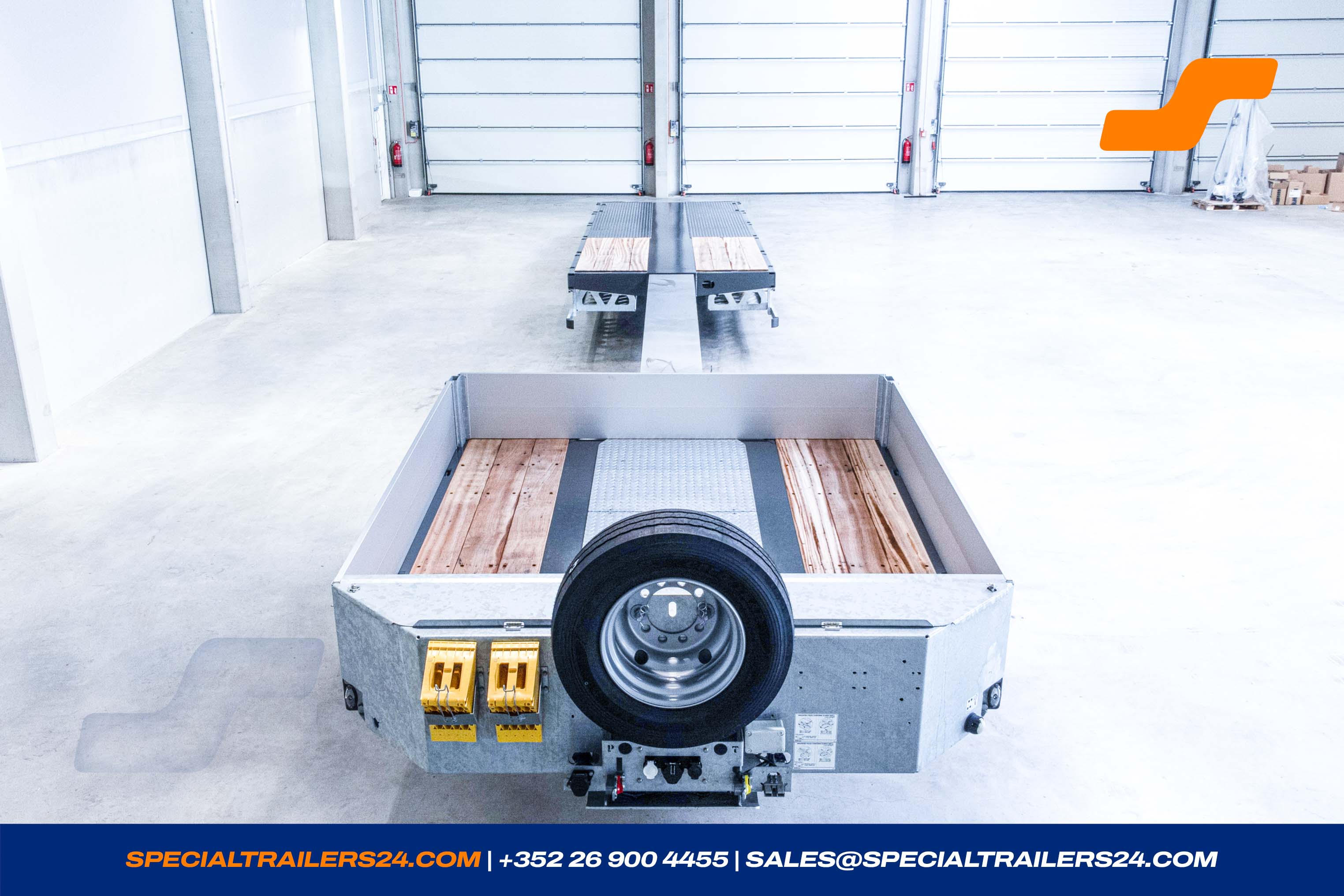

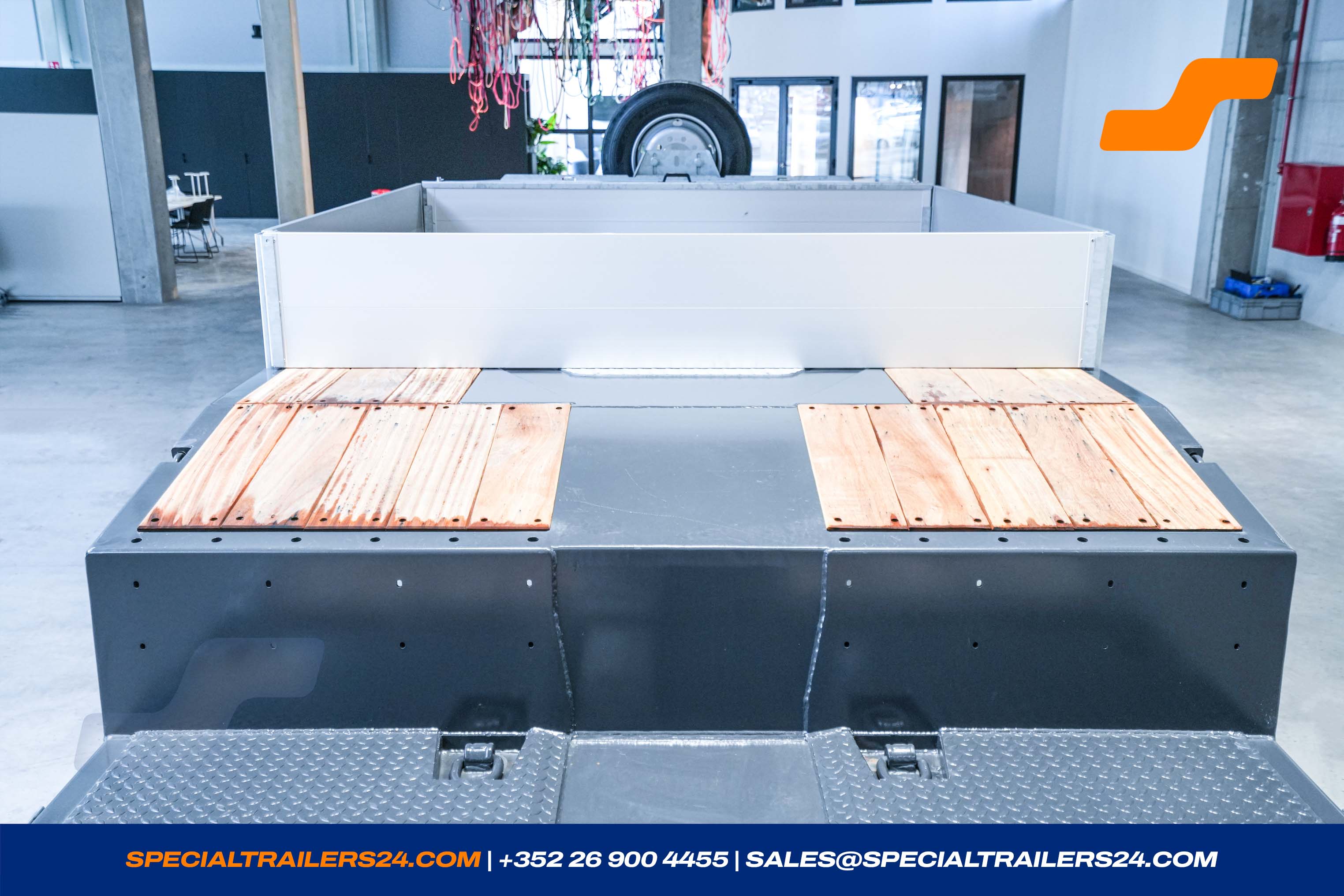

Hardwood cover thickness 30 mm.
Loading deck

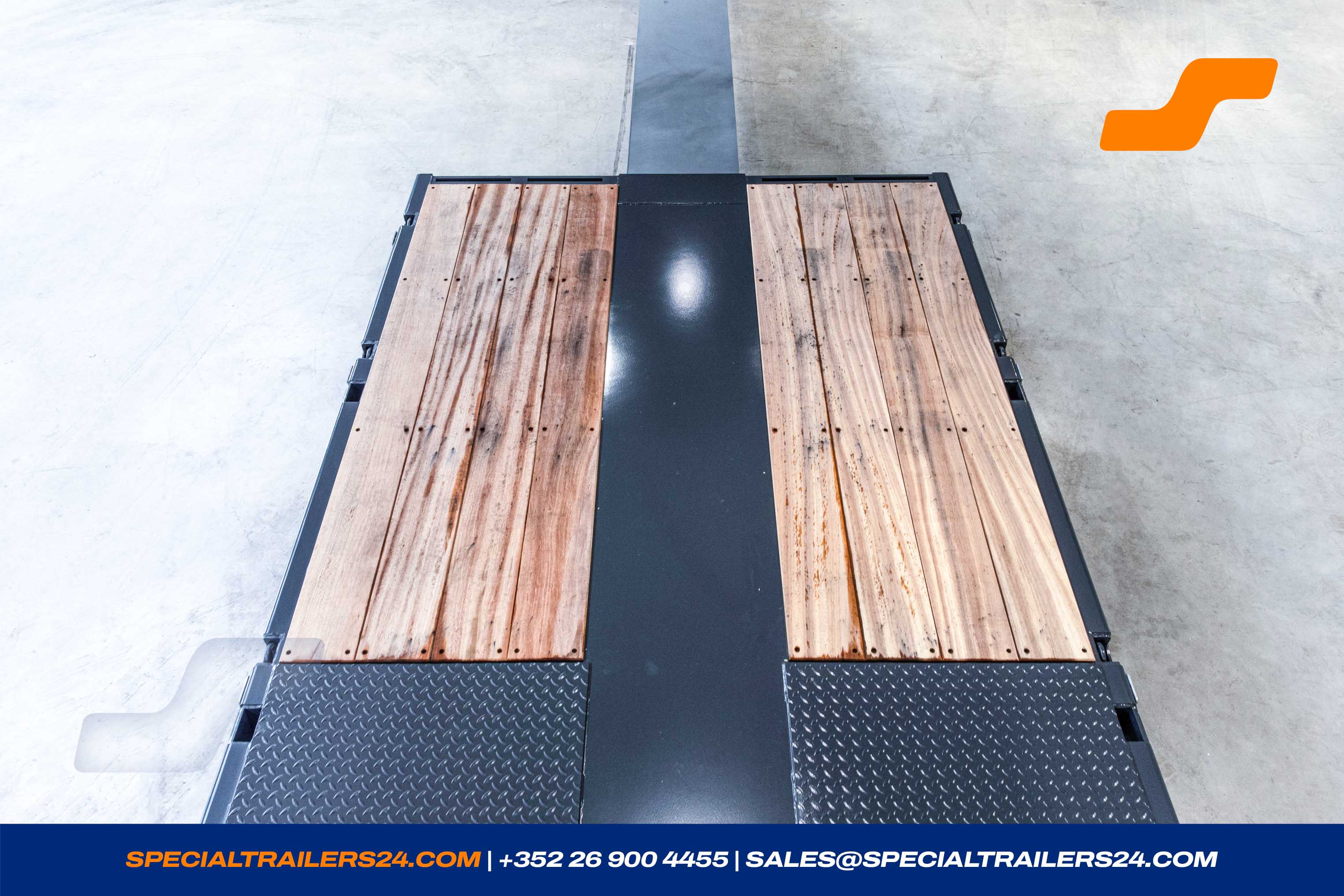

Loading platform
1 x Loading platform
Loading platform in extendable version with chamfered beaver tail by about 1 000 mm x 8°.
5 pairs of lashing rings in the loading platform, hinged outwards (LC 5 000 daN).
3 pairs of lashing rings in the loading platform, hinged outwards (LC 10 000 daN).
1 pair of lashing rings in front in the firm part the loading platform (LC 10 000 daN).

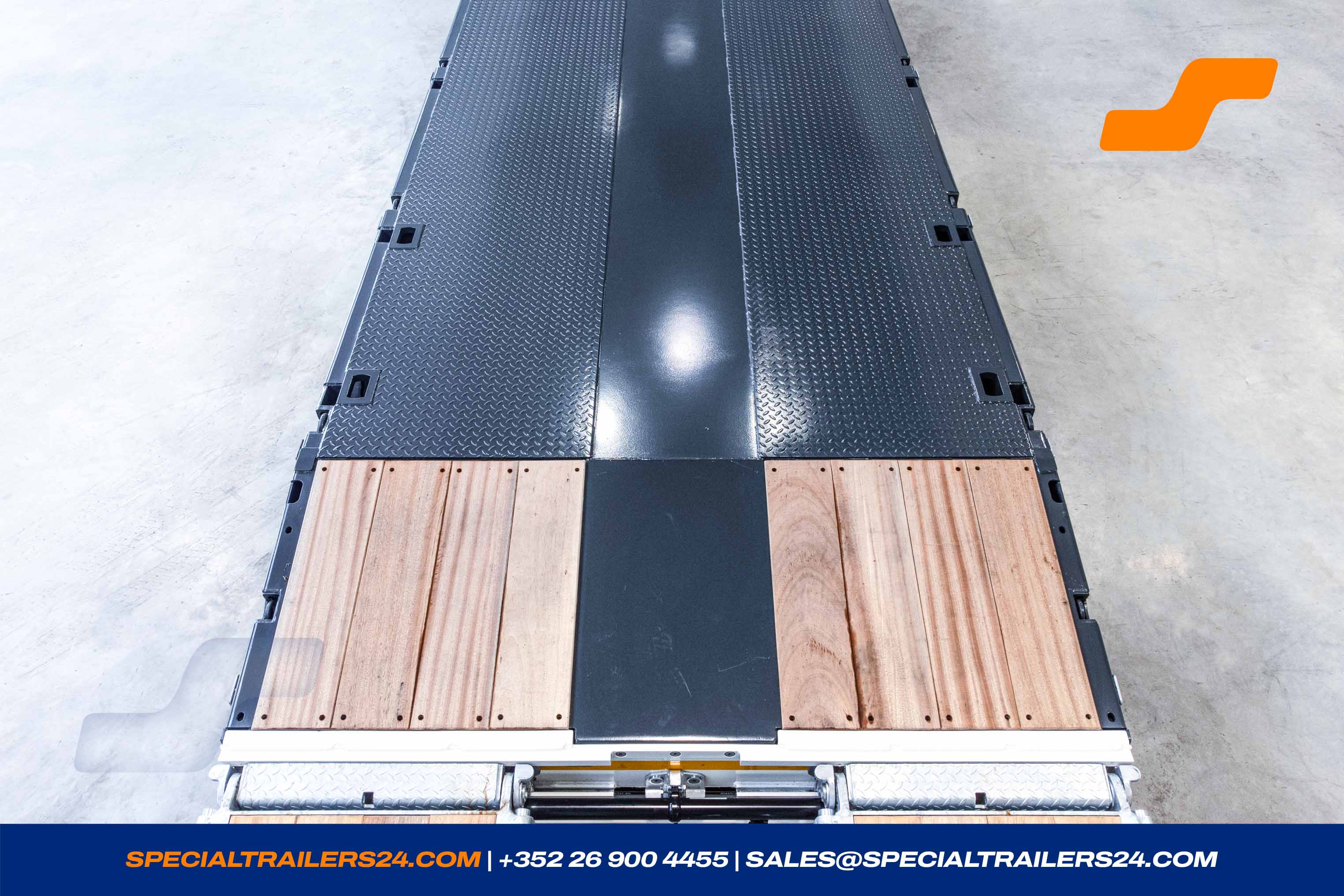

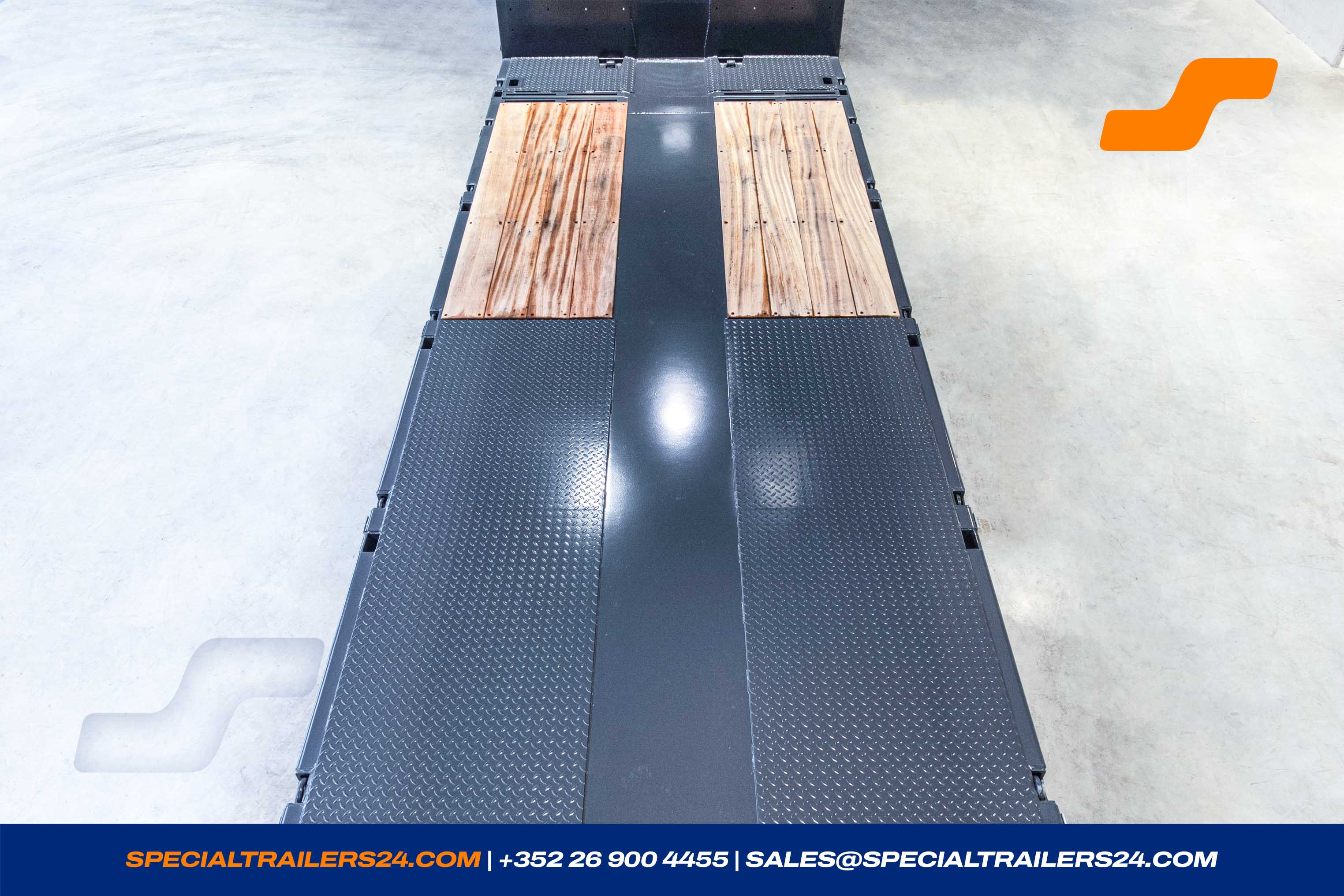

Hardwood cover thickness 48 mm above the axles chequer plate.

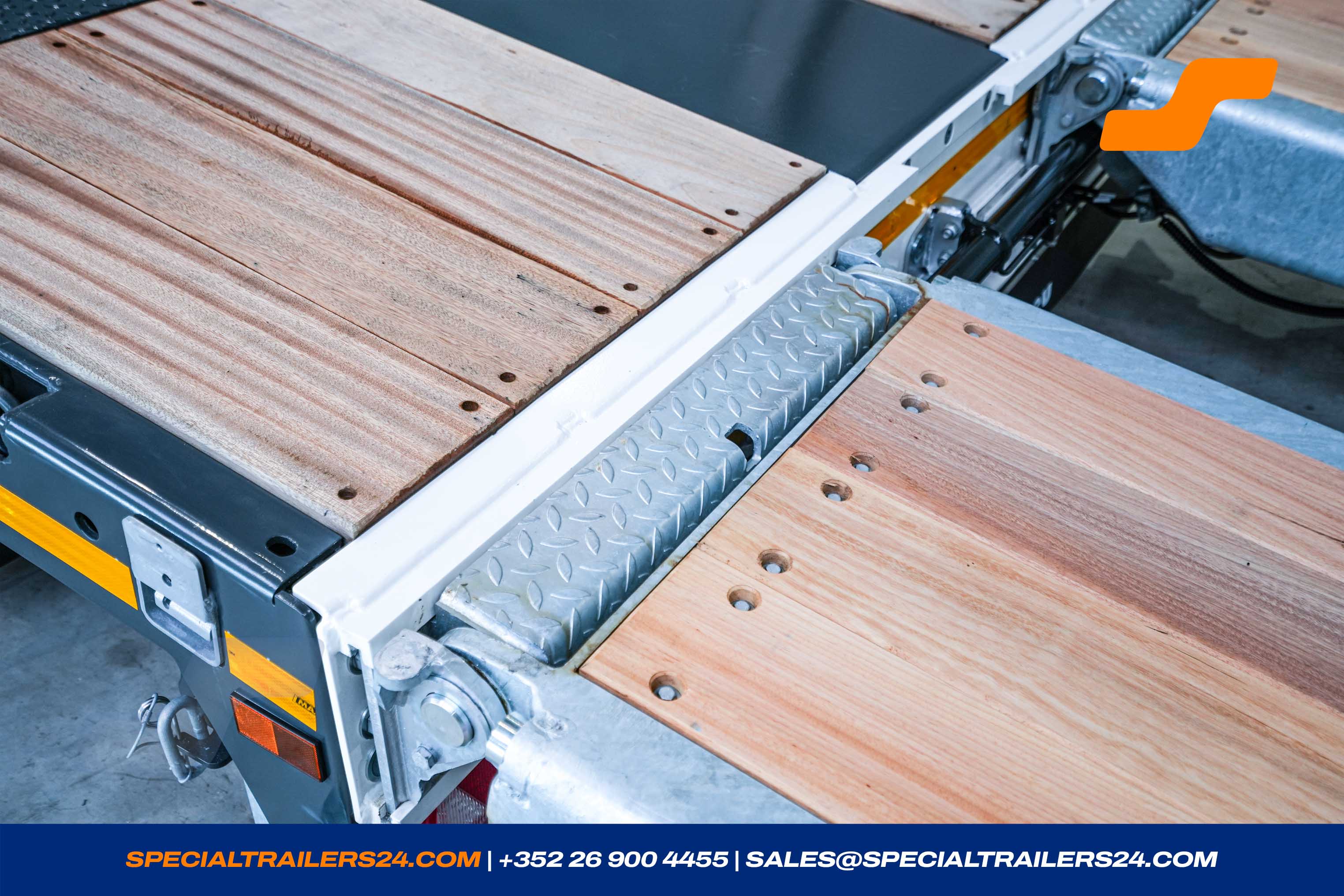

- Cover plates to bridge the clearance between ramps and loading area (± 17kg).
- 3 pairs of WADER containerpockets in the loading platform for one 20', (30') or 40' container. (± 30 kg)
- 6 pairs of pockets for stakes ca. 100 x 50 mm in the outer frame of the loading platform (± 18kg).

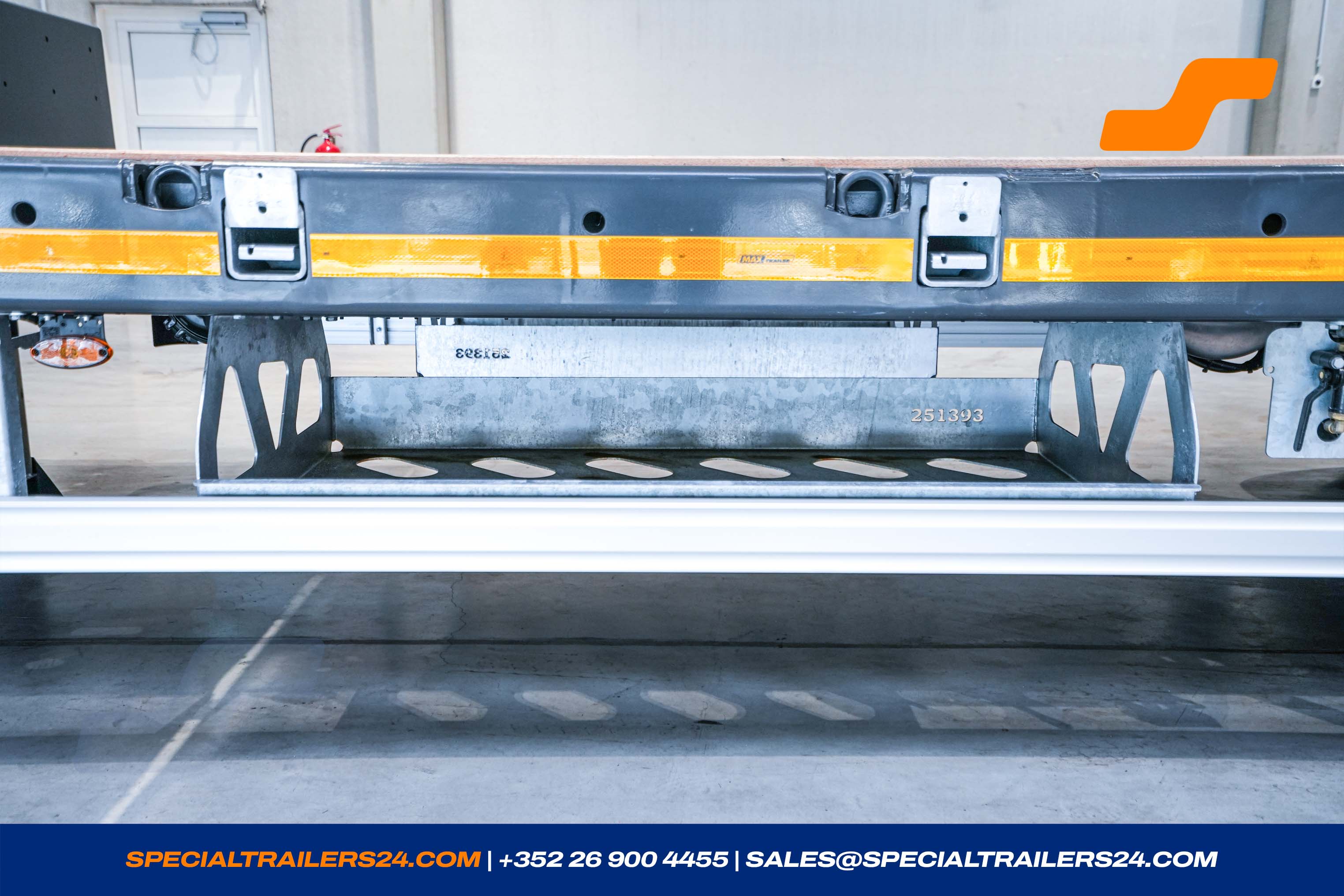

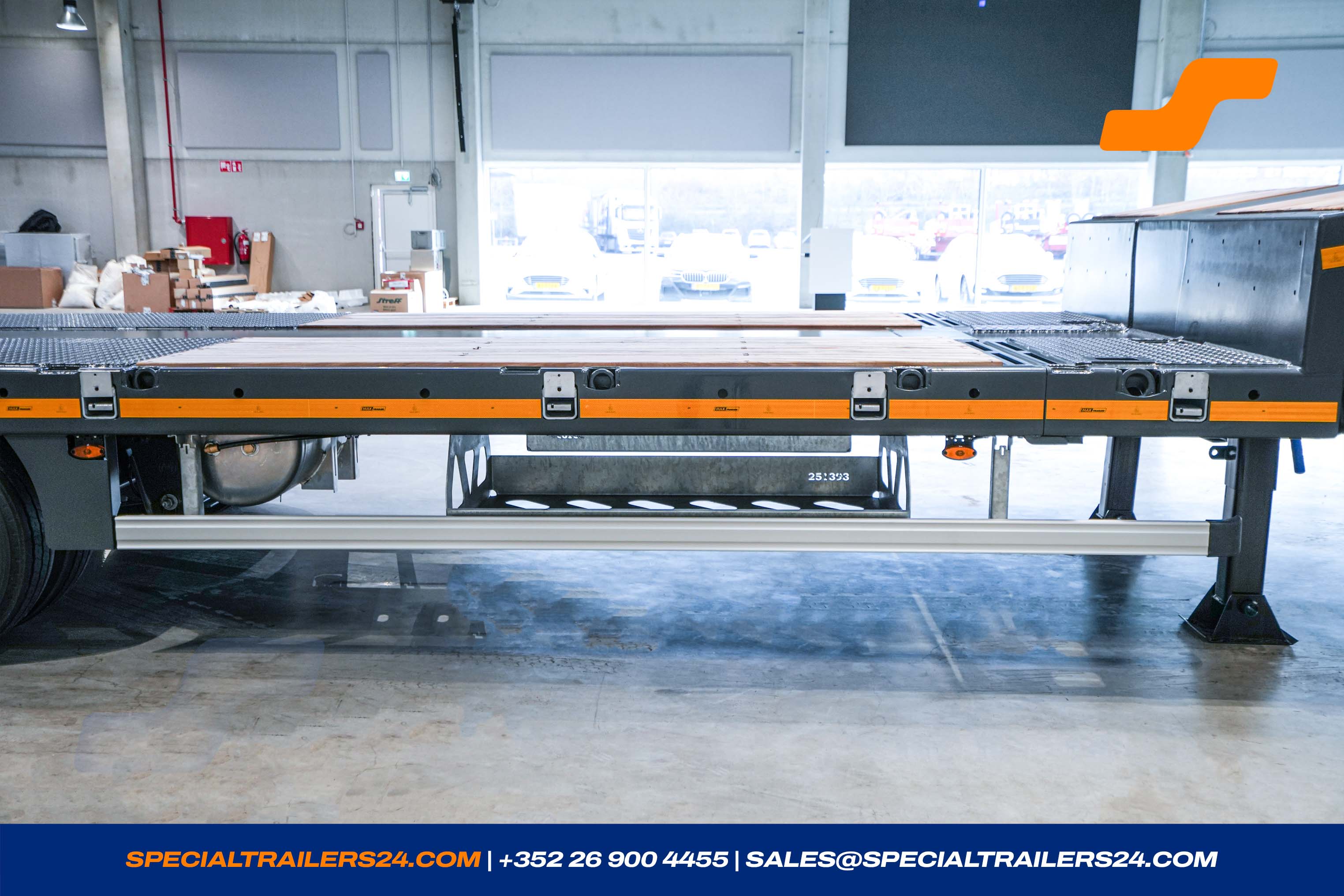

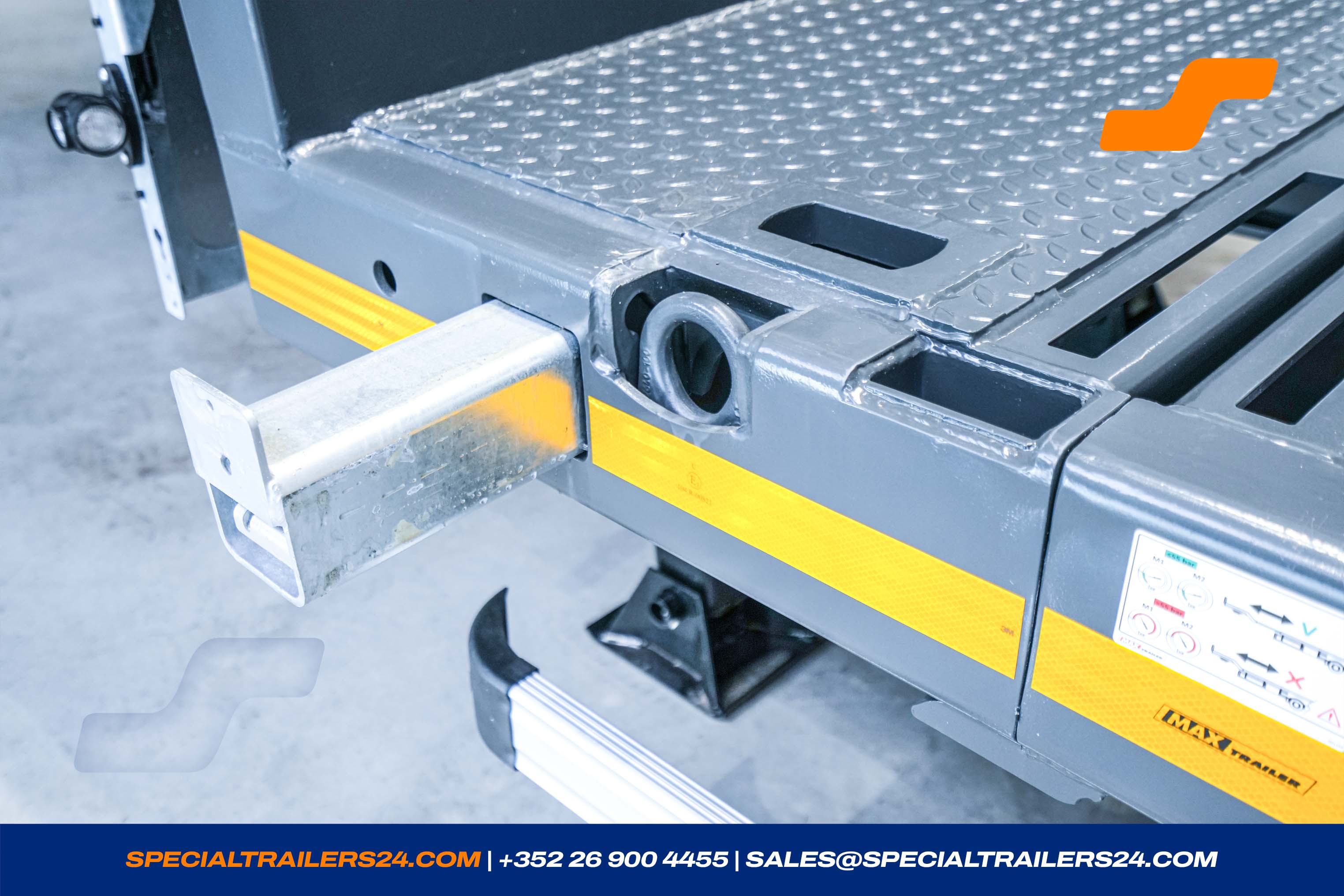

- Galvanised outriggers, extendable up to ± 230 mm per side (± 230 kg).

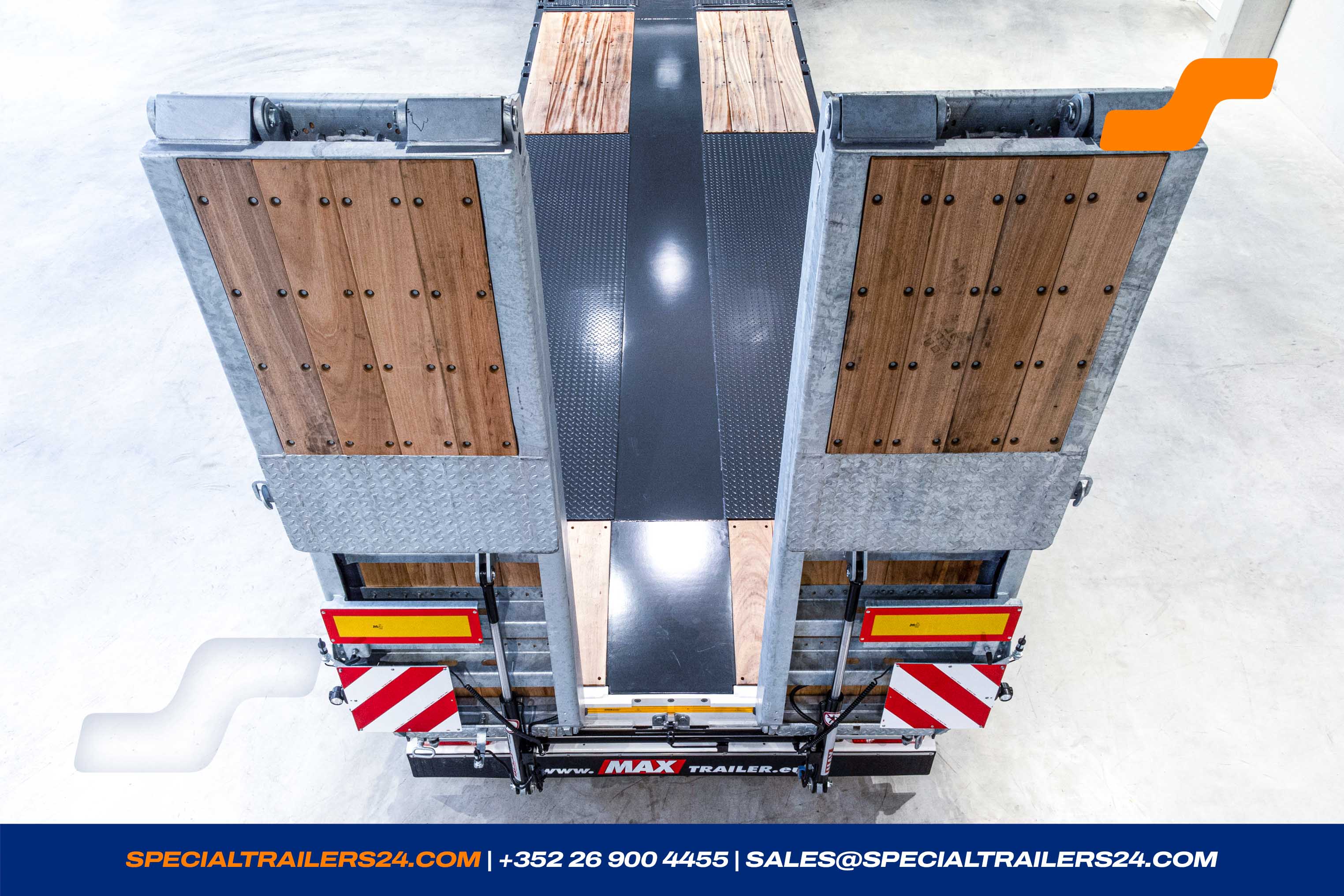

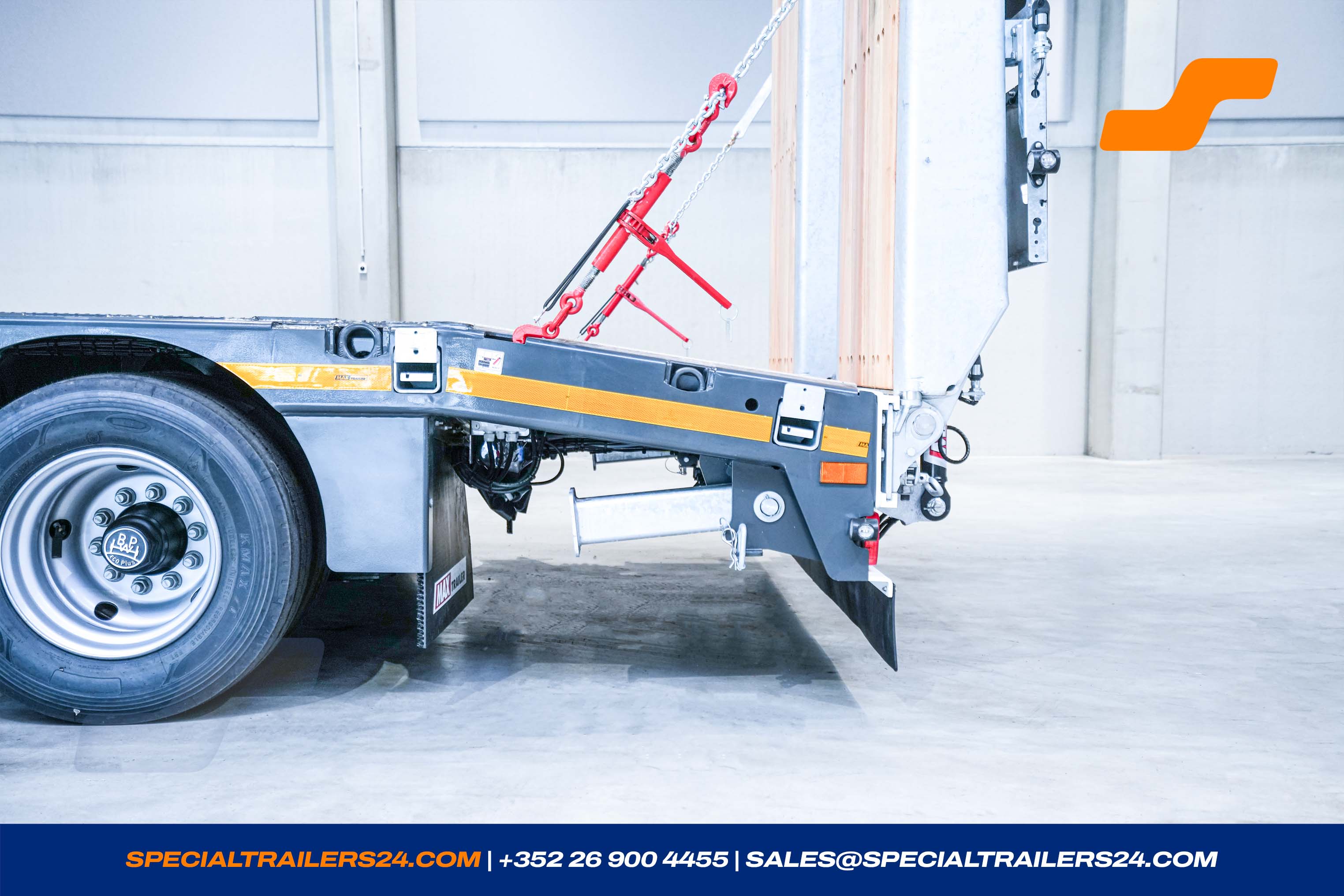

Ramps

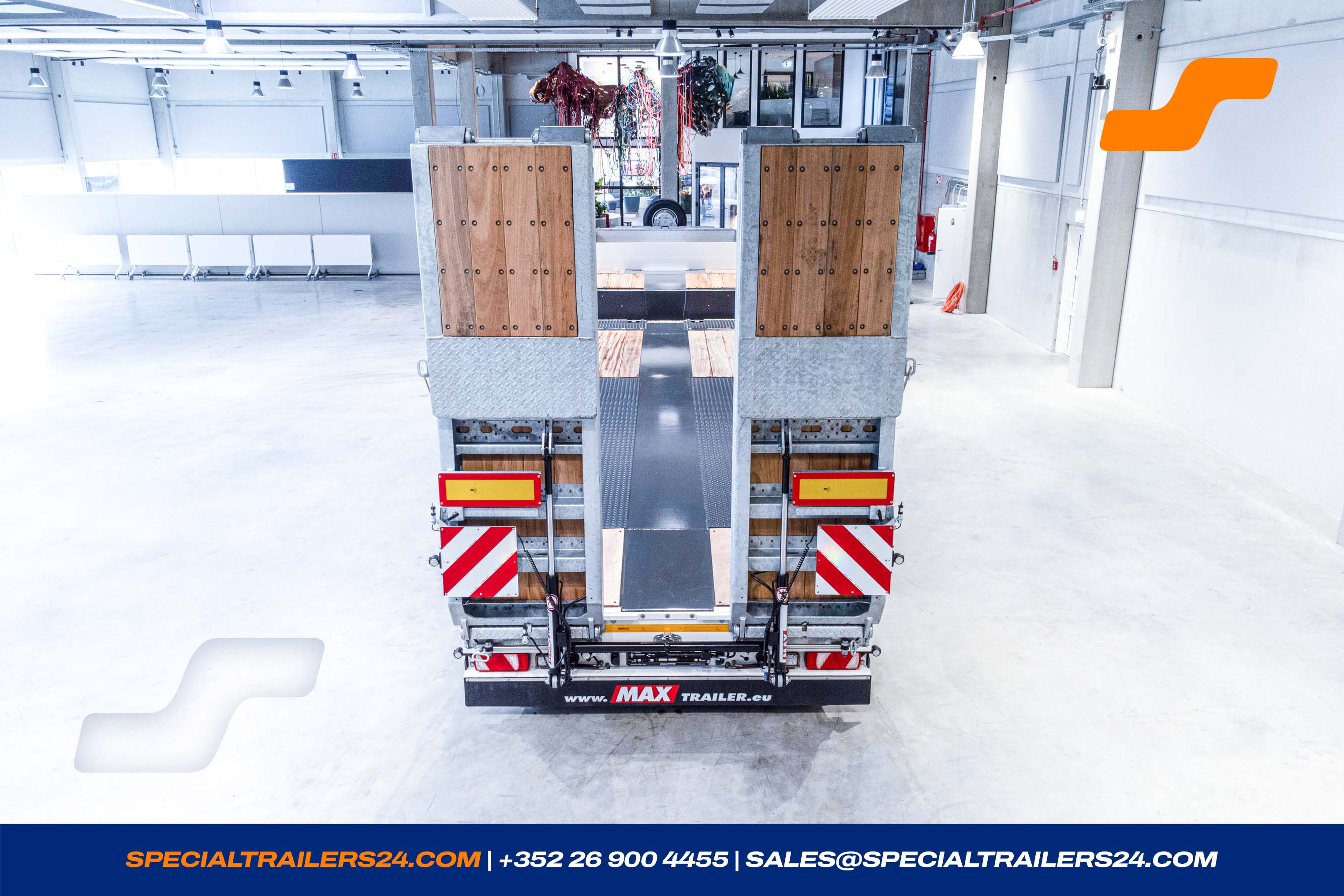

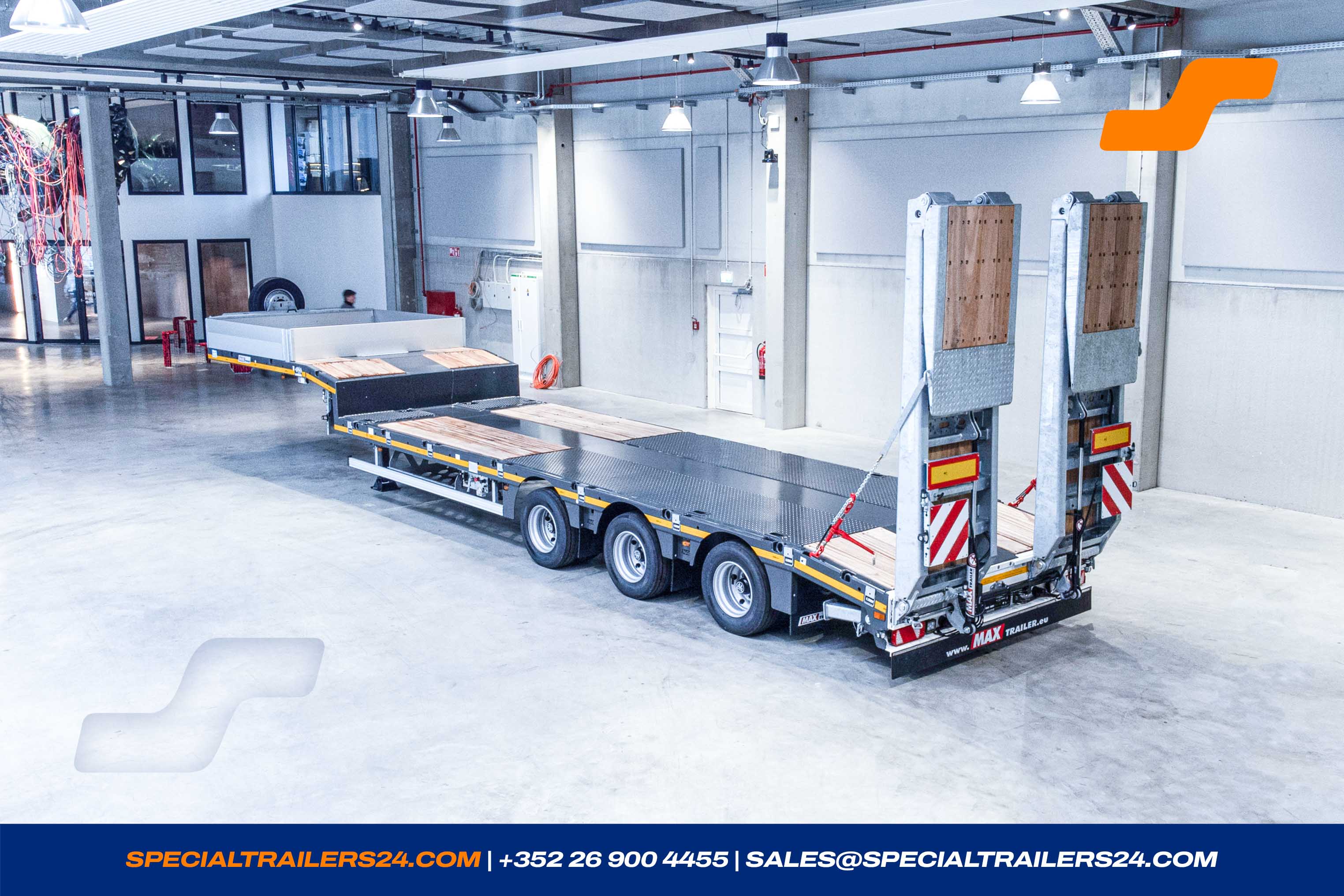

Hydraulic loading ramps

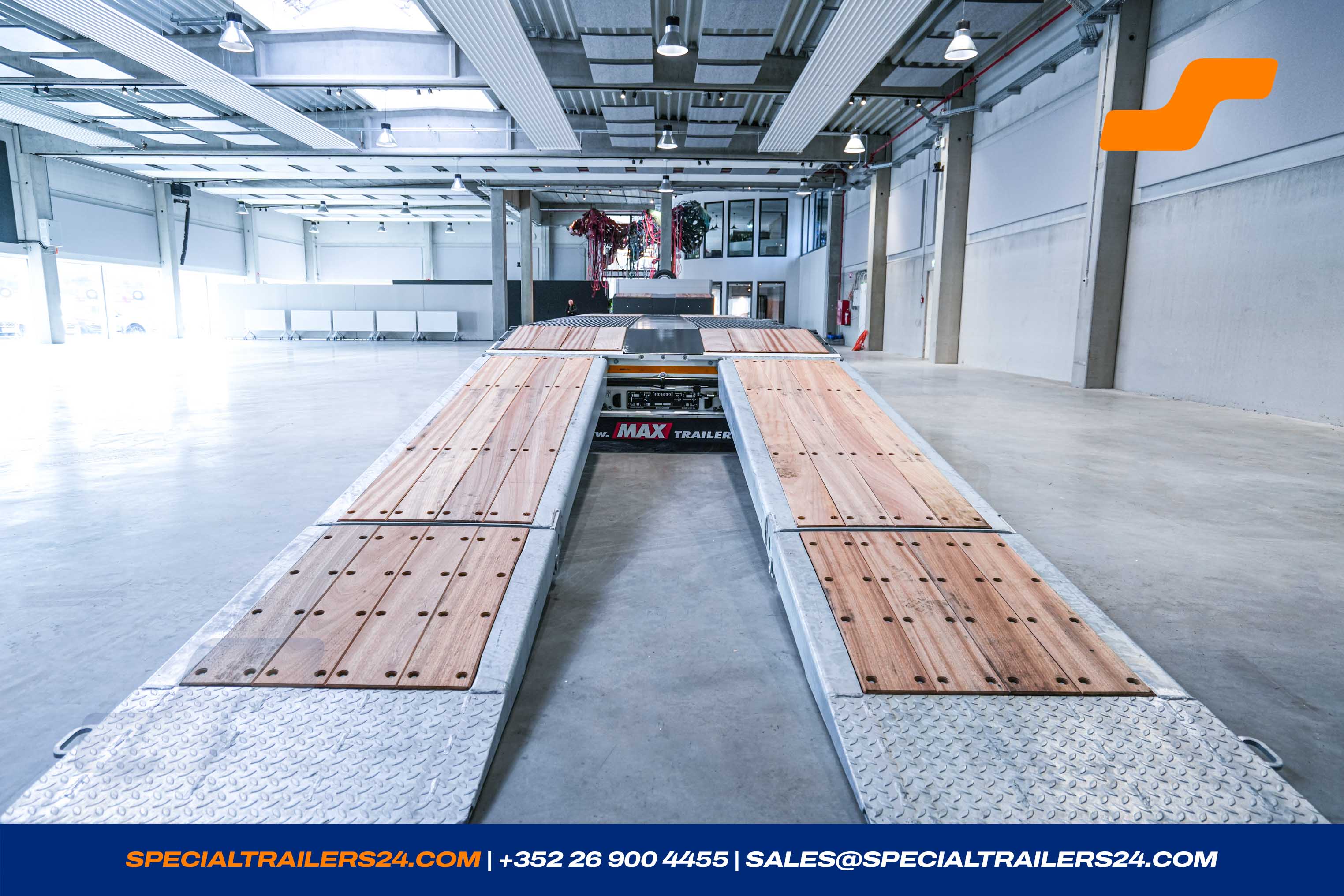

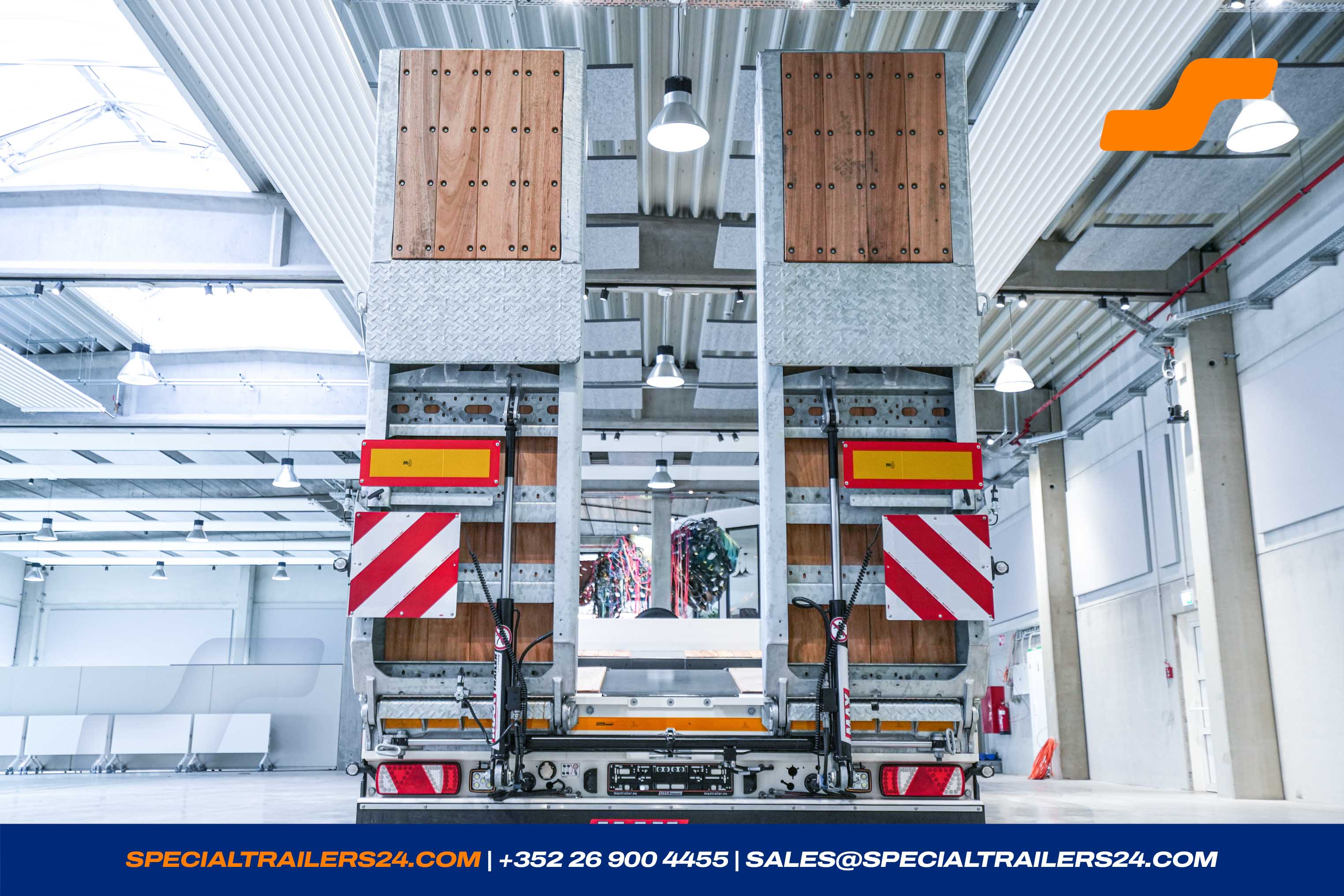

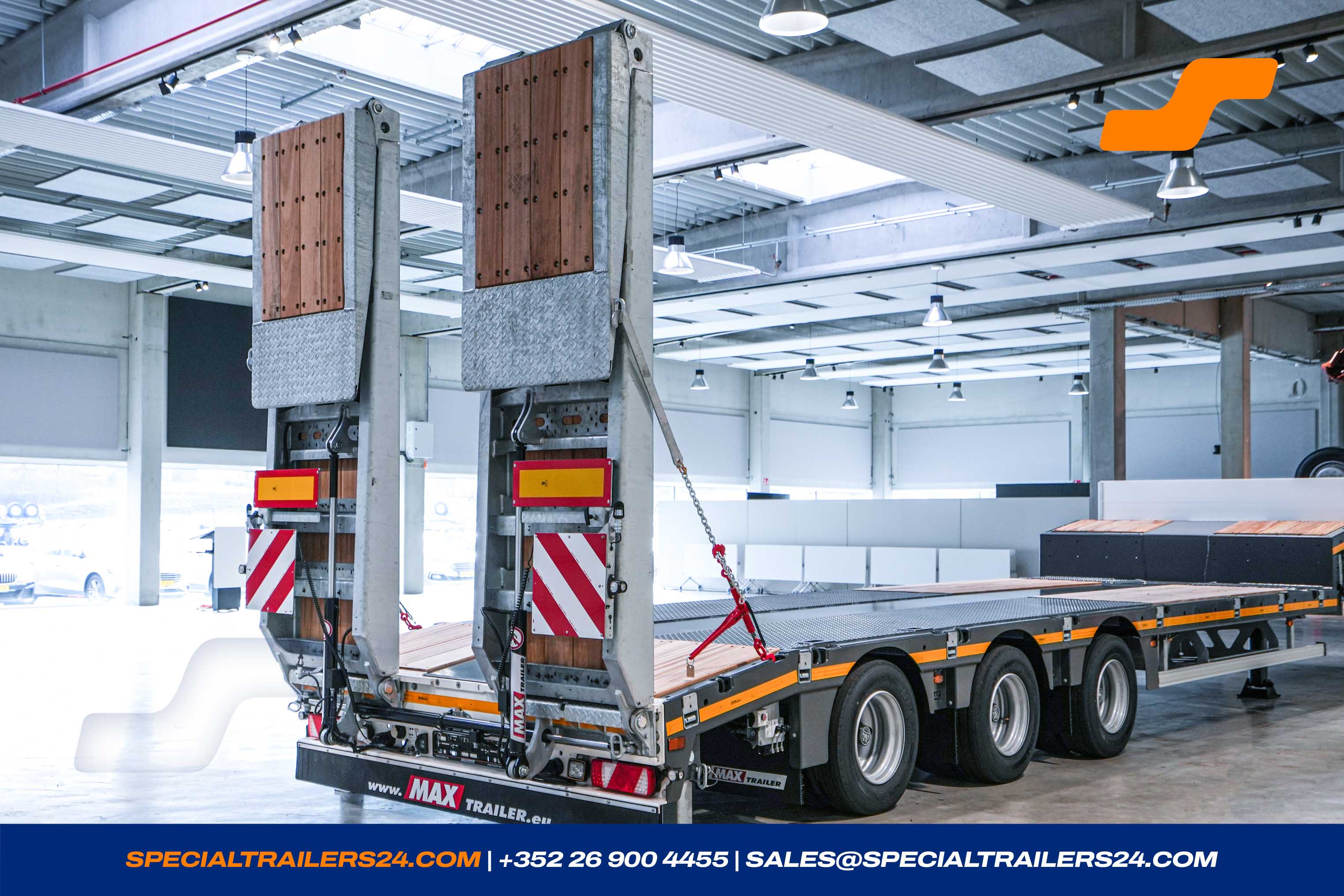

1 x Steel double flip ramps

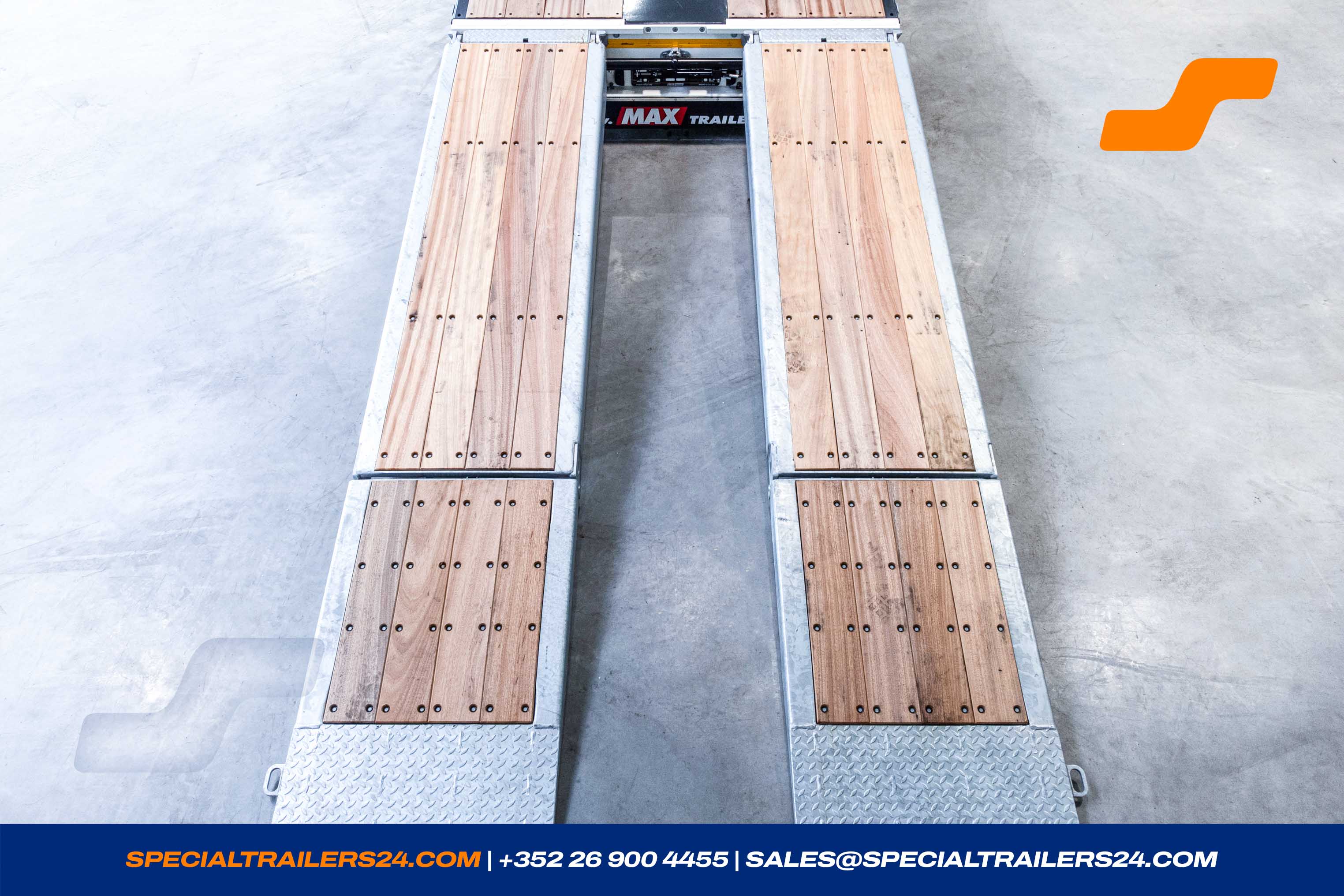

1 pair steel double flip ramps galvanized ca. 2 750 + 1 400 x 900 mm with ca. 48 mm hardwood cover.
Ramps hydraulically operated and hydraulic side shift.
Maximal charge for one pair: 40 000 kg
Accessories
1 x Accessories

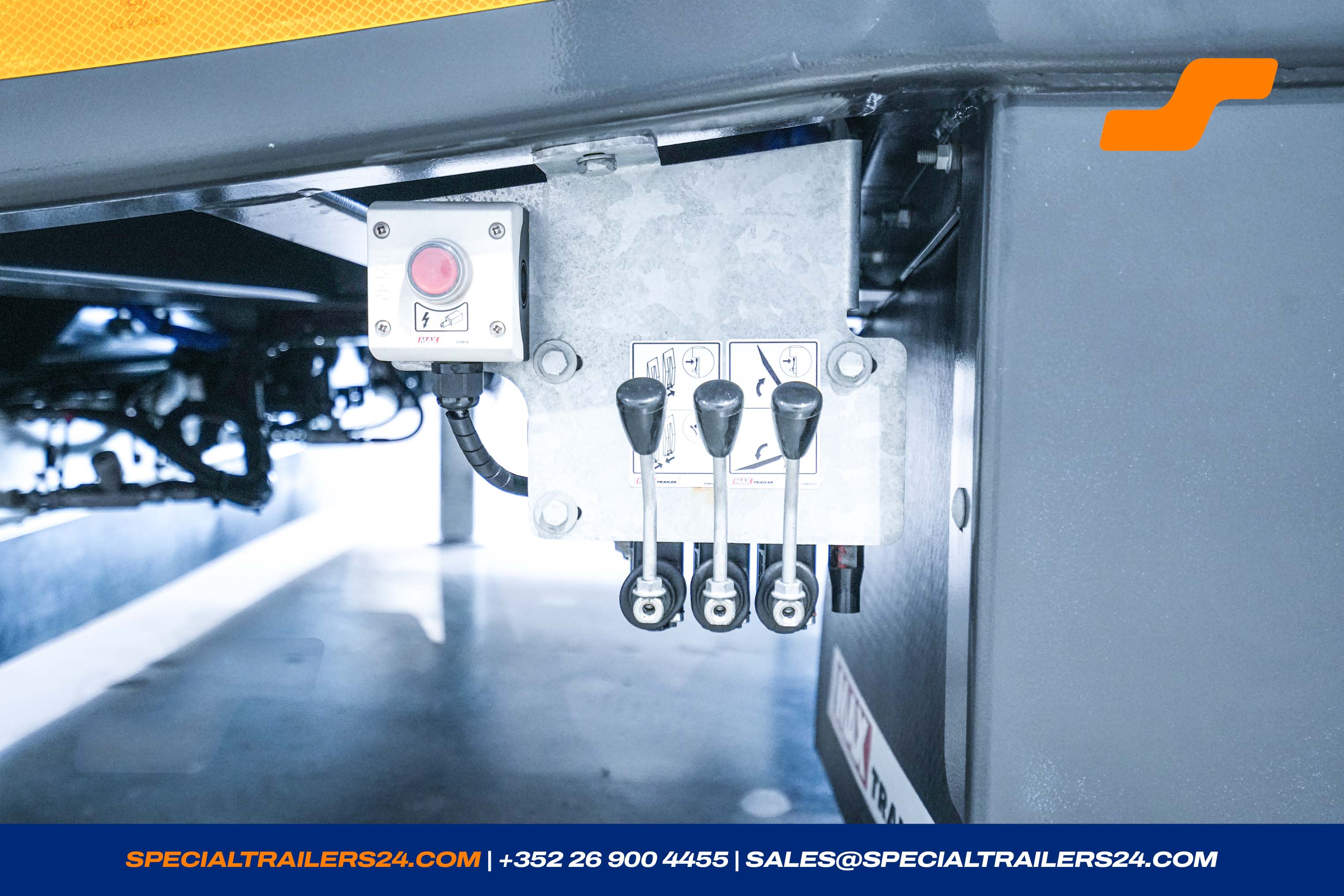

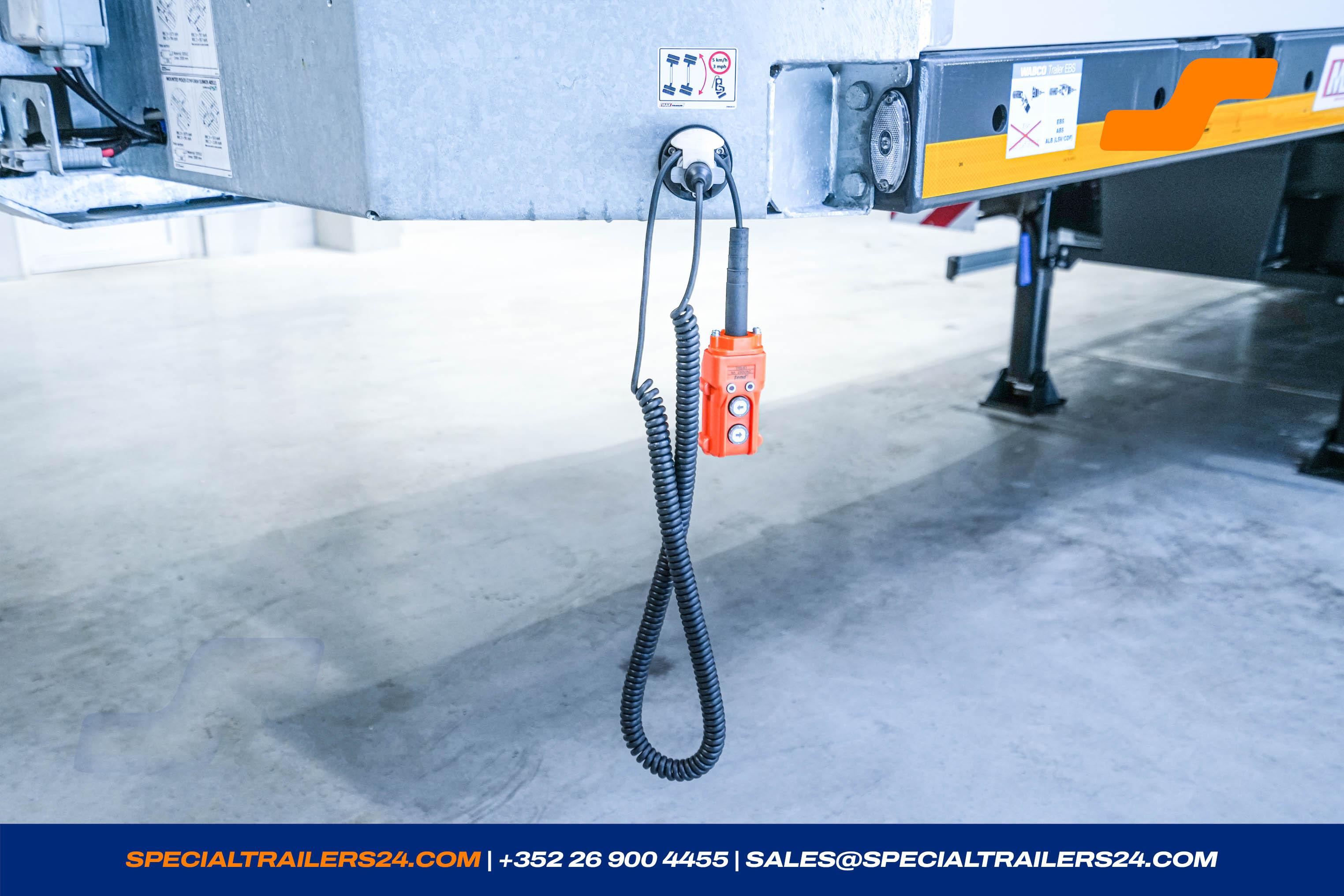

- Operated valve for ramps mounted on the right side (± 4 kg).
- Manual and description on USB stick .

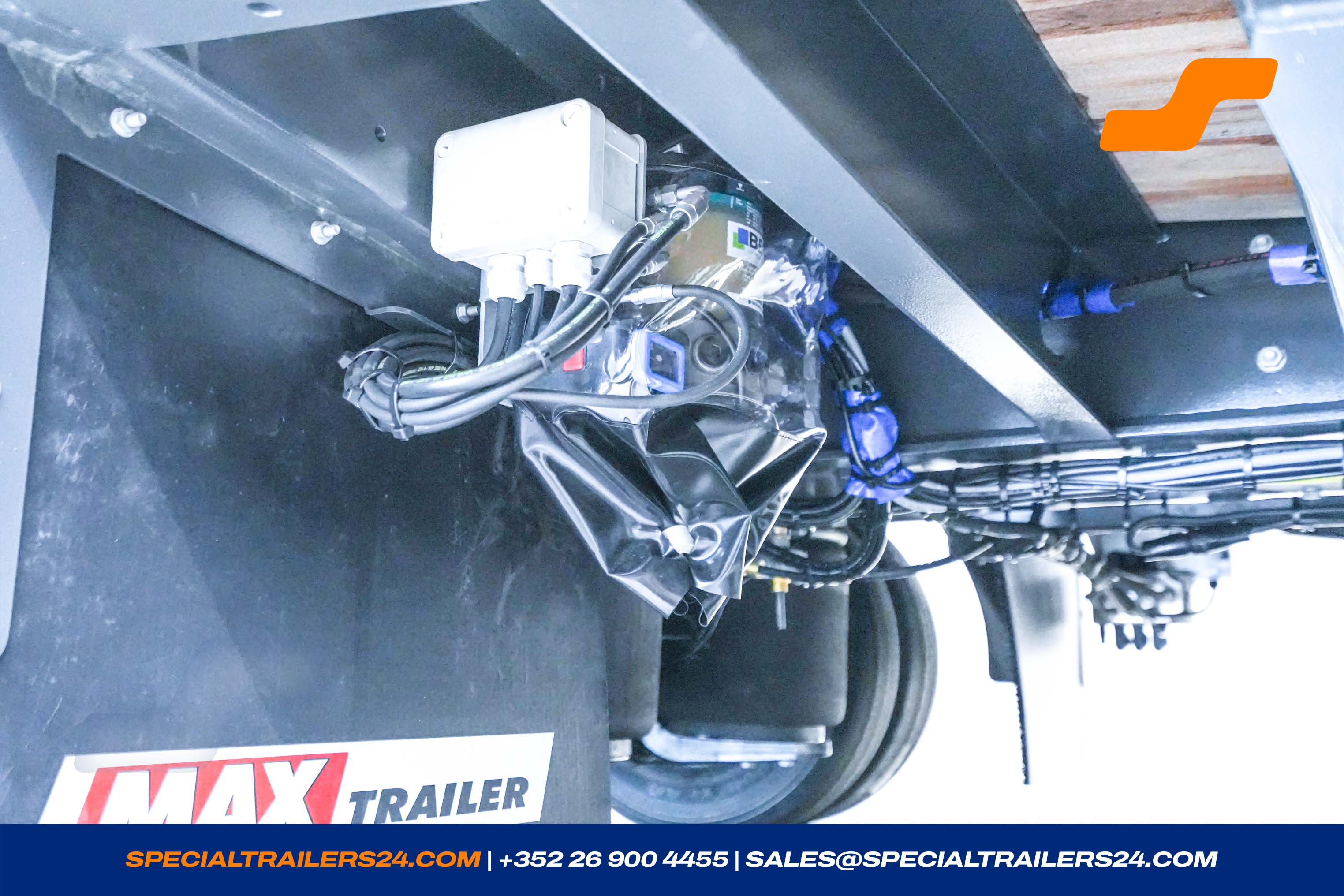

- Central greasing BEKAMAX (Pico) with NLGI-2 normal grease with removable protection around the pump. (± 18 kg)

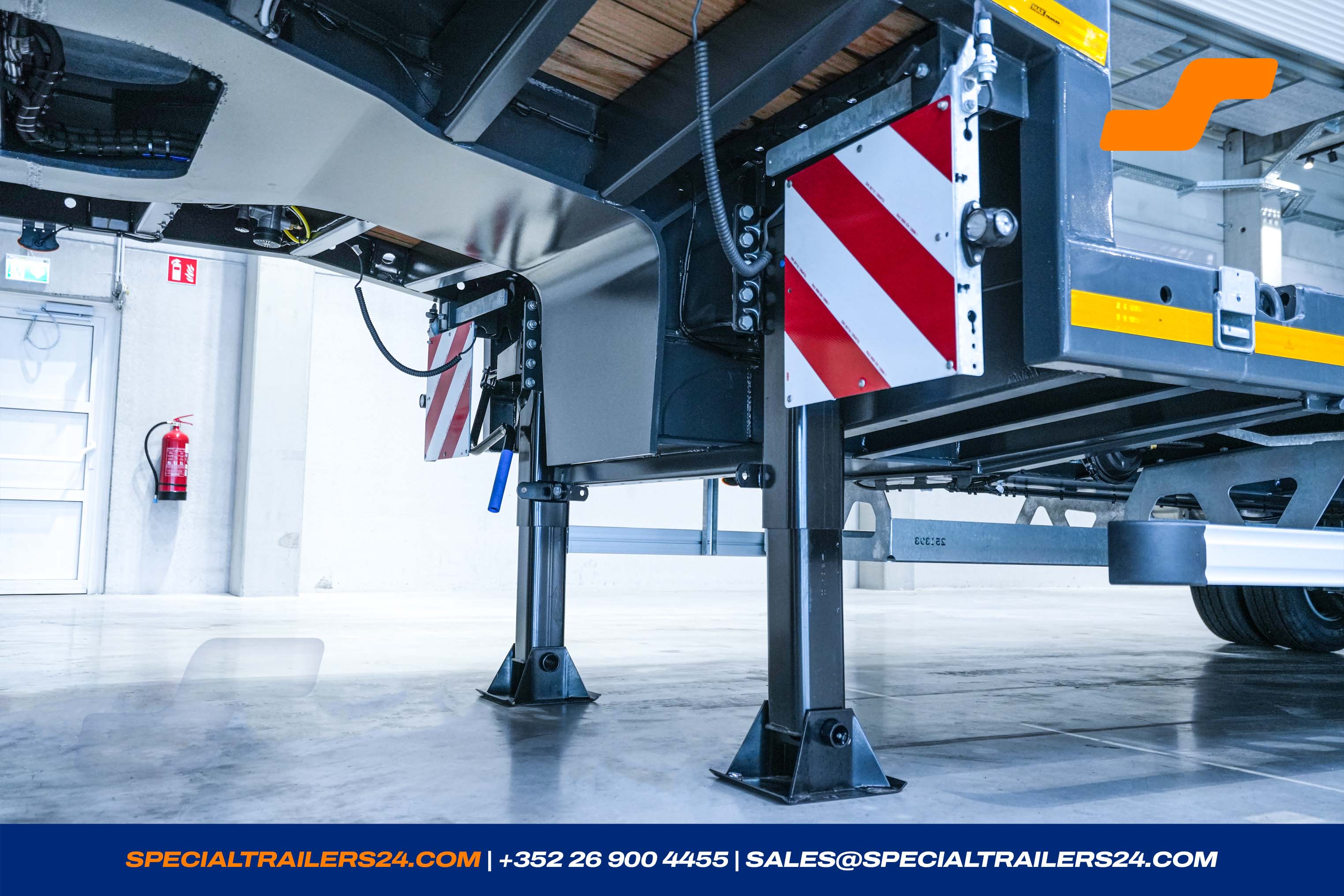

- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- On the warning boards a holder to put a flashing beacon.
- 2 LED- reversing lights at the rear.
- Delivery from a trailer to factory Lentzweiler.

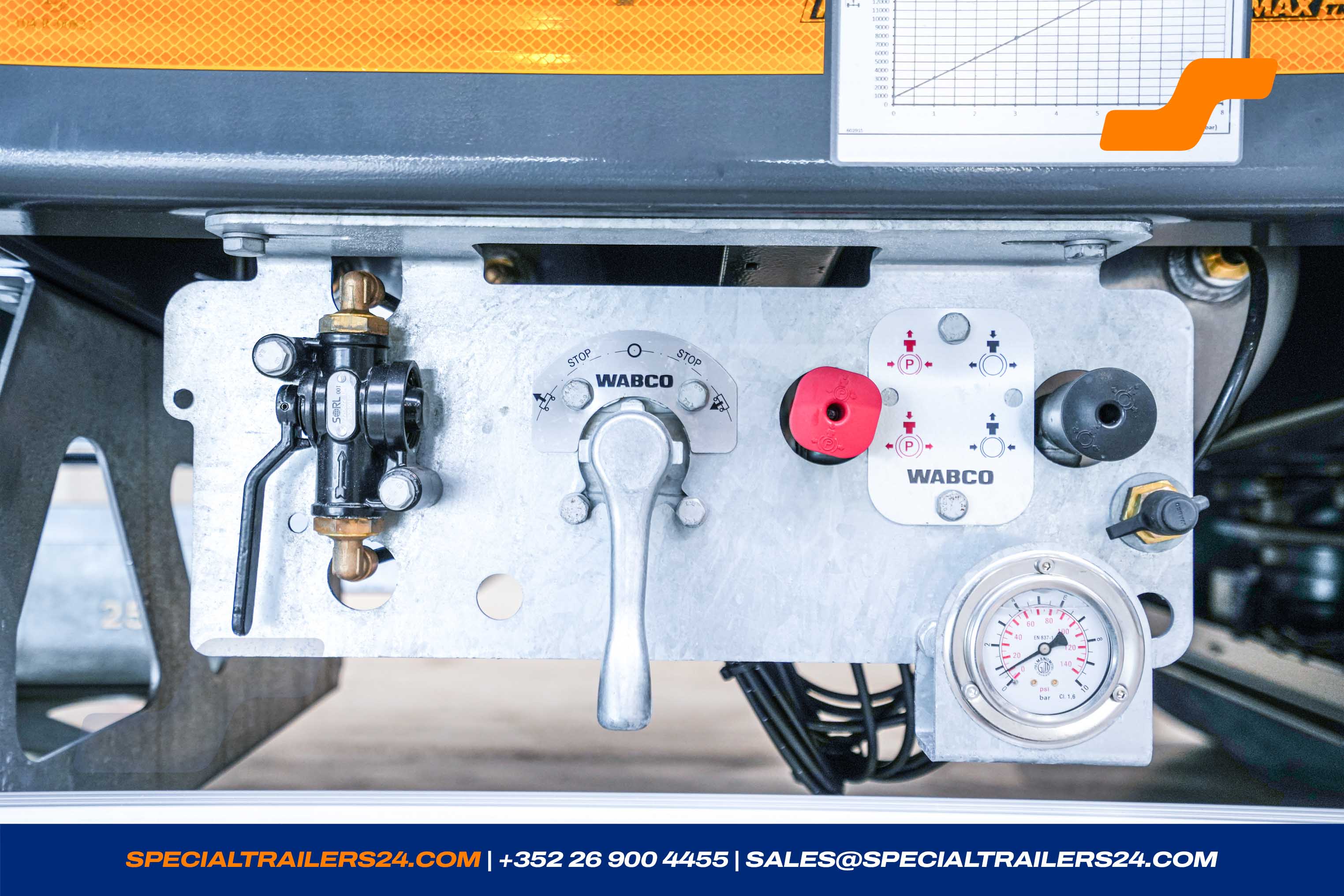

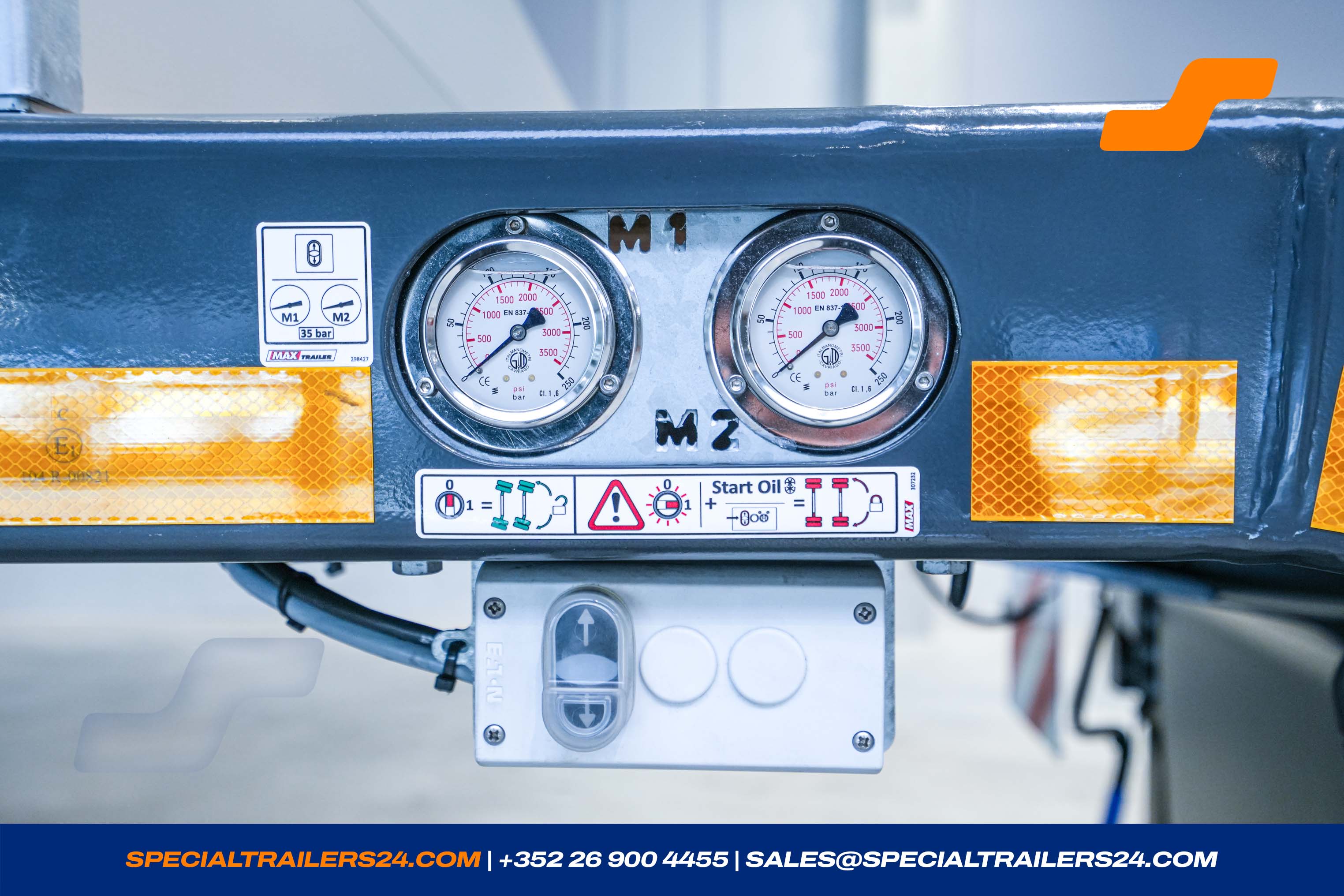

- Load manometer for determining the axle load, including load diagram.
