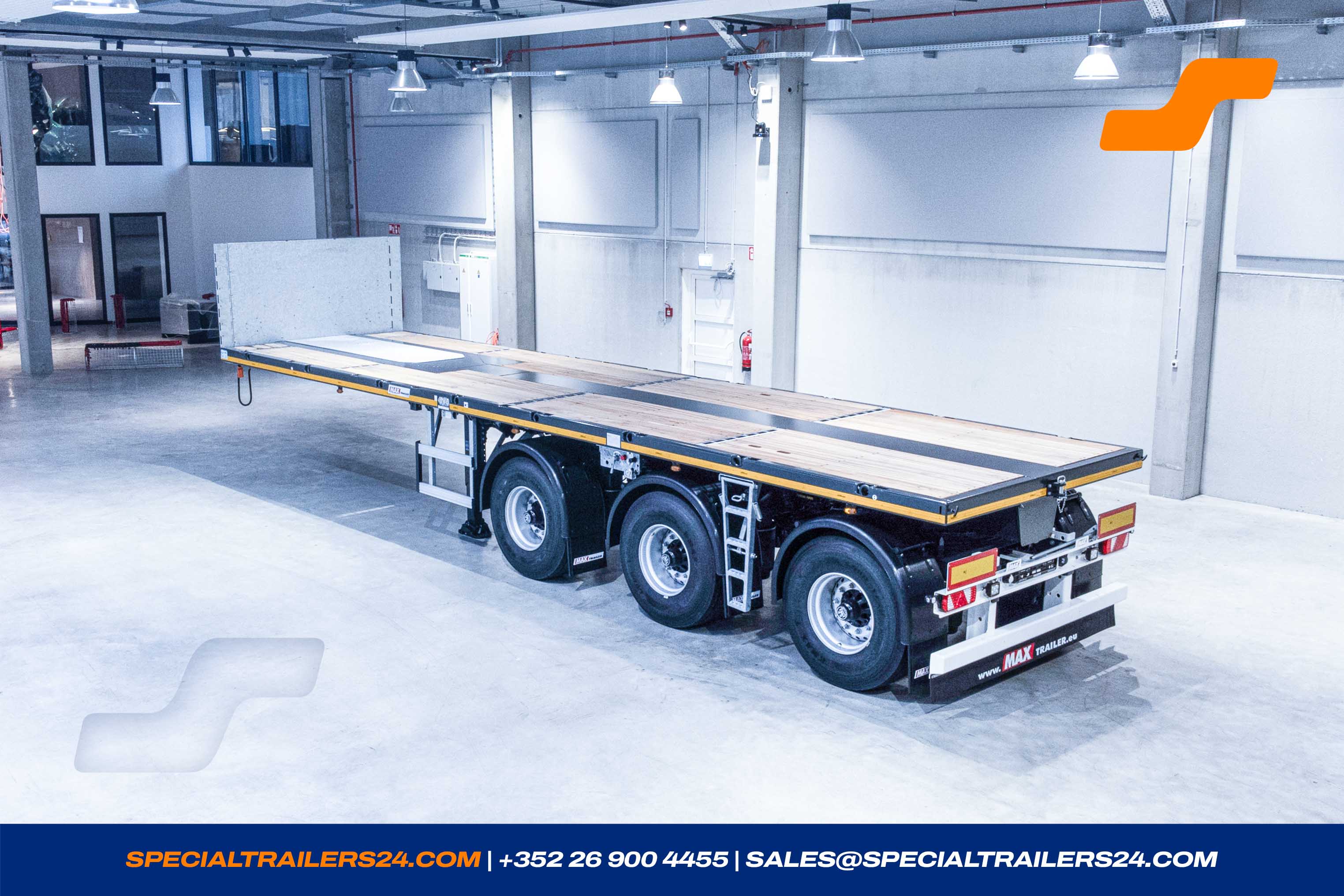

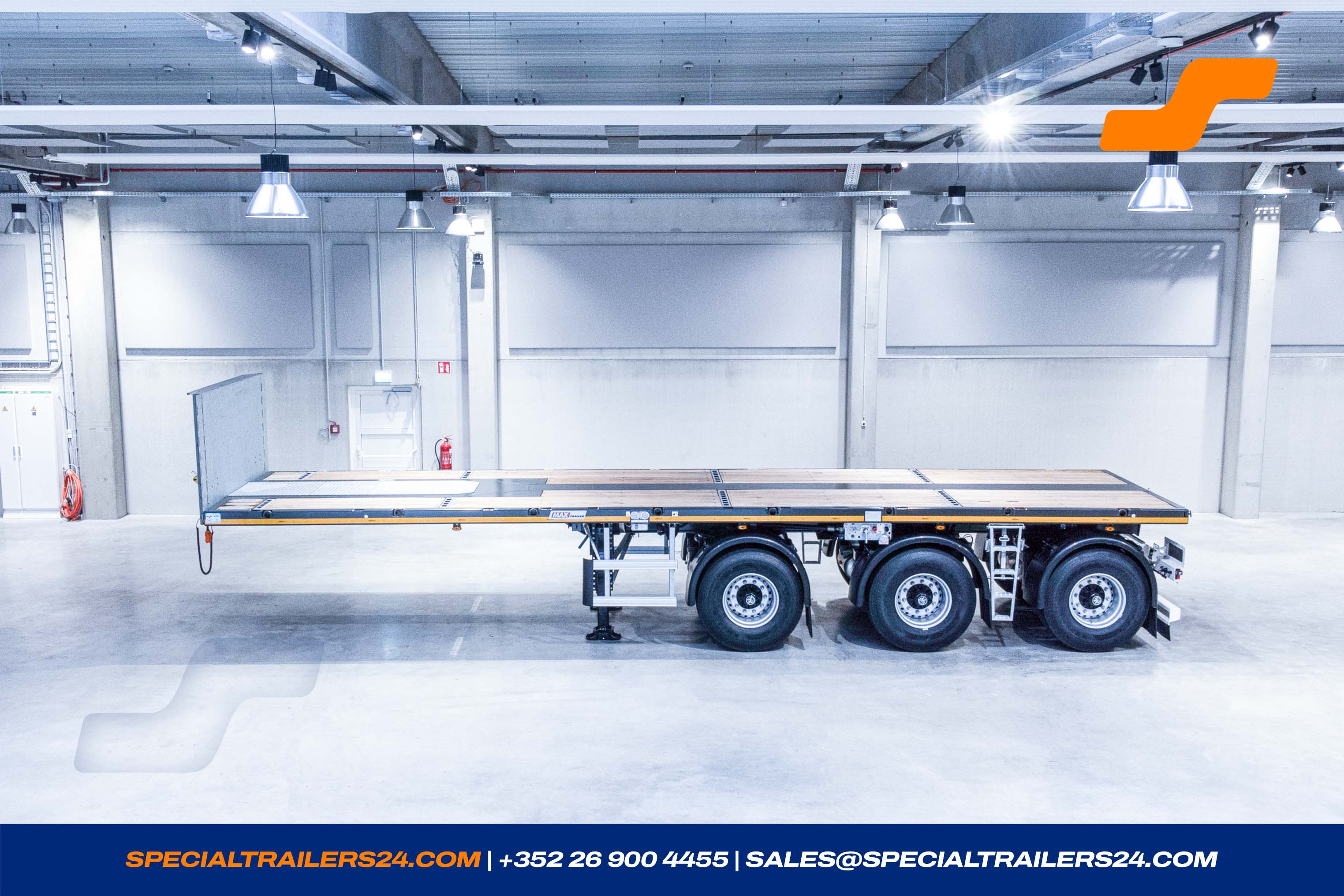

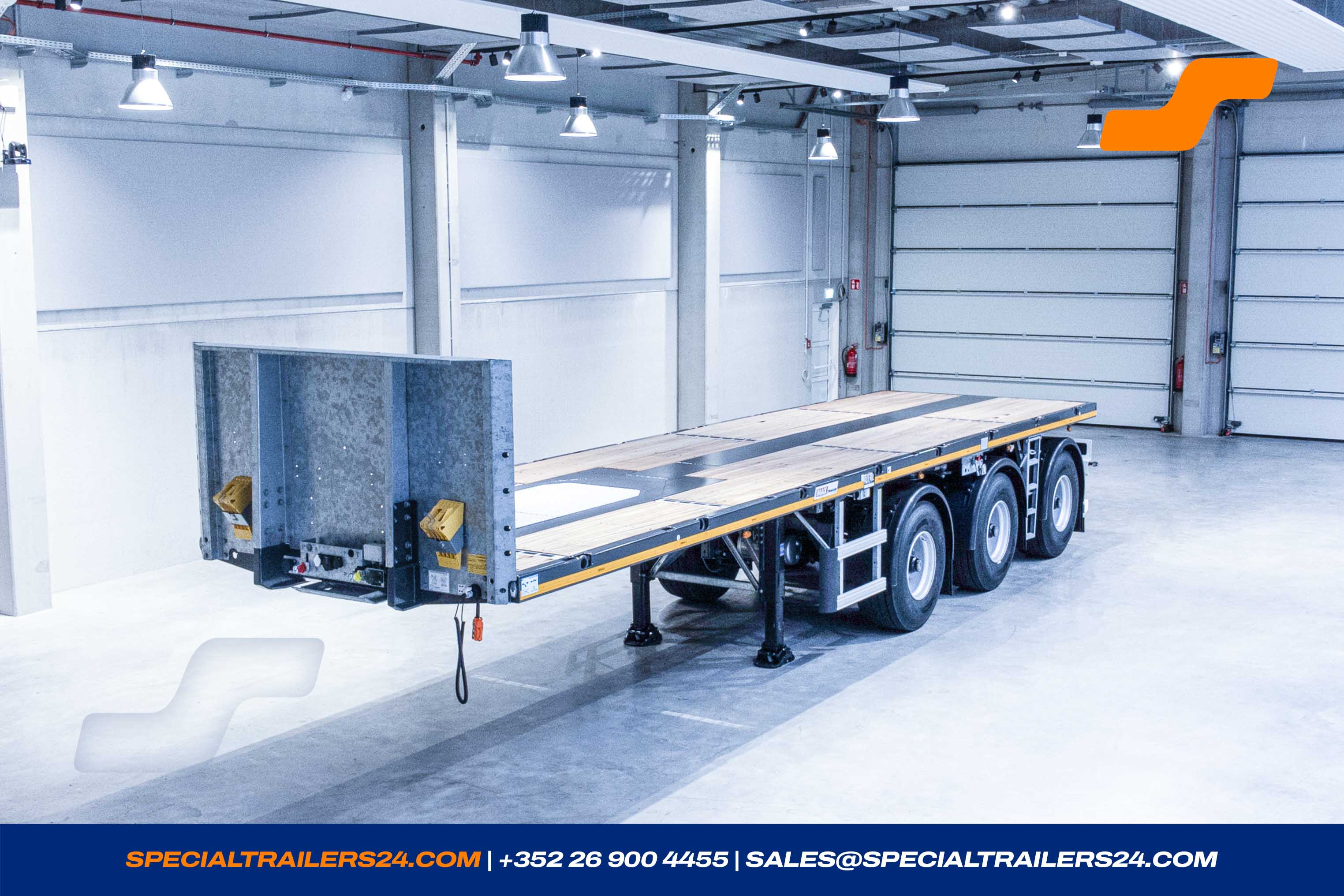

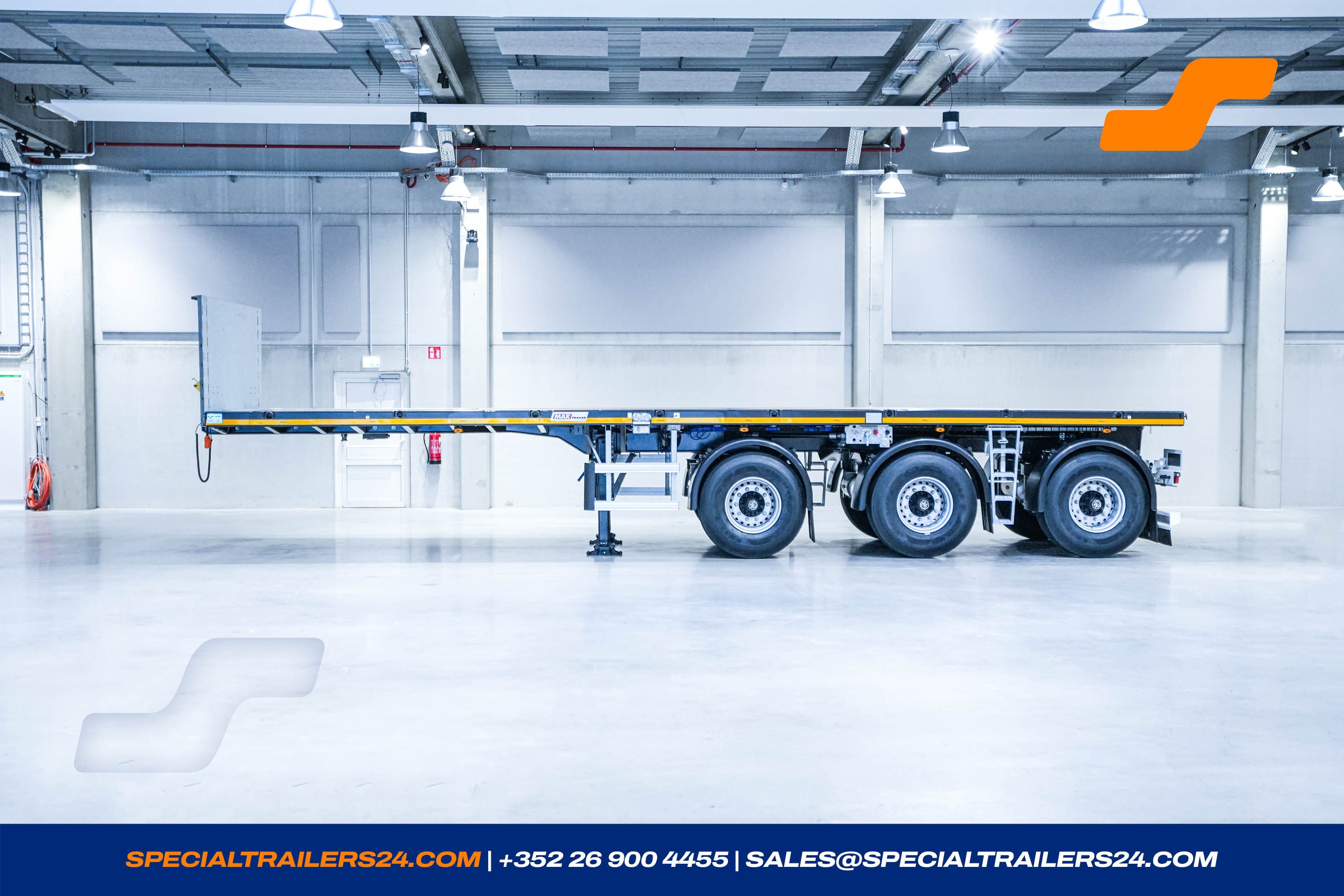

Flatbed trailer
MAX Trailer MAX410
Die Farbe des Fahrzeugs auf dem Foto kann abweichen.
- Chassis number 110605
- Reference MAX410-Z-3-10.20-22.5-2.54

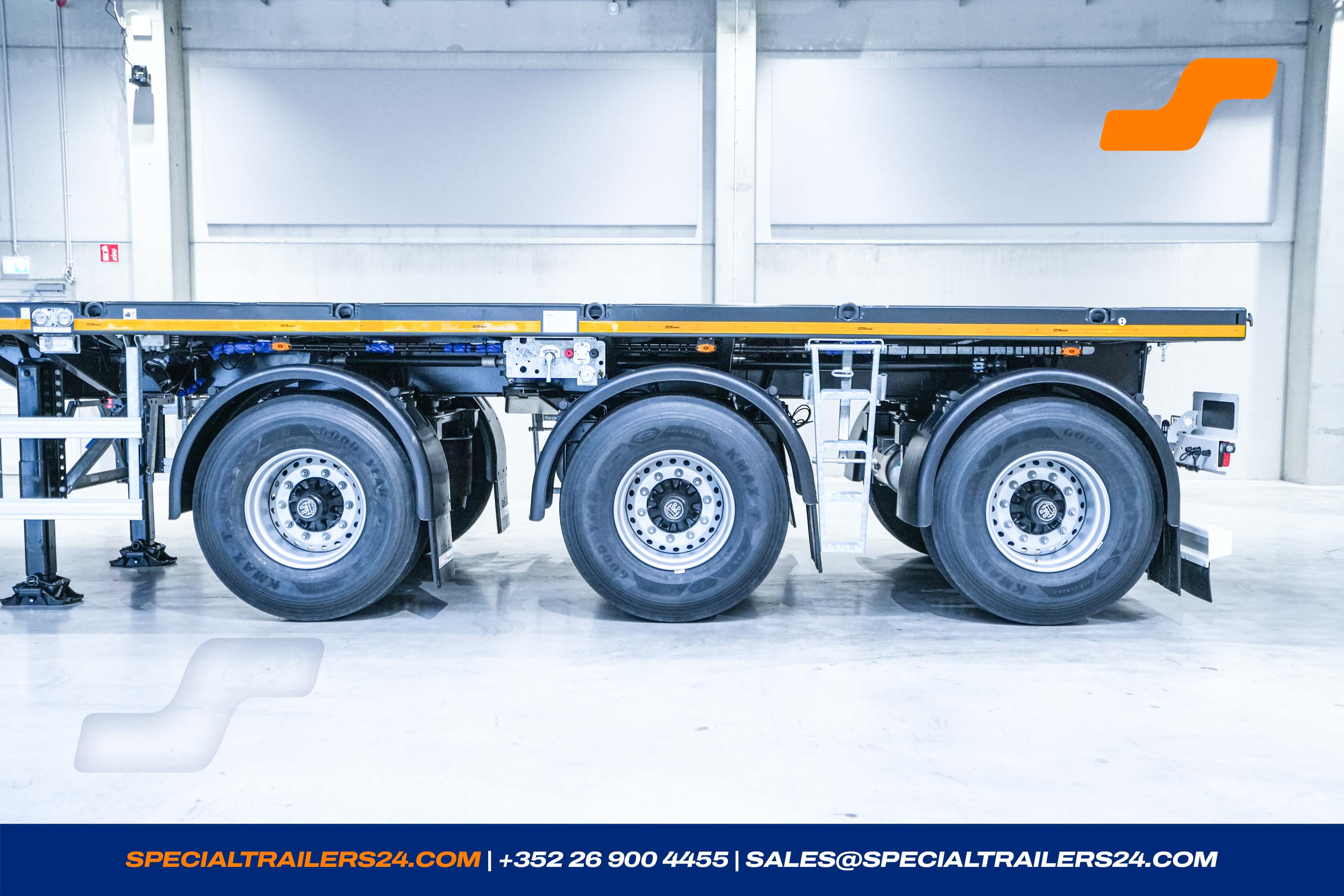

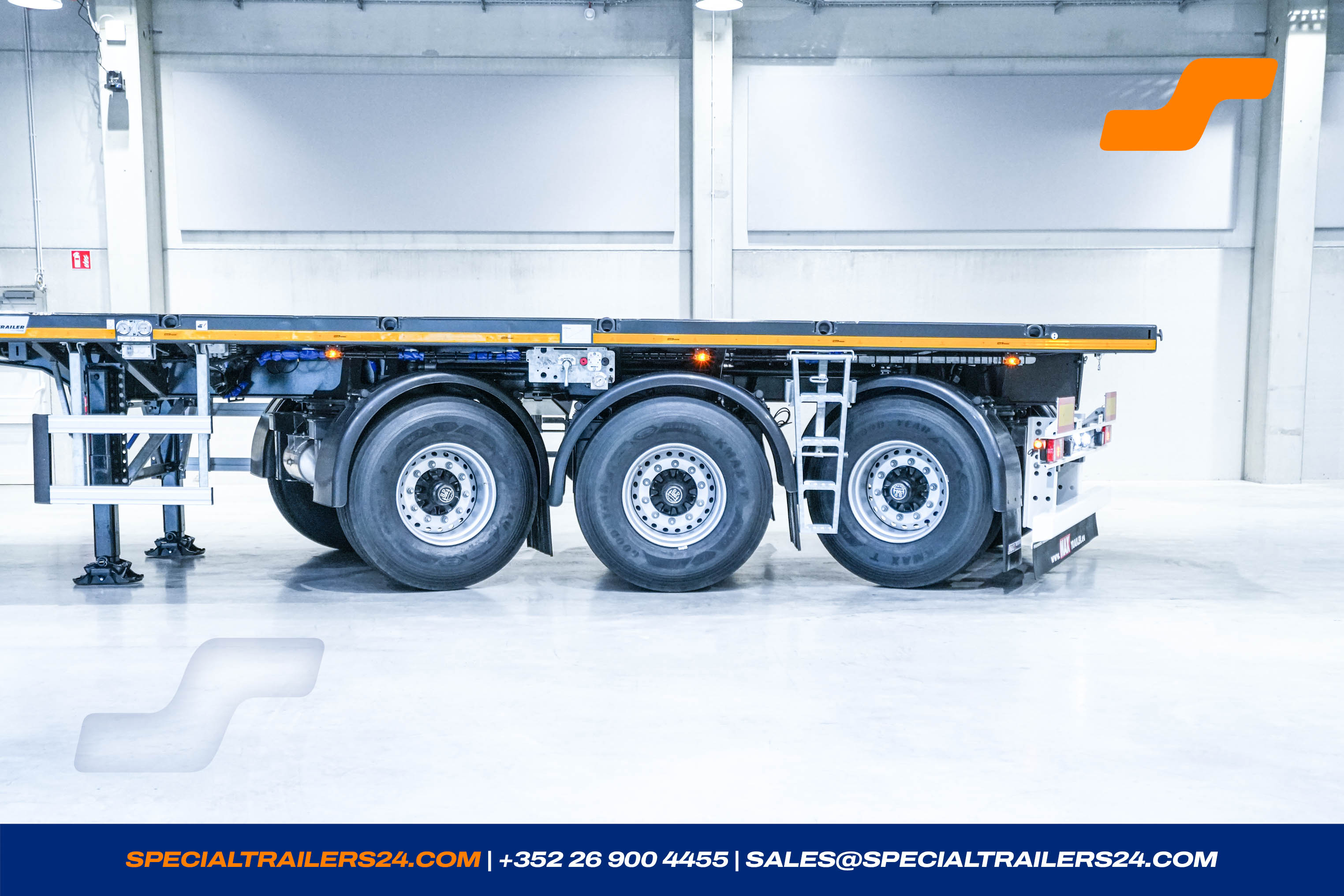

- Number of axles 3
- Condition New
- Year of manufacture 2025
- Colour Farbe wählbar
- Availability 05/2026
- Steering Type Hydraulic
Availability
05/2026
Preis
Auf Anfrage
Location
Lentzweiler, Luxembourg
Downloadcenter
Die wichtigsten Unterlagen
Detailinformationen
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 23000 kg |
| Axle load | 30000 kg |
| Gross weight | 53000 kg |
| Tare weight +- 3% | 7801 kg |
| Payload | 45199 kg |
Dimensions
| Fifth wheel height loaded | 1270->1330 mm |
| Loading platform length | 10 200 mm |
| Wheelbase | 1 810 mm |
| Total width | 2 540 mm |
| Turning circle reversing | 2 700 mm |
Loading deck
Loading platform
1 x Loading platform

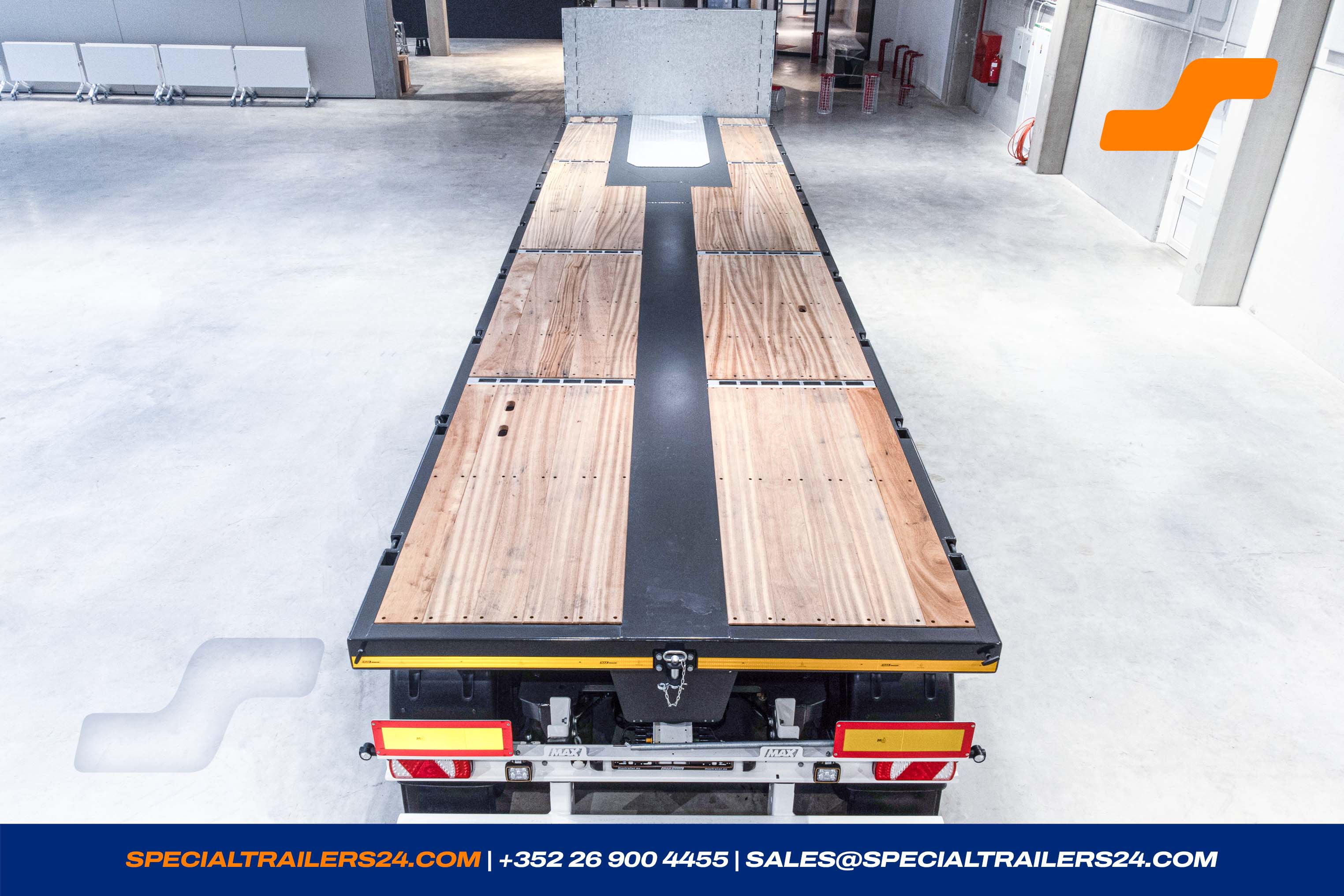

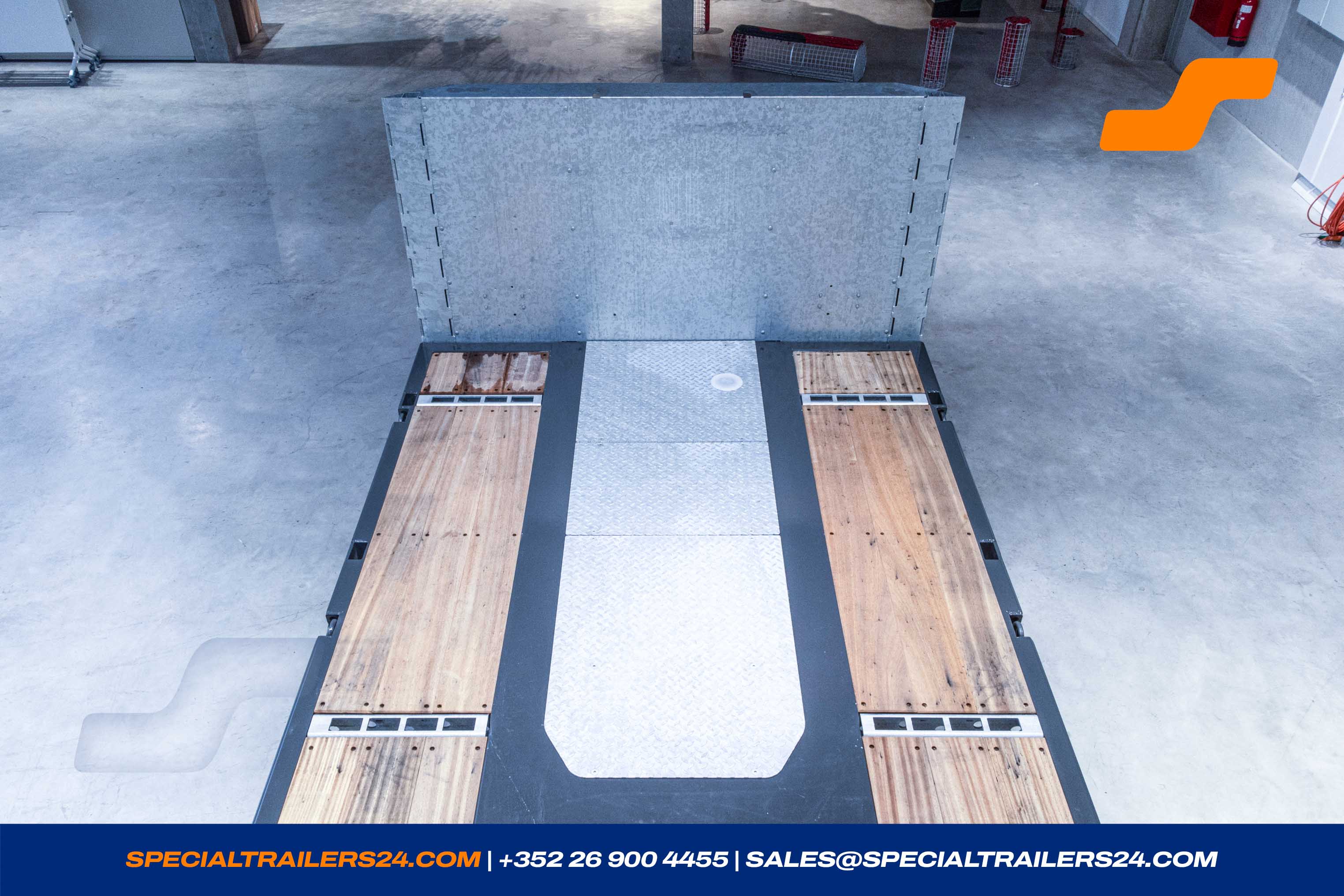

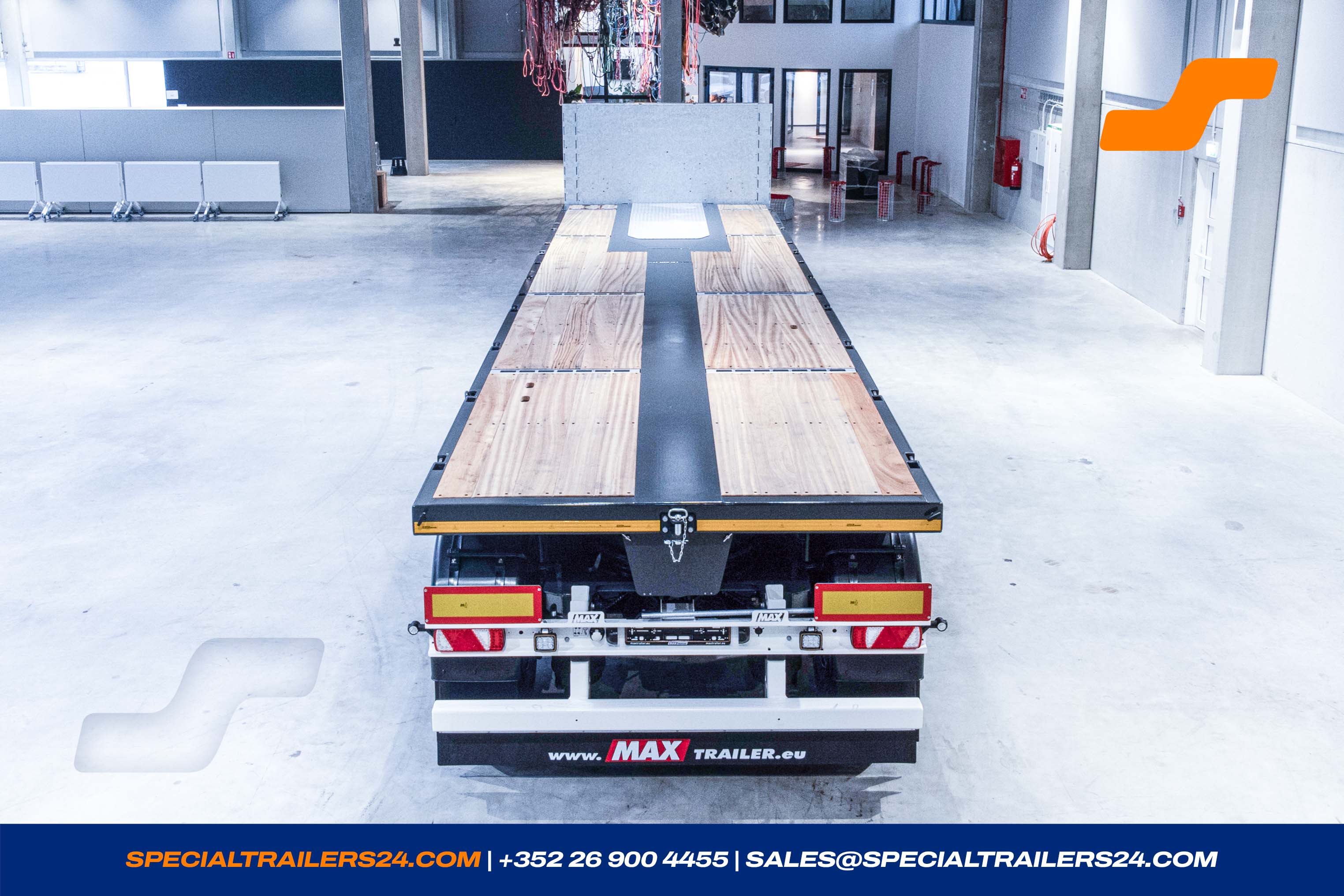

Loading area with ± 30 mm timber floor.

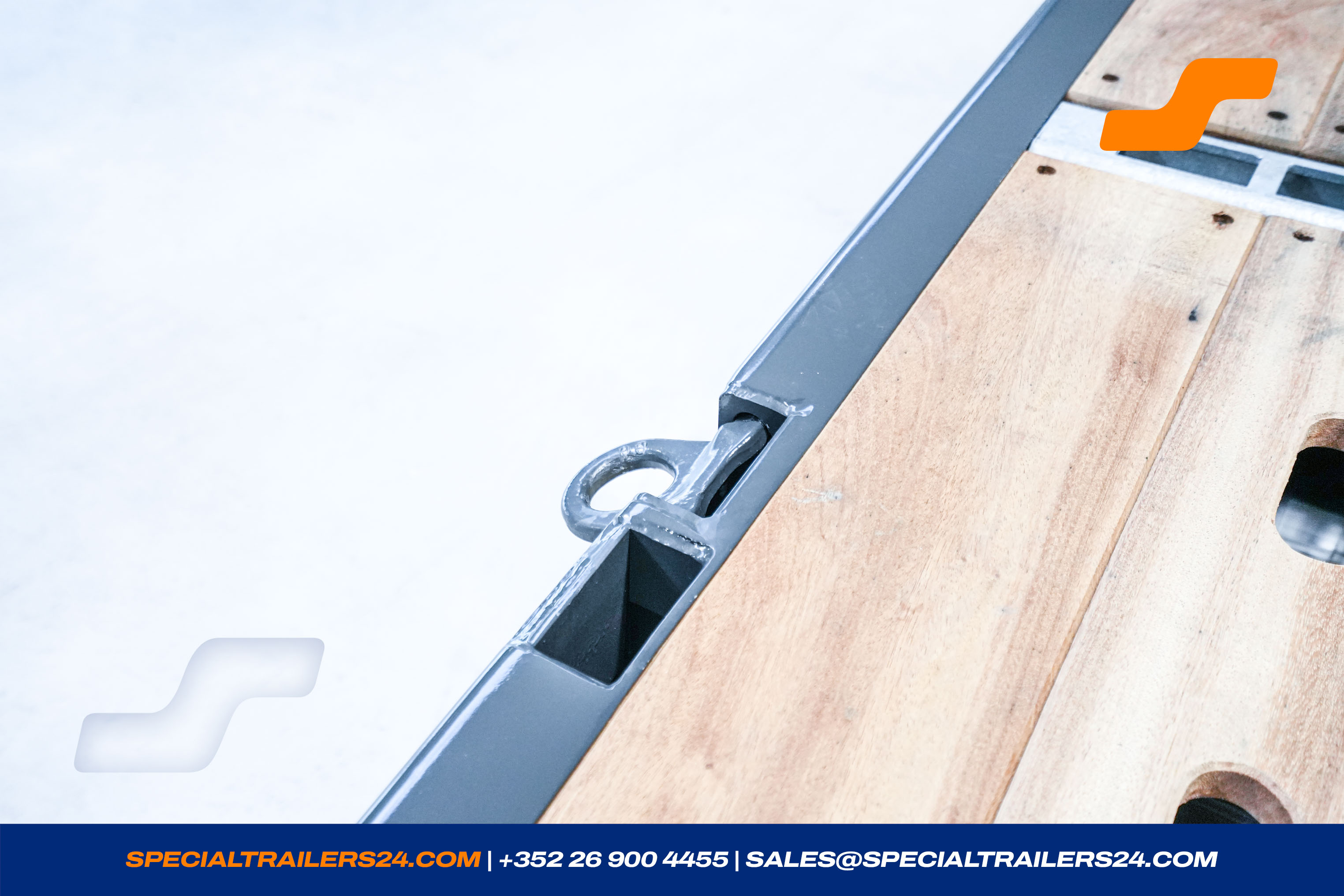

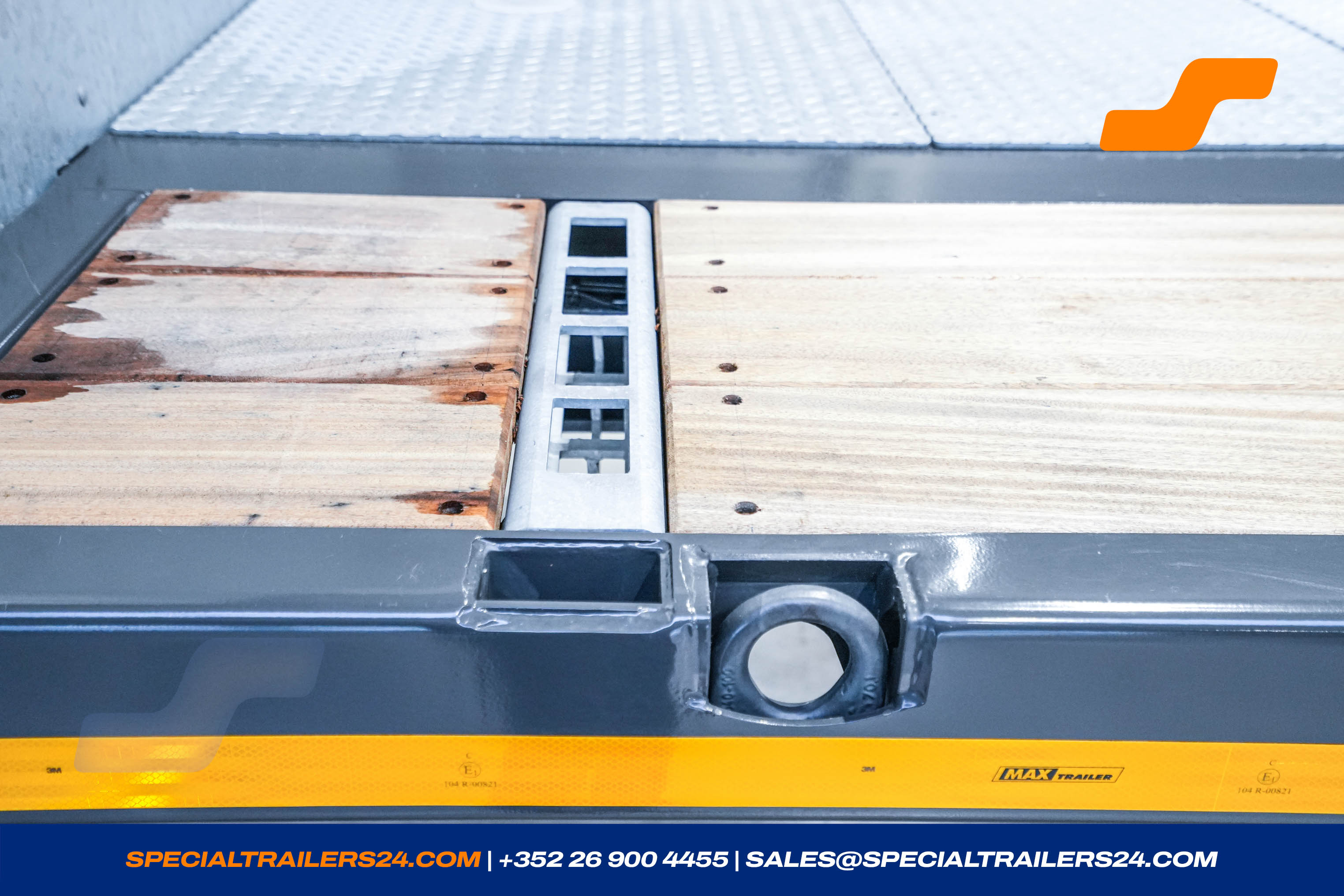

8 pairs of lashing rings inserted in the border frame, hinged outwardss (LC 10 000 daN).

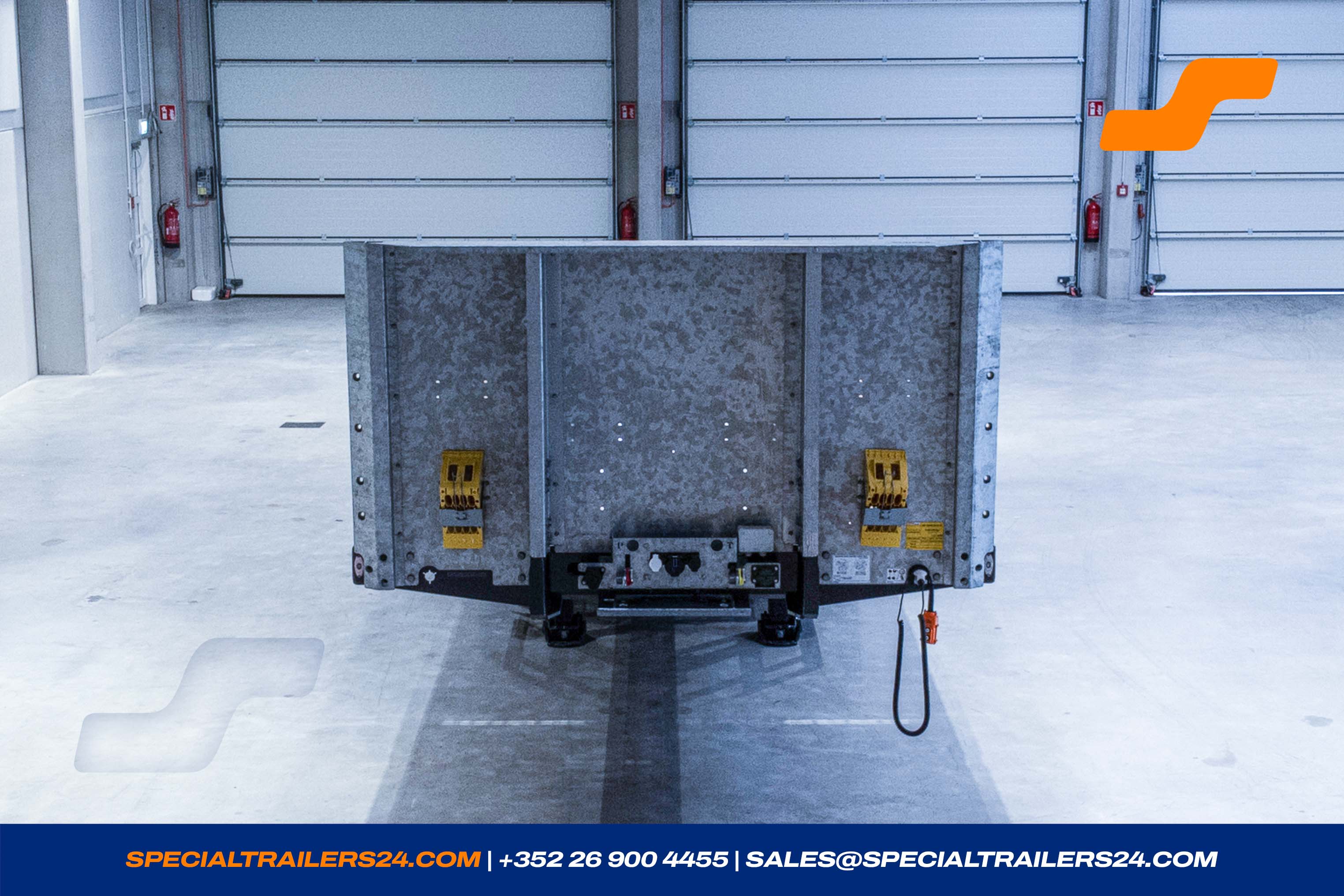

- 4 wheel chocks with carrier on the headboard (± 5kg).

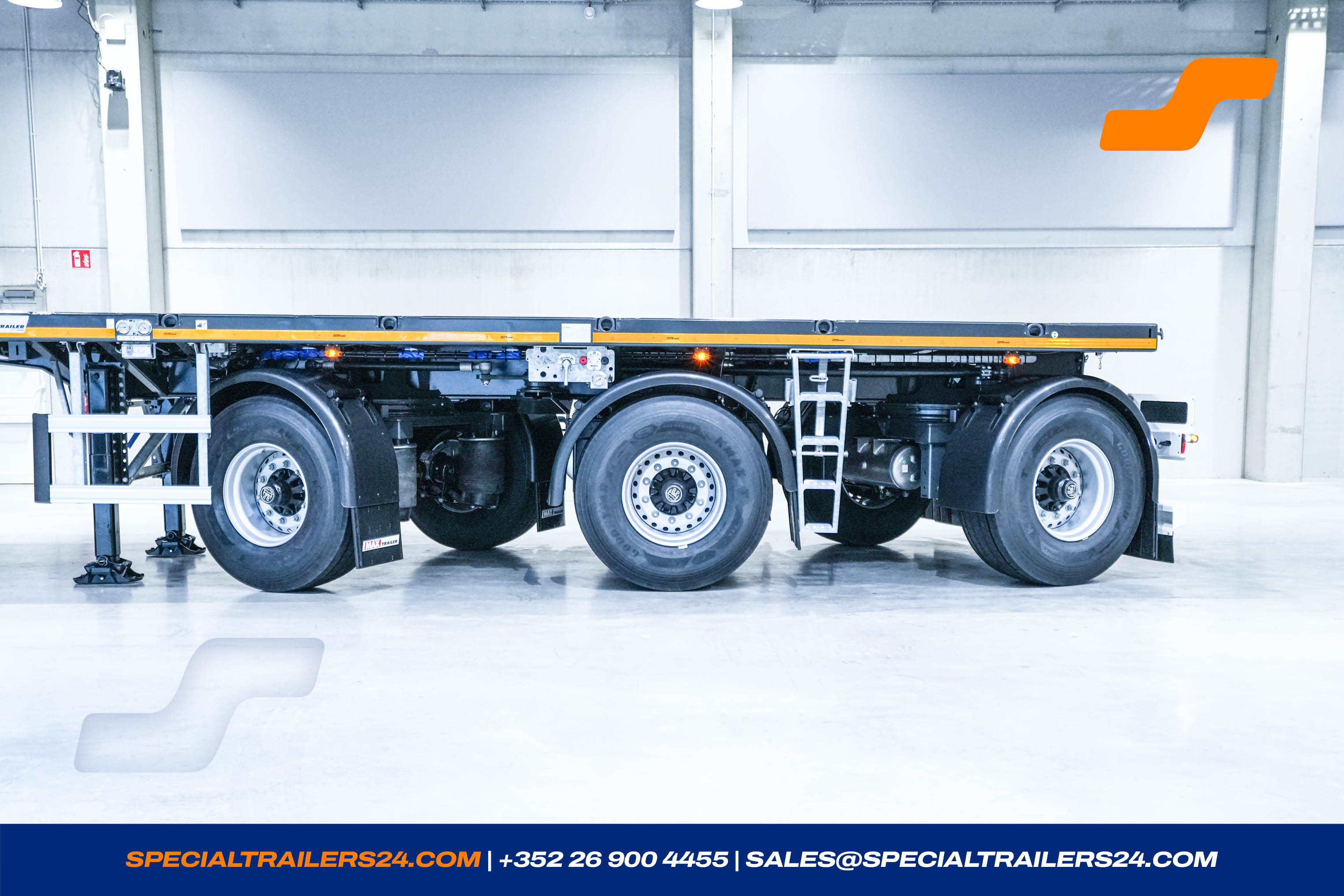

- Lift axle on the front axle with control by TEBS-E depending on the current axle load and the current loading condition (± 69 kg).

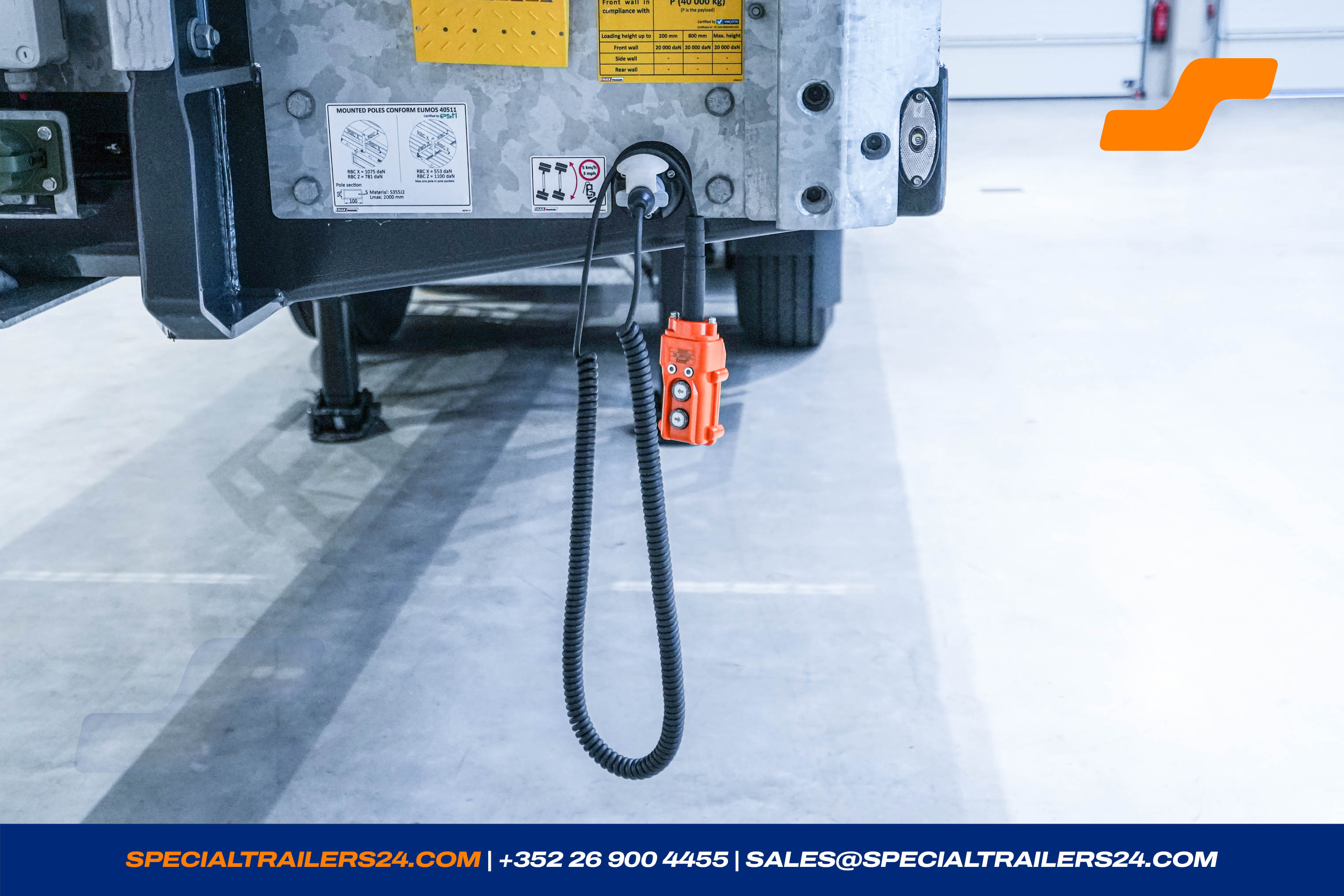

- Radio remote control for the hydraulic steering, additional to the cable control, with LED control lamp on the receiver for the alignment of the axles.
Accessories
1 x Accessories
- Braking system WABCO following EU-regulations with EBS-E (4S3M) system, without connection to the truck.
-
Electric system conform to the EU-regulations, LED lighting 24 volt ASPÖCK-NORDIK (ASS3).
All LED side marker lights flash with the indicator.

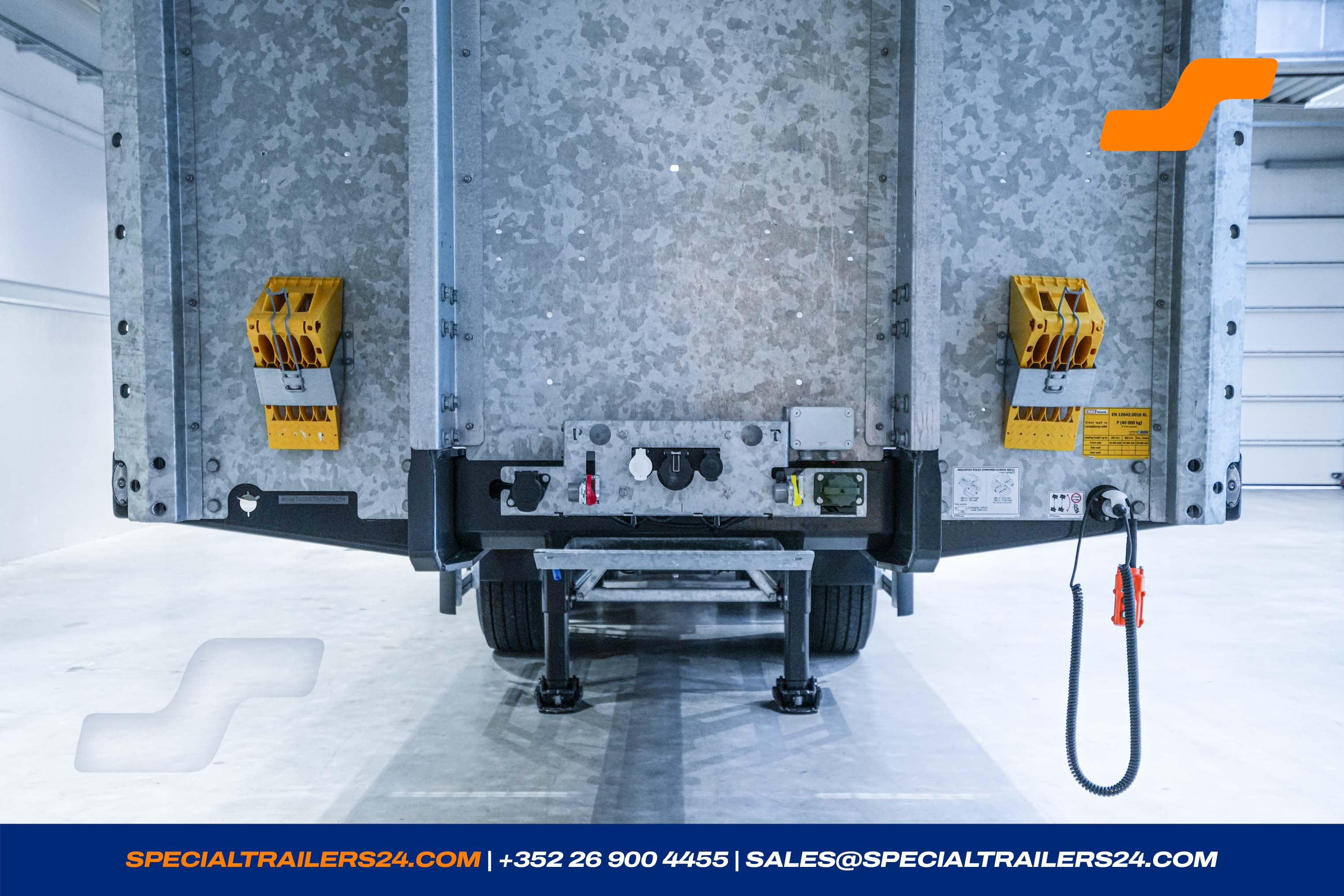

ASPÖCK-UNIBOX on the galvanised front connection ledge with socket 24N, 24S & 15 pole.
Connection to the ISO norm.
24N ISO-1185
24S ISO-3731
15 pol. ISO-12098 -
Steel construction of high tensile steel.
Steel grade:
**S355J2+N/S355MC (yield strength 355 MPa)
**S690QL/S700MC (yield strength 690 MPa) - A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- Manual and description on USB stick .

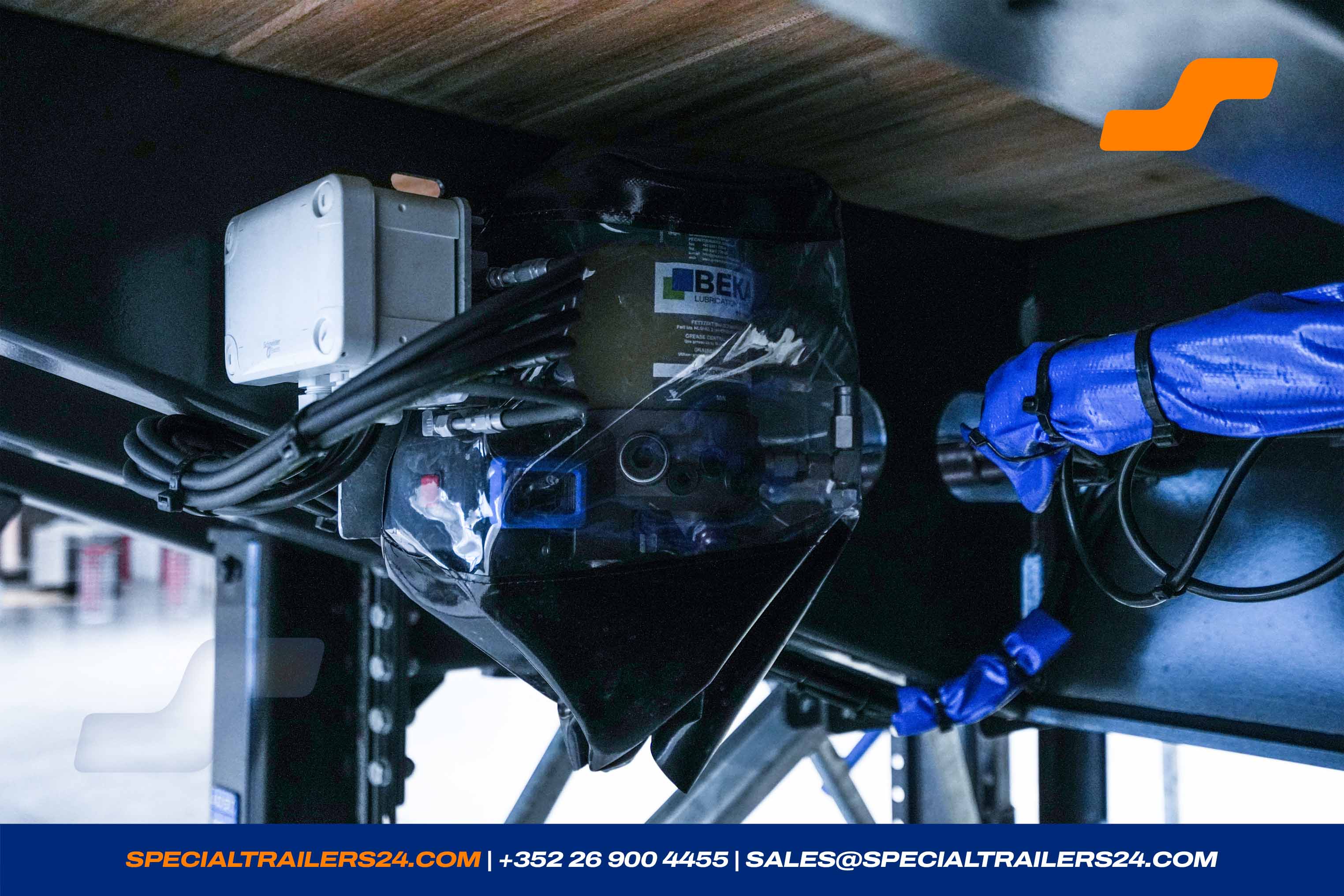

- Central greasing BEKAMAX (Pico) with NLGI-2 normal grease with removable protection around the pump. (± 18 kg)

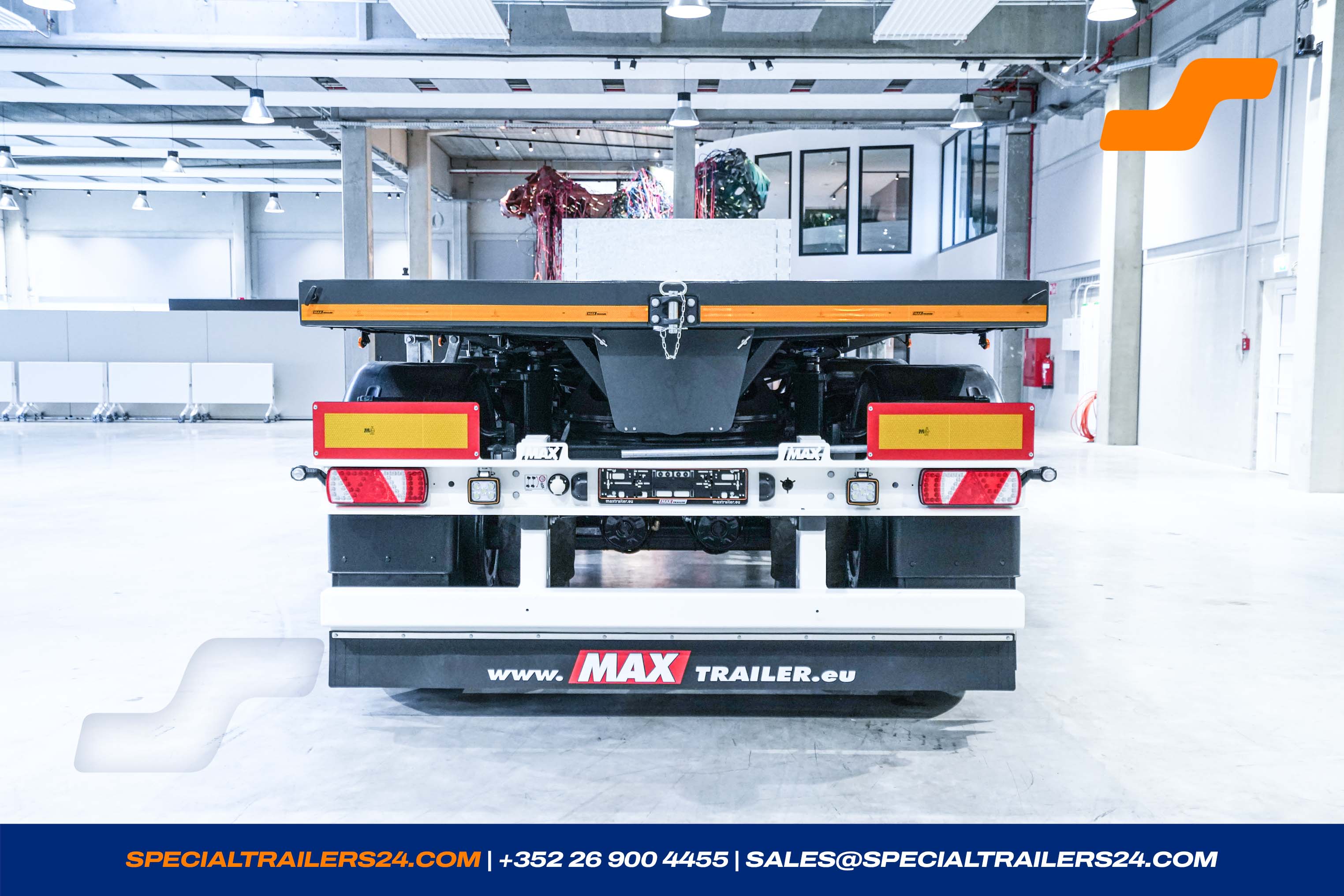

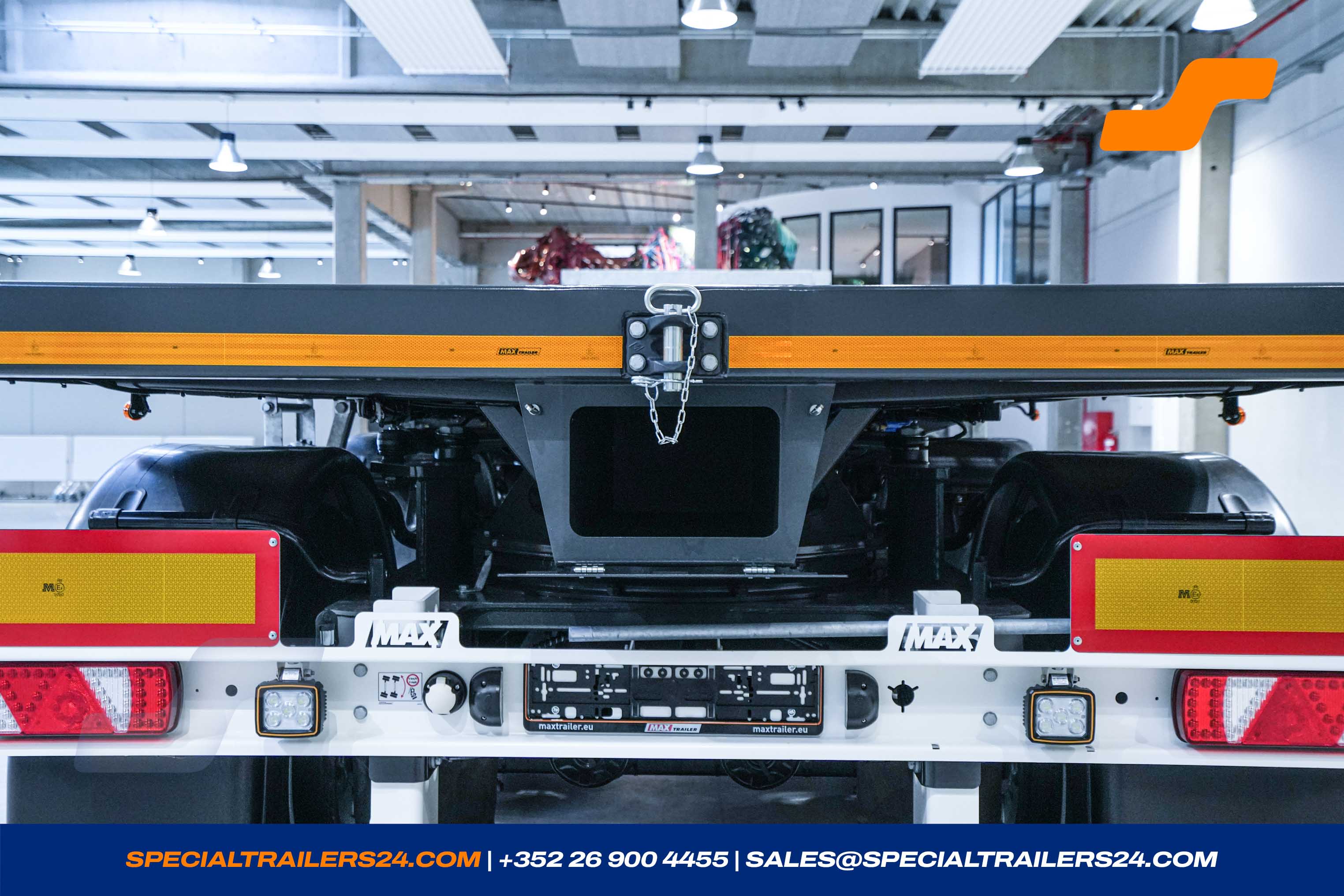

- 2 LED- reversing lights at the rear.

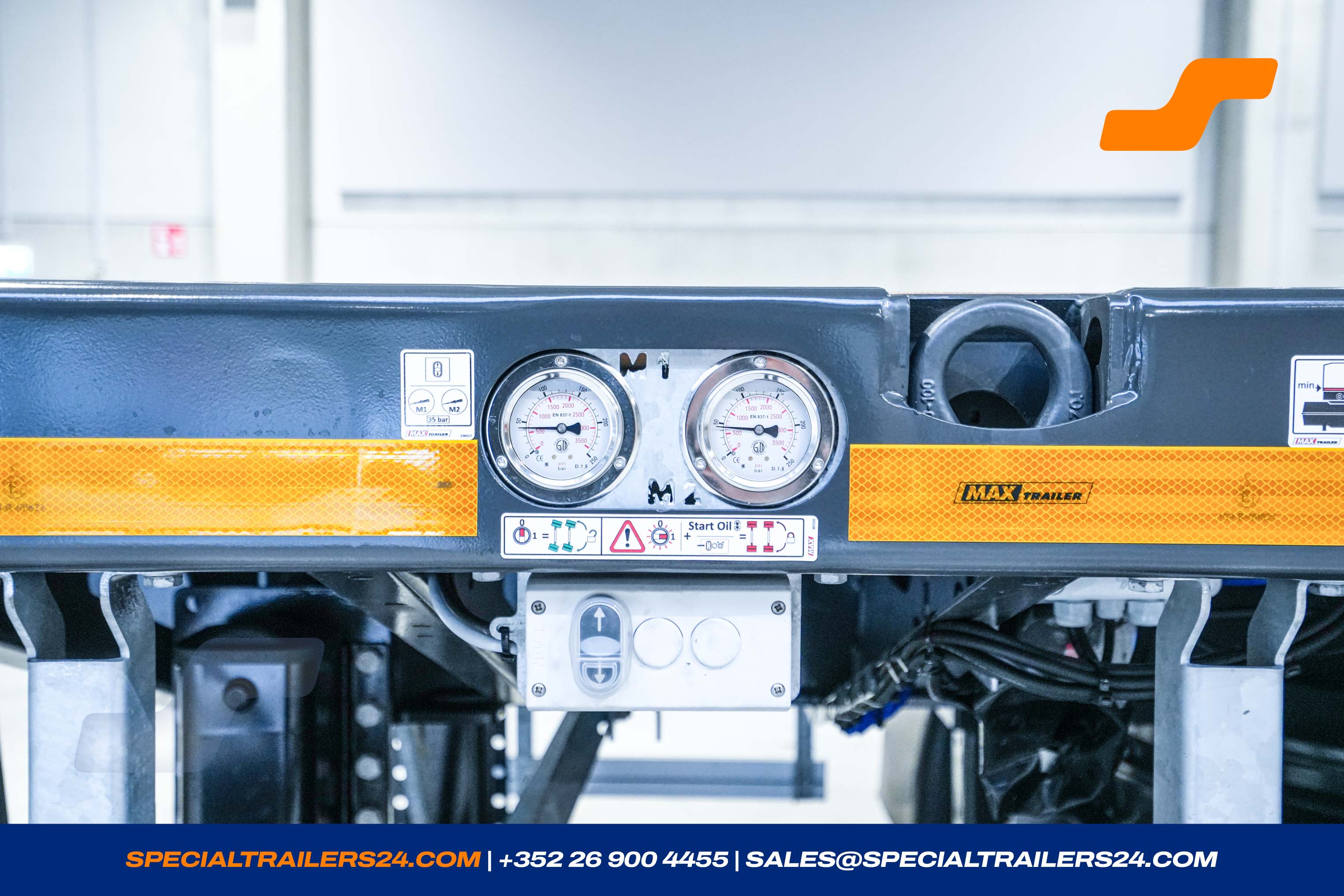

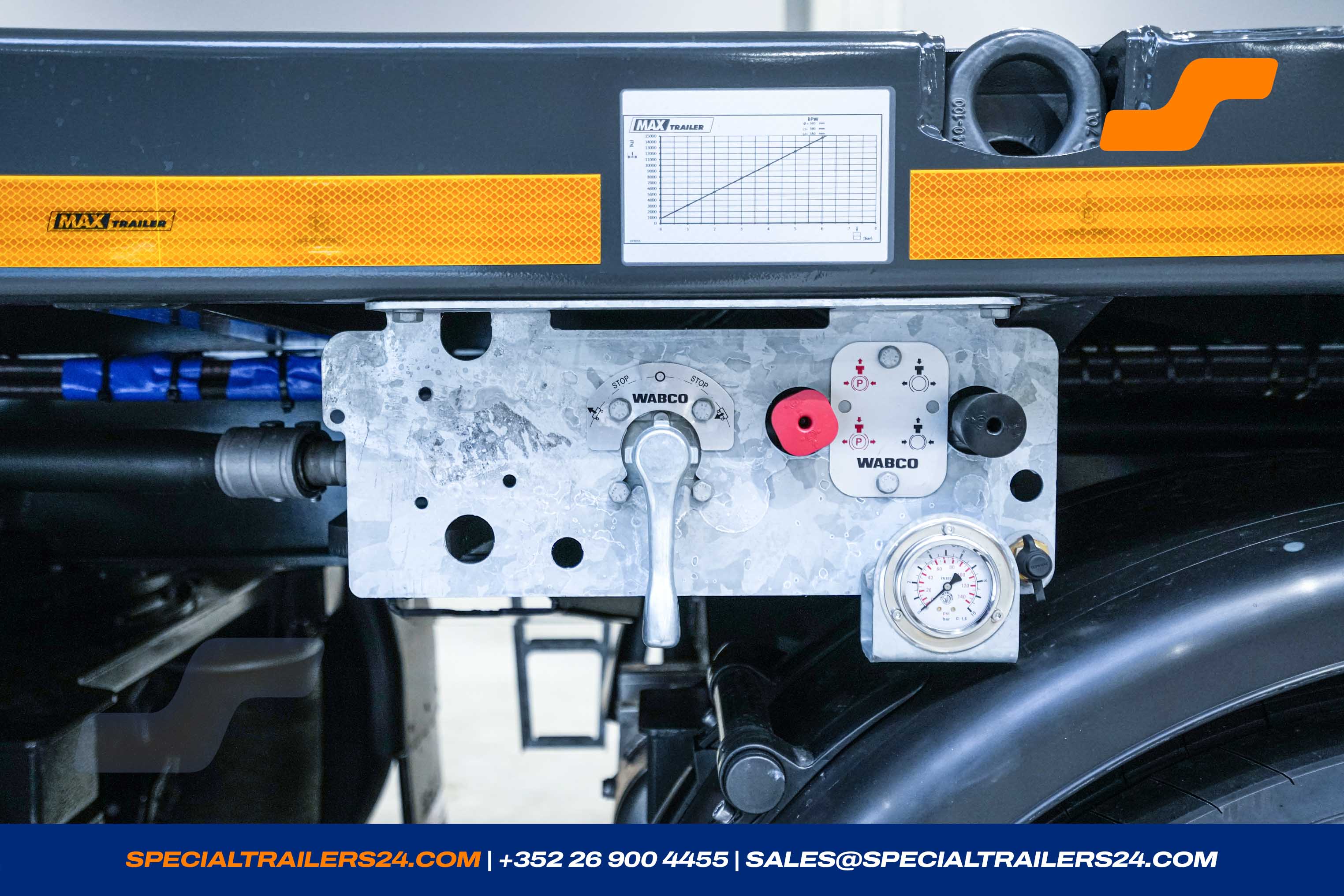

- Load manometer for determining the axle load, including load diagram.
