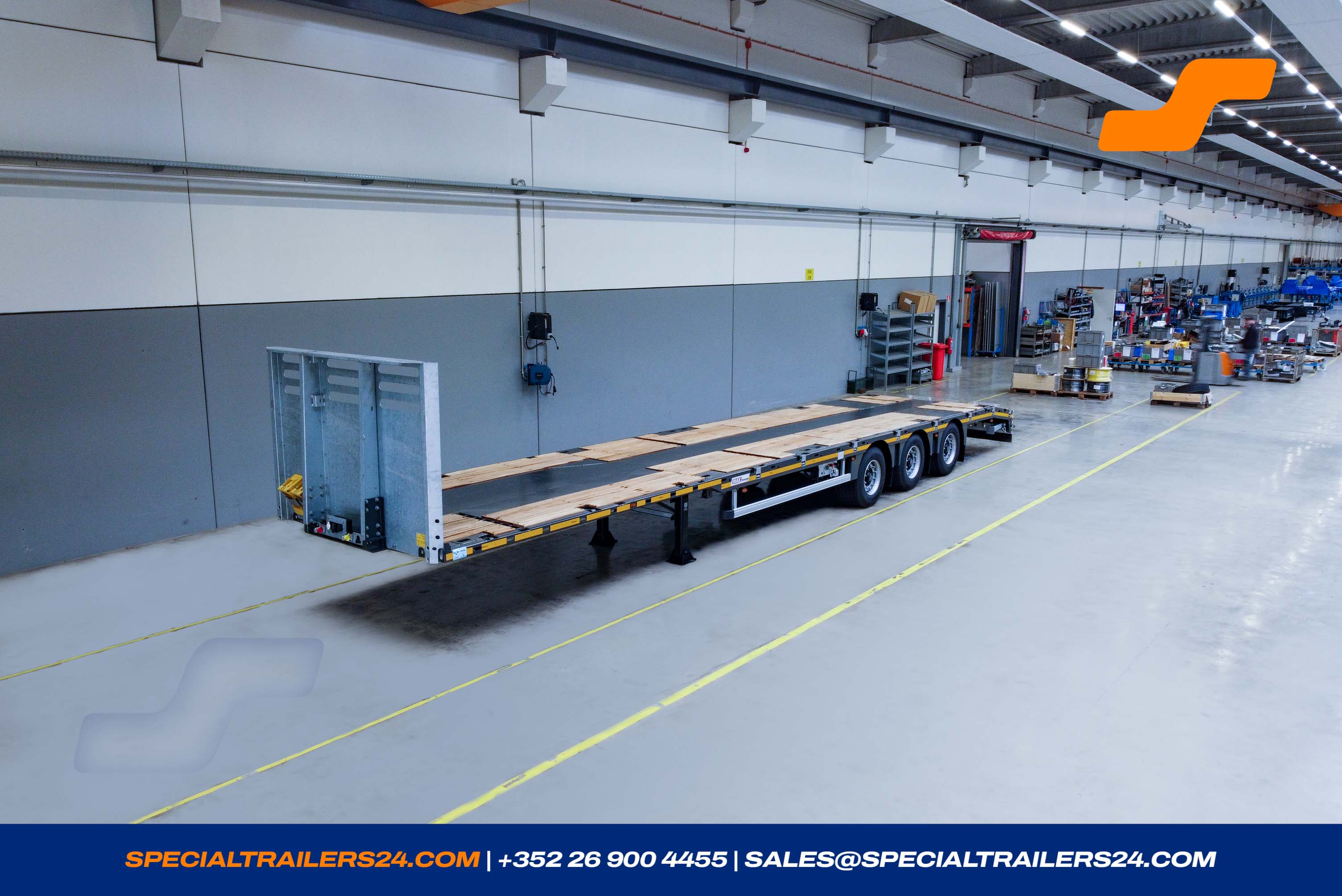

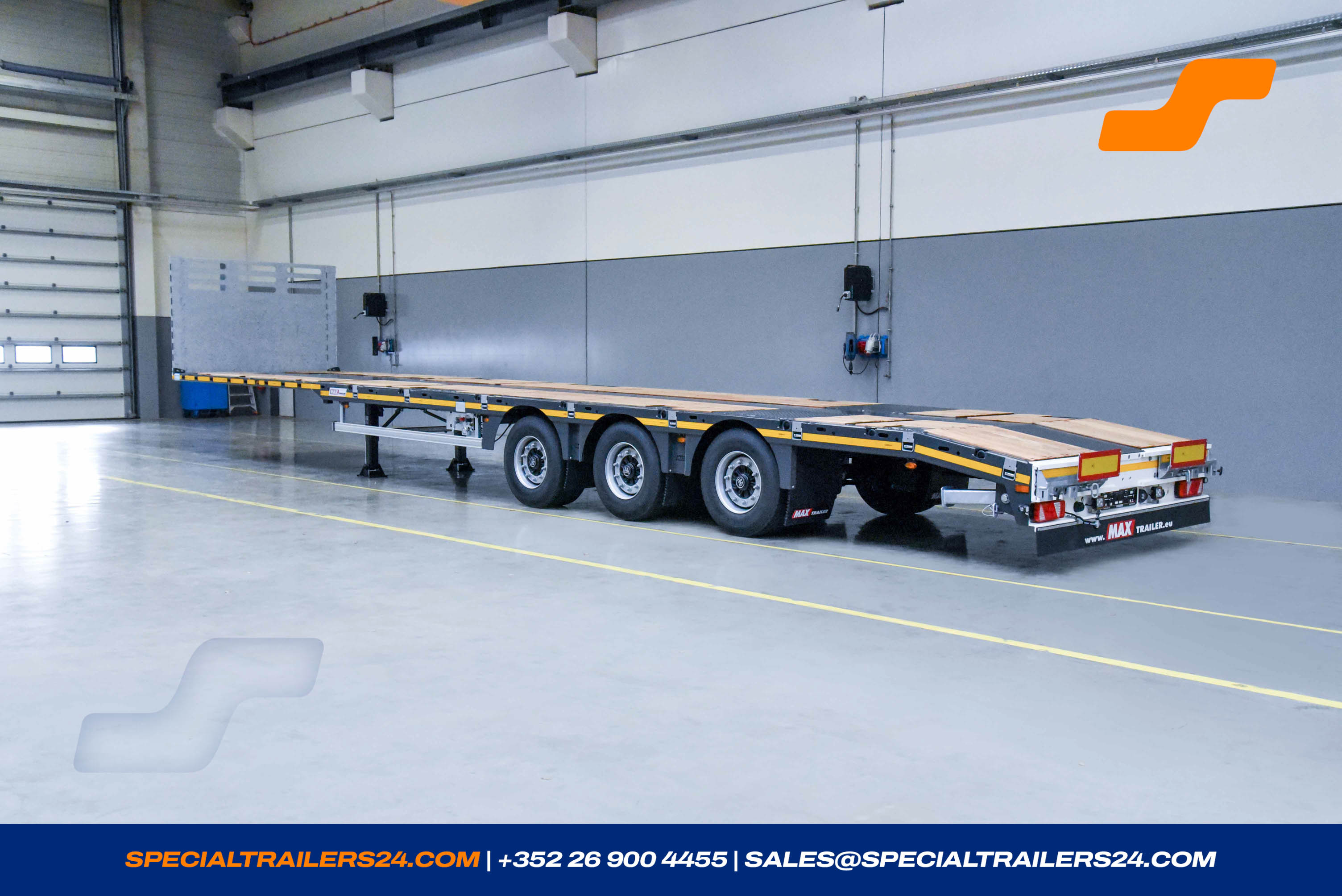

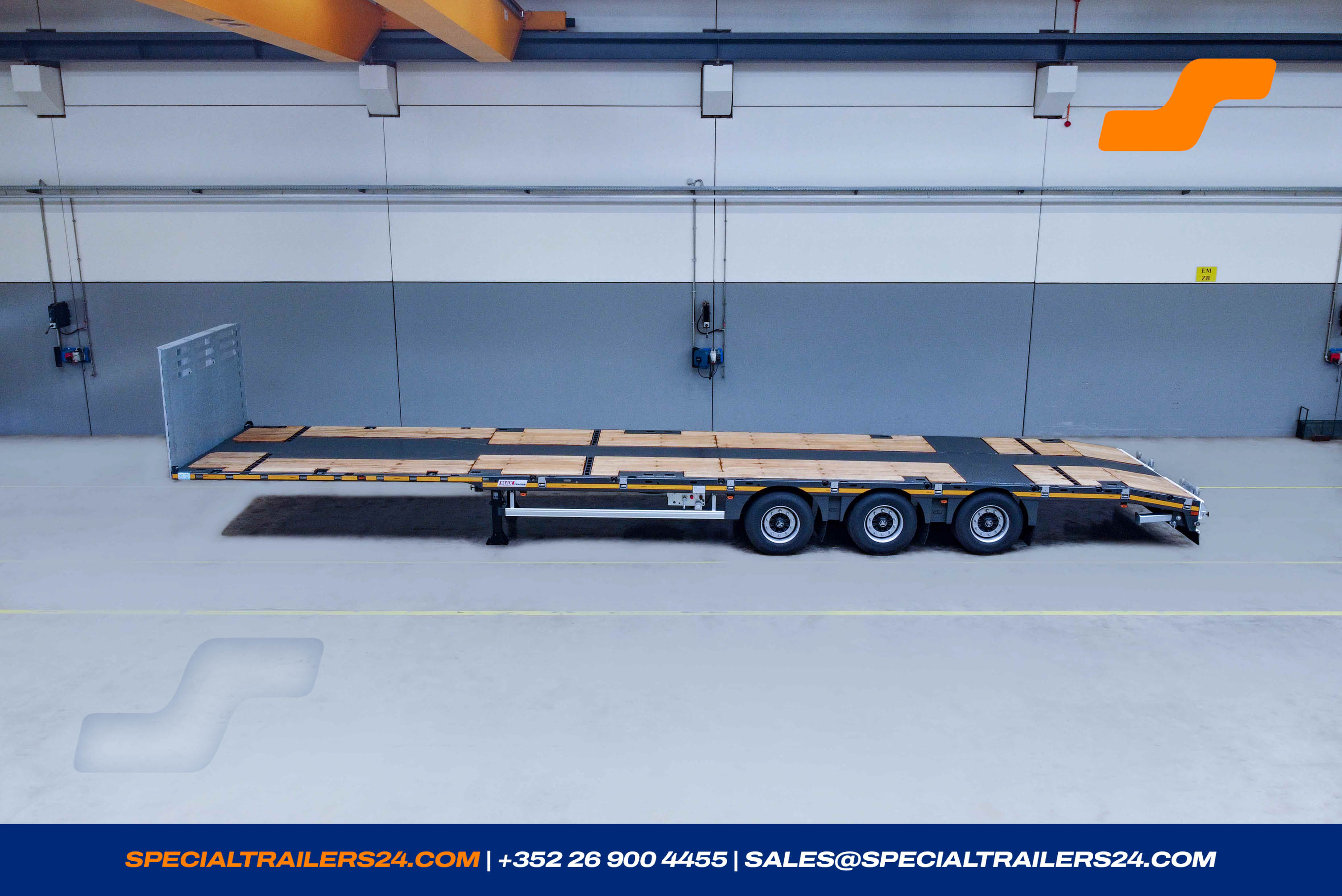

Flatbed trailer
MAX Trailer MAX200
Die Farbe des Fahrzeugs auf dem Foto kann abweichen.
- Chassis number 110595
- Reference MAX200-S-3-13.50-19.5-2.54

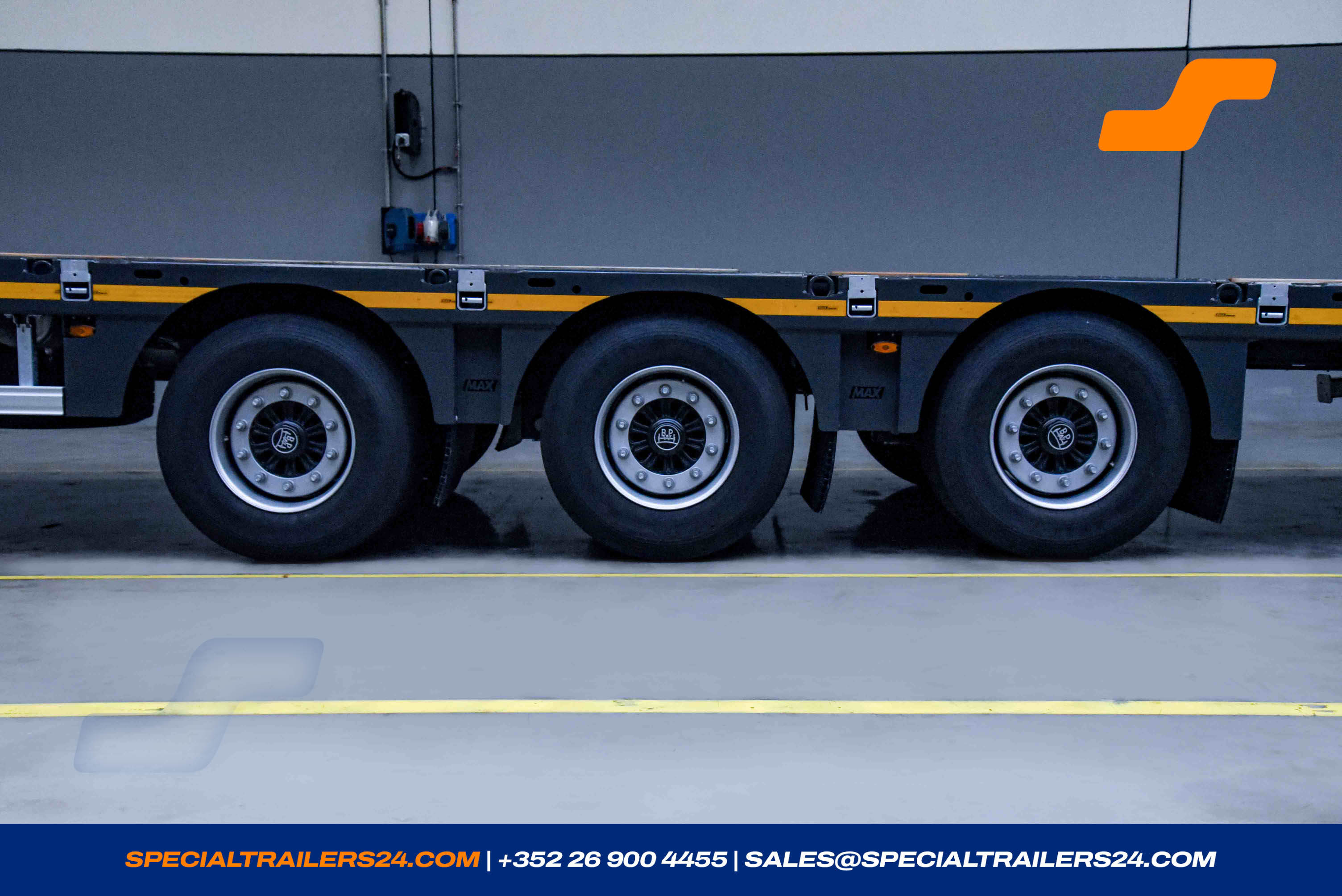

- Number of axles 3
- Condition New
- Year of manufacture 2025
- Colour DB 7350 - Nova grey
- Availability Directly available
- Steering Type Rigid
Availability
Directly available
Preis
Auf Anfrage
Location
Lentzweiler, Luxembourg
Downloadcenter
Die wichtigsten Unterlagen
Detailinformationen
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 27000 kg |
| Gross weight | 45000 kg |
| Tare weight +- 3% | 8329 kg |
| Payload | 36671 kg |
Dimensions
| Fifth wheel height loaded | 1050->1100 mm |
| Turning circle reversing | 2 300 mm |
| Loading platform length | 13 500 mm |
| Extendable by | No |
| Wheelbase | 1 360/1 405 mm |
| Total width | 2 540 mm |
Loading deck
Loading platform
1 x Loading platform:

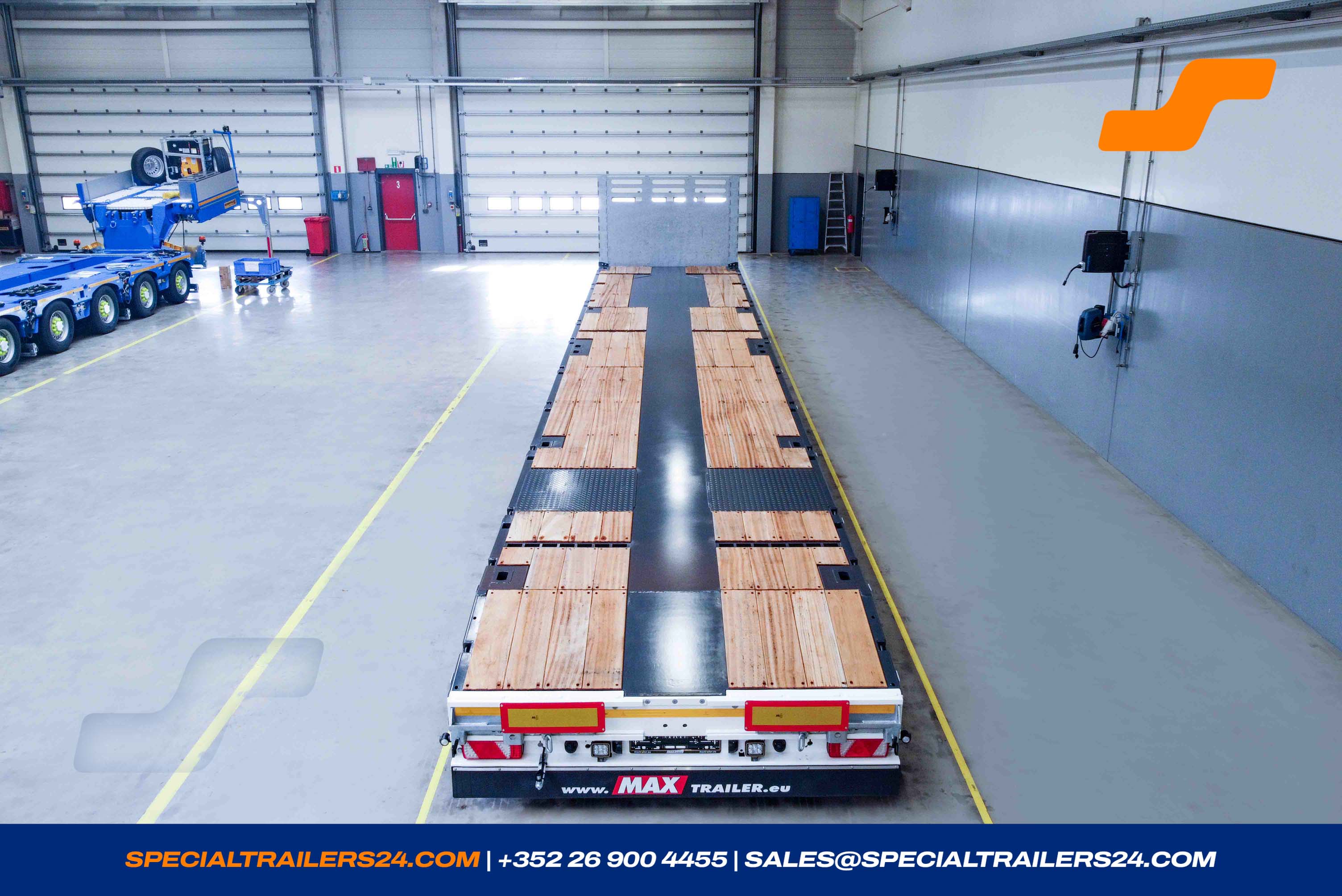

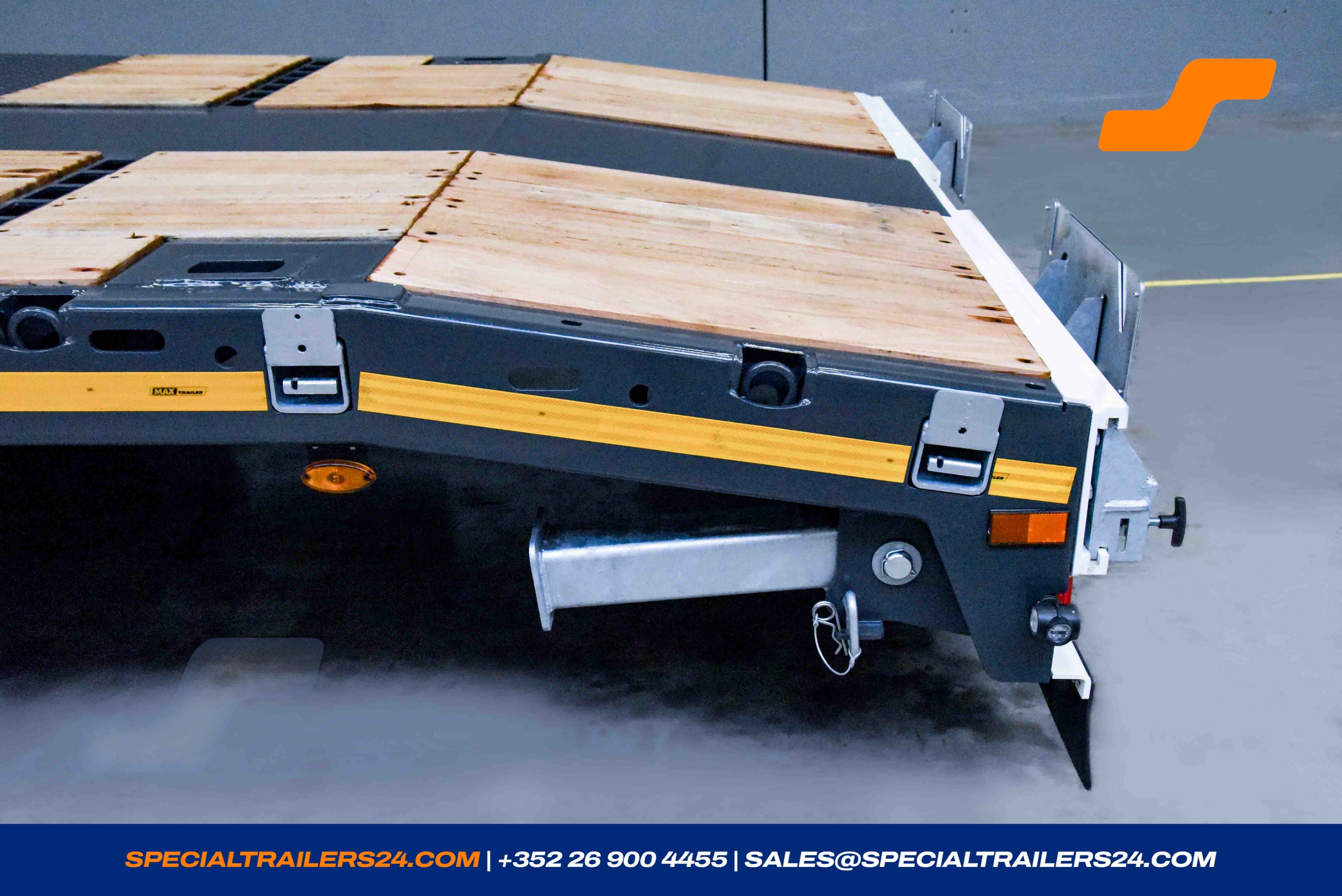

Loading platform with hardwood with chamfered beaver tail by ± 1 000 mm x 8°.
2 pairs of lashing rings inserted in the border frame (LC 5 000 daN).
1 pairs of lashing rings inserted in the border frame (LC 10 000 daN).

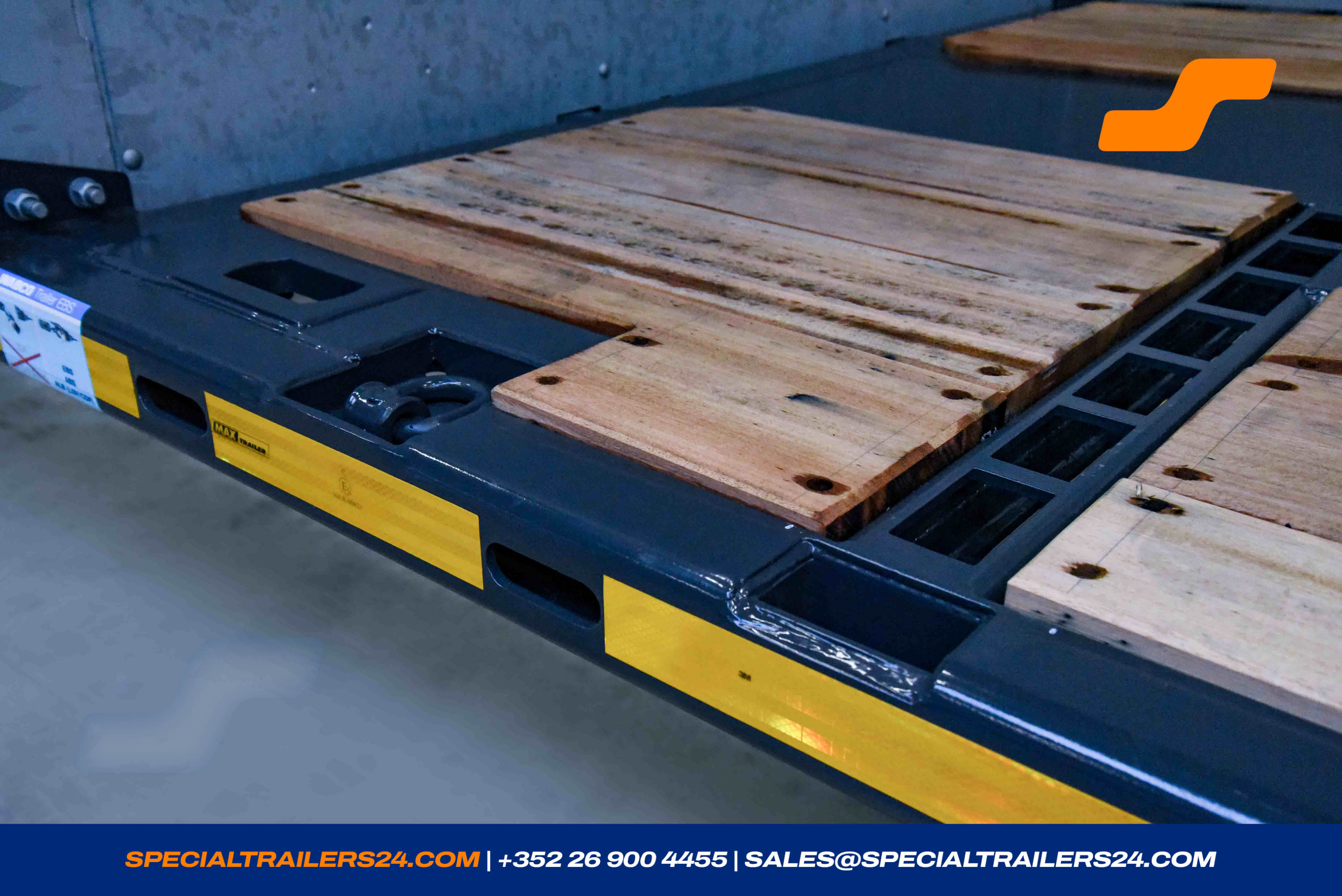

6 pairs of lashing rings inserted in the border frame, hinged outwardss (LC 5 000 daN).
2 pairs of lashing rings inserted in the border frame, hinged outwardss (LC 10 000 daN).
Cutouts in the border frame of the loading area for hooking in tension belts (LC 2 000 daN).

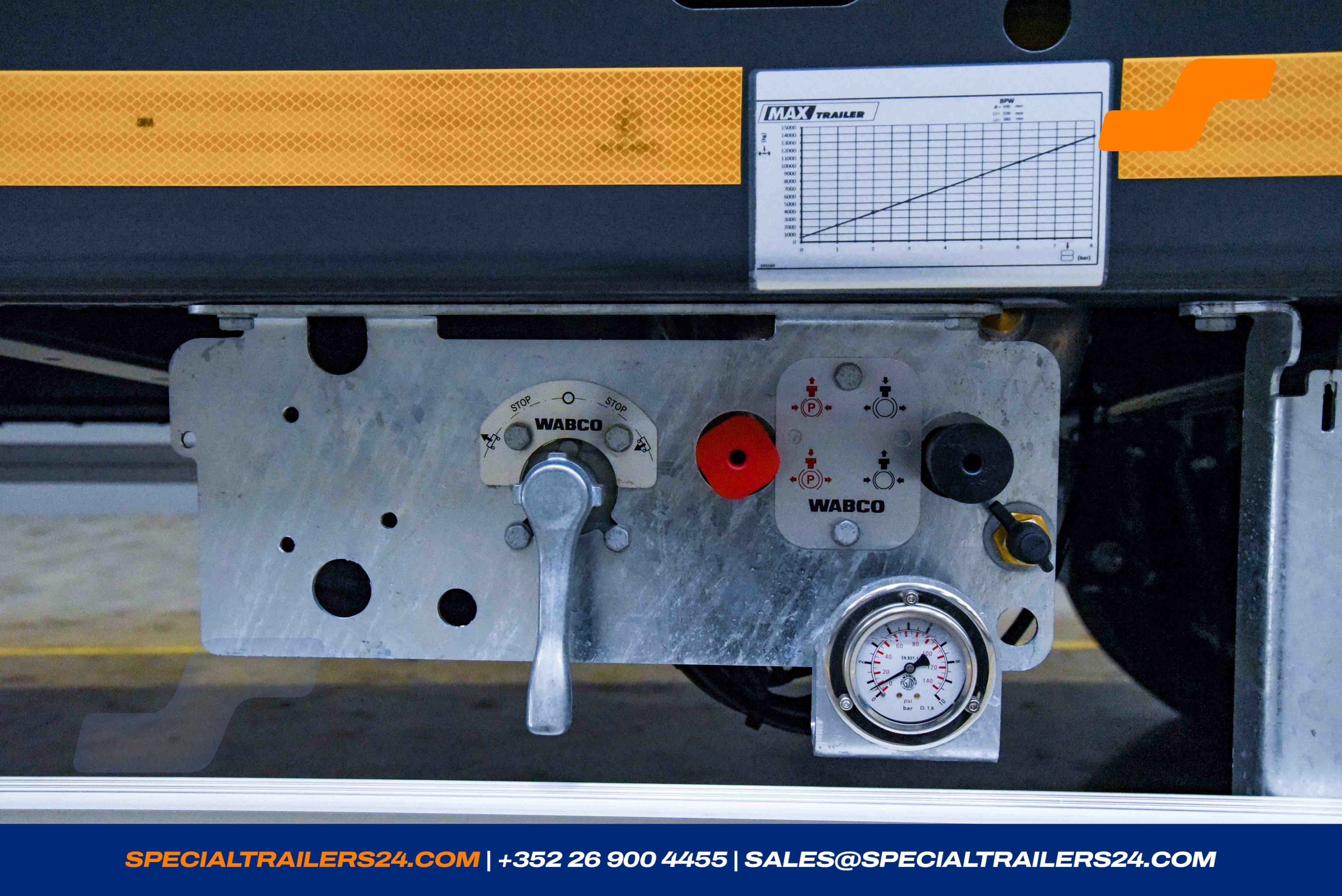

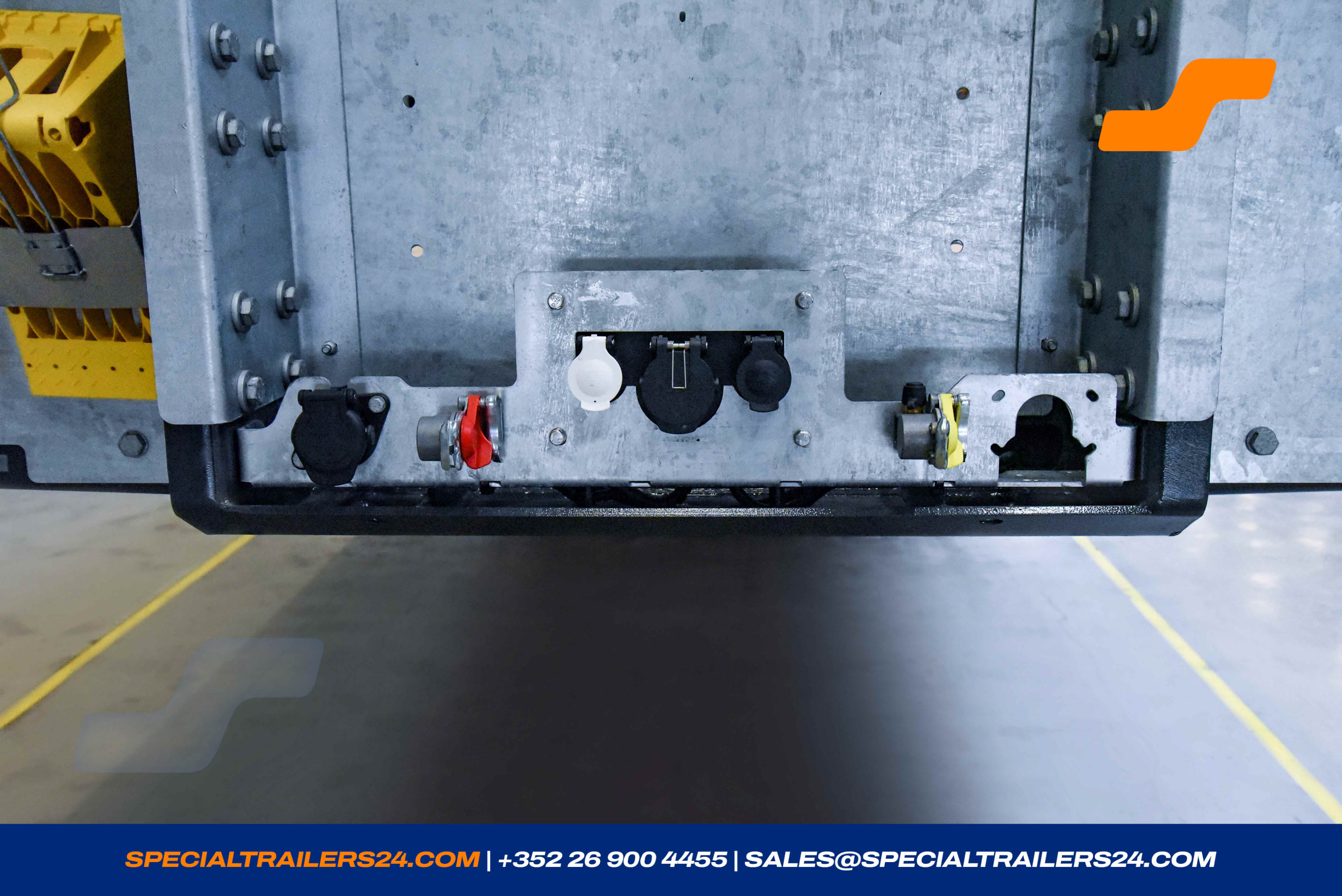

- Red and yellow air couplings on the galvanised front connection ledge.

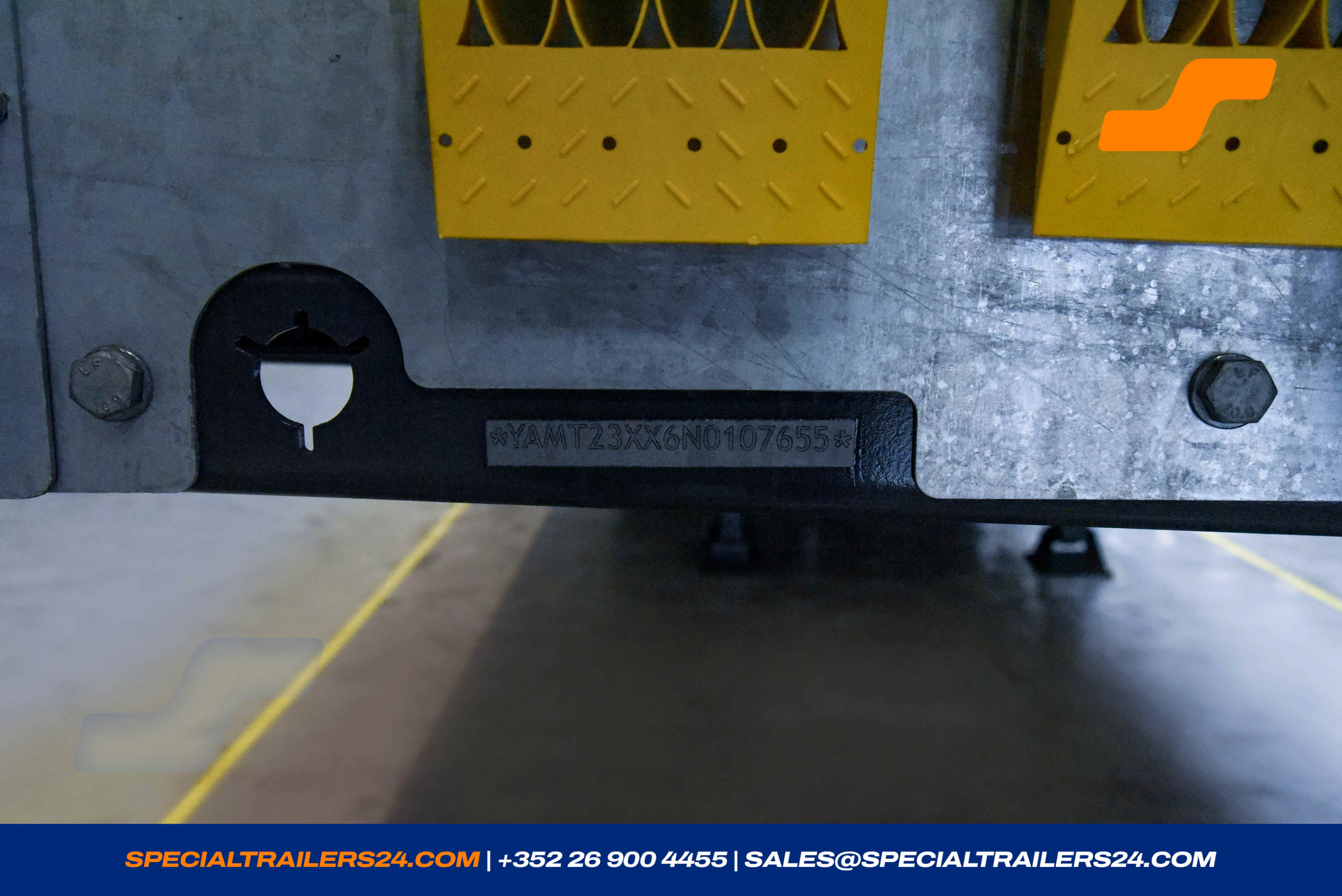

- 2 wheel chocks with carrier.
- 2 king-pin.

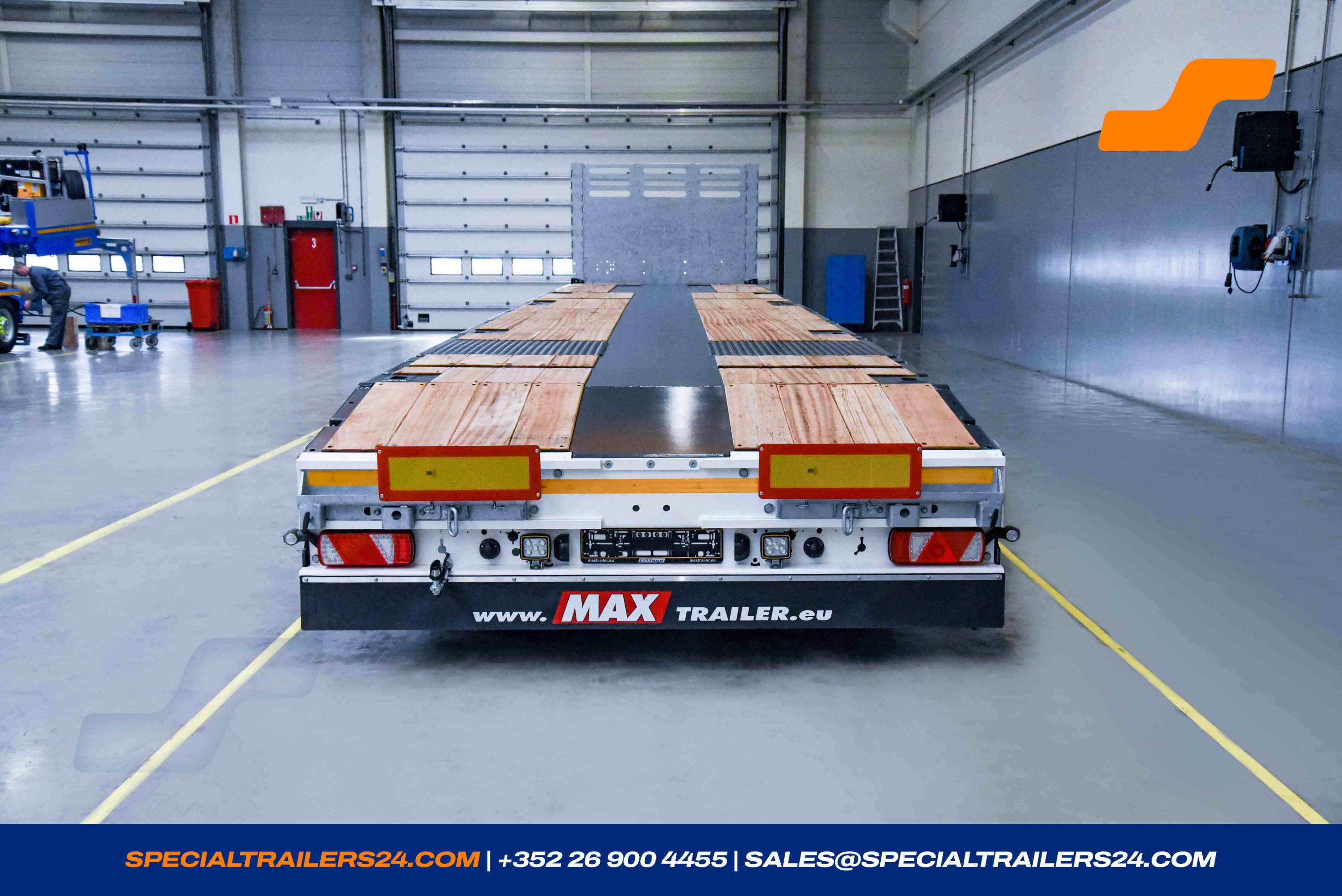

- Yellow reflective tape according to the EU regulation over the entire length and at the rear.

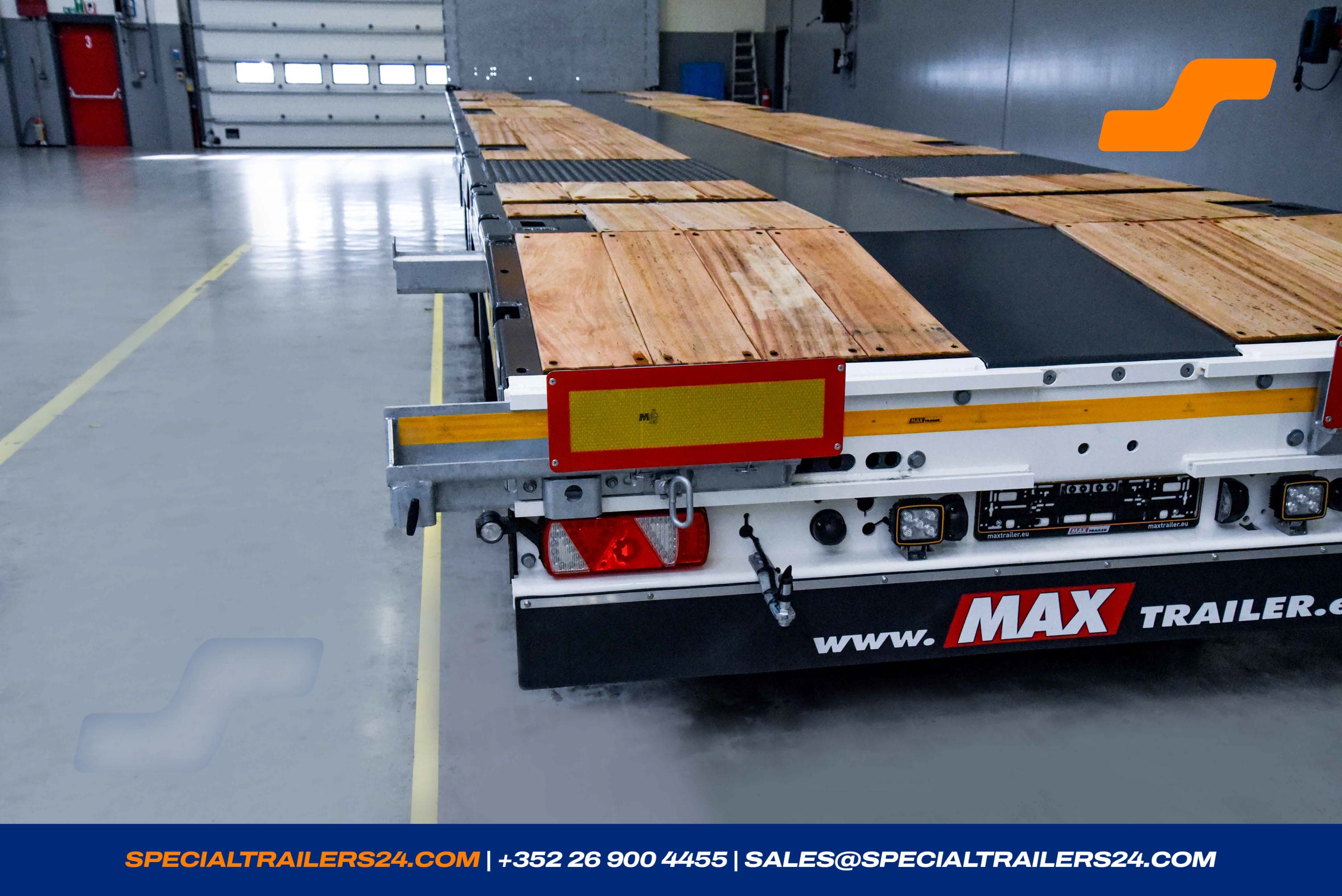

- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.
- Loading area with hardwood timber.
- 9 pairs of pockets for stakes ± 100 x 50 mm in the outer frame of the loading platform. (± 27 kg)
- 1 spare wheel carrier, under the loading platform on the right side.

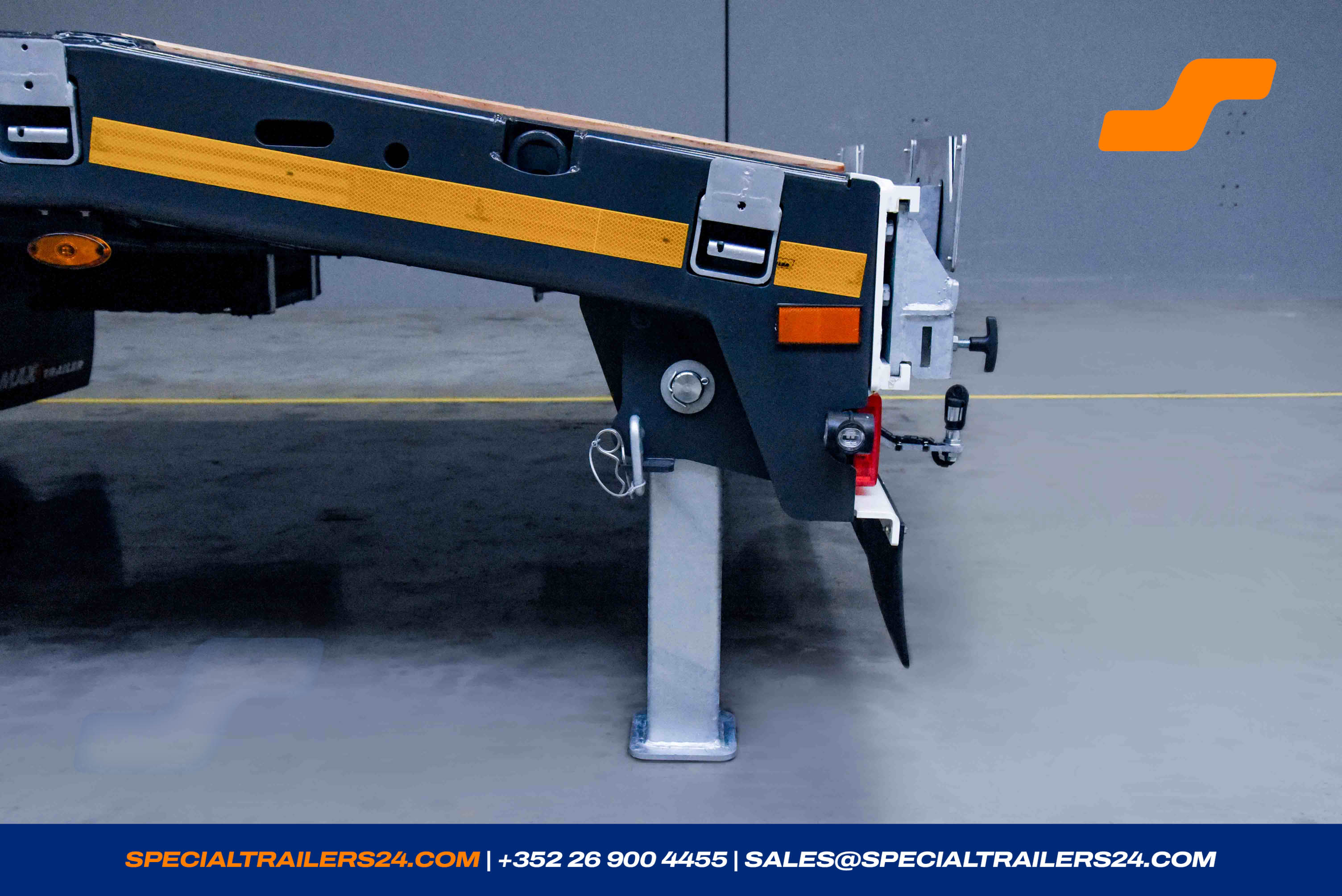

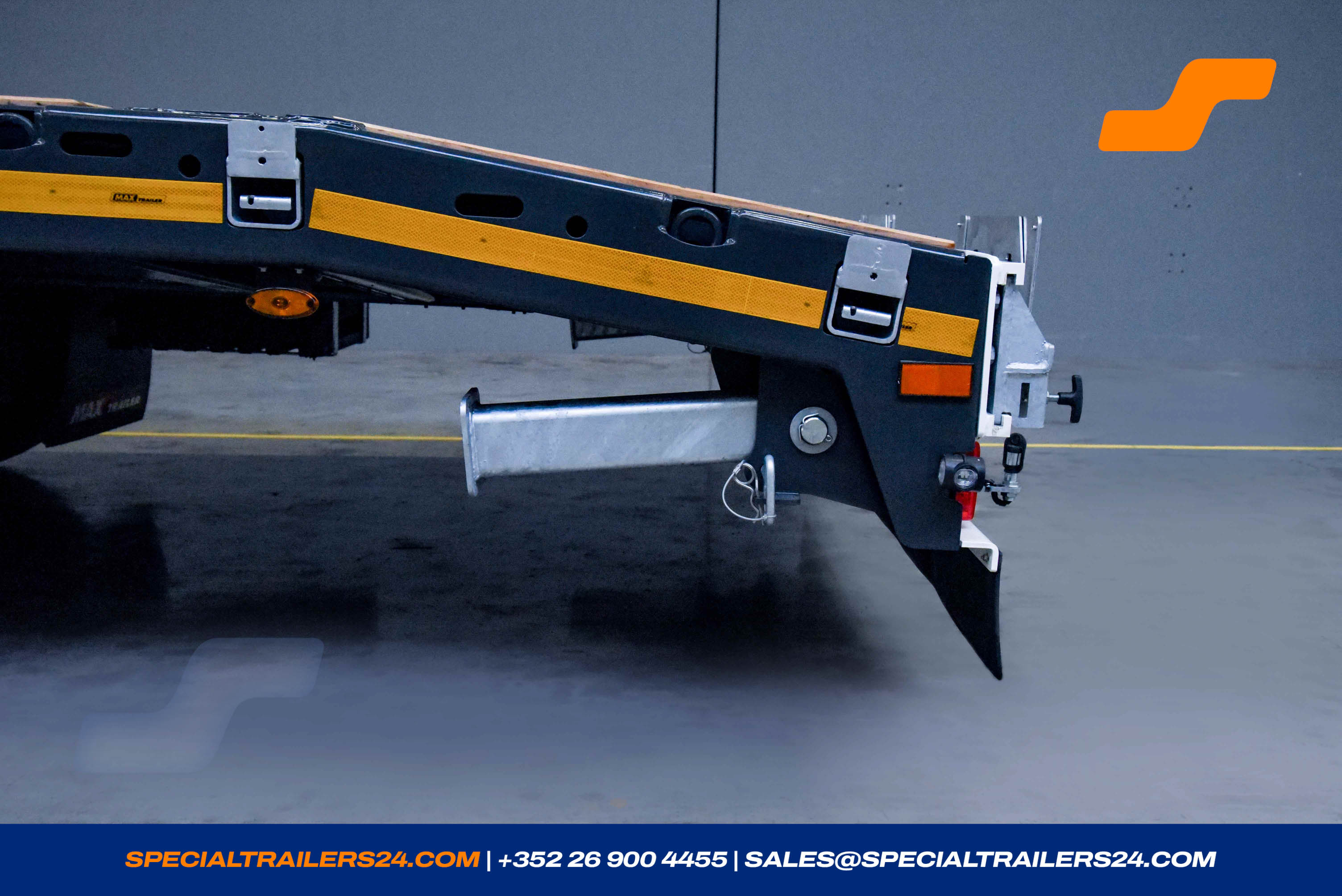

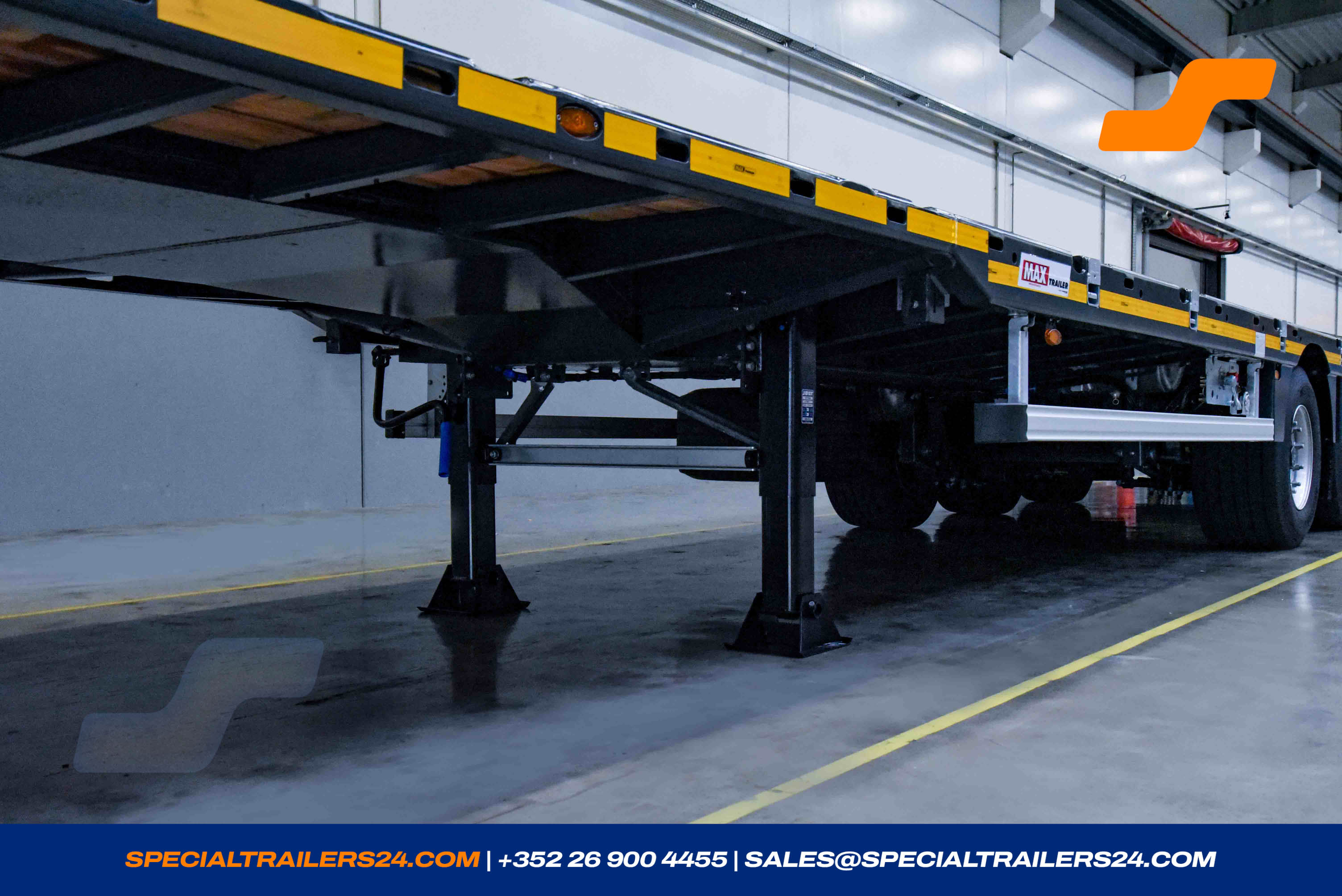

- Galvanised landing gears at the rear under the loading platform.
- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- Manual and description on USB stick .
- Holder for one beacon light at the rear of the trailer.
- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.
-

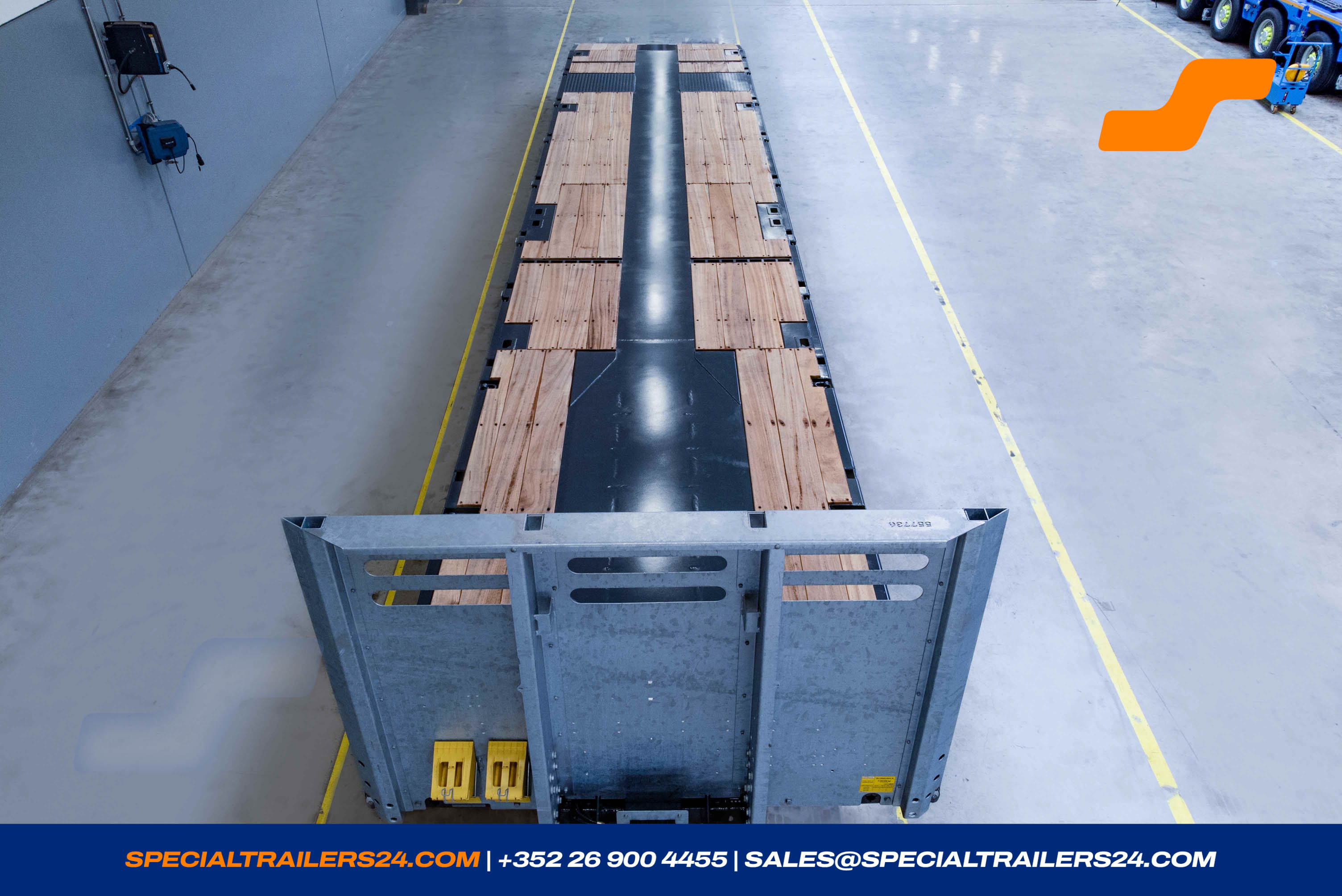

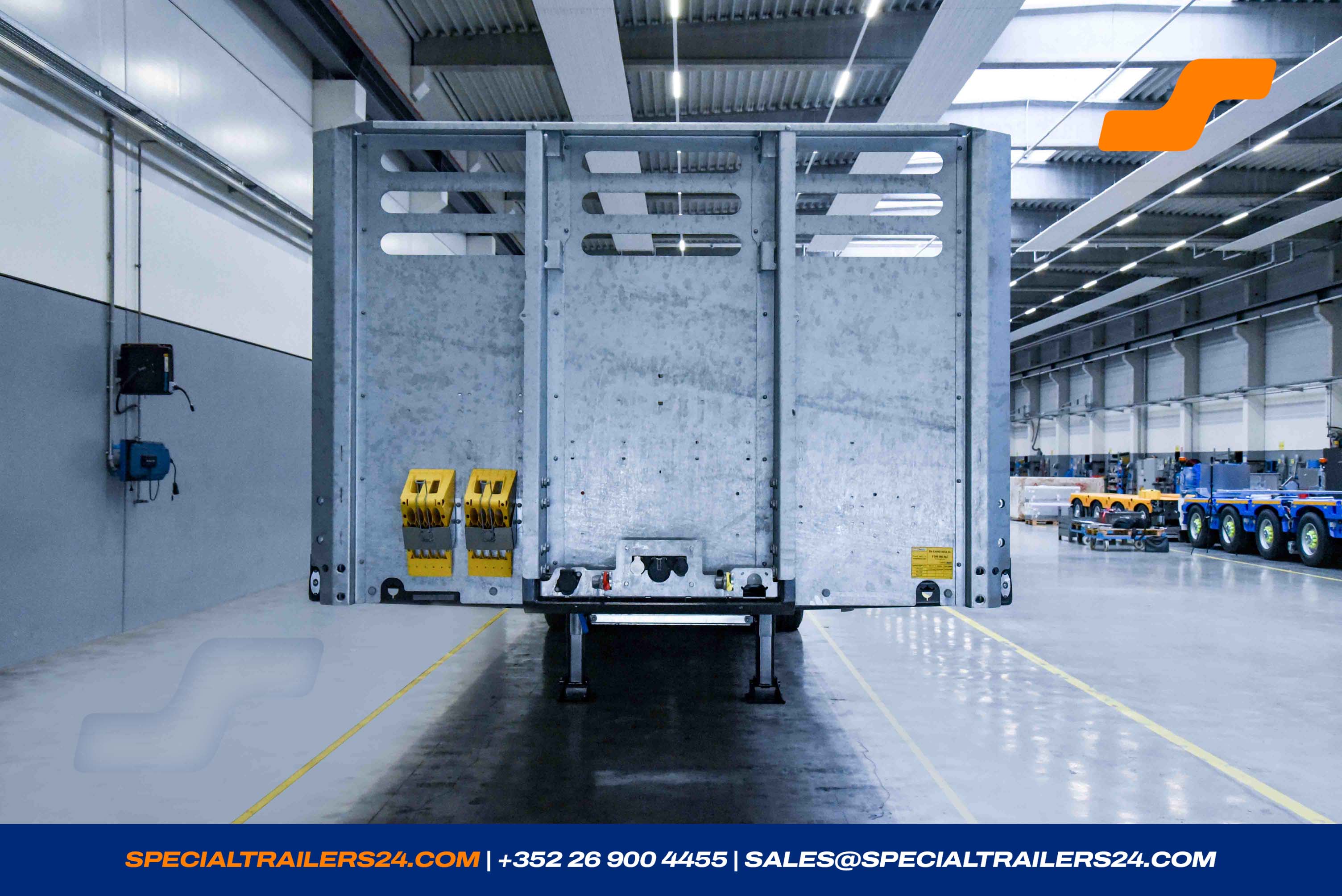

One galvanised steel headboard, height ± 1 600 mm. (± 35 kg)
EN12642-XL - 6 pairs of containerpockets incorporated into the loading platform for 1 x 20' or 2 x 20' Containers or 1 x 40' Containers. (± 90 kg)
- 3 pairs rows of stake pockets in the loading platform for stakes 100 x 50 mm. (± 95kg)

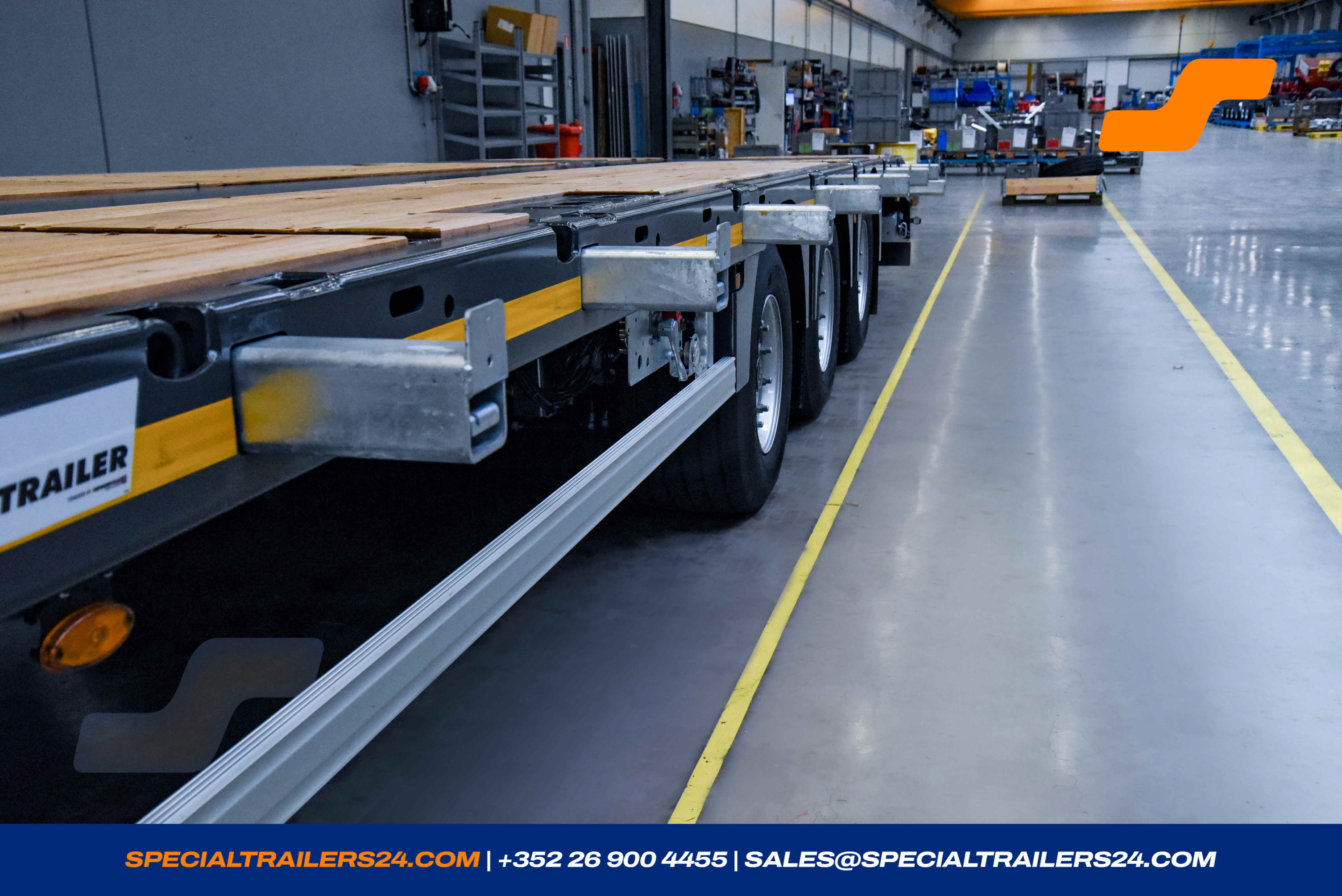

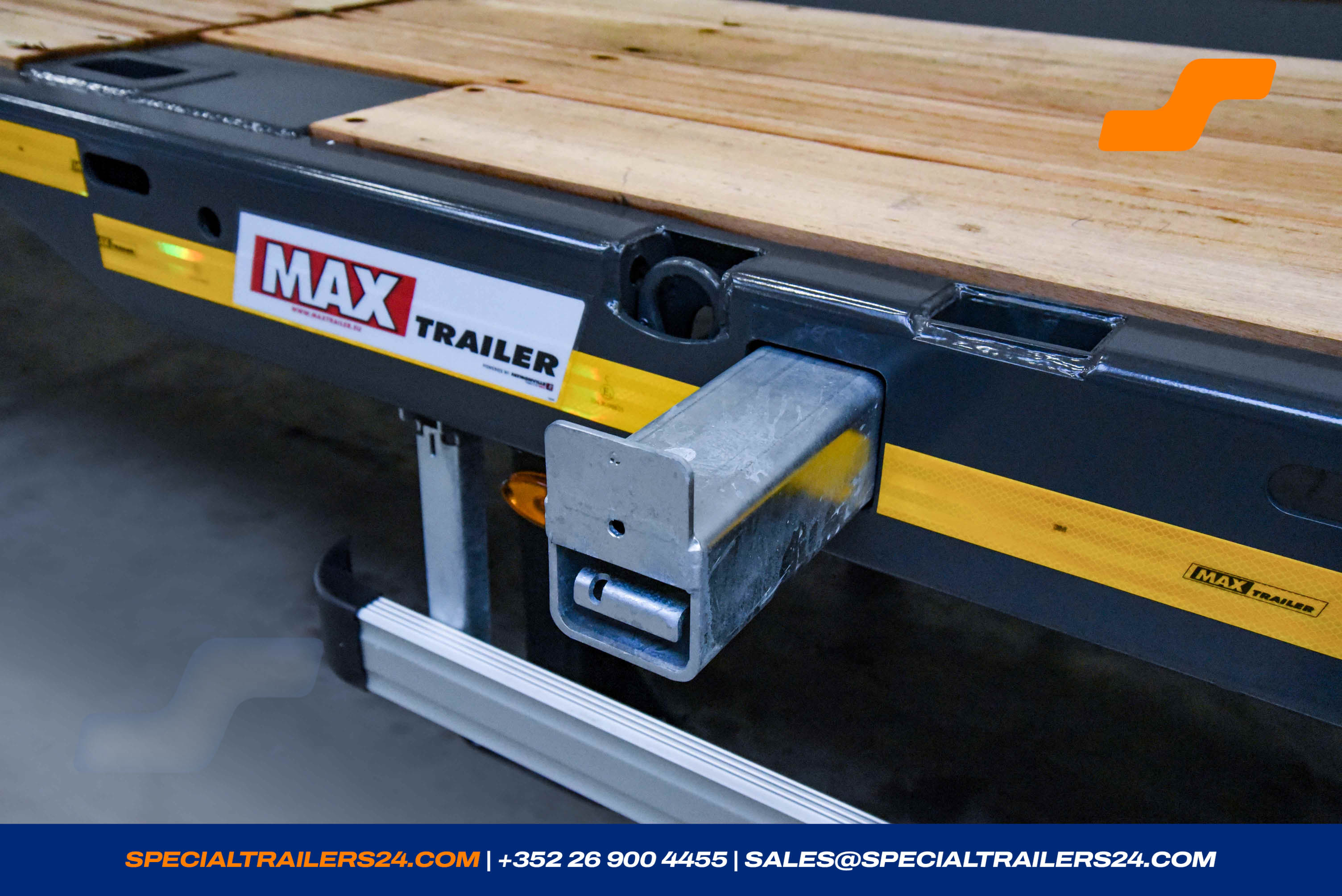

- Galvanised outriggers, extendable up to ± 230 mm per side (± 262 kg).

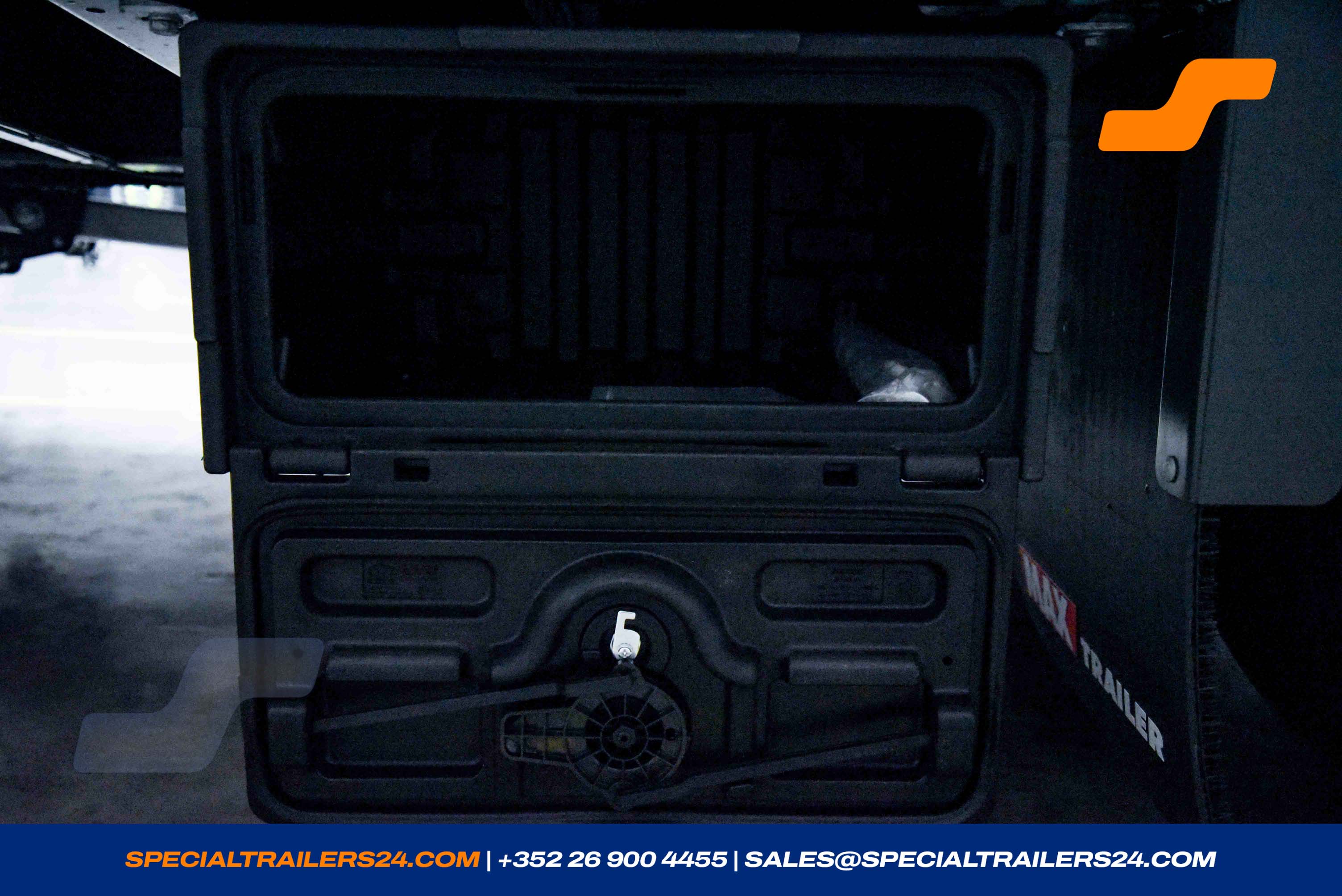

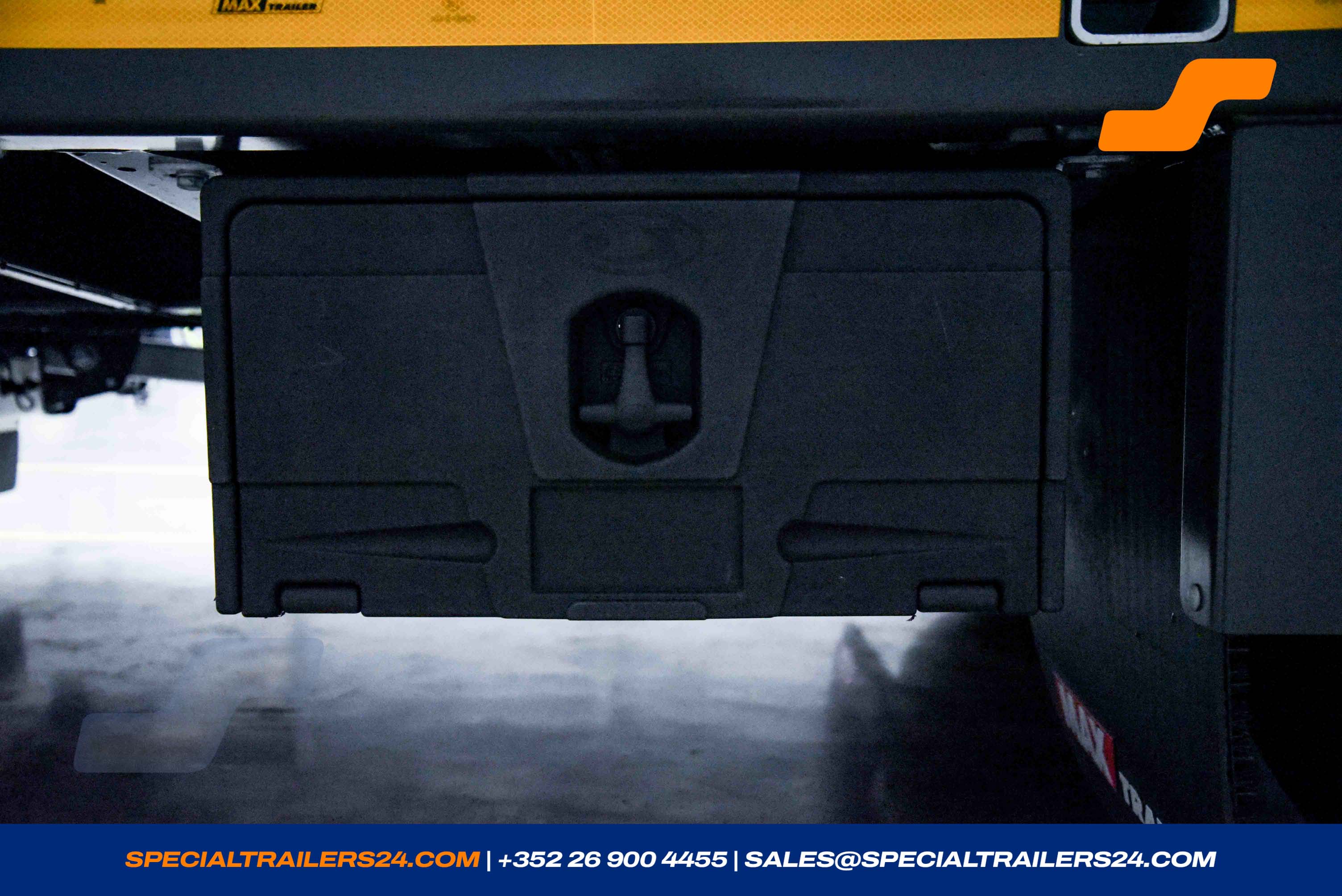

- One lockable tool-box INOX 600 X 350 X 600 under the loading platform in driving direction on the left side. (± 36kg)
- 1 spare wheel 435/50 R19.5 (± 105 kg)

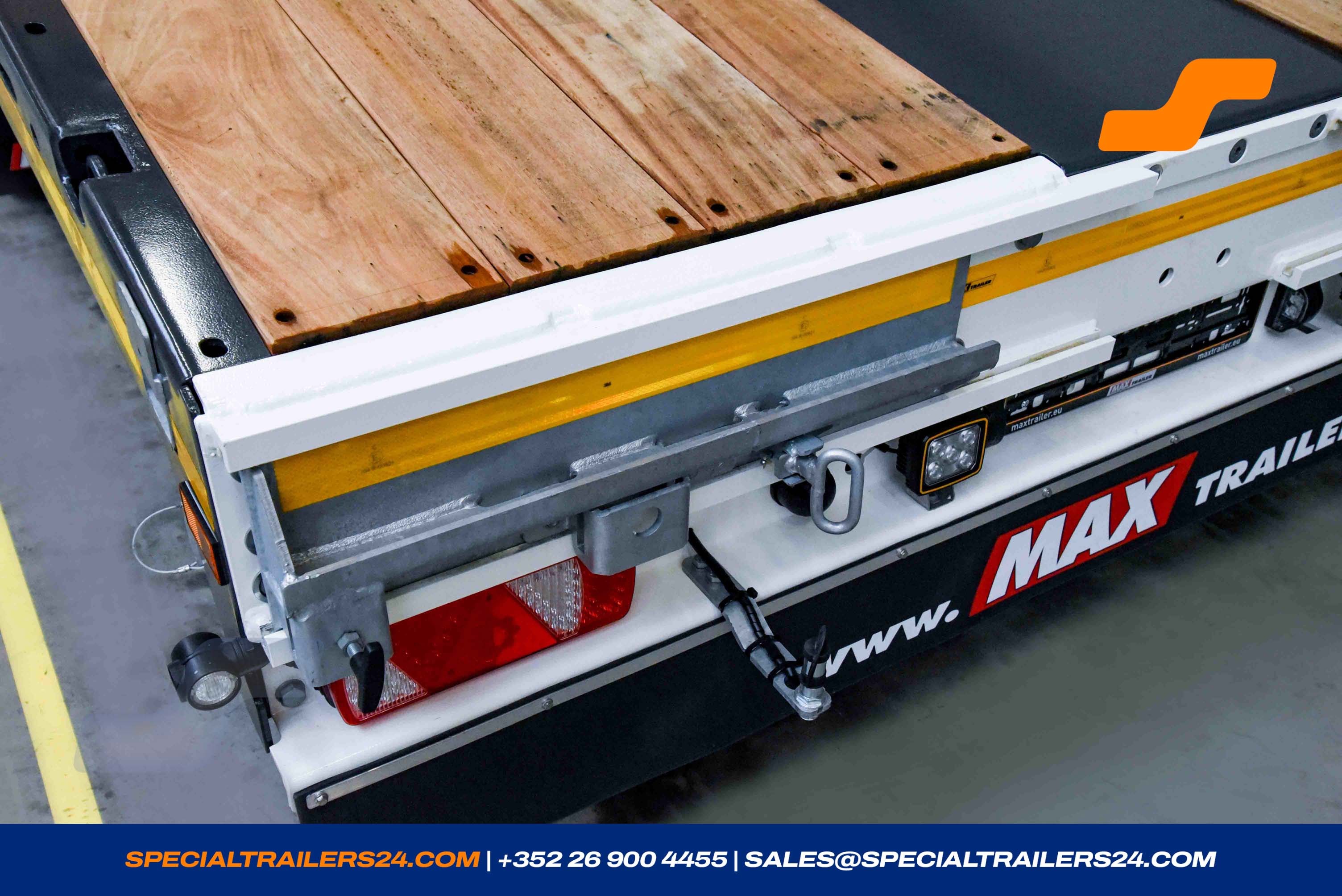

- Profile displaceable as hook-on device for alu-ramps at the rear.
Accessories
1 x Accessories

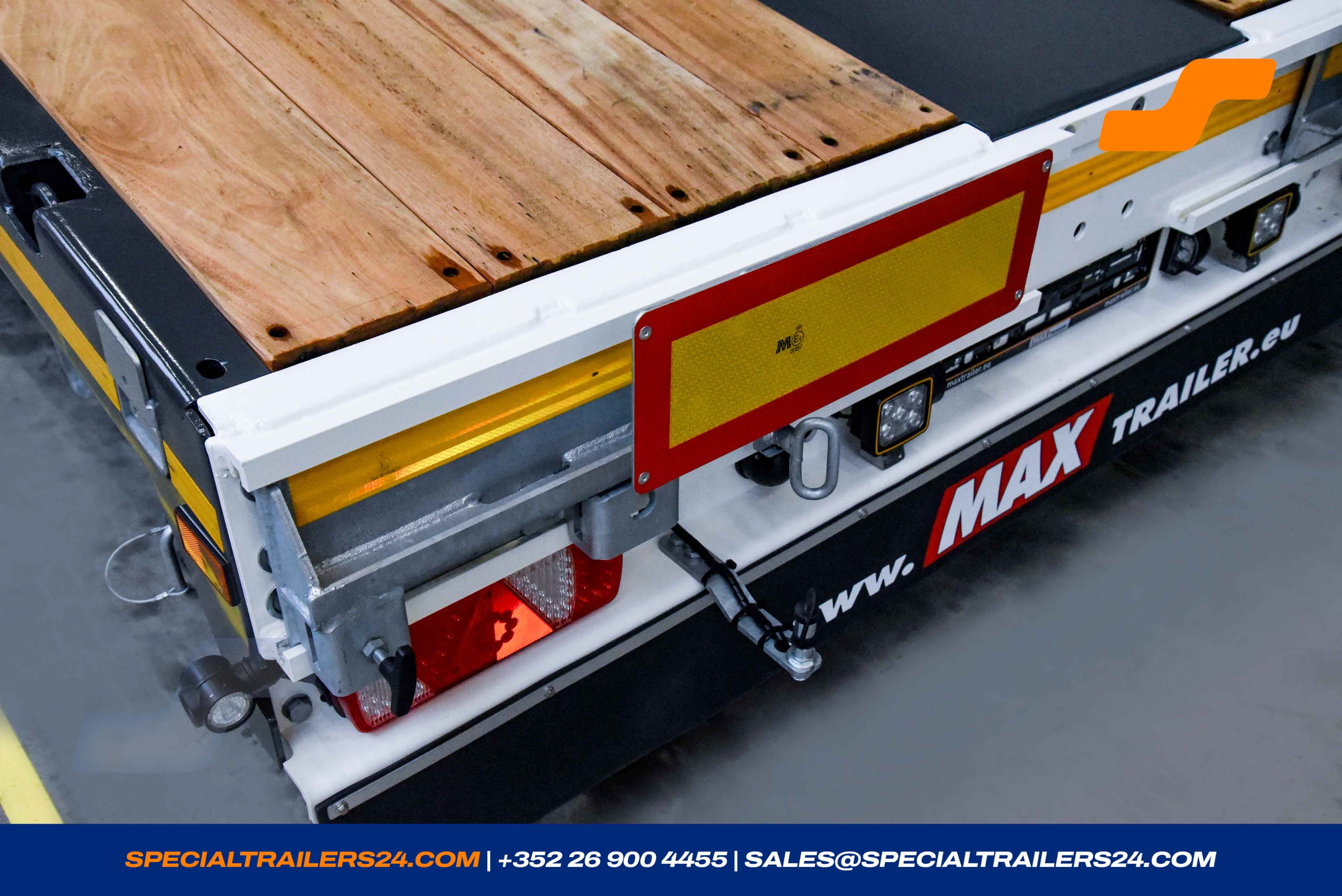

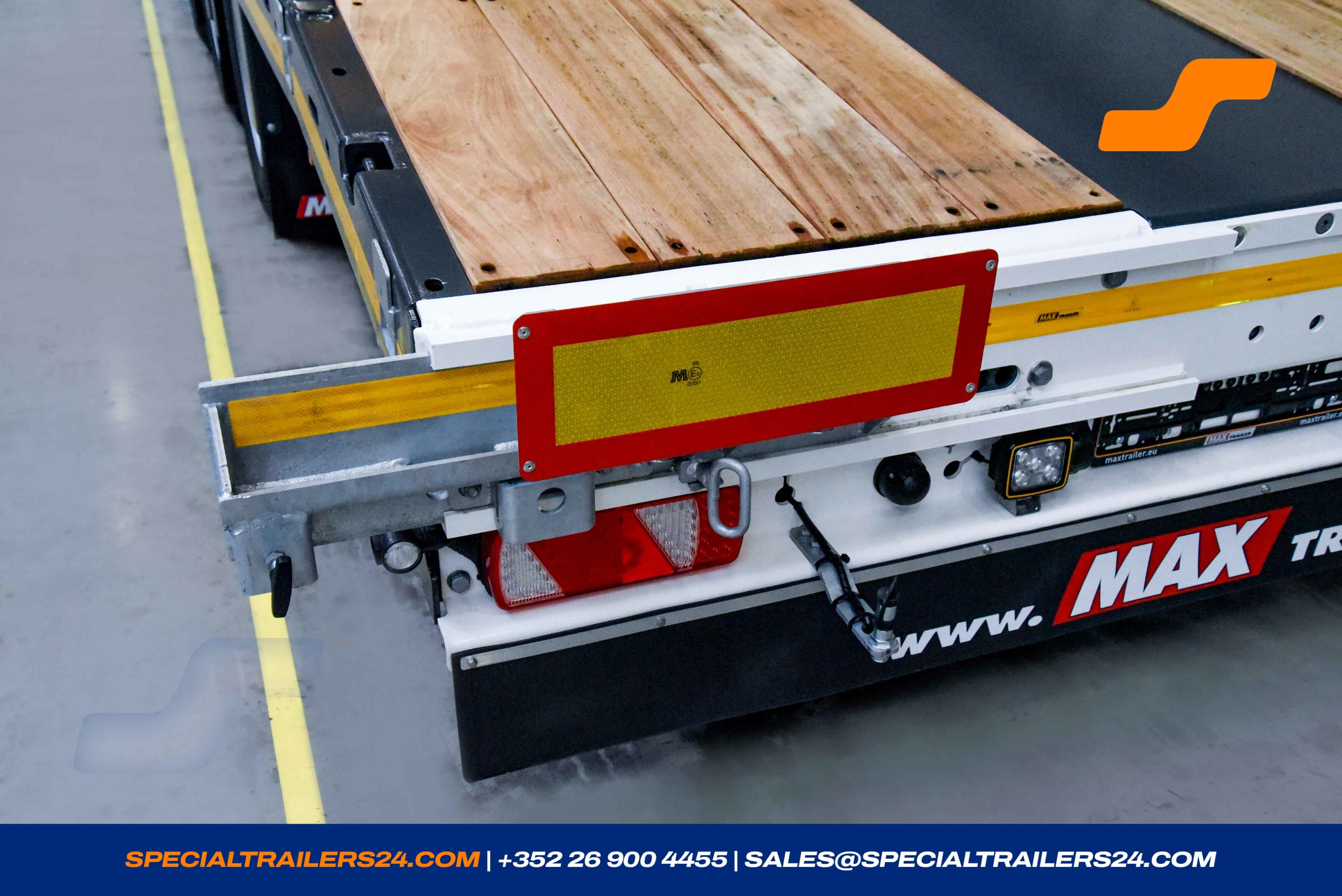

- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- On the warning boards a holder to put a flashing beacon.
- 2 LED- reversing lights at the rear.
- Delivery from a trailer to factory Lentzweiler.
