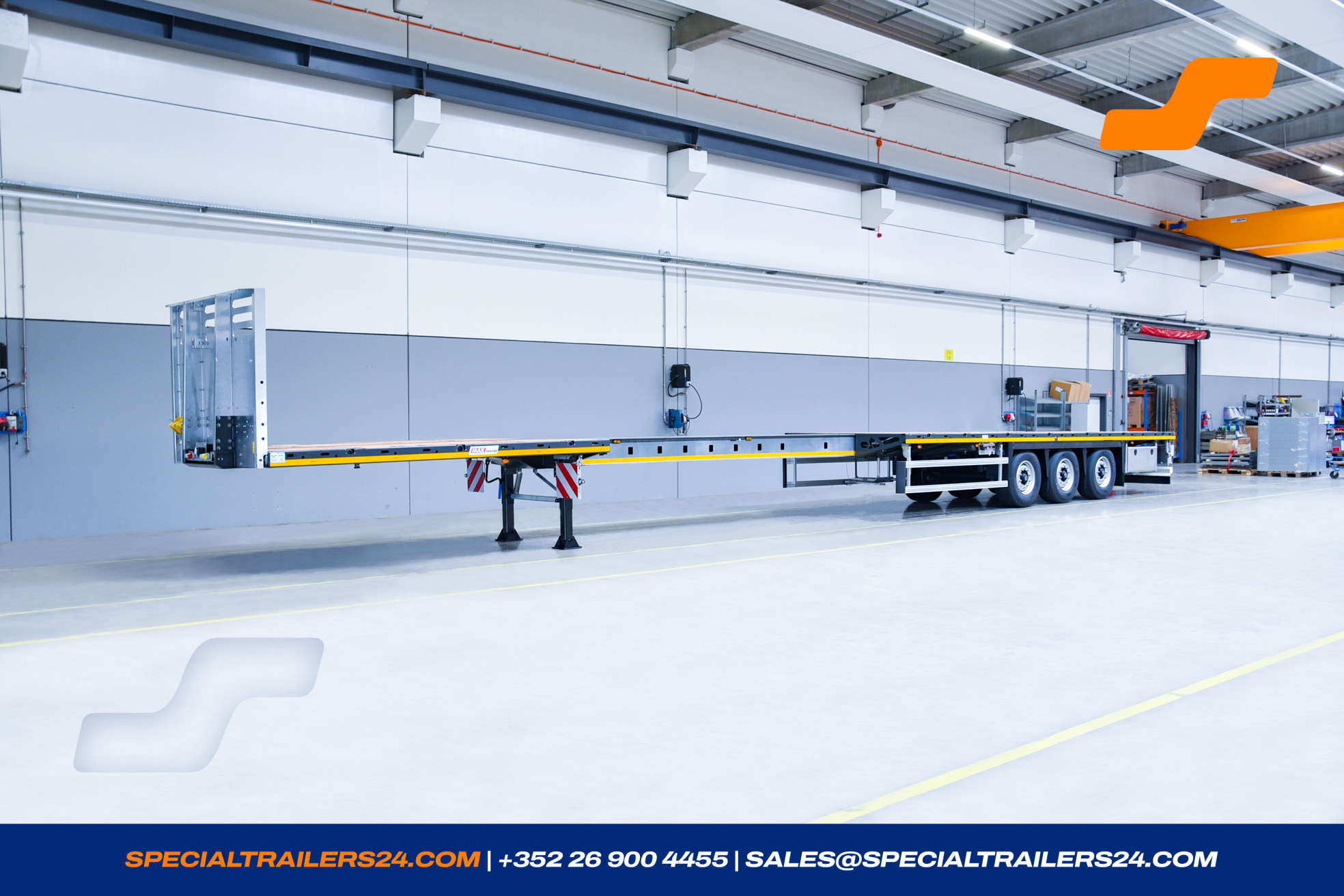

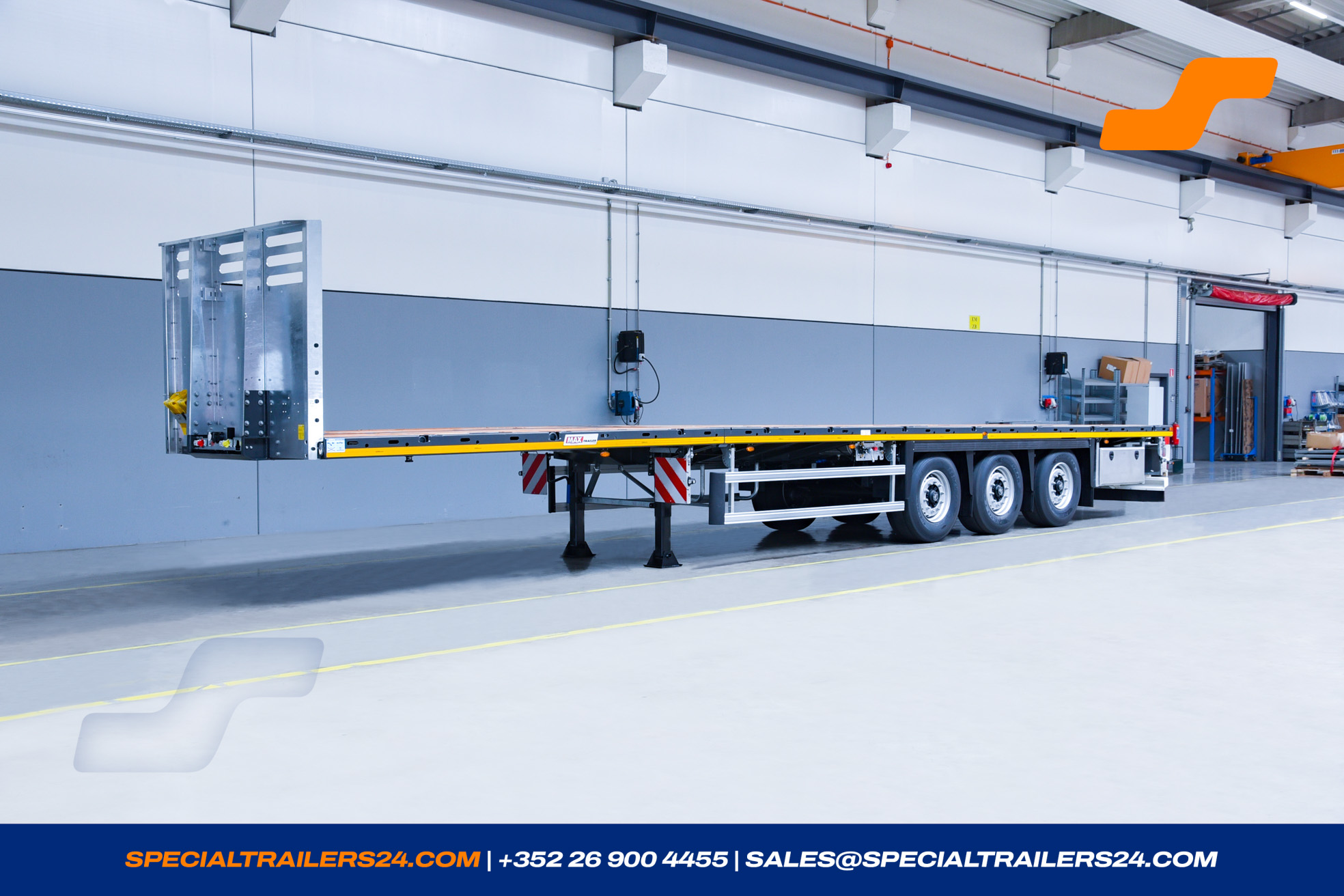

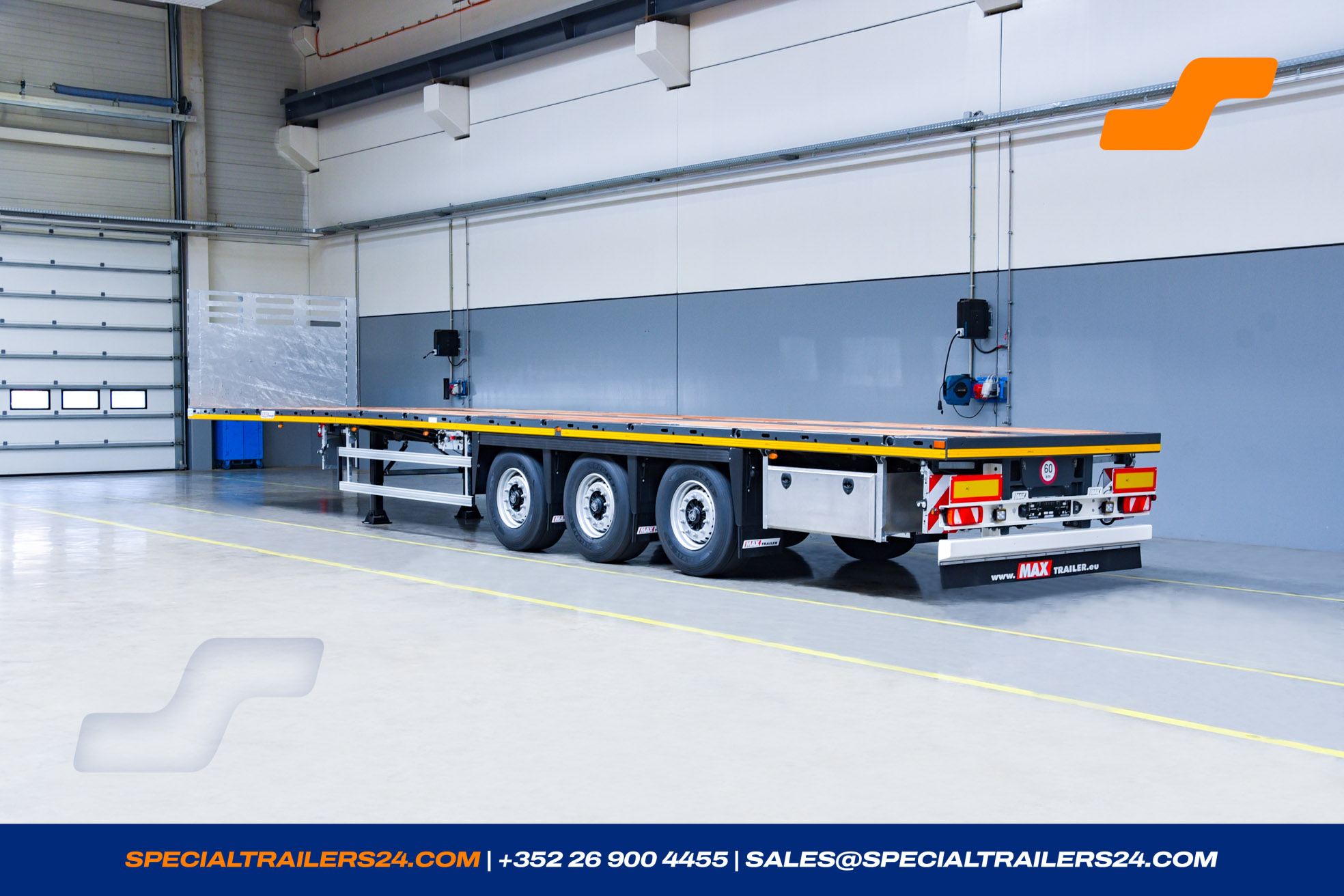

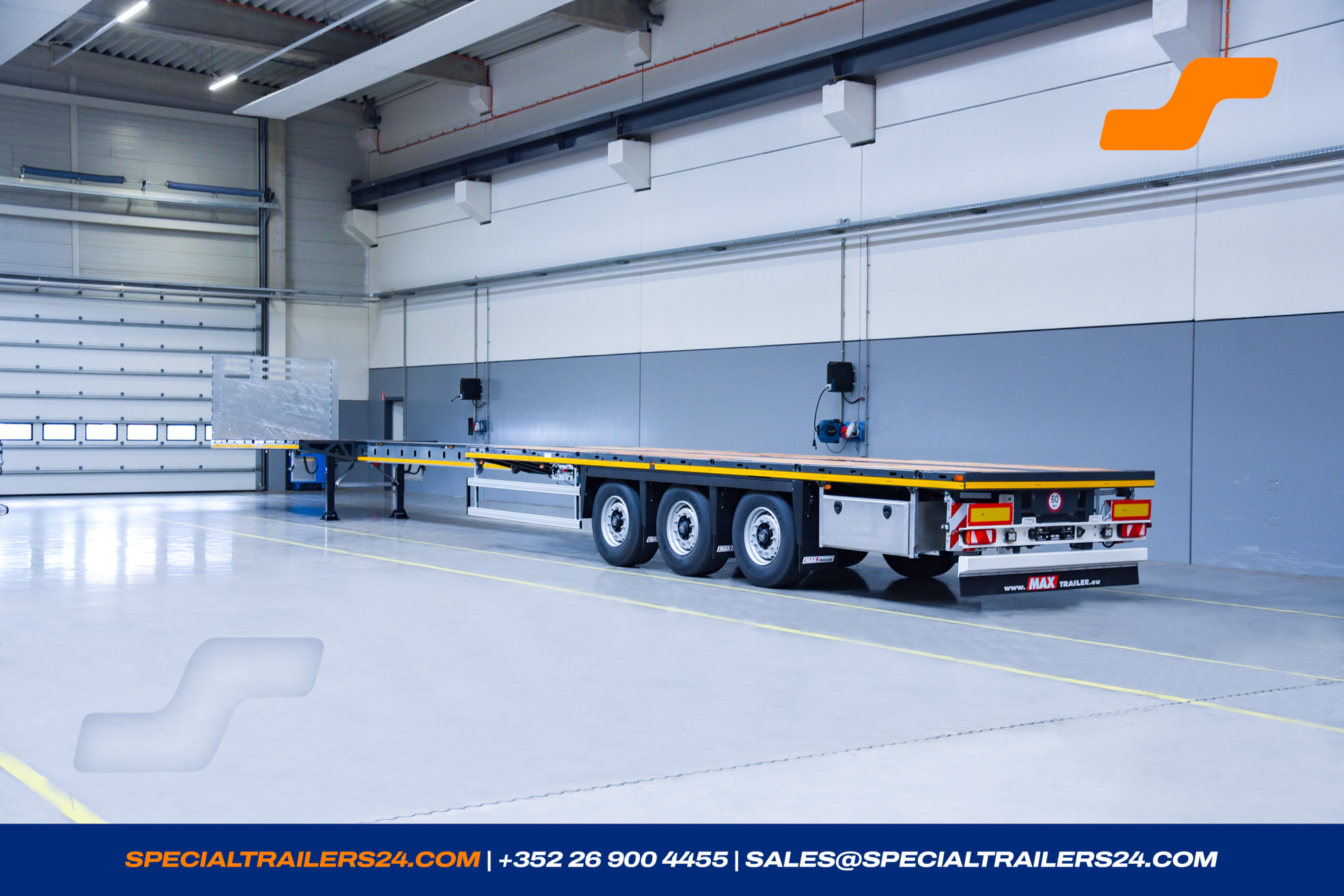

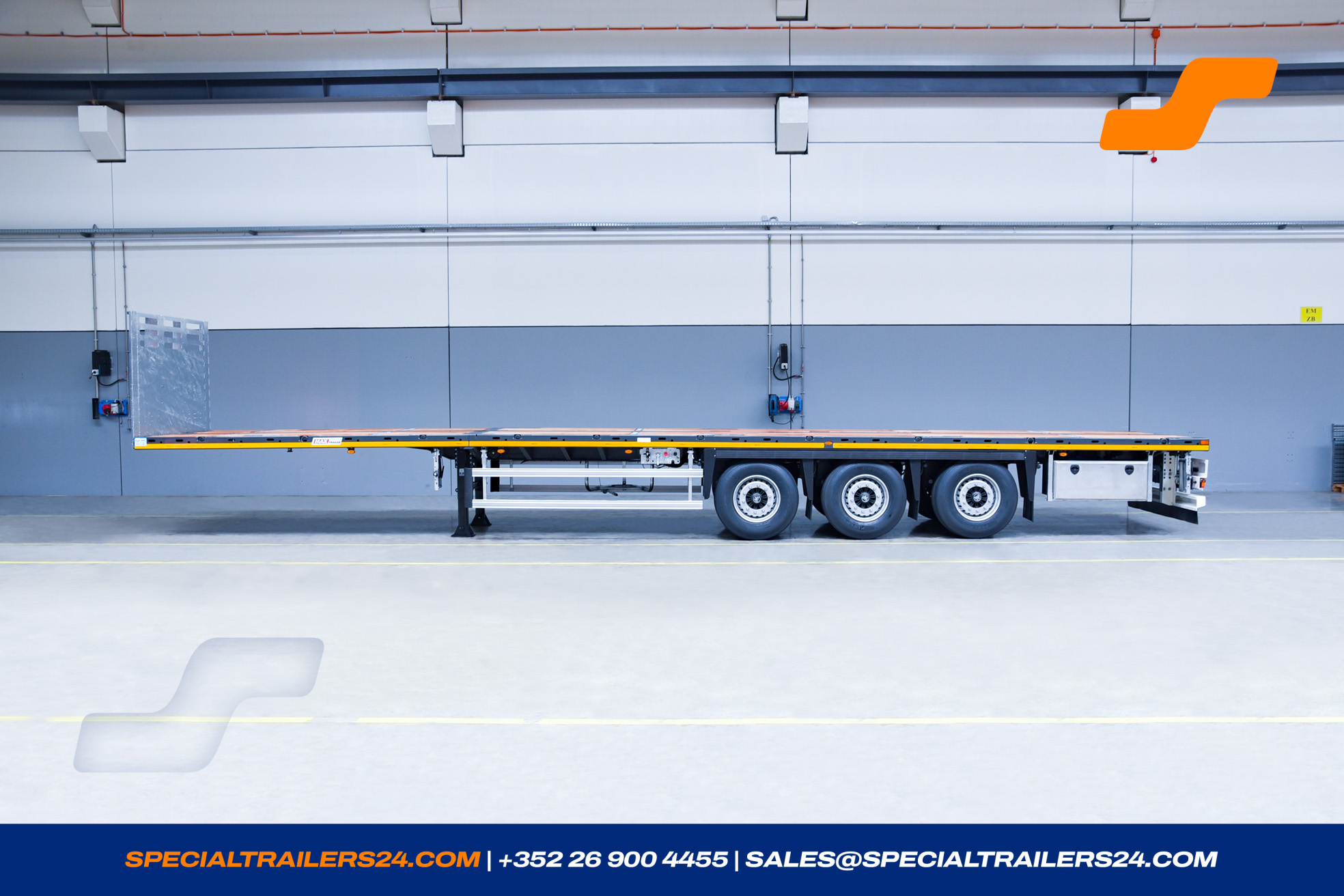

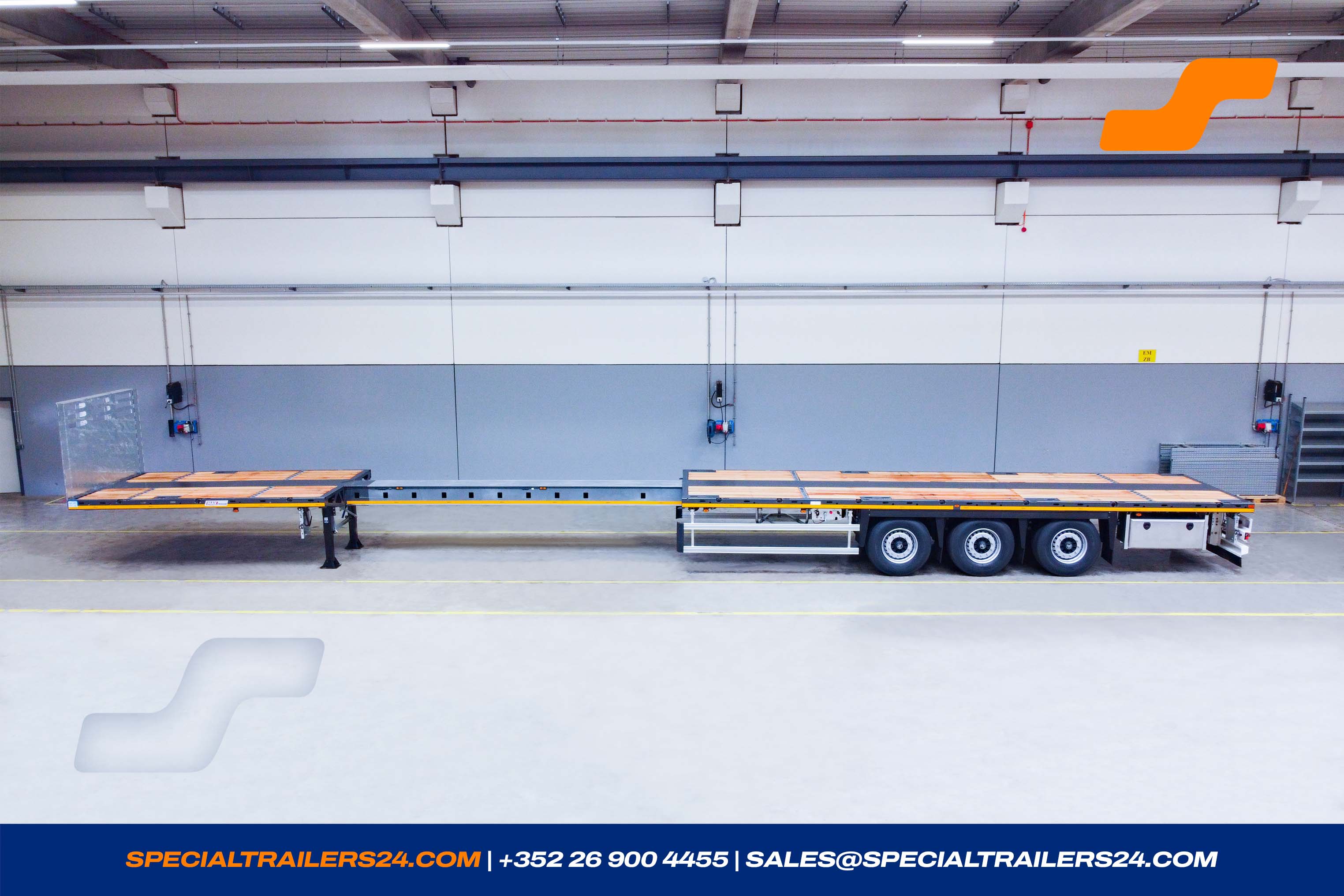

Flatbed trailer
MAX Trailer MAX200
Die Farbe des Fahrzeugs auf dem Foto kann abweichen.
- Chassis number 111070
- Reference MAX200-N-3-13.60-22.5-2.54(Skan)
- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour Farbe wählbar
- Availability 06/2026
- Steering Type Friction
Availability
06/2026
Preis
Auf Anfrage
Location
Landsberg/Lech, Germany
Downloadcenter
Die wichtigsten Unterlagen
Detailinformationen
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 27000 kg |
| Gross weight | 45000 kg |
| Tare weight +- 3% | 7129 kg |
| Payload | 37871 kg |
Dimensions
| Fifth wheel height loaded | 1150->1250 mm |
| Turning circle reversing | 2 300 mm |
| Loading platform length | 13 600 mm |
| Extendable by | No |
| Wheelbase | 1 360/2 150 mm |
| Total width | 2 540 mm |

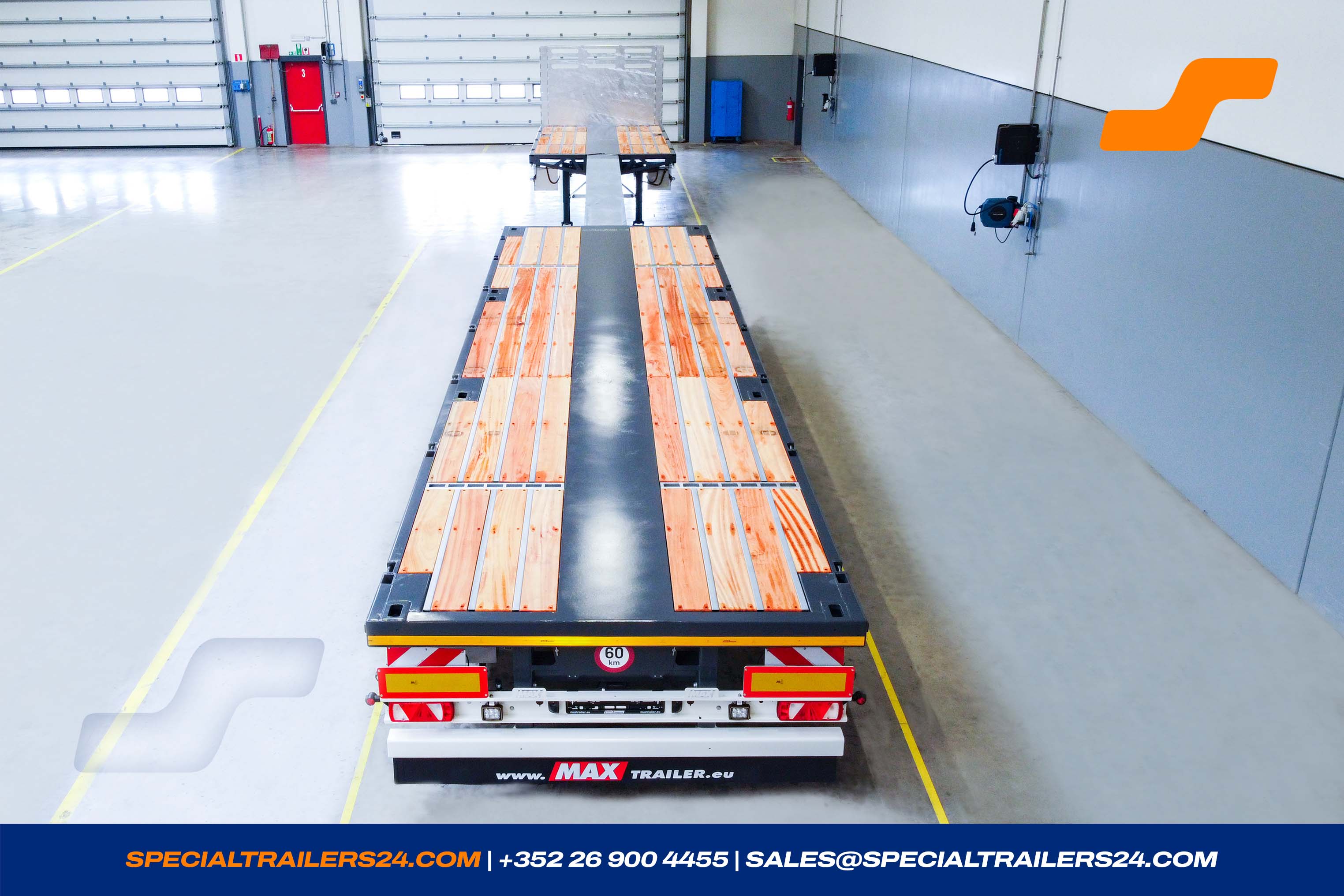

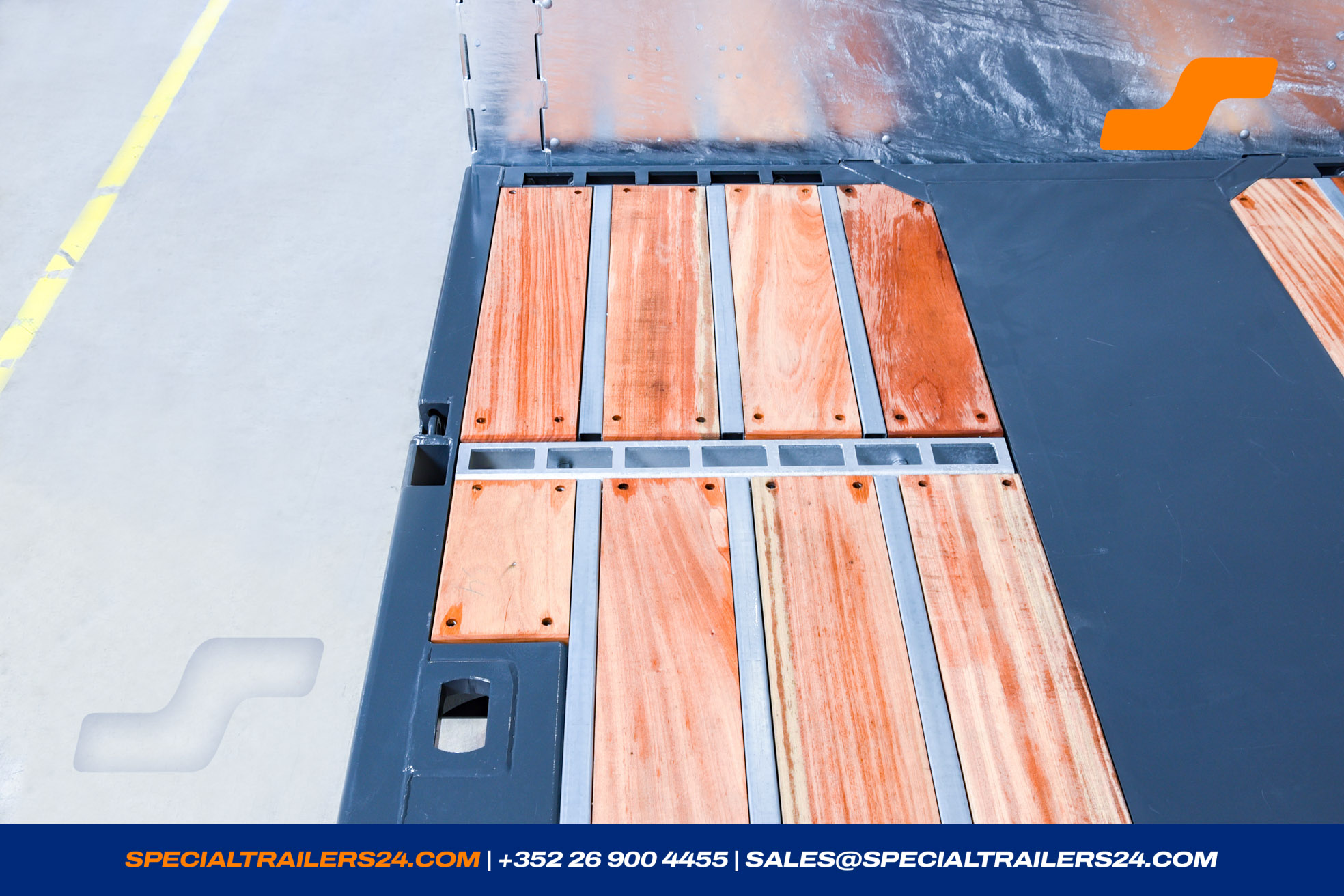

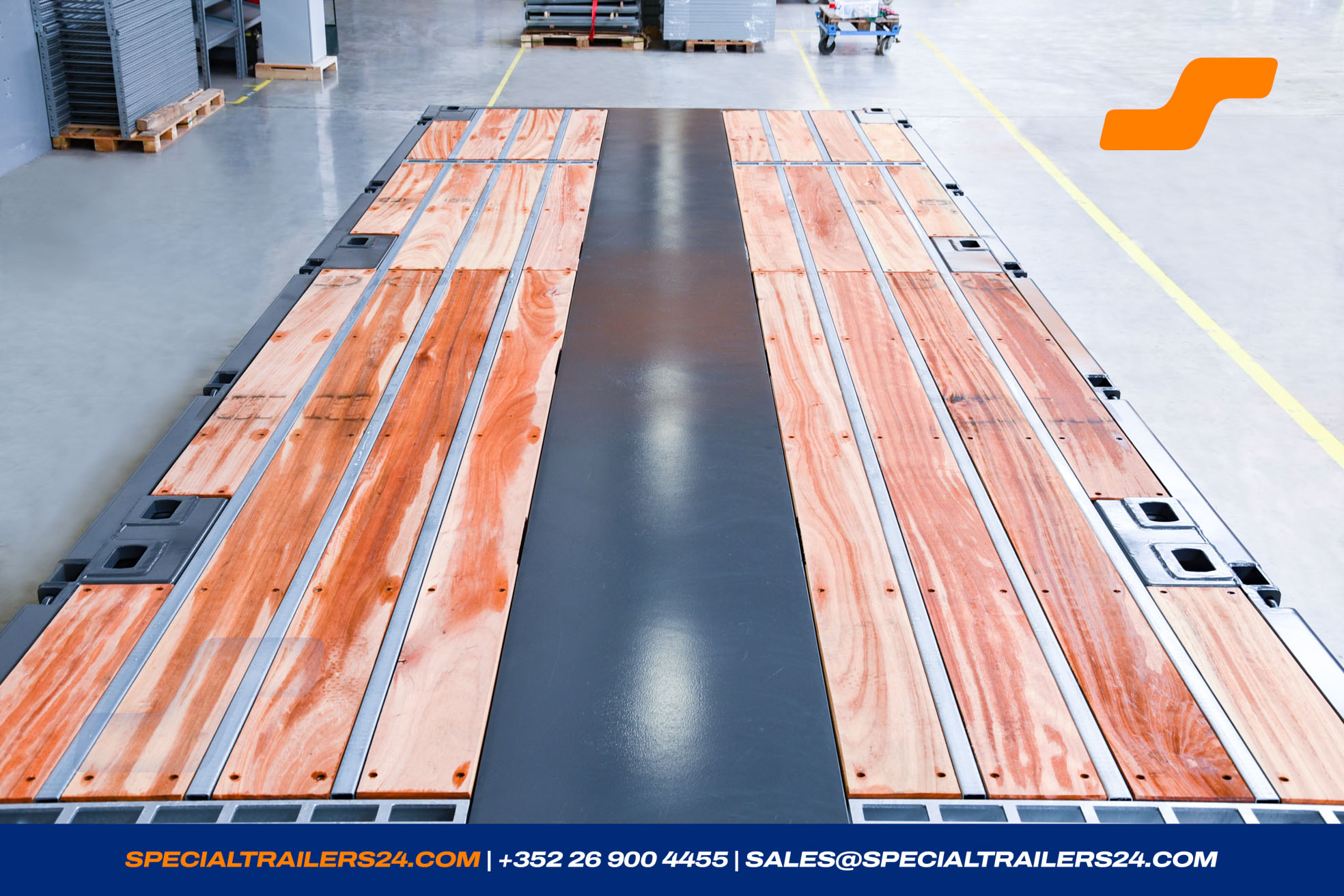

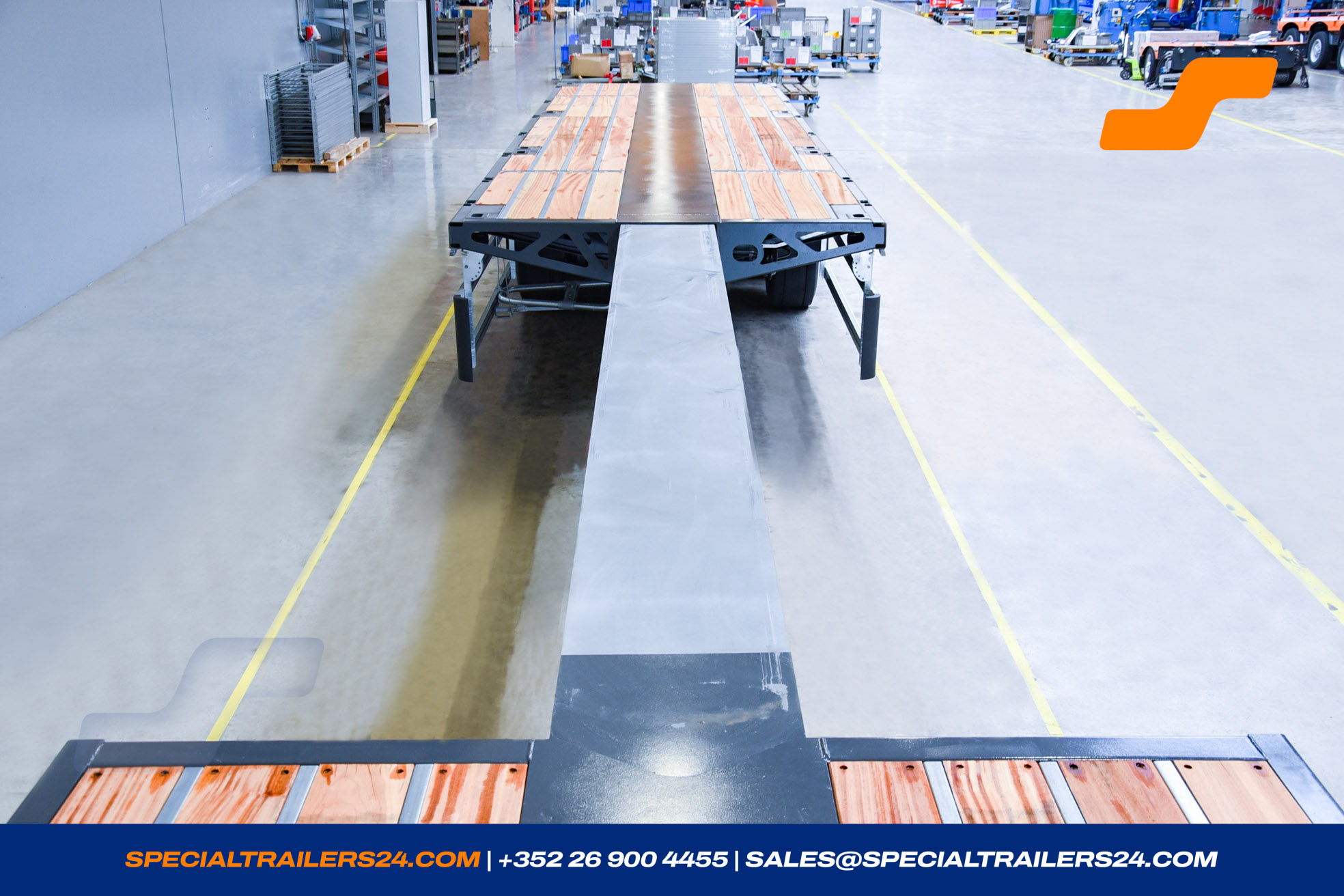

Loading deck

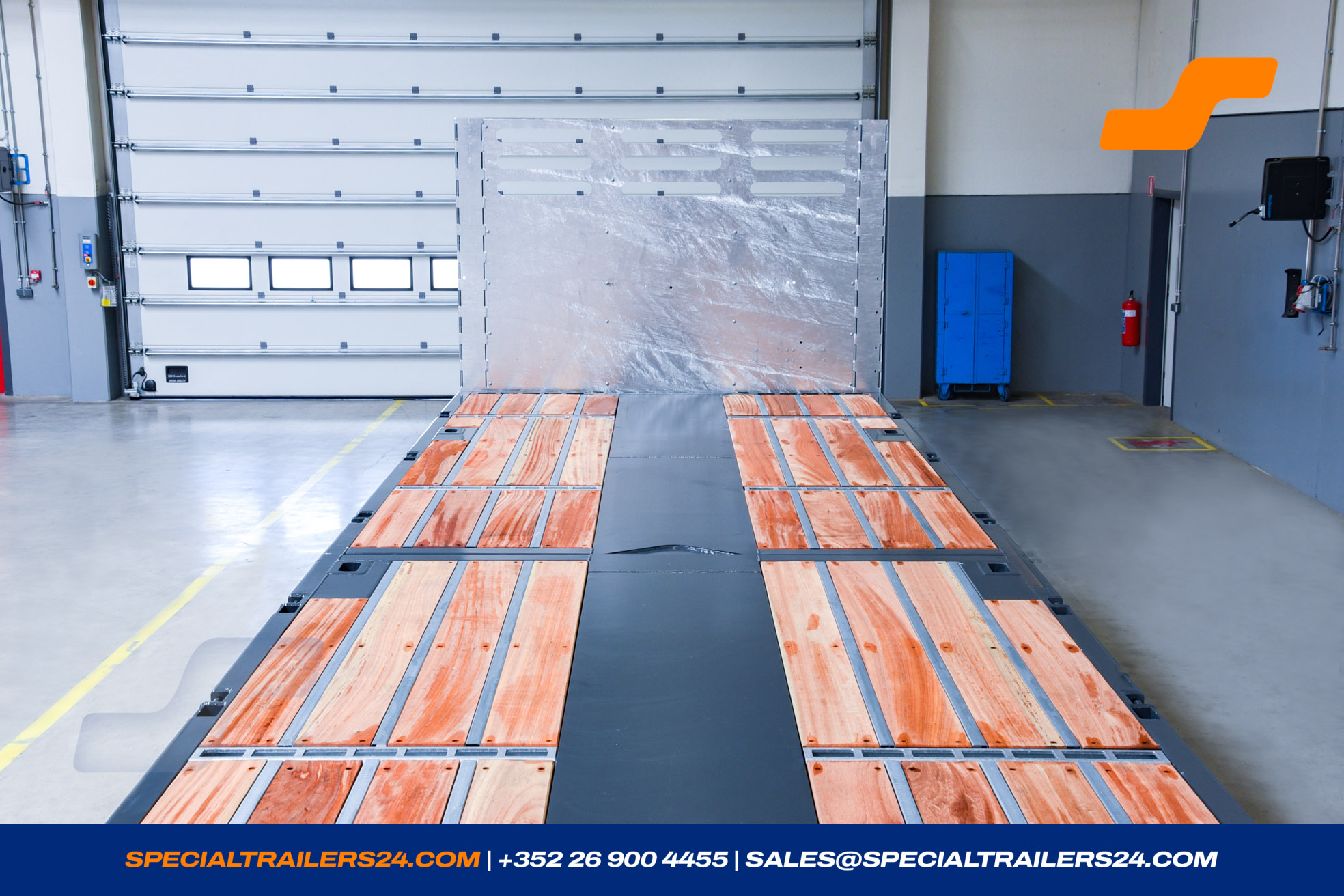

Loading platform
1 x Loading platform
2 pairs of lashing rings inserted in the border frame, hinged outwardss (LC 5 000 daN).
10 pairs of pockets for stakes ca. 100 x 50 mm in the outer frame of the loading platform.
Cutouts in the border frame of the loading area for hooking in tension belts. (LC 2 000 daN).
- 8 pairs of lashing rings inserted in the border frame, hinged outwards (LC 5 000 daN). (± 40 kg)
- 9 pockets for stakes ± 100 x 50 mm in the centre of the loading platform. (± 22 kg)

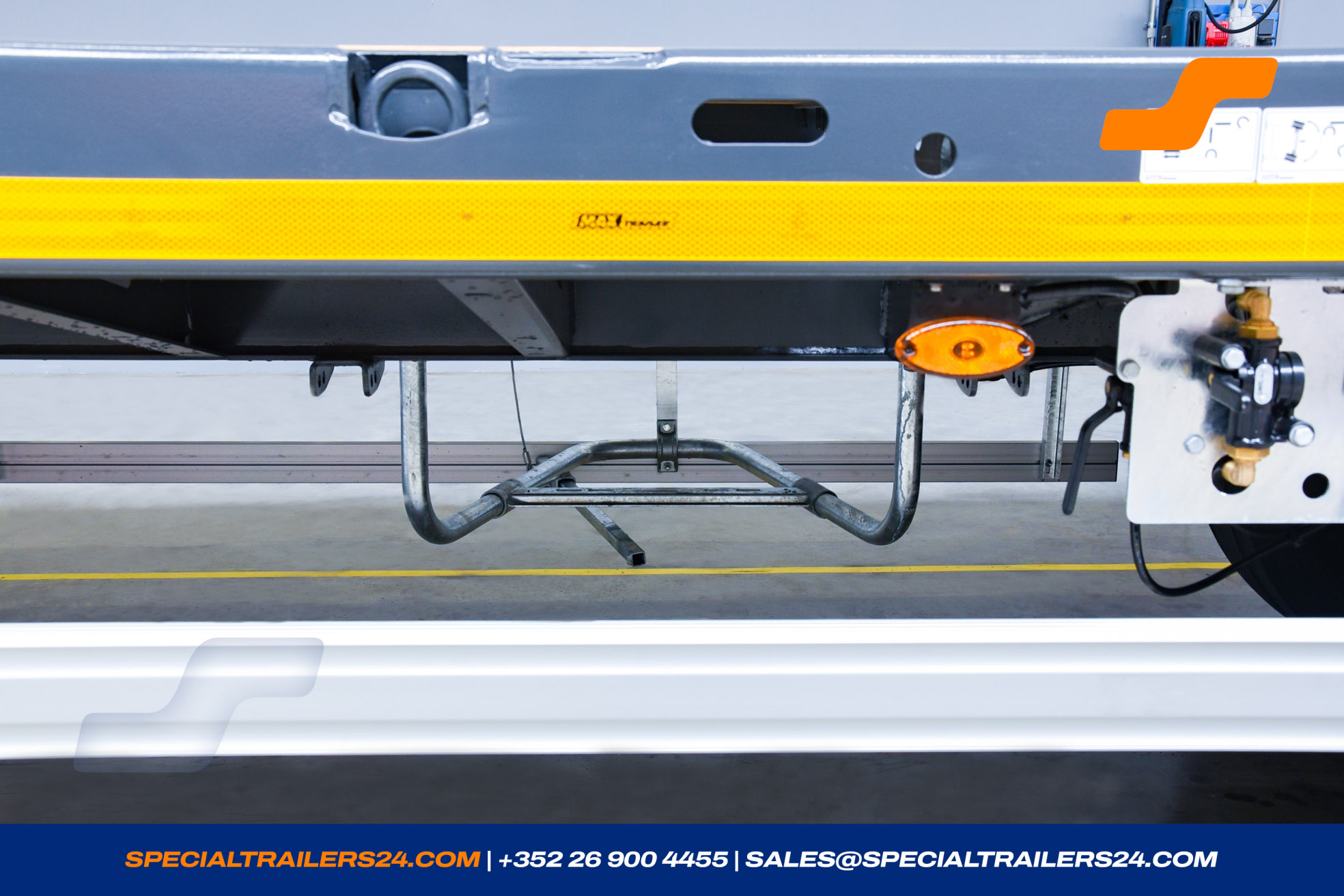

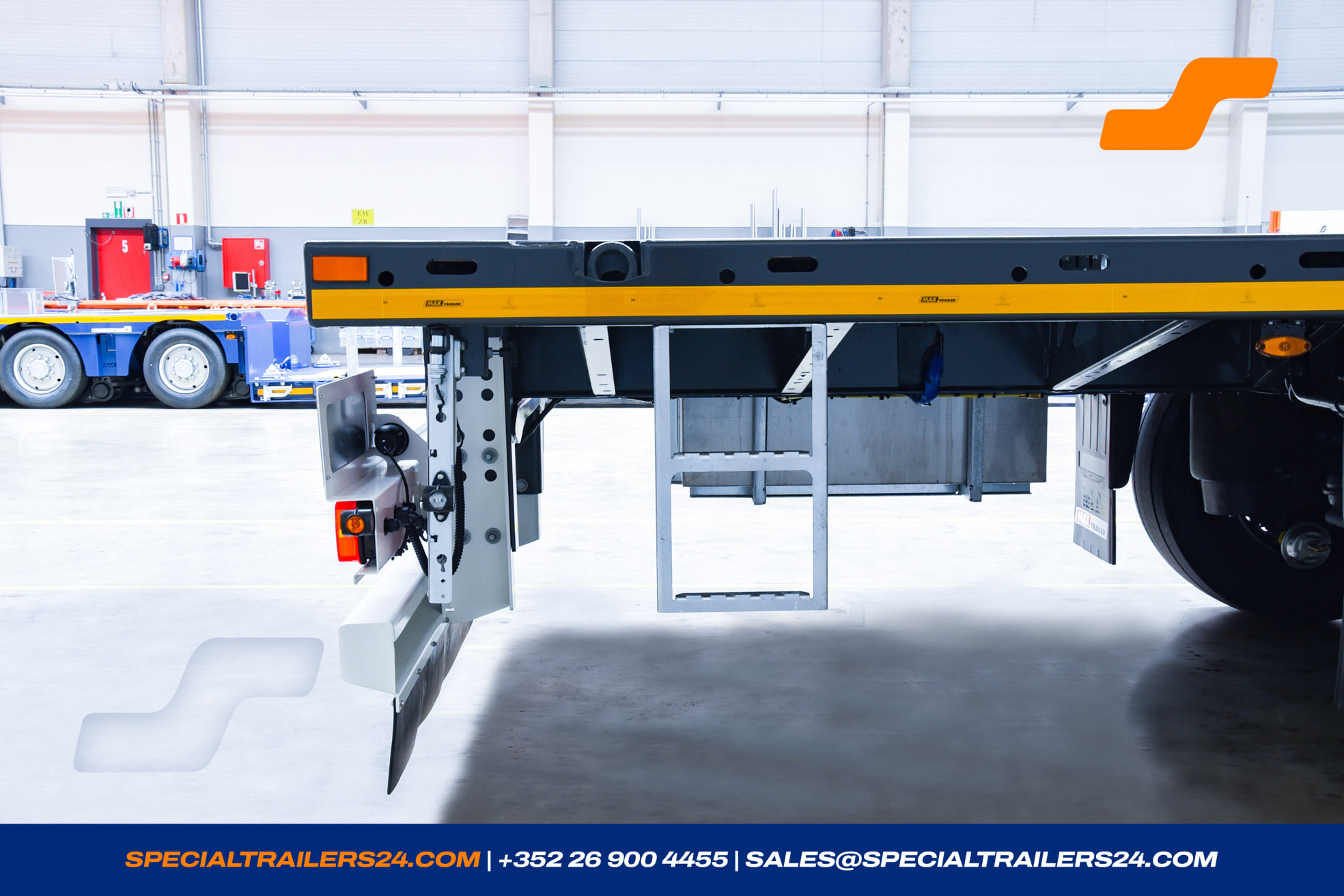

- Access ladder mounted on the left and right in the direction of travel. (± 24 kg)

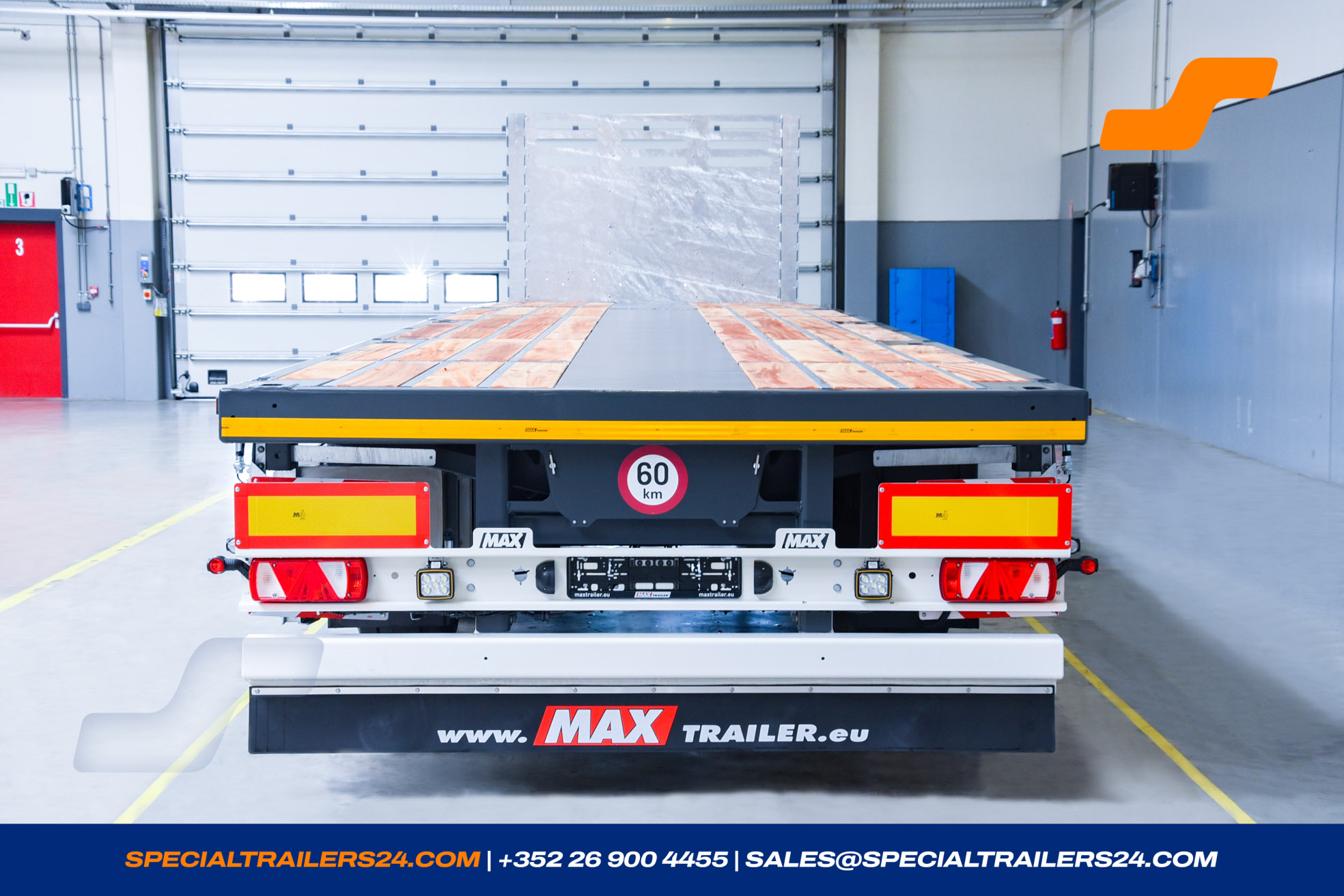

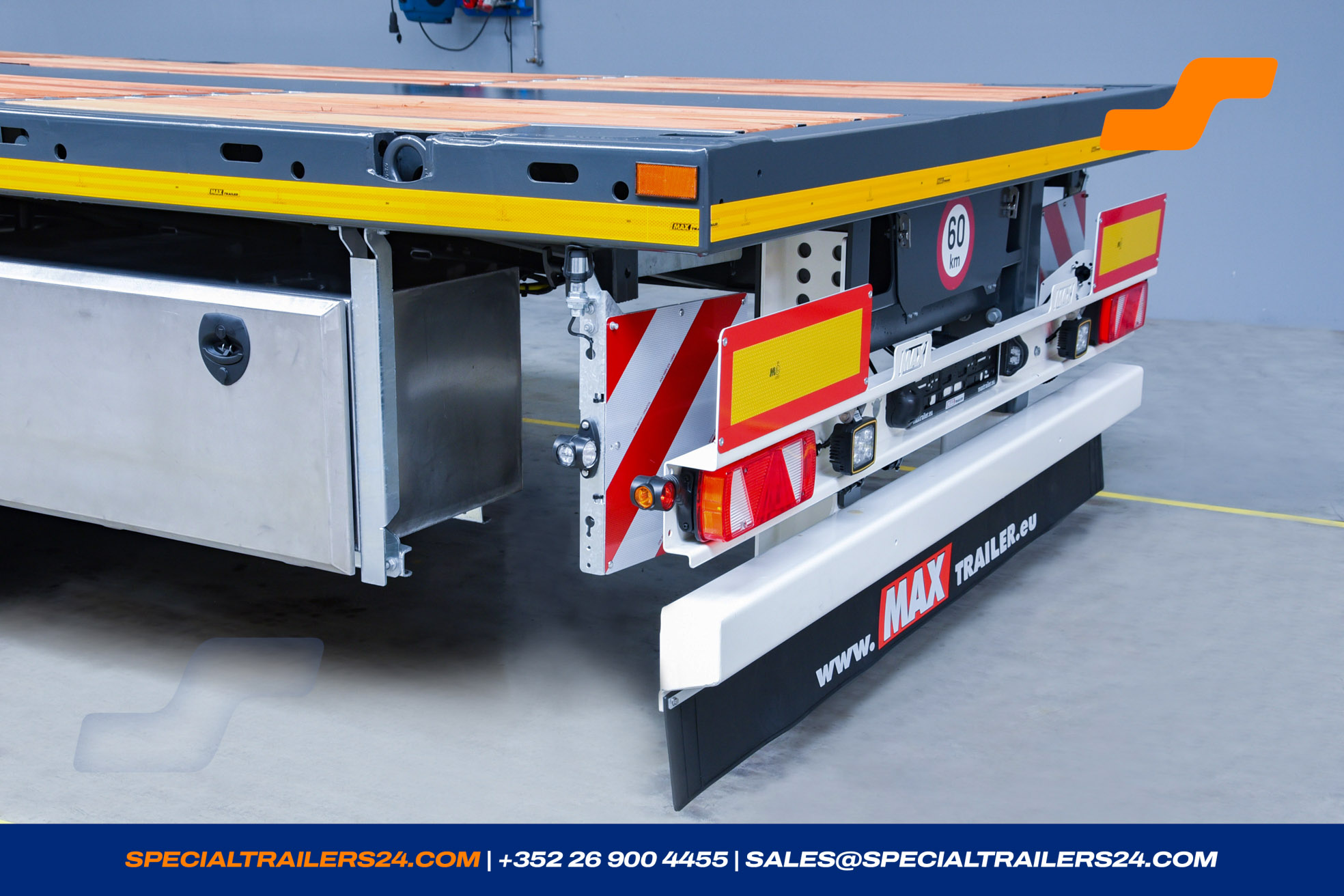

- White reflective tape according to the EU regulation over the entire length, red on the rear.
- 6 pairs of WADER container pockets, incorporated into the loading platform for 1 x 20‘ container, 2 x 20’ containers or 1 x 40' container. Flush rear. (± 90 kg)
- 2 pairs of WADER-containerlocks (± 30 kg).

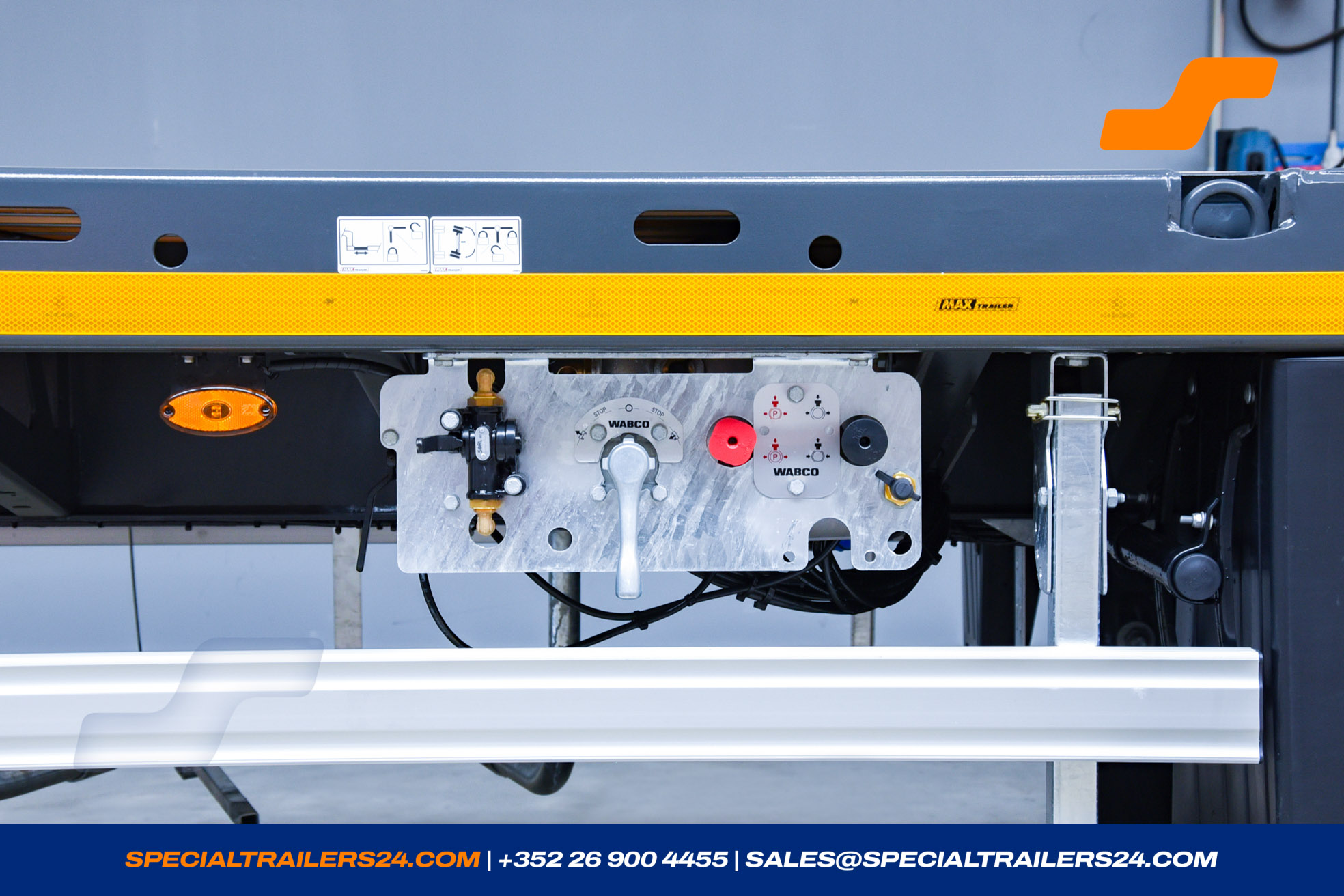

- Lift axle on the front axle with control by TEBS-E depending on the current axle load and the current loading condition (± 69 kg).
Accessories
1 x Accessories
- Delivery from a trailer to factory Lentzweiler.
- Load manometer for determining the axle load, including load diagram.
- Codice d'immatricolazione
