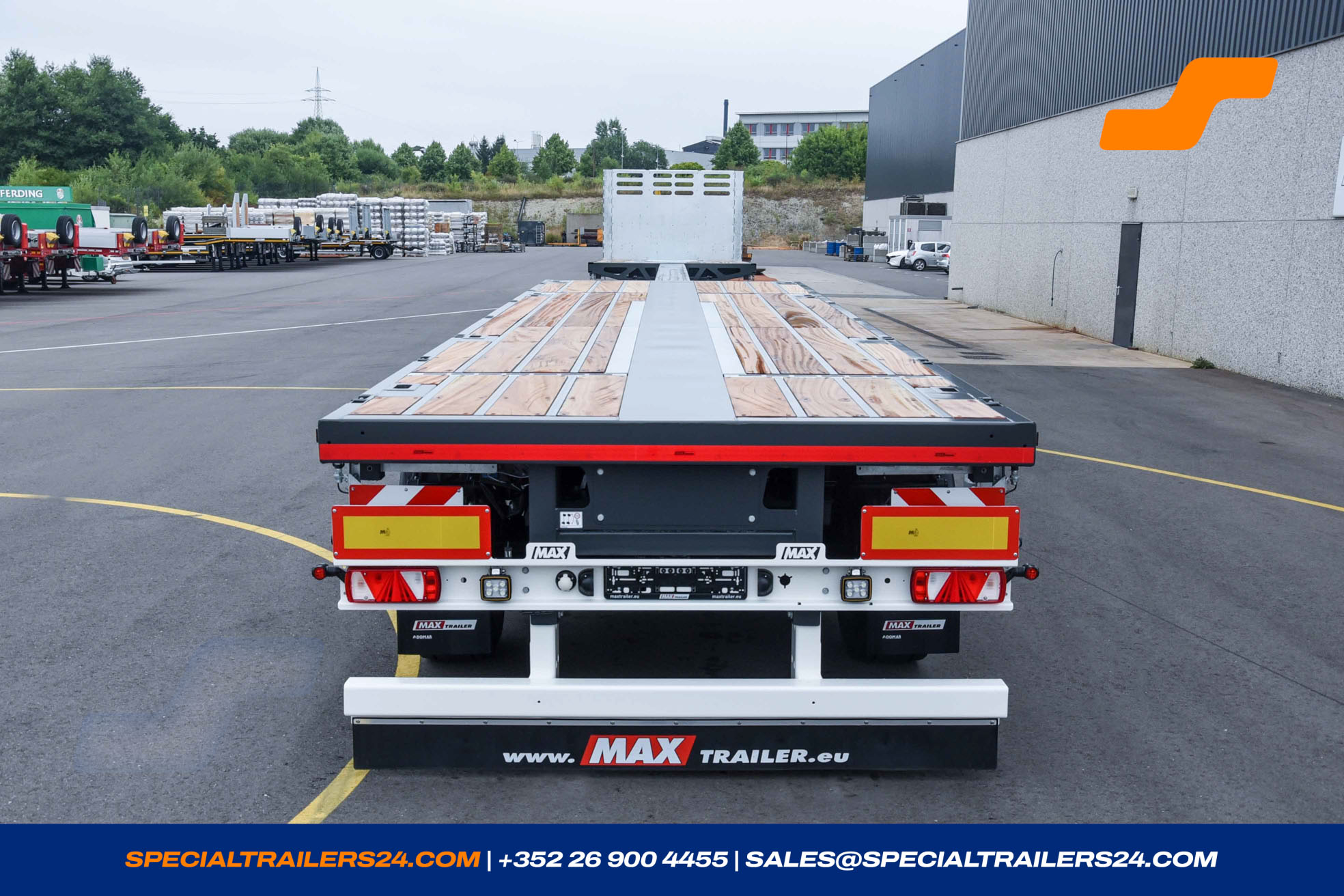

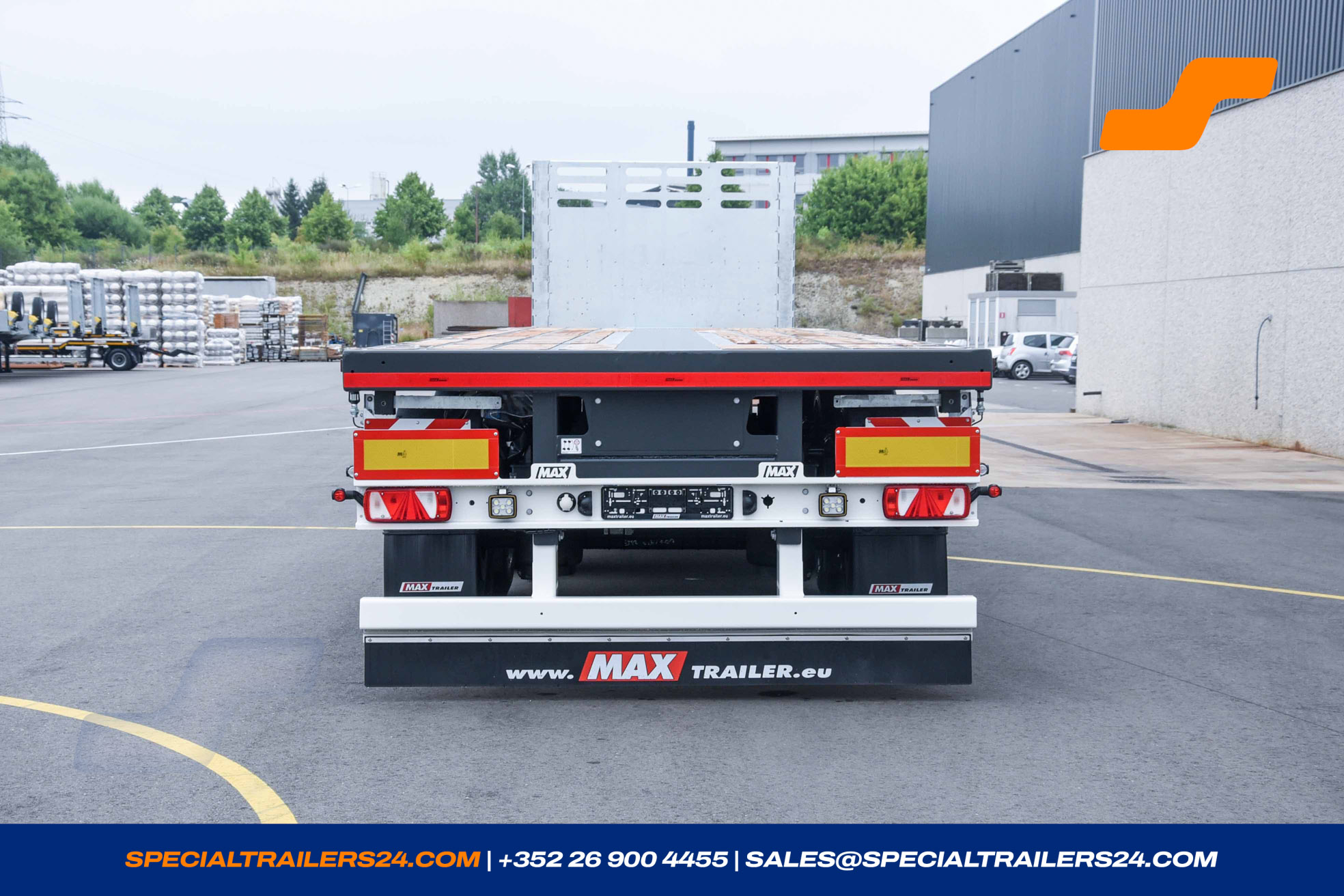

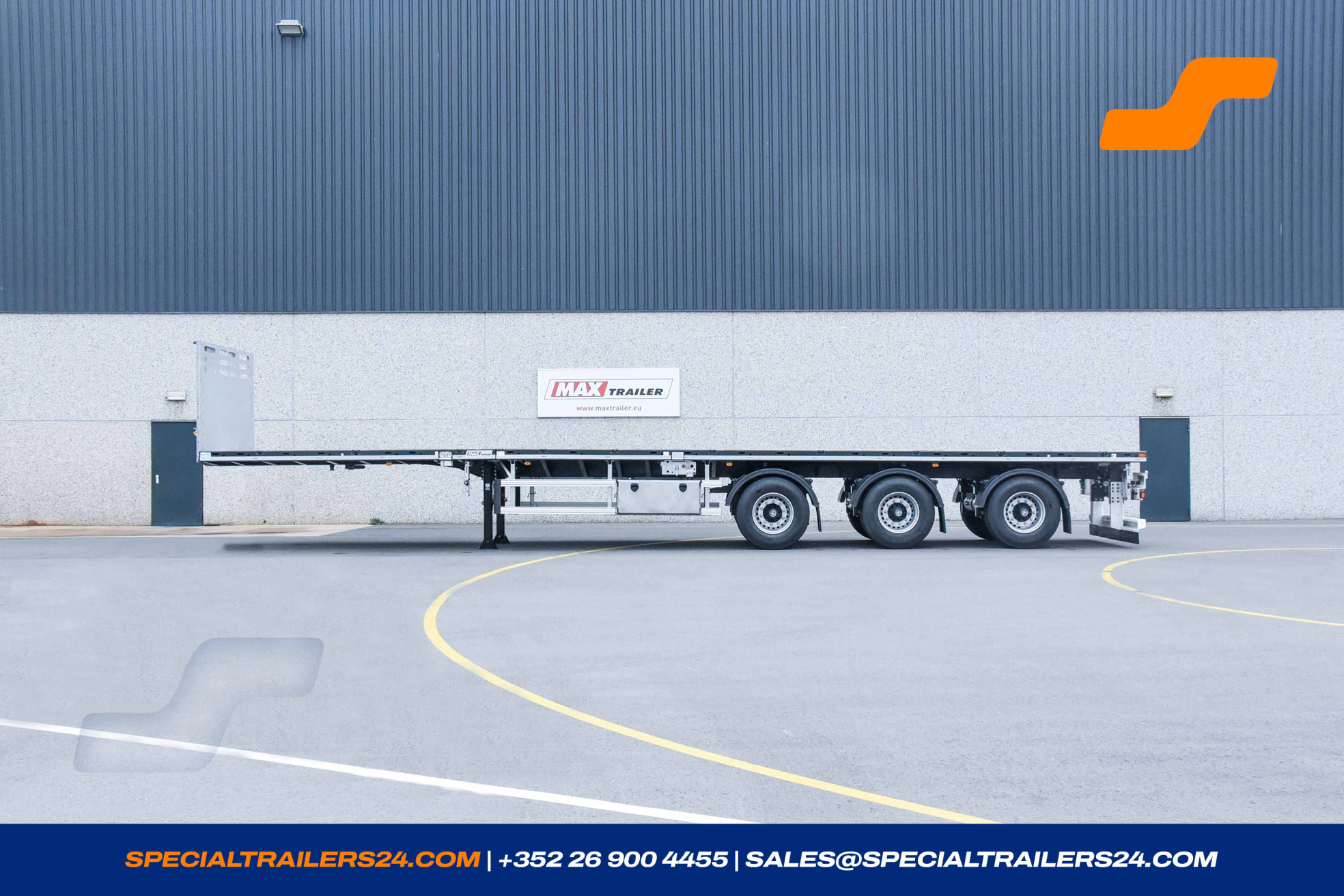

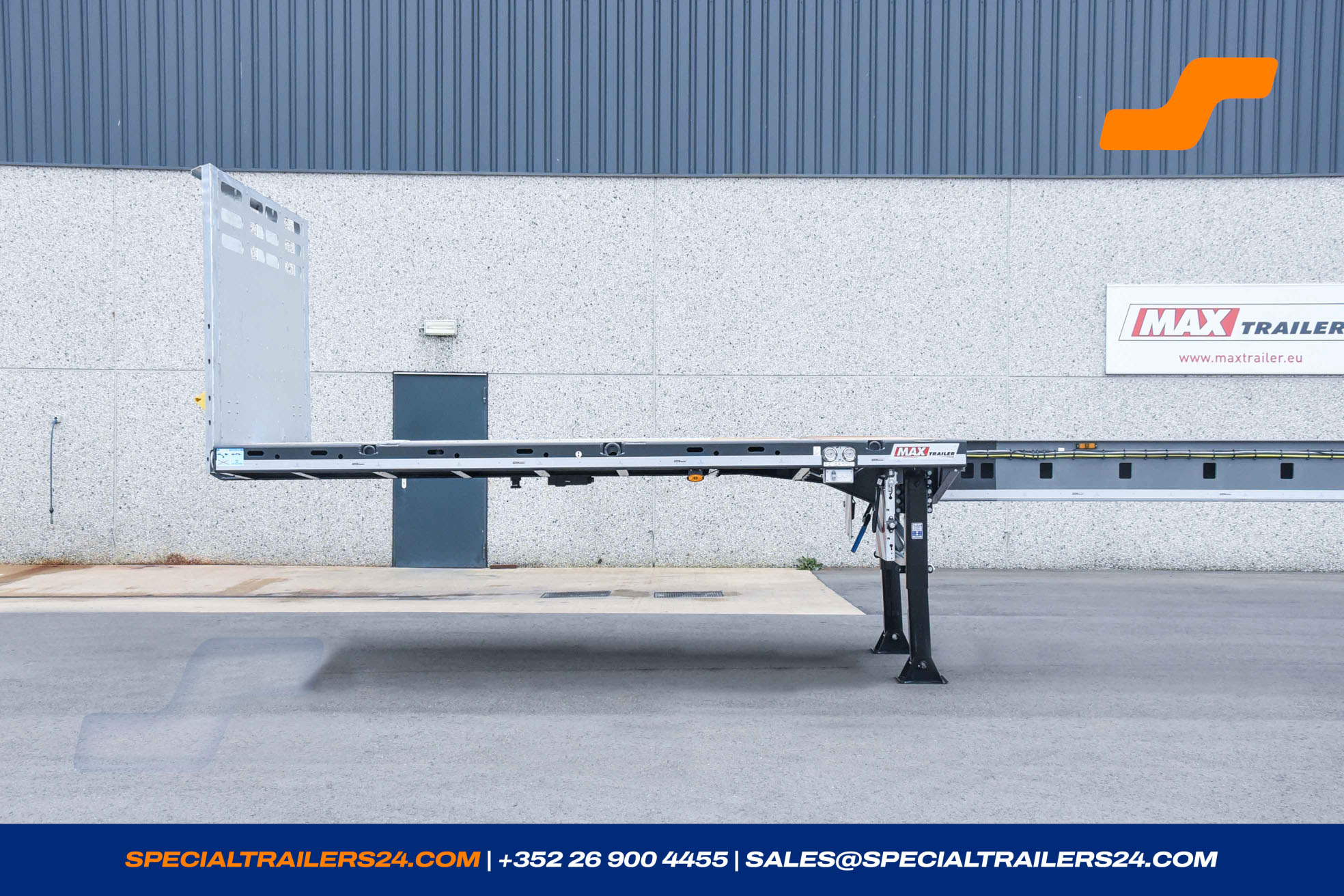

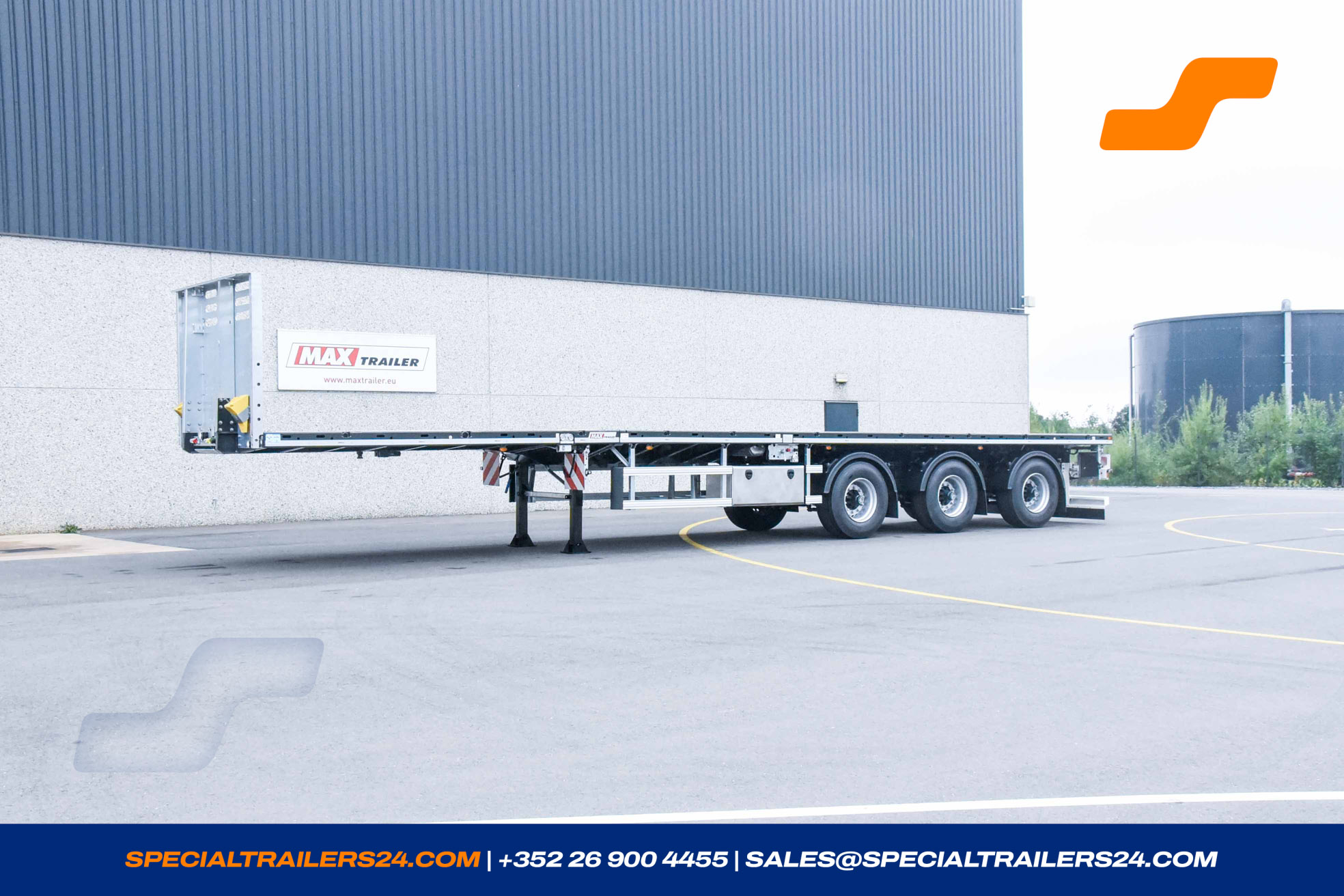

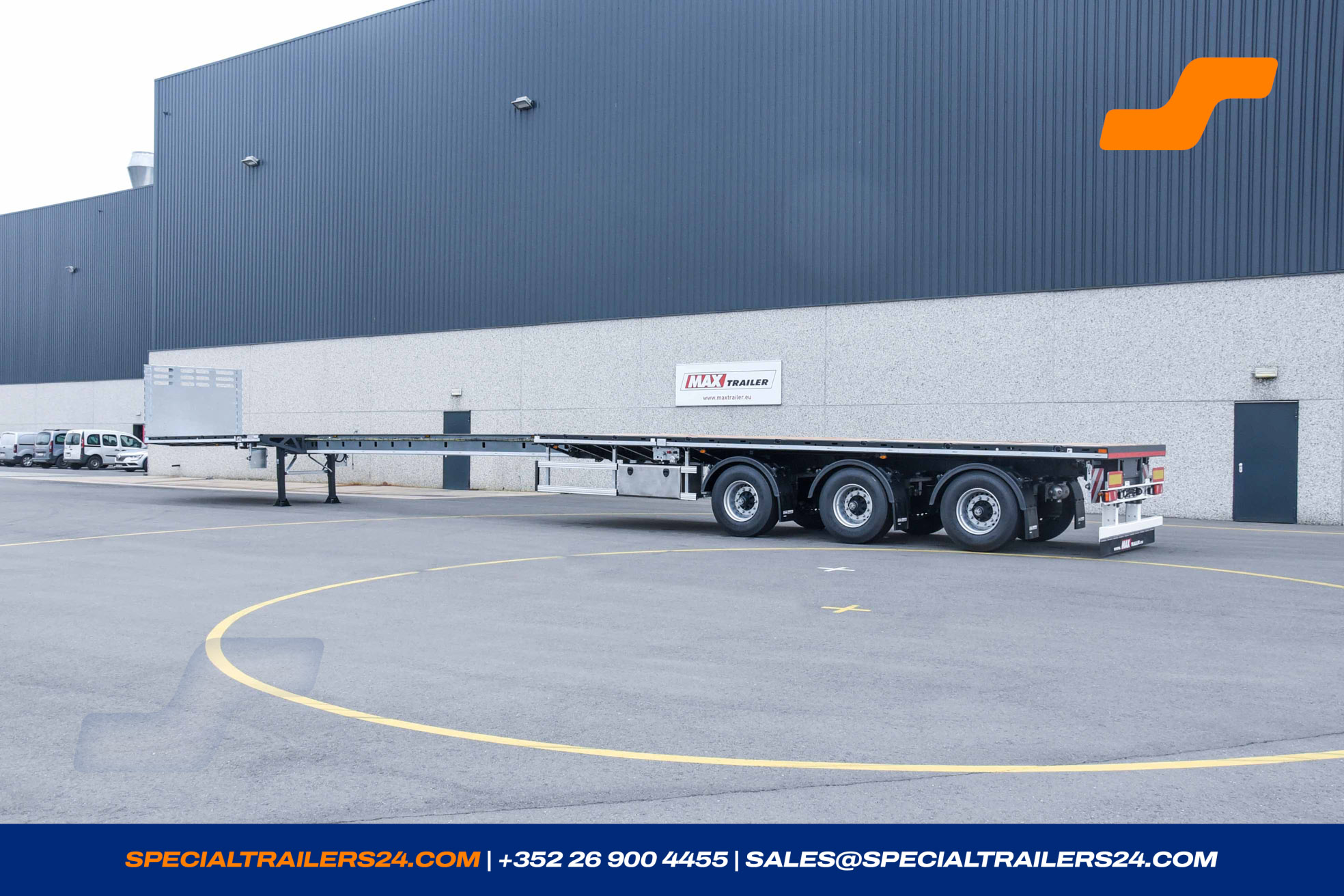

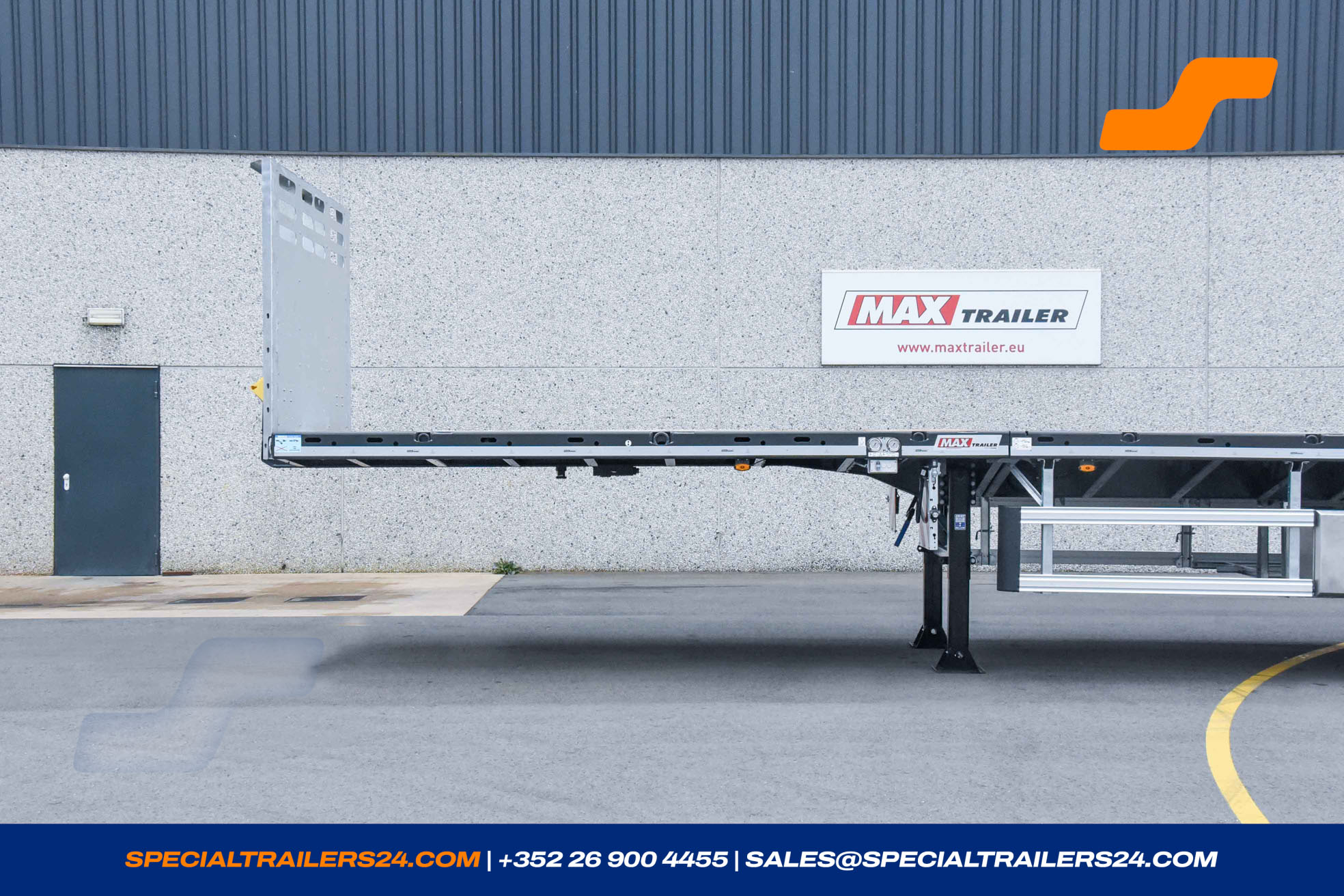

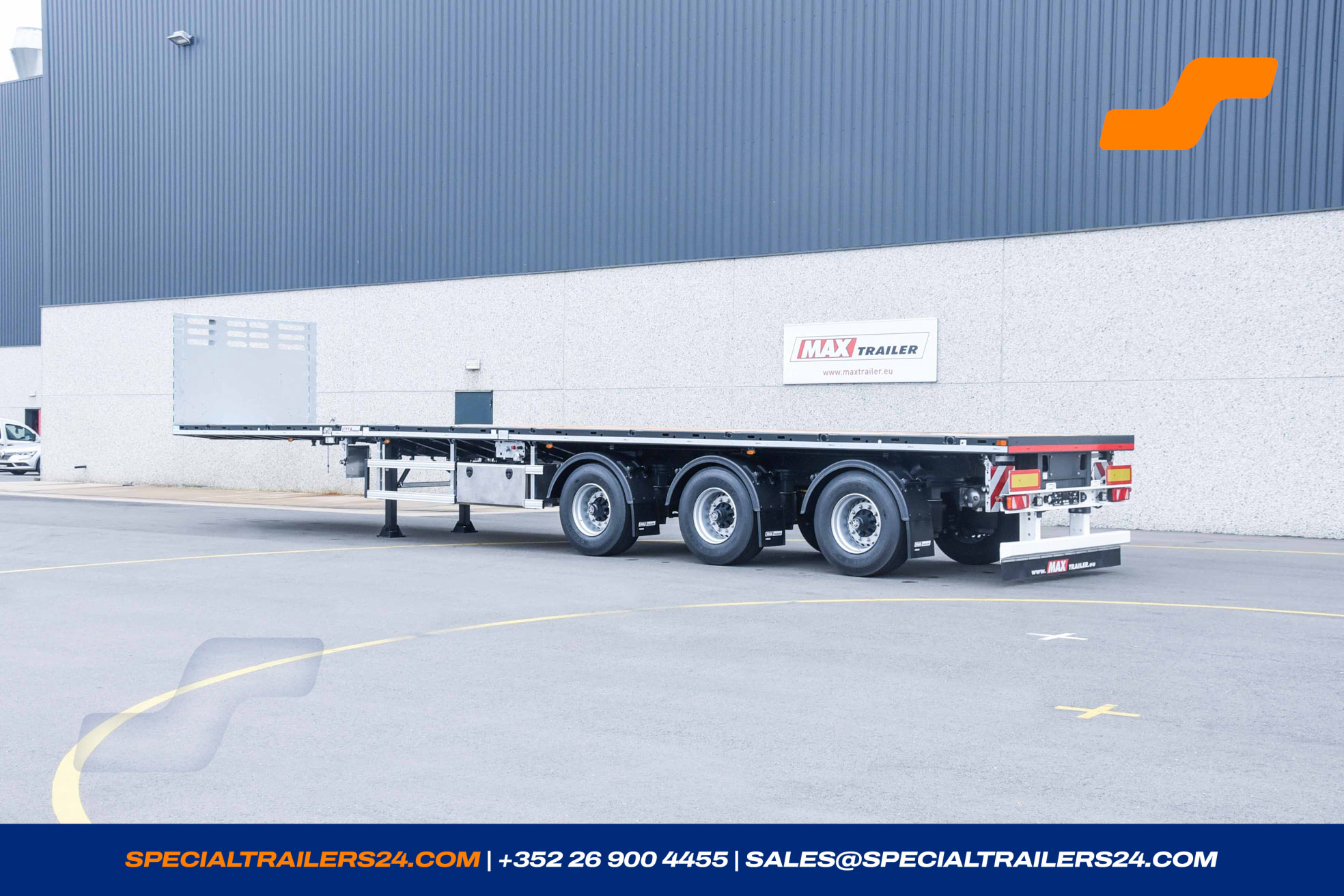

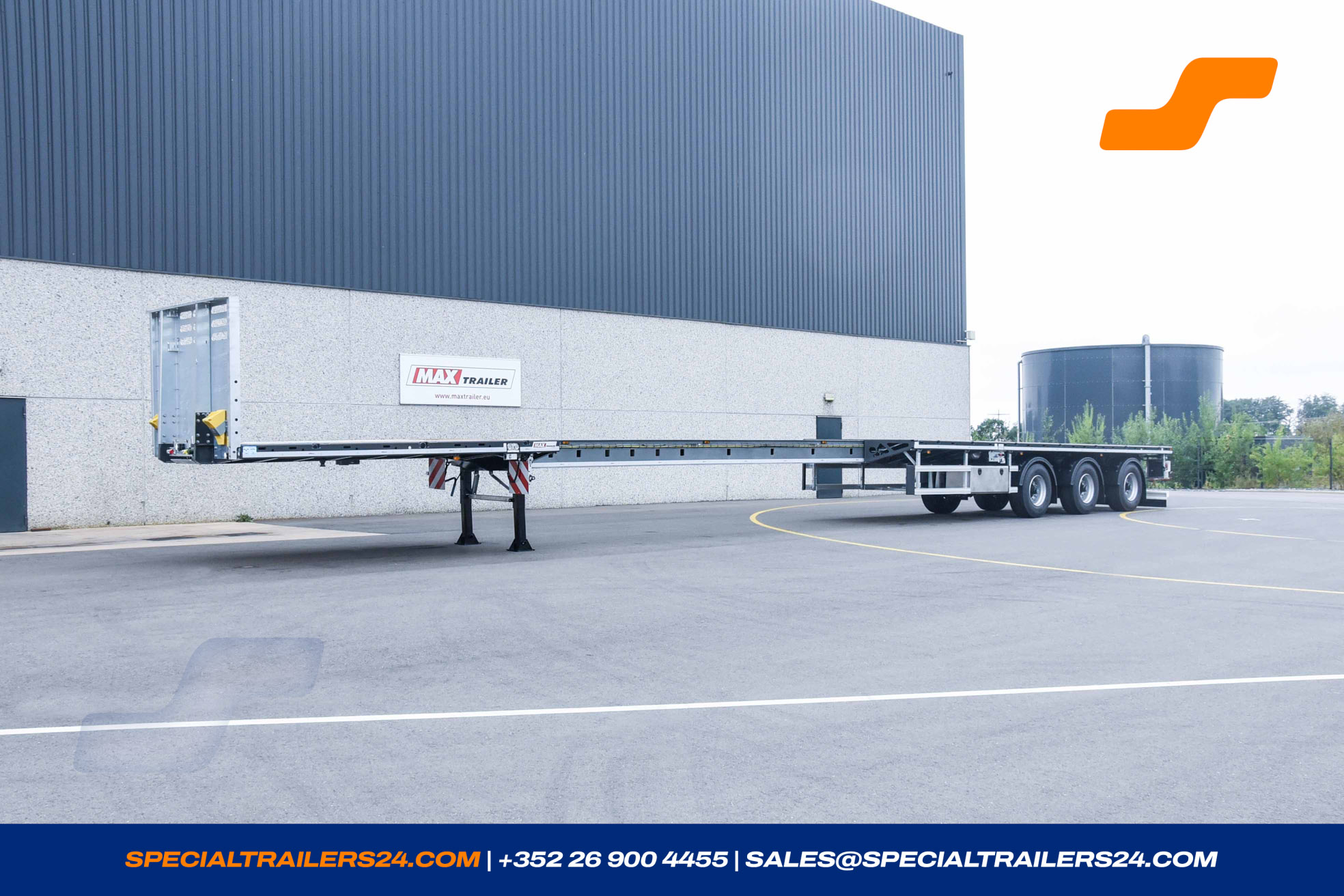

Flatbed trailer
MAX Trailer MAX210
Die Farbe des Fahrzeugs auf dem Foto kann abweichen.
- Chassis number 111268
- Reference MAX210-Z-3A-13.60-22.5-2.54

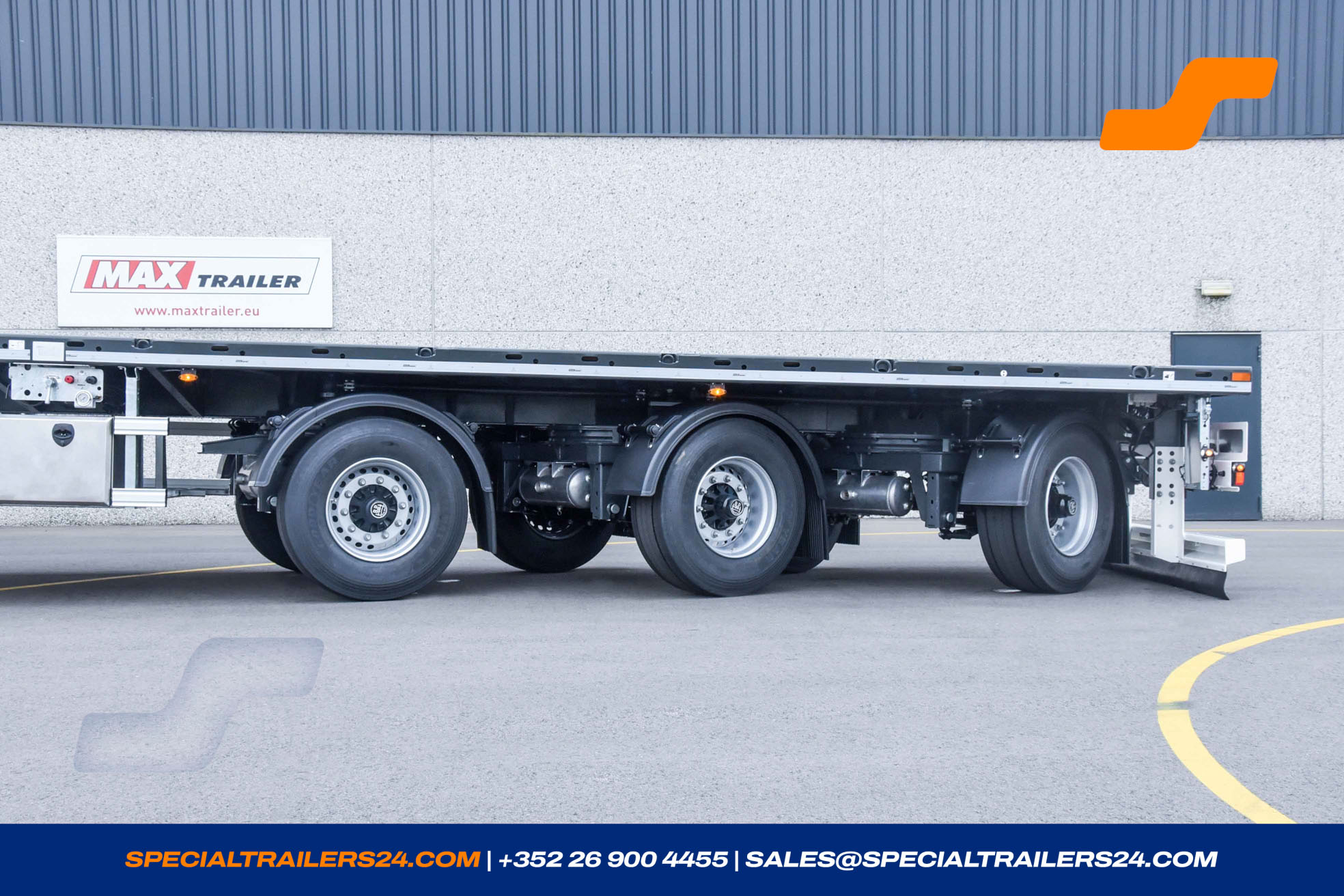

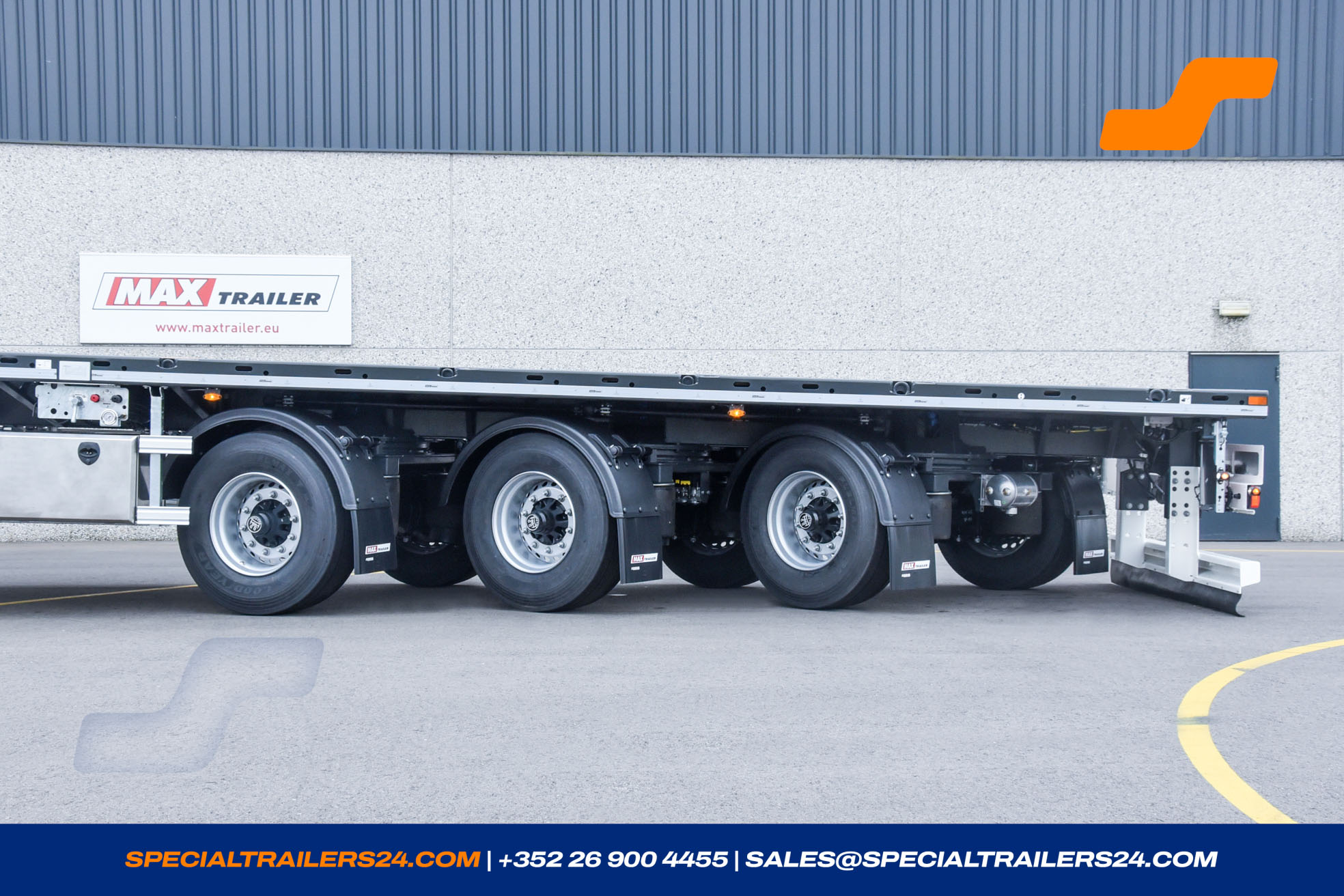

- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour RAL 5011 - Steel blue
- Availability 03/2026
- Steering Type Hydraulic
Availability
03/2026
Preis
Auf Anfrage
Location
Lentzweiler, Luxembourg
Downloadcenter
Die wichtigsten Unterlagen
Detailinformationen
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 27000 kg |
| Gross weight | 45000 kg |
| Tare weight +- 3% | 9634 kg |
| Payload | 35366 kg |
Dimensions
| Fifth wheel height loaded | 1150->1250 mm |
| Turning circle reversing | 2 300 mm |
| Loading platform length | 13 600 mm |

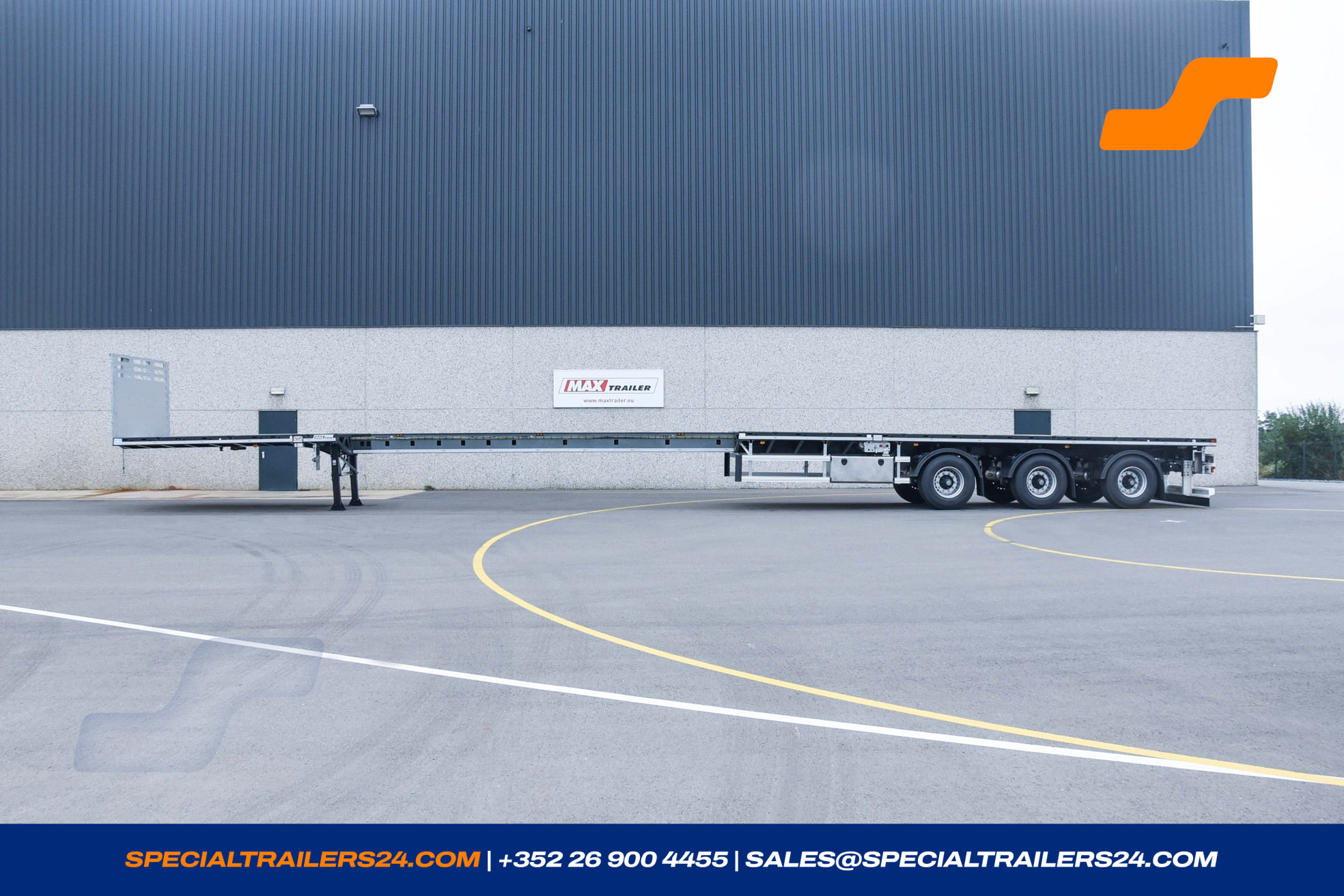

| Extendable by | 7 500 mm |
| Wheelbase | 1 810 mm |
| Total width | 2 540 mm |
Loading deck
Loading platform
1 x Loading platform

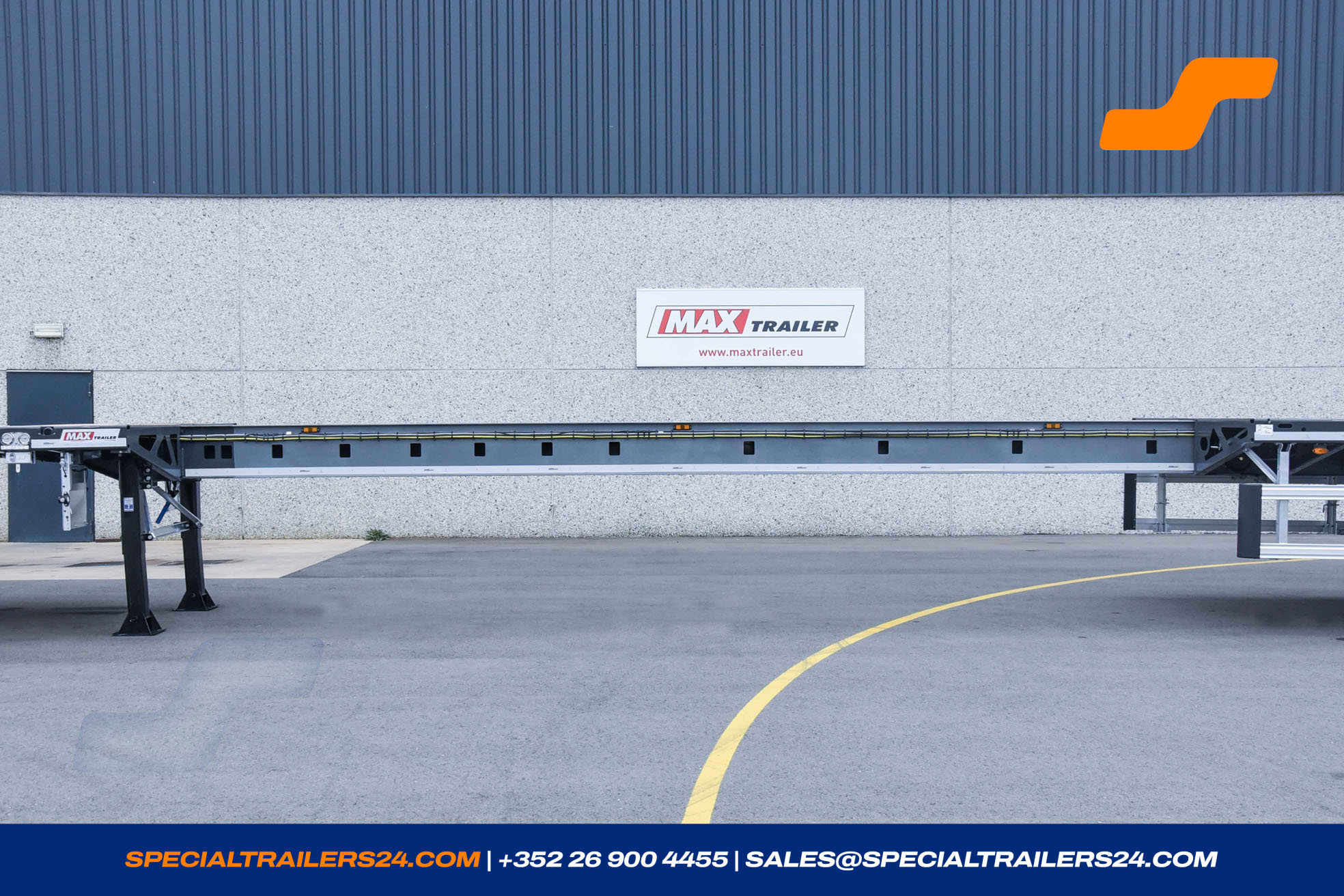

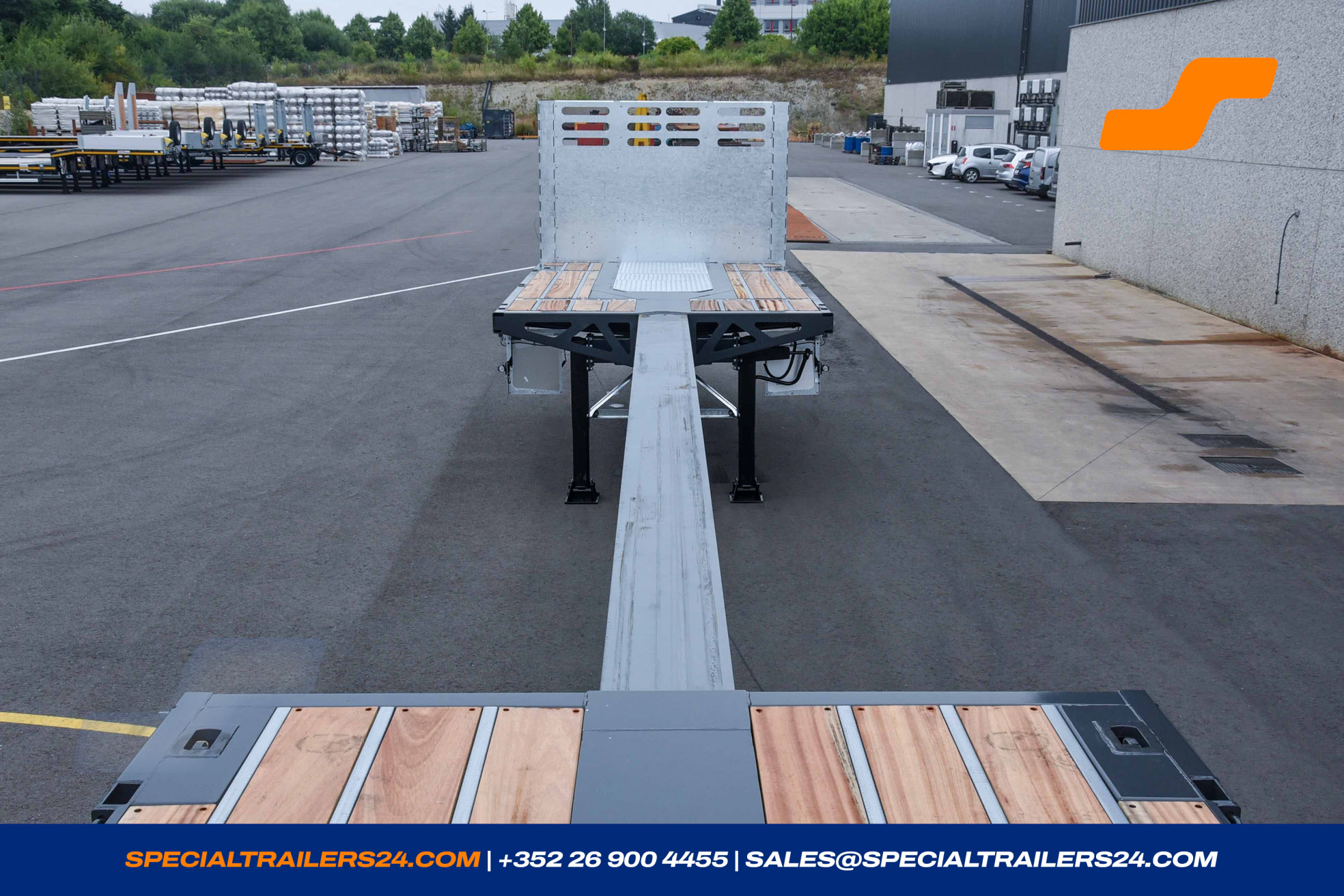

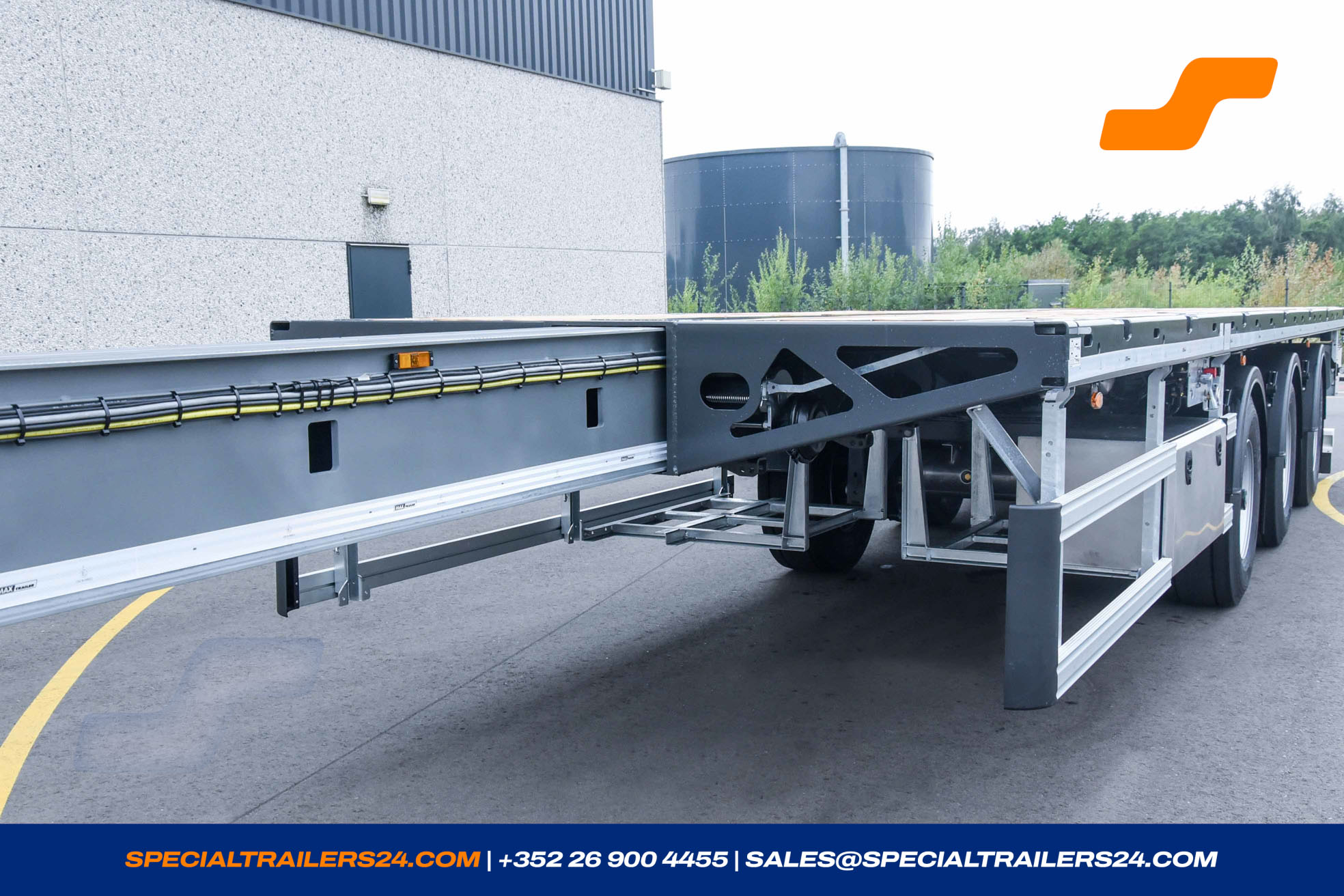

Loading area extendable center spine, pneumatically locked.
7 pairs of lashing rings in the loading platform, hinged outwards (LC 5 000 daN).
3 pairs of lashing rings in the loading platform, hinged outwards (LC 10 000 daN).

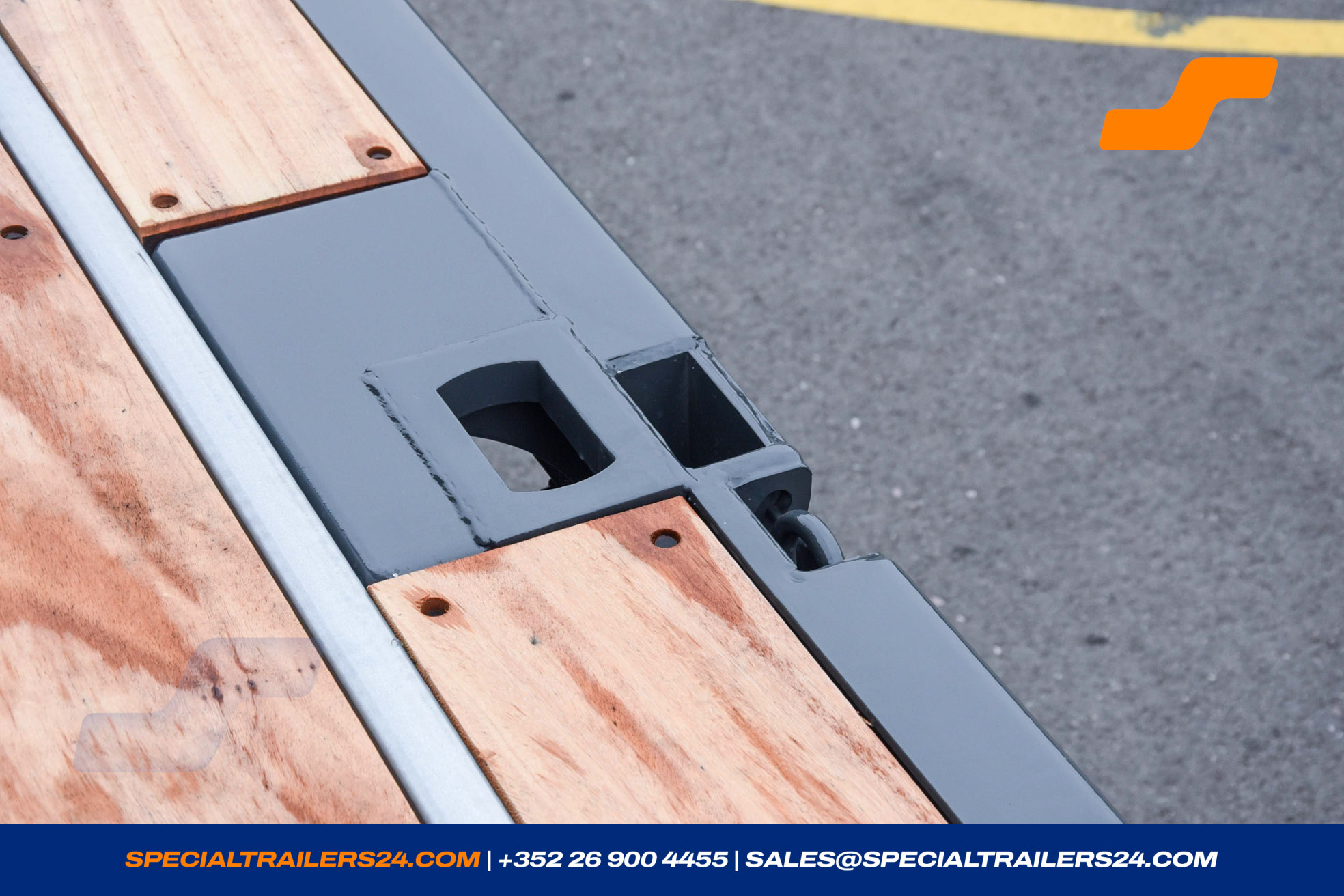

Cutouts in the border frame of the loading area for hooking in tension belts (LC 2 000 daN).

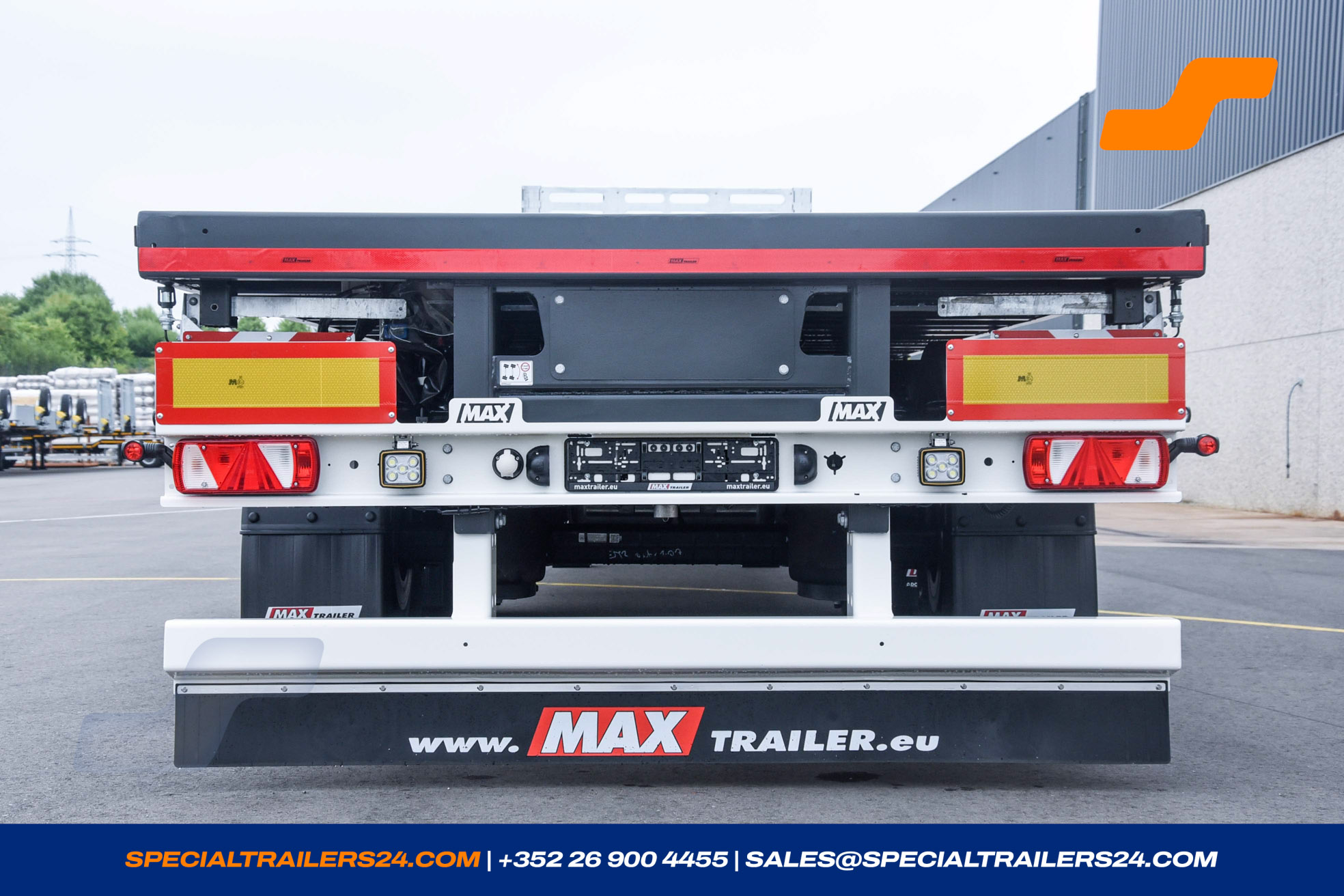

- White reflective tape according to the EU regulation over the entire length and the extension, red on the rear.

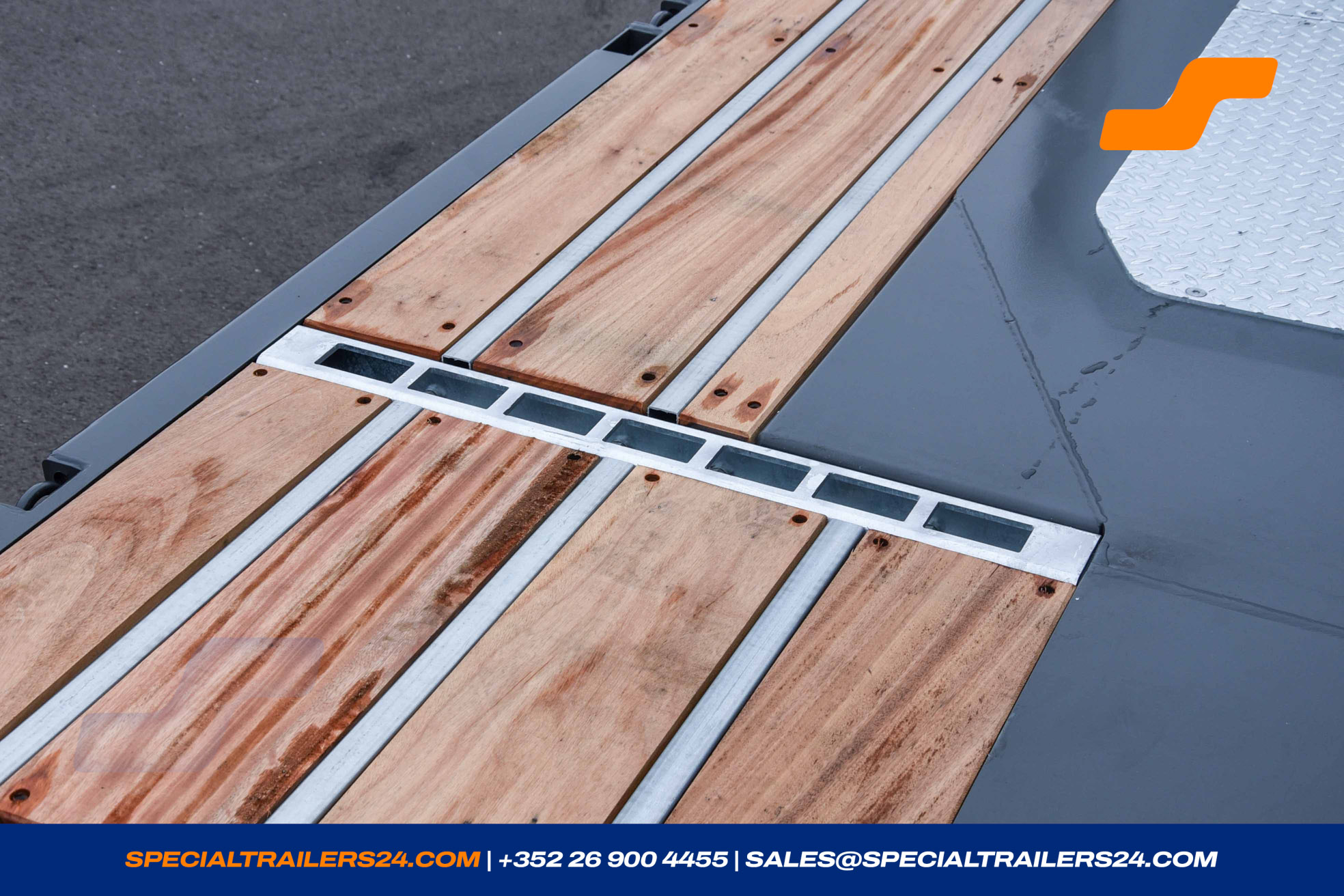

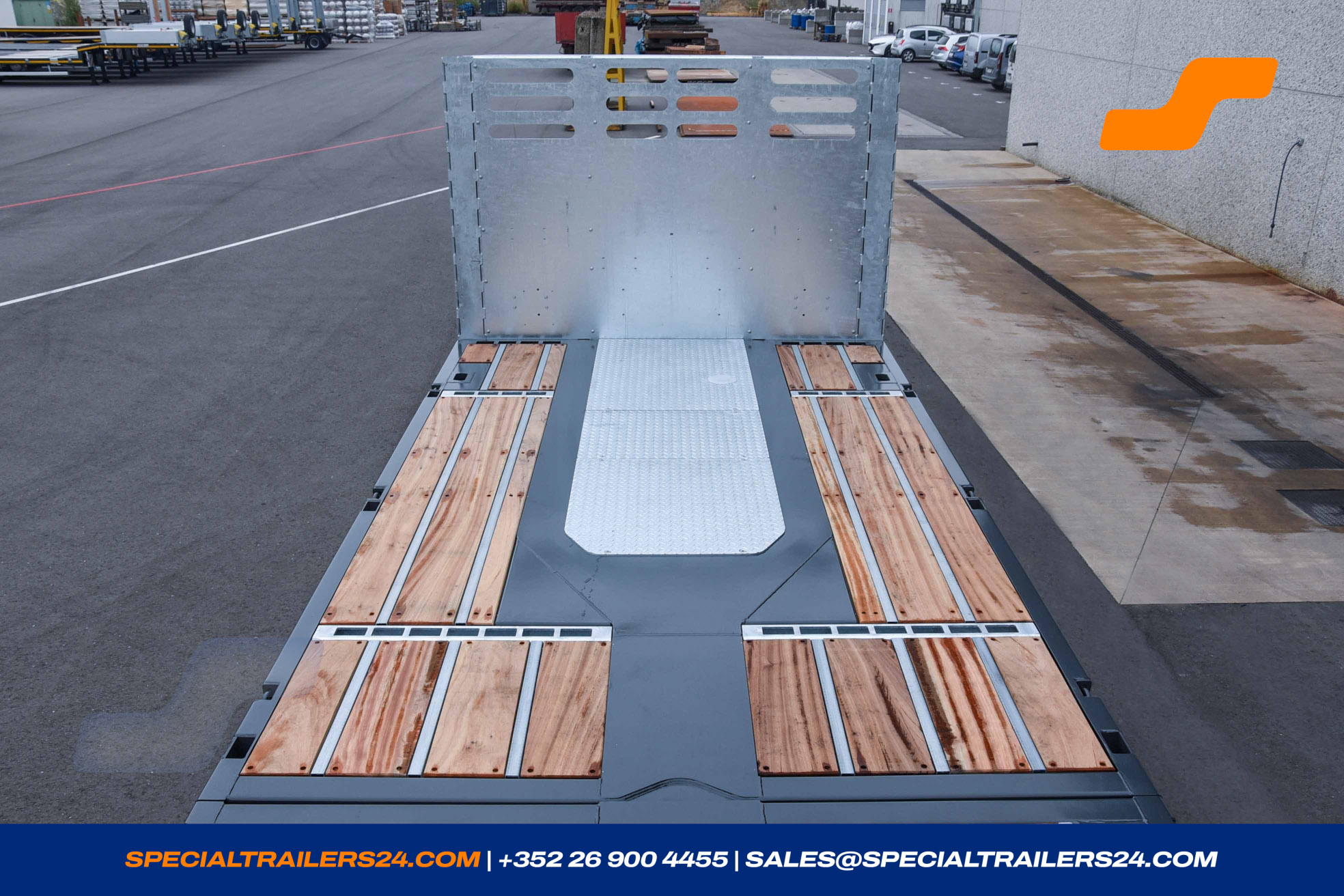

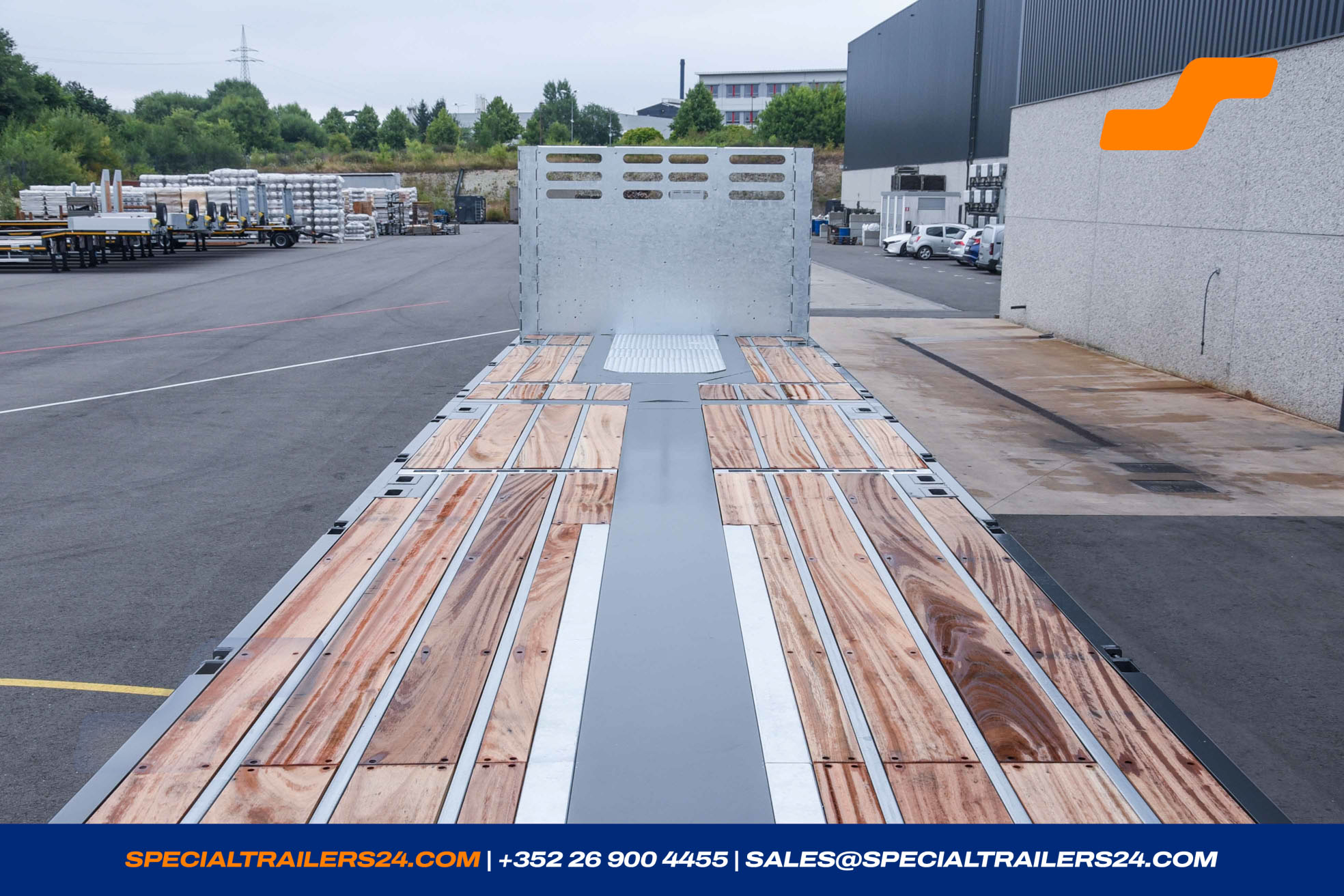

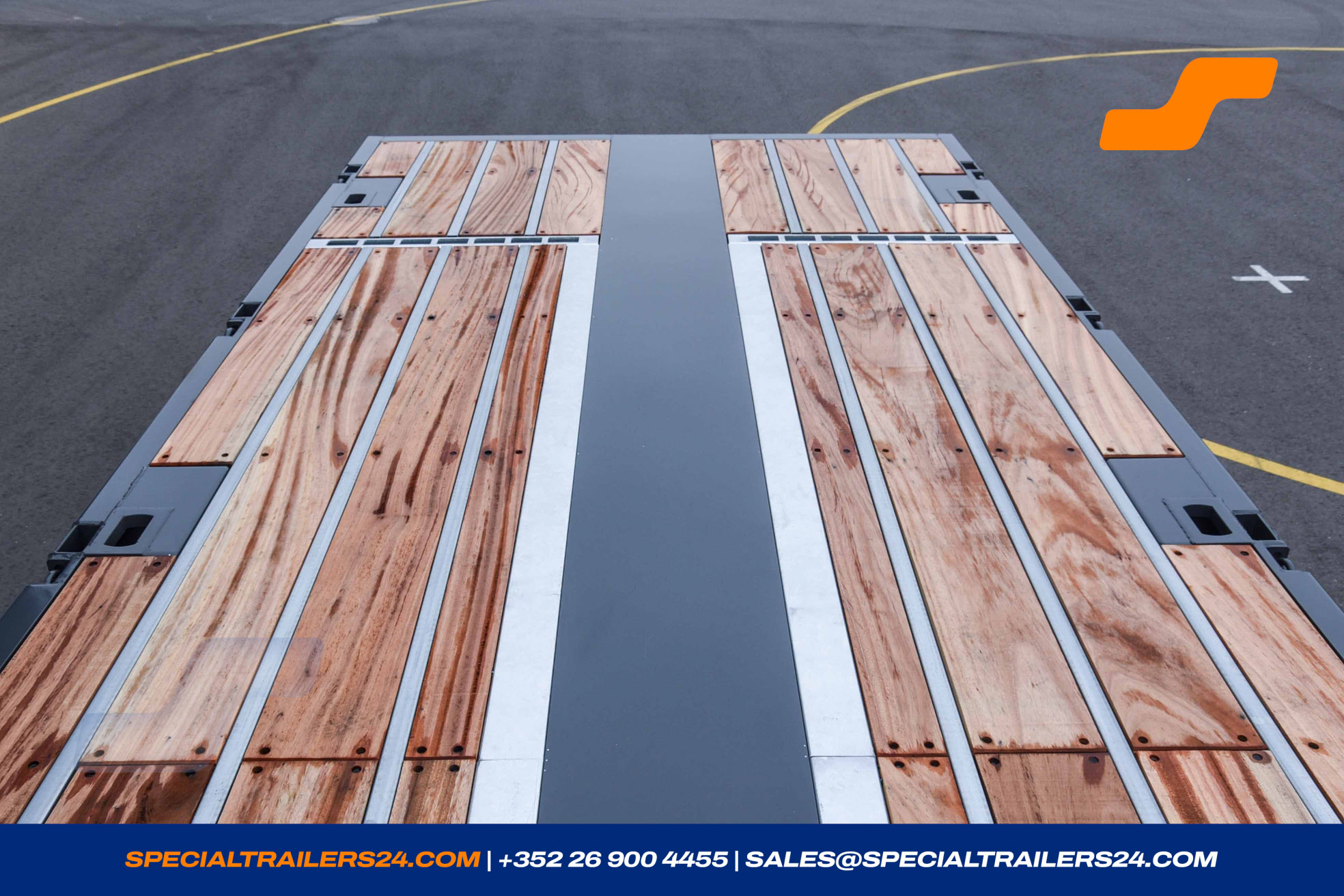

- Loading area with ± 30 mm hardwood floor incorporated in omega profiles. (± 298 kg)

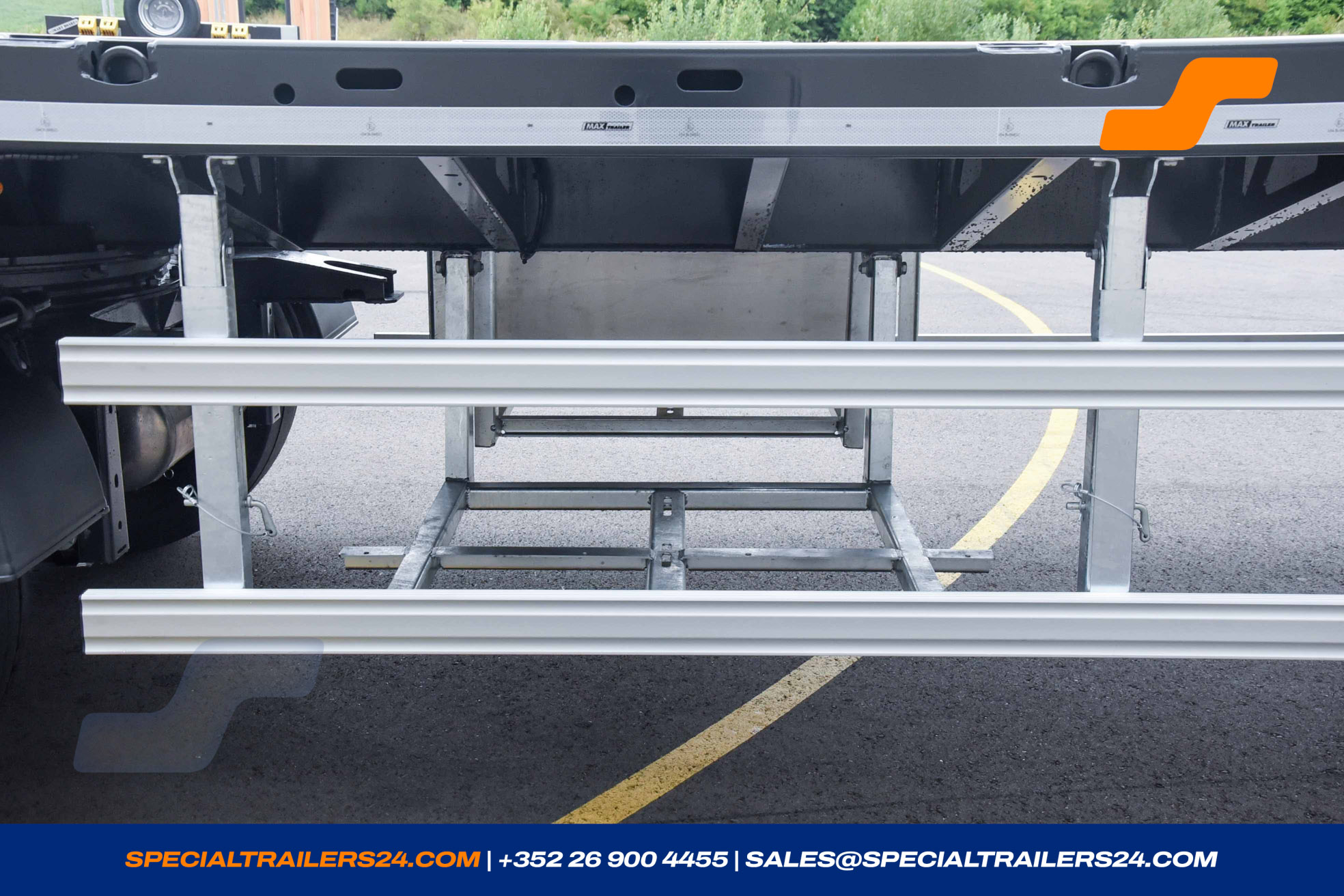

- 10 pairs of galvanised stakes ± 100 x 50 mm, height 1 000 mm. (± 220 kg)
- Galvanised storage under the loading platform 2 390 x 720 x 400 mm. (± 125 kg)
- Hooks for cover (8 mm), every ca. 500 mm under the outer frame of the gooseneck and of the loading platform (± 2kg).

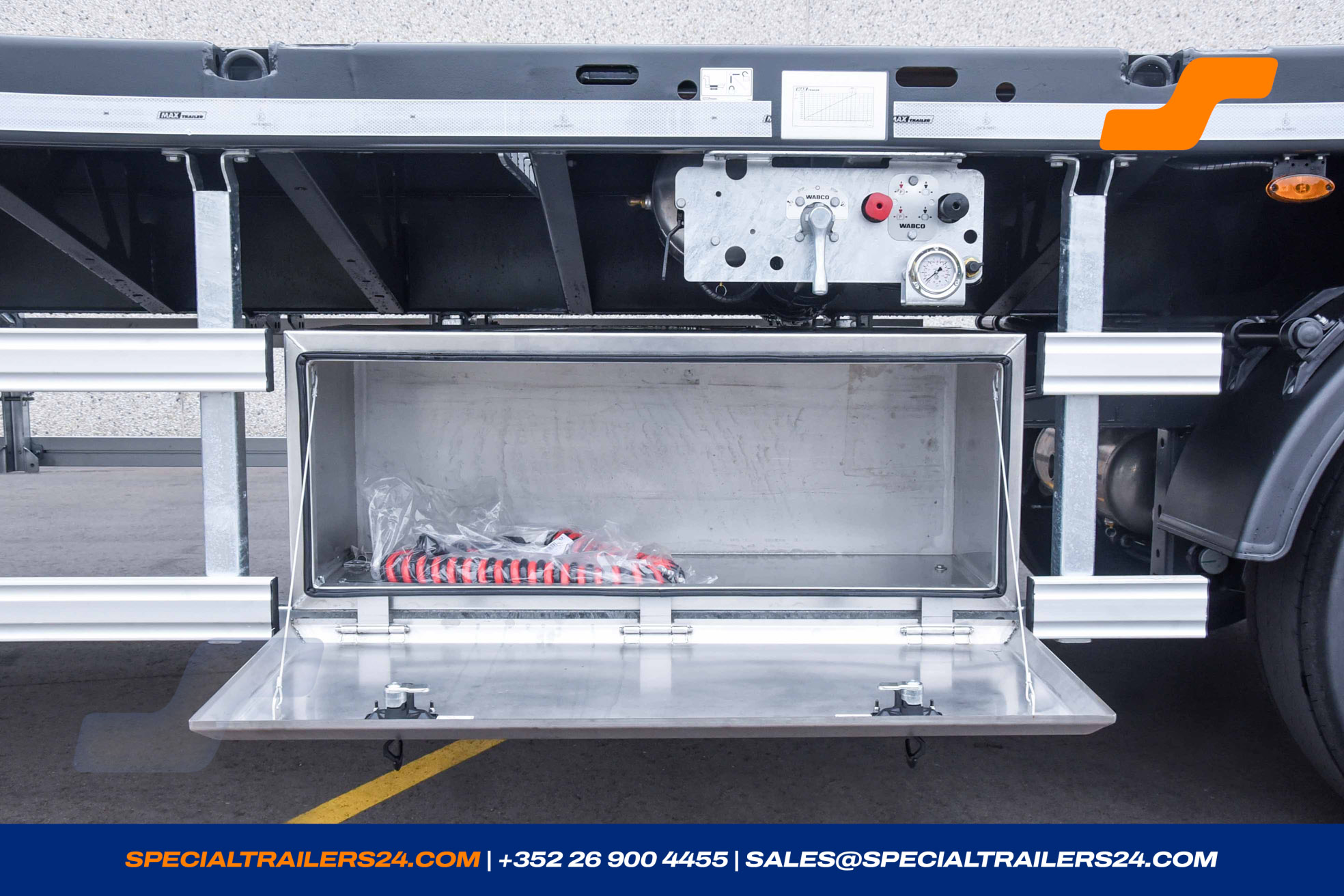

- One lockable tool-box INOX 1 200 x 460 x 550 mm under the loading platform in driving direction on the right side. (± 75 kg)

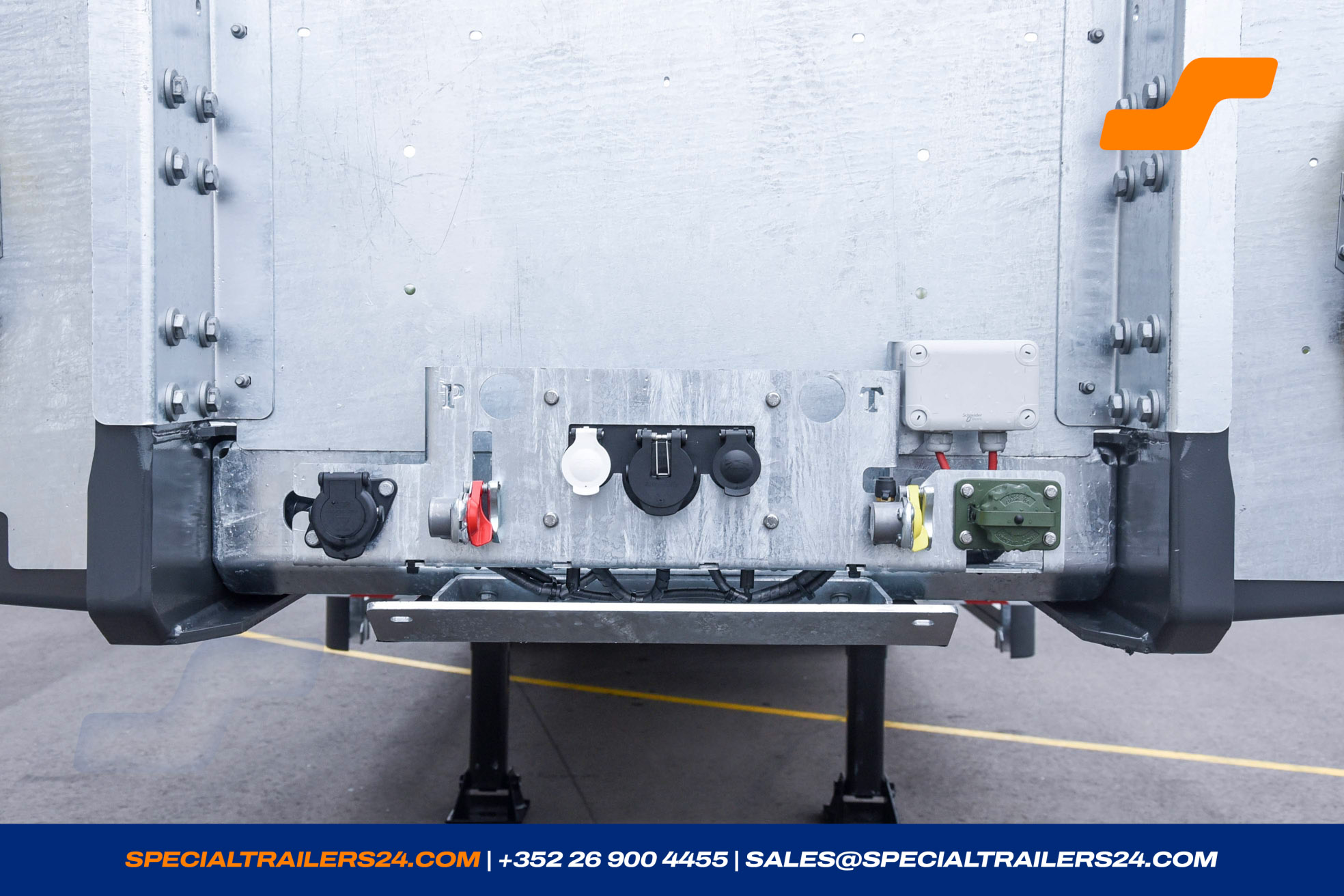

- Spiral cable for the the electric-hydraulic pump and/or electric winch (35 mm², 3.5 m length, max. 250 A) between the semi-trailer and the truck with socket (NATO-NATO).
Accessories
1 x Accessories
- Manual and description on USB stick .
- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- On the warning boards a holder to put a flashing beacon.
- Acoustic warning signal when reversing.
- Sign CONVOI EXCEPTIONNEL at the rear of the trailer.
