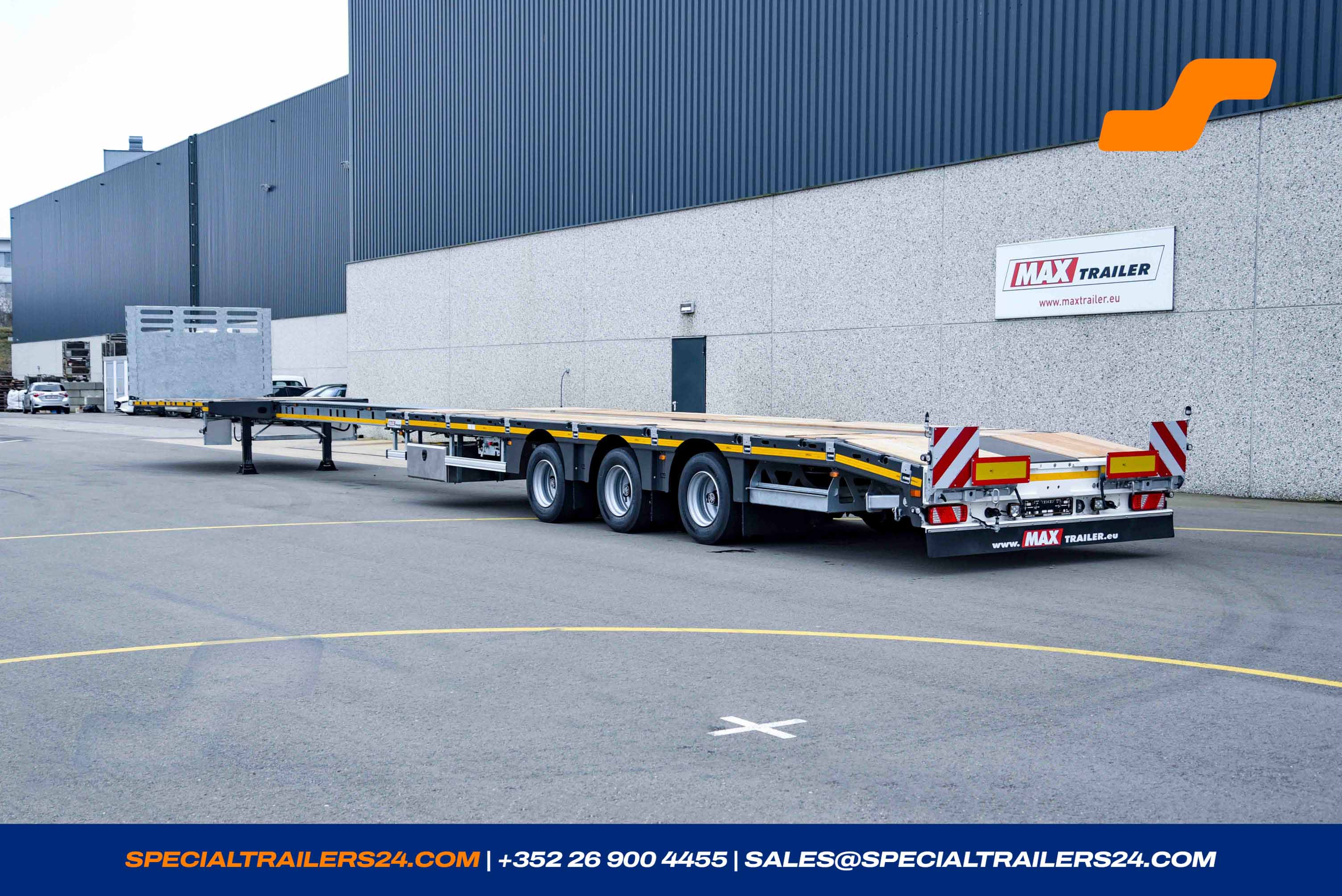

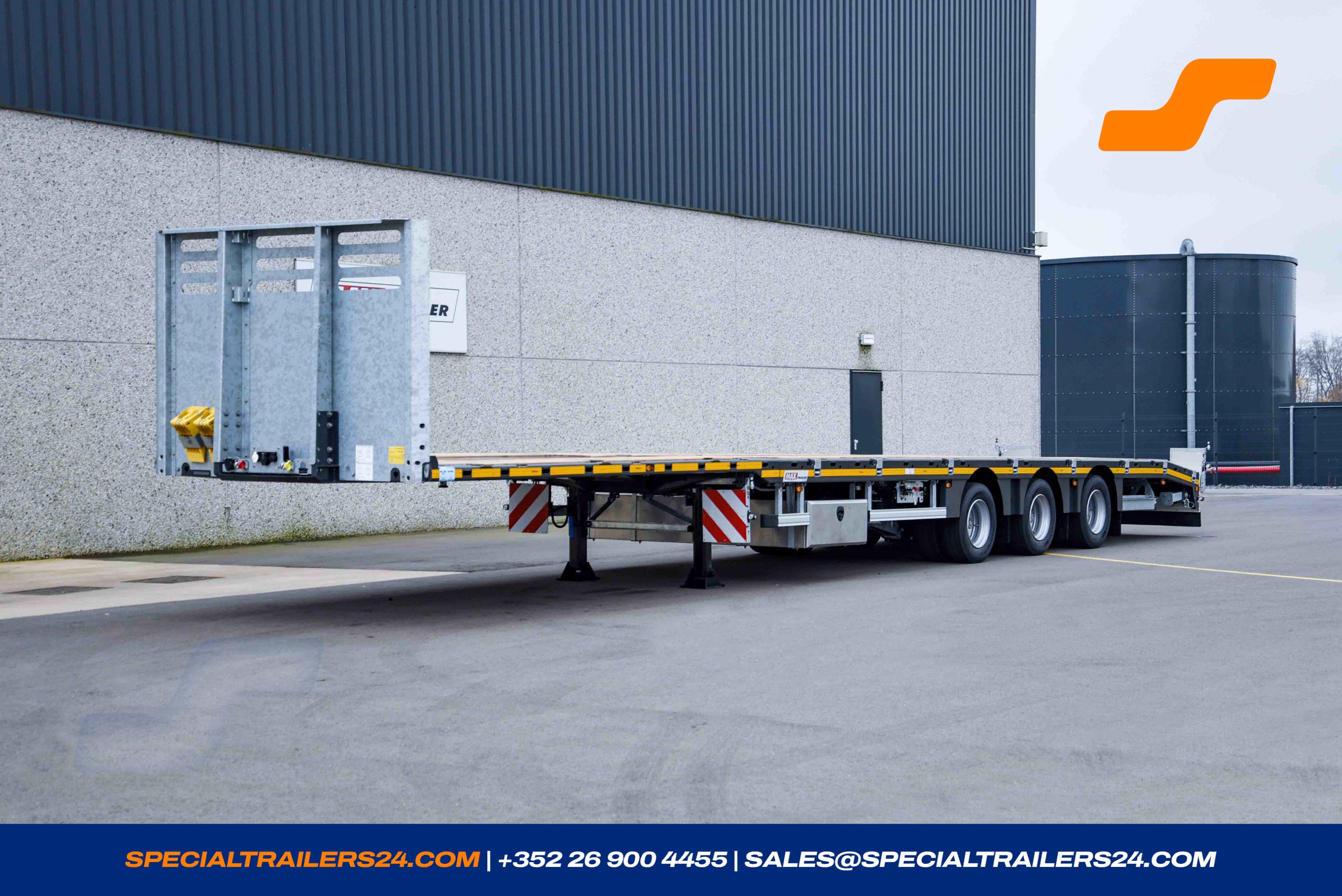

Flatbed trailer
MAX Trailer MAX200
Die Farbe des Fahrzeugs auf dem Foto kann abweichen.
- Chassis number 111194
- Reference MAX200-N-3A-13.50-17.5-2.54

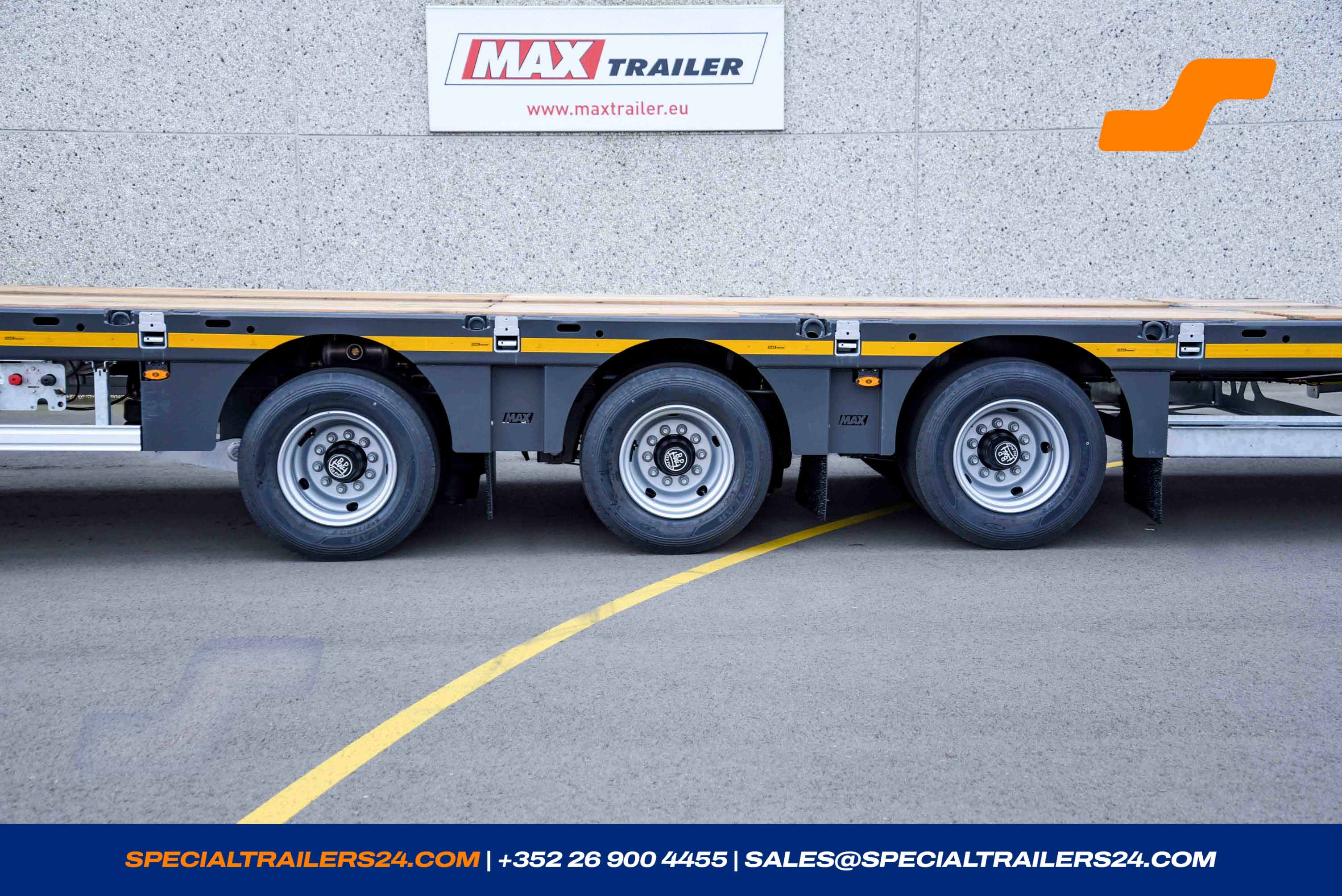

- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour Farbe wählbar
- Availability 05/2026
- Steering Type Friction
Availability
05/2026
Preis
Auf Anfrage
Location
Lentzweiler, Luxembourg
Downloadcenter
Die wichtigsten Unterlagen
Detailinformationen
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 31500 kg |
| Gross weight | 49500 kg |
| Tare weight +- 3% | 9785 kg |
| Payload | 39715 kg |
Dimensions
| Fifth wheel height loaded | 950->1050 mm |
| Turning circle reversing | 2 300 mm |

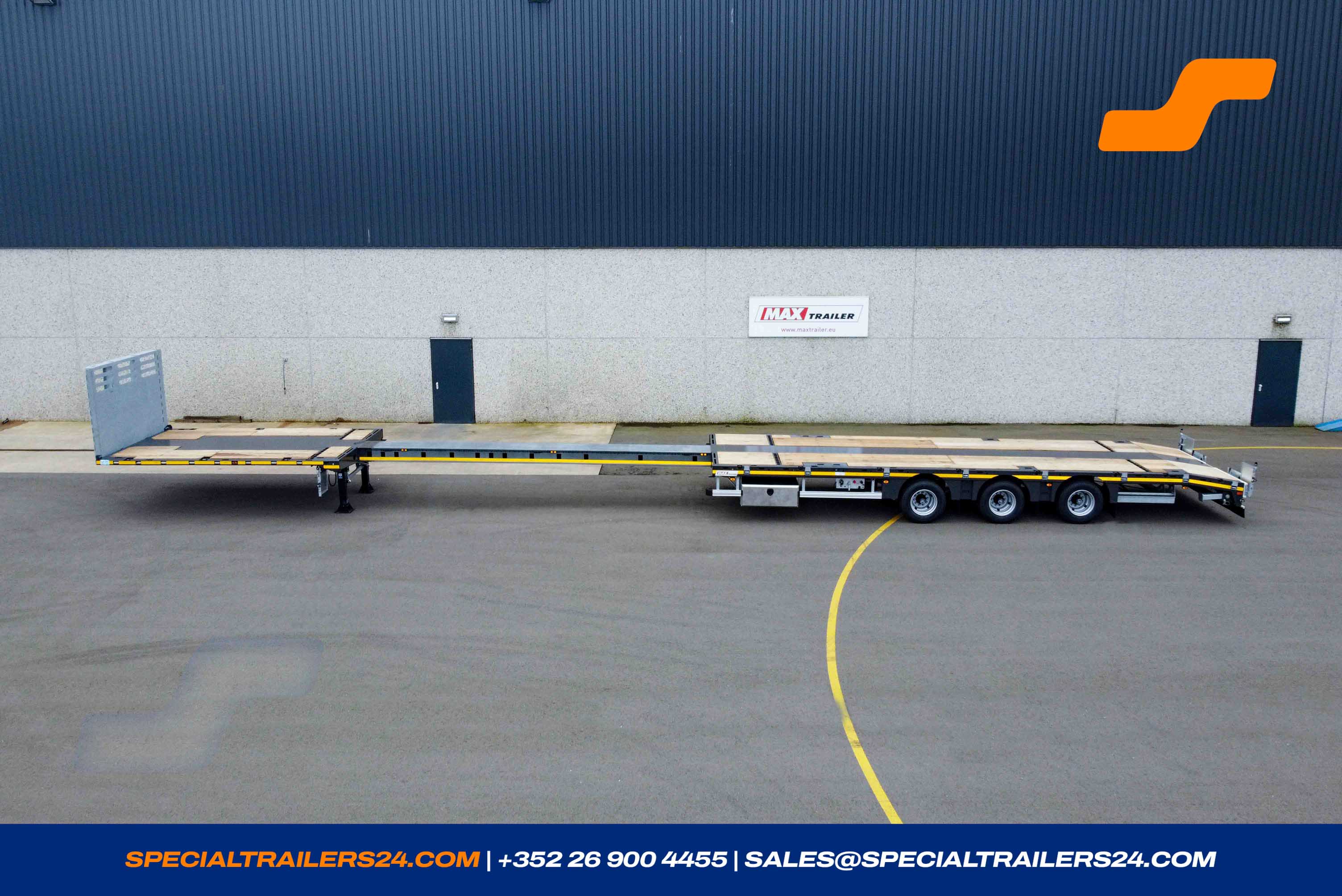

| Loading platform length | 13 500 mm |

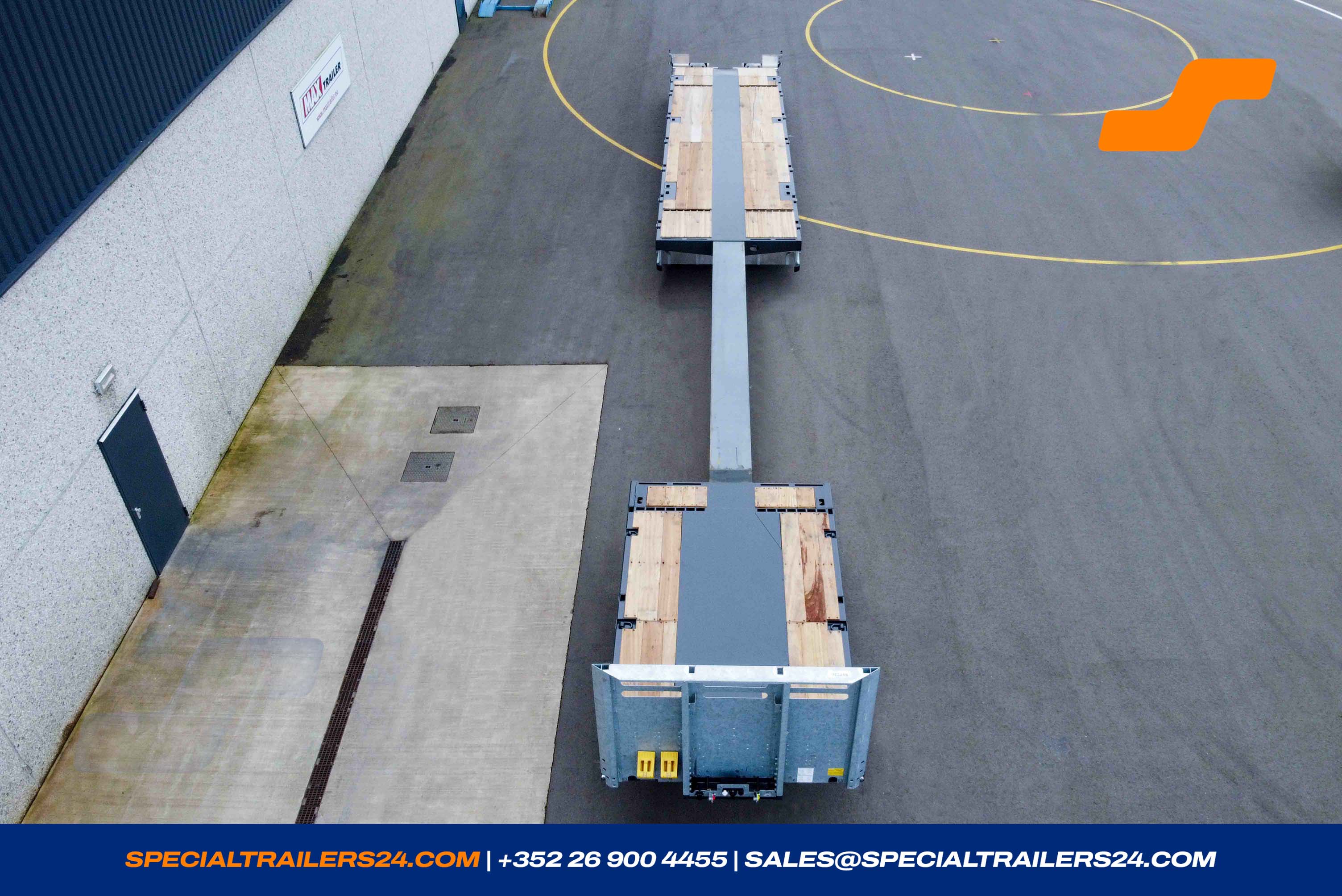

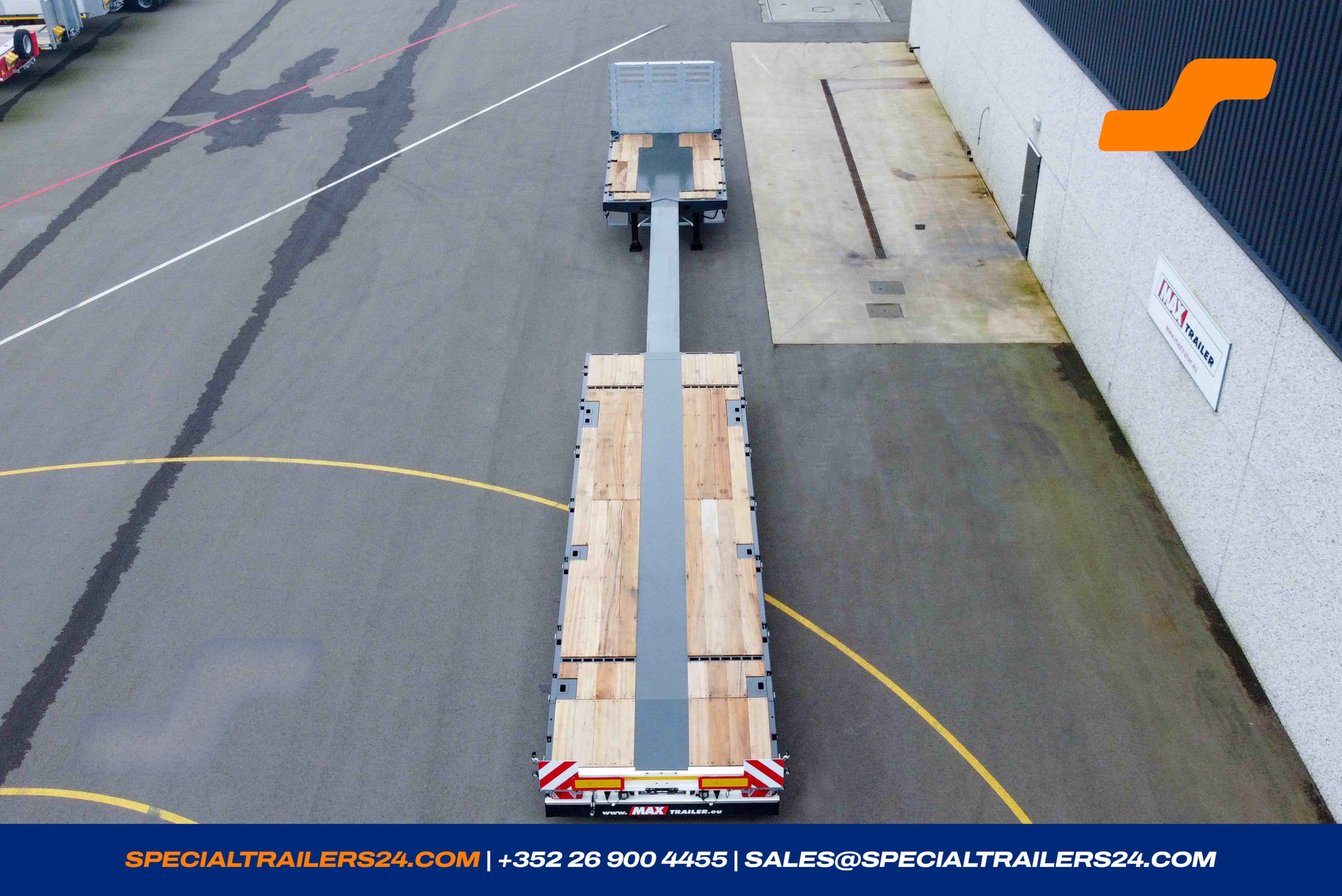

| Extendable by | 6 500 mm |
| Wheelbase | 1 360/1 360 mm |
| Total width | 2 540 mm |
Loading deck
Loading platform
1 x Loading platform

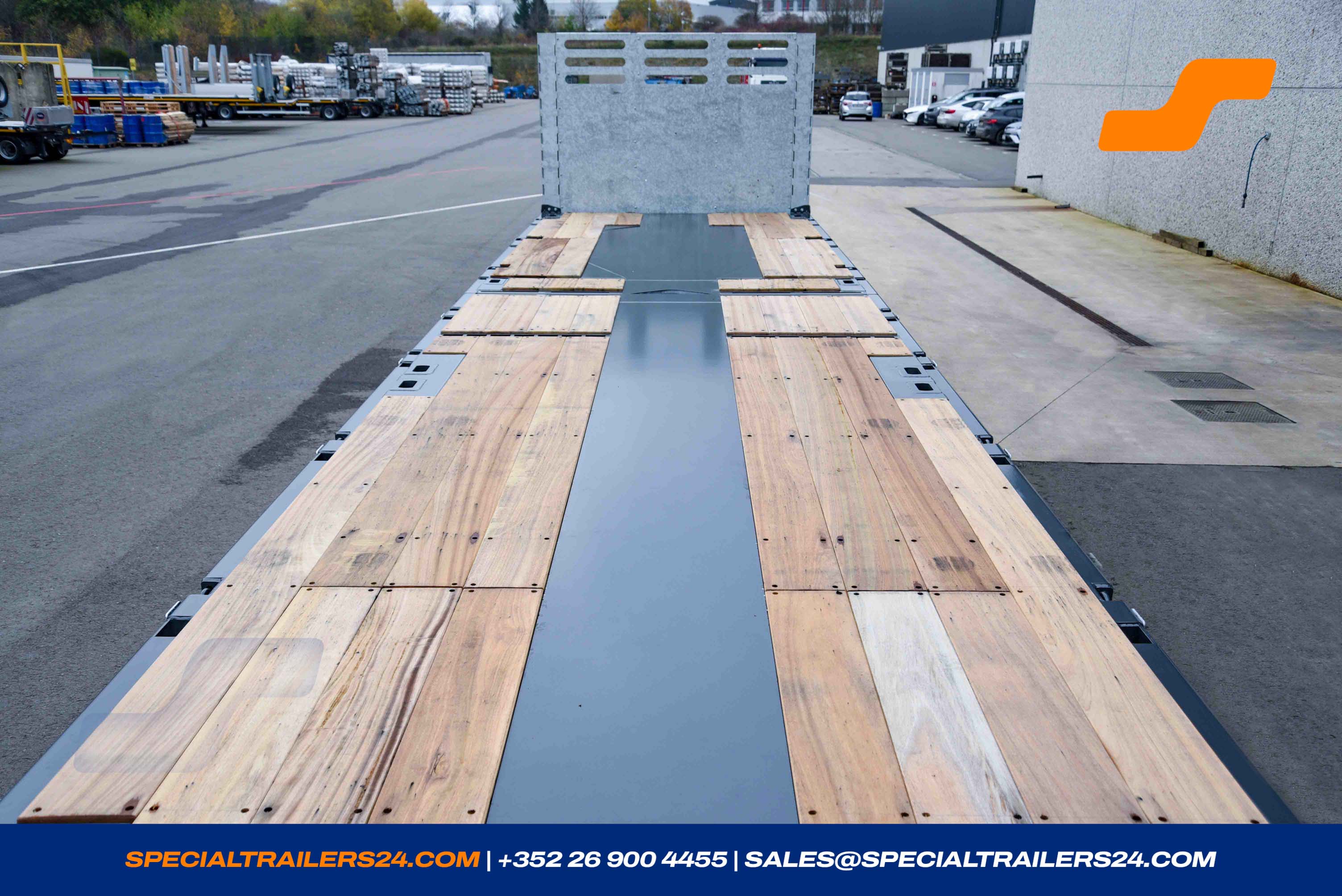

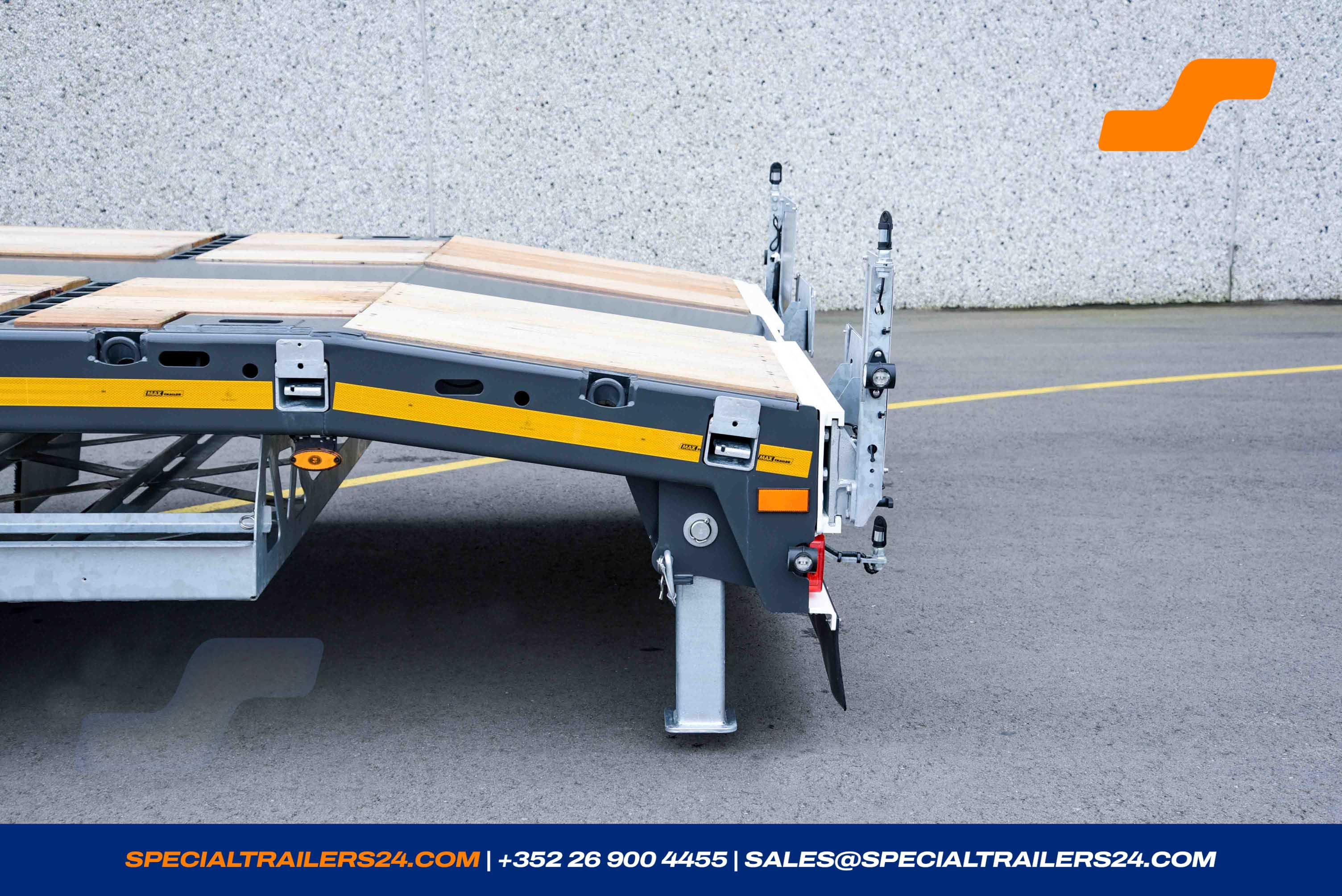

Extendabbe loading platform with hardwooden floor with chamfered beaver tail by about 1000 mm x 8°.
2 pairs of lashing rings inserted in the border frame (LC 5 000 daN).
1 pairs of lashing rings inserted in the border frame,(LC 10 000 daN).
6 pairs of lashing rings inserted in the border frame, hinged outwardss (LC 5 000 daN).
2 pairs of lashing rings inserted in the border frame, hinged outwardss (LC 10 000 daN).
Cutouts in the border frame of the loading area for hooking in tension belts. (LC 2 000 daN).
- Red and yellow air couplings on the galvanised front connection ledge.
- 2 wheel chocks with carrier.
- 2 king-pin.
- Yellow reflective tape according to the EU regulation over the entire length, on the extension and at the rear.

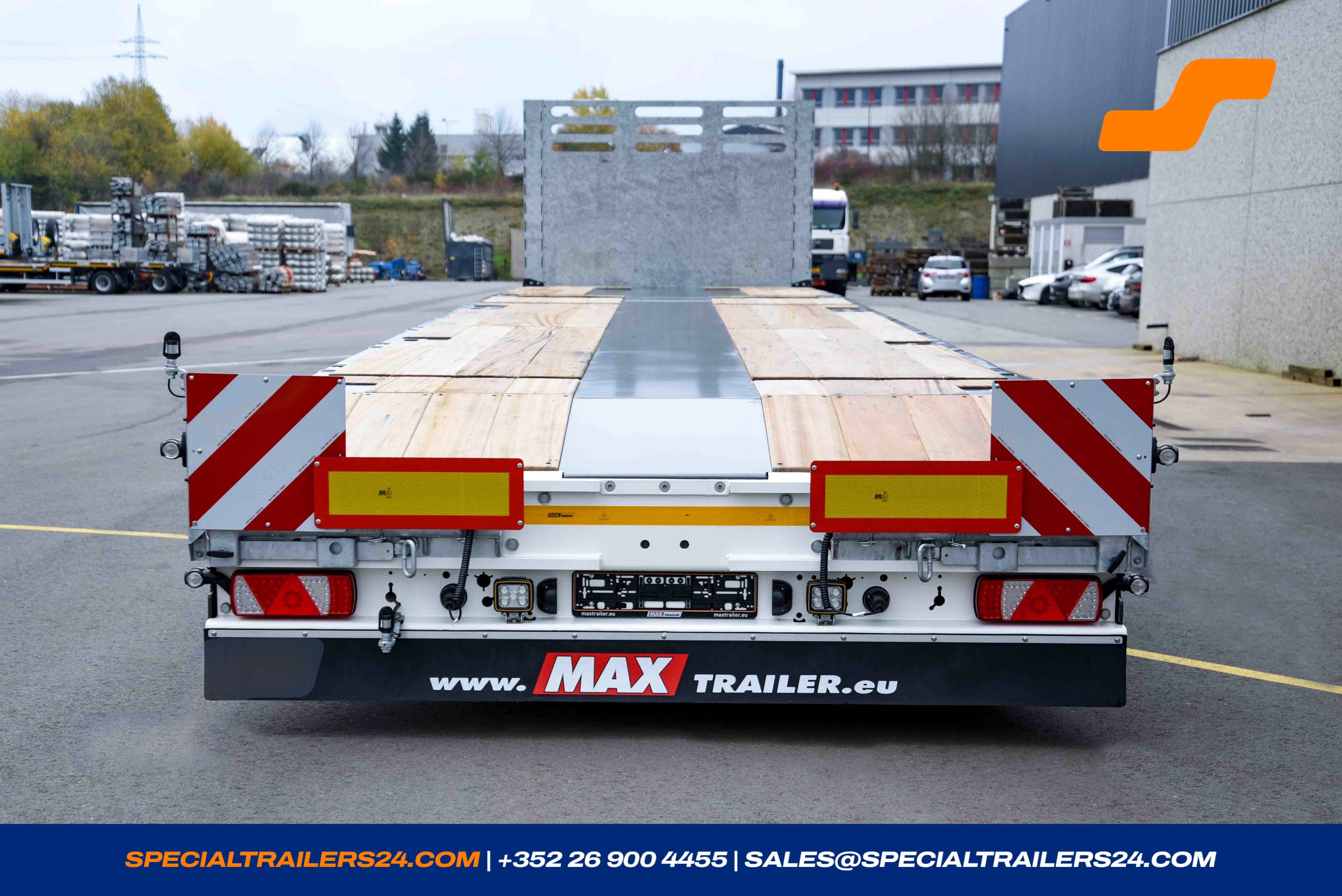

- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.

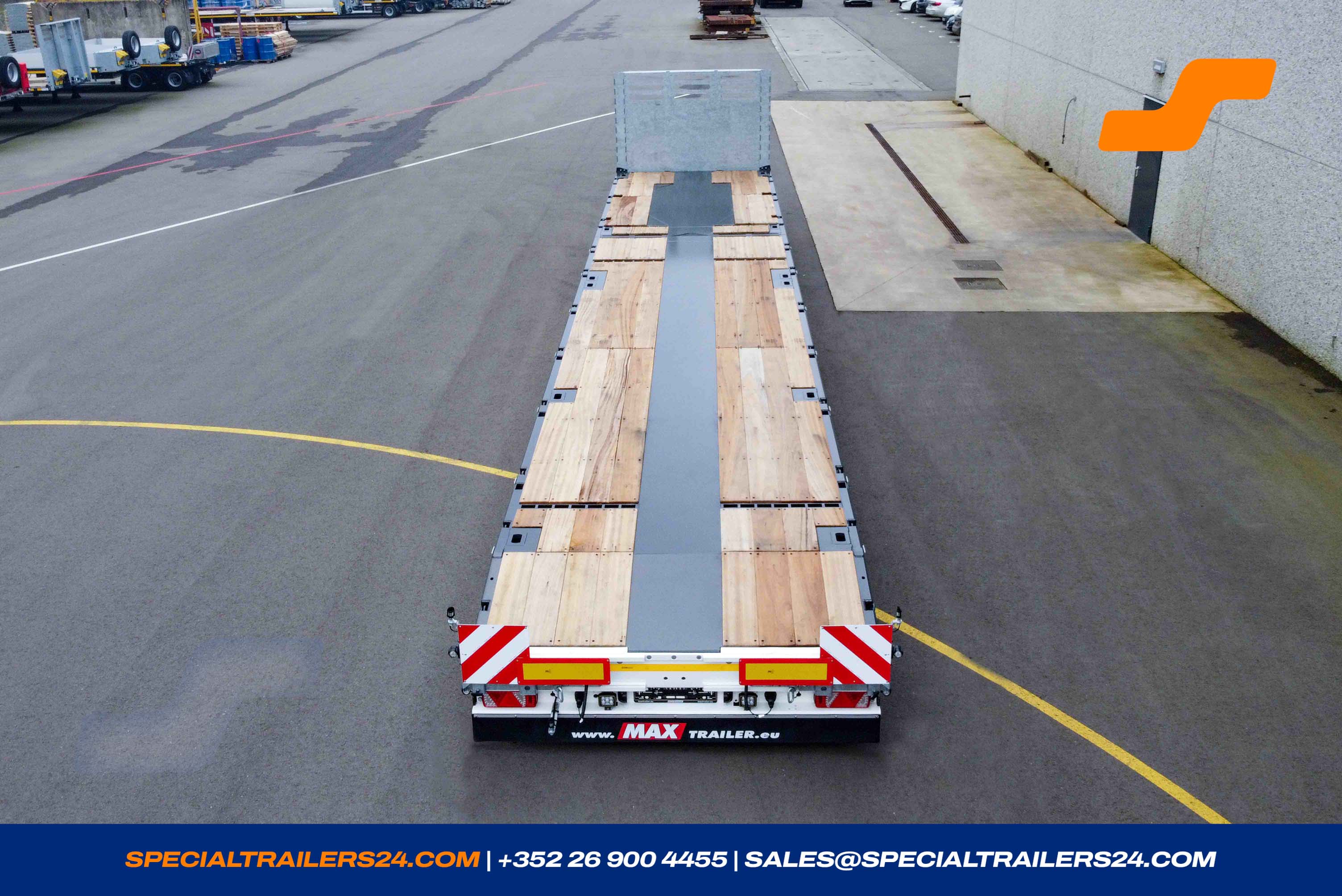

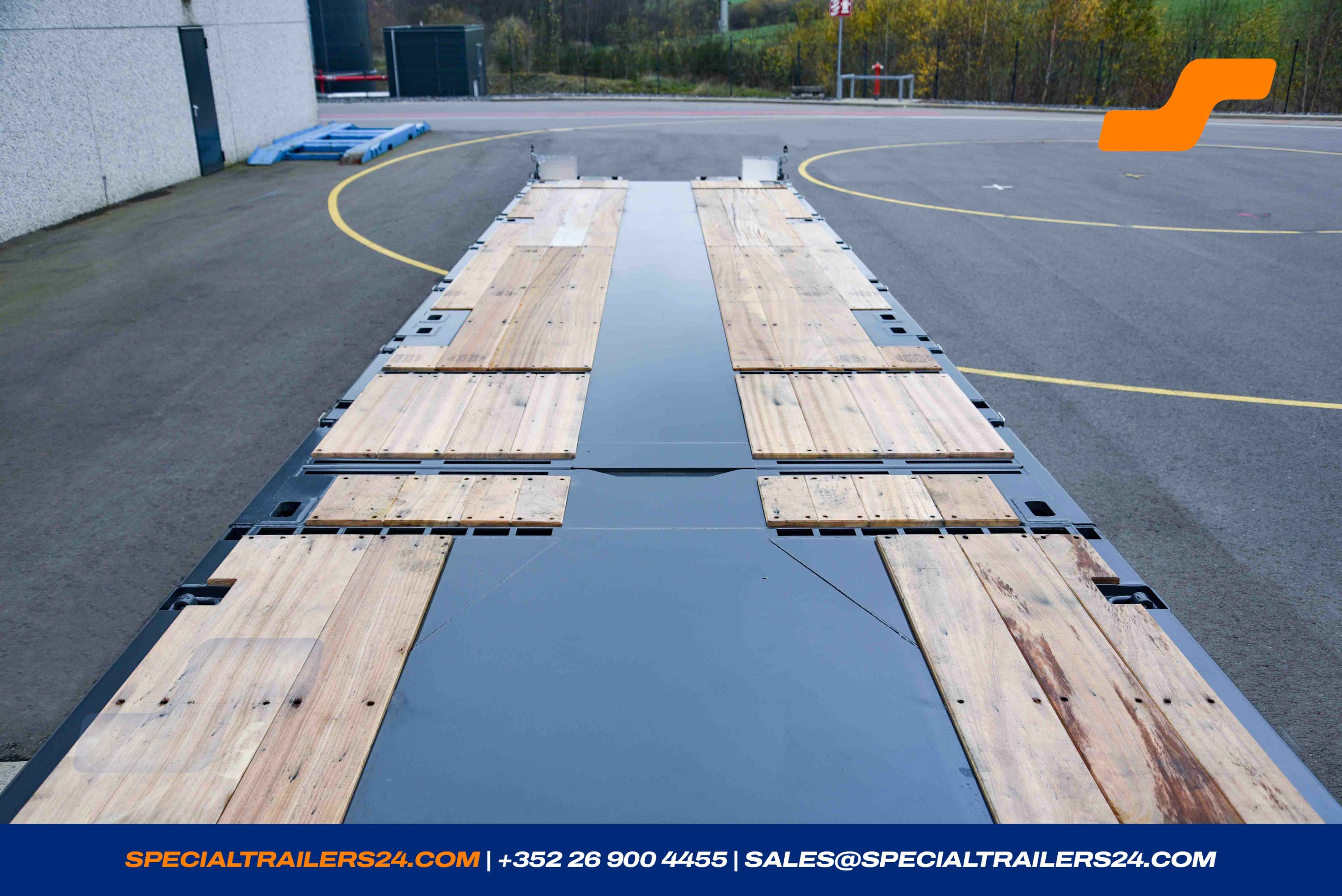

- Loading area with hardwood timber.
- 9 pairs of pockets for stakes ± 100 x 50 mm in the outer frame of the loading platform. (± 27 kg)

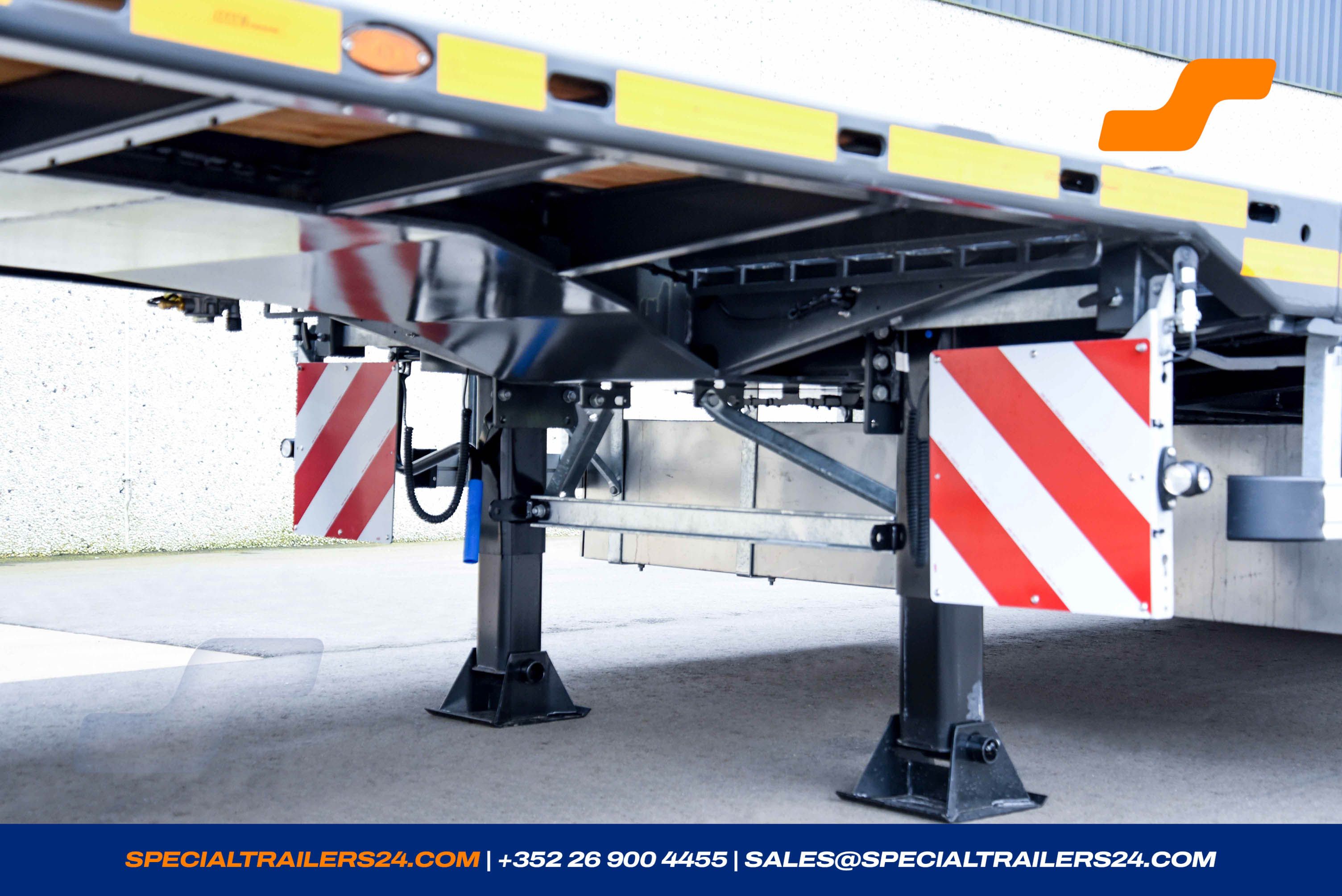

- Galvanised landing gears at the rear under the loading platform.
- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- Manual and description on USB stick .

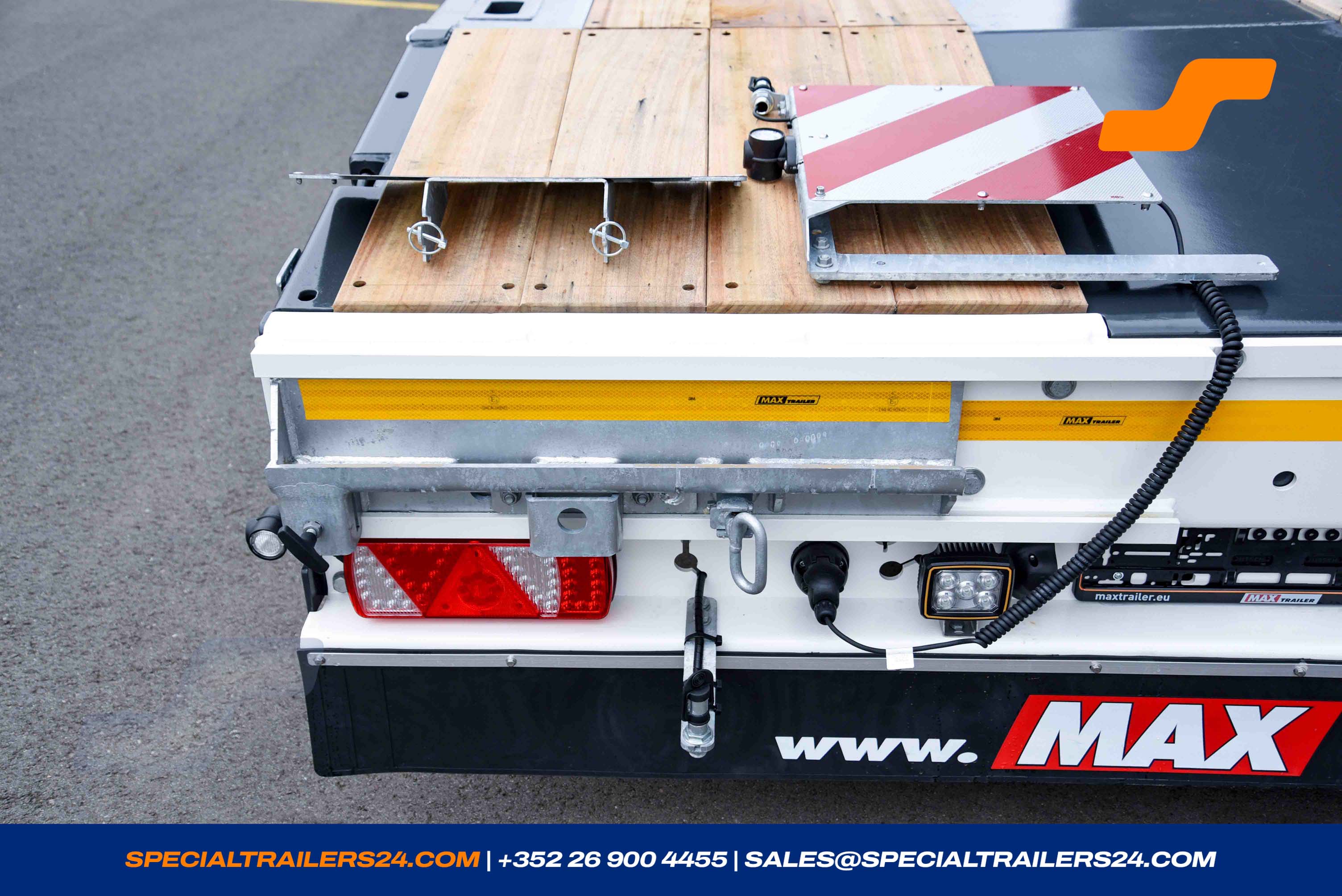

- Holder for one beacon light at the rear of the trailer.
- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.
-

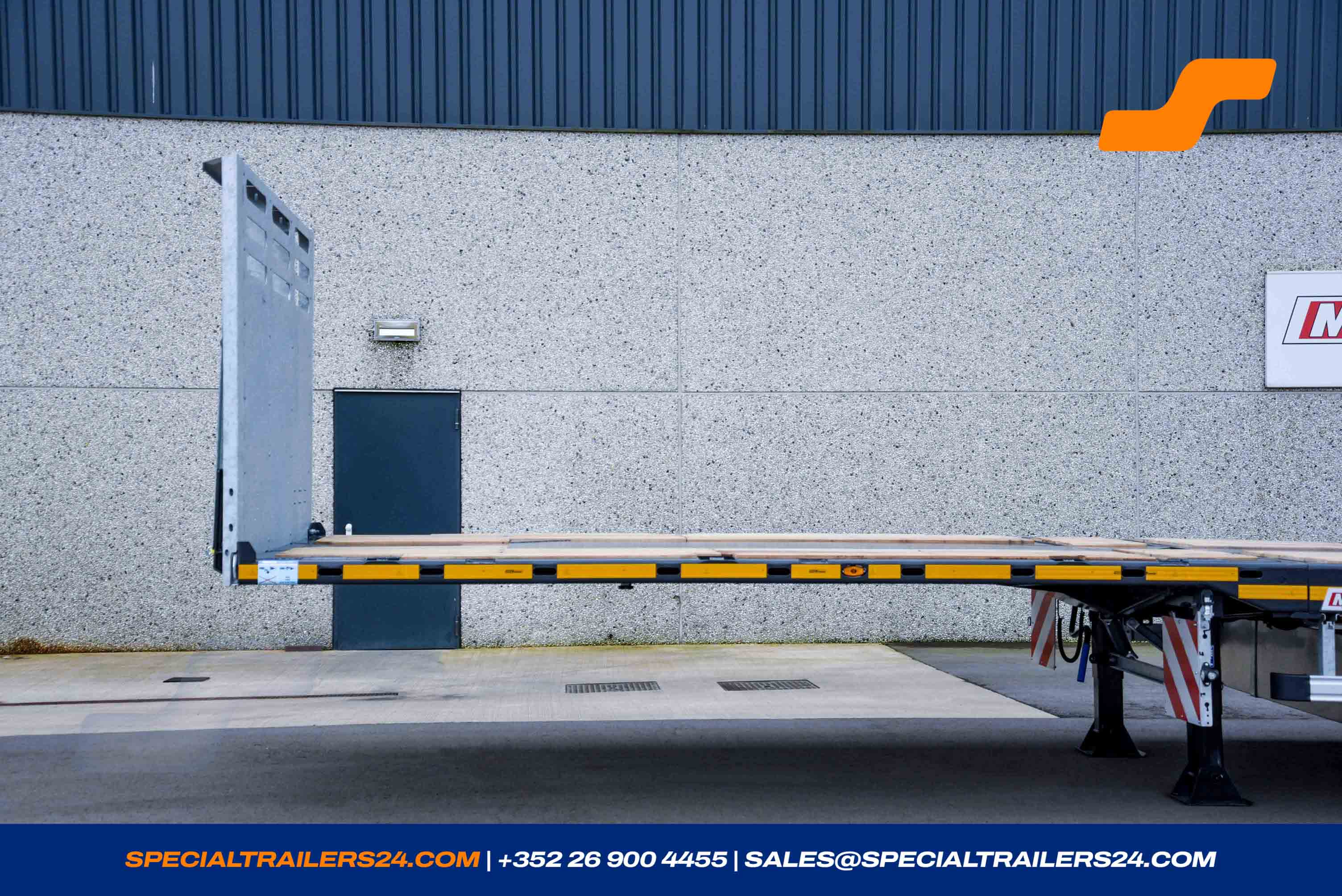

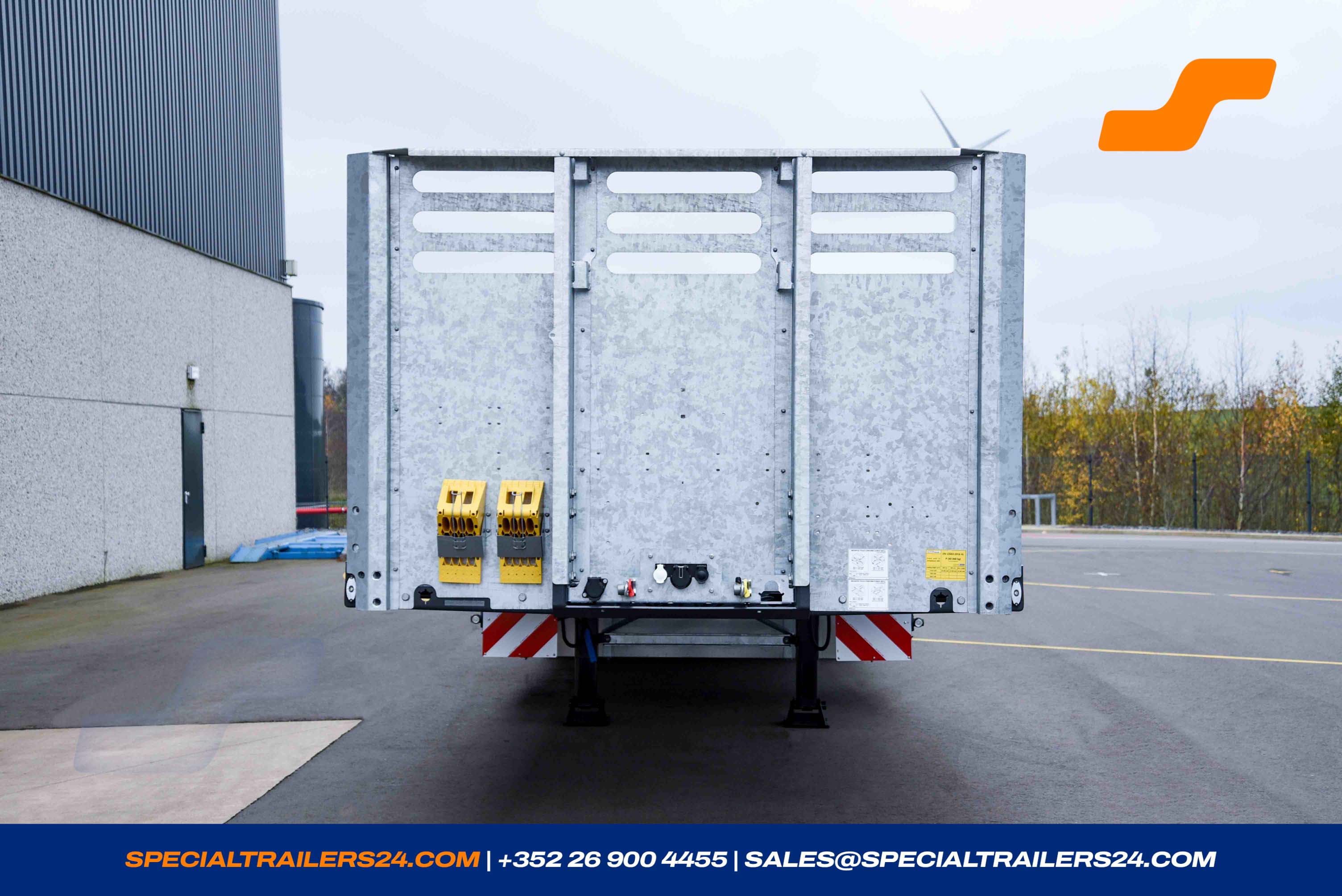

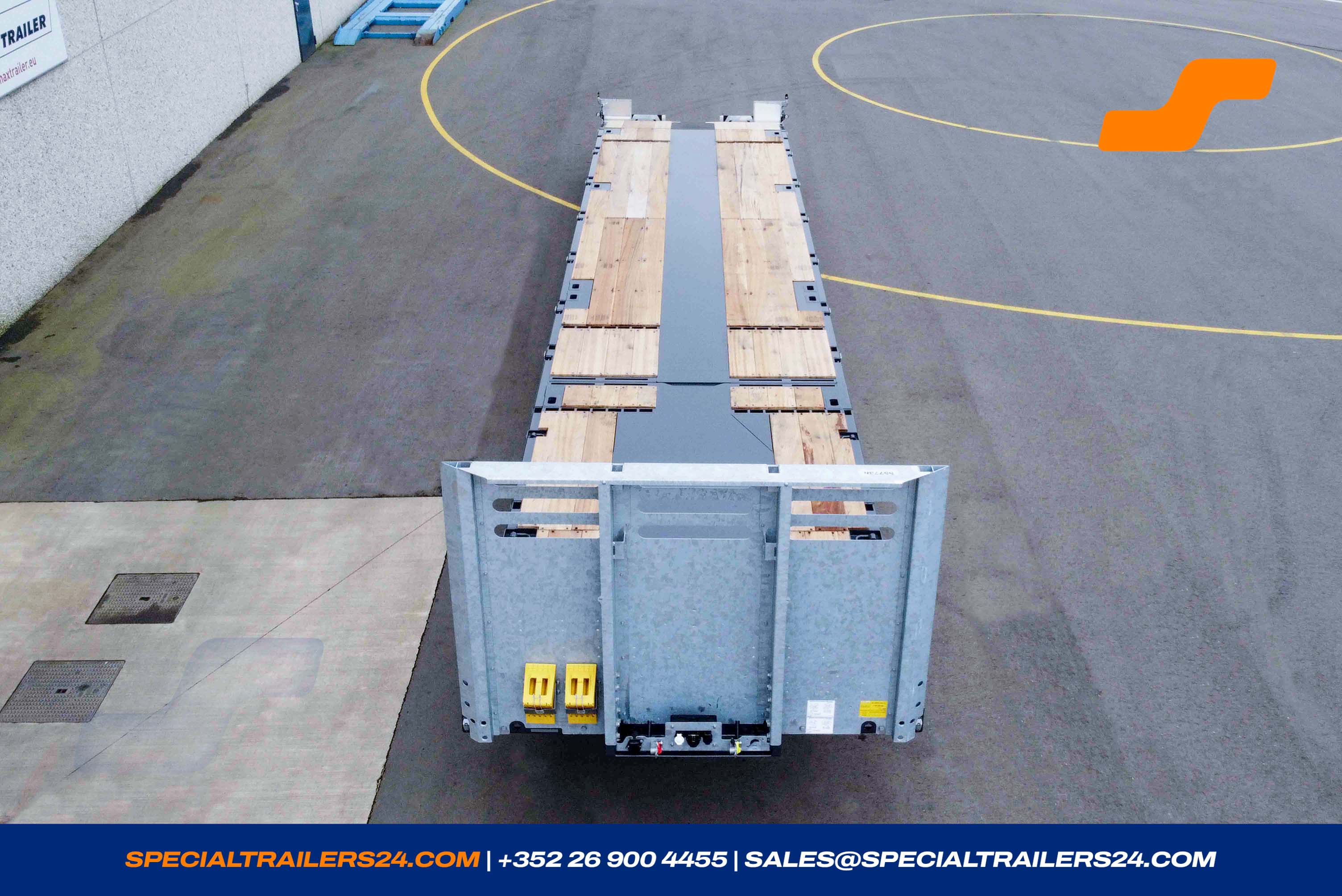

One galvanised steel headboard, height ± 1 600 mm. (± 35 kg)
EN12642-XL - Anti-slip-coating with sand on the central beam.

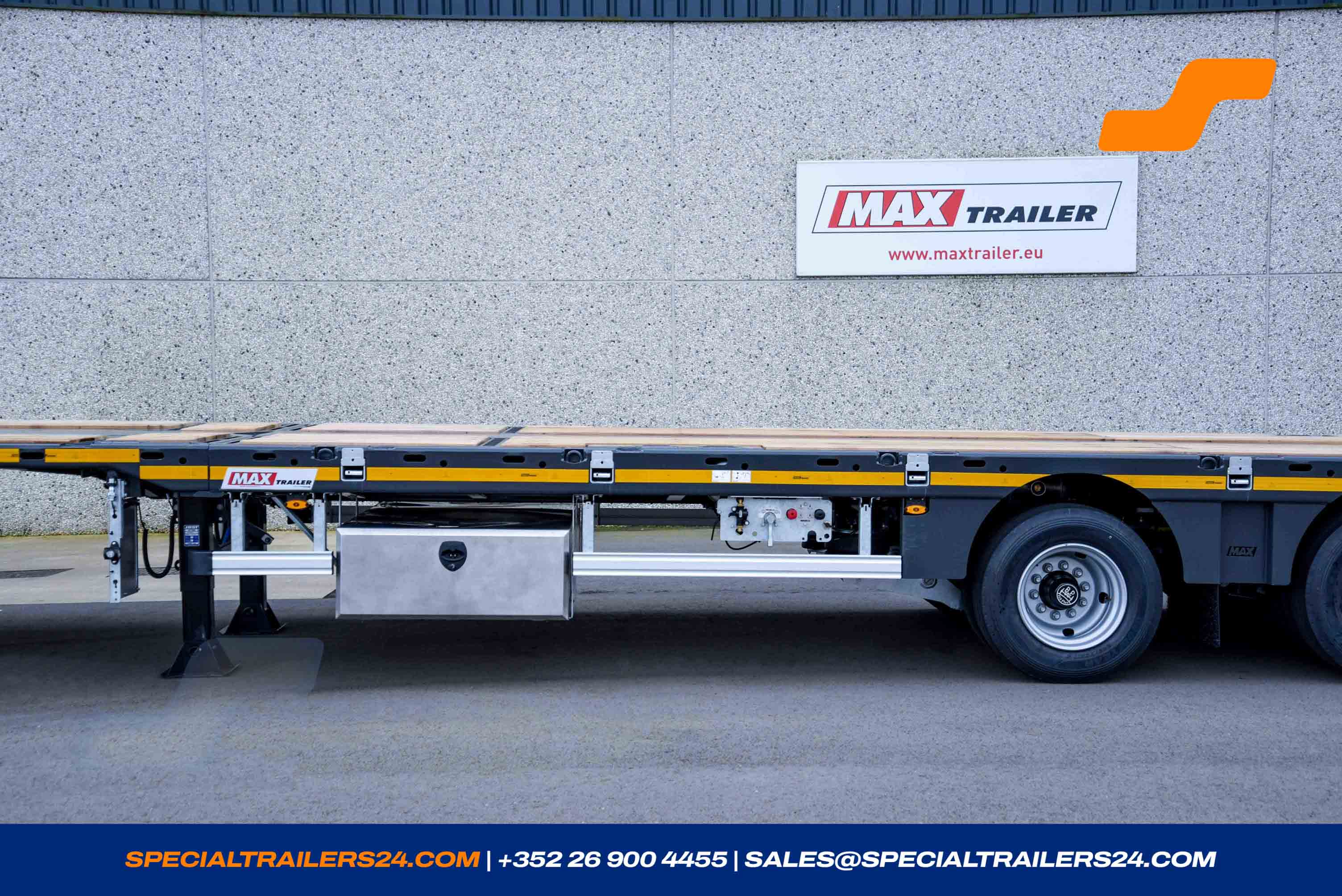

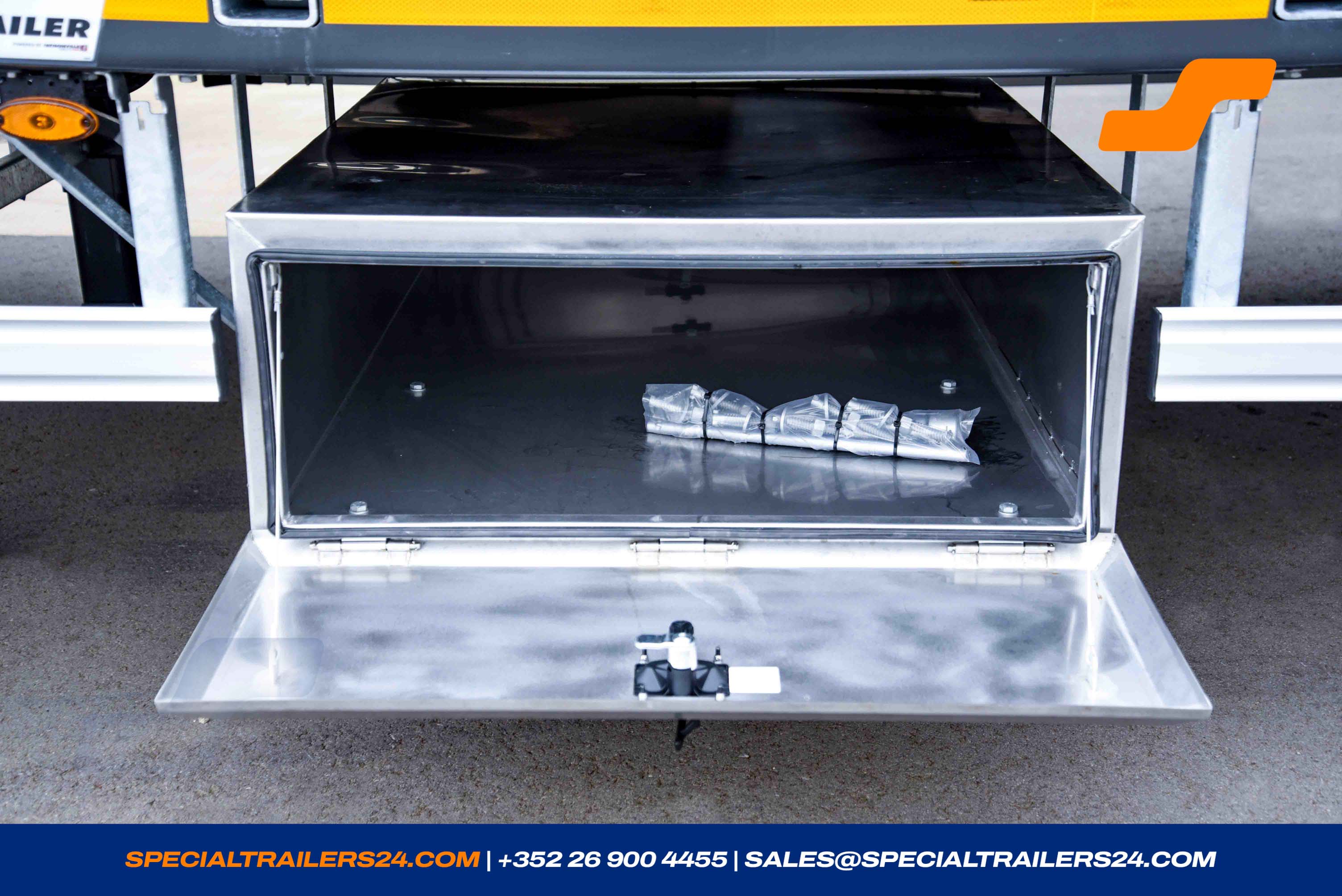

- One INOX lockable tool-box under the loading platform. (2500x400x1000) (± 135kg)

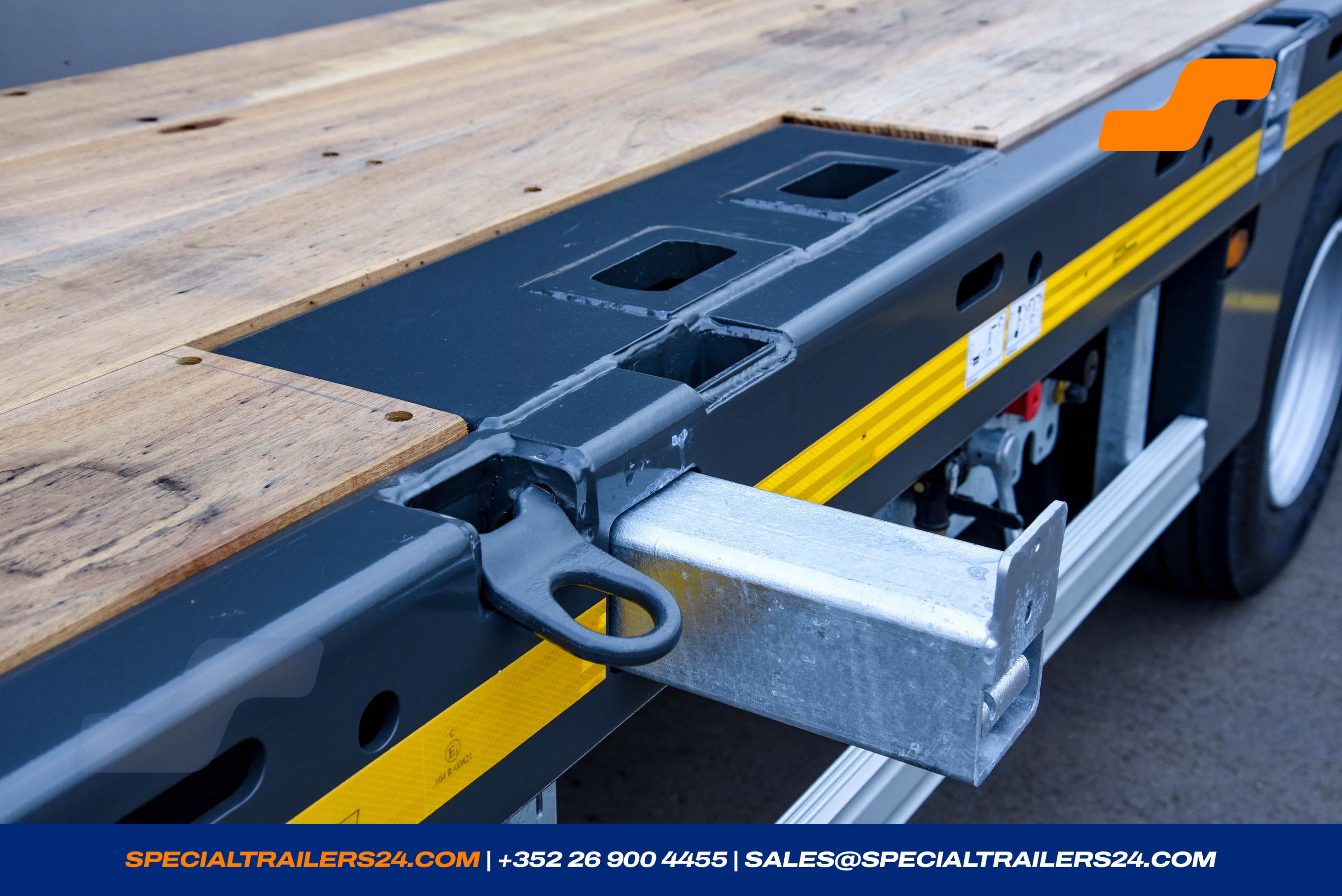

- 6 pairs of containerpockets incorporated into the loading platform for 1 x 20' or 2 x 20' Containers or 1 x 40' Containers. A locking position in the extending for a container 1 x 45'. (± 90 kg)
- 3 pairs rows of stake pockets in the loading platform for stakes 100 x 50 mm. (± 95kg)
- Galvanised outriggers, extendable up to ± 230 mm per side (± 262 kg).

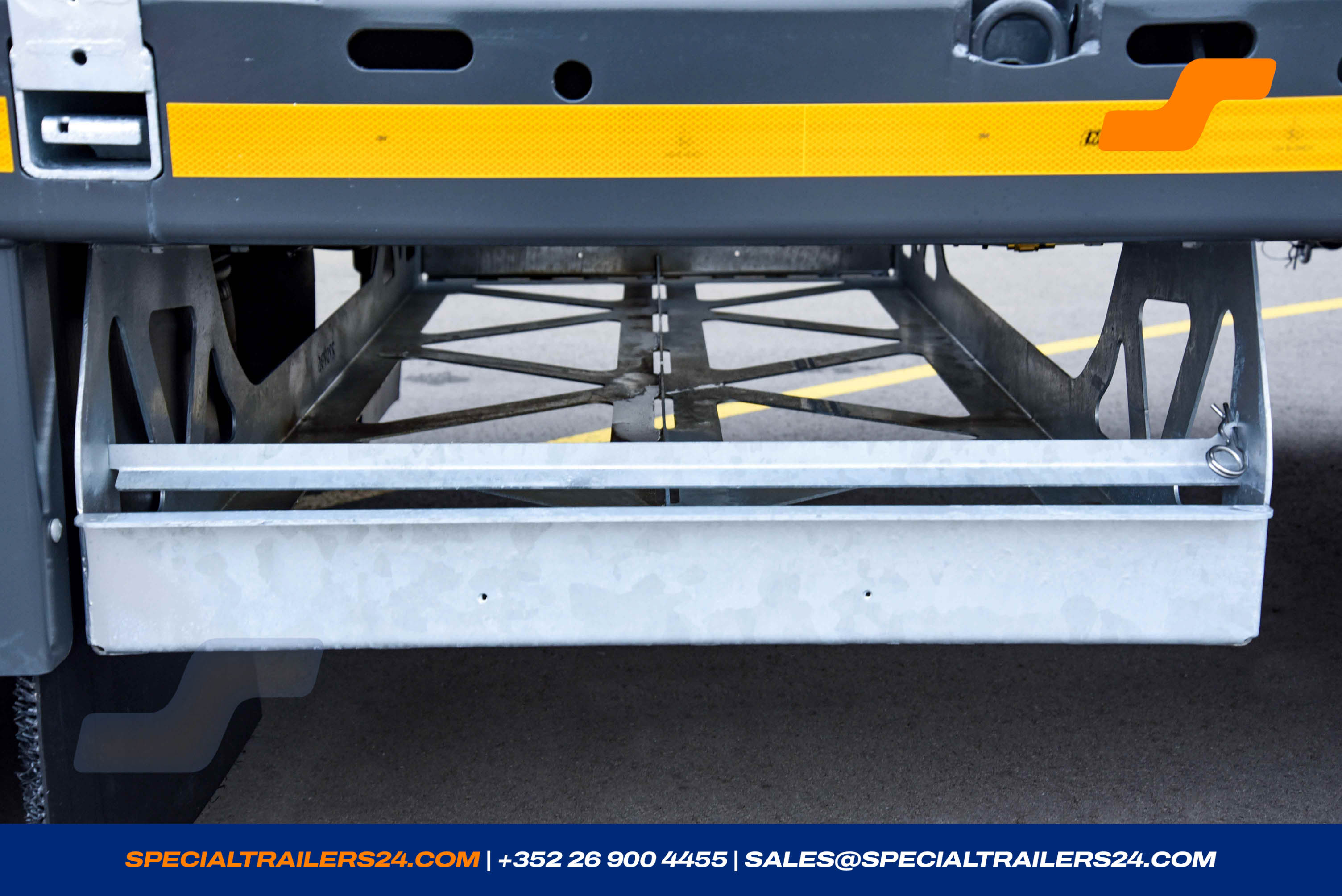

- Holder for alu-ramps, across, behind the axle bogie. (± 88kg)
- 1 spare wheel with holder under the loading platform, on the right-hand side in the direction of travel 235/75 R17.5 3PMSF. (± 70 kg)

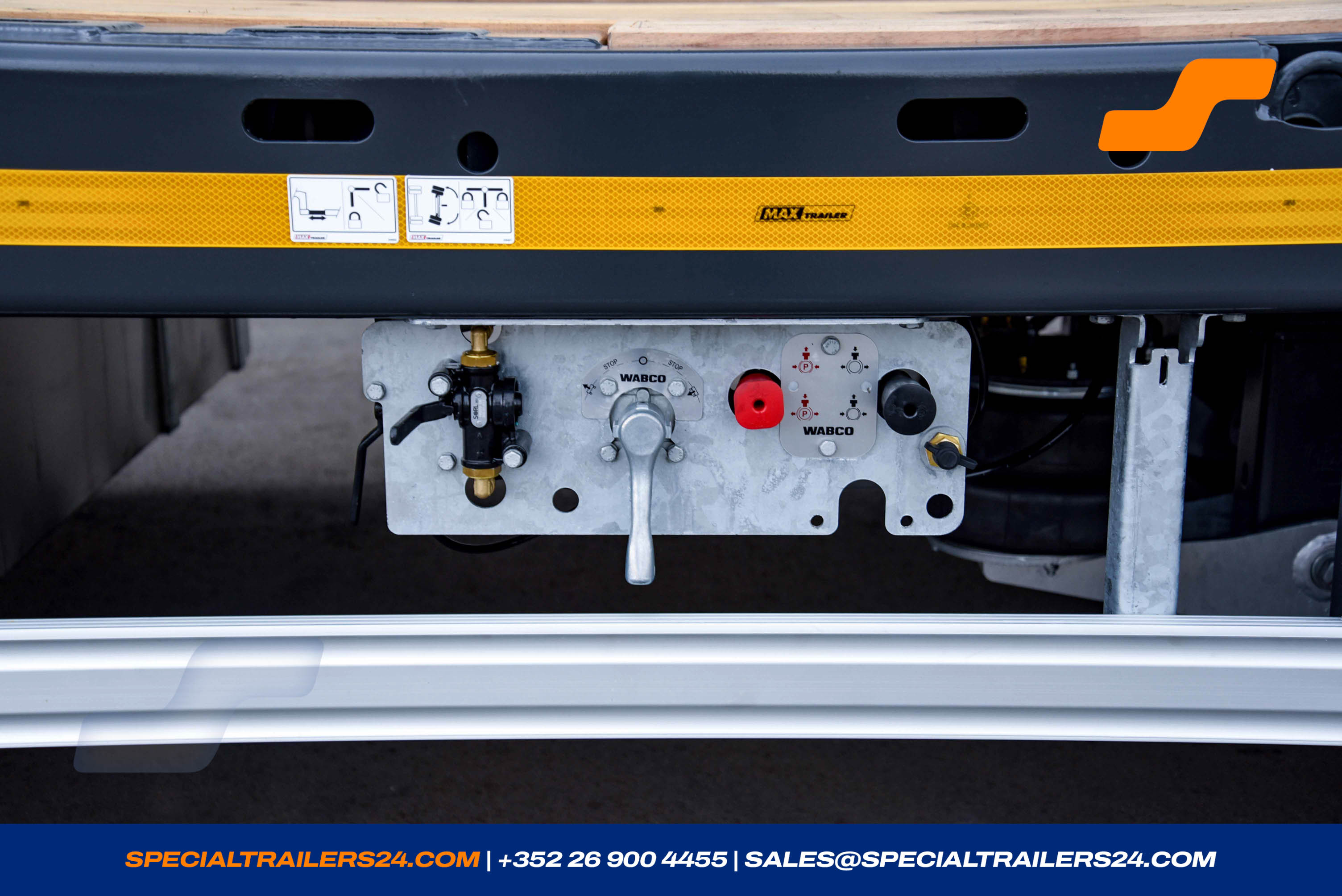

- Lift axle on the front axle with control by TEBS-E depending on the current axle load and the current loading condition (± 69 kg).
- Profile displaceable as hook-on device for alu-ramps at the rear.
- Square iron ledges 20 x 20 mm all 200 mm of the beavertail of the loading platform (± 2kg).
Accessories
1 x Accessories

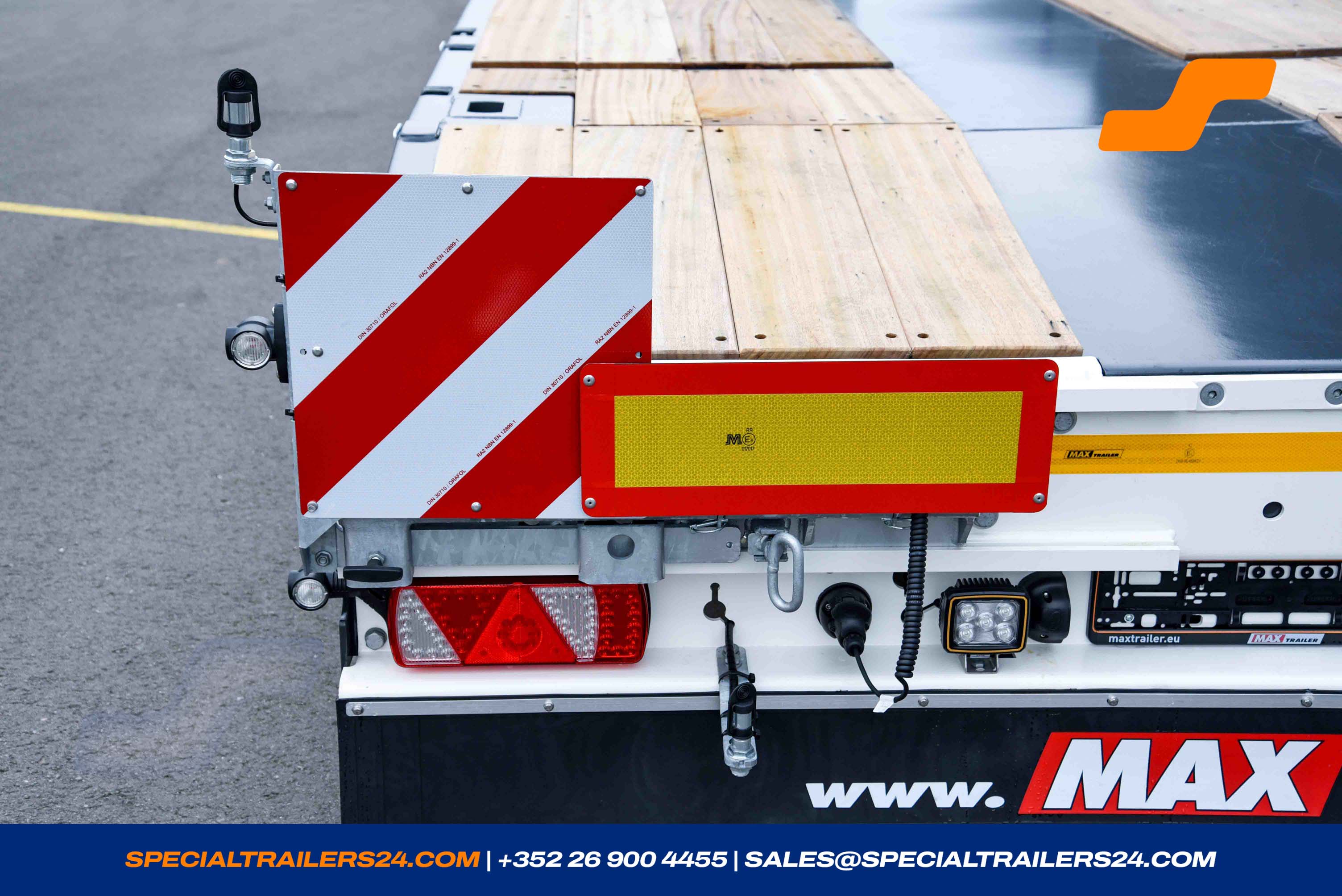

- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- On the warning boards a holder to put a flashing beacon.
- 2 LED- reversing lights at the rear.
- Load manometer for determining the axle load, including load diagram.
