Modular vehicle
MAX Trailer MAX710
Die Farbe des Fahrzeugs auf dem Foto kann abweichen.
- Chassis number 110823
- Reference MAX710-Hals-V-30-2700-3
- Condition New
- Year of manufacture 2025
- Colour Farbe wählbar
- Availability 05/2026
Availability
05/2026
Preis
Auf Anfrage
Location
Lentzweiler, Luxembourg
Downloadcenter
Die wichtigsten Unterlagen
Detailinformationen
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 37000 kg |
| Gross weight | 37000 kg |
| Tare weight +- 3% | 4994 kg |
| Payload | 32006 kg |
Dimensions
| Fifth wheel height loaded | 1300->1400 mm |
| Turning circle reversing | 2 700 mm |
| Gooseneck length | 3 650 mm |

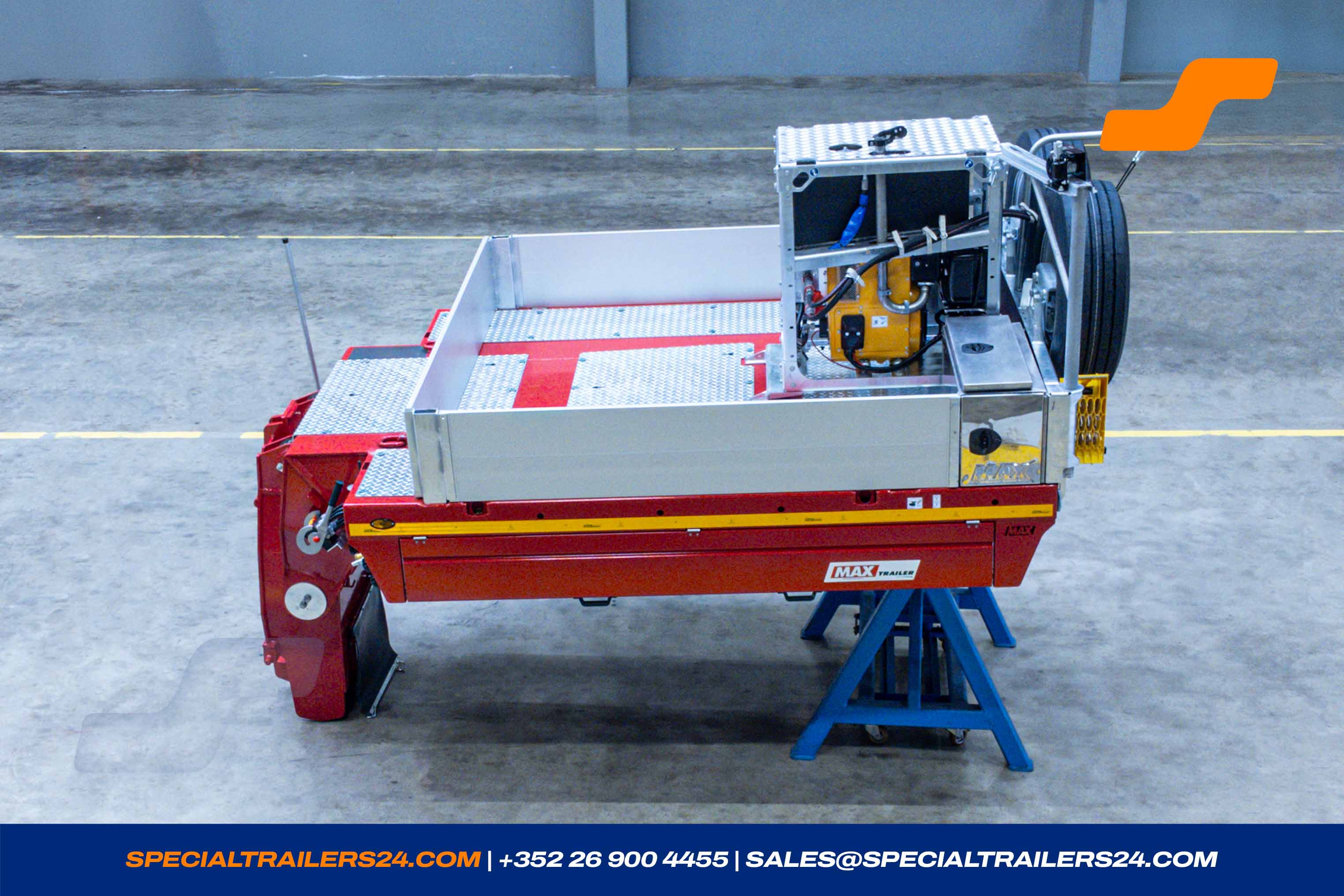

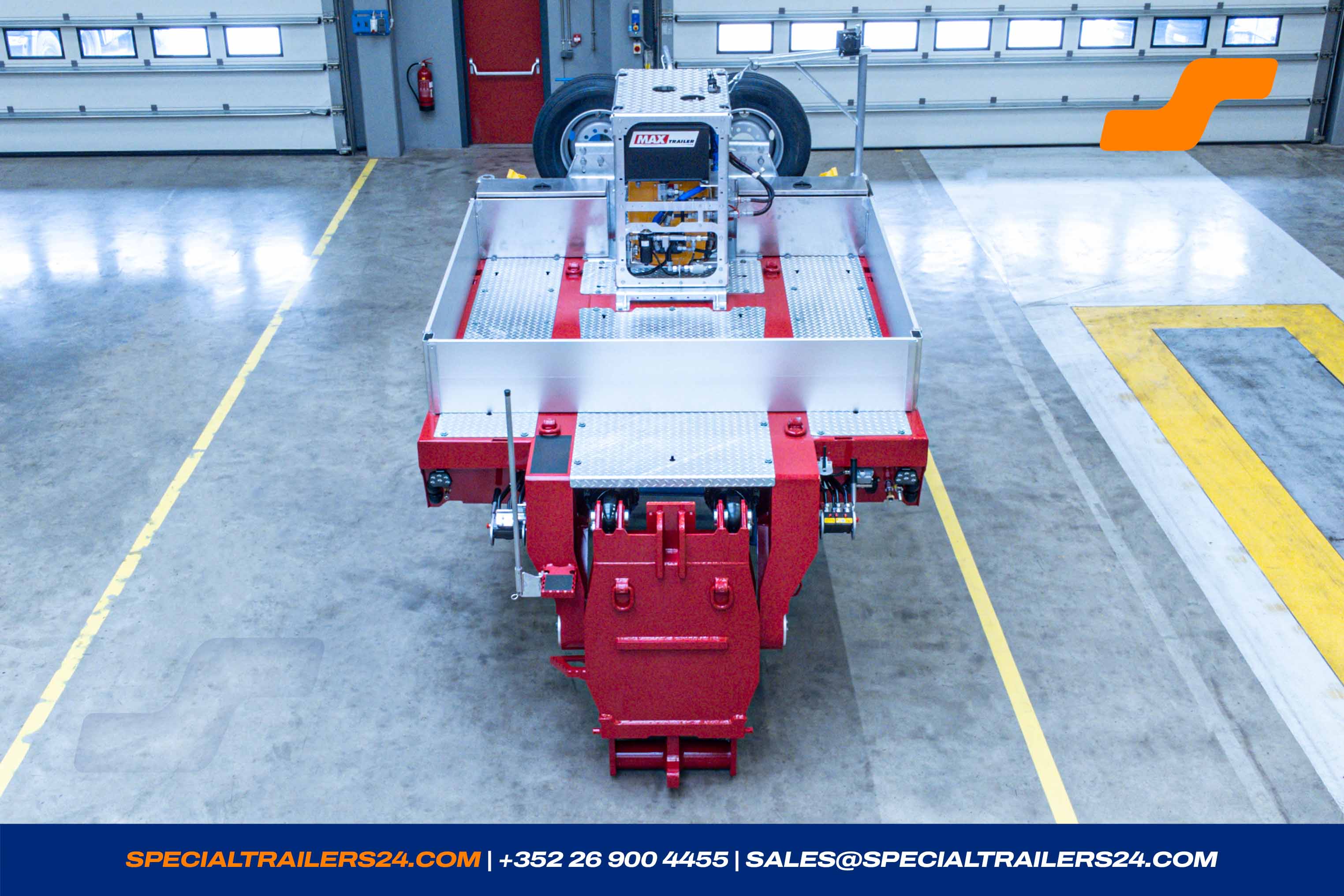

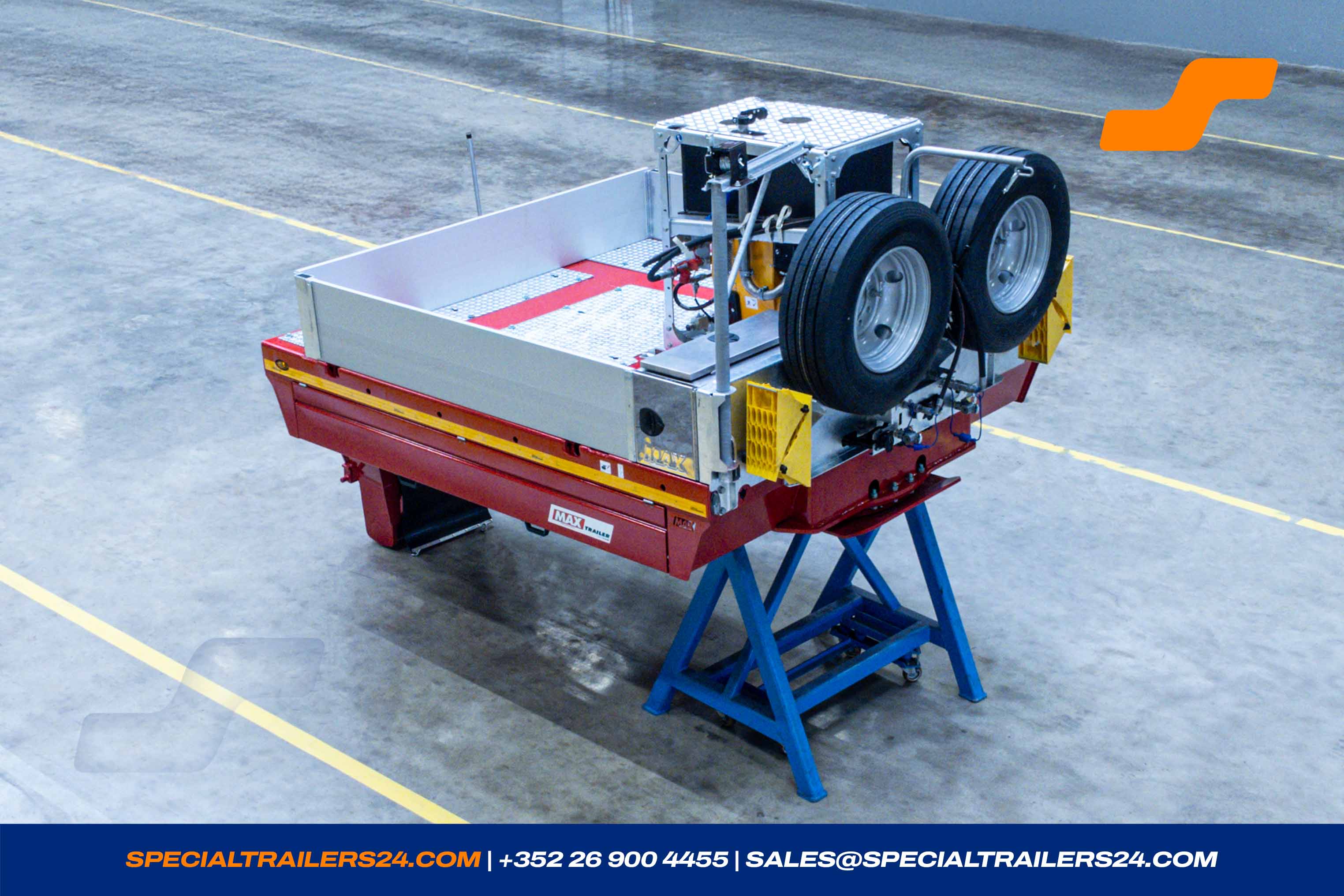

Gooseneck
1 x Gooseneck
Gooseneck hydraulic lift- and lowerable and detachable.
Length ± 3 650 mm.
2 pairs of lashing rings foldable outwards (LC 5000 daN)
2 pairs of lashing rings on the gooseneck (LC 10 600daN)
1 pair of lashing rings on the centre section of the gooseneck (LC 10 600 daN)
For use of trucks: 6 x 4 and 8 x 4
- Red and yellow air couplings on the galvanised front connection ledge.
- 4 wheel chocks with carrier. (± 5 kg)
- A separate air connection with air gun on the gooseneck.
- A gallow with winch for spare wheel on the front of the gooseneck.
- Steel headboard, heigth ± 400 mm.
- On the gooseneck, removable alu-sideboards and rearboard, height ± 400 mm, anodized.
- 3.5 king-pin.
-
Electric system conform to the EU-regulations, LED lighting 24 volt ASPÖCK-NORDIK (ASS3).
All LED side marker lights flash with the indicator.

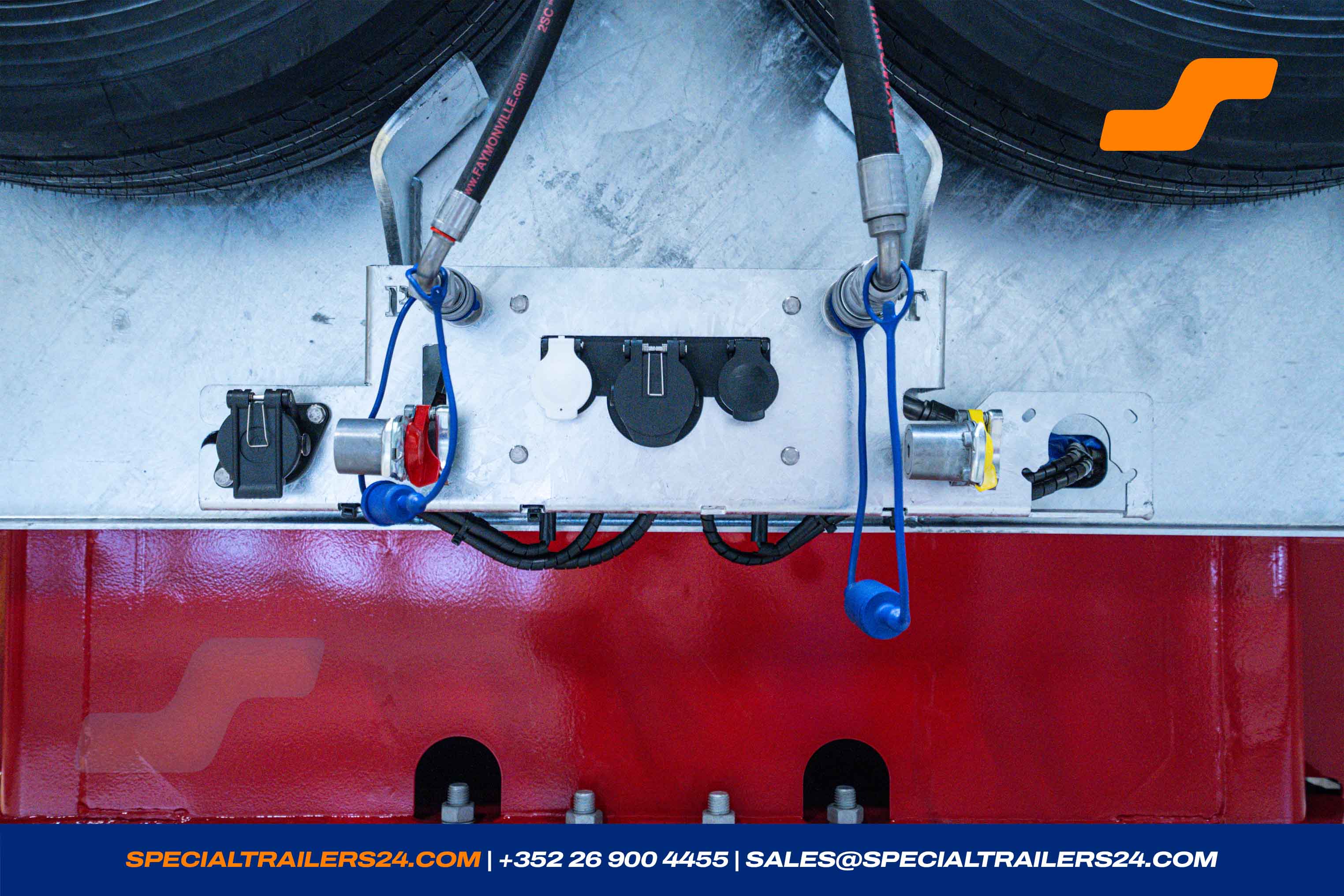

ASPÖCK-UNIBOX on the galvanised front connection ledge with socket 24N, 24S & 15 pole.
Connection to the ISO norm.
24N ISO-1185
24S ISO-3731
15 pol. ISO-12098 -
Connection to the truck PTO with flow reducing valve (20 l/min), incl. gallow to hang up the hydraulic pipes, the tank of the truck has to contain min. 80 l.
Coupling pieces MAX Trailer, otherwise to be delivered by the customer - Lighting for the control valves on the gooseneck with on/off switch.

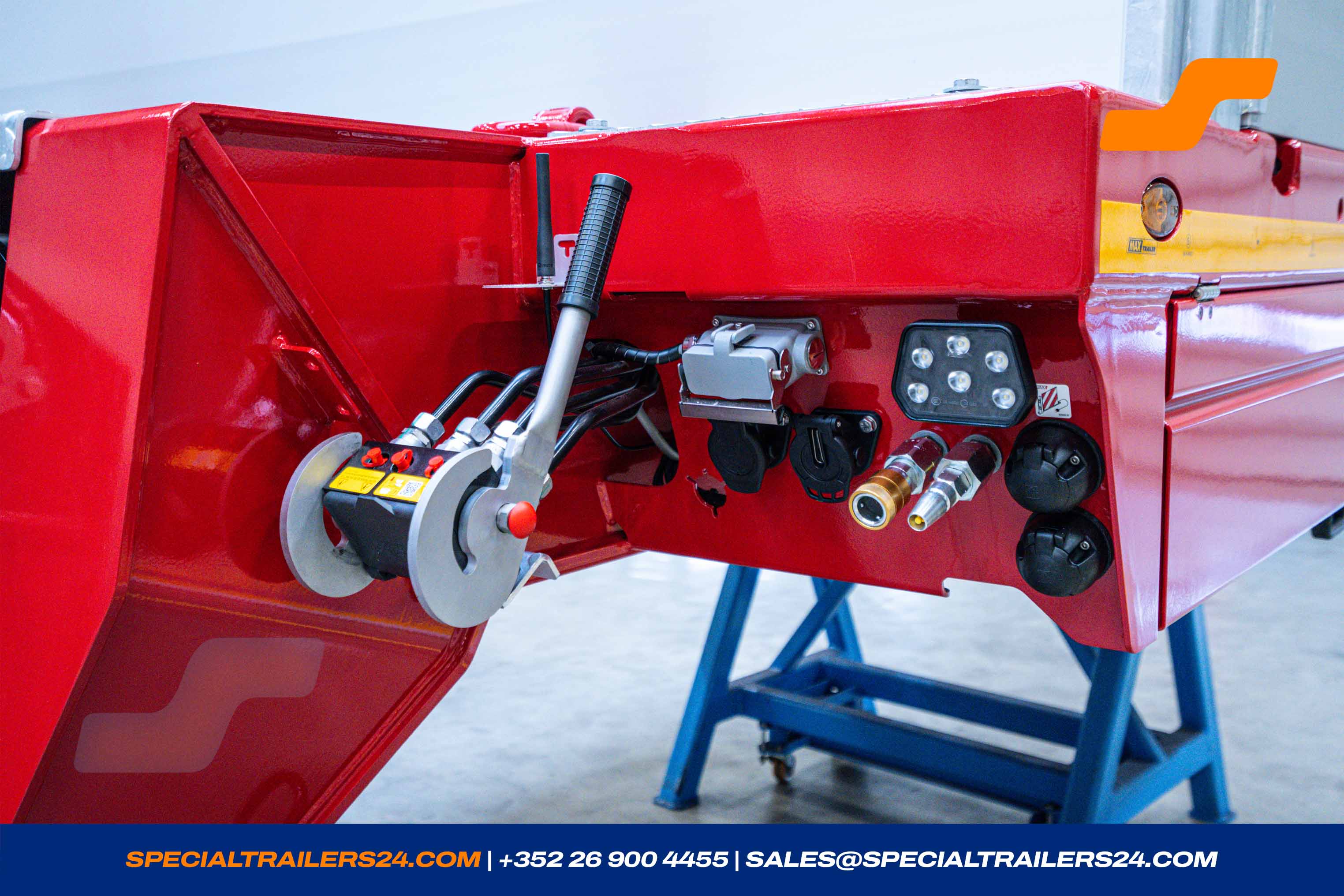

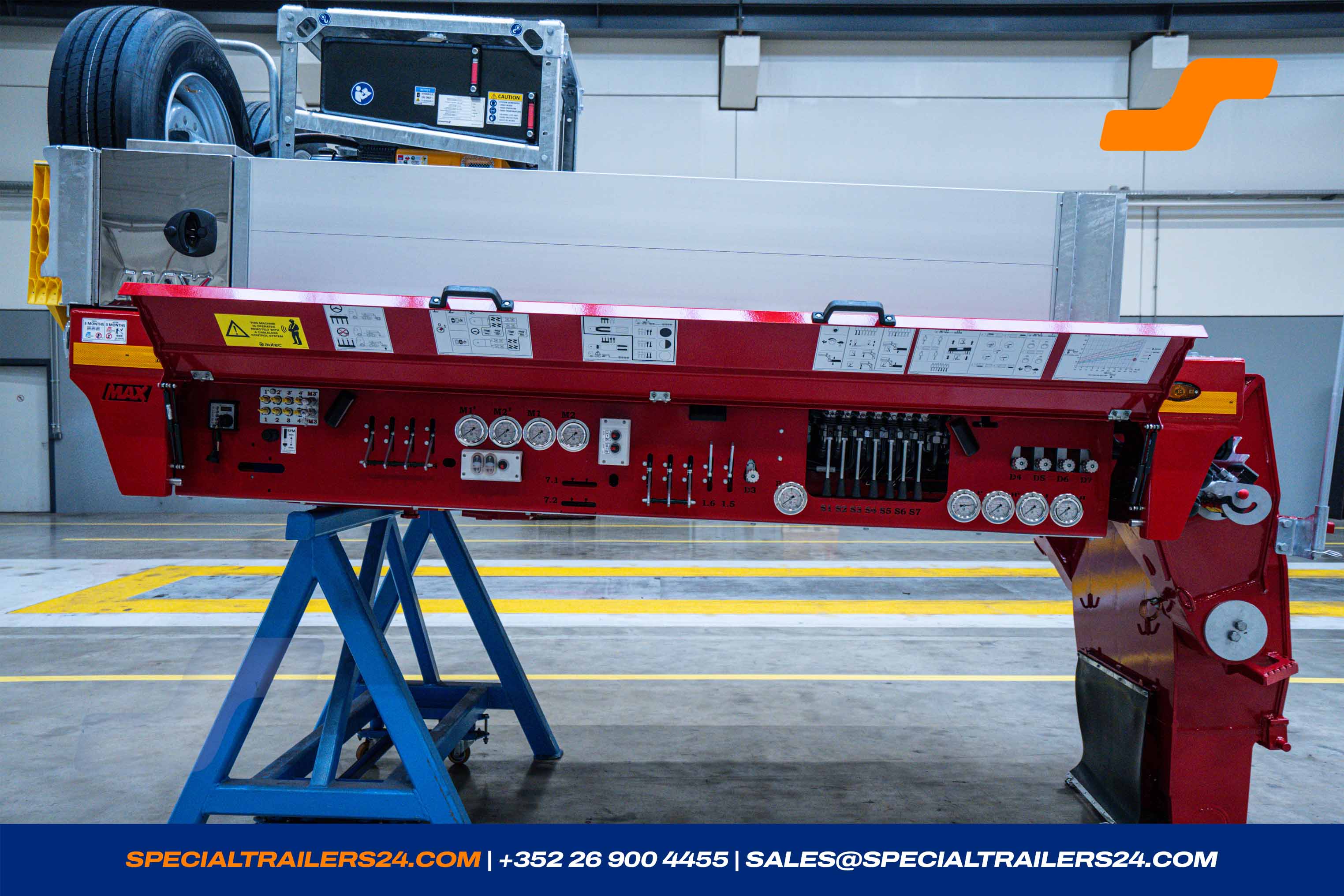

- Control panel on the gooseneck protected by a hinged cover.
- A 7-pole socket left and right at the rear of the gooseneck for the warning boards.
- Load manometers at the gooseneck for the axle load on the front and the rear bogie incl. axle load graph.

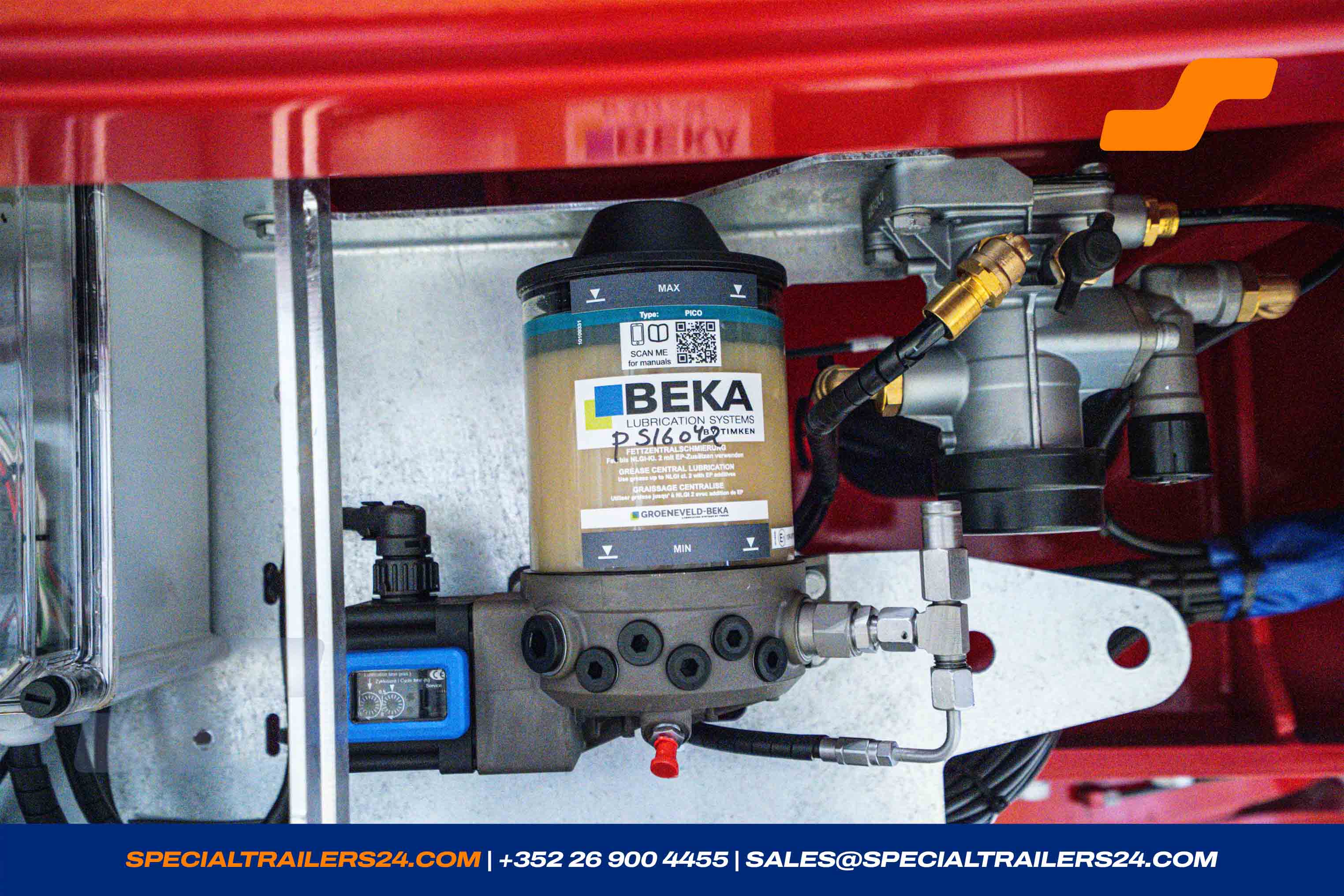

- BEKA-MAX central lubrication for a gooseneck with NLGI-2 normal grease.
- Tool-kit Art N° 612452.
- Ascent possibility to the gooseneck.
- Yellow reflective tape in accordance with EU regulations on the side of the gooseneck.
-

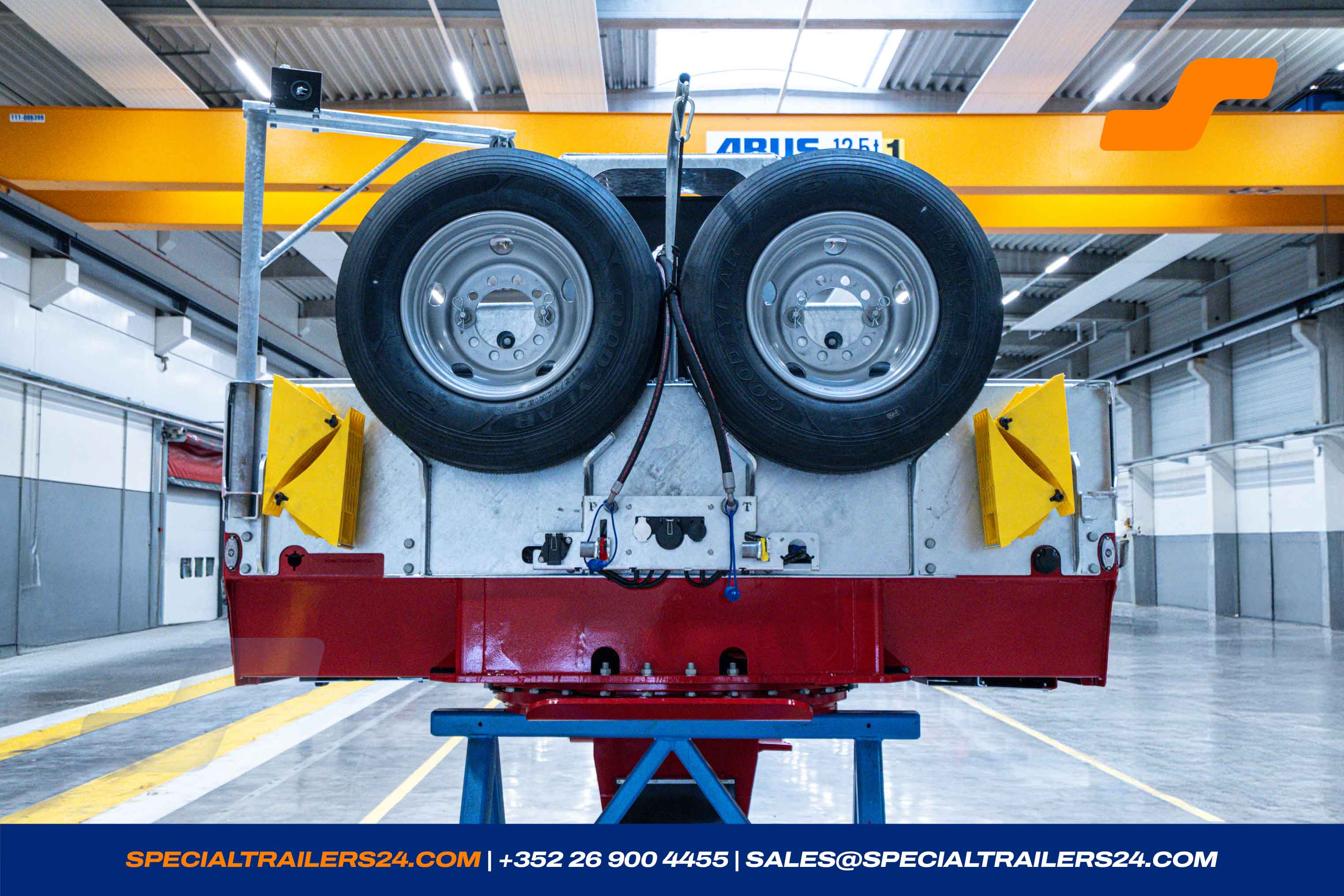

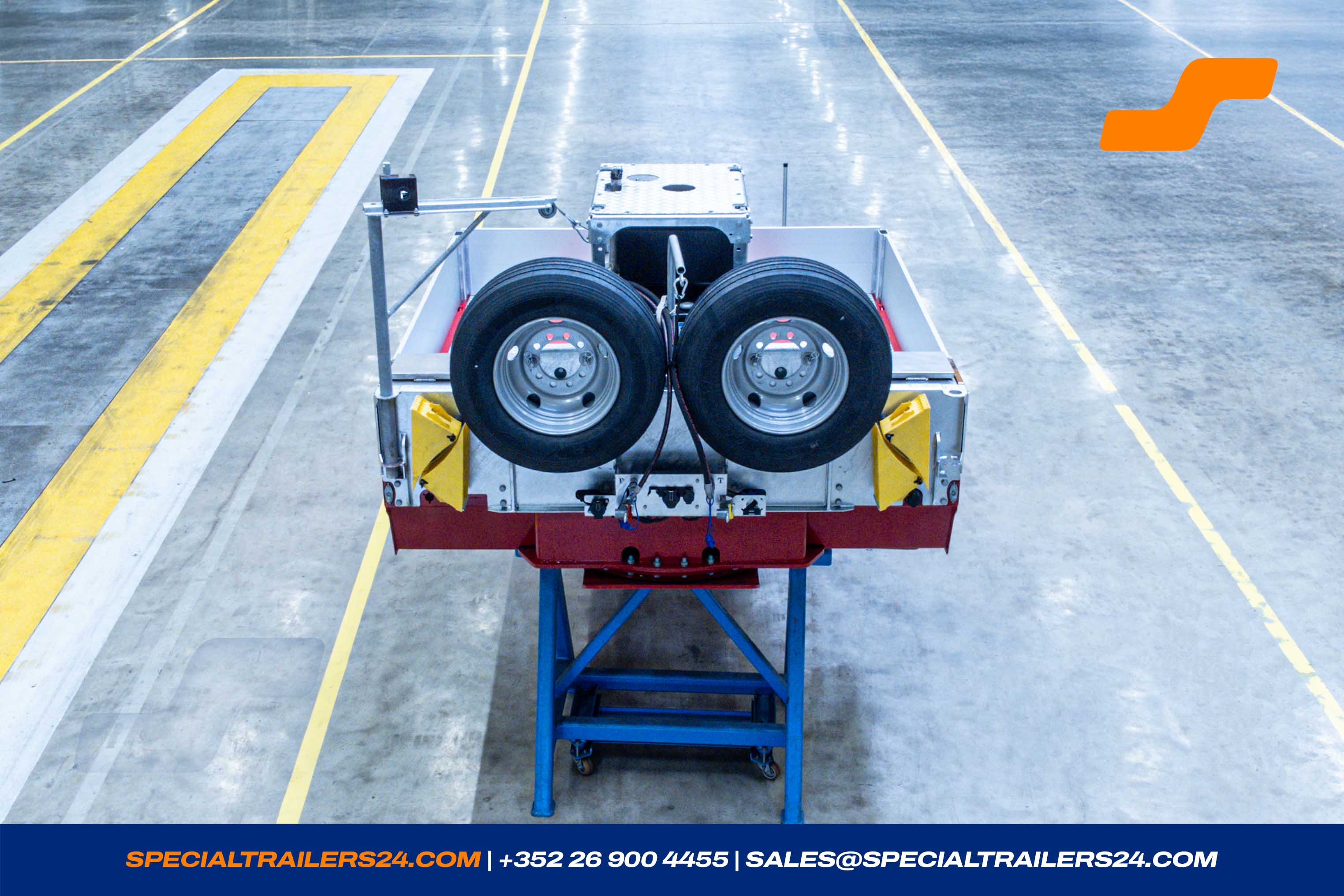

2 Spare wheels 285/70 R19.5 (M+S)
Product of our choice
Load Index 150/148J

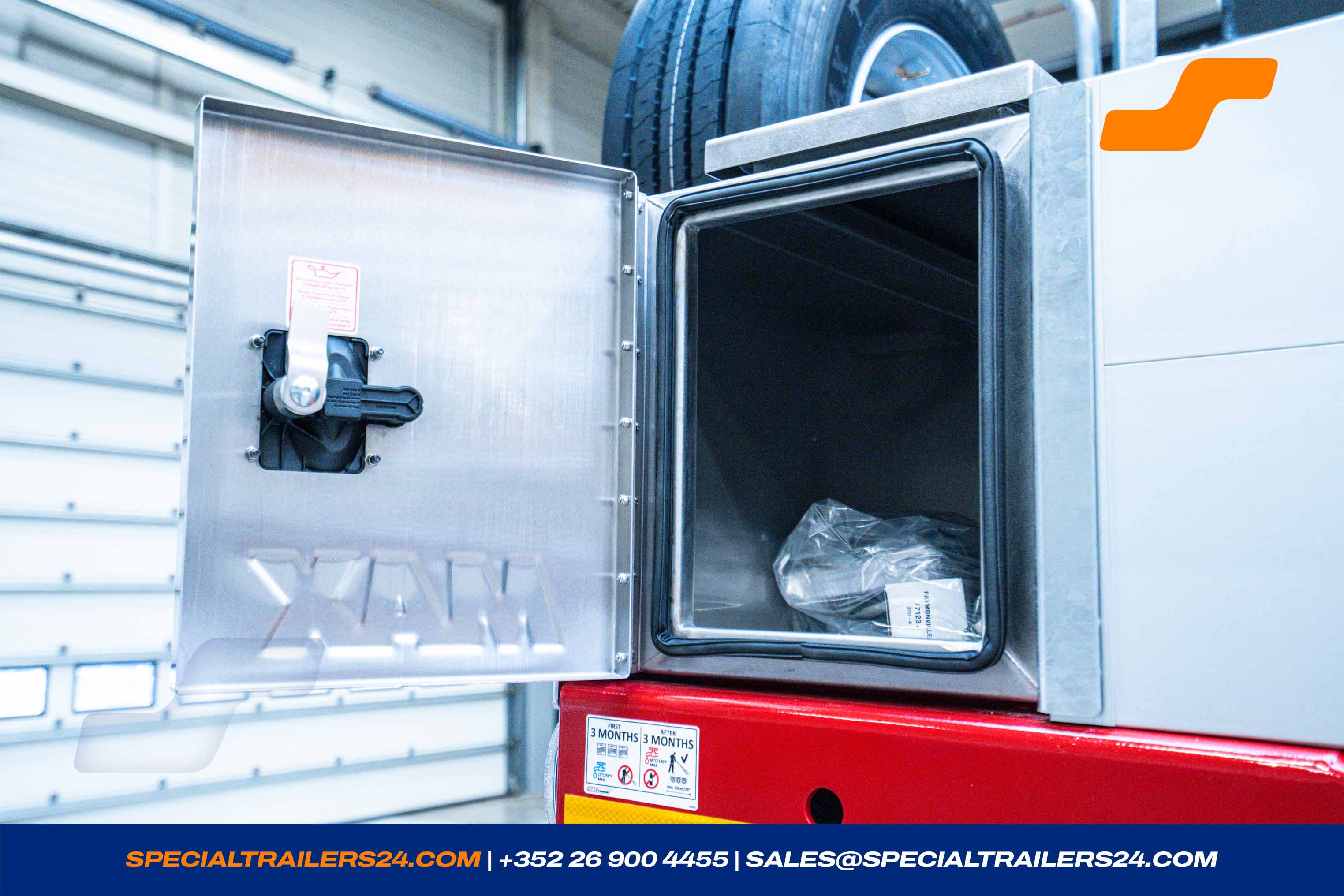

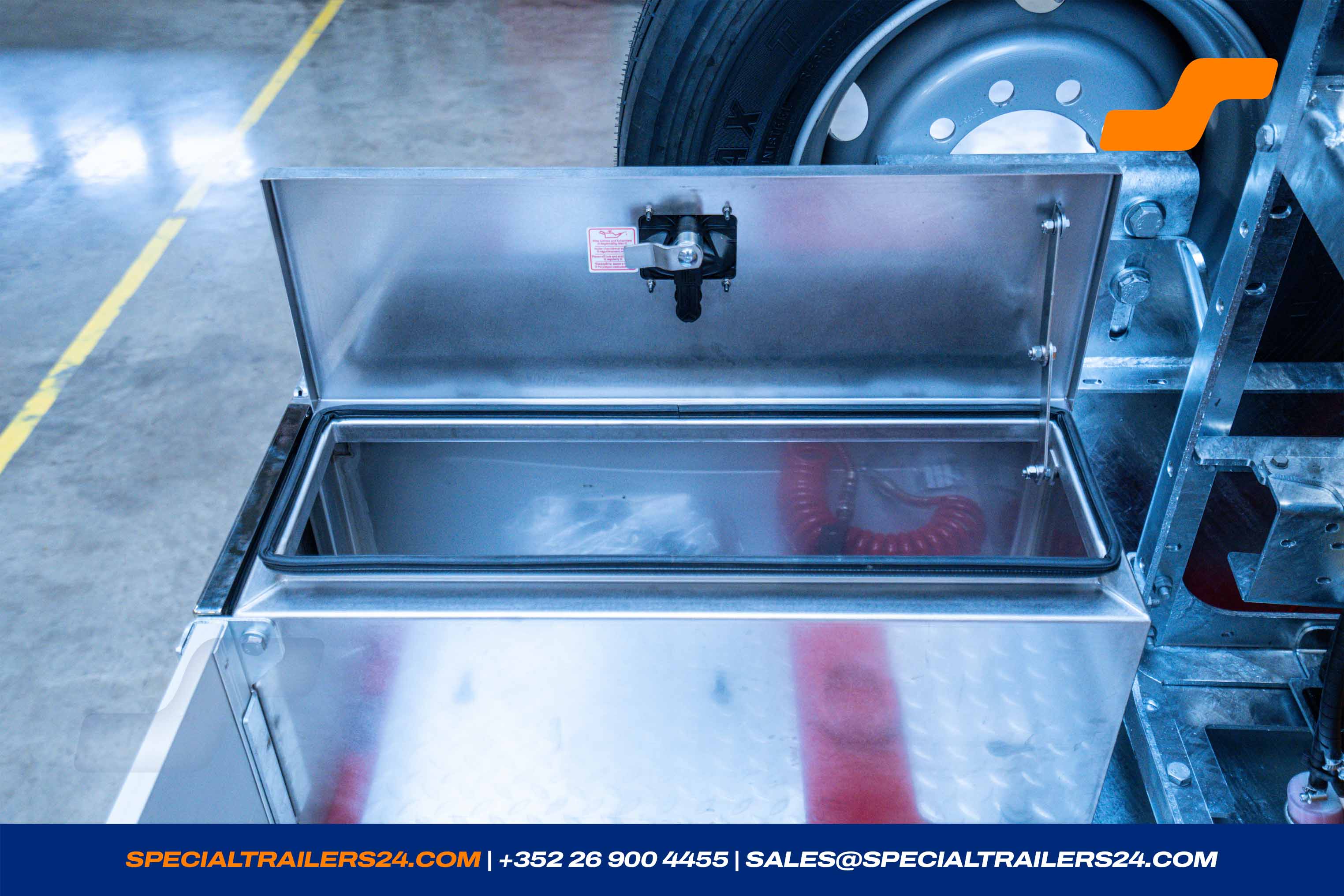

(± 146 kg) - 2 tool boxes INOX on the left and right of the gooseneck ± 855 x 340 x 390 mm. (± 48 kg)
- 2 king pin, interchangeable – for transit purpose only.
-

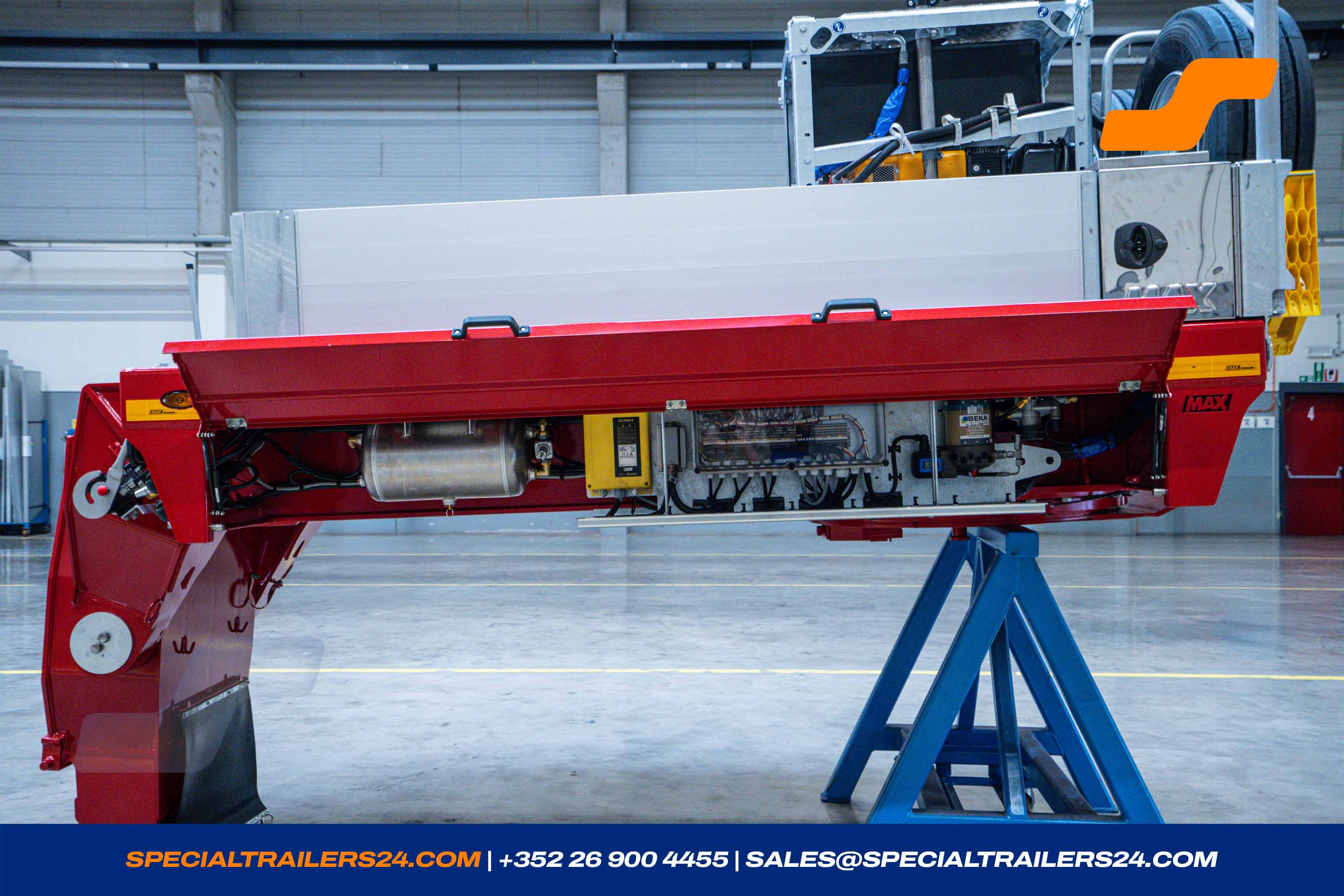

Electro-hydraulic unit ± 4 kW integrated in the gooseneck.

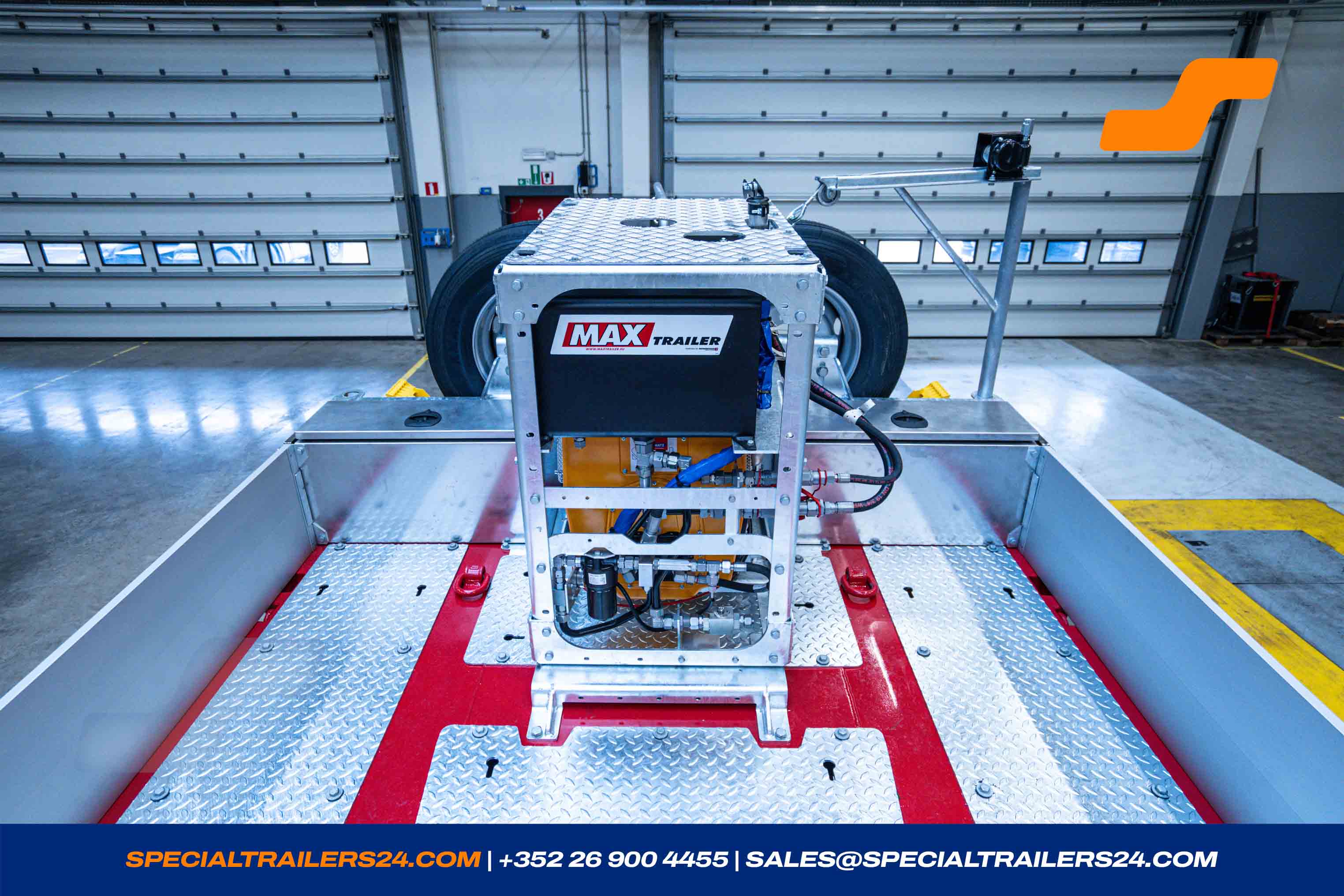

The unit is not suitable for continuous operation under full load and can only be used in conjunction with a permanently installed diesel power pack with integrated oil tank or with a separate oil tank. -
Additional oil tank (100l) for the supply of the electro-hydraulic pump if no Diesel powerpack is installed.
Mounting on the gooseneck - Spiral cable for the the electric-hydraulic pump and/or electric winch (35 mm², 3.5 m length, max. 250 A) between the semi-trailer and the truck with socket (NATO-NATO).
-

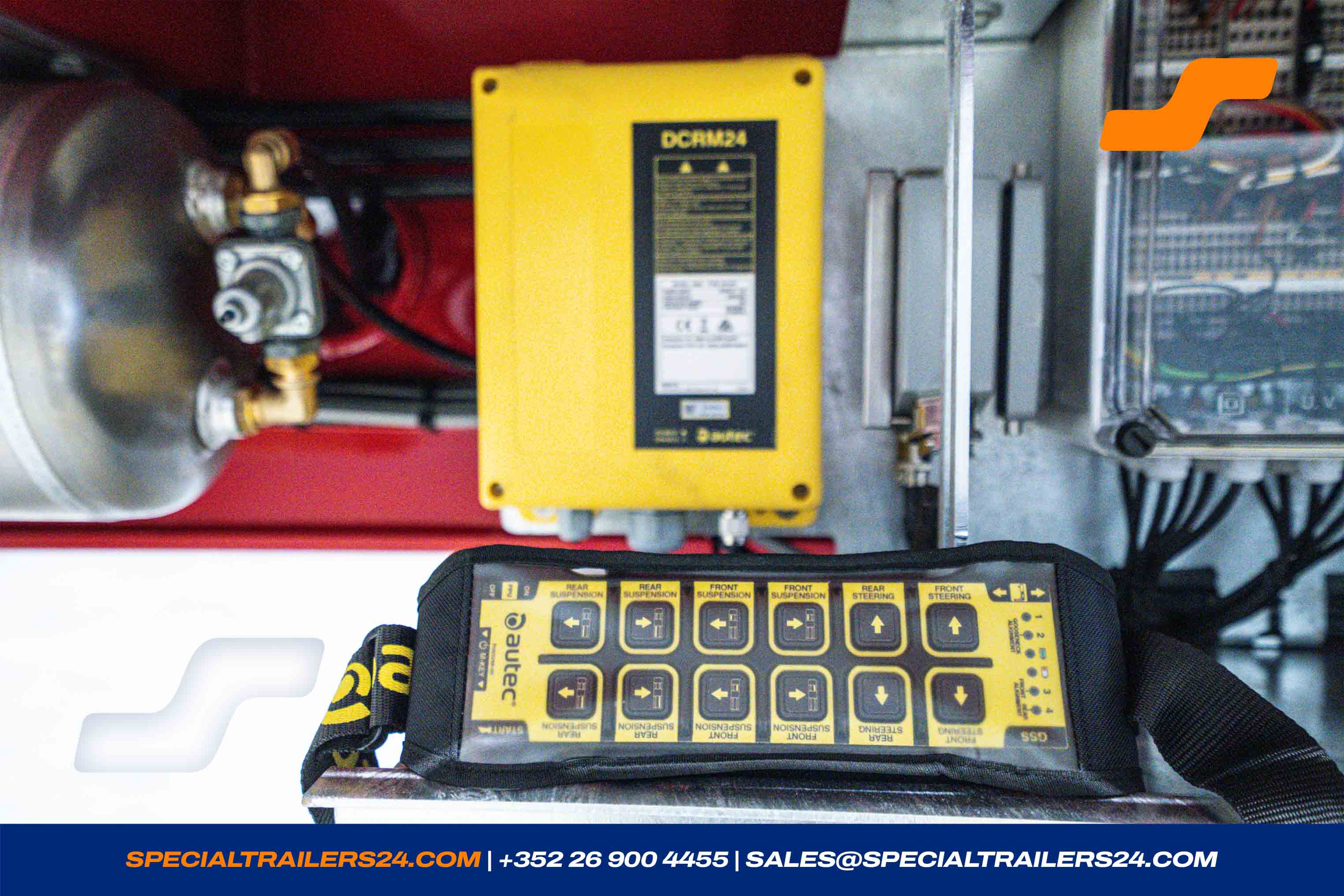

Radio remote control for steering, suspension and gooseneck.
- Control for the remote steering including optical realignment signal. Additional to the cable remote.
- Control for lifting and lowering of the suspension of the bogies.
- Control for lifting and lowering of the gooseneck. -

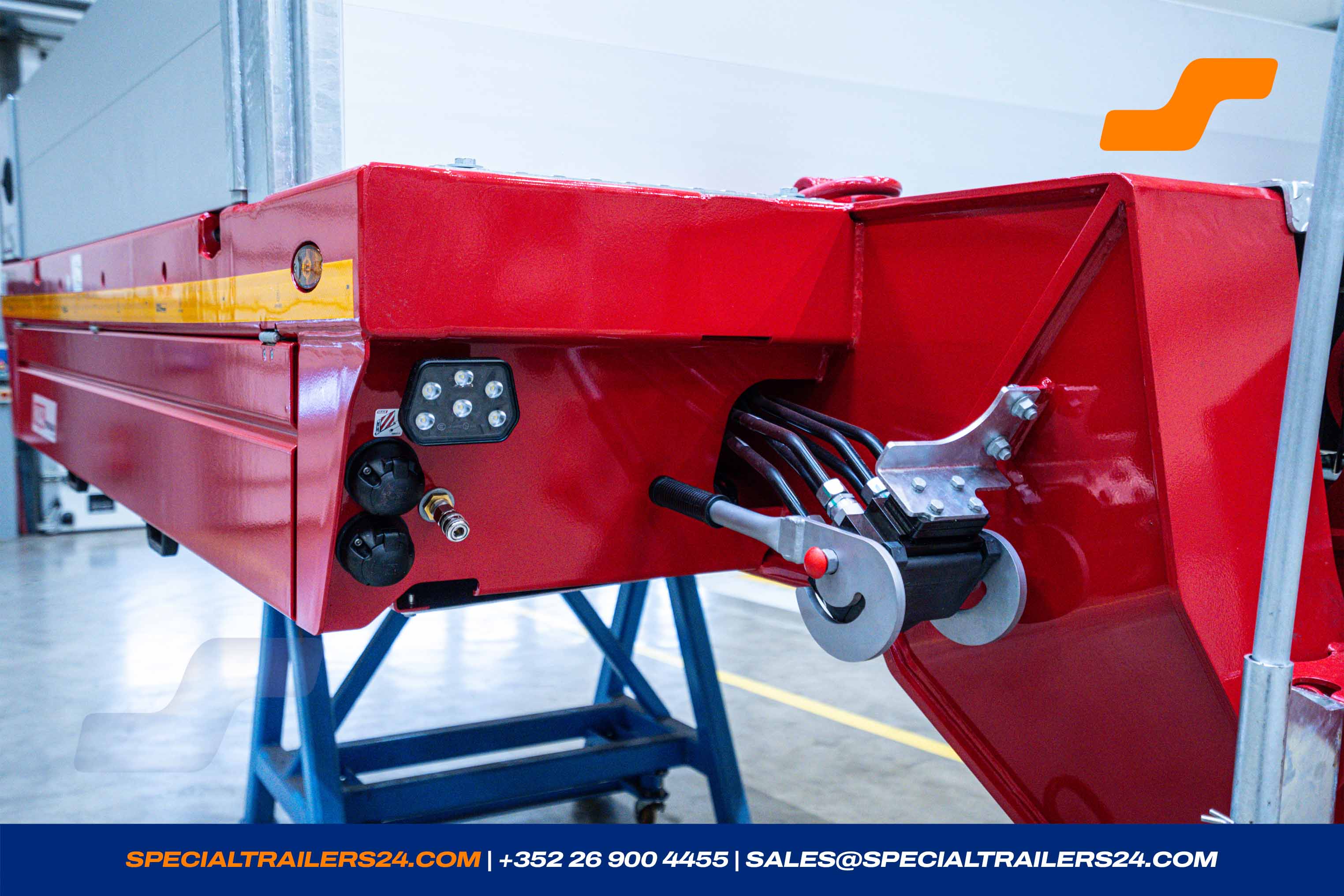

Quick-release hydraulic couplings on the gooseneck.

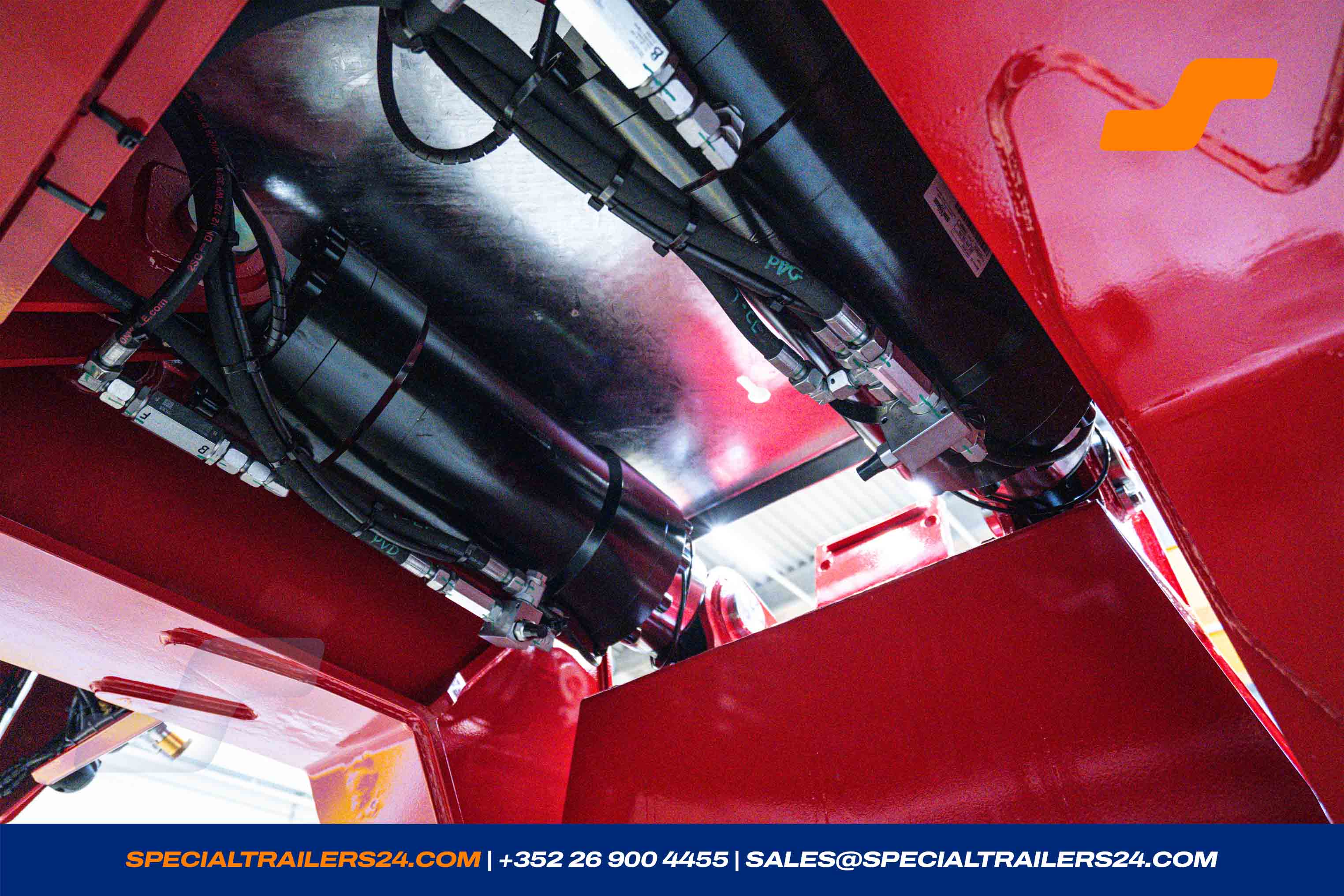

Without warranty on the seals. (± 4 kg) - 3. lifting and lowering cylinder on the gooseneck to increase the active king pin load (max 38.4 T@ 62 km/h).
Accessories
1 x Accessories
- 4 warning boards ± 423 x 423 mm extendable by ± 1 000 mm with 1 LED position light and holder for a flashing beacon. (± 105 kg)
