Modular vehicle
MAX Trailer MAX710
Die Farbe des Fahrzeugs auf dem Foto kann abweichen.
- Chassis number 110824
- Reference MAX710-Fahrwerk-PA-F-2-19.5-1.36-2.85
- Number of axles 2
- Condition New
- Year of manufacture 2025
- Colour Farbe wählbar
- Availability 05/2026
- Steering Type Hydraulic
Availability
05/2026
Preis
Auf Anfrage
Location
Lentzweiler, Luxembourg
Downloadcenter
Die wichtigsten Unterlagen
Detailinformationen
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| Axle load front bogie | 27800 kg |
| Gross weight | 27800 kg |
| Tare weight +- 3% | 4954 kg |
| Payload | 22846 kg |
Dimensions
| Bogie width | 2 850 mm |

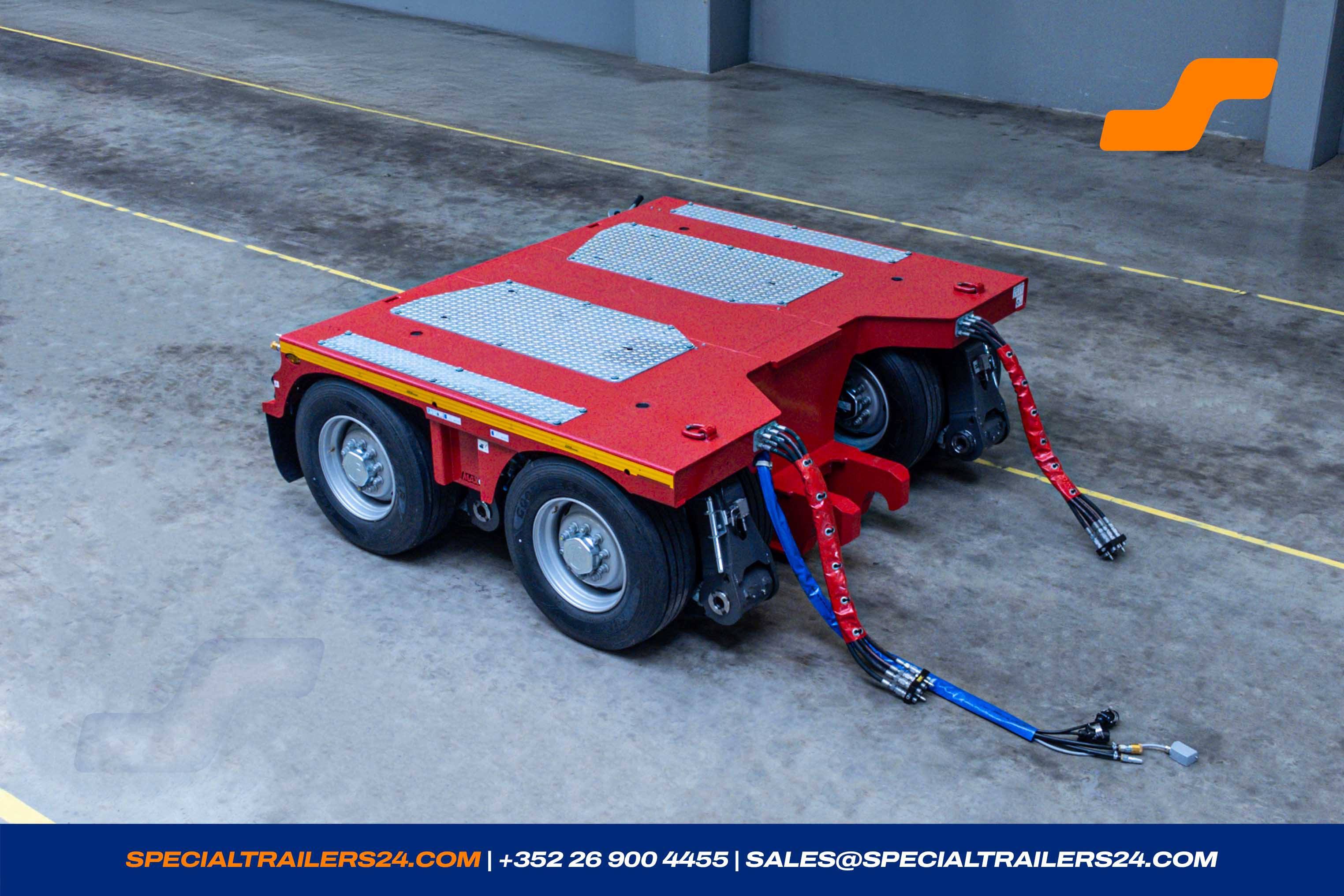

Front Bogie

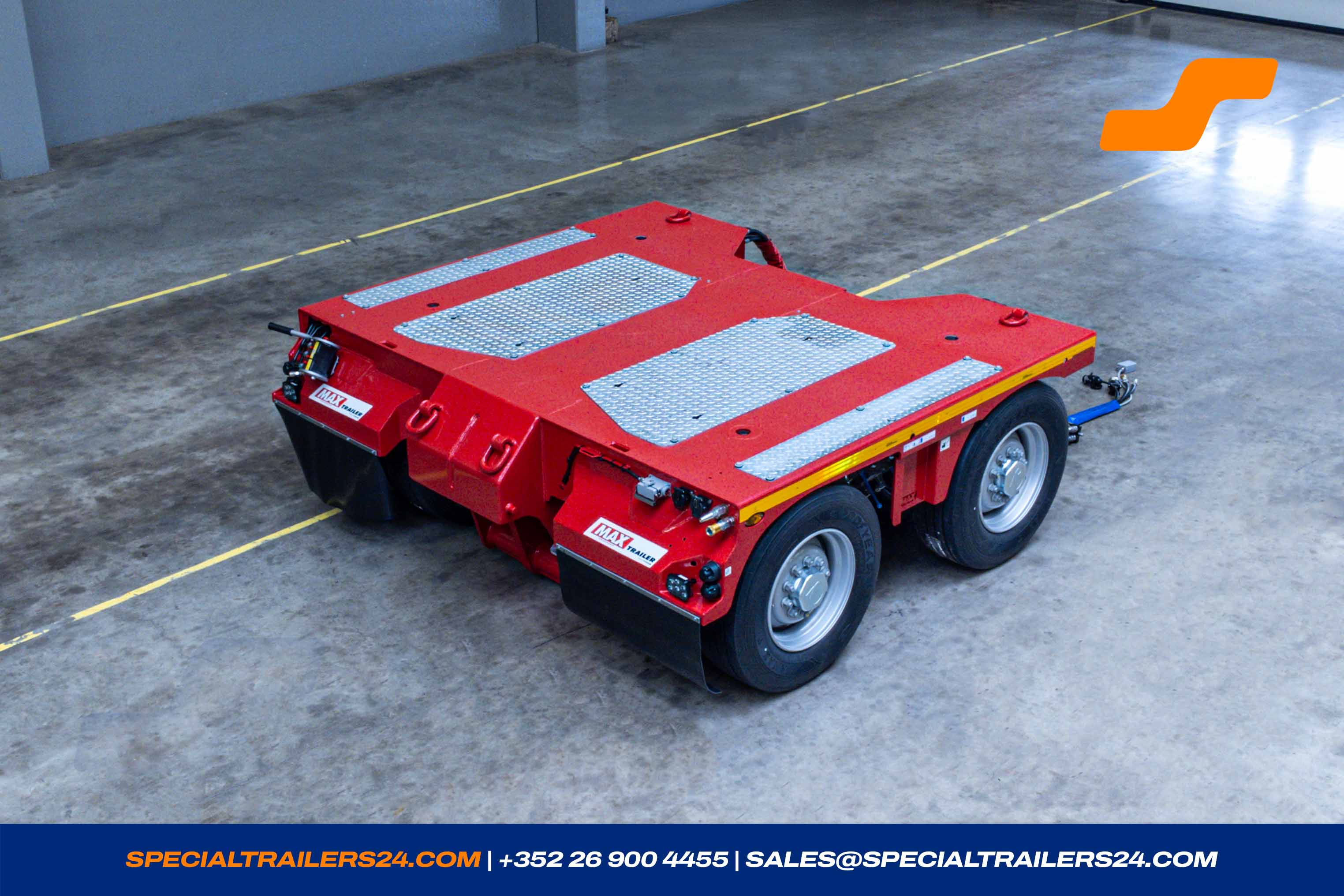

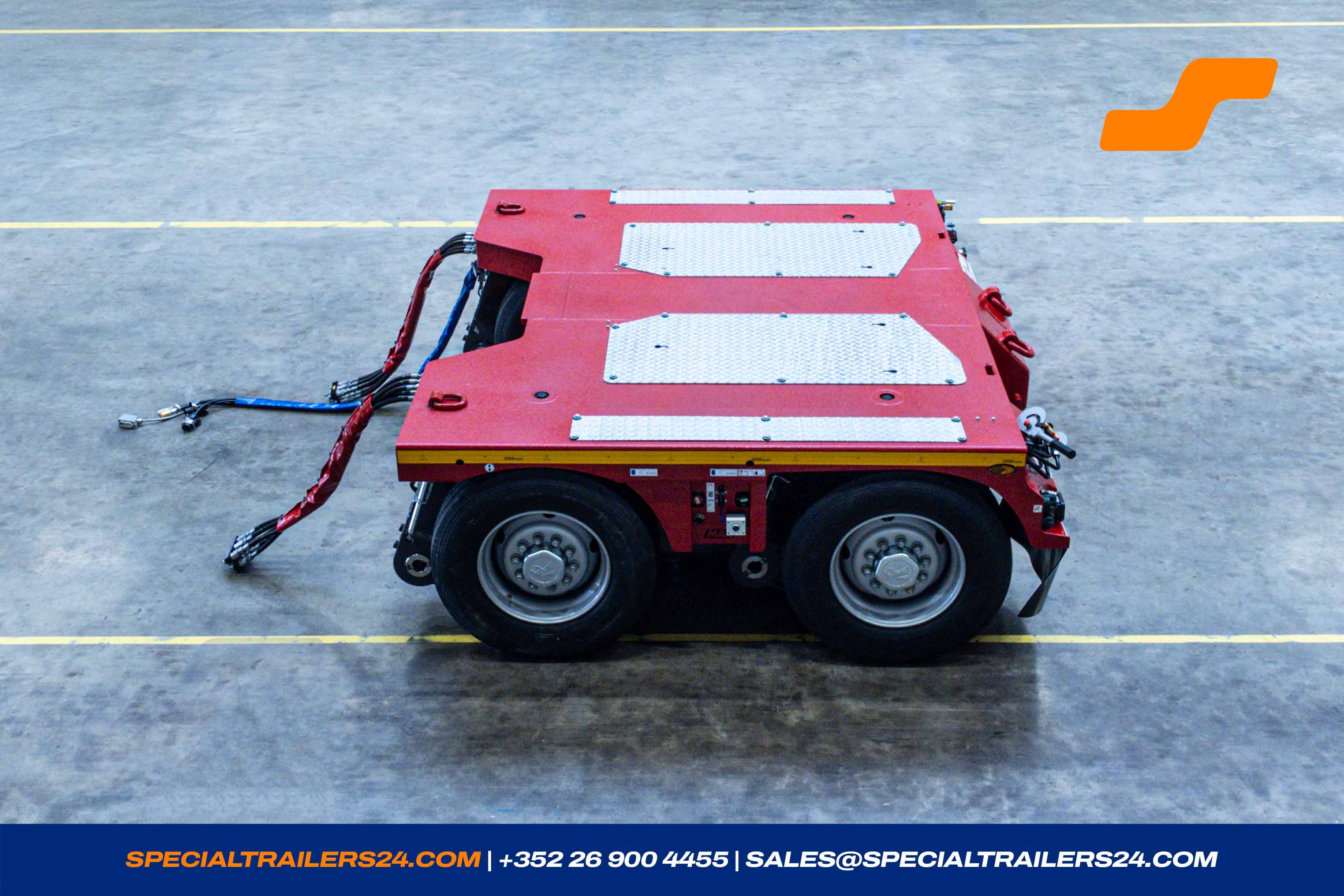

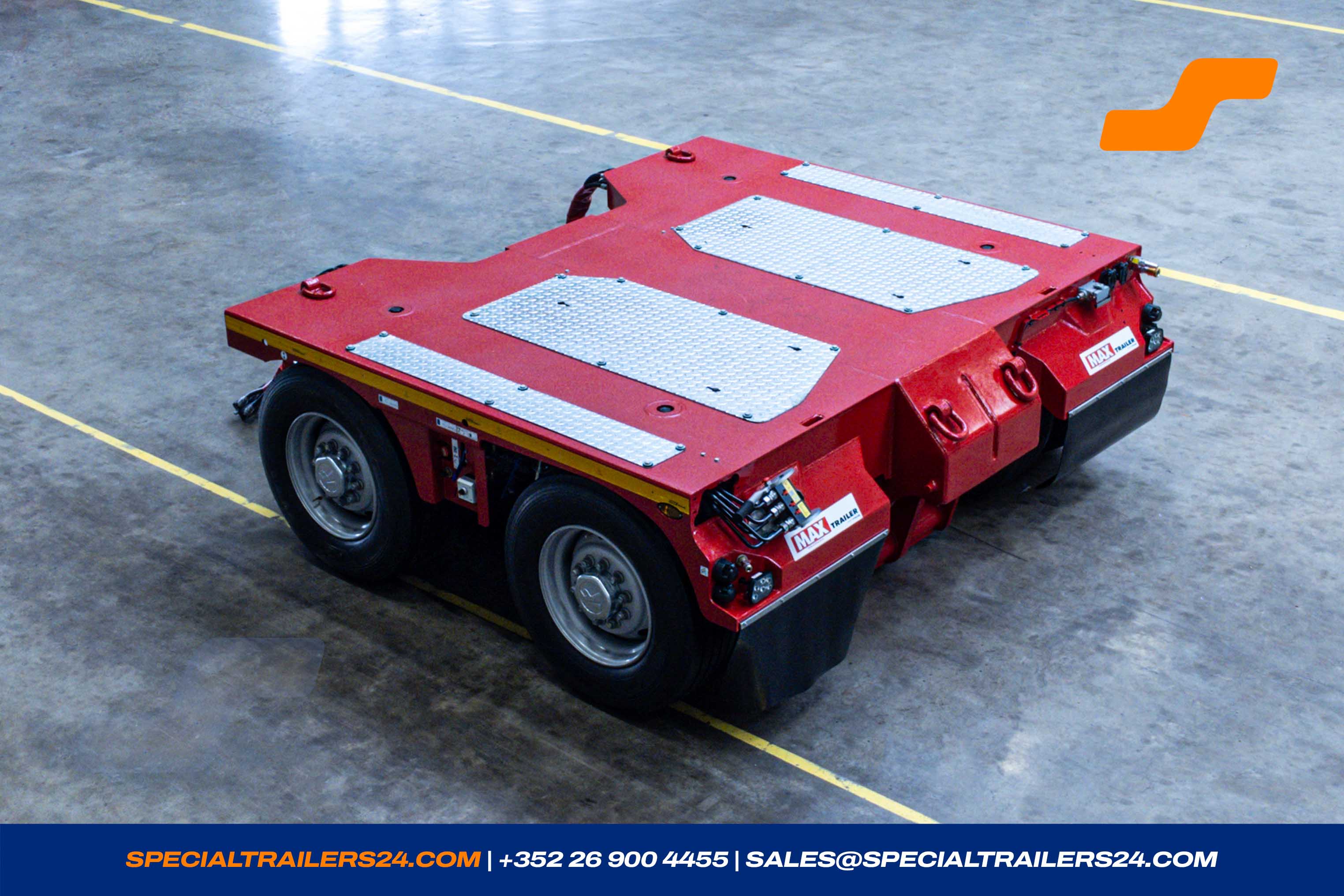

1 x 2-axles compact front bogie
Front and rear hook receiver.
Length: 2 200 mm
Chassis width: 2 850 mm
1 pair of lashing rings at the front (LC 10 600 daN).

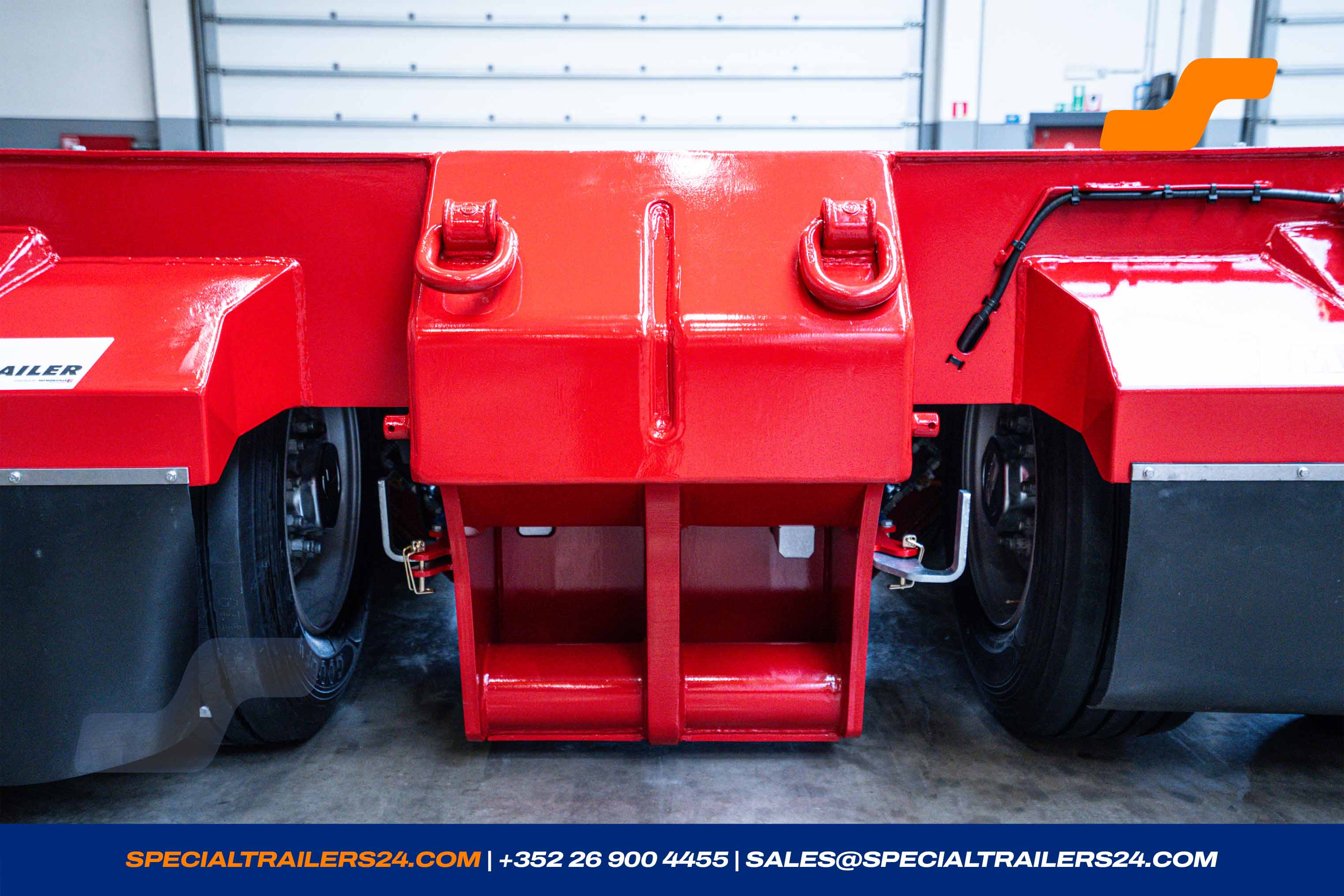

1 pair of lashing rings at the rear, on the hook mount (LC 16 000 daN).
- On the front bogie, air connections for air pistol and air screw driver.
-

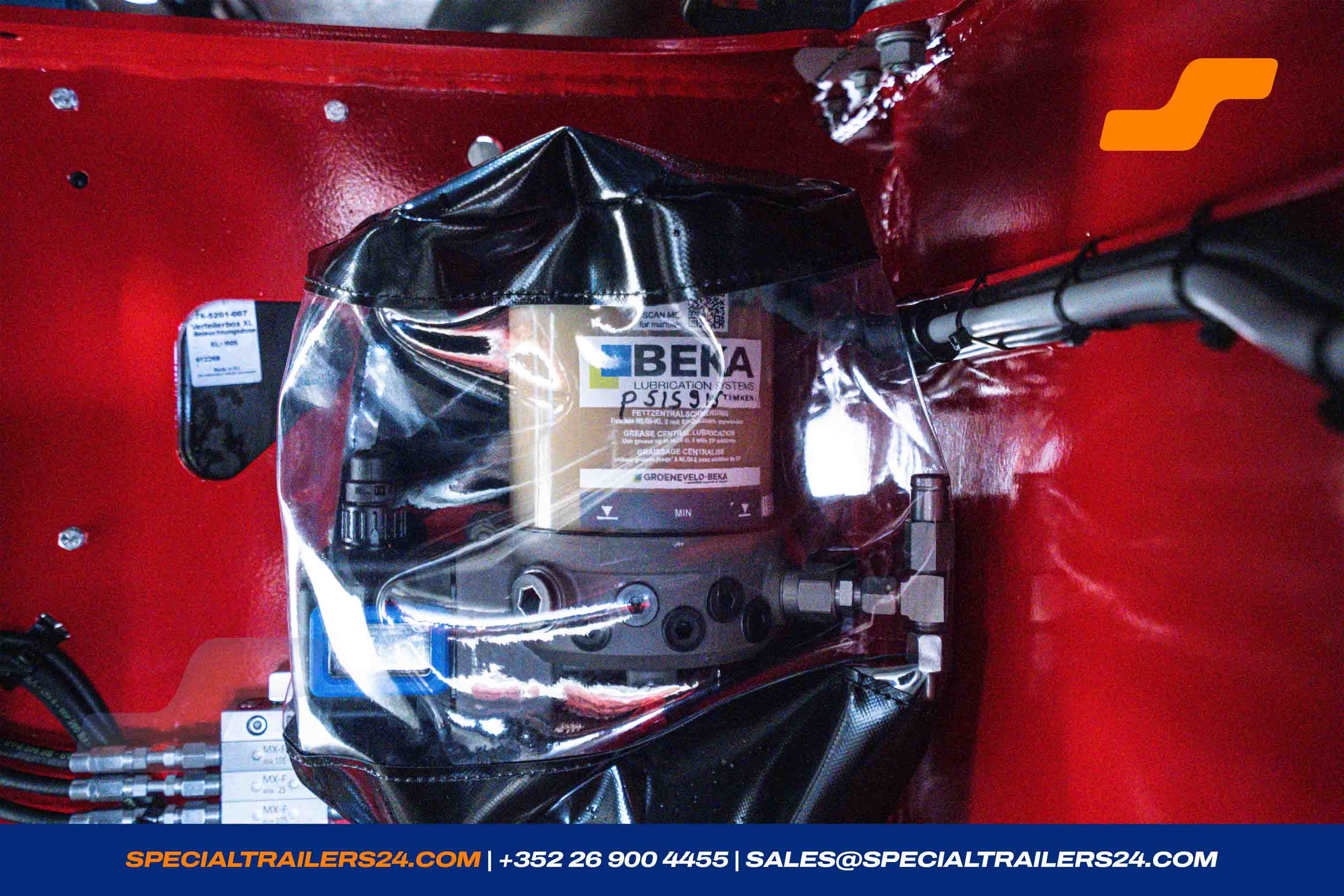

BEKA-MAX central lubrication for a 2 axle bogie with NLGI-2 normal grease.

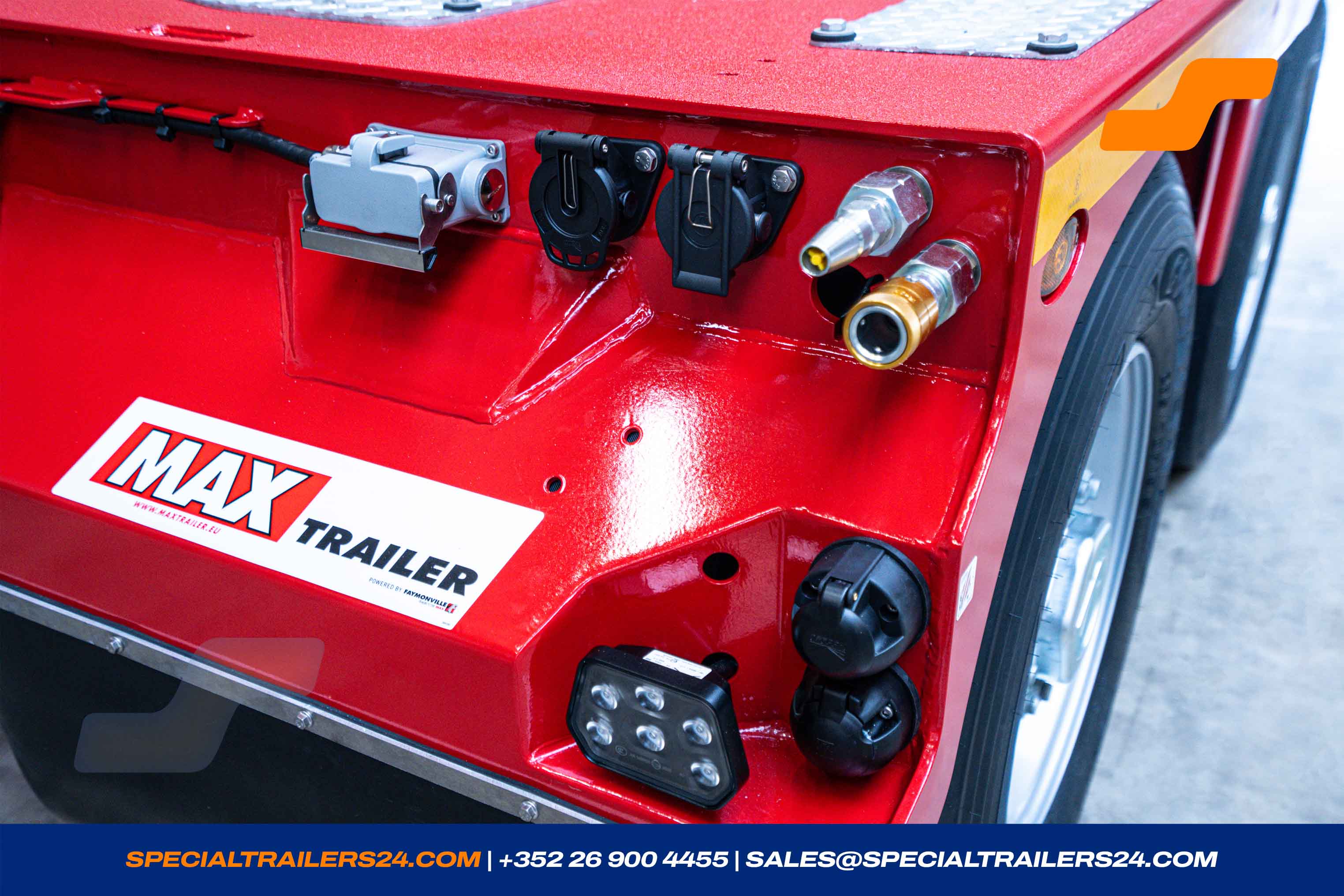

(not connected to the steering rods). - A 7-pole socket left and right at the rear of the front bogie for the warning boards.
- Yellow reflective tape according to the EU regulation over the entire length and at the rear.
-

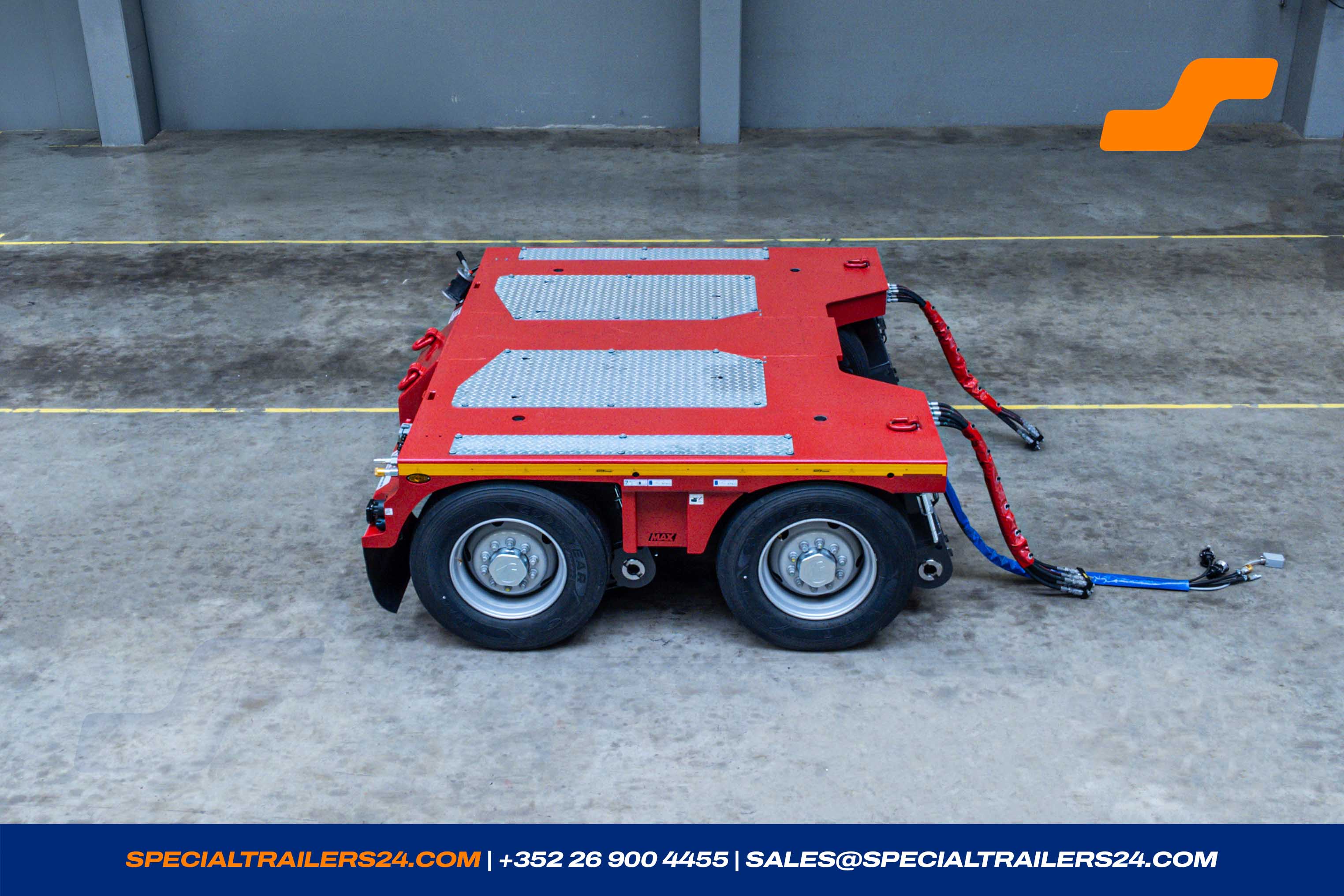

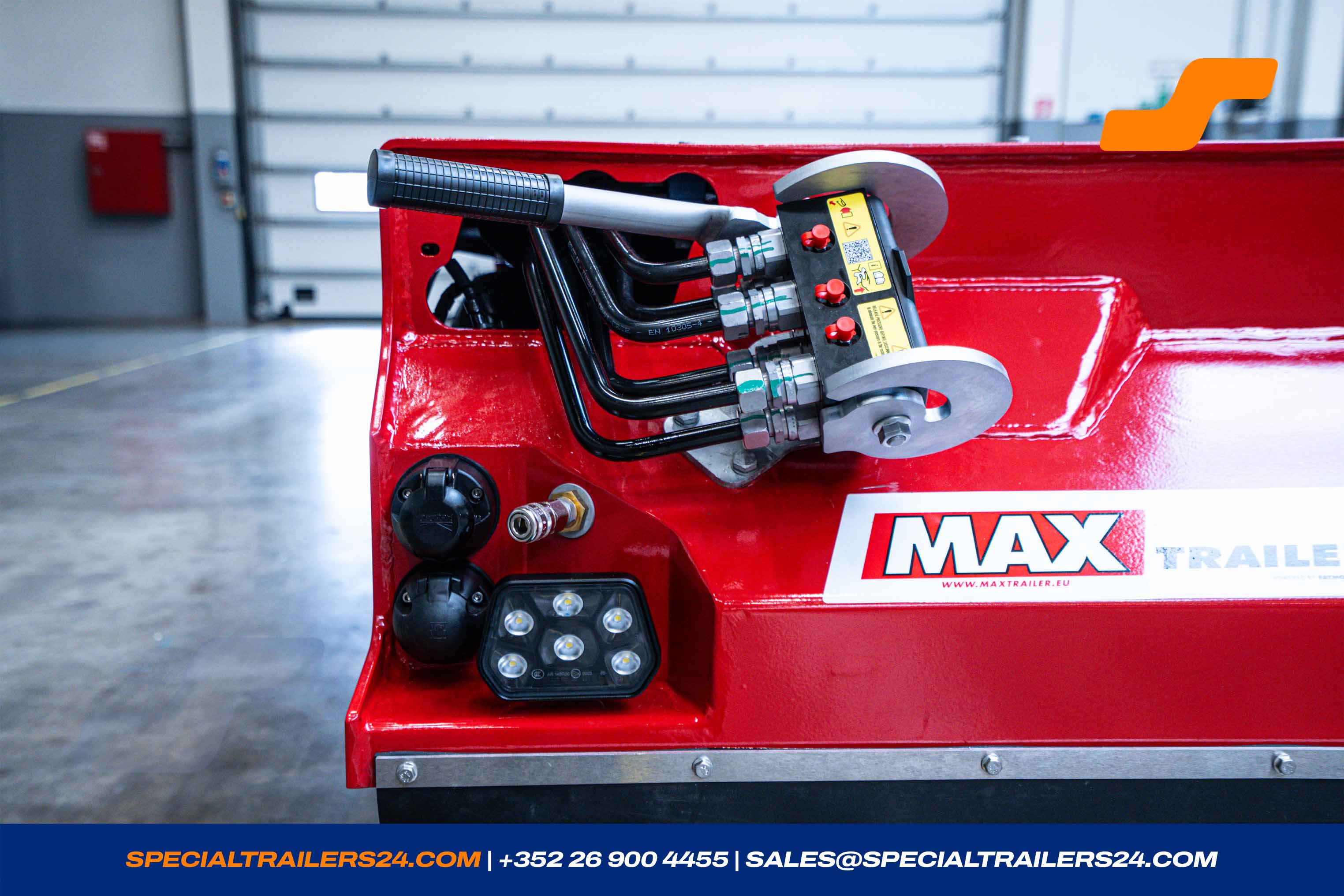

Quick-release hydraulic couplings on the front bogie.
Without warranty on the seals. (± 4 kg) -
TPMS Tyre Pressure Monitoring System according to ECE R 141.
Data transmission to the motor vehicle takes place via the standardised EBS interface according to ISO 11992.
For accurate display, the motor vehicle must be able to transmit and display this data.
