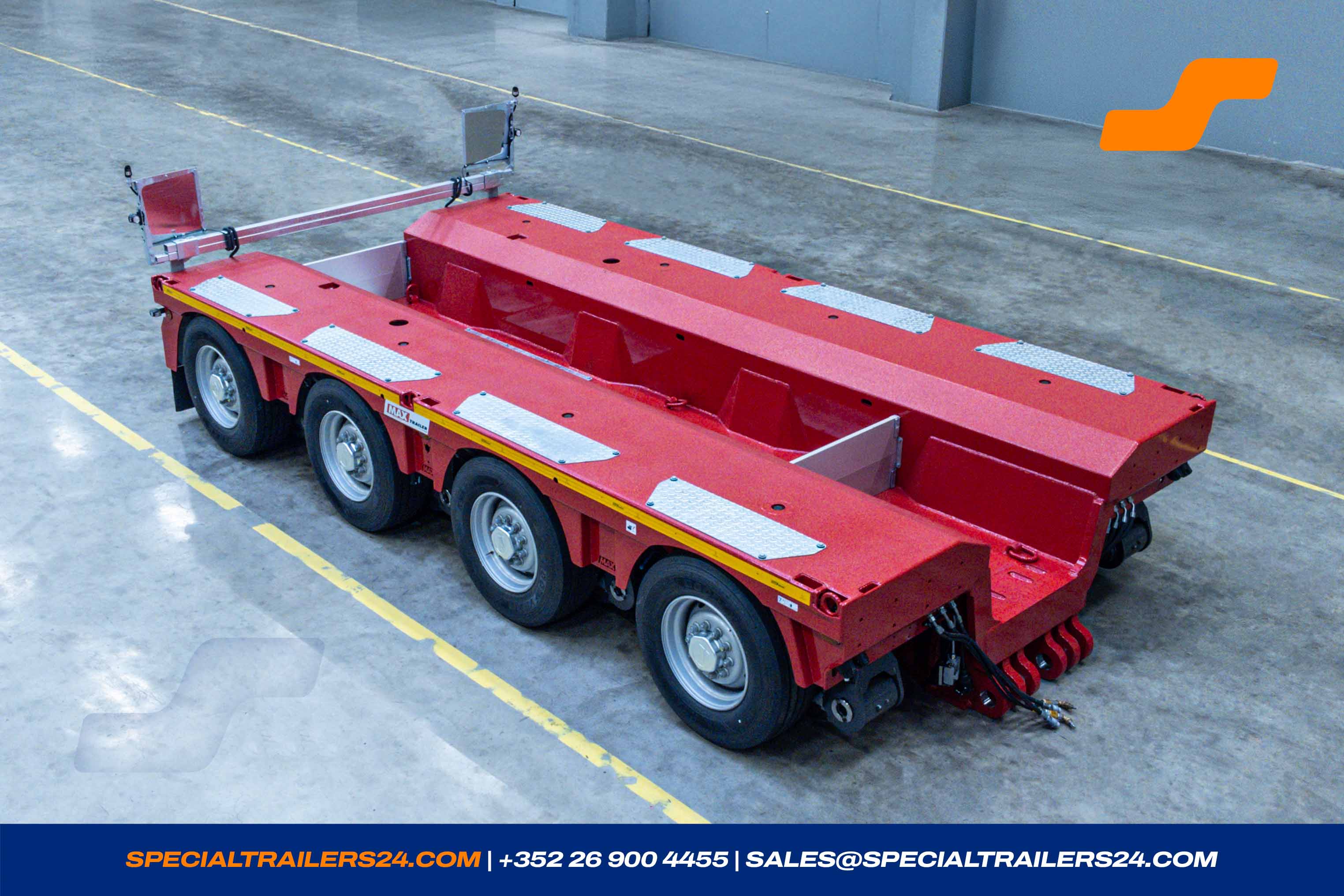

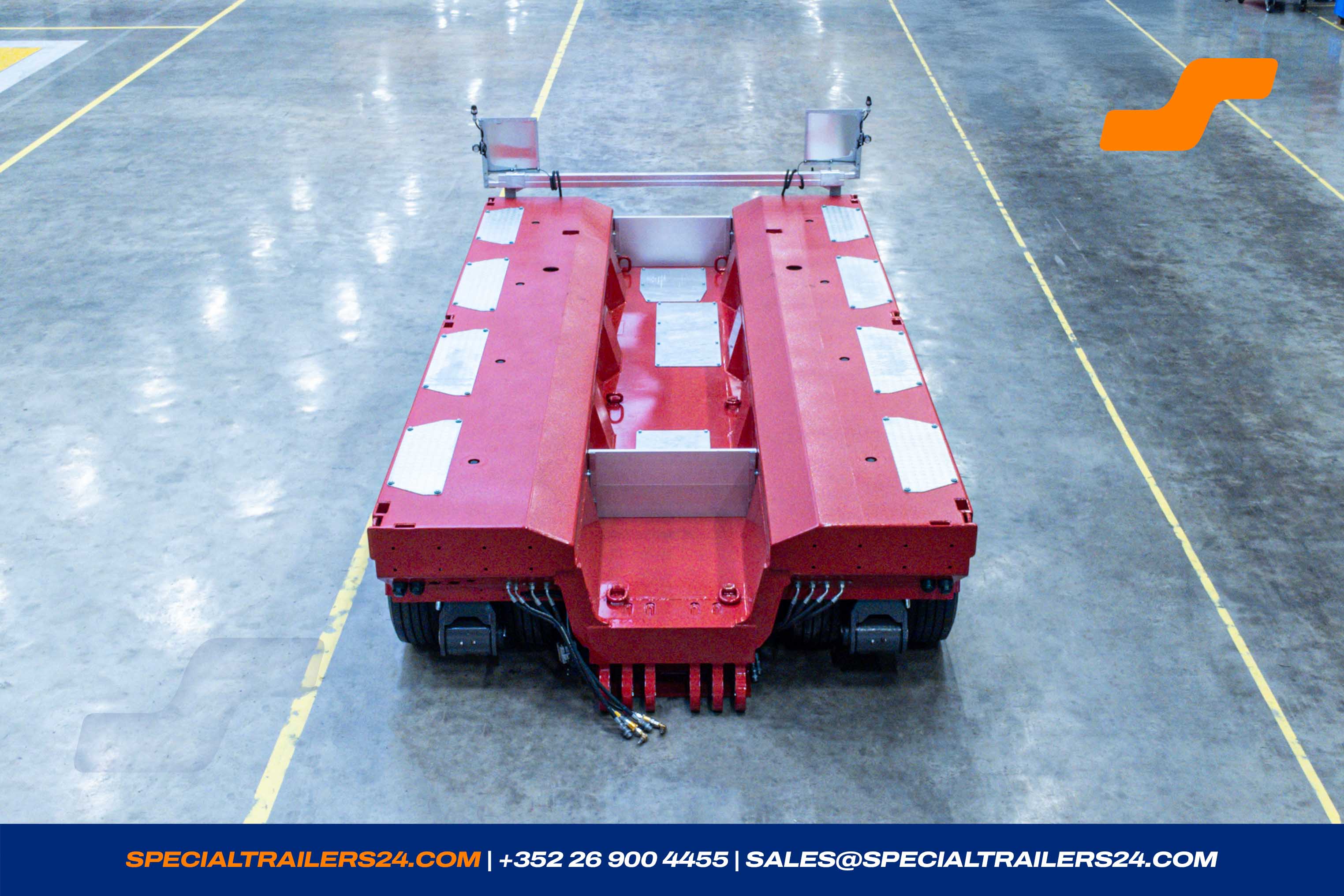

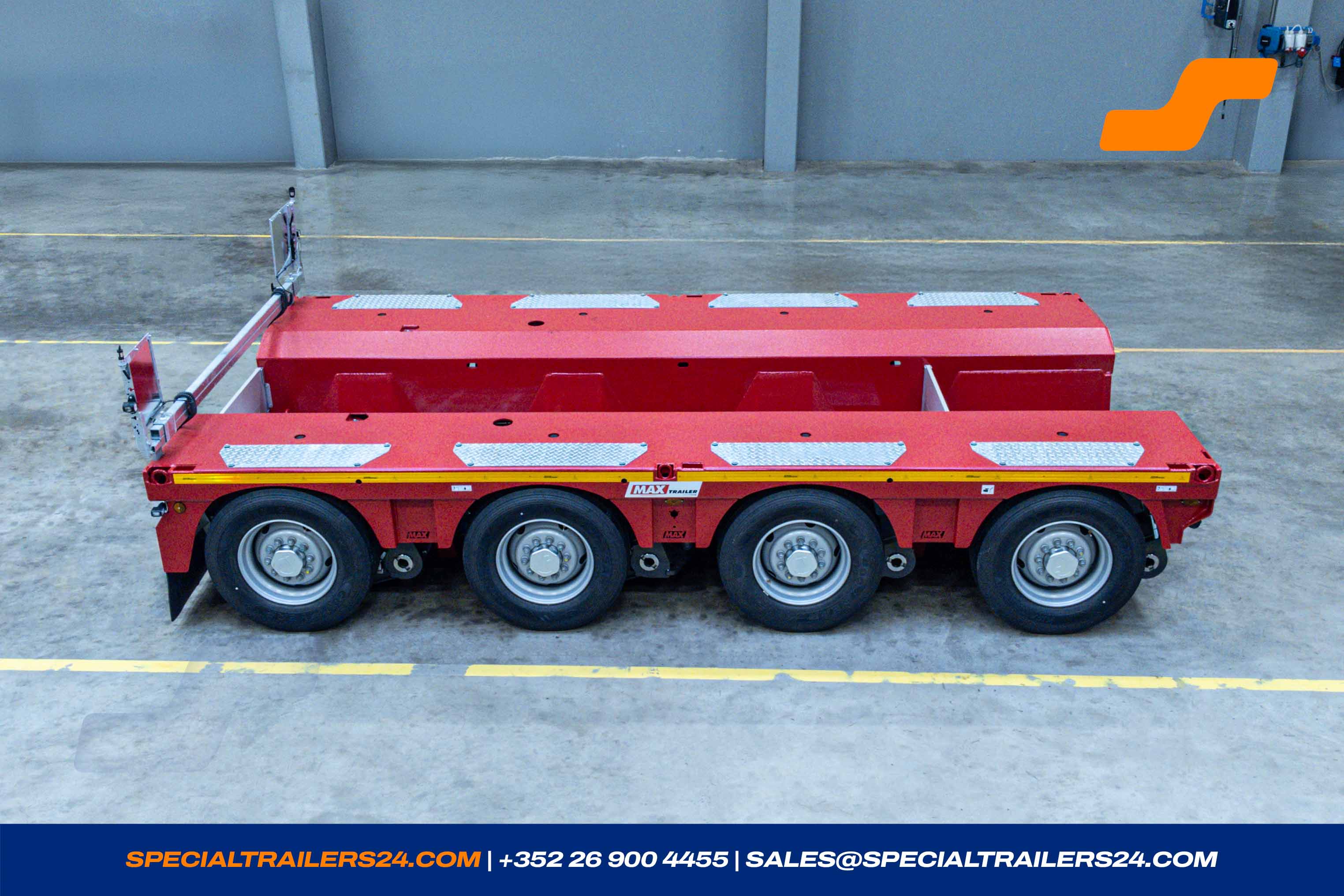

Modular vehicle
MAX Trailer MAX710
Die Farbe des Fahrzeugs auf dem Foto kann abweichen.
- Chassis number 110826
- Reference MAX710-Fahrwerk-PA-H-4-19.5-1.36-2.85
- Number of axles 4
- Condition New
- Year of manufacture 2025
- Colour Farbe wählbar
- Availability 05/2026
- Steering Type Hydraulic
Availability
05/2026
Preis
Auf Anfrage
Location
Lentzweiler, Luxembourg
Downloadcenter
Die wichtigsten Unterlagen
Detailinformationen
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| Axle load rear bogie | 55600 kg |
| Gross weight | 55600 kg |
| Tare weight +- 3% | 9061 kg |
| Payload | 46539 kg |
Dimensions
| Wheelbase | 1 360 mm |
| Bogie length | 5 480 mm |
Rear Bogie

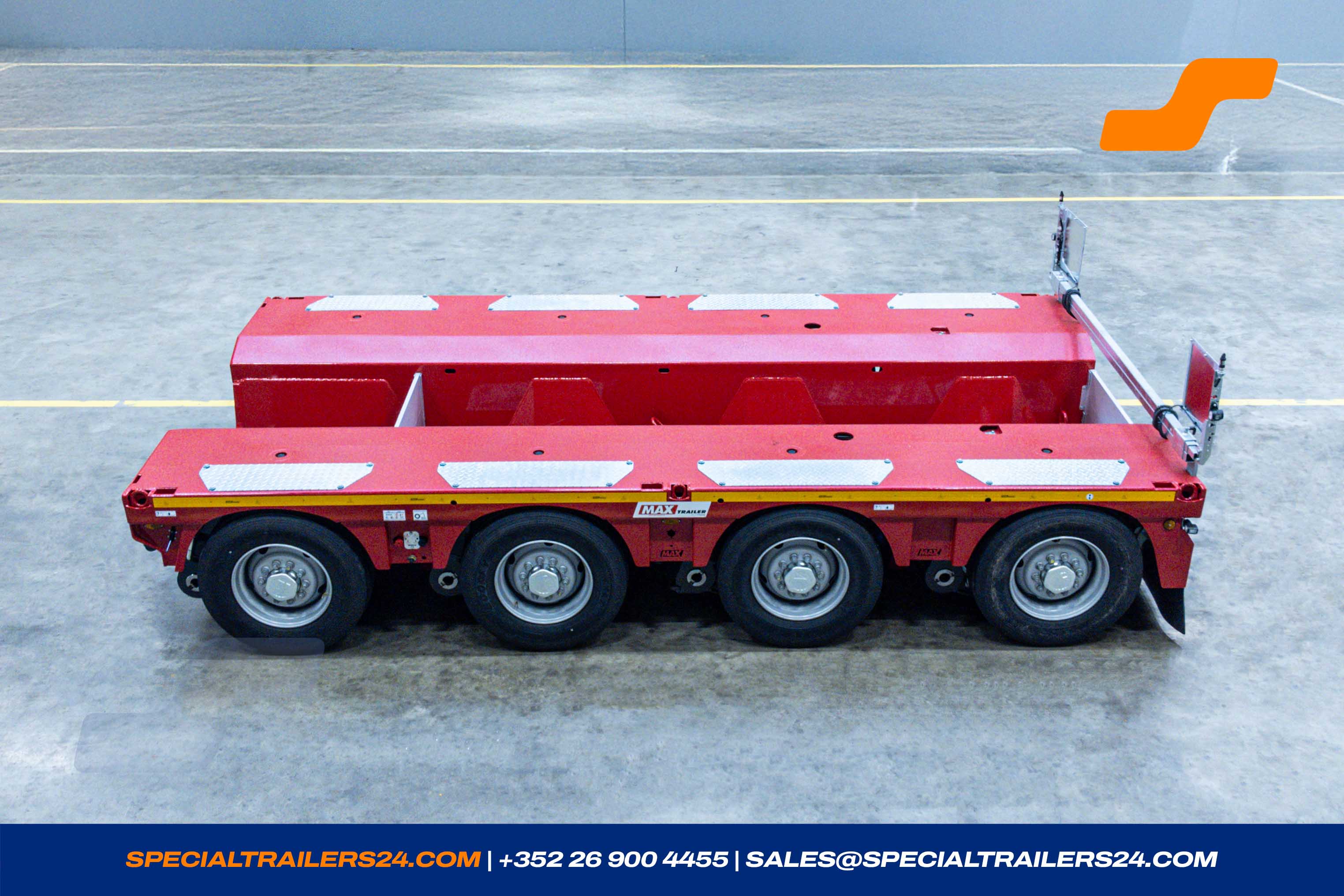

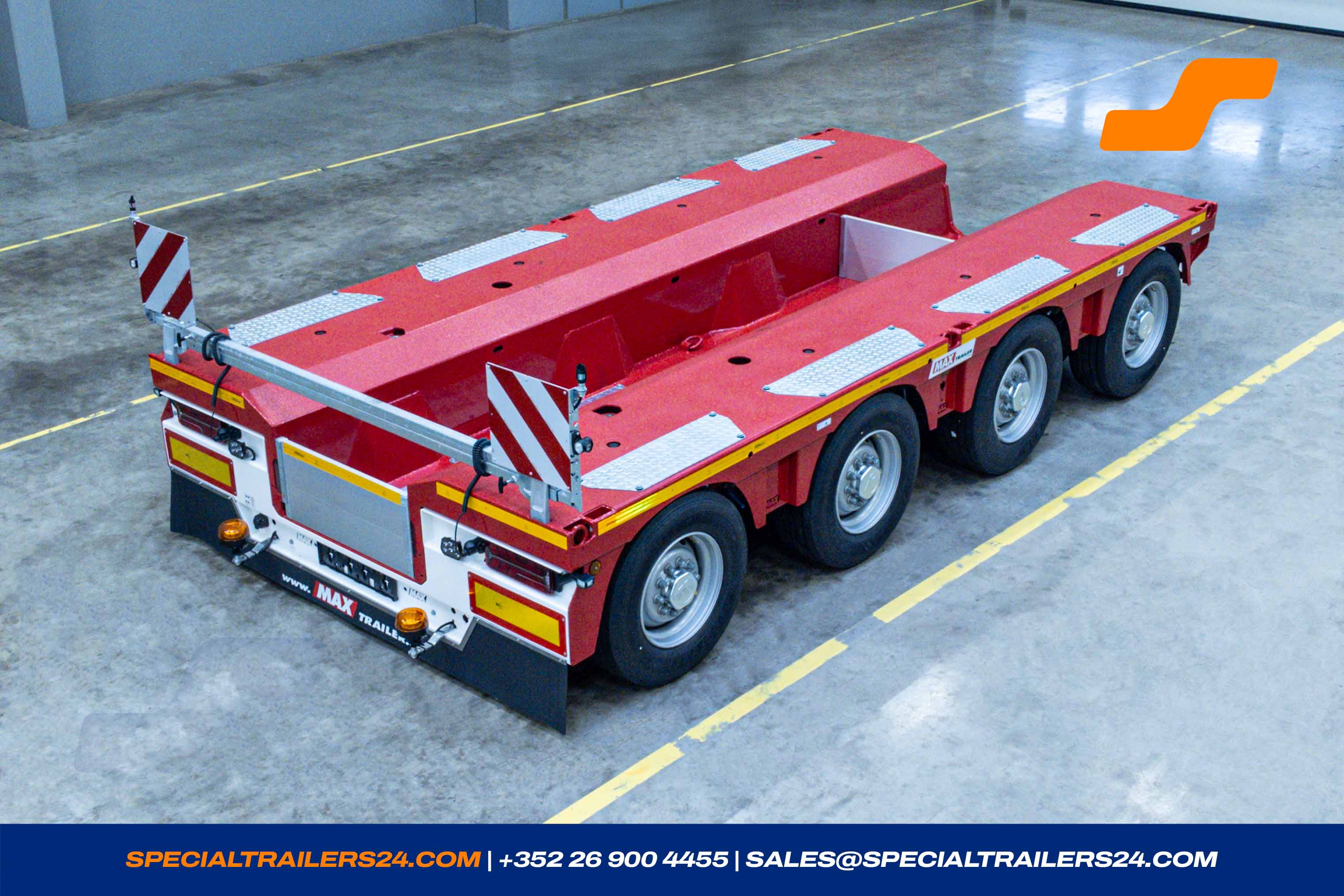

1 x 4-axles rear bogie

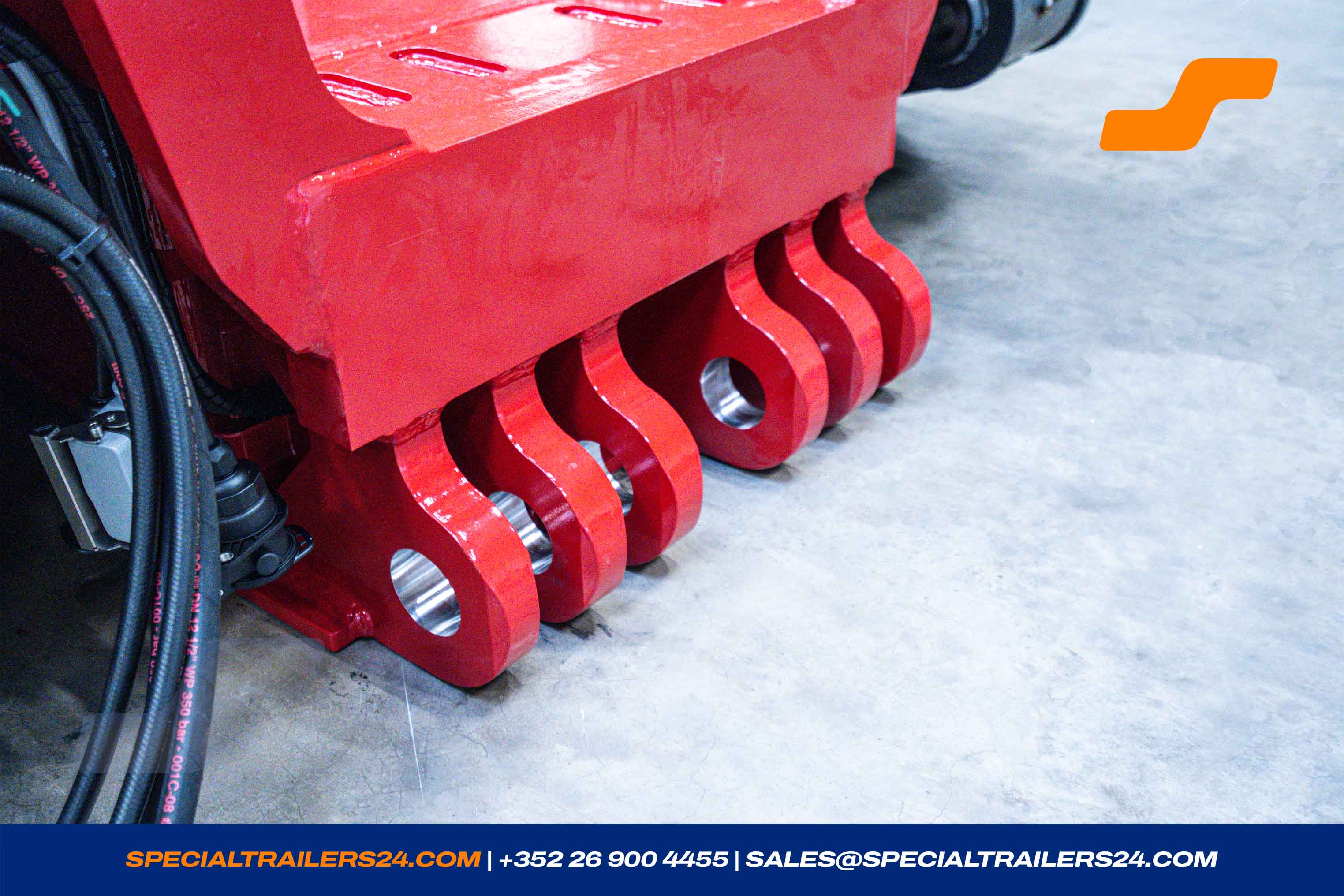

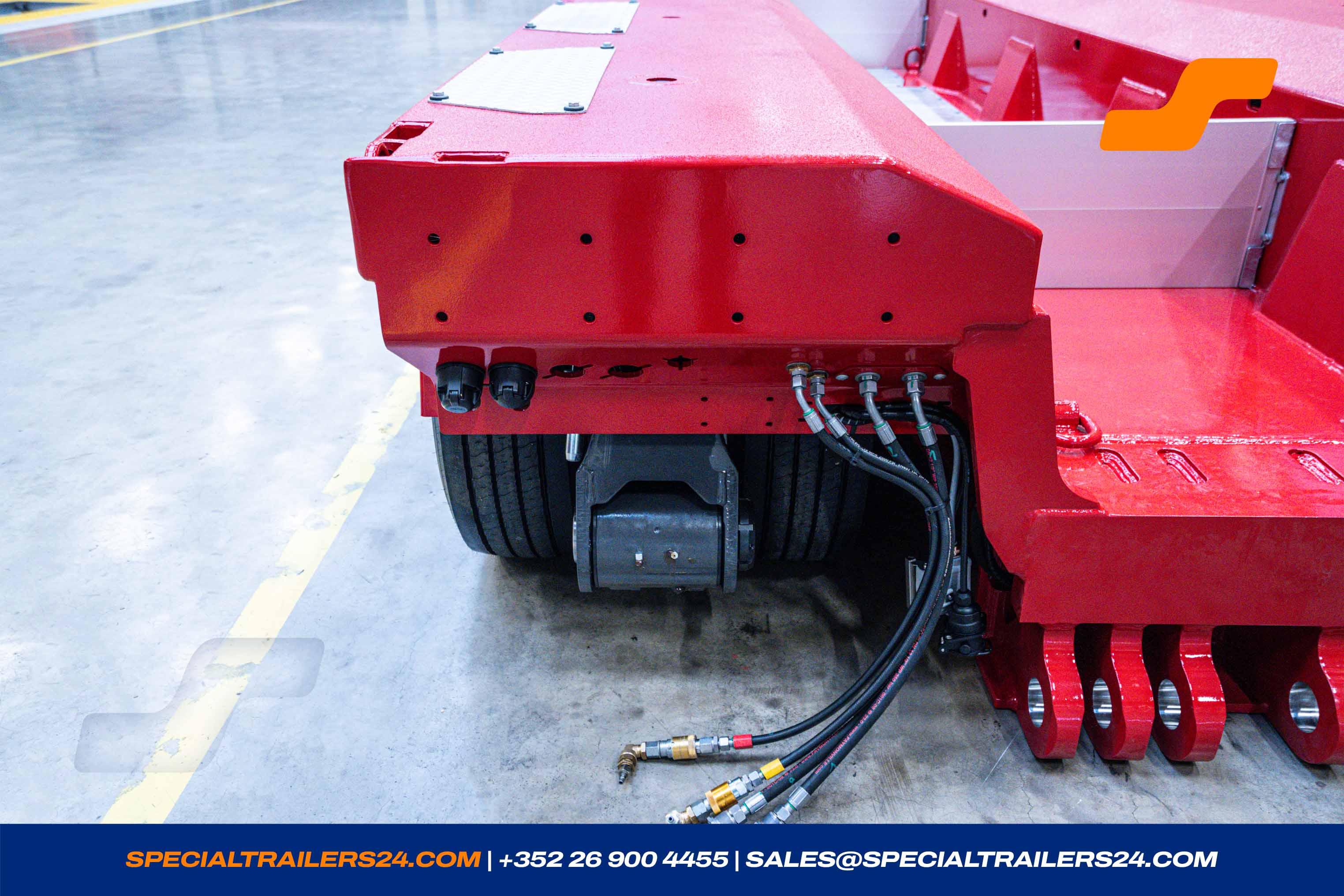

Mechanical pin and lug coupling for mounting a lowbed at the front, end cross member at the rear
Bogie width: 2 850 mm
Bogie length: 5,480 mm

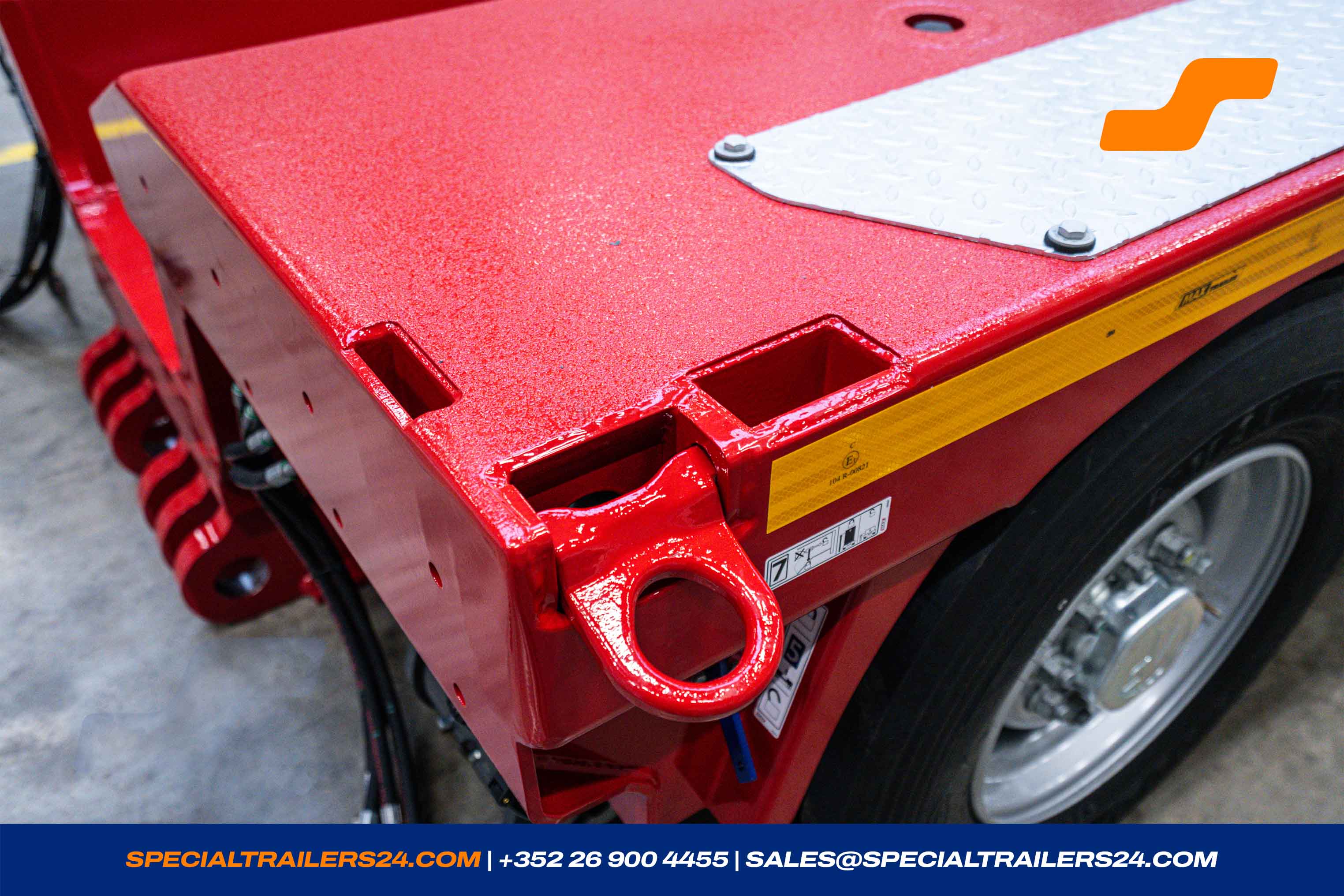

2 pairs of retractable lashing rings (LC 10 000 daN).
1 pair of retractable lashing rings (LC 5 000 daN).
3 pairs of cutouts in the border frame for hooking in tension belts (LC 2 000 daN)
3 pairs of lying lashing rings in the chassis (LC 10 600 daN).

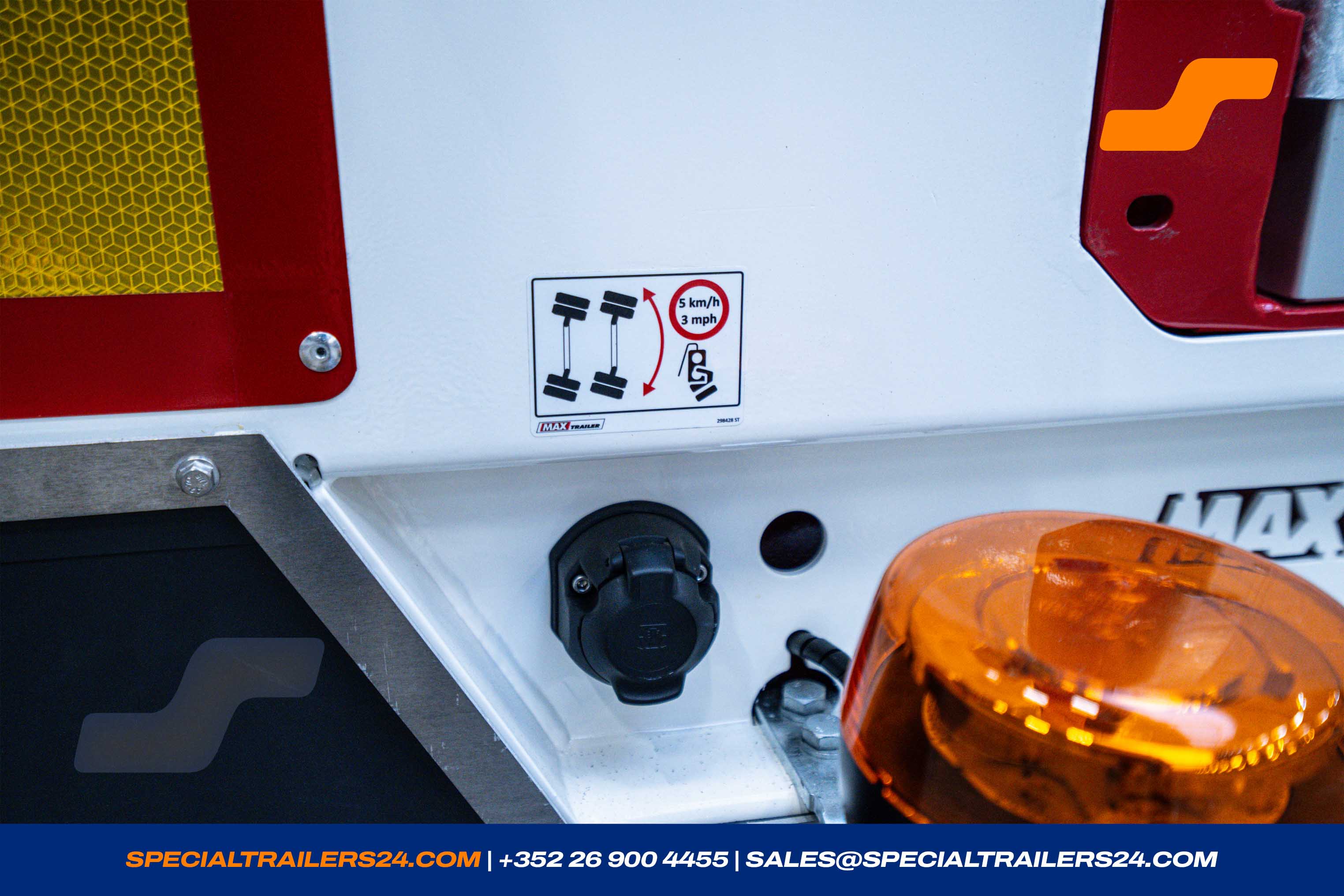

- A 7-pole socket on the left and right, front and rear on the rear bogie for the warning boards.
-
BEKA-MAX central lubrication for a 4 axle bogie with NLGI-2 normal grease.

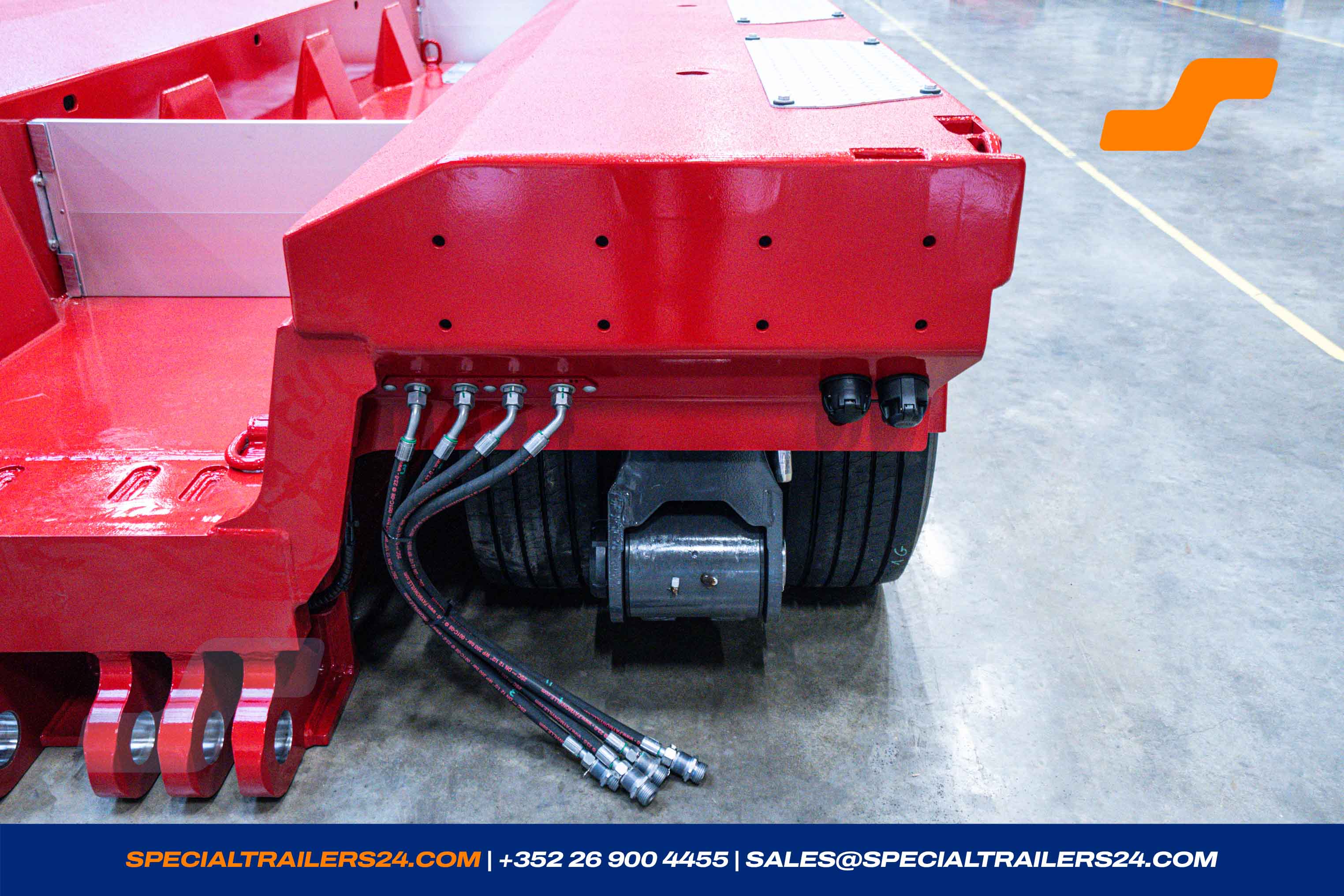

(not connected to the steering rods). - Socket for the cable remote control for the auxiliary steering on the rear bogie.

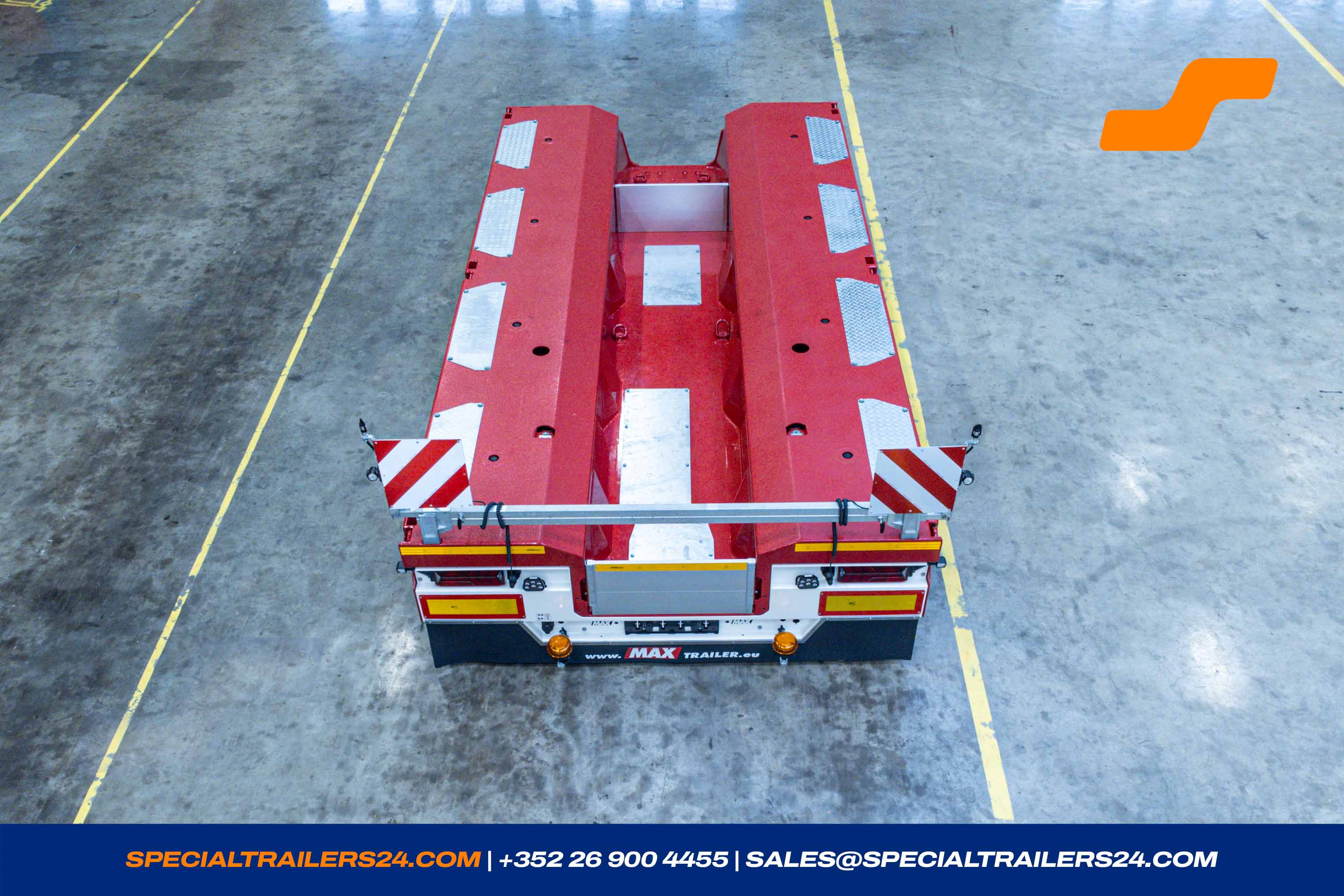

- Bogie with recess.

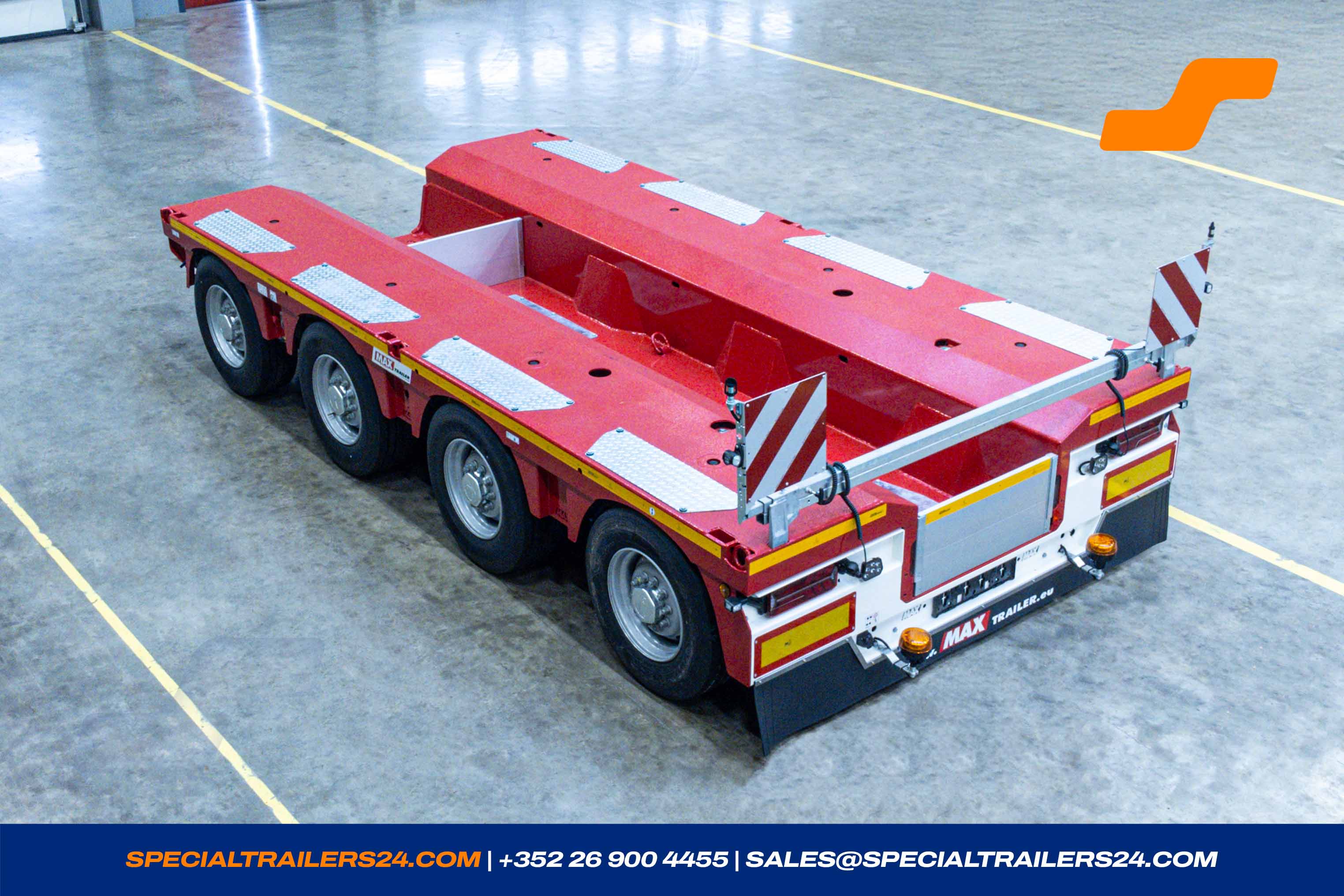

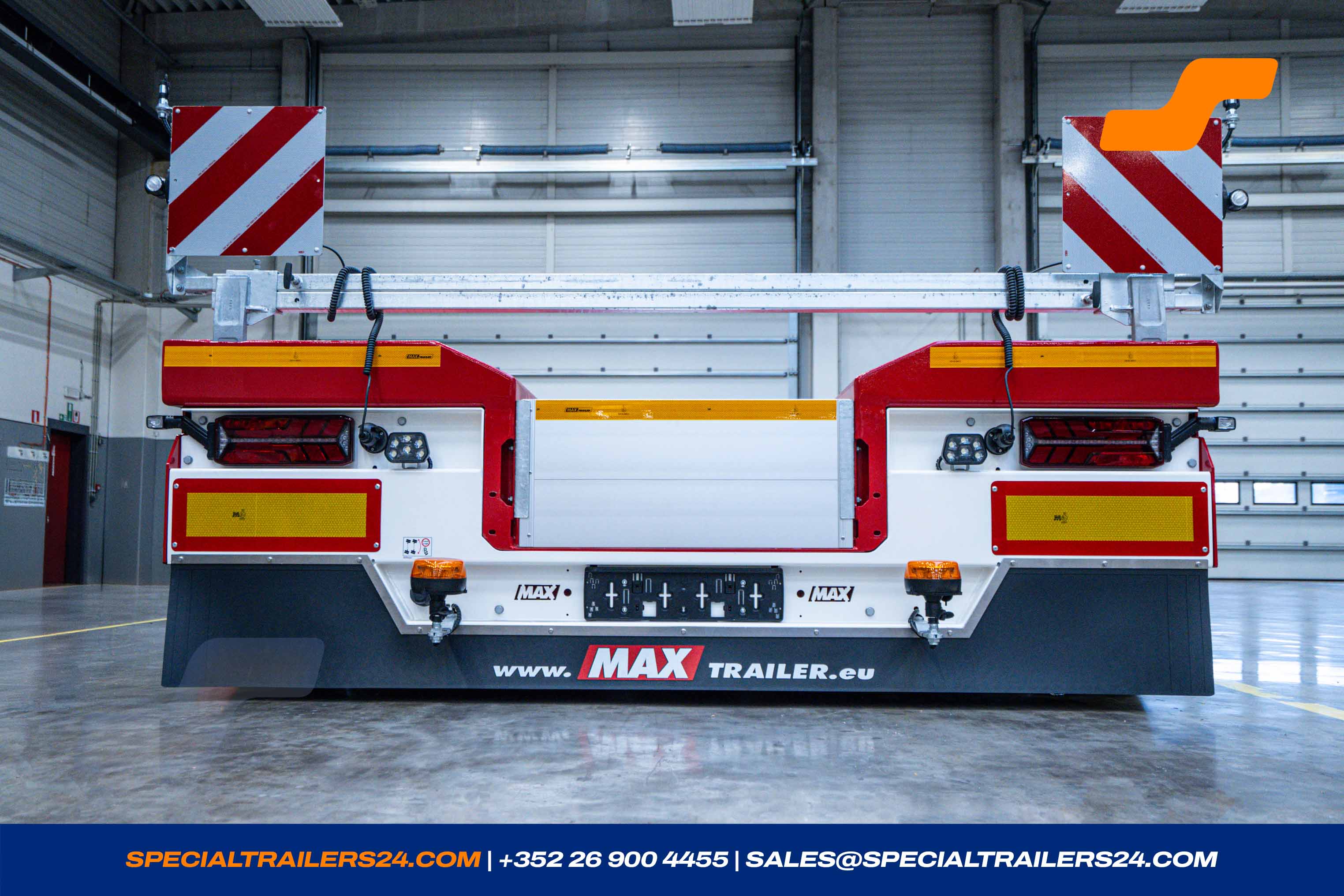

- 2 LED- reversing lights at the rear.

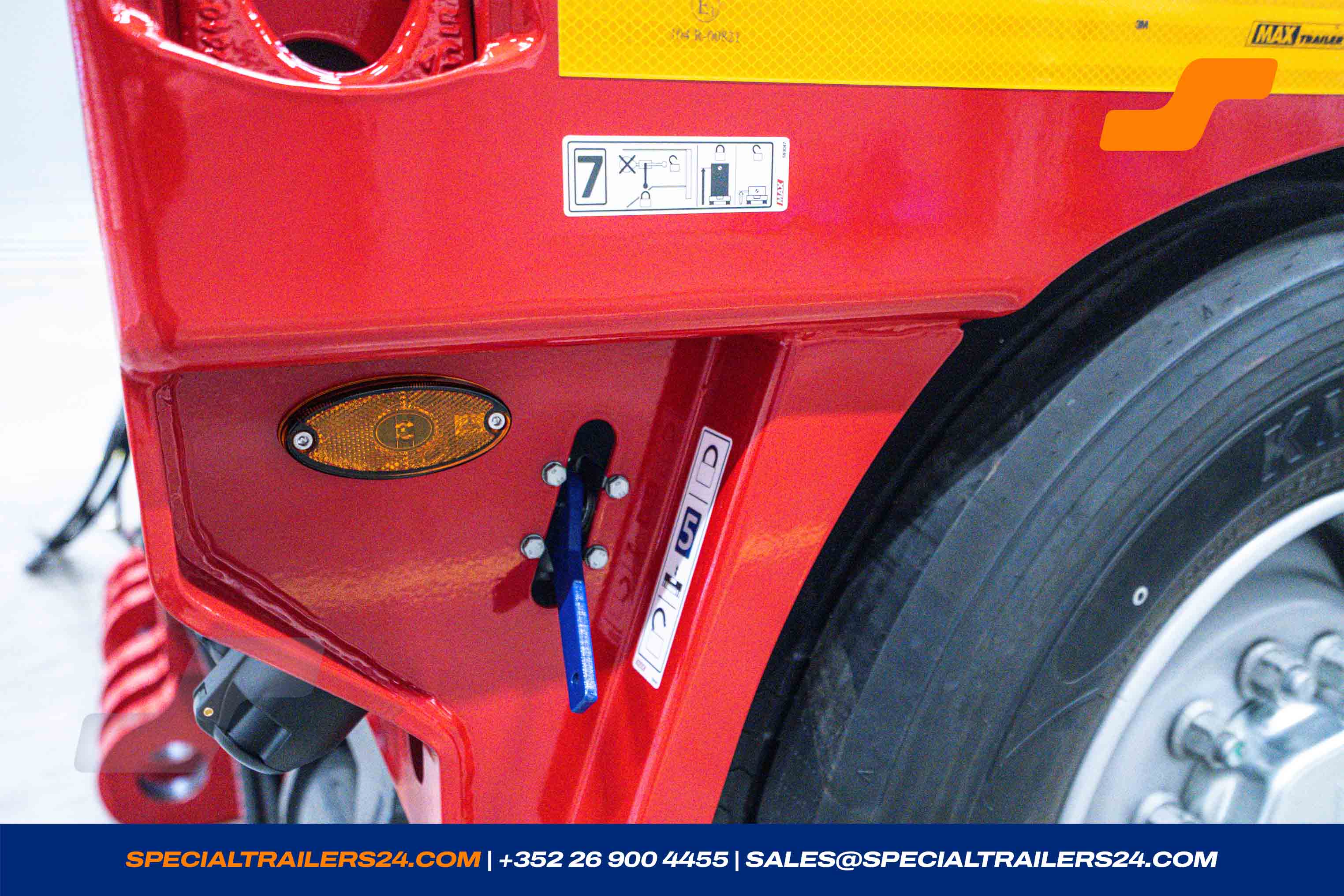

- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.
- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- A LED flashing beacon with holder on the left and right side.
- Yellow reflective tape according to the EU regulation over the entire length and at the rear.
- Recess on the rear axle bogie closed in front and rear with a screwed plate.
- Speed sticker 80 km/h at the rear and on both sides.
-
TPMS Tyre Pressure Monitoring System according to ECE R 141.
Data transmission to the motor vehicle takes place via the standardised EBS interface according to ISO 11992.
For accurate display, the motor vehicle must be able to transmit and display this data.
