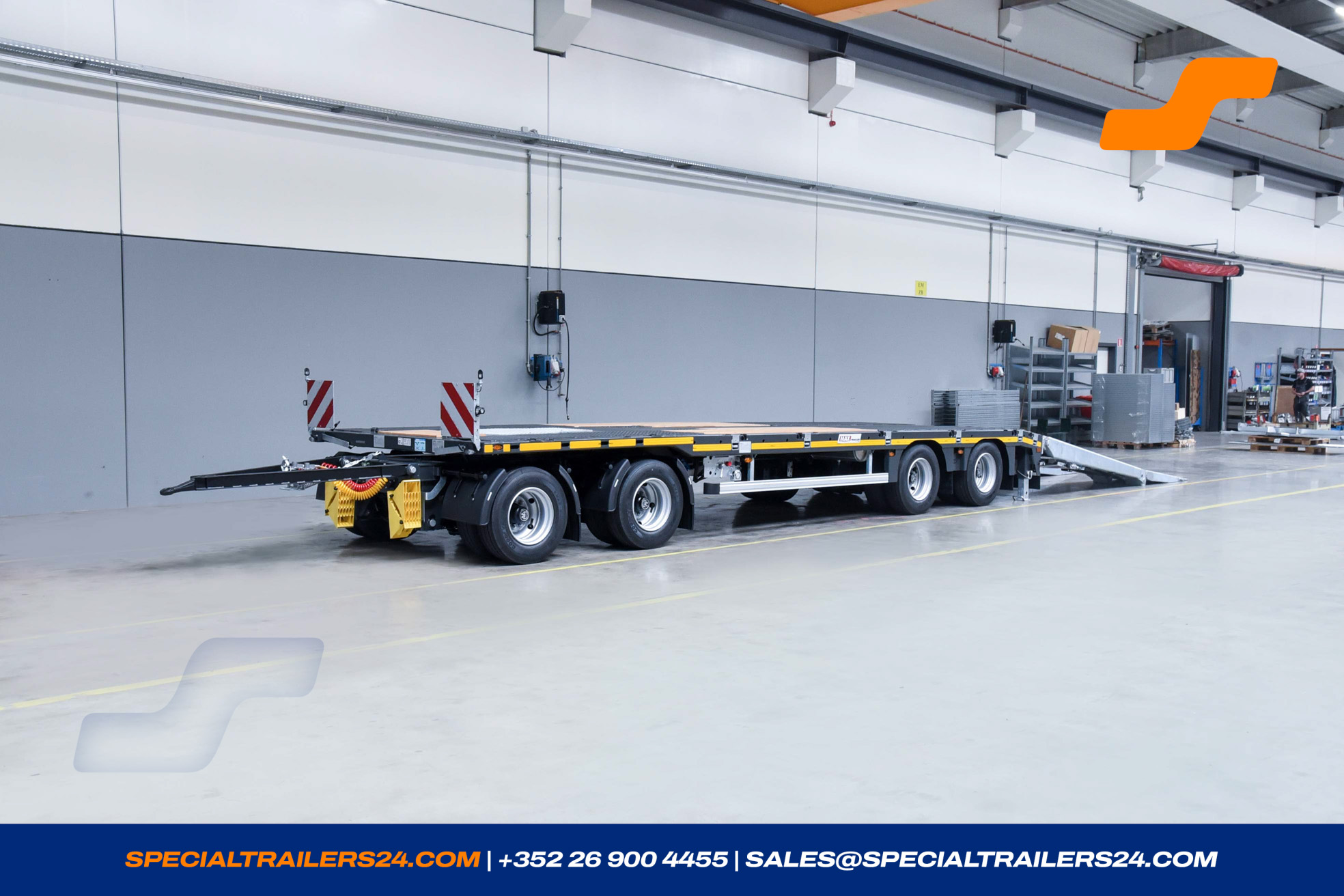

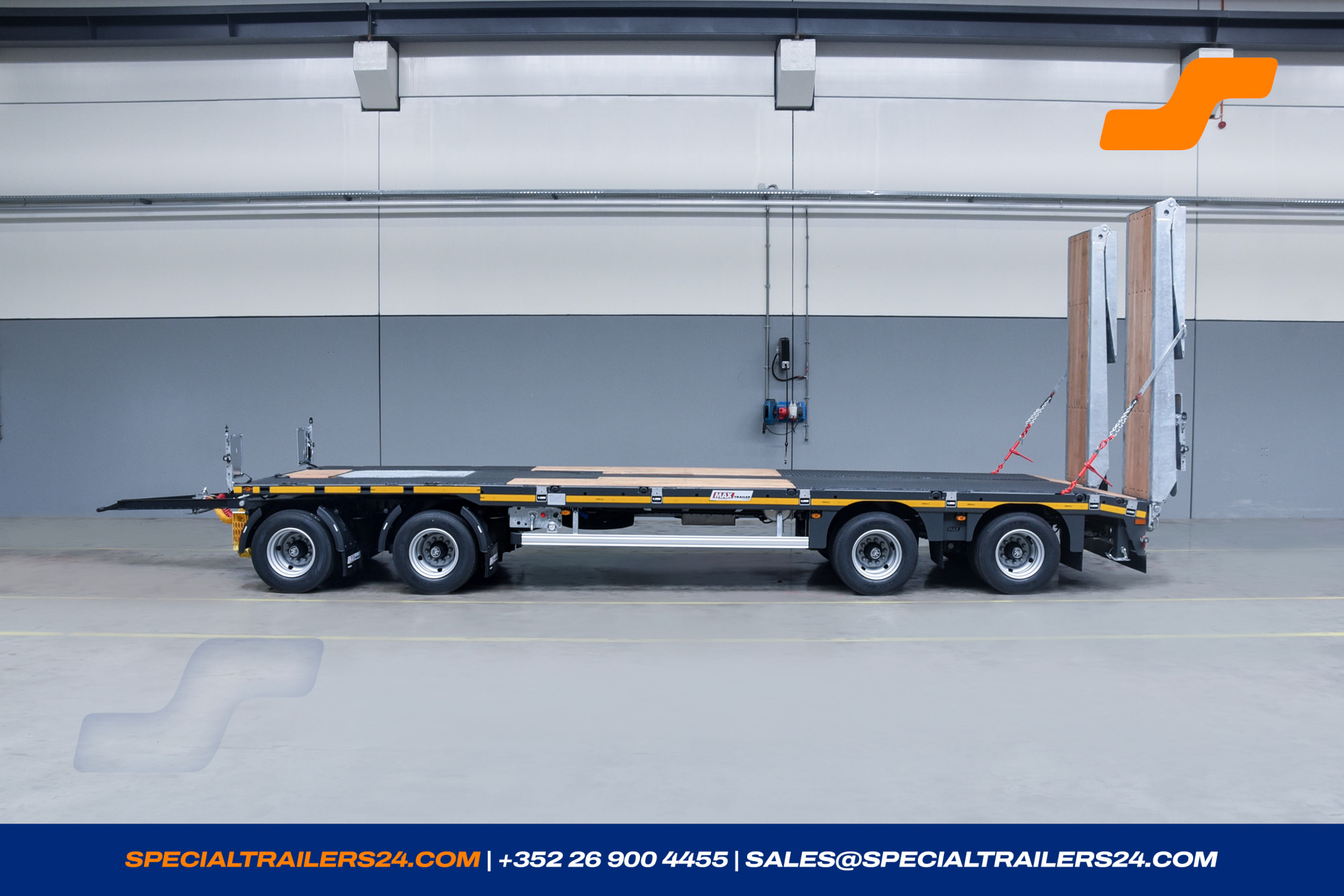

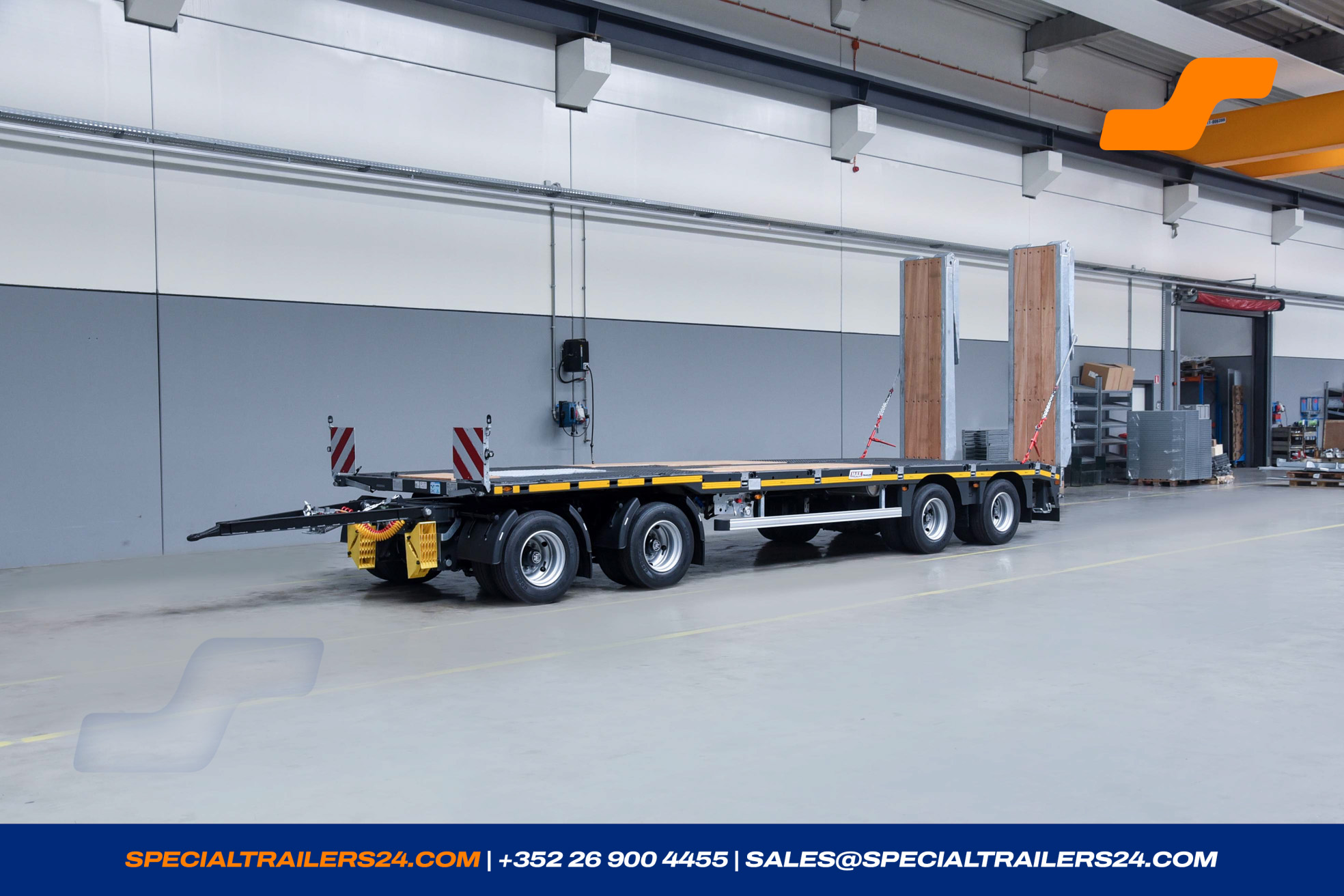

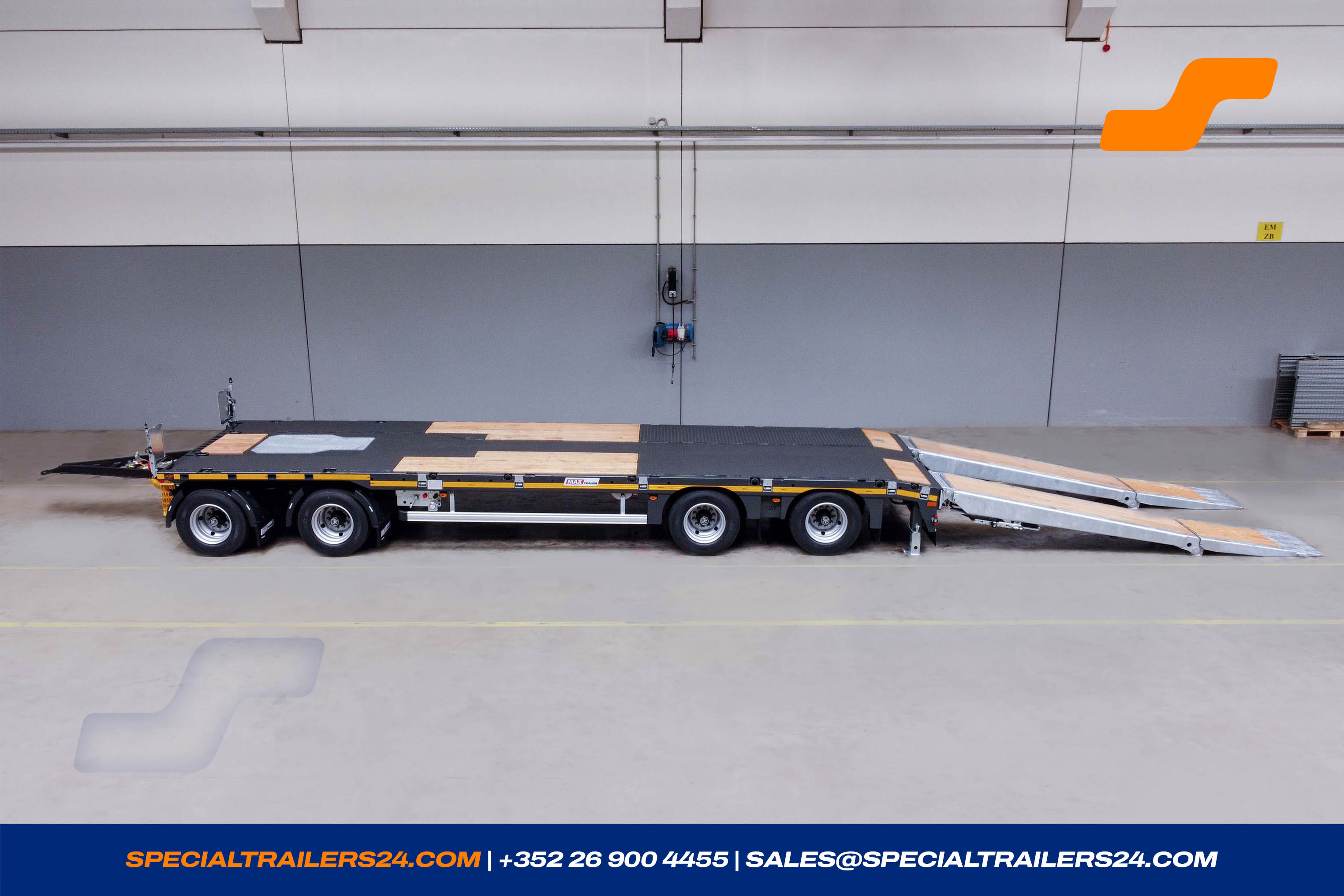

MAX Trailer MAX600
Die Farbe des Fahrzeugs auf dem Foto kann abweichen.
- Chassis number 110953
- Reference MAX600-S-4-8.60-U
- Number of axles 4
- Condition New
- Year of manufacture 2025
- Colour RAL 7039 - Quartz grey
- Availability 04/2026
- Steering Type Rigid
Die wichtigsten Unterlagen
Detailinformationen
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| Axle load | 42800 kg |
| Gross weight | 42800 kg |
| Tare weight +- 3% | 9220 kg |
| Payload | 33580 kg |
Dimensions
| Loading platform length | 8 600 mm |
| Total width | 2 540 mm |
| Loading height at max. load | 900 mm |
| Wheelbase | 1 360 mm |
| Suspension stroke | -55/ +145 mm |
Loading deck

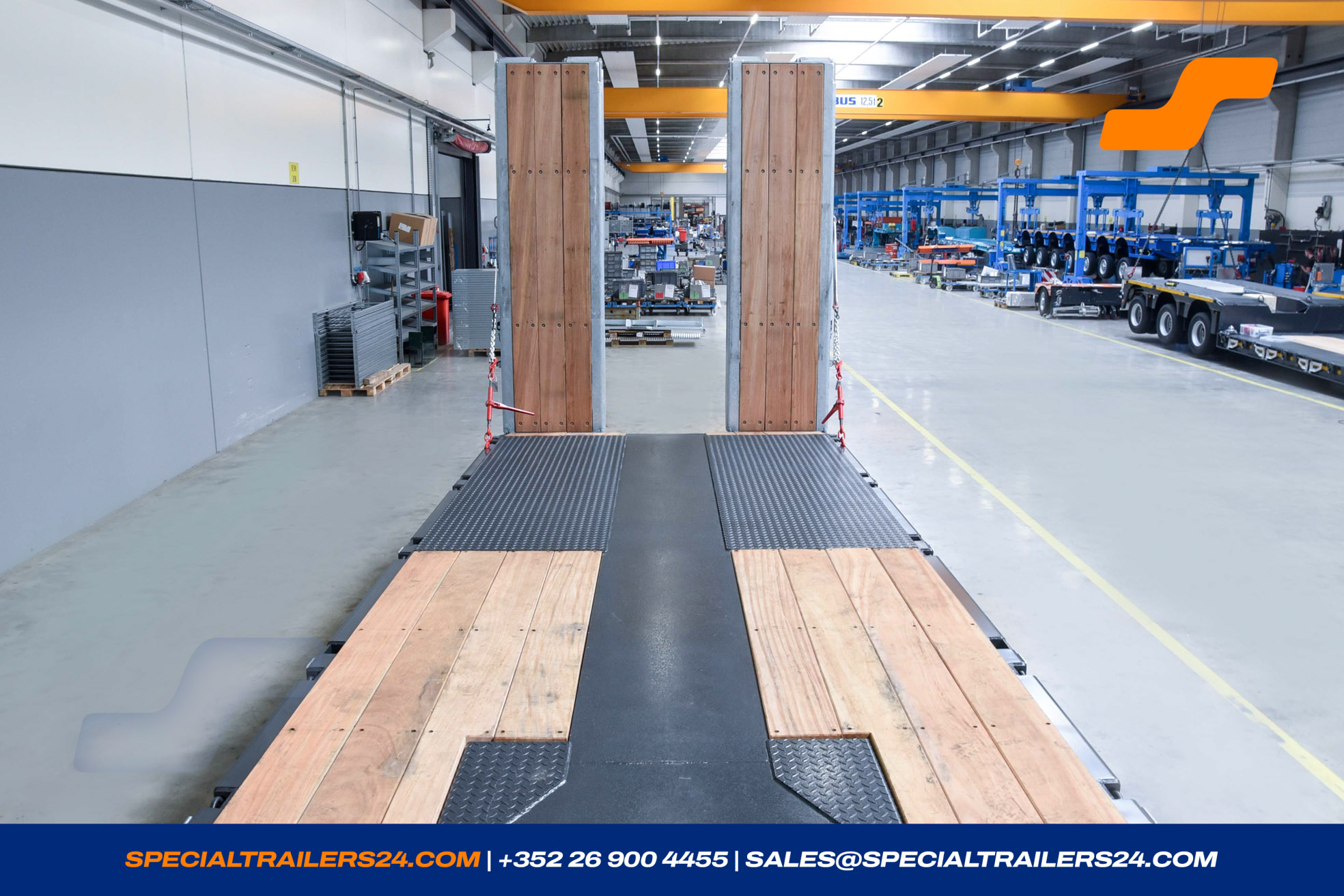

Loading platform
1 x Loading platform
Loading platform with chamfered beaver tail by about 500 mm x 8°.

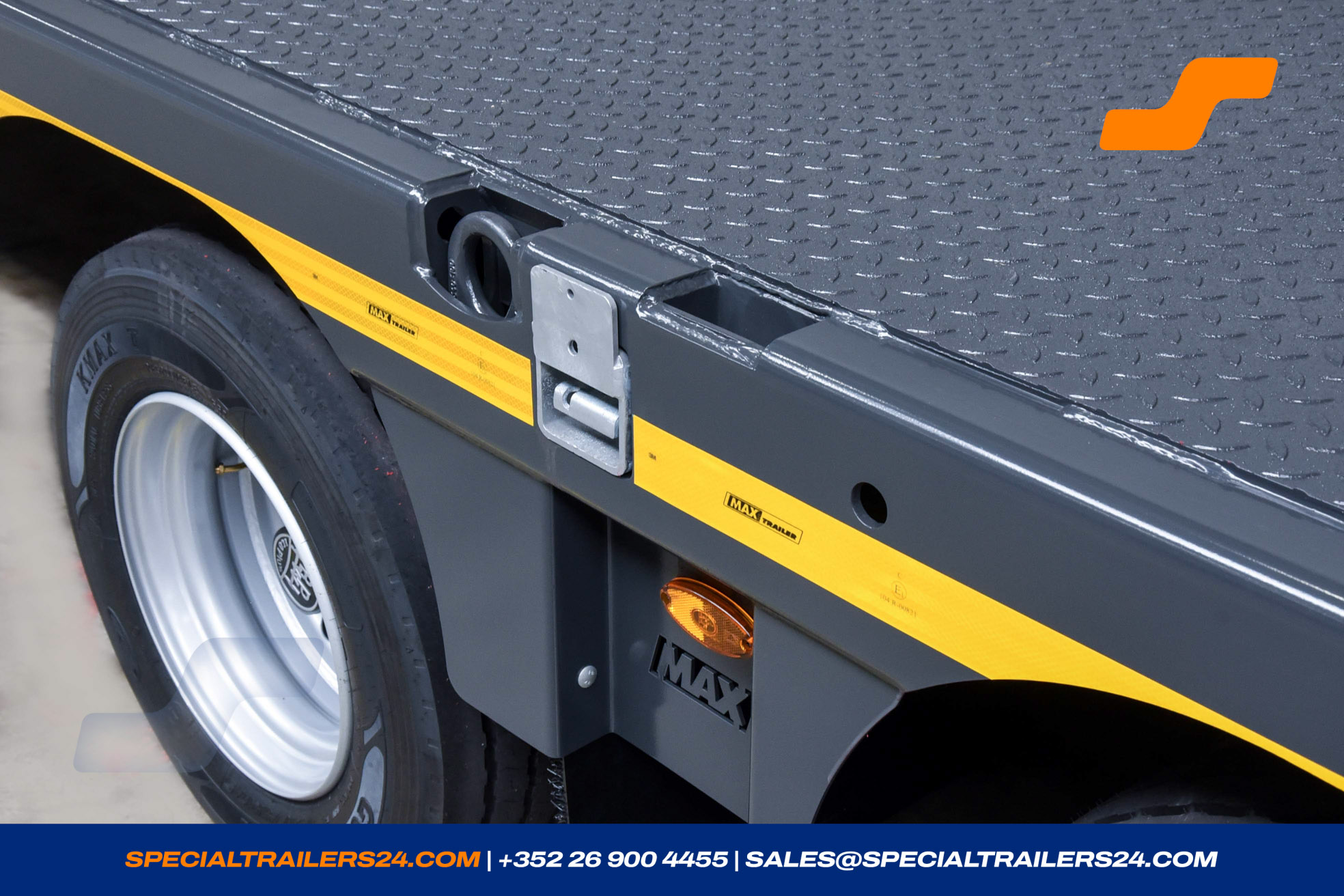

4 pairs of lashing rings in the loading platform, hinged outwards (LC 5 000 daN).
2 pairs of lashing rings in the loading platform, hinged outwards (LC 10 000 daN).
2 pair of lashing rings in front in the firm part the loading platform (LC 5 000 daN).
1 pair of lashing rings in front in the firm part the loading platform (LC 10 000 daN).
Cutouts in the border frame of the loading area for hooking in tension belts (LC 2 000 daN).

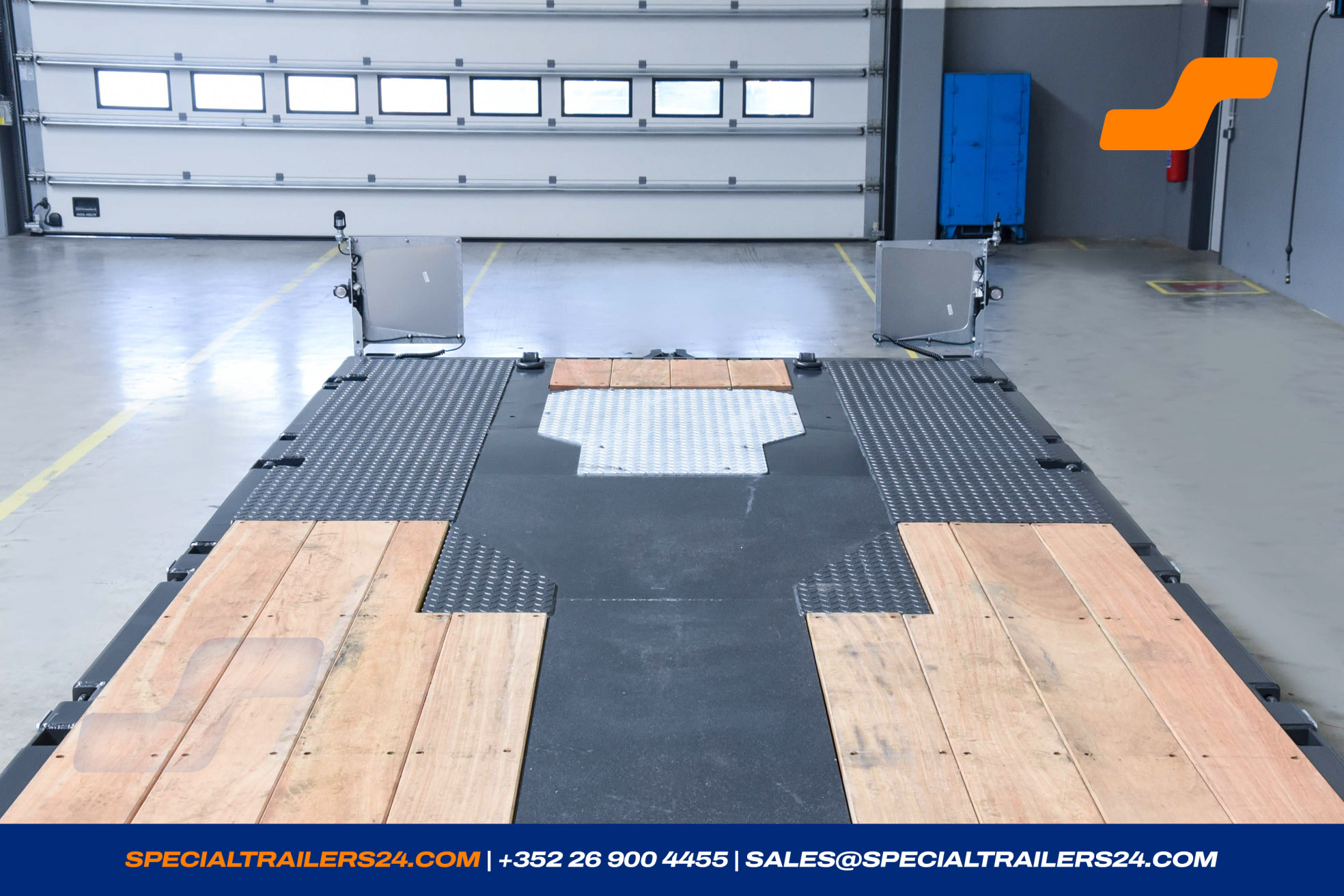

Hardwood cover thickness 48 mm above of the axles chequer plate.
- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.

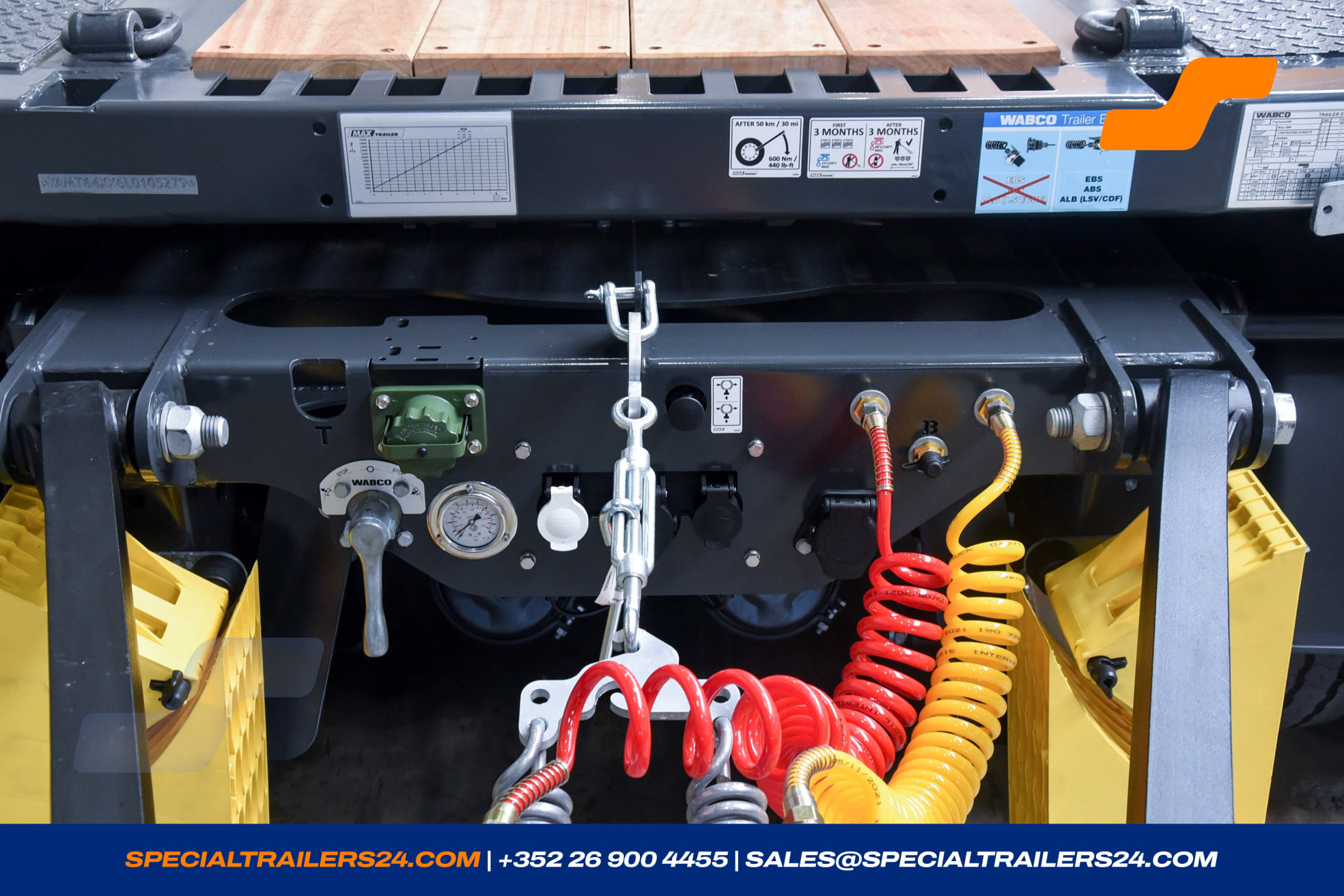

- Spiral cable 15/2x7 poles.
- Red and yellow air couplings.
- Holder for one beacon light at the rear of the trailer.
- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.

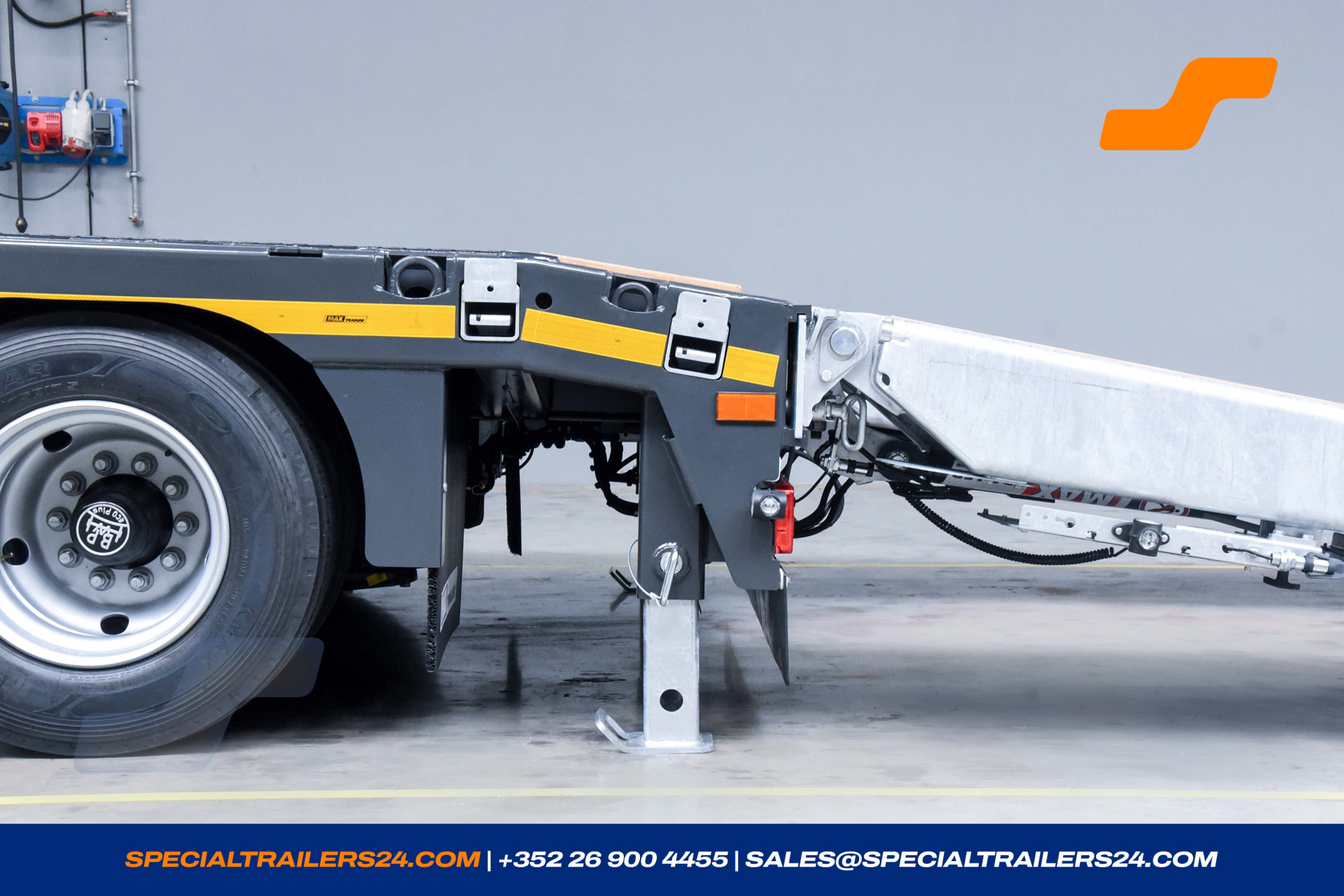

- Galvanised landing gears at the rear under the chamfer of loading platform.
- Electrically operated hydraulic pump at the rear under the loading platform. (± 45 kg)
- Spiral cable for the the electric-hydraulic pump and/or electric winch (35 mm², 3.5 m length, max. 160 A) between the semi-trailer and the truck with socket (ANDERSON-ANDERSON).
-
TPMS Tyre Pressure Monitoring System according to ECE R 141.
Data transmission to the motor vehicle takes place via the standardised EBS interface according to ISO 11992.
For accurate display, the motor vehicle must be able to transmit and display this data. -

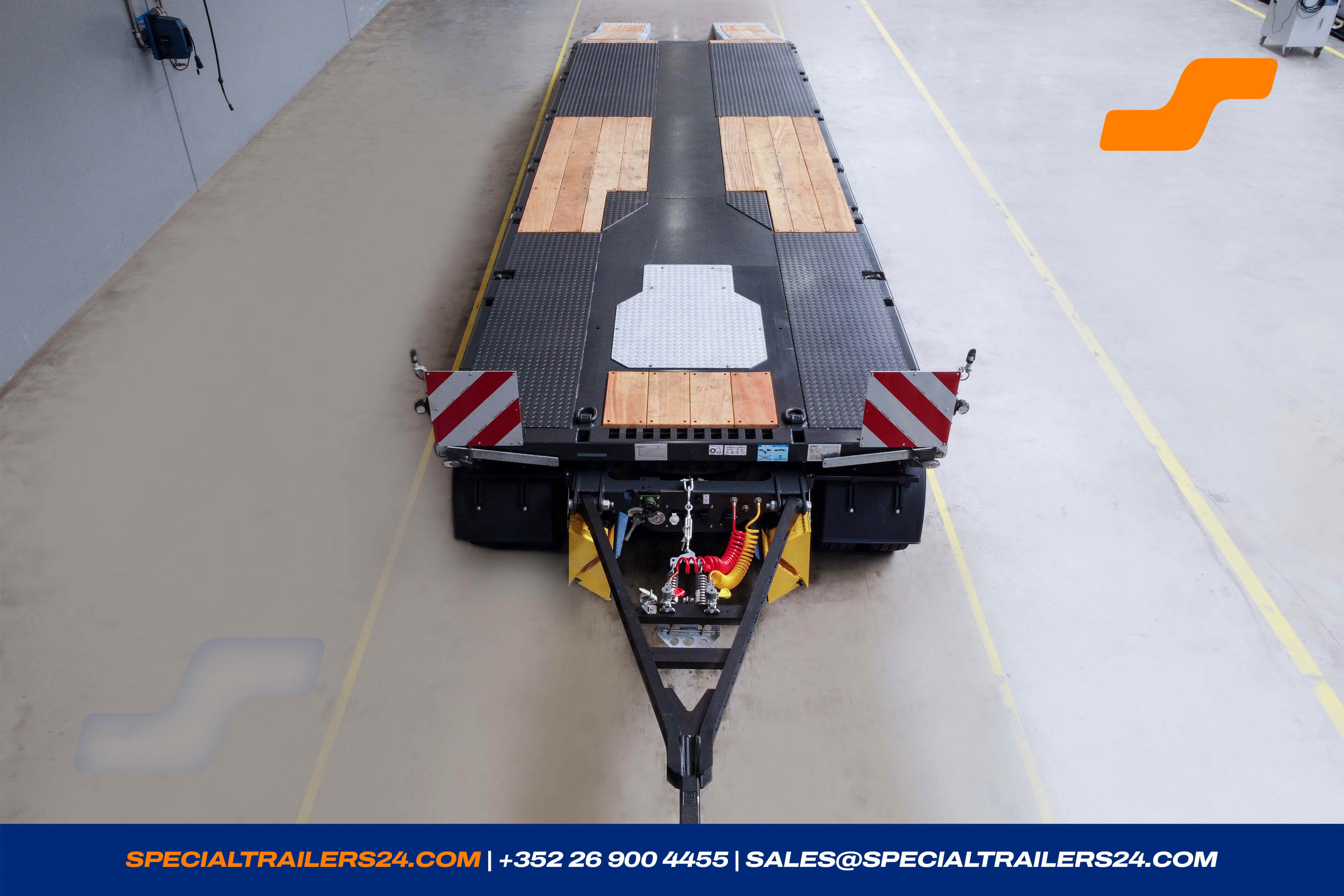

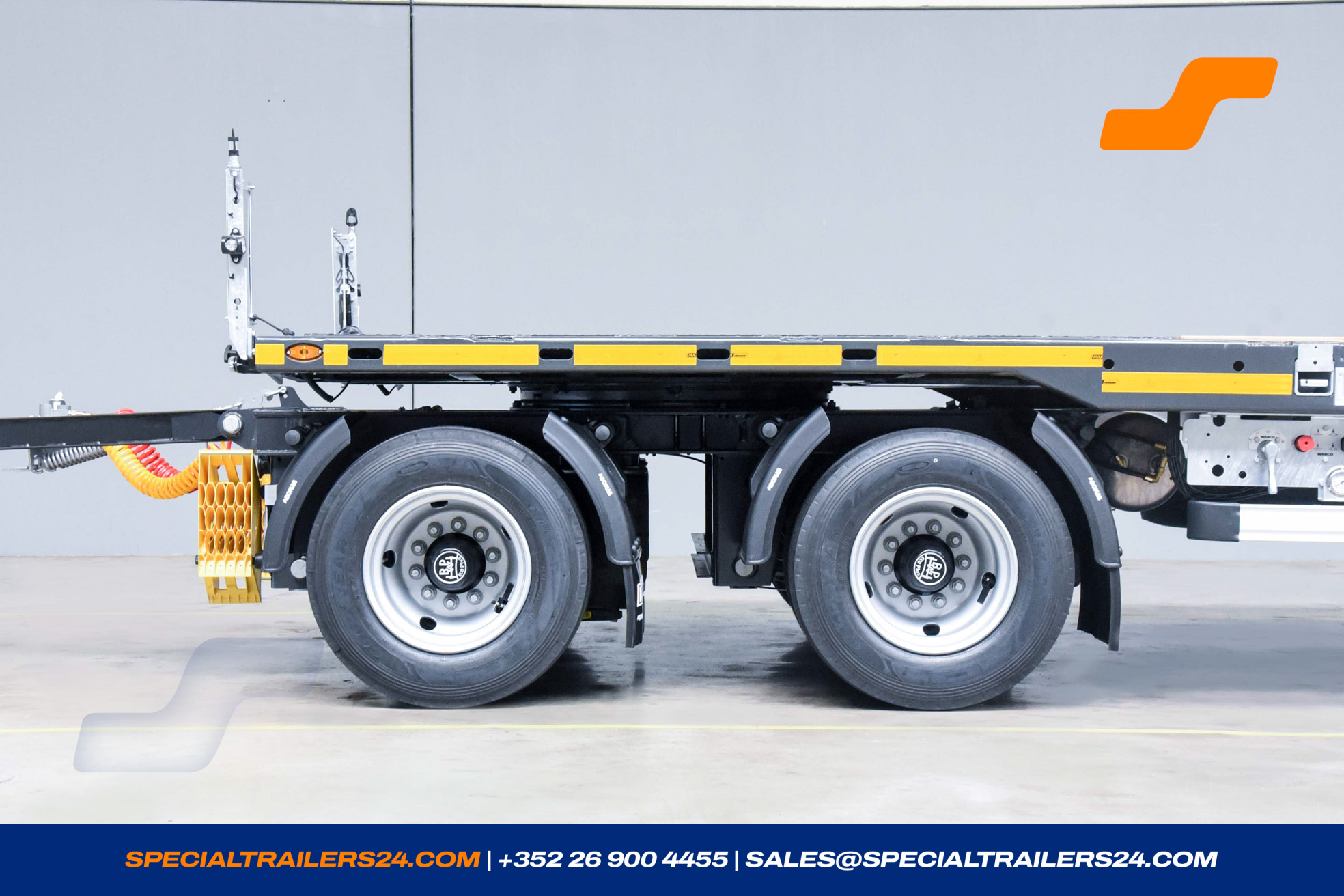

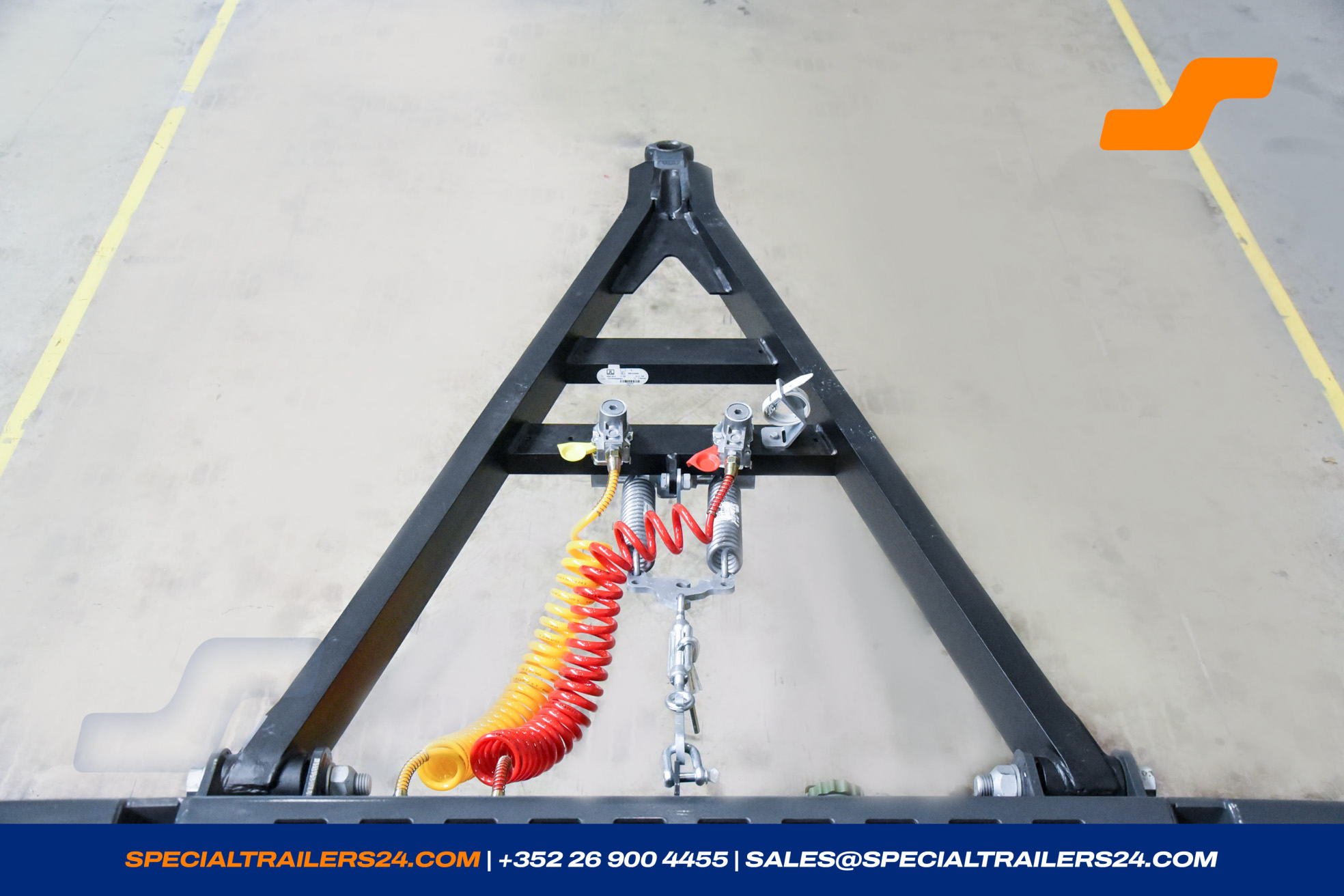

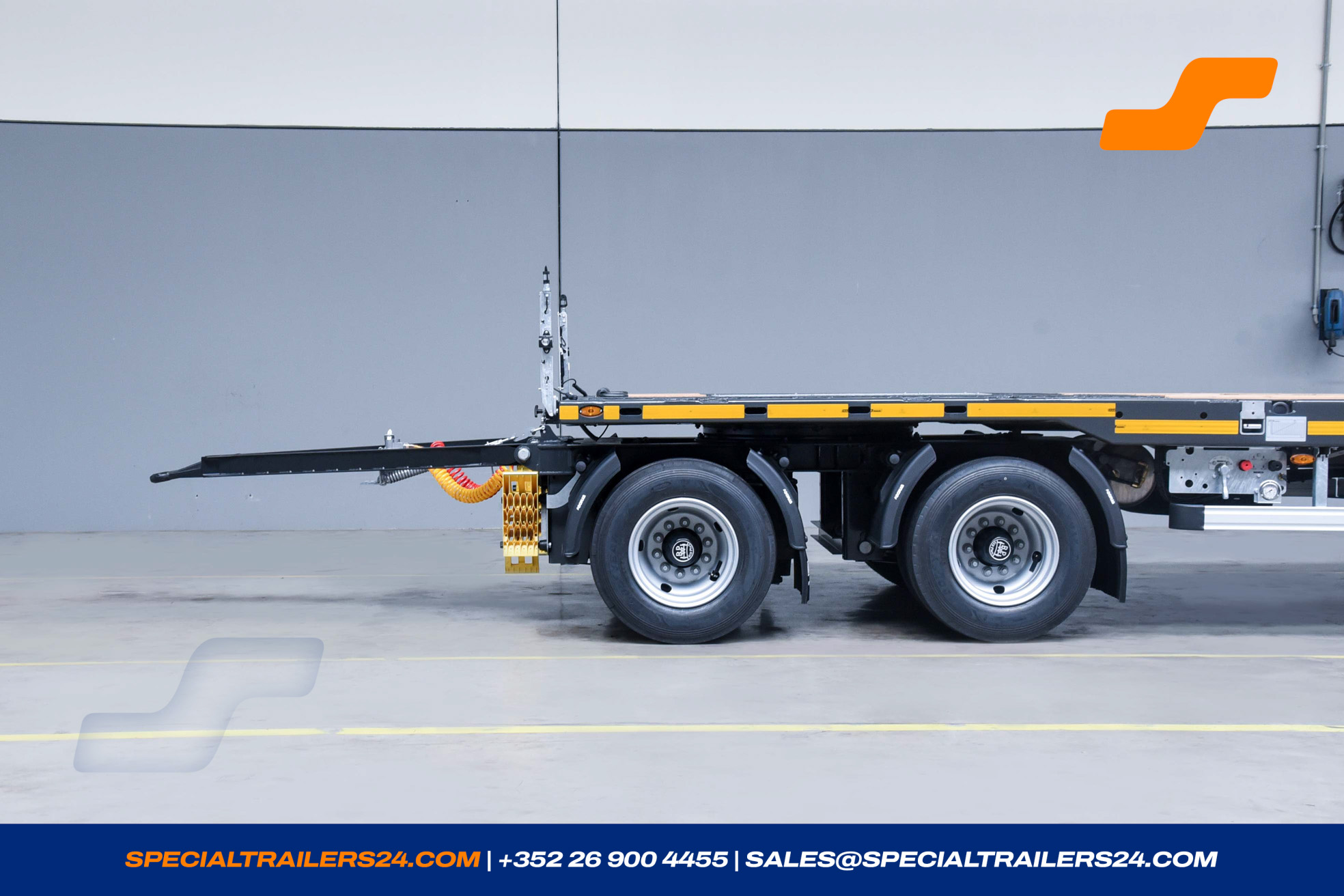

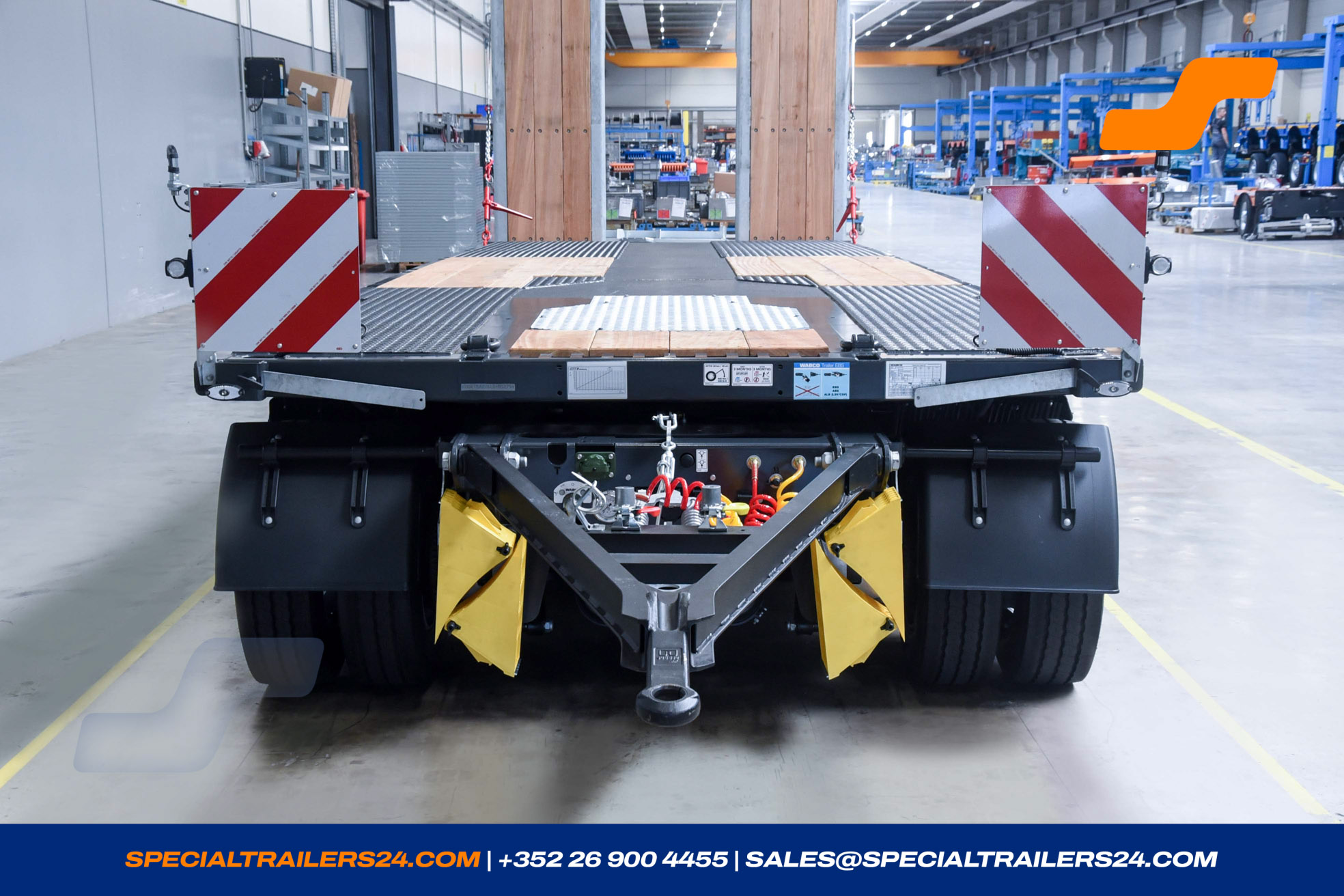

Bogie with a ± 1 750 mm long drawbar, with a towing eye (50 mm diameter).
Clutch height 830 - 1 010 mm loaded.
KTL powder coating black. - 2 pairs of containerpockets WADER incorporated into the loading platform for 1 x 20'. (± 20 kg)
- Galvanised outriggers, extendable up to ± 230 mm per side (± 230 kg).
-
Hardwood timber for the outriggers (± 271kg).

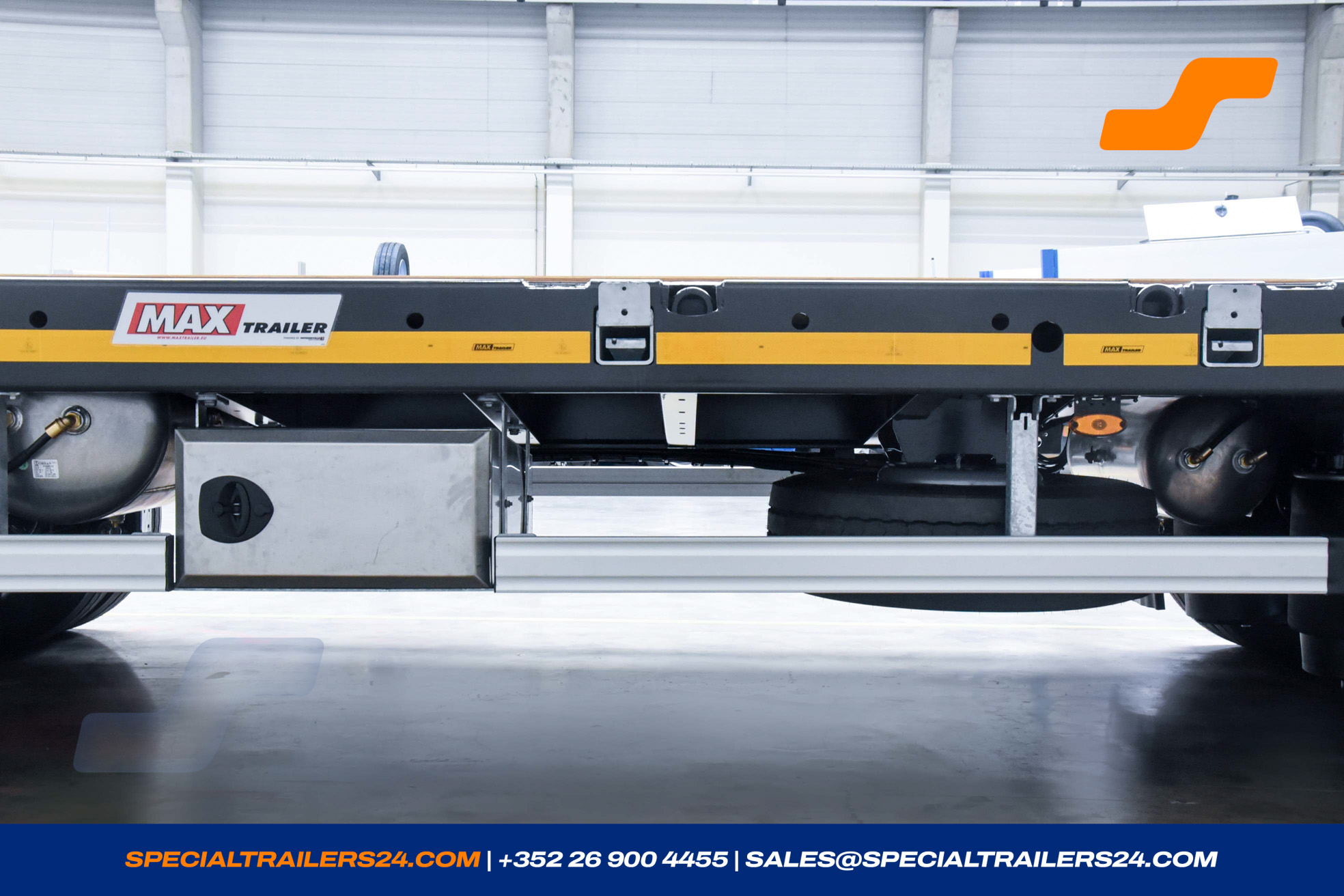

The maximum permissible point load on an area of 200 x 200 mm is 3.5 to. - Galvanised storage left under the loading platform. (± 60kg)

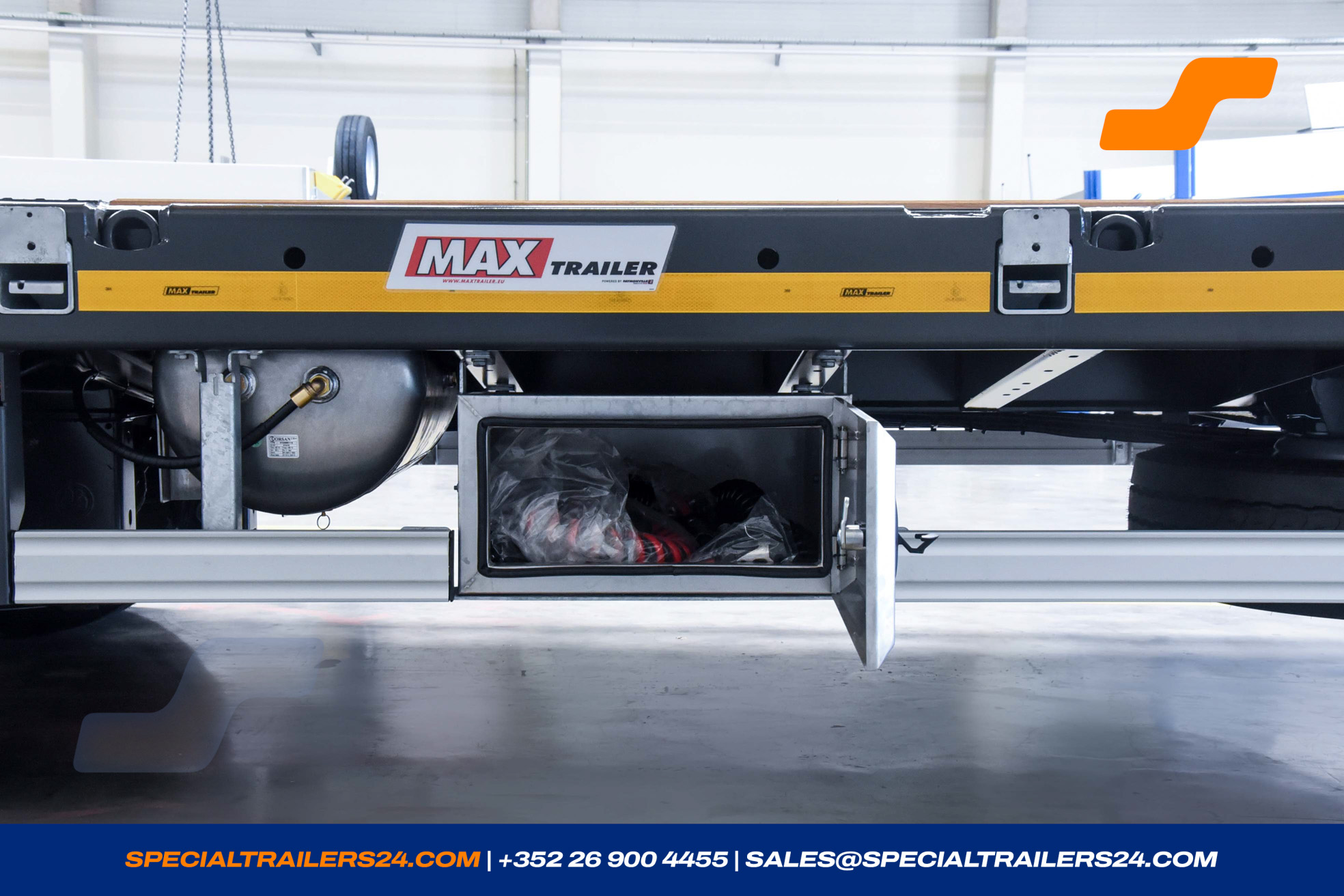

- 1 tool box (INOX) on the gooseneck ca. 1 350 x 400 x 400 mm (l x w x h). (± 55kg)
- White reflective tape according to the EU regulation over the entire length, red on the rear.
- 1 LED reversing lamp left and right in front of the first axle.
- 1 spare wheel with holder 245/70 R17.5 3PMSF (± 73 kg)
Ramps
Hydraulic loading ramps

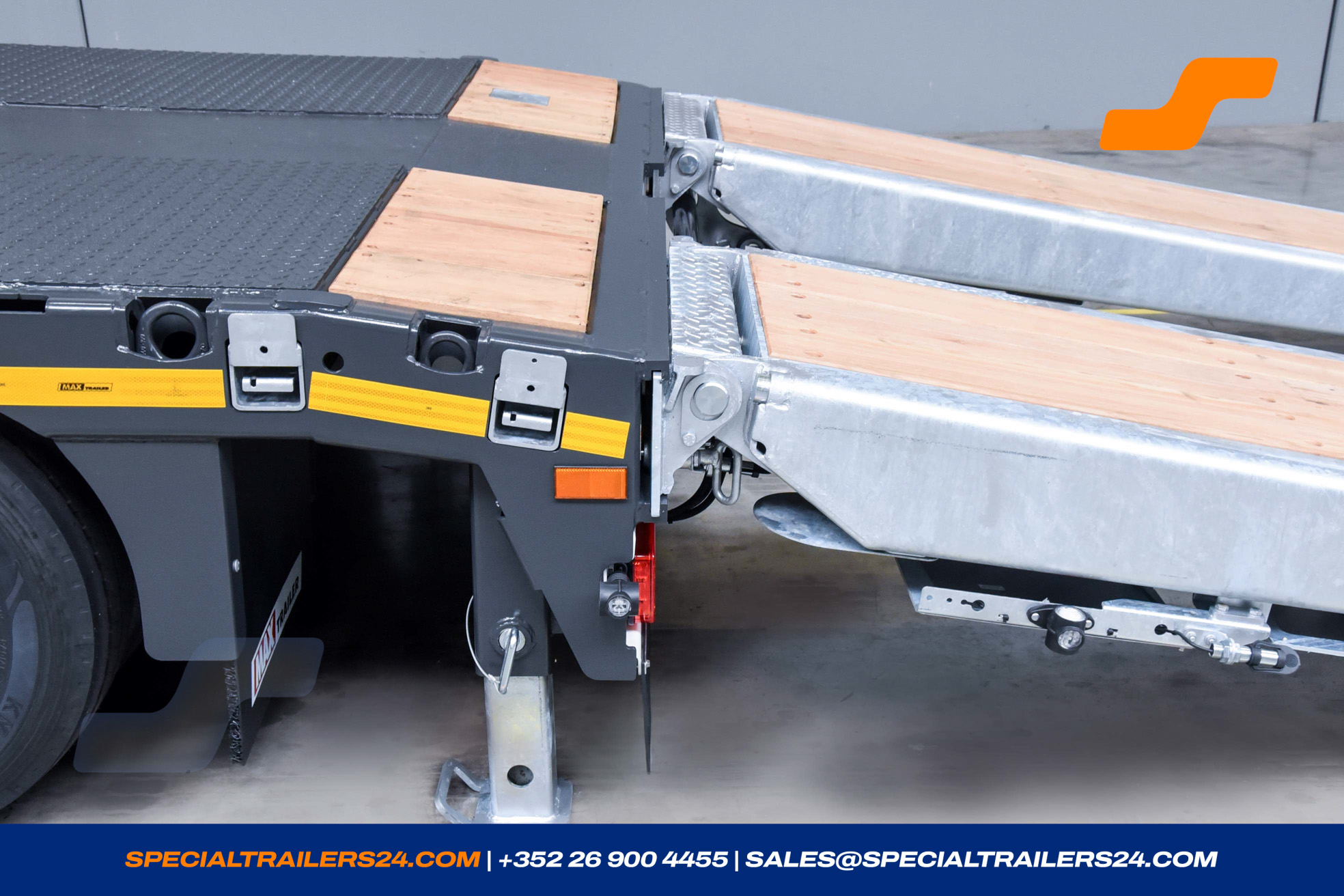

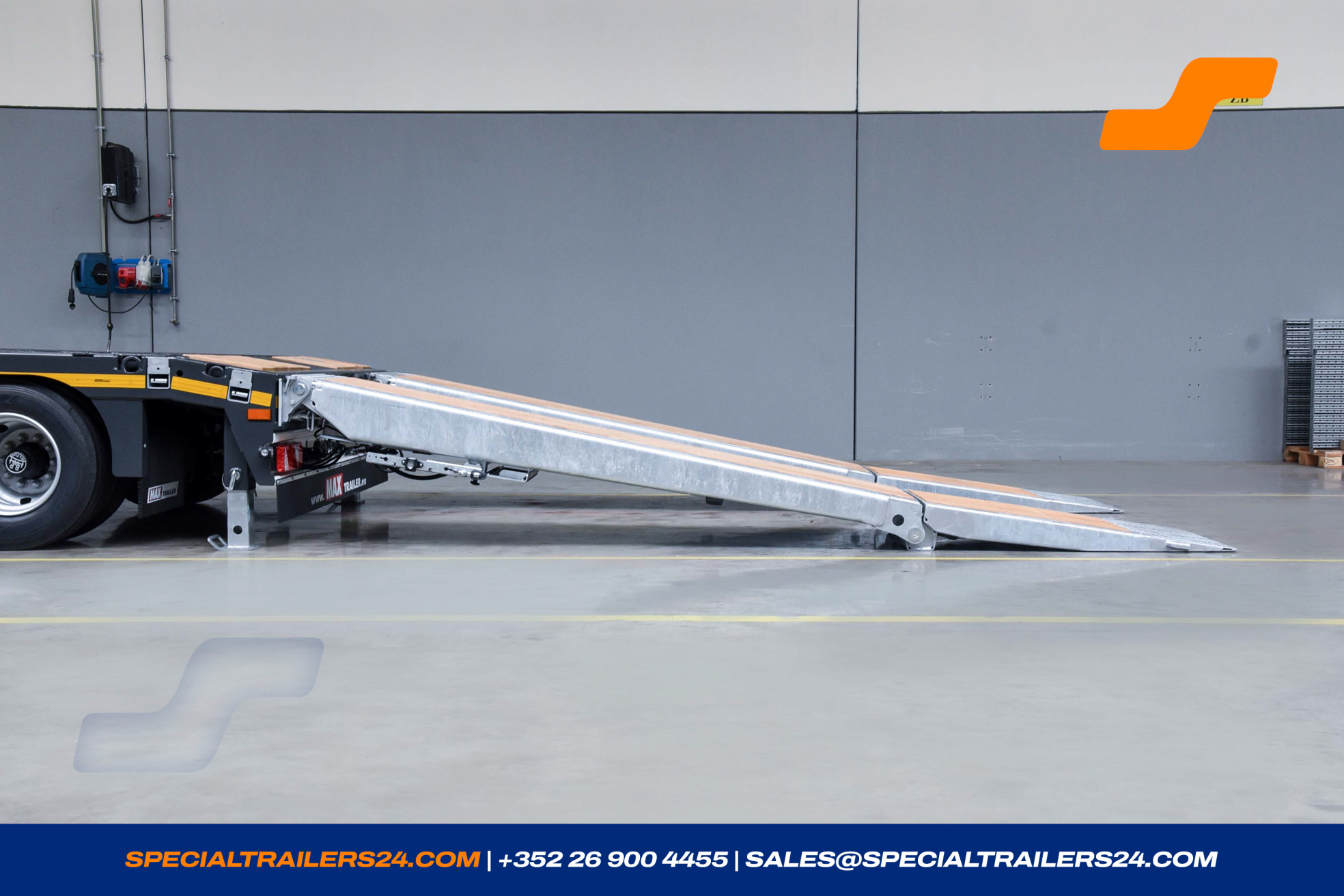

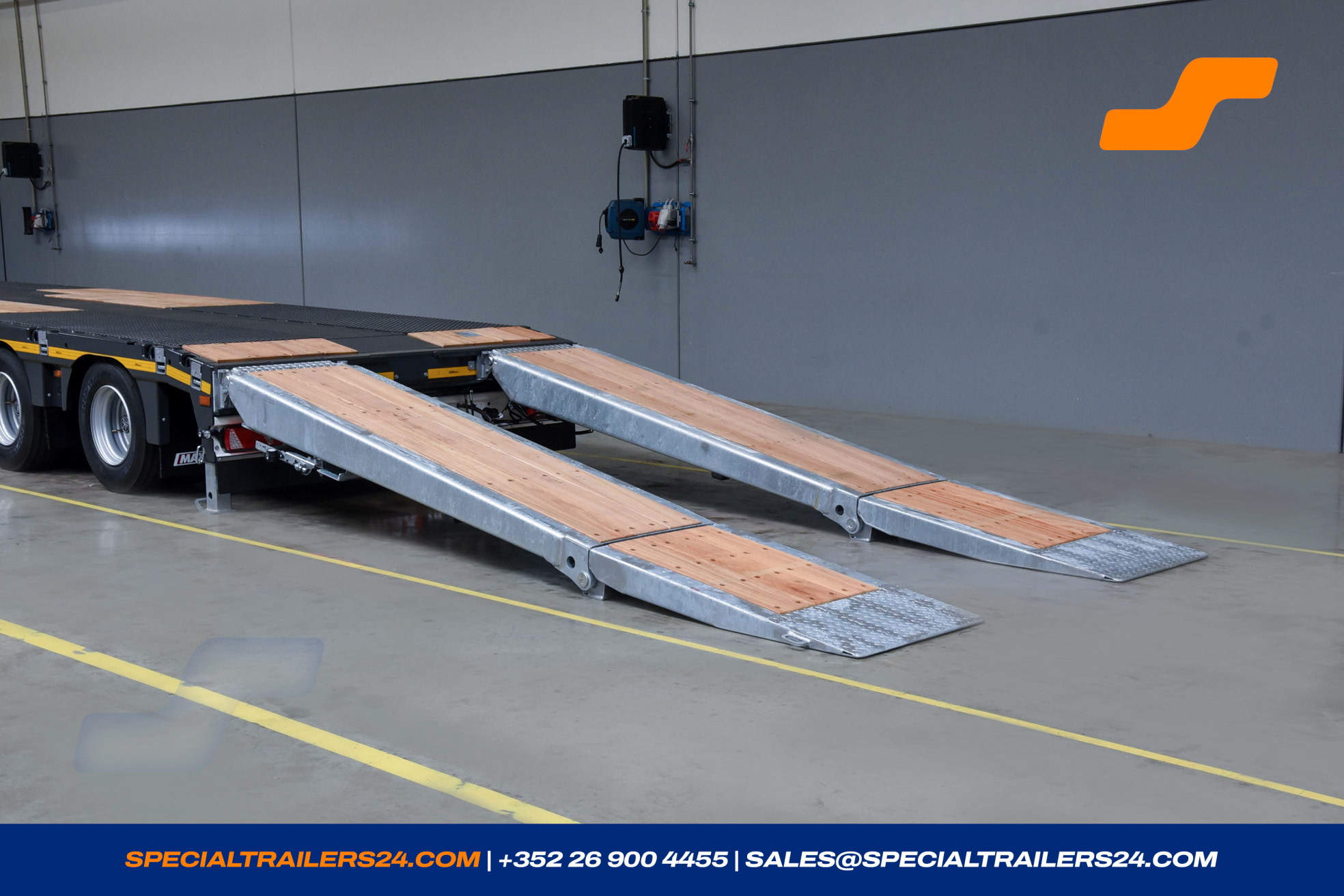

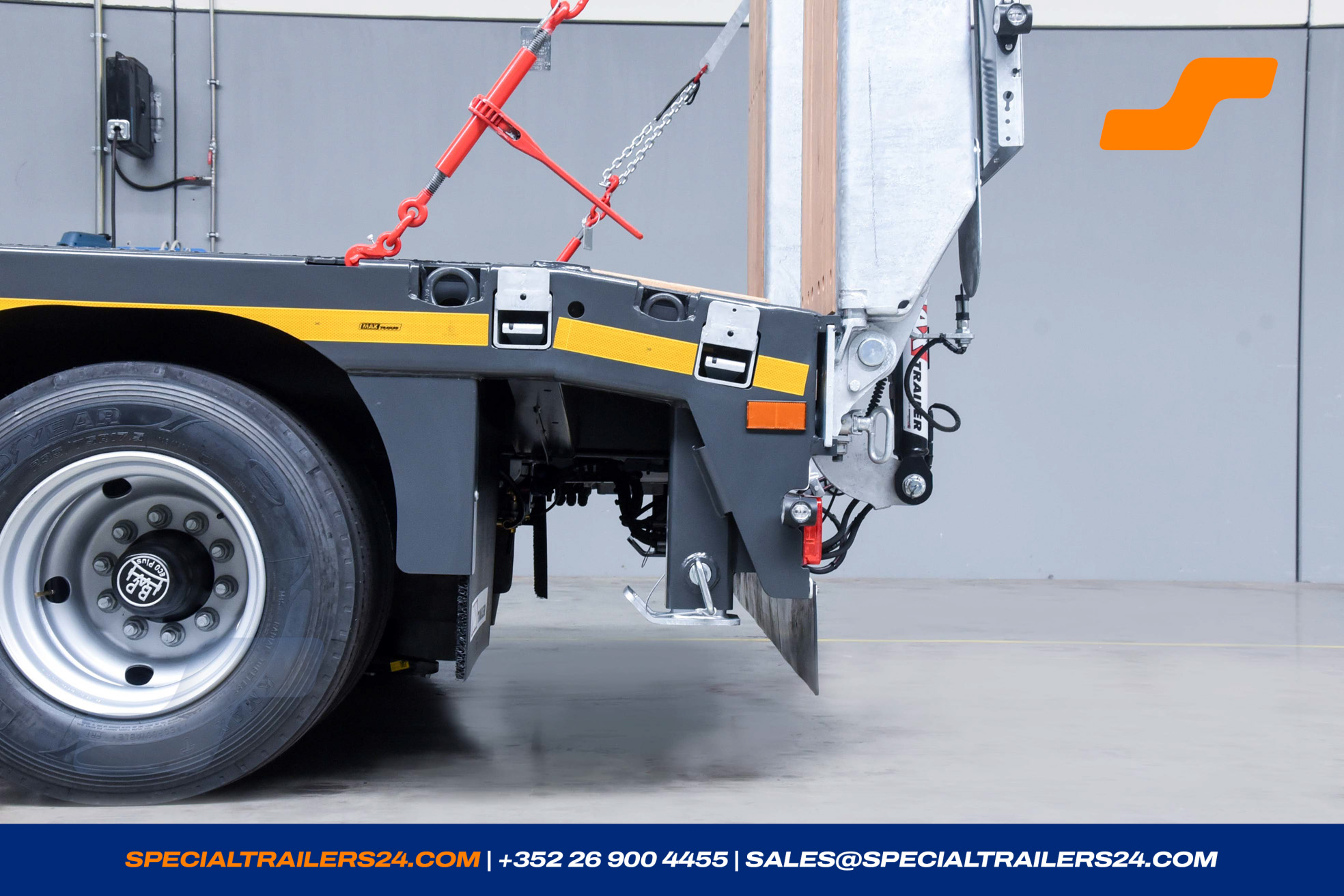

1 x Steel double flip ramps

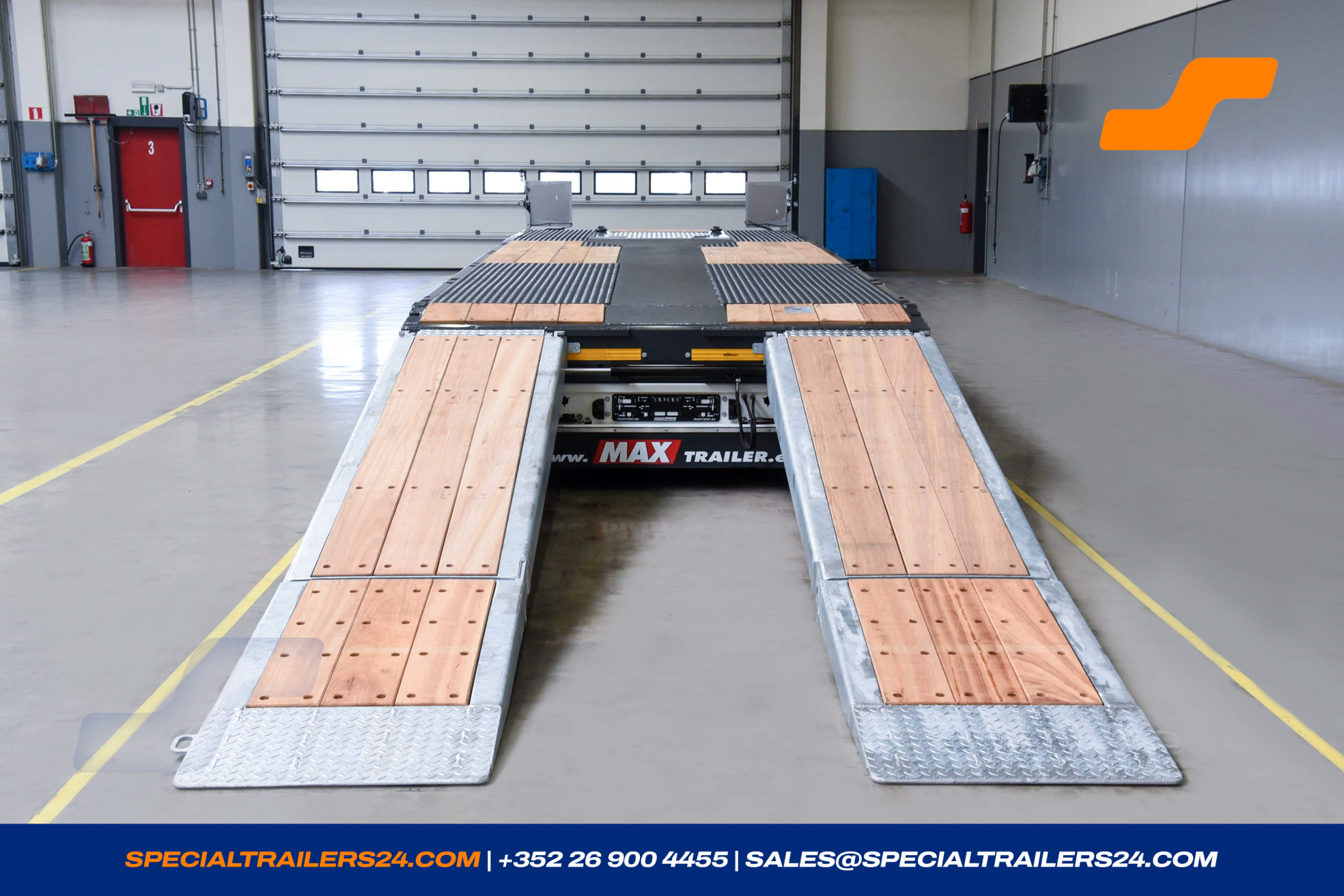

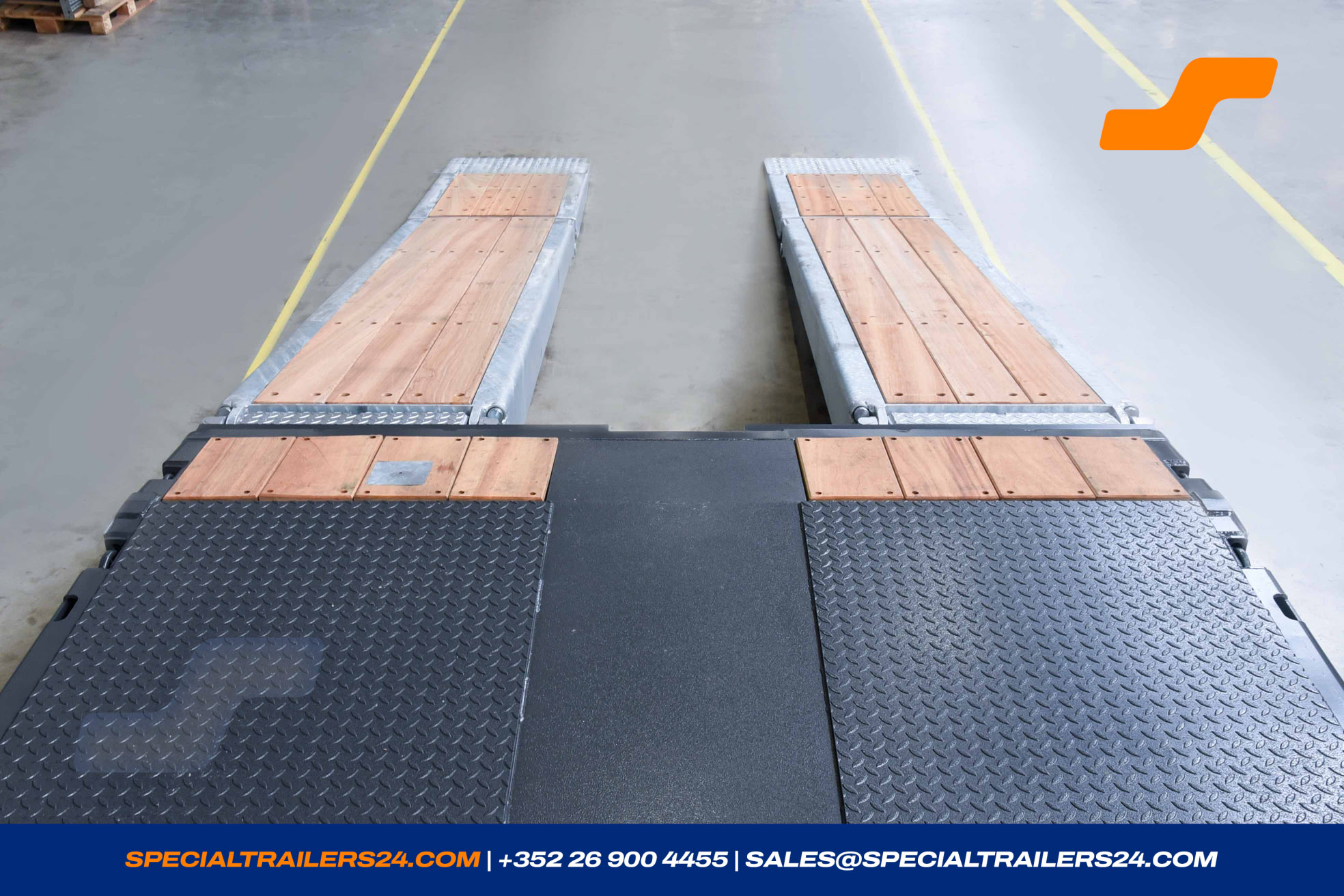

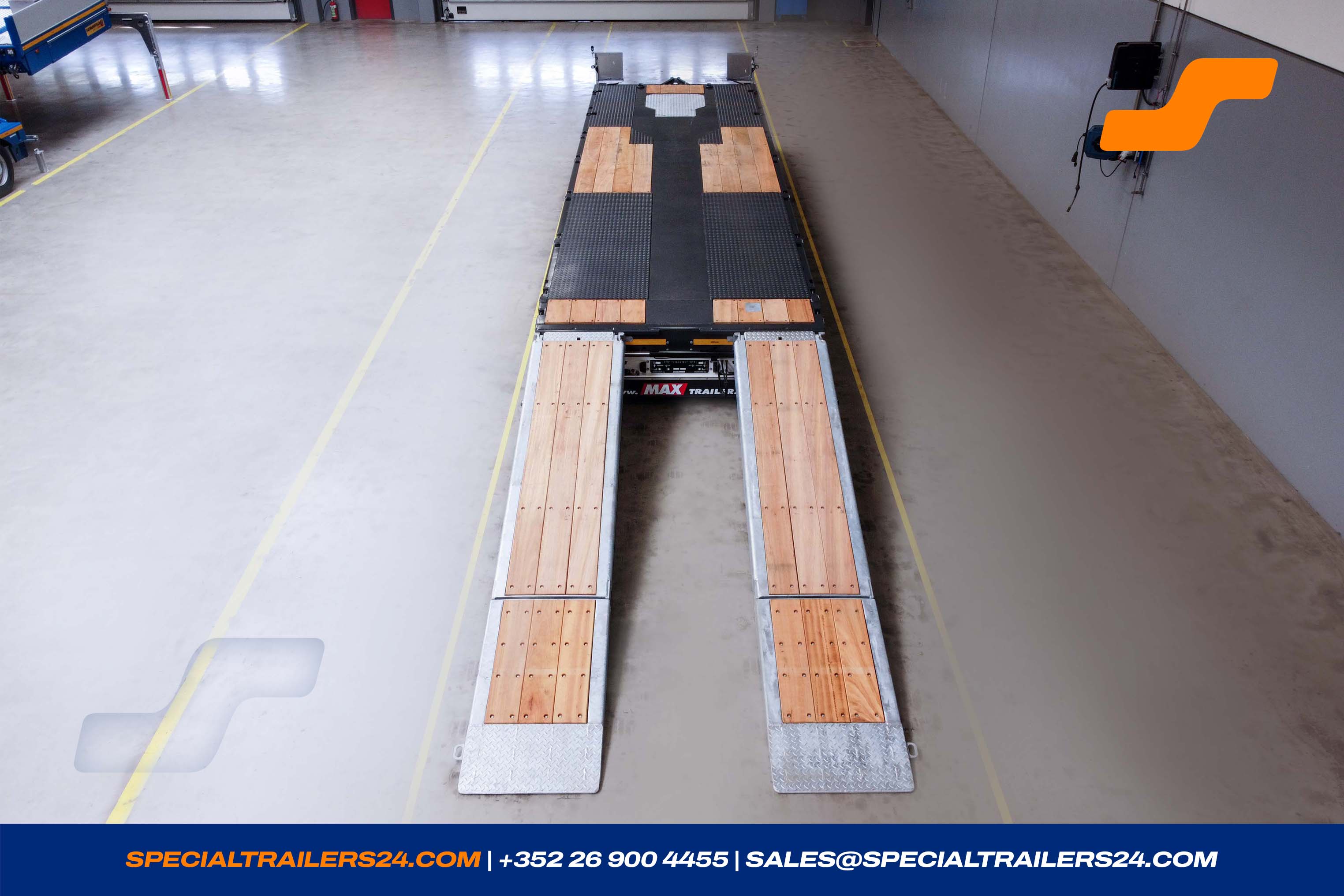

1 pair steel double flip ramps galvanized ca. 2 750 + 1 400 x 800 mm with ca. 48 mm hardwood cover.
Ramps hydraulically operated and hydraulic side shift.
Maximal charge for one pair: 40 000 kg
- Operated valve for ramps mounted on the right side (± 4 kg).
- Cover plates to bridge the clearance between ramps and loading area (± 17kg).
- Assembly of the double ramps on the semitrailer.
Accessories
1 x Accessories
- Manual and description on USB stick .
- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.

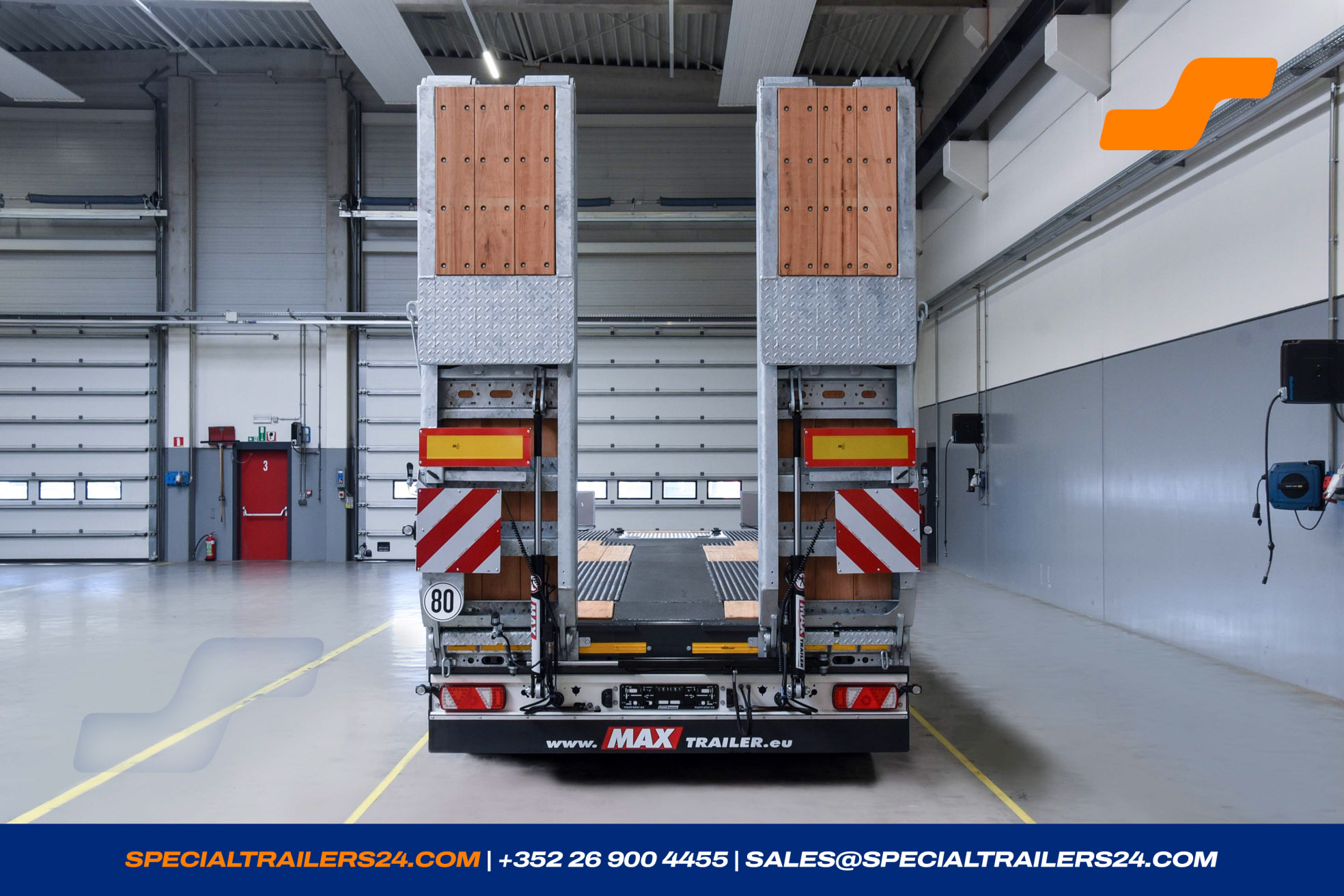

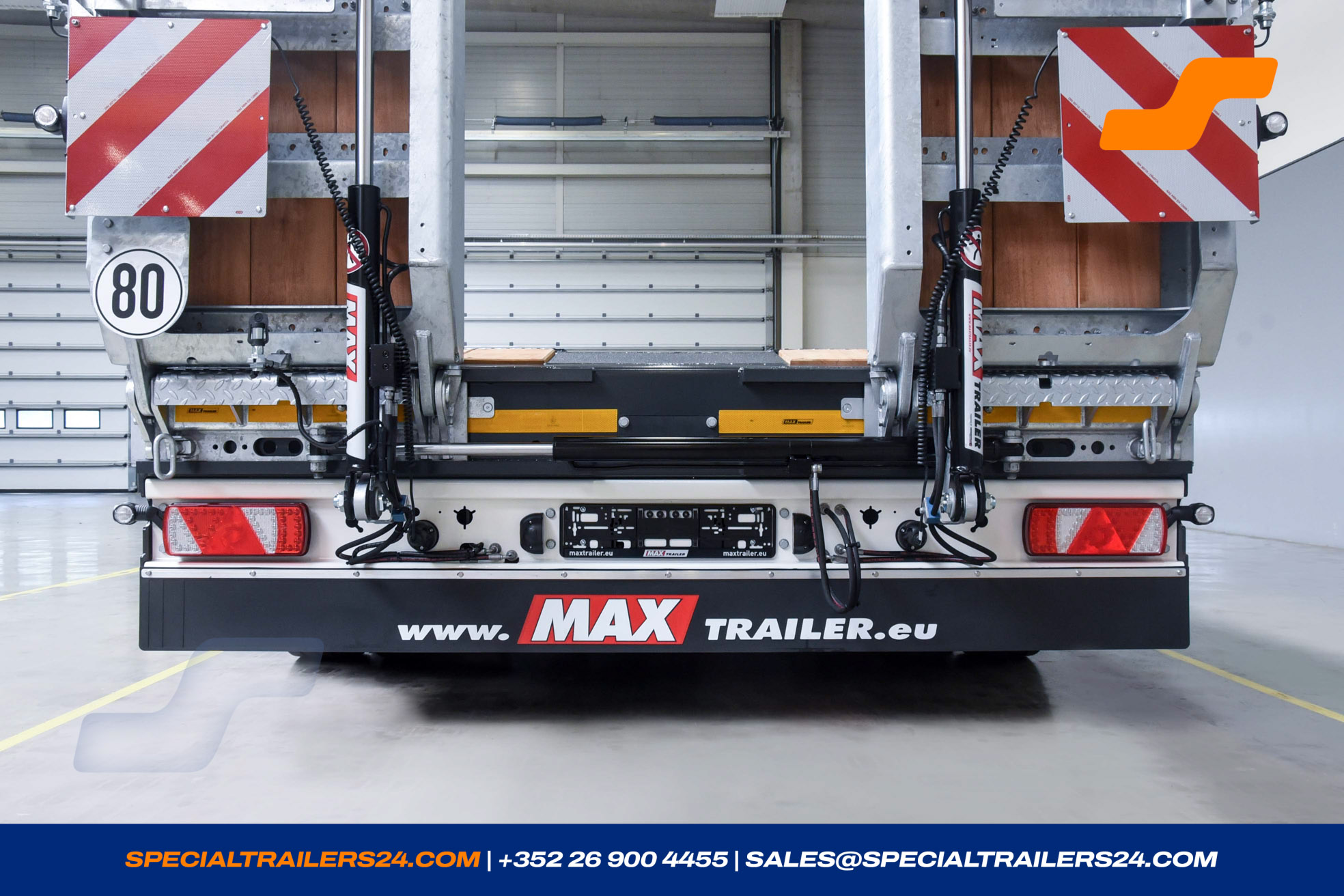

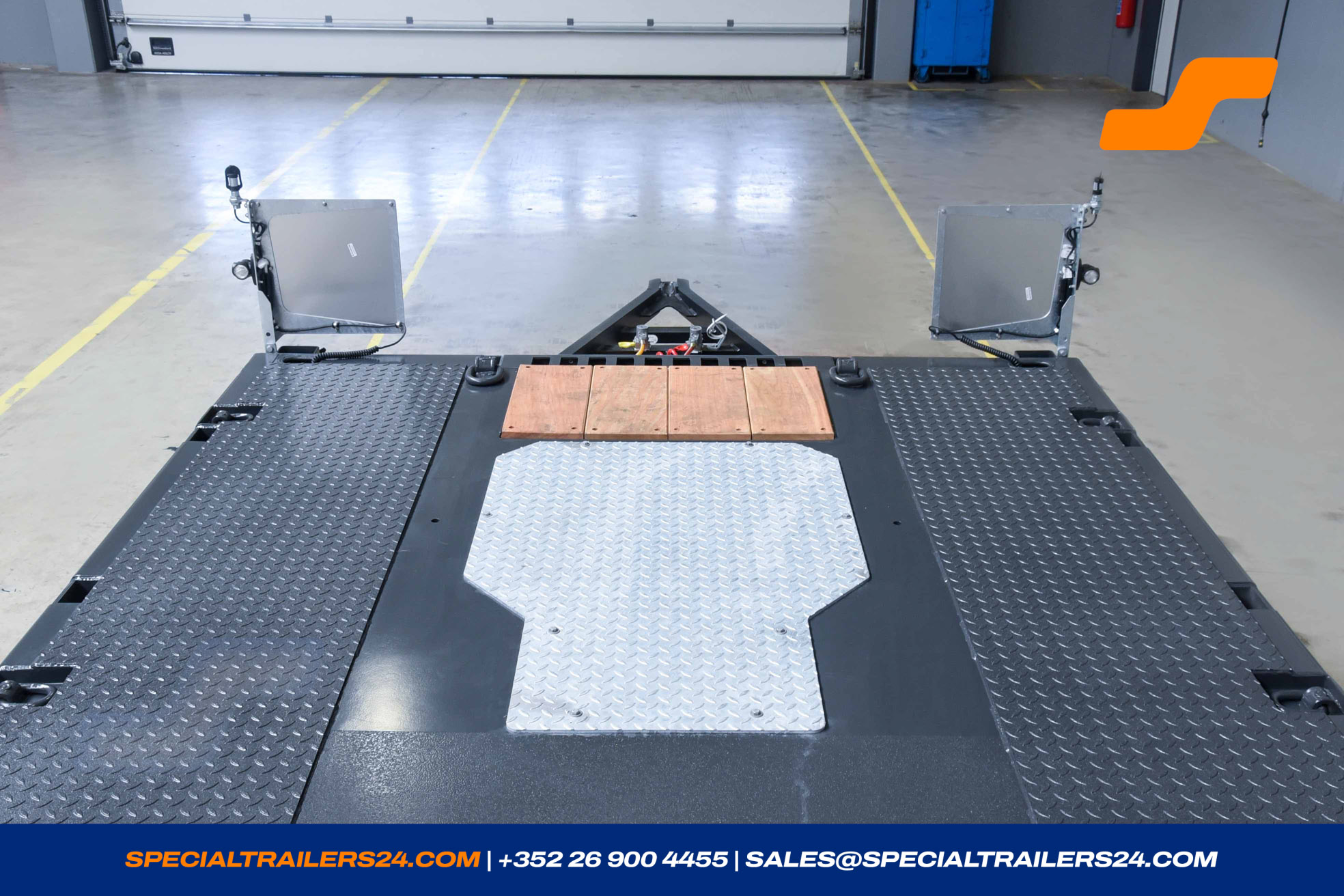

- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- On the warning boards a holder to put a flashing beacon.
- 1 LED flashing beacon, provided separately.
- 2 LED- reversing lights at the rear.
- Spiral cable for the the electric-hydraulic pump and/or electric winch (35 mm², 3.5 m length, max. 250 A) between the semi-trailer and the truck with socket (NATO-NATO).
- Speed sticker 60 km/h at the rear.
-
Sign KG for CONVOI EXCEPTIONNEL
Caution: only valid for belgium - Delivery from a trailer to factory Büllingen.
