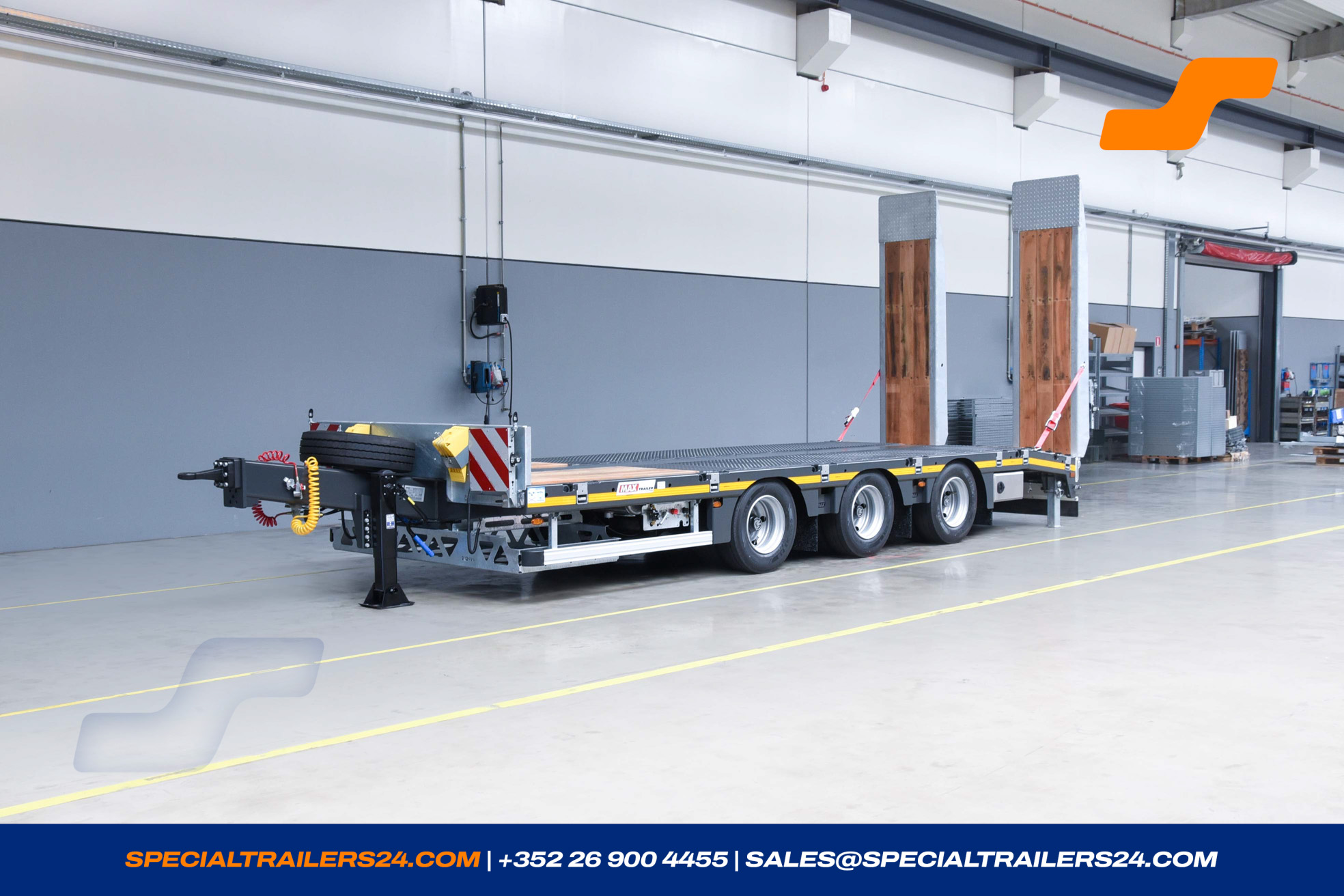

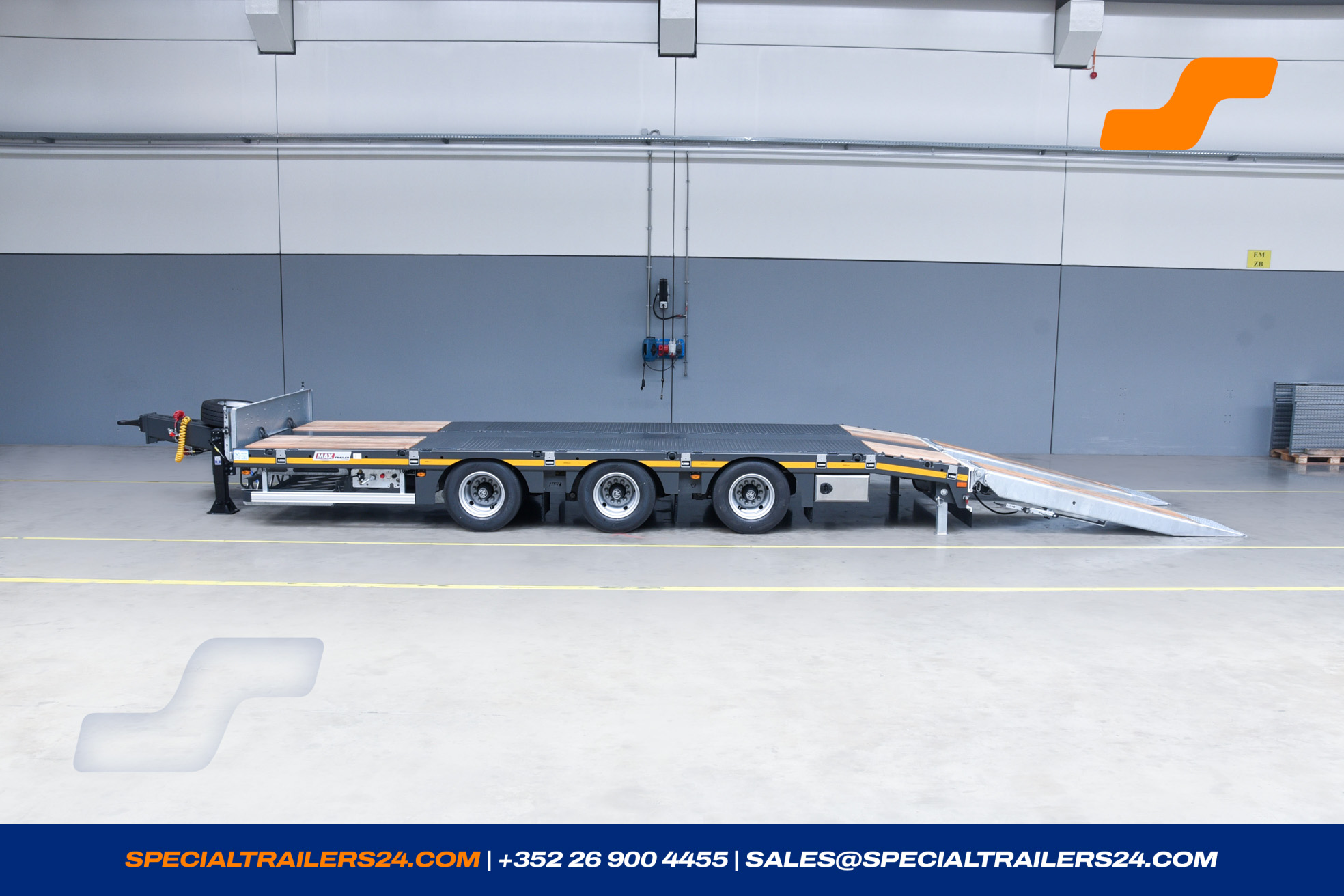

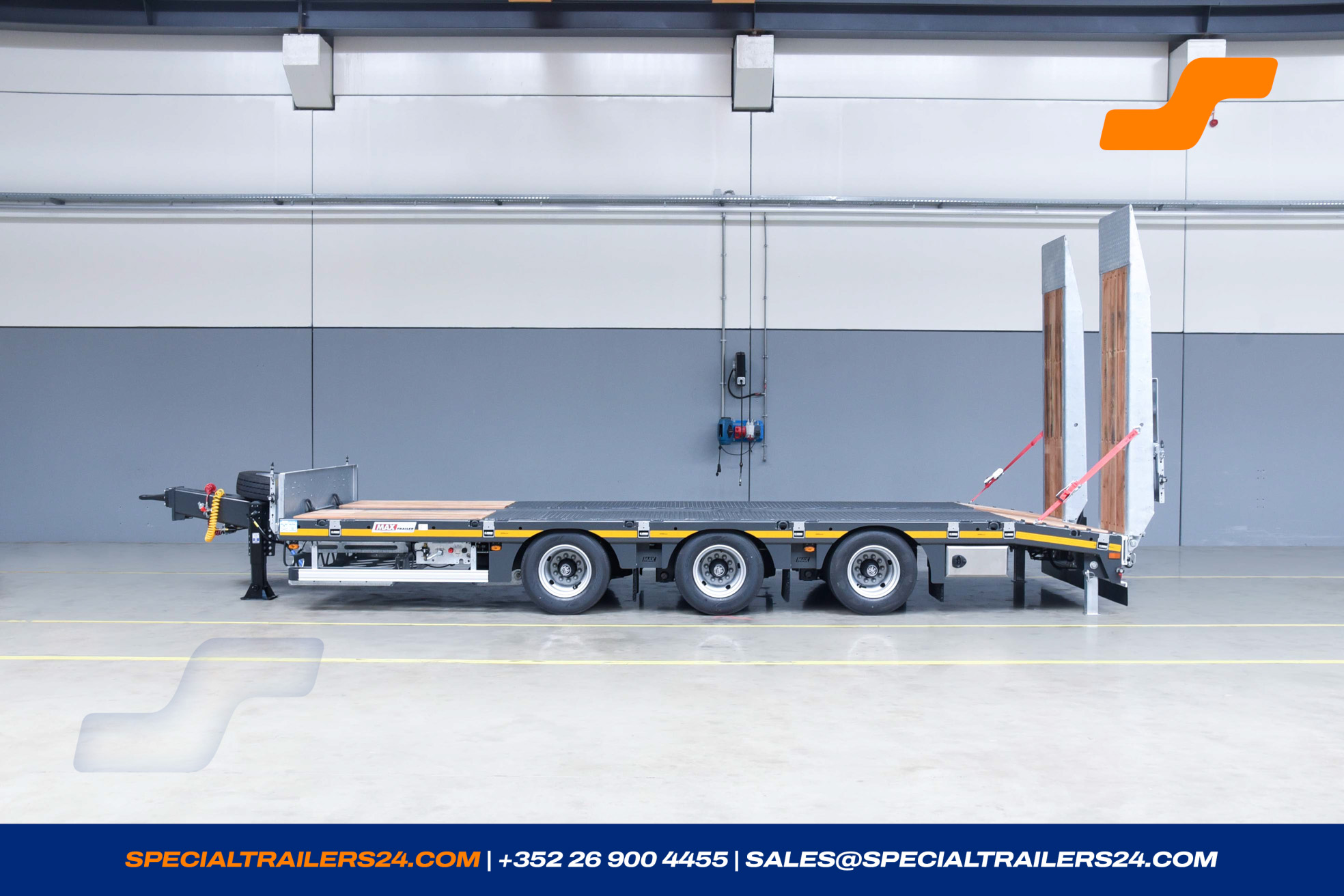

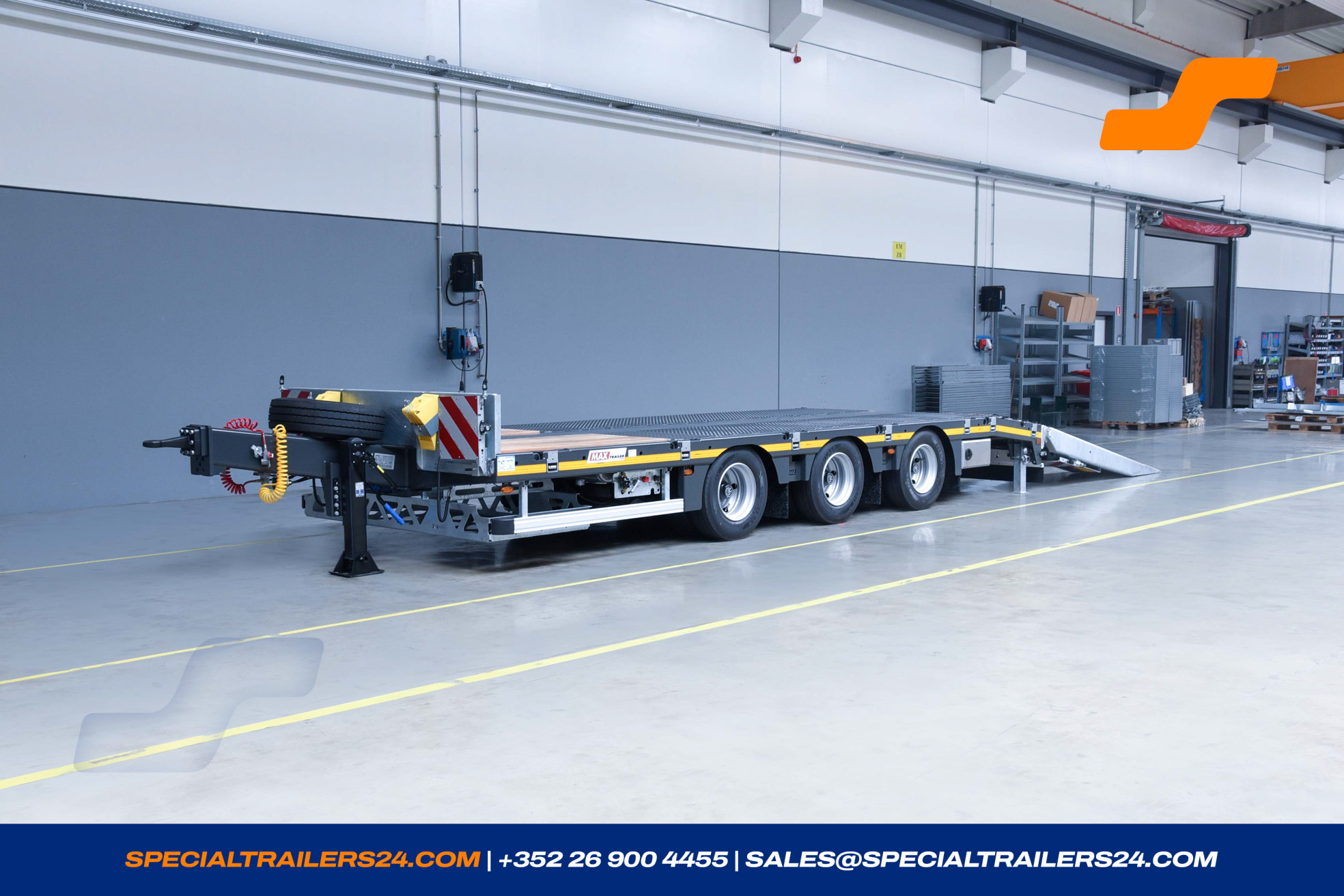

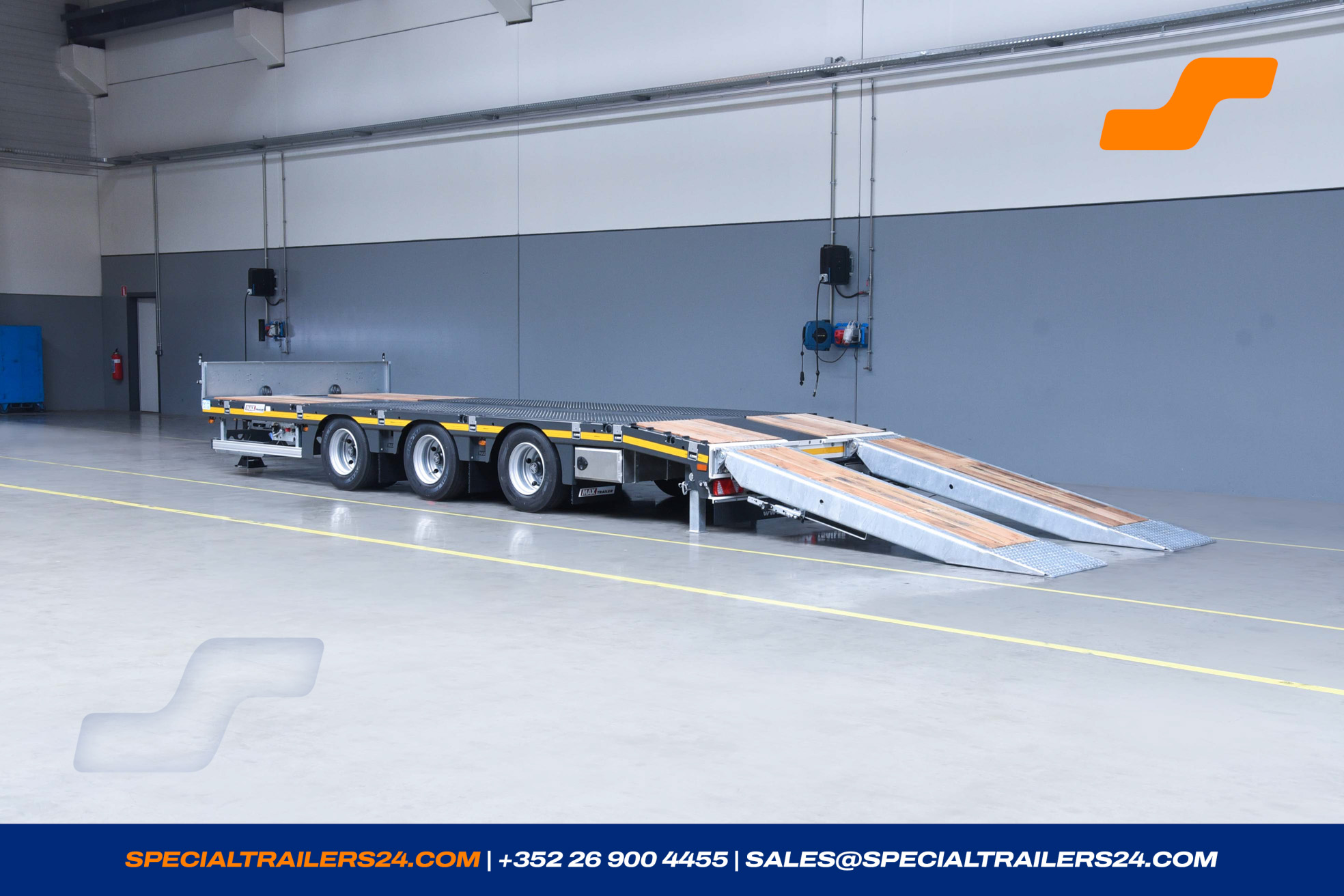

MAX Trailer MAX300
Die Farbe des Fahrzeugs auf dem Foto kann abweichen.
- Chassis number 111357
- Reference MAX300-N-3-7.50-U

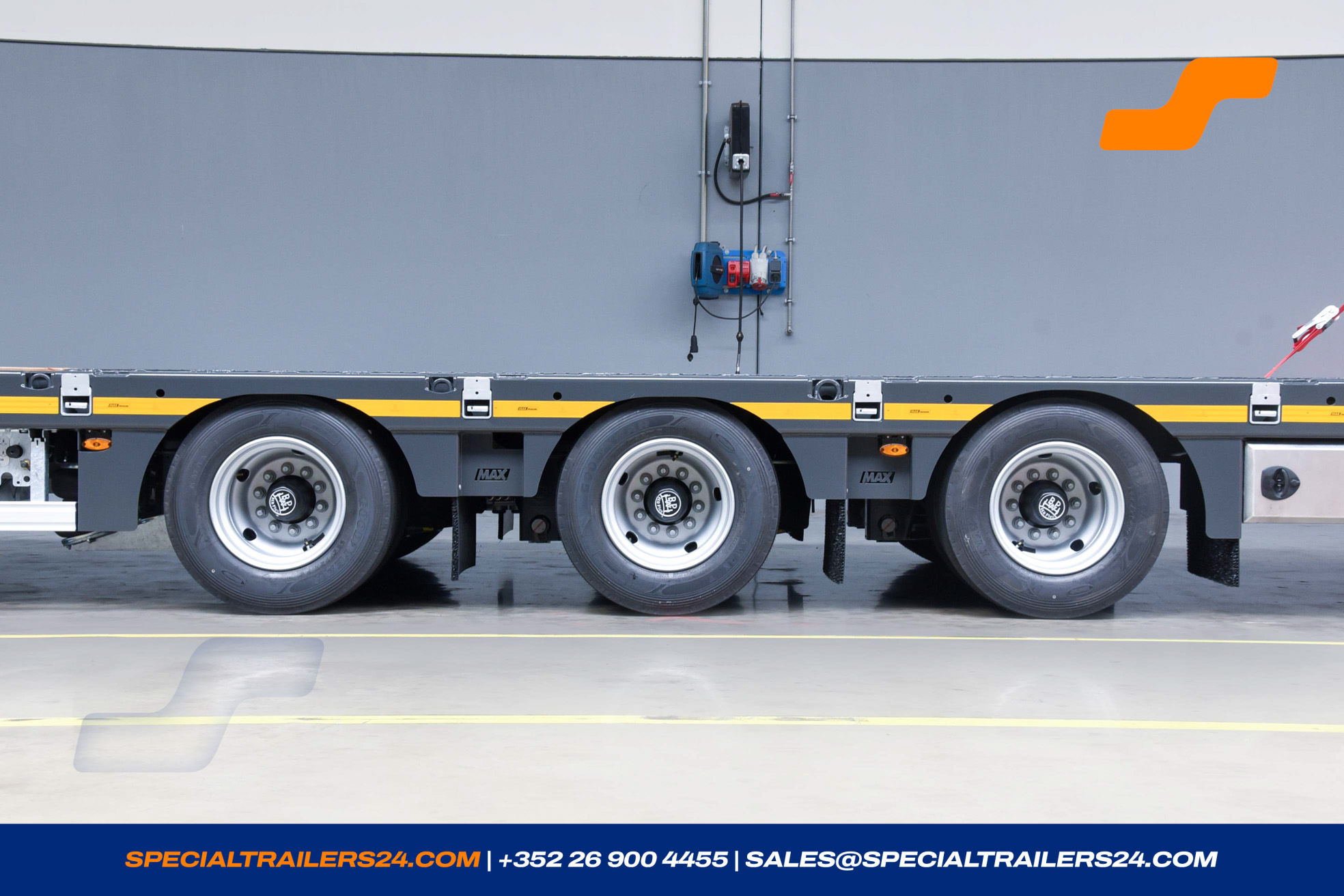

- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour Farbe wählbar
- Availability 04/2026
- Steering Type Friction
Die wichtigsten Unterlagen
Detailinformationen
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| Axle load | 31500 kg |
| Gross weight | 31500 kg |
| Tare weight +- 3% | 6769 kg |
| Payload | 24731 kg |
Dimensions
| Loading platform length | 7 500 mm |
| Coupling height | 820-895-970 mm |
| Suspension stroke | -45/+145 mm |
Loading deck
Loading platform
1 x Loading platform
Loading platform with chamfered beaver tail by about 1 000 mm x 8°.

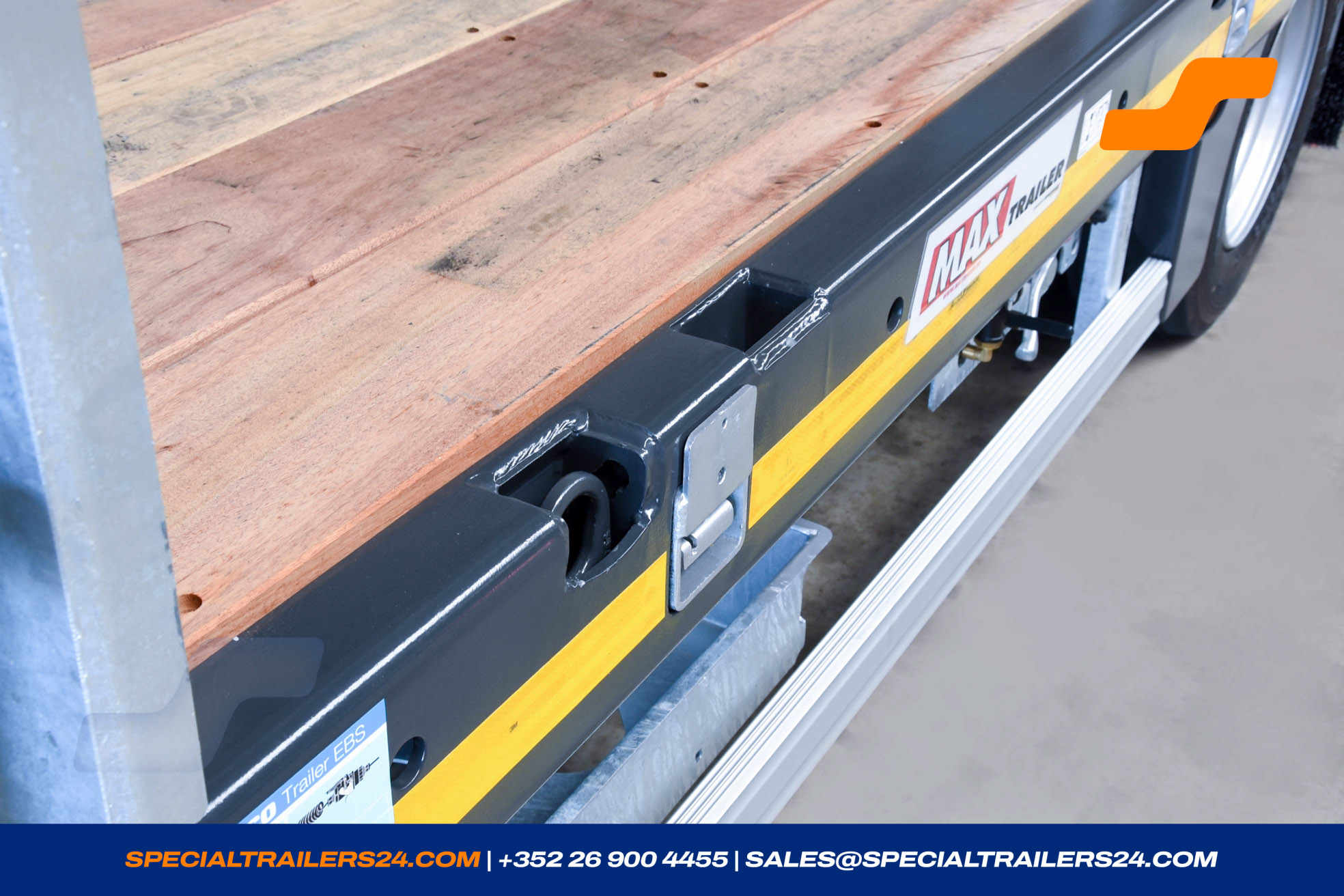

4 pairs of lashing rings in the loading platform, hinged outwardss (LC 5 000 daN).
3 pairs of lashing rings in the loading platform, hinged outwardss (LC 10 000 daN).
Cutouts in the border frame of the loading area for hooking in tension belts (LC 2 000 daN).

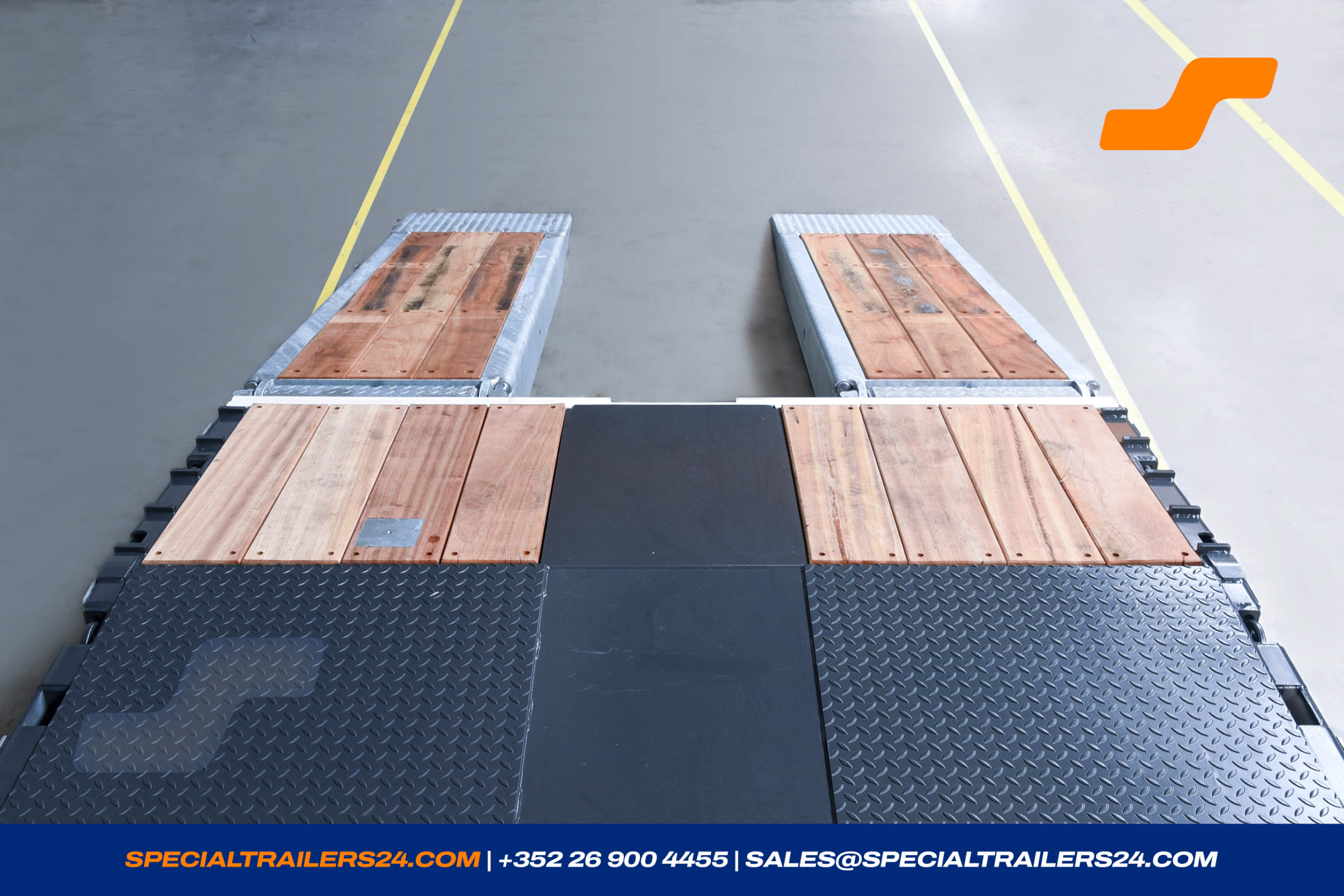

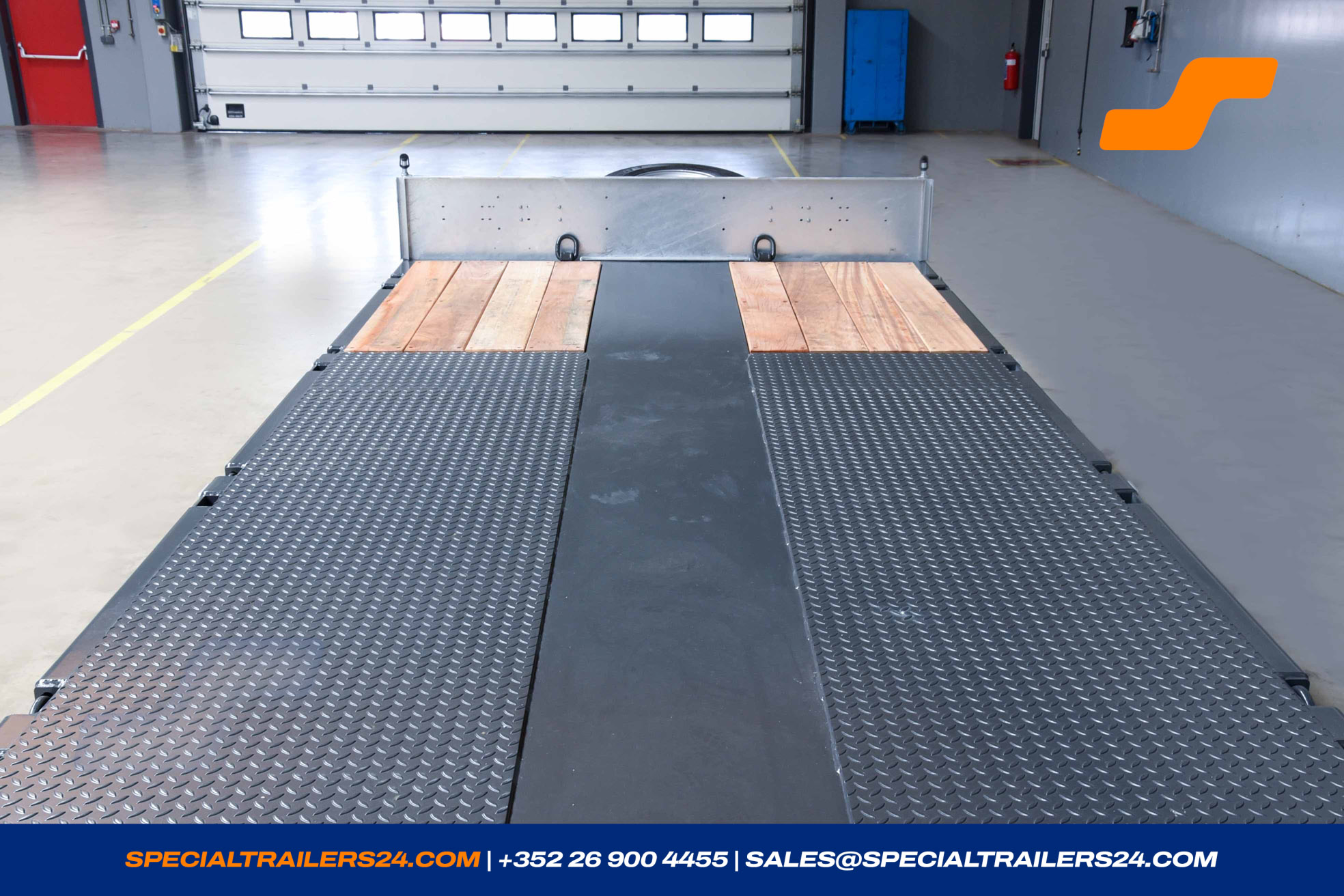

Hardwood cover thickness 48 mm, above of the axles chequer plate.
- Red and yellow air couplings.
- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.

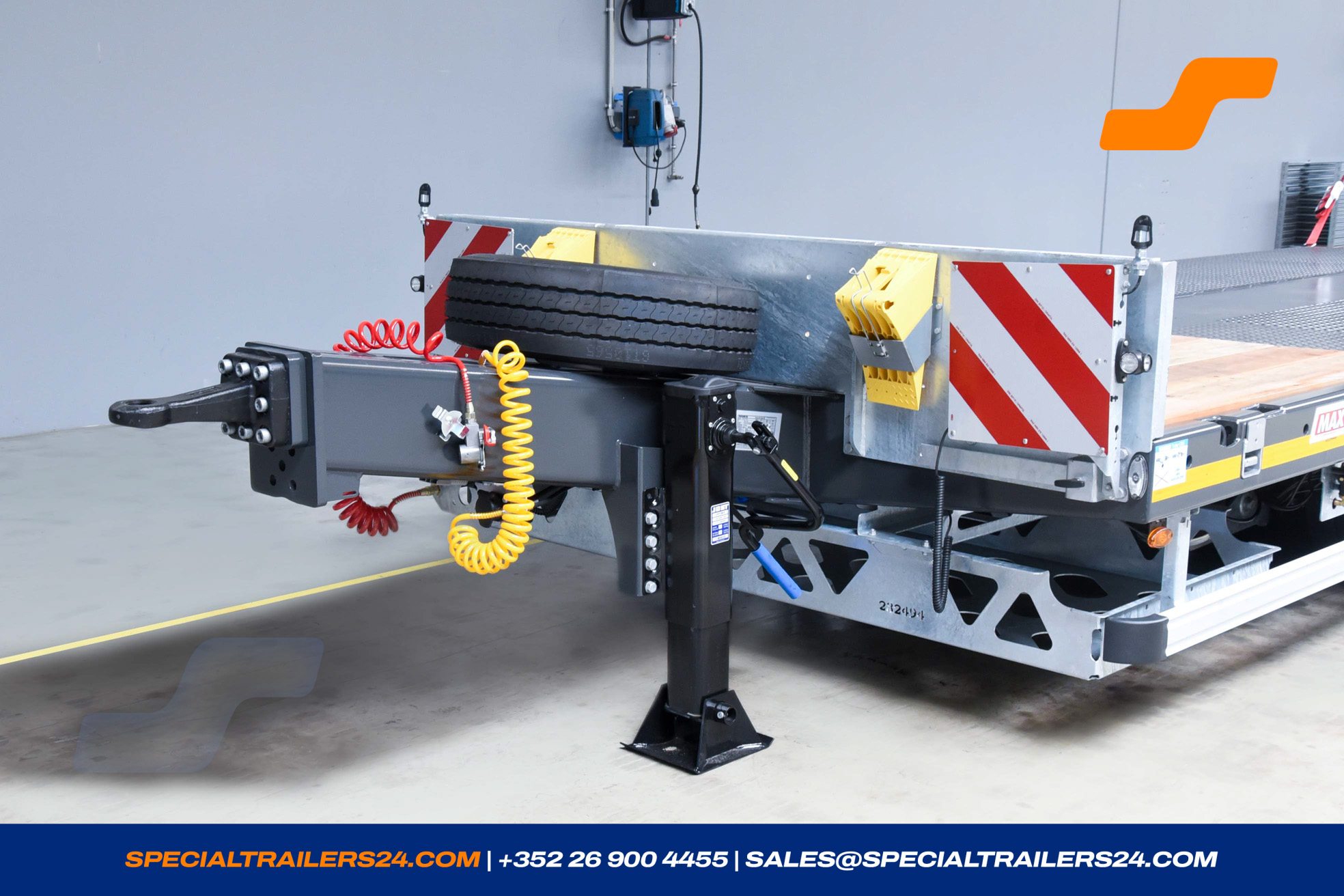

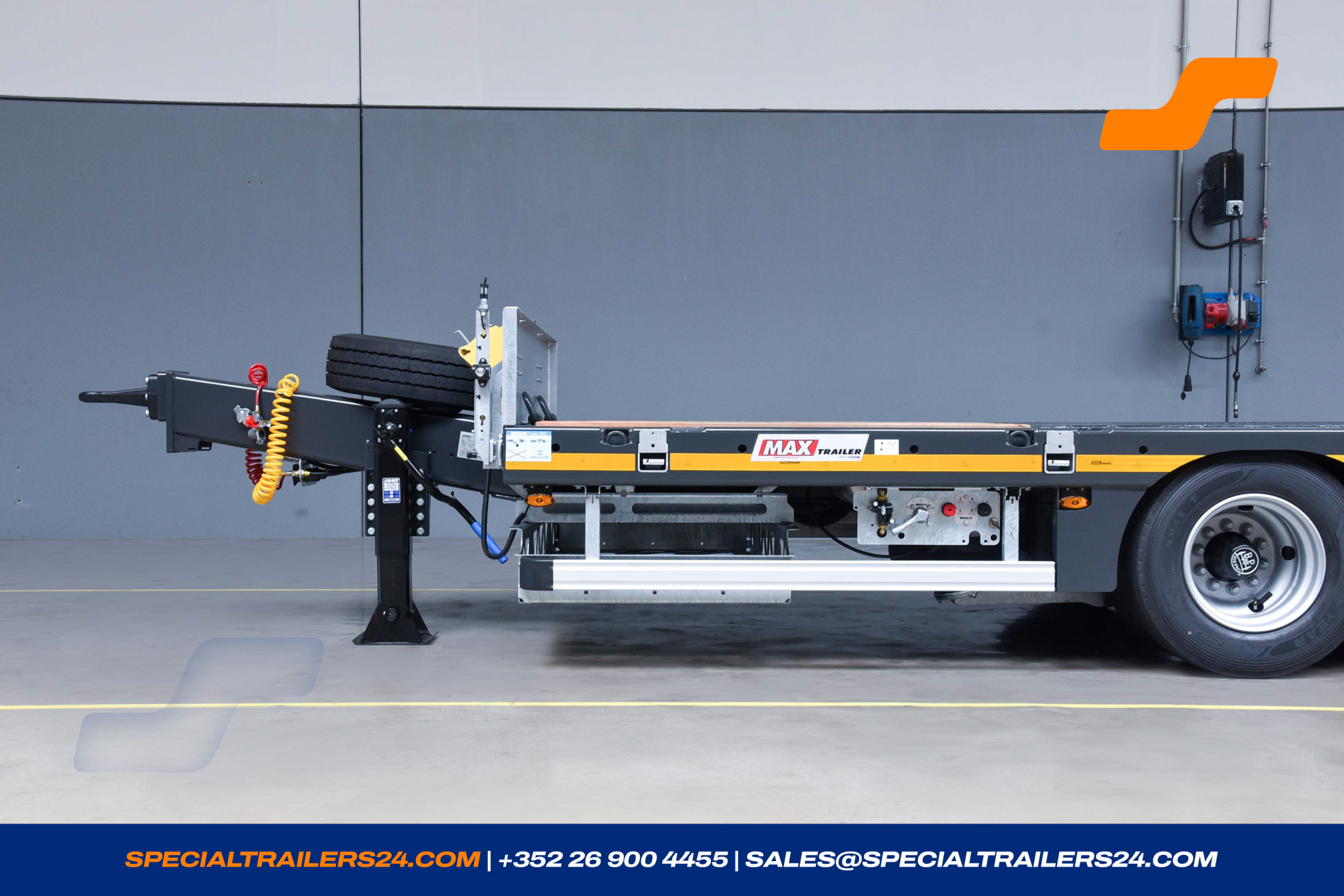

- One ± 1 750 mm long drawbar, towing eye (50 mm Ø).
- 2 wheel chocks with carrier on the headboard.

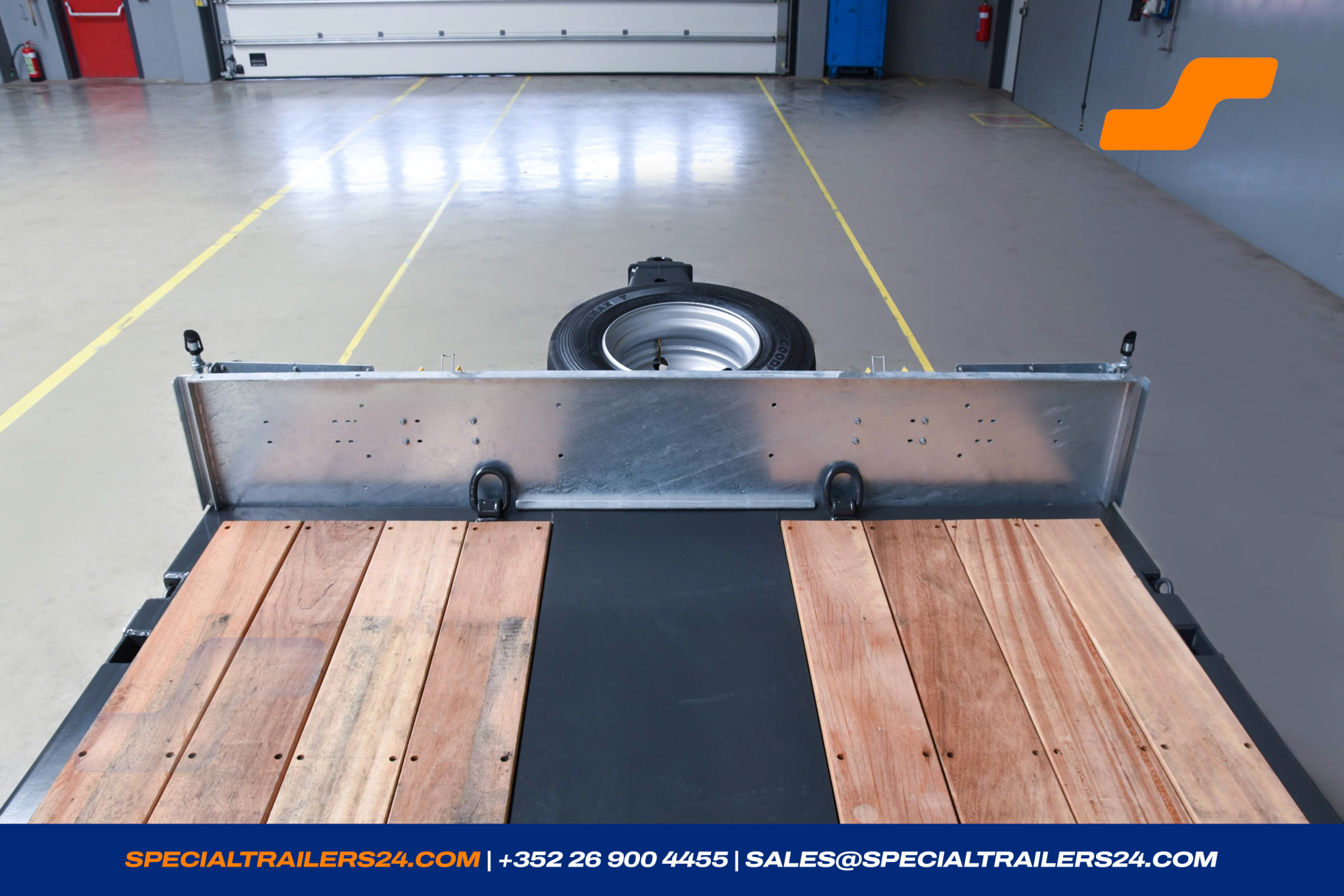

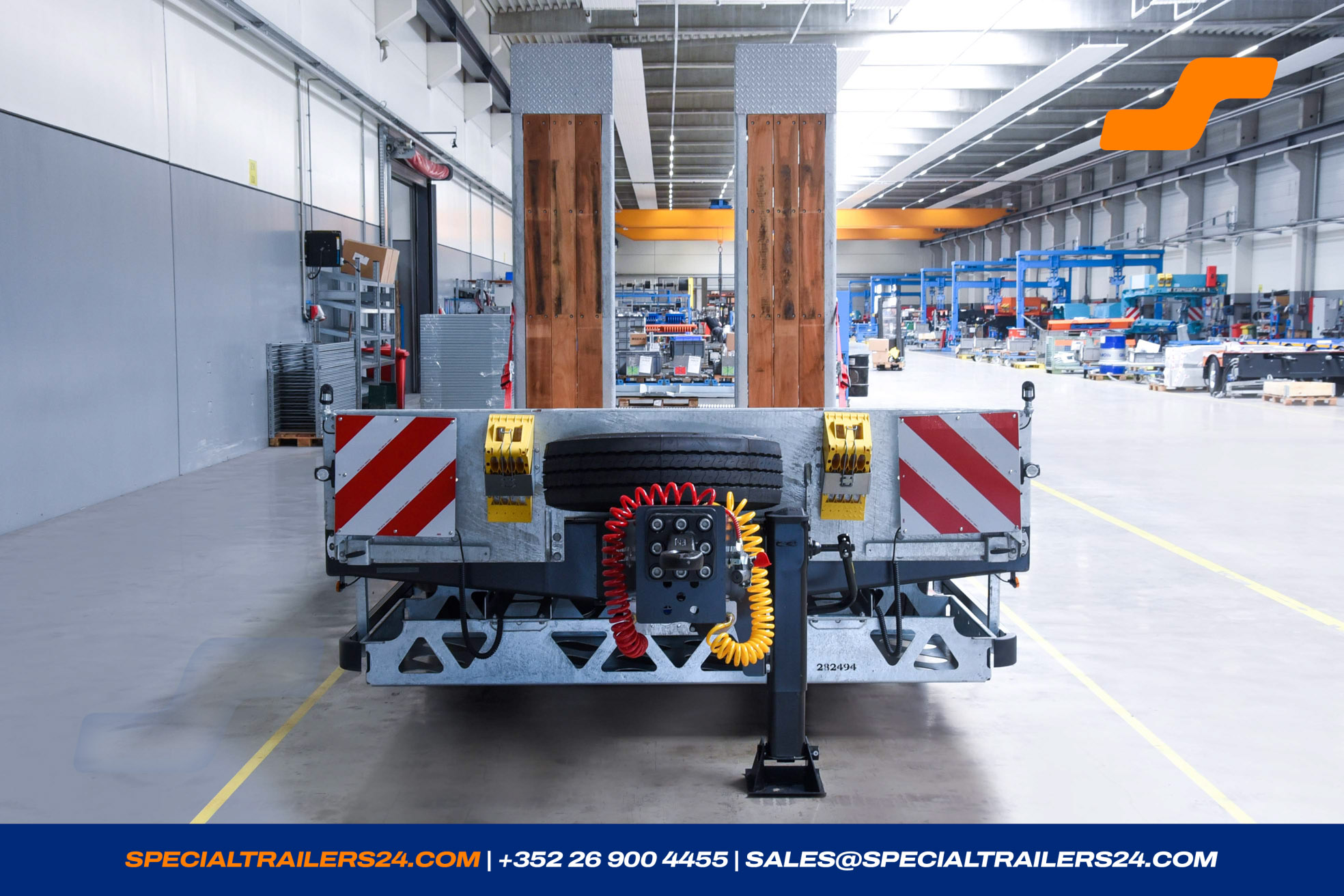

- One galvanised steel headboard, height ± 400 mm.

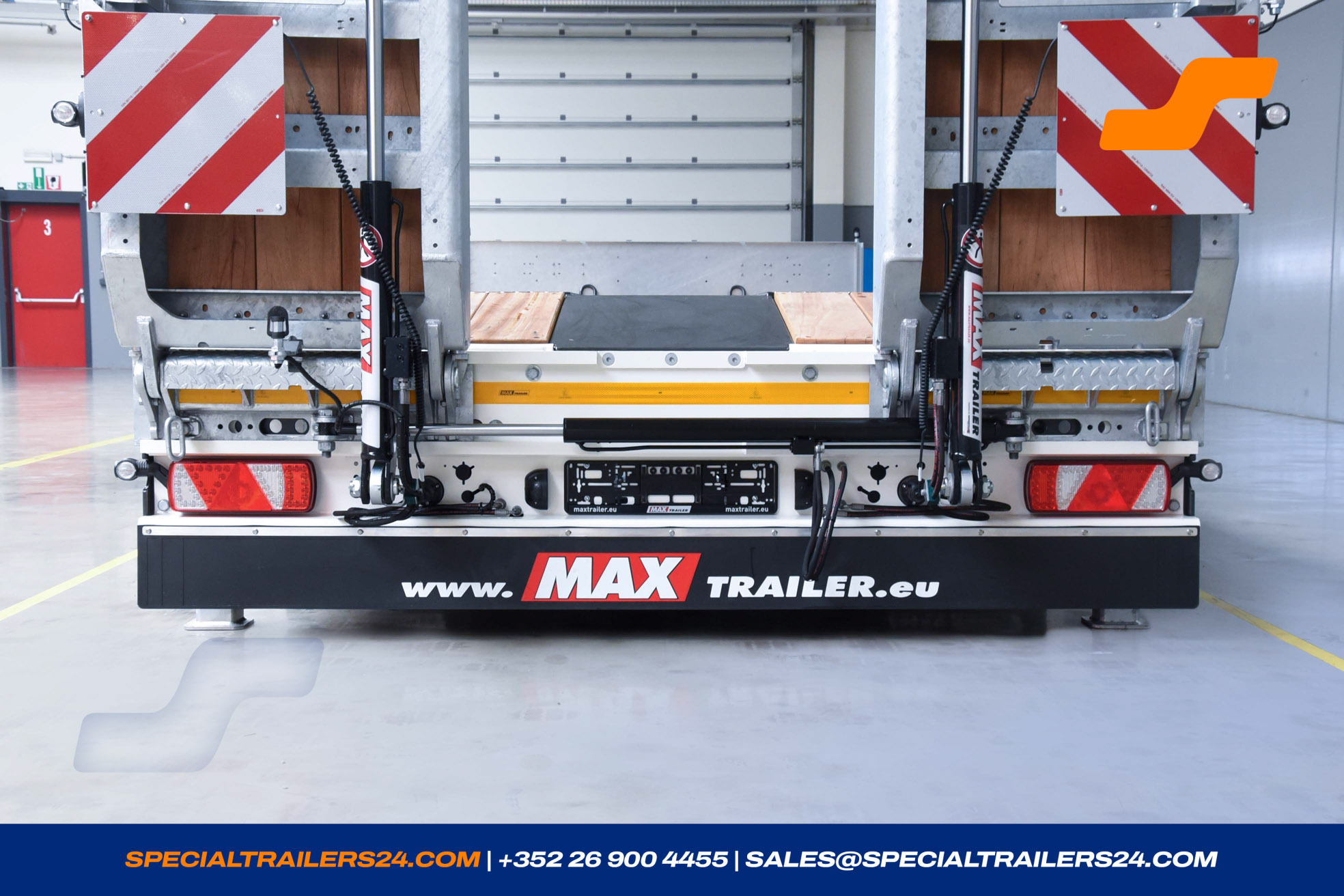

- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- 1 mechanical landing gear at the front of the trailer.

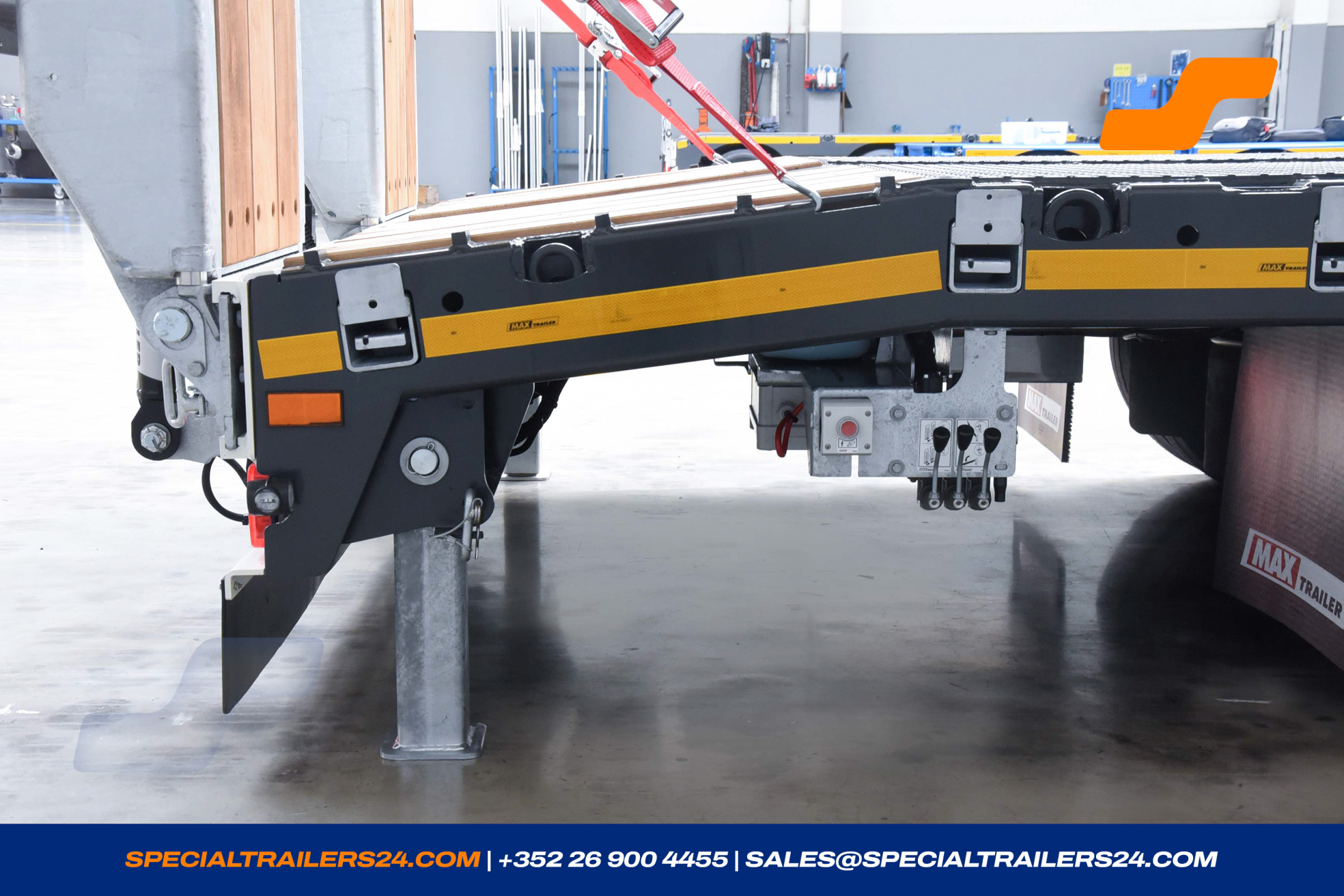

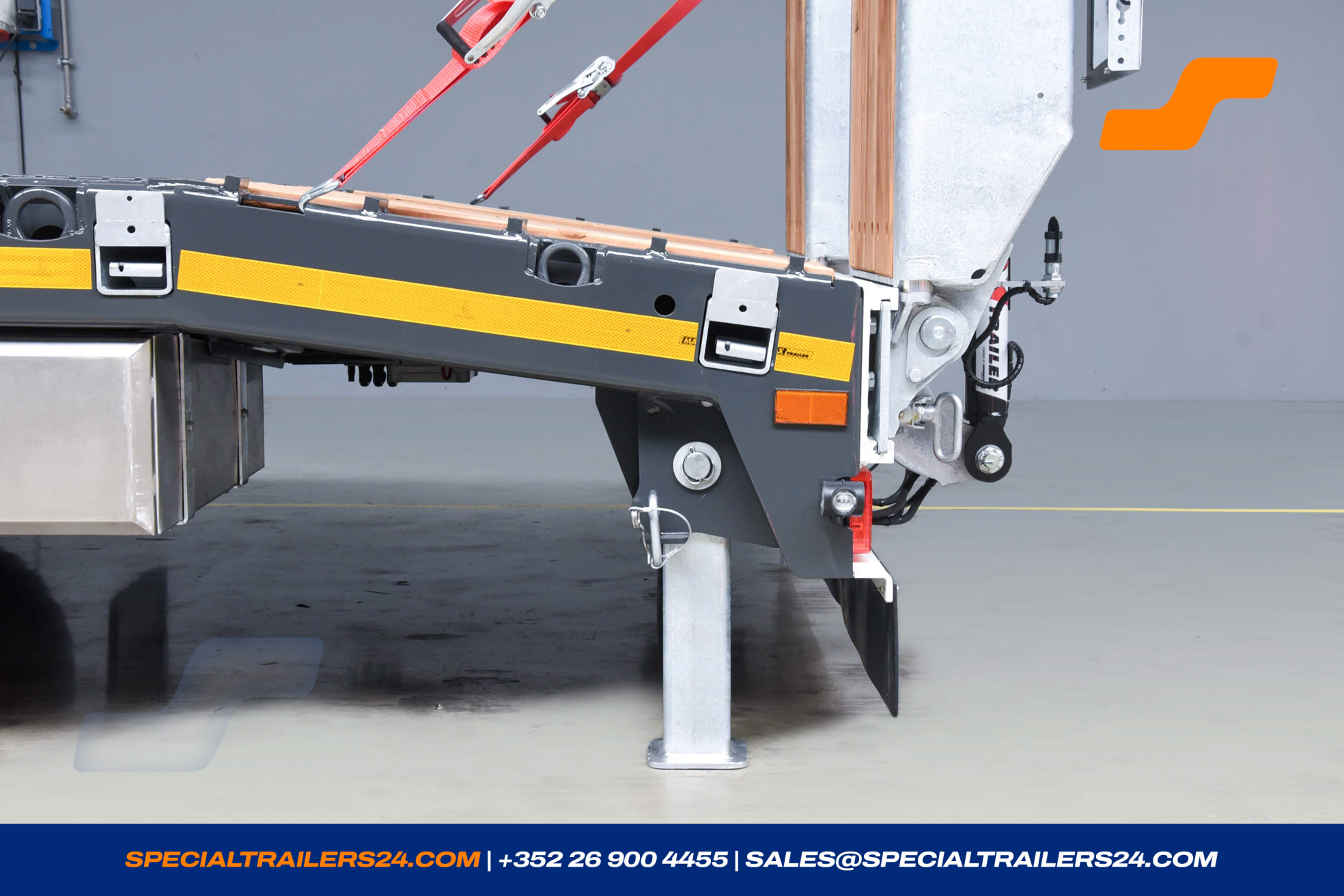

- Galvanised landing gears at the rear under the loading platform.
- Spare wheel holder with spare wheel mounted on the drawbar.
- Holder for one beacon light at the rear of the trailer.

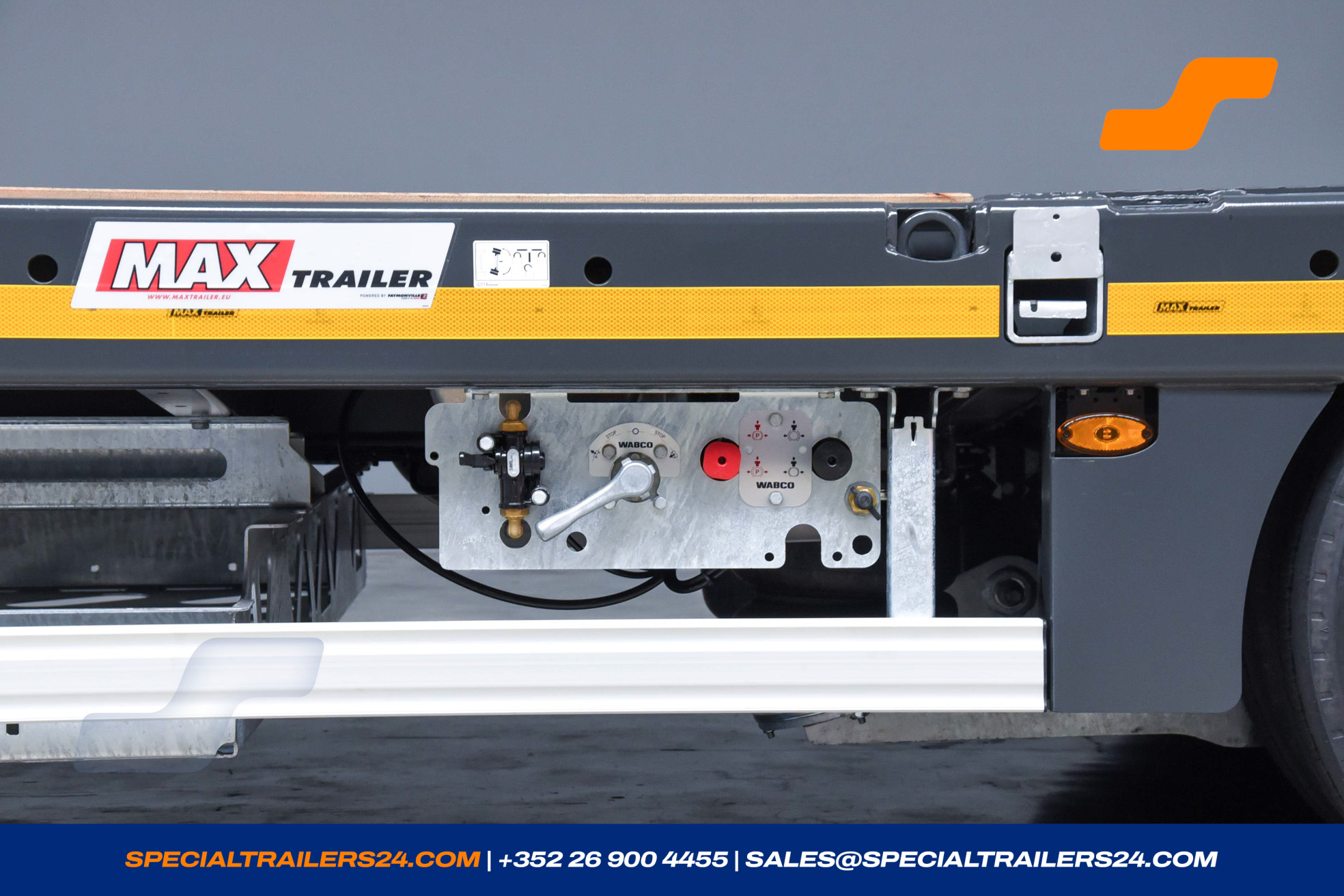

- Electrically operated hydraulic pump at the rear under the loading platform (± 45kg).
- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.
- Spiral cable 15/2x7 poles.

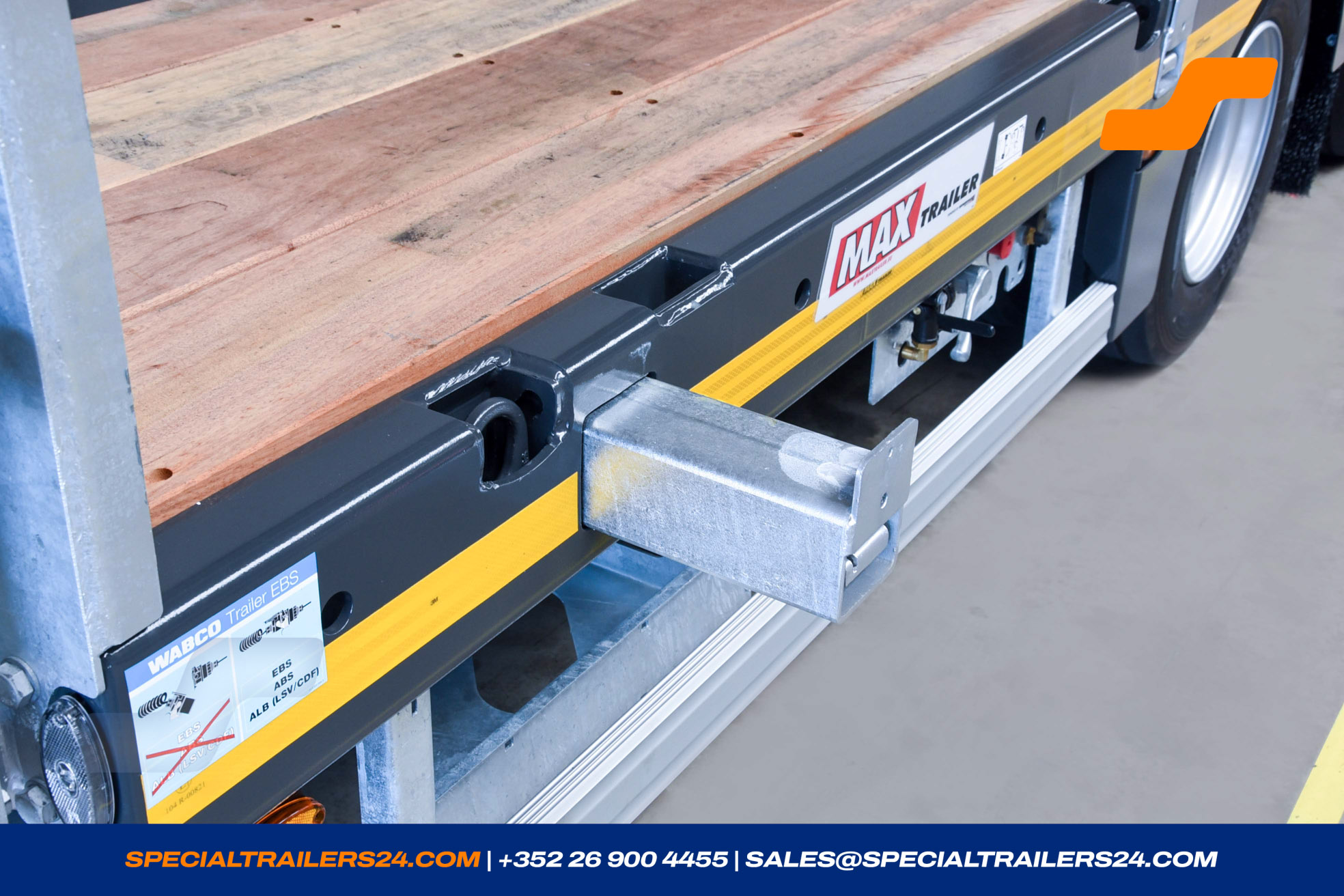

- 5 pairs of pockets for stakes ±100 x 50 mm in the outer frame of the loading platform (± 18 kg).
- 5 pairs of galvanised stakes ±100 x 50 mm, height 1000 mm (± 110 kg).

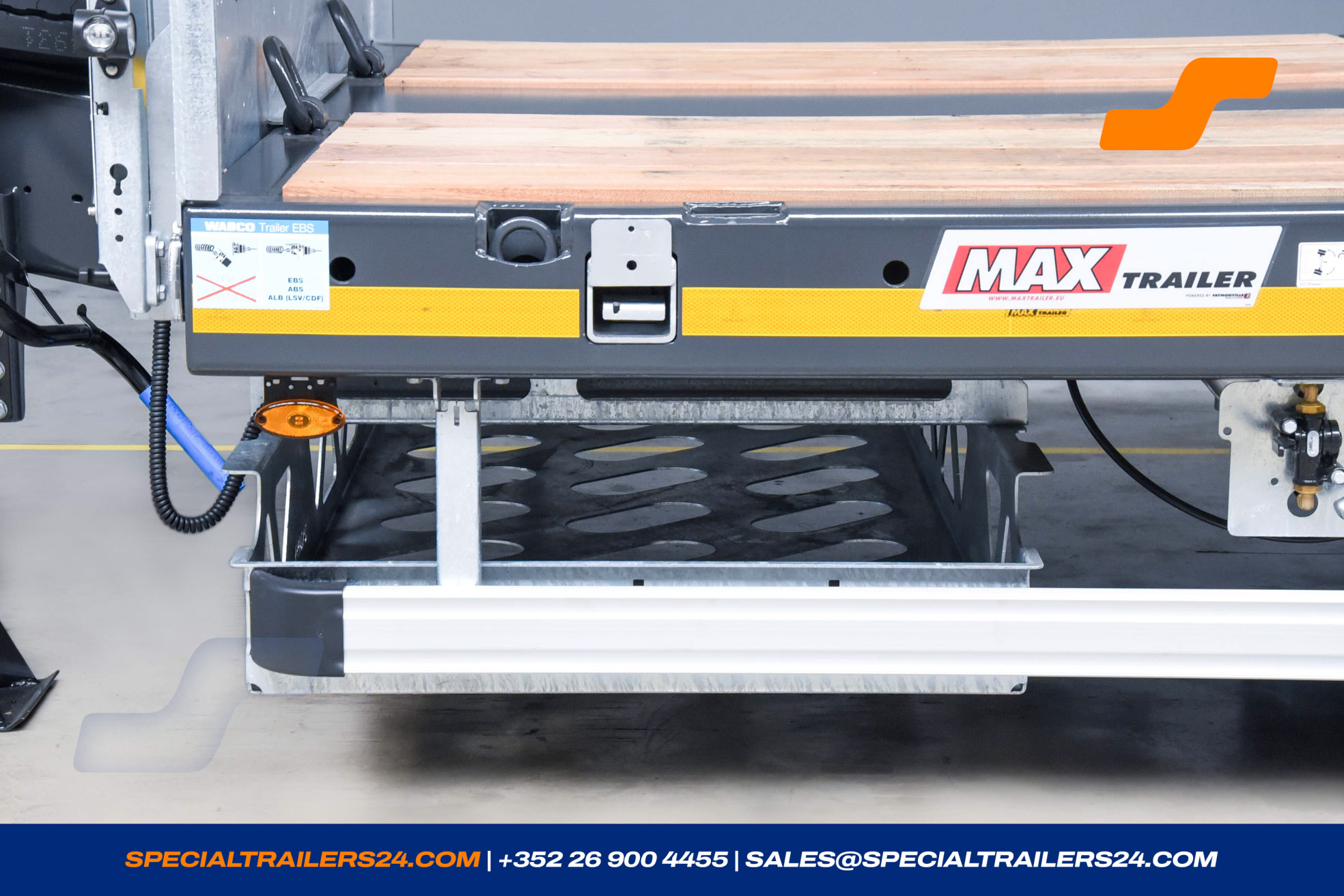

- Galvanised storage across under the loading platform 2 275 x 925 x 245 mm. (± 110 kg)
- Lift axle on the front axle with control by TEBS-E depending on the current axle load and the current loading condition (± 69 kg).

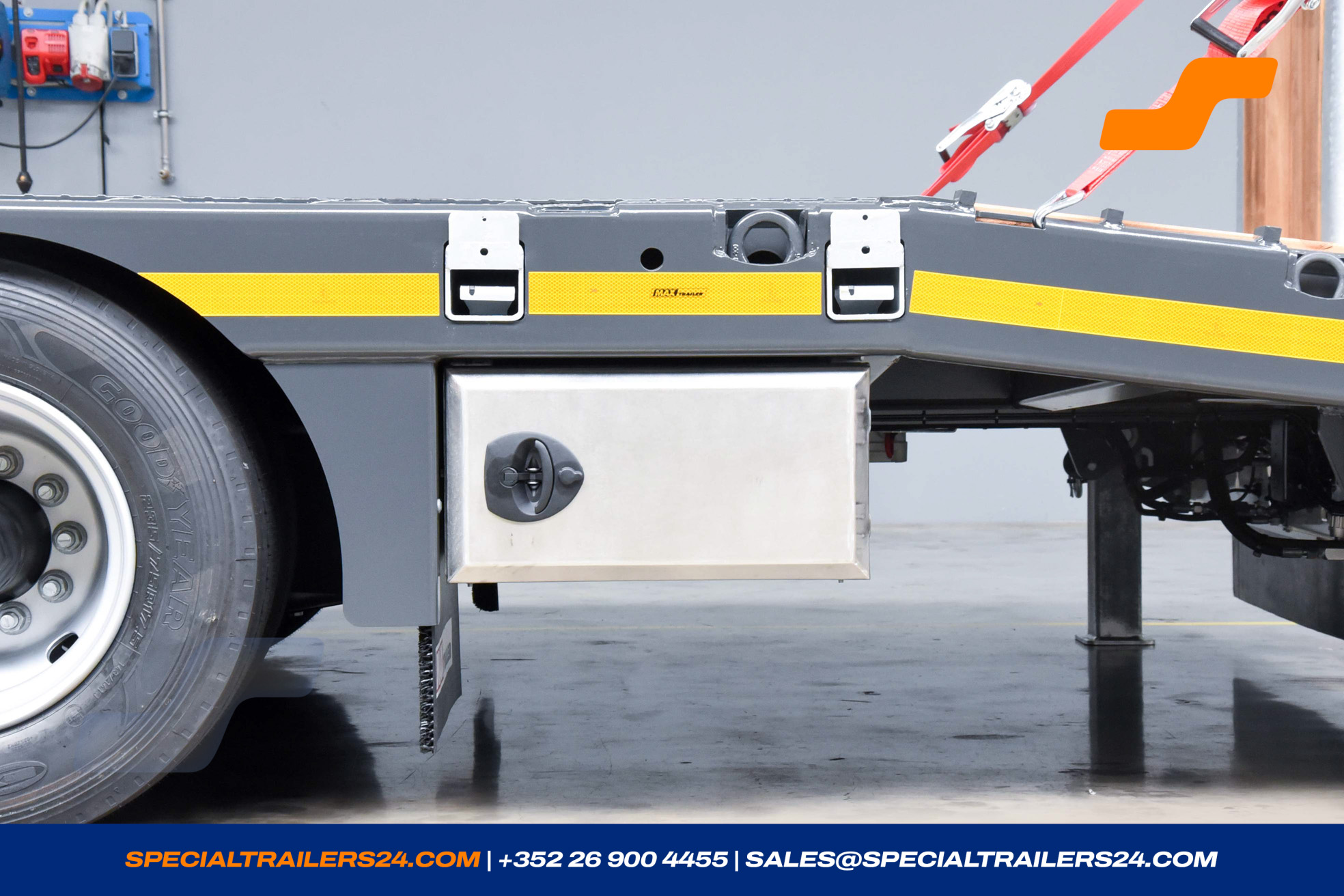

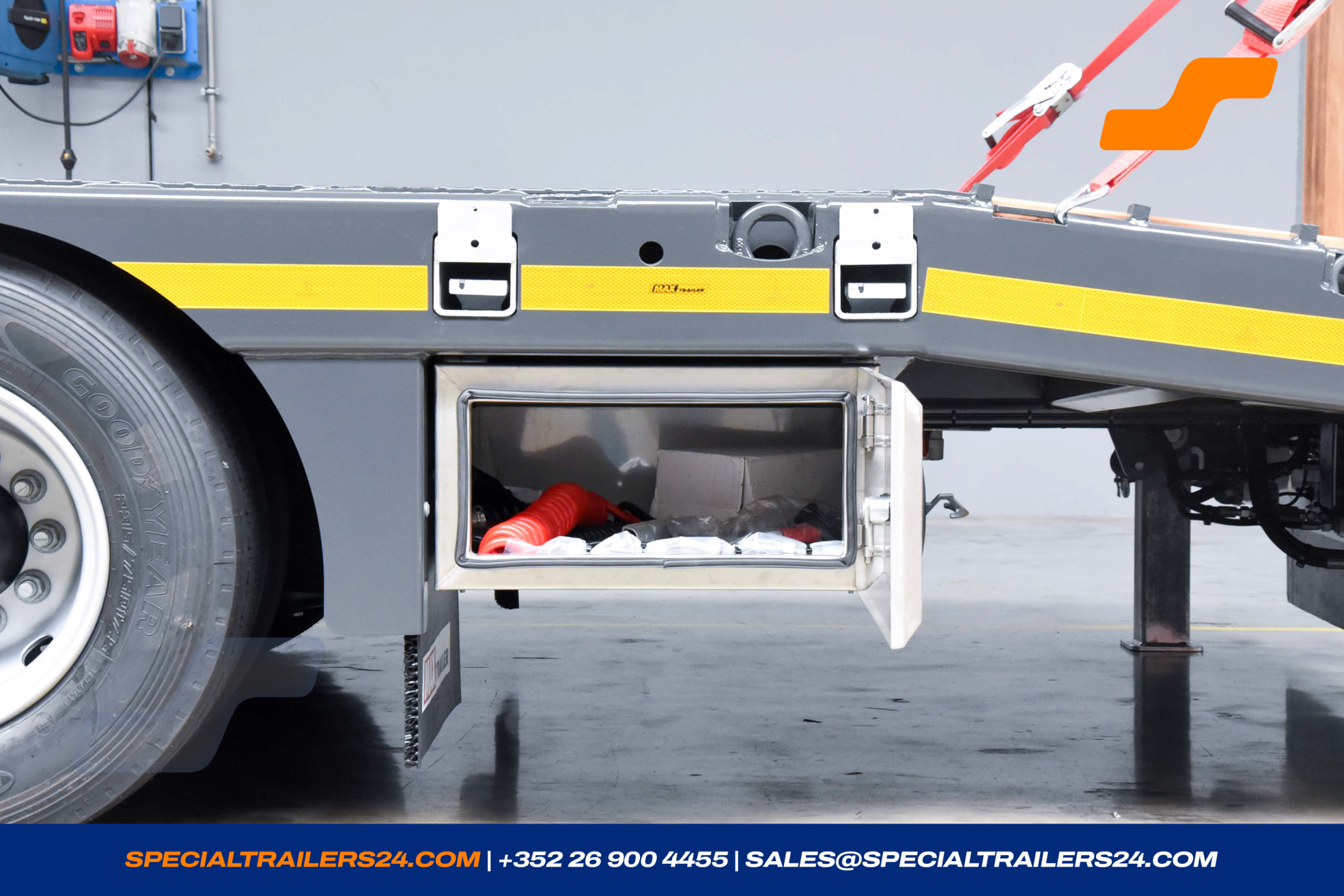

- One lockable tool-box INOX 565 X 290 X 810 under the loading platform in driving direction on the leftt side. (± 45kg)
- Speed sticker 60 km/h at the rear.
- White reflective tape according to the EU regulation over the entire length, red on the rear.
- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- On the warning boards a holder to put a flashing beacon.
-
Sign KG for CONVOI EXCEPTIONNEL
Caution: only valid for belgium
Ramps

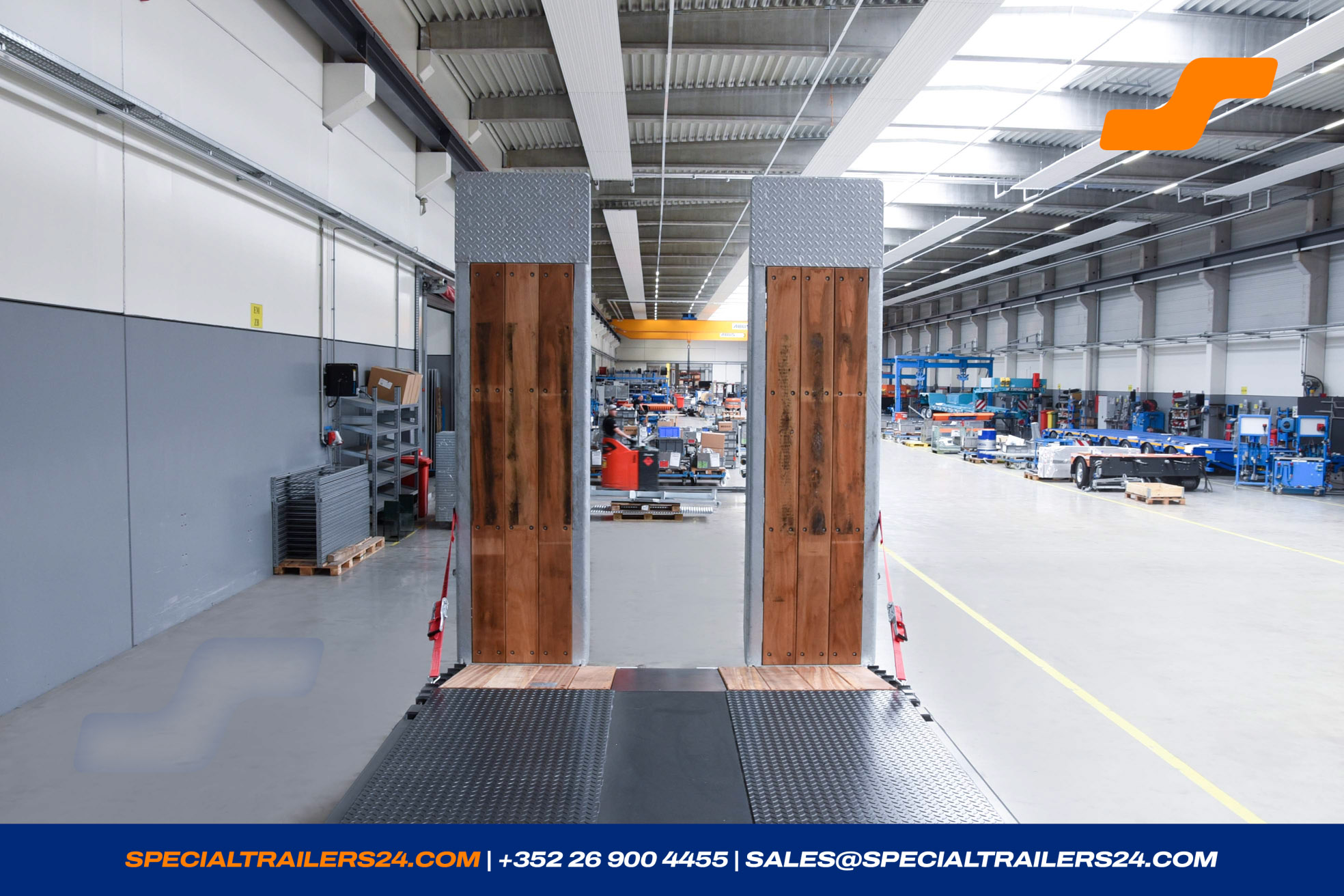

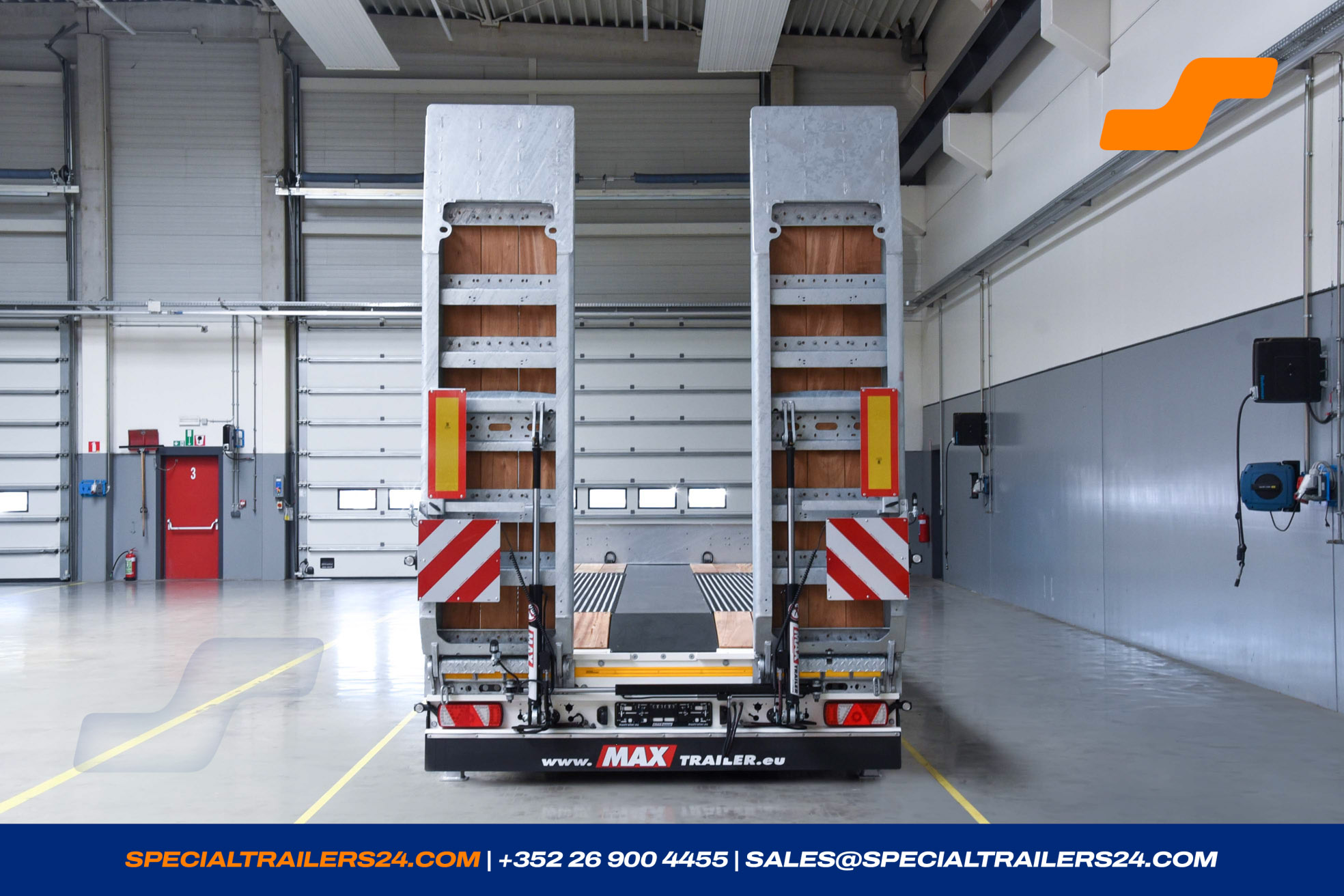

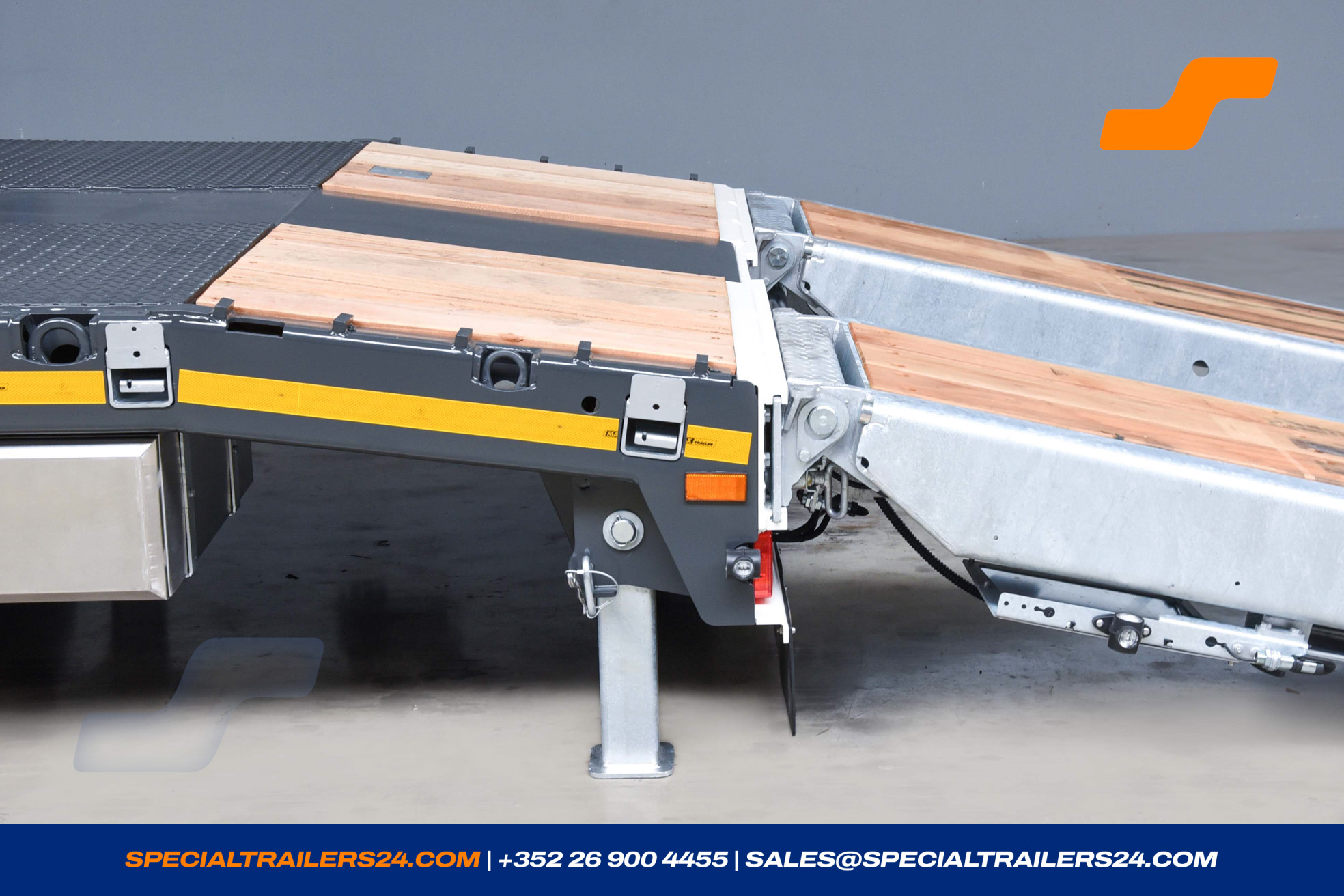

Hydraulic loading ramps
1 x Steel single piece ramps

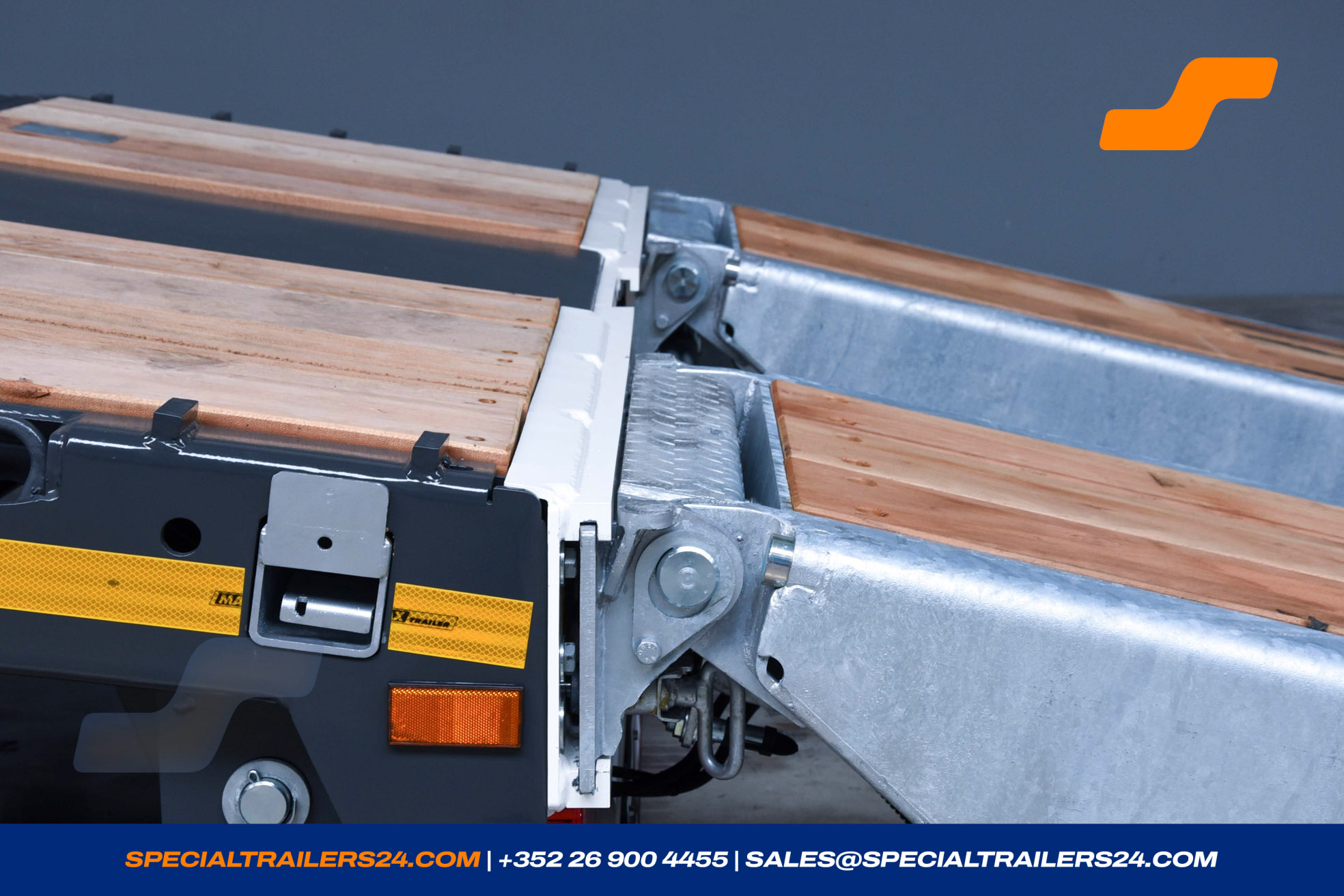

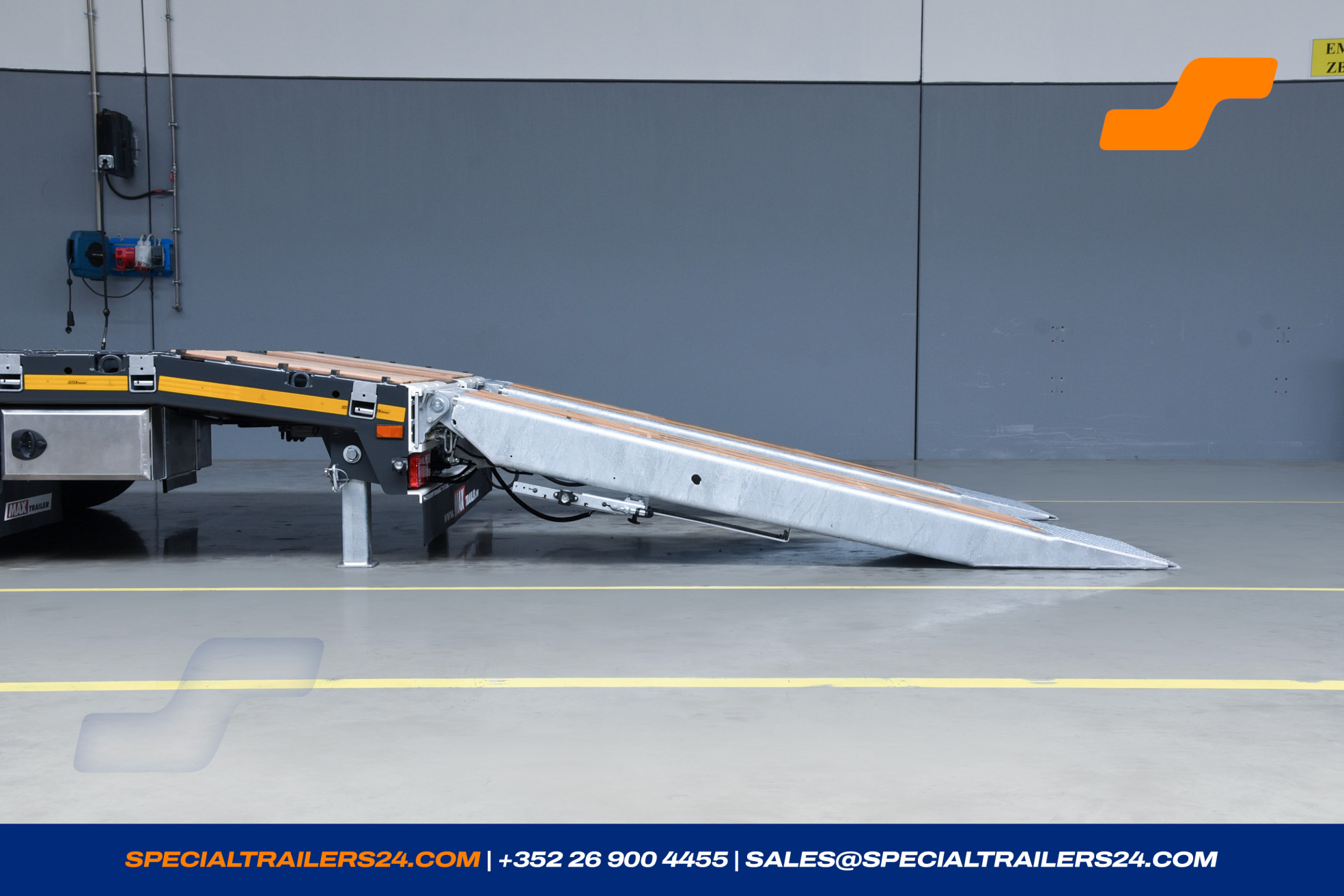

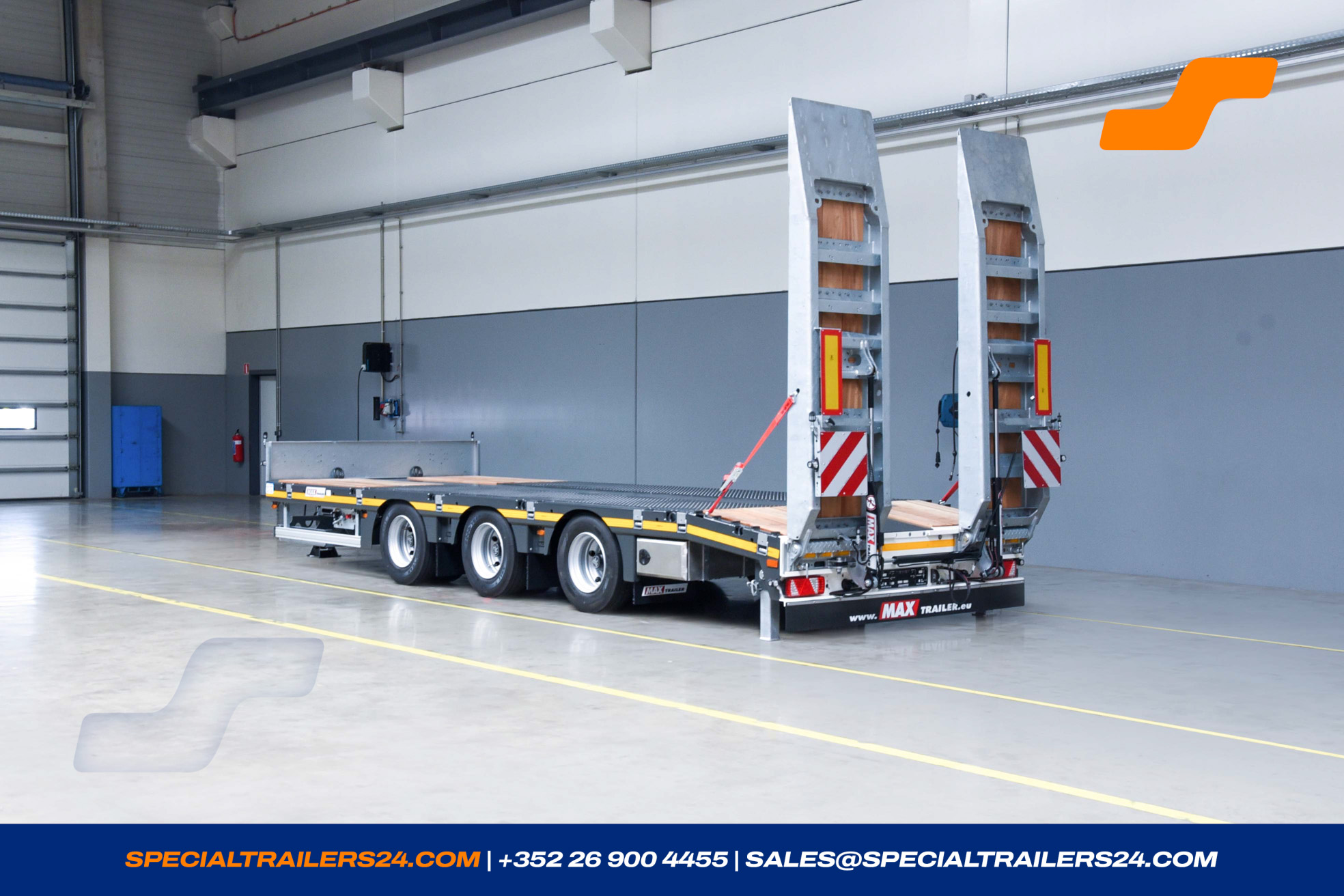

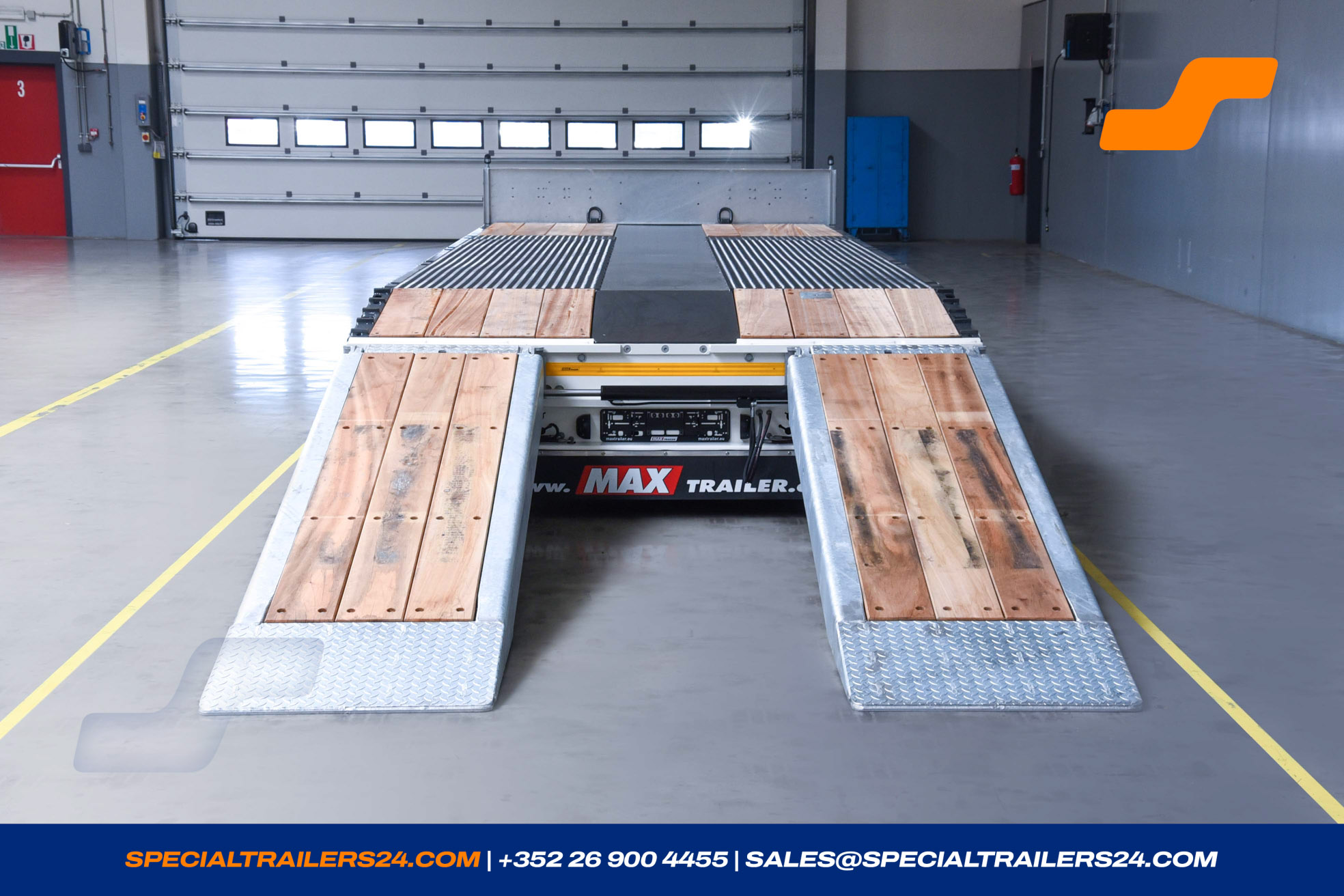

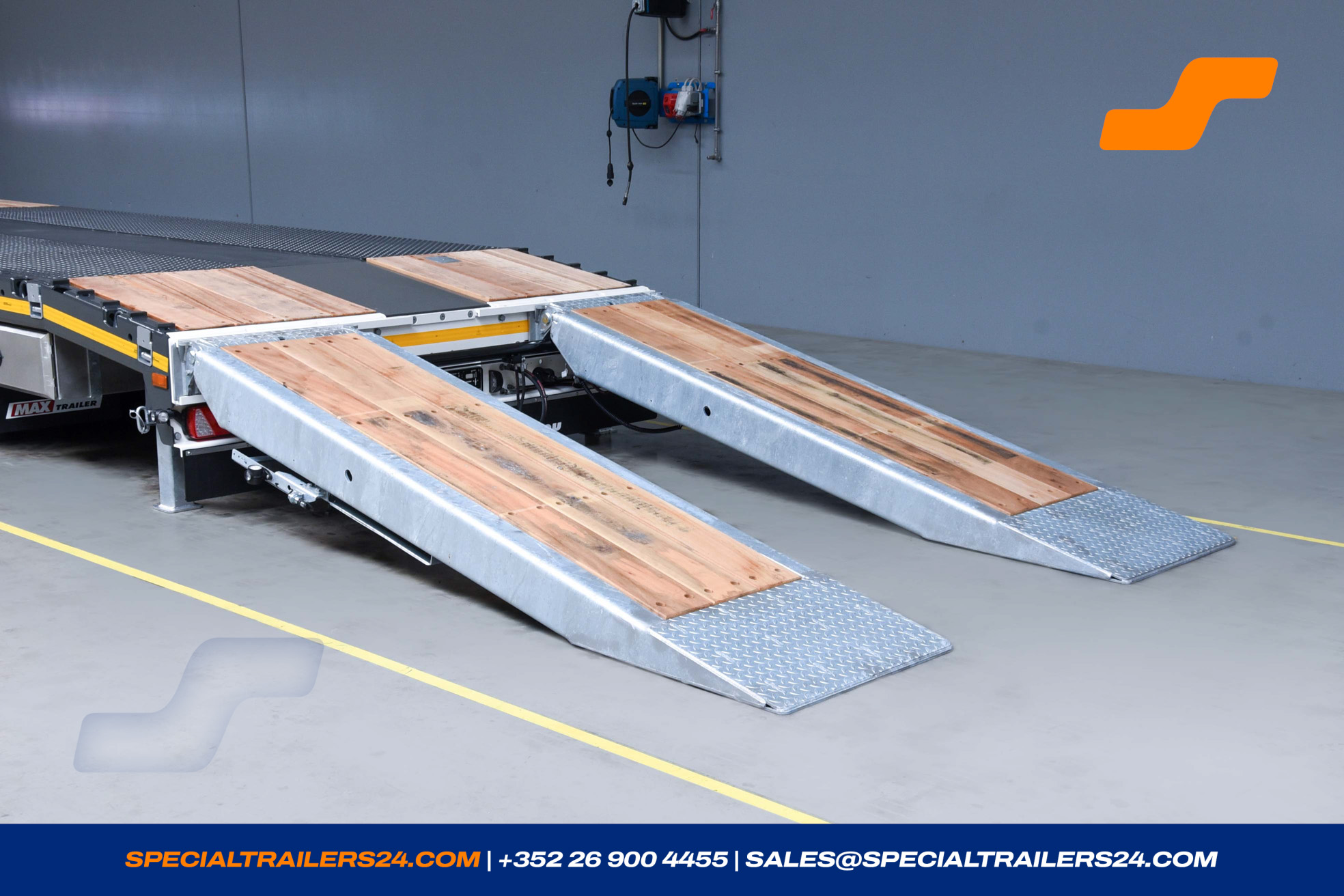

1 pair steel single piece ramps galvanized ± 3 000 x 800 mm with ± 48 mm hardwood cover.
Ramps hydraulically operated and manual side shift.
Maximal charge for one pair: 40 000 kg
Accessories
1 x Accessories
- Manual and description on USB stick .
- 1 LED flashing beacon, provided separately.
- 2 LED- reversing lights at the rear.
- 1 LED reversing lamp left and right in front of the first axle.
- Assembly of the single ramps on the semitrailer.
- Delivery from a trailer to factory Büllingen.
- Spiral cable for the electric-hydraulic pump and/or electric winch between the semi-trailer and the truck with socket (ARDOUILLE-ARDOUILLE).
