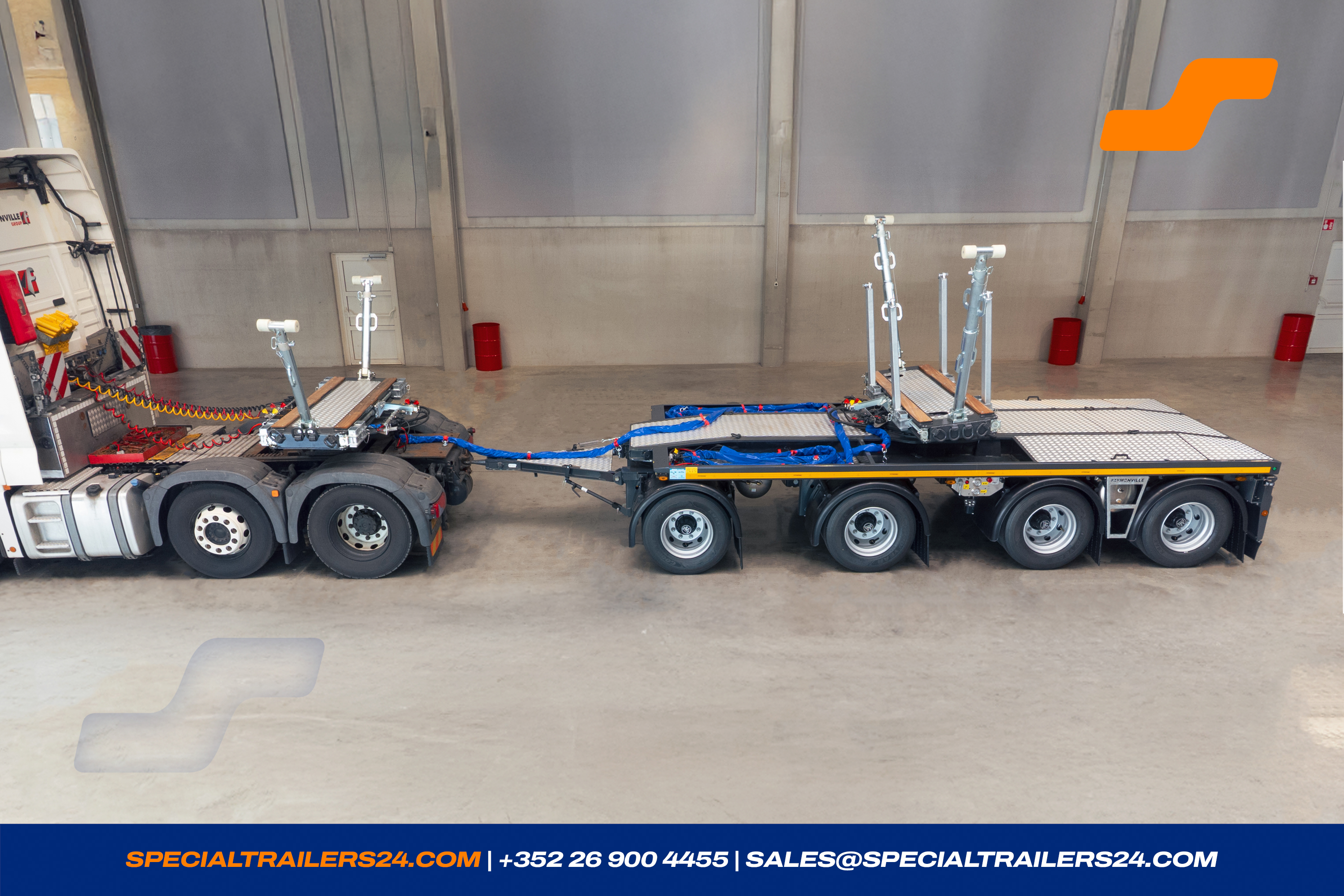

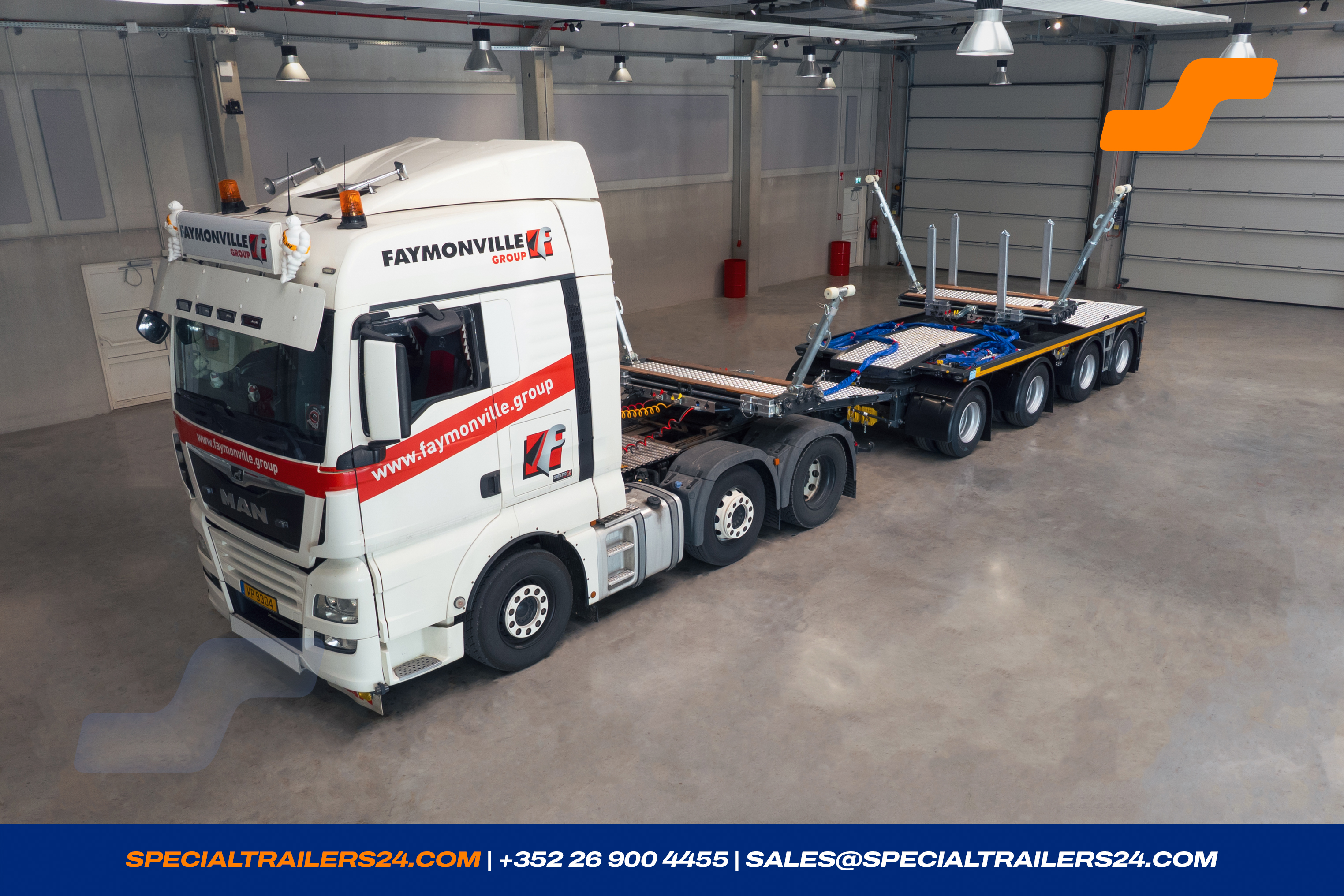

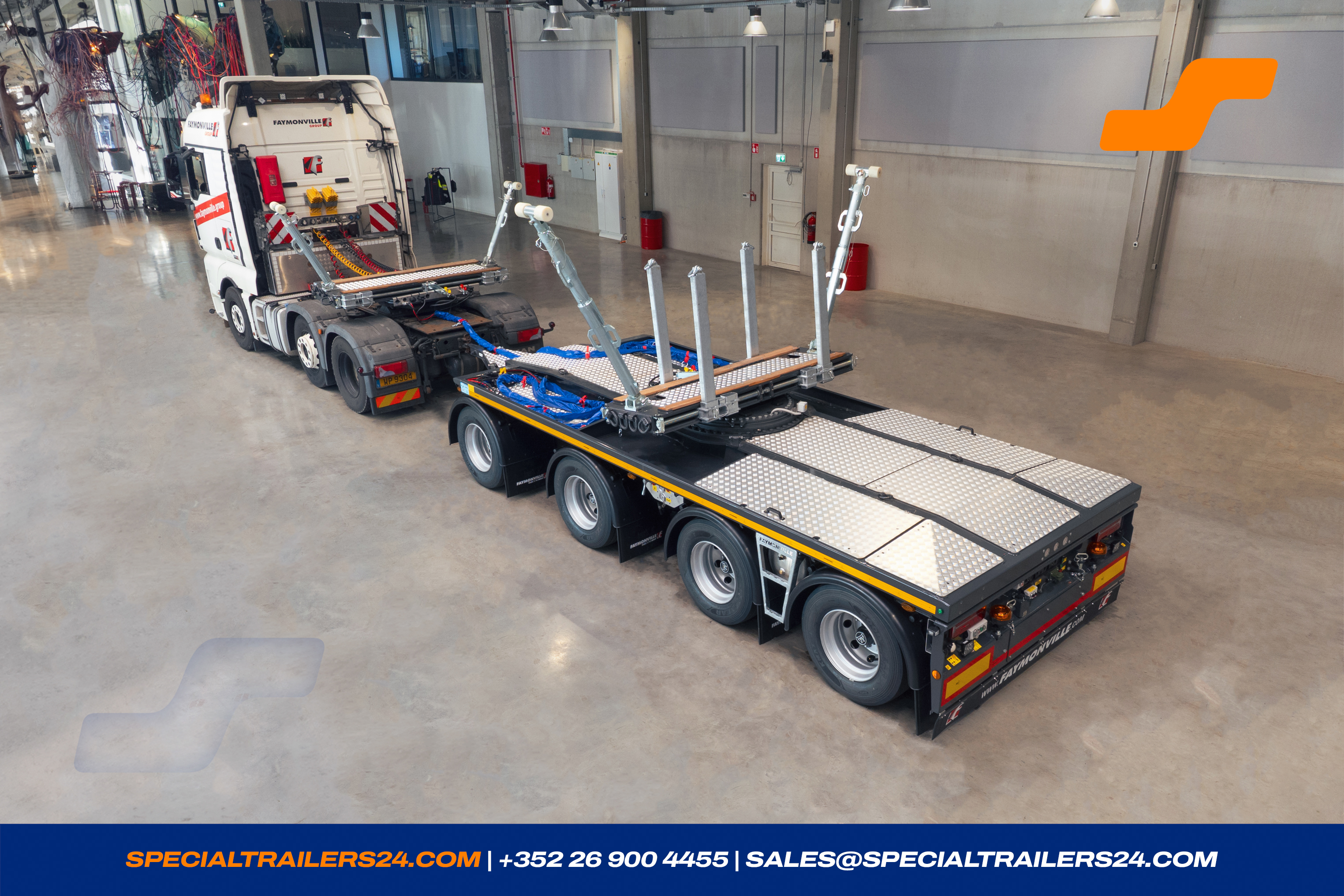

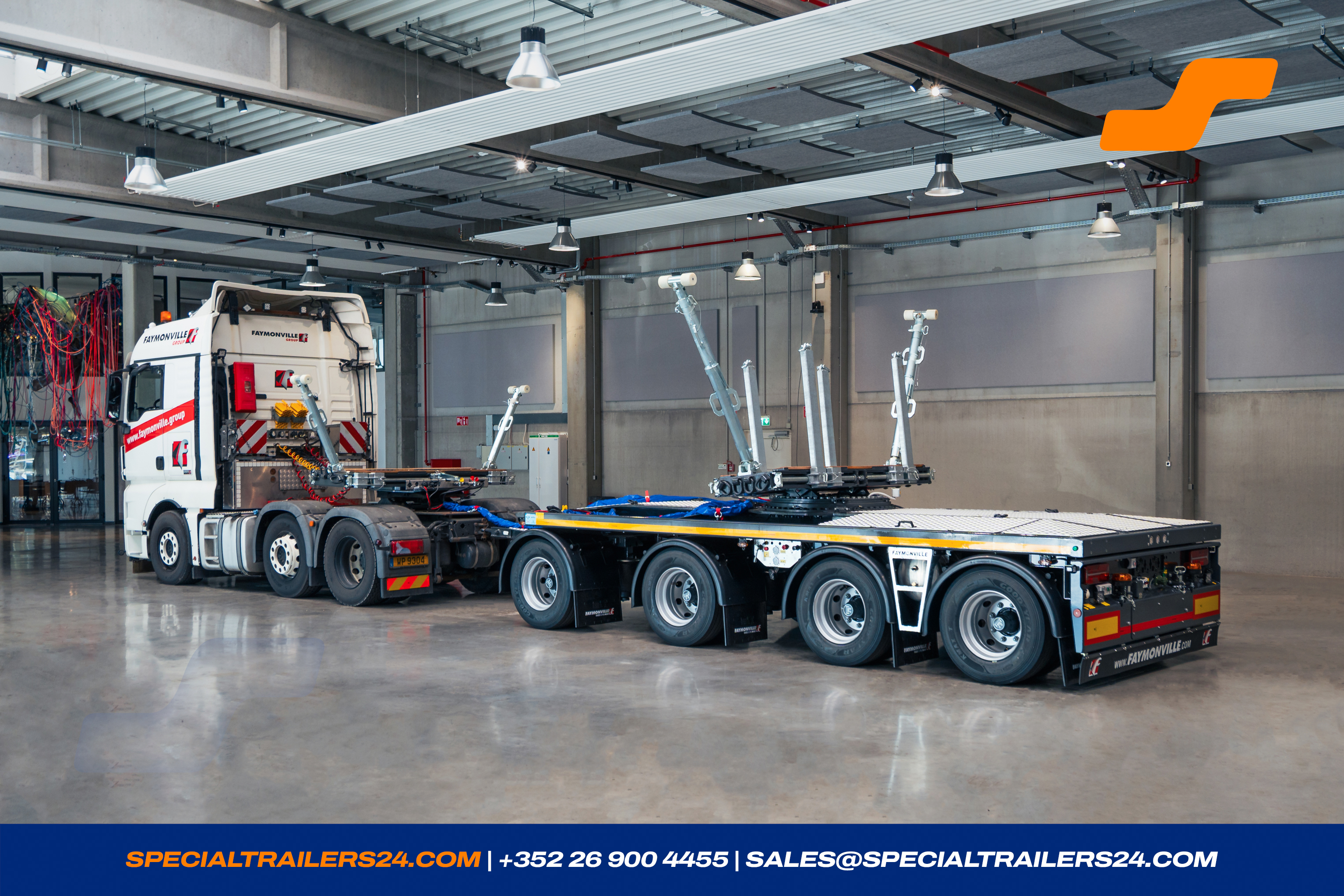

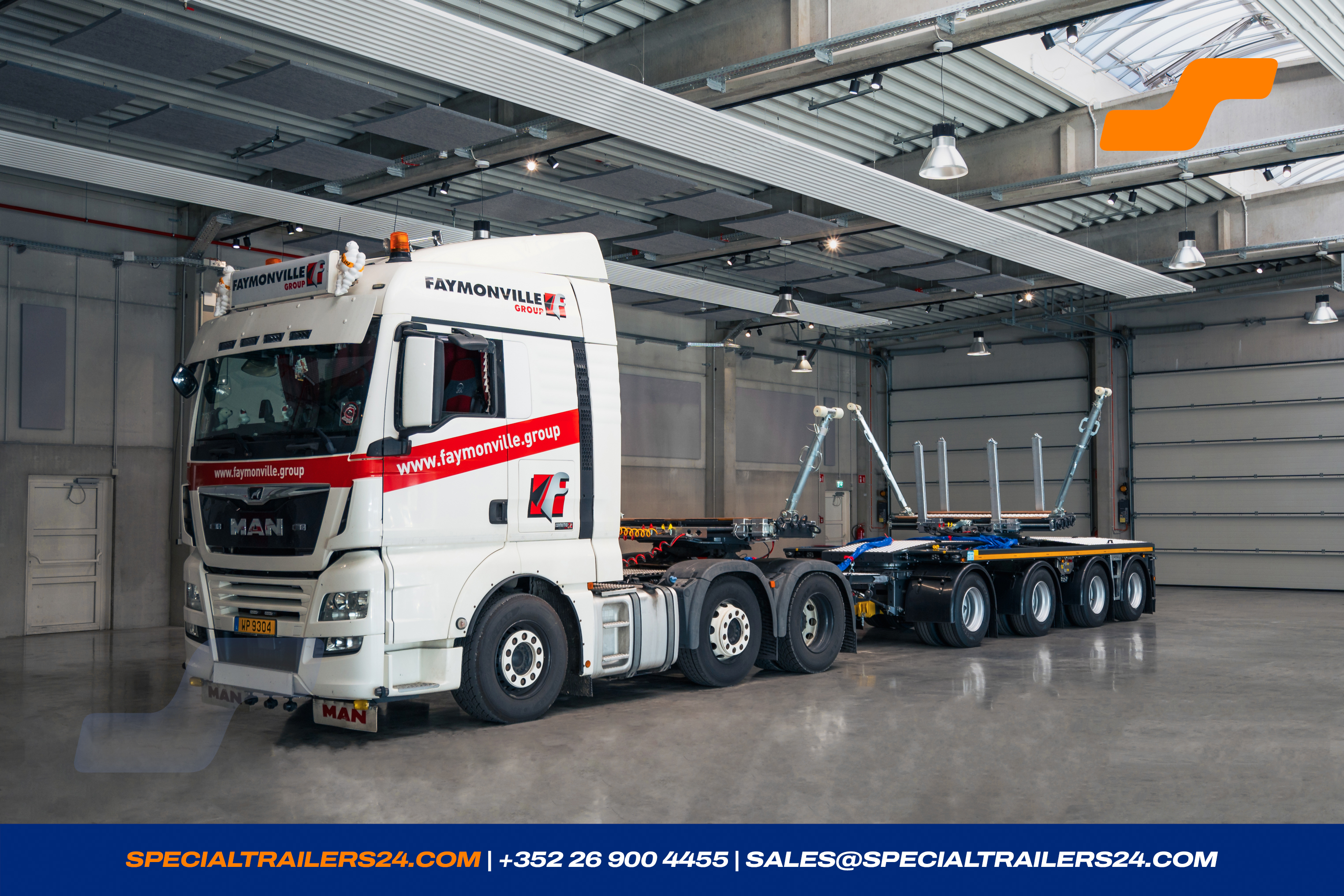

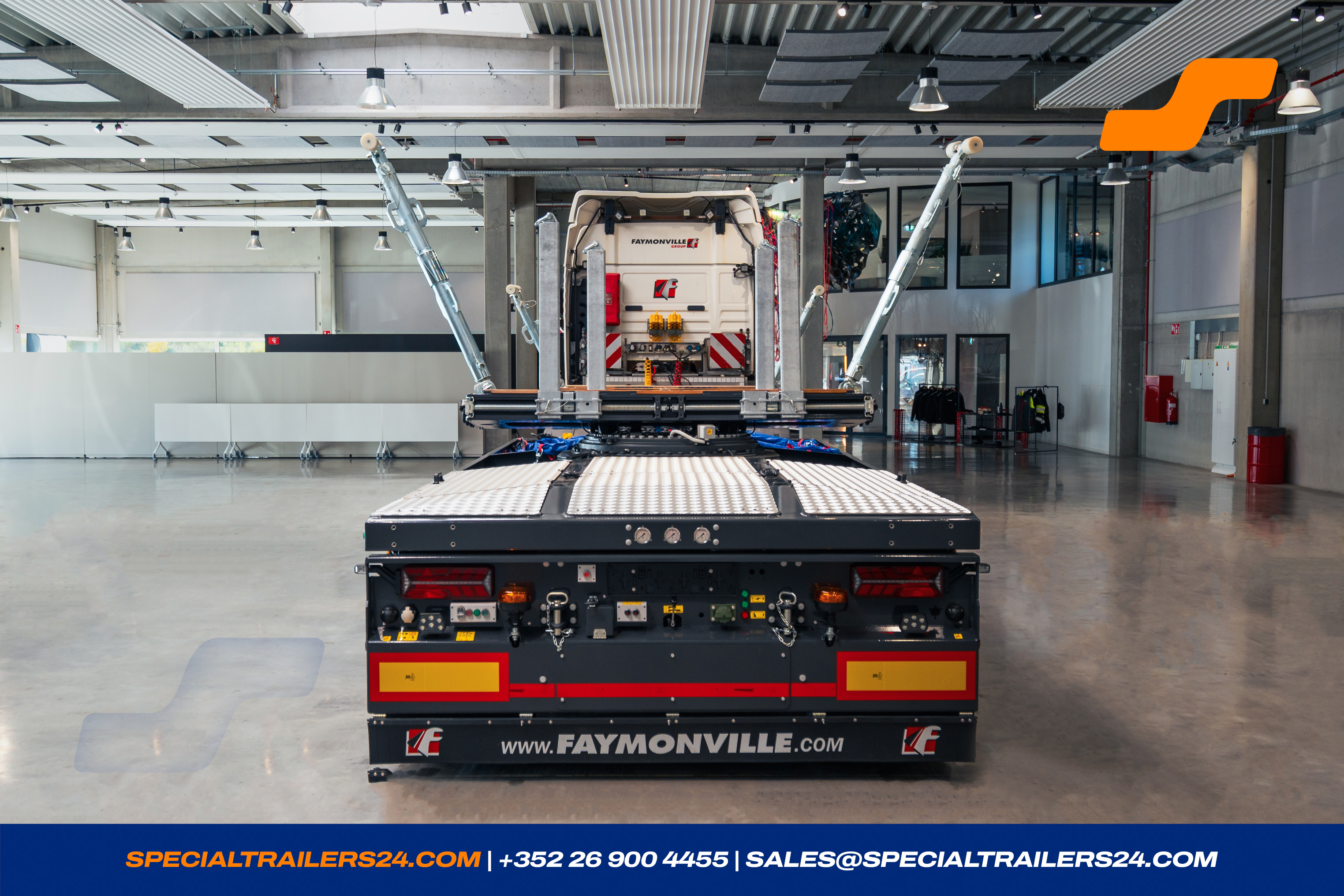

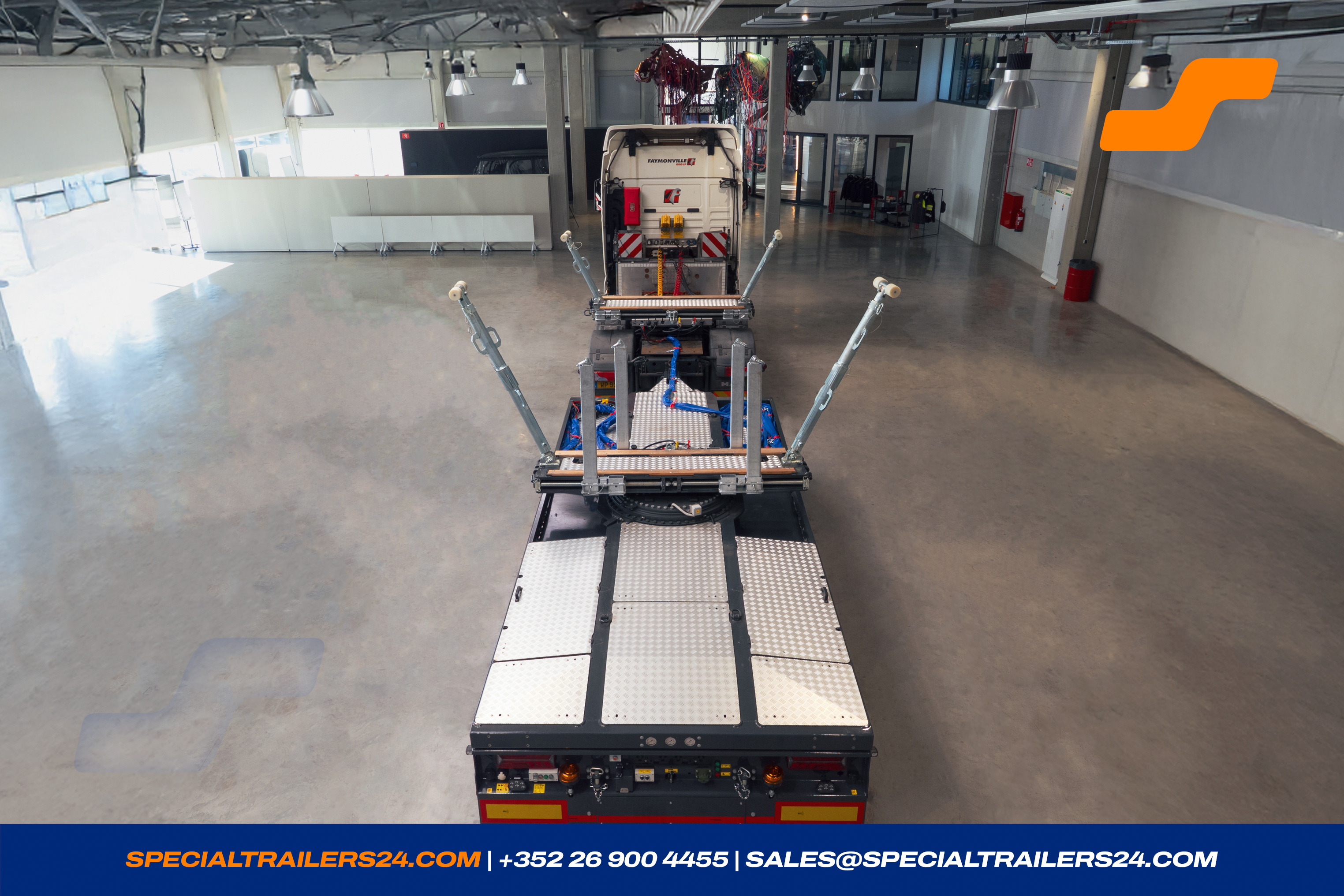

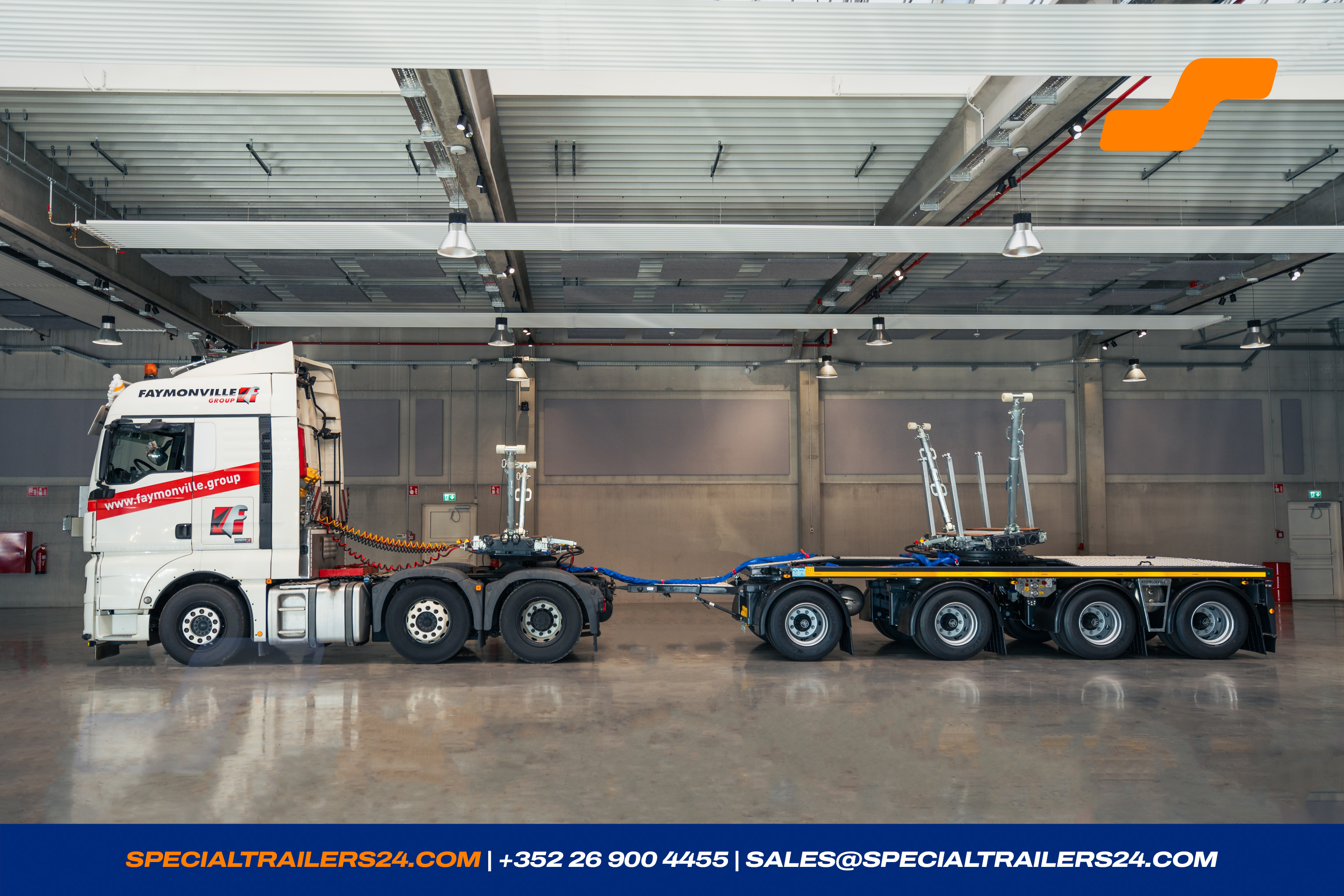

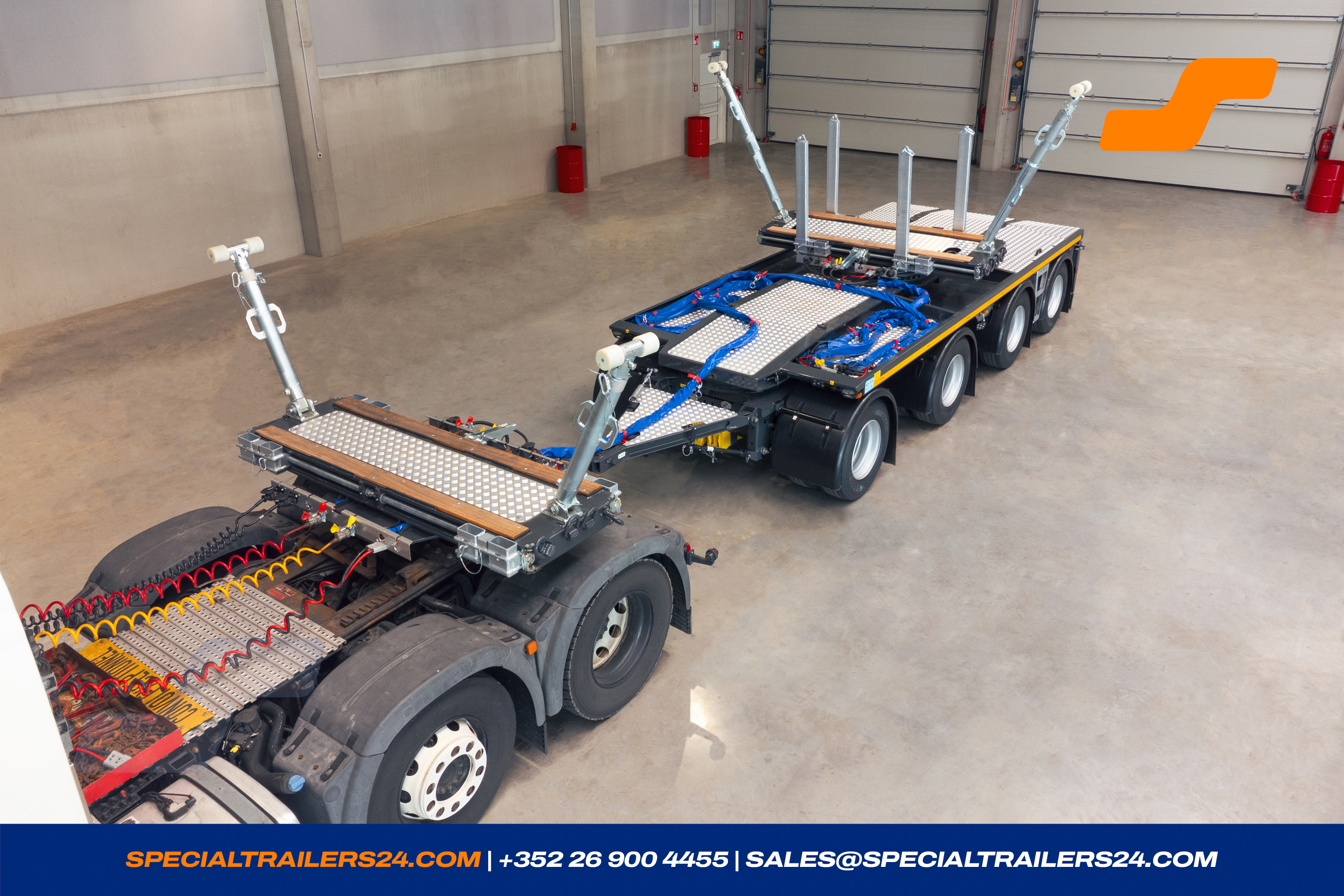

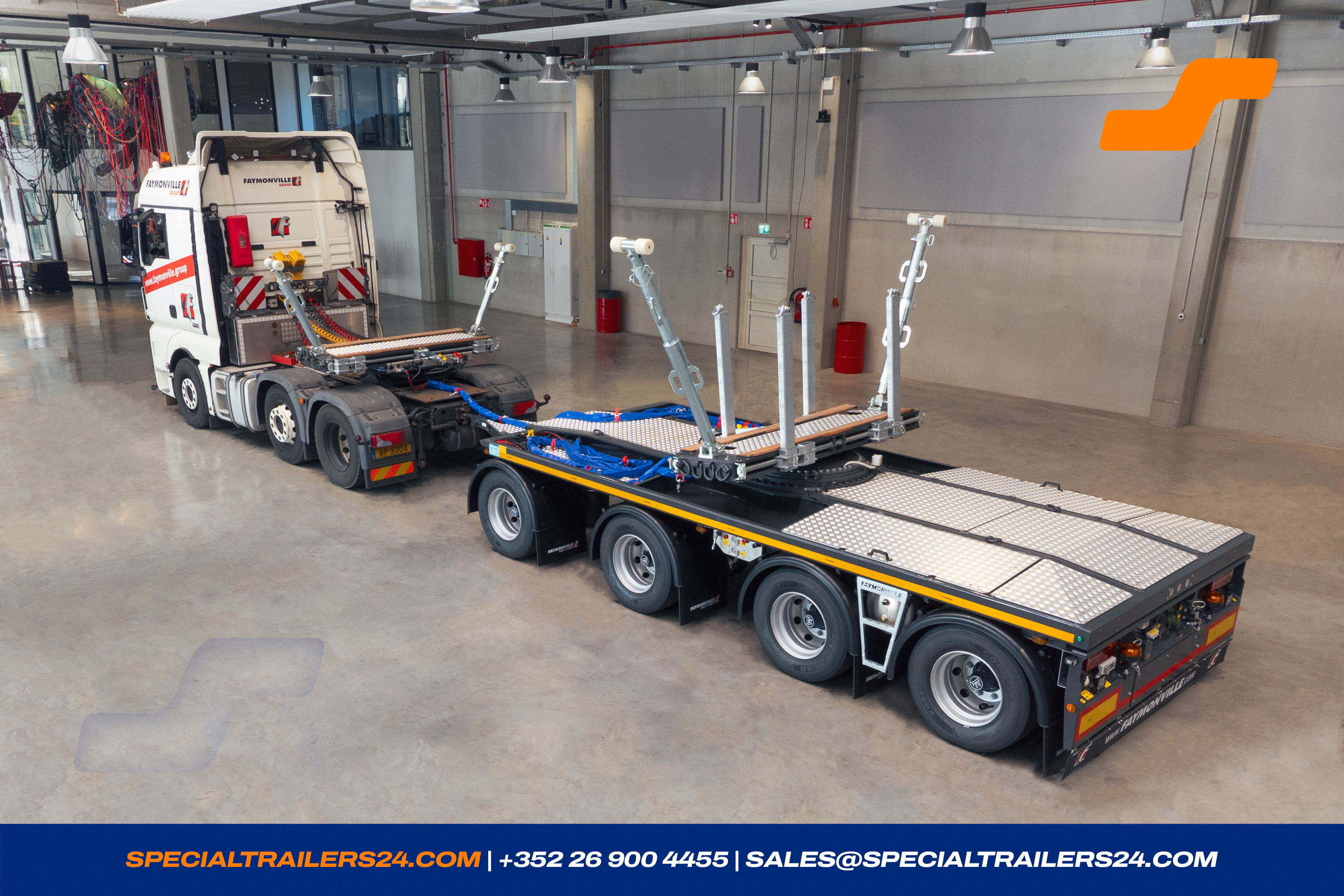

Self-steering trailer
Faymonville FlexMAX
Die Farbe des Fahrzeugs auf dem Foto kann abweichen.
- Chassis number 37294
- Reference Flex-Z-4L-40-6.34-19.5-2.54
- Number of axles 4
- Condition New
- Year of manufacture 2025
- Colour DB 7350 - Nova grey
- Availability Directly available
- Steering Type Hydraulic
Availability
Directly available
Preis
Auf Anfrage
Location
Lentzweiler, Luxembourg
Downloadcenter
Die wichtigsten Unterlagen
Detailinformationen
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| Tare weight +- 3% | 8200 kg |
| Payload | -8200 kg |
Dimensions
| Fifth wheel height loaded | 1200 mm |
| Trailer length | 6 340 mm |
| Chassis width | 2 540 mm |
| Loading height incl. turntable | 1 555 mm |
| Suspension stroke | -100/+100 mm |
Loading deck
Rear Dolly

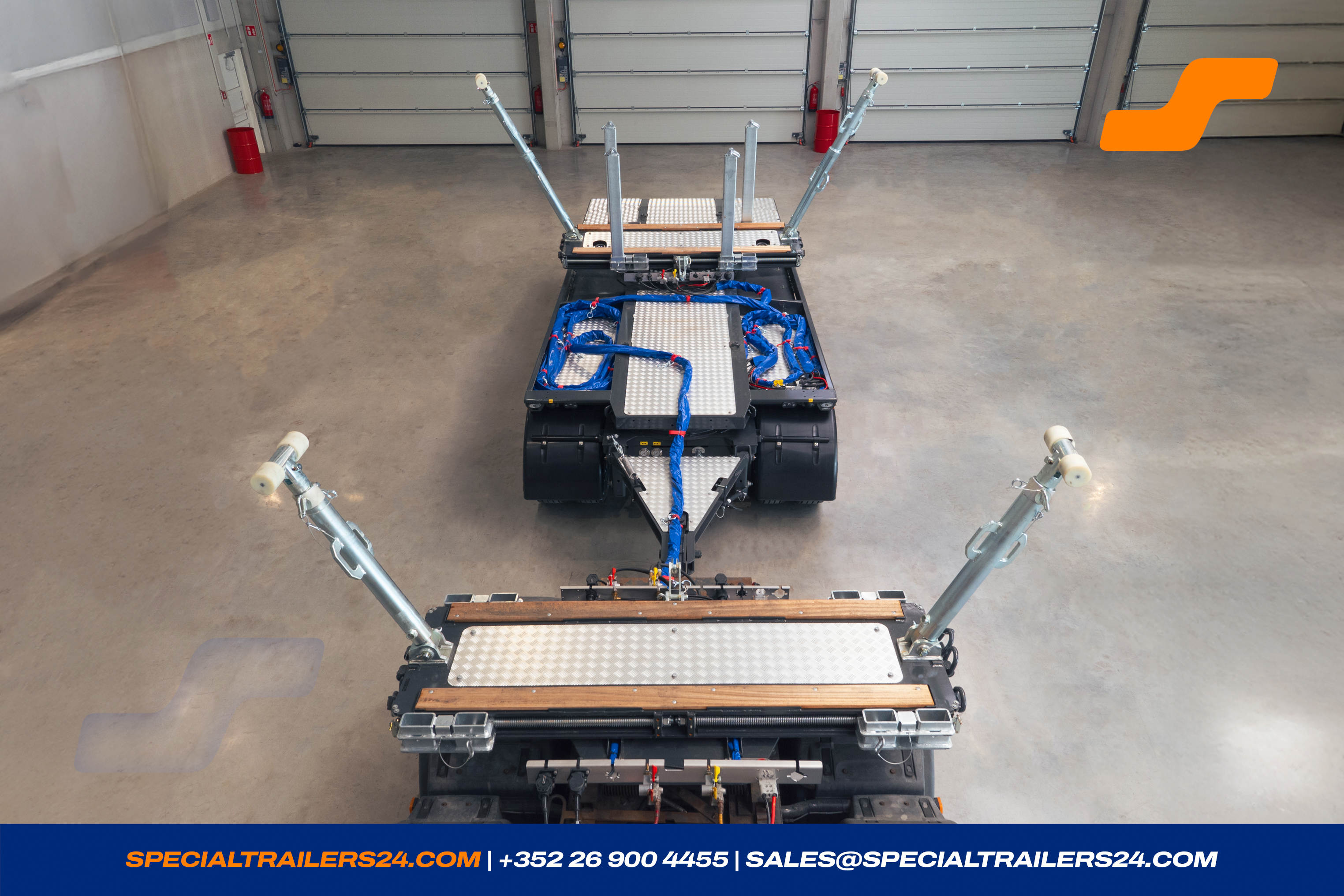

1 x Flex-Z-4L-40-6.34-19.5-2.54
-

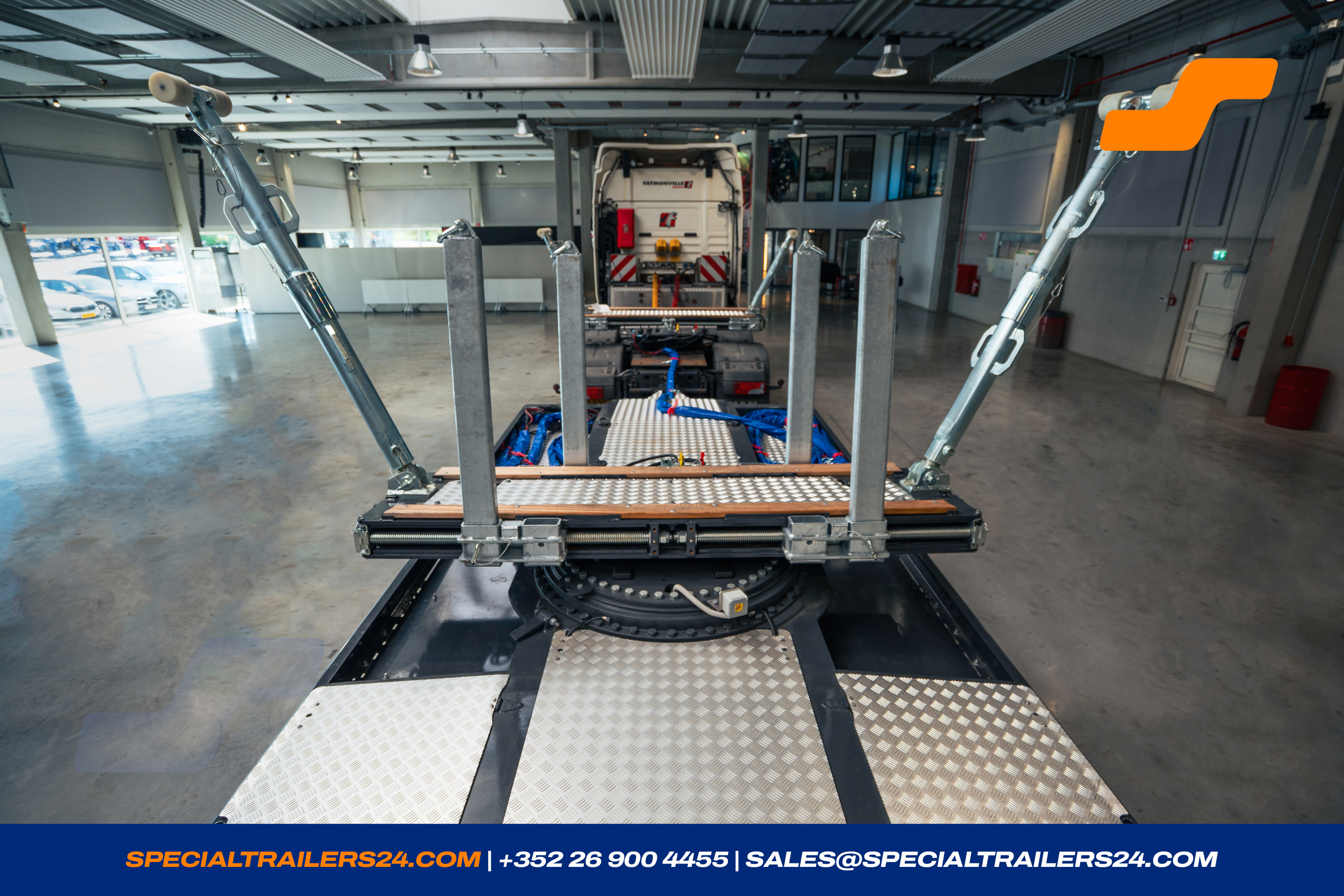

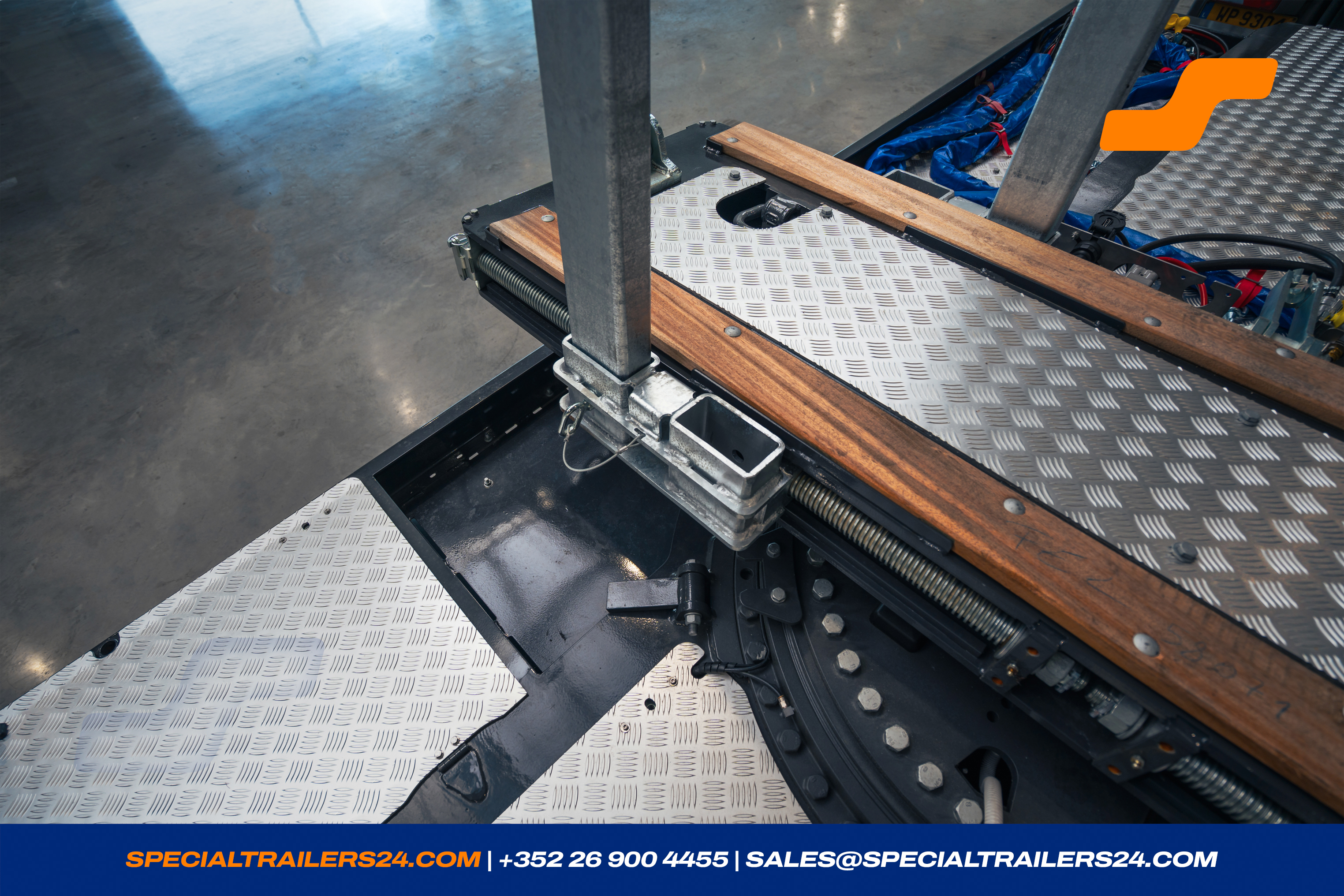

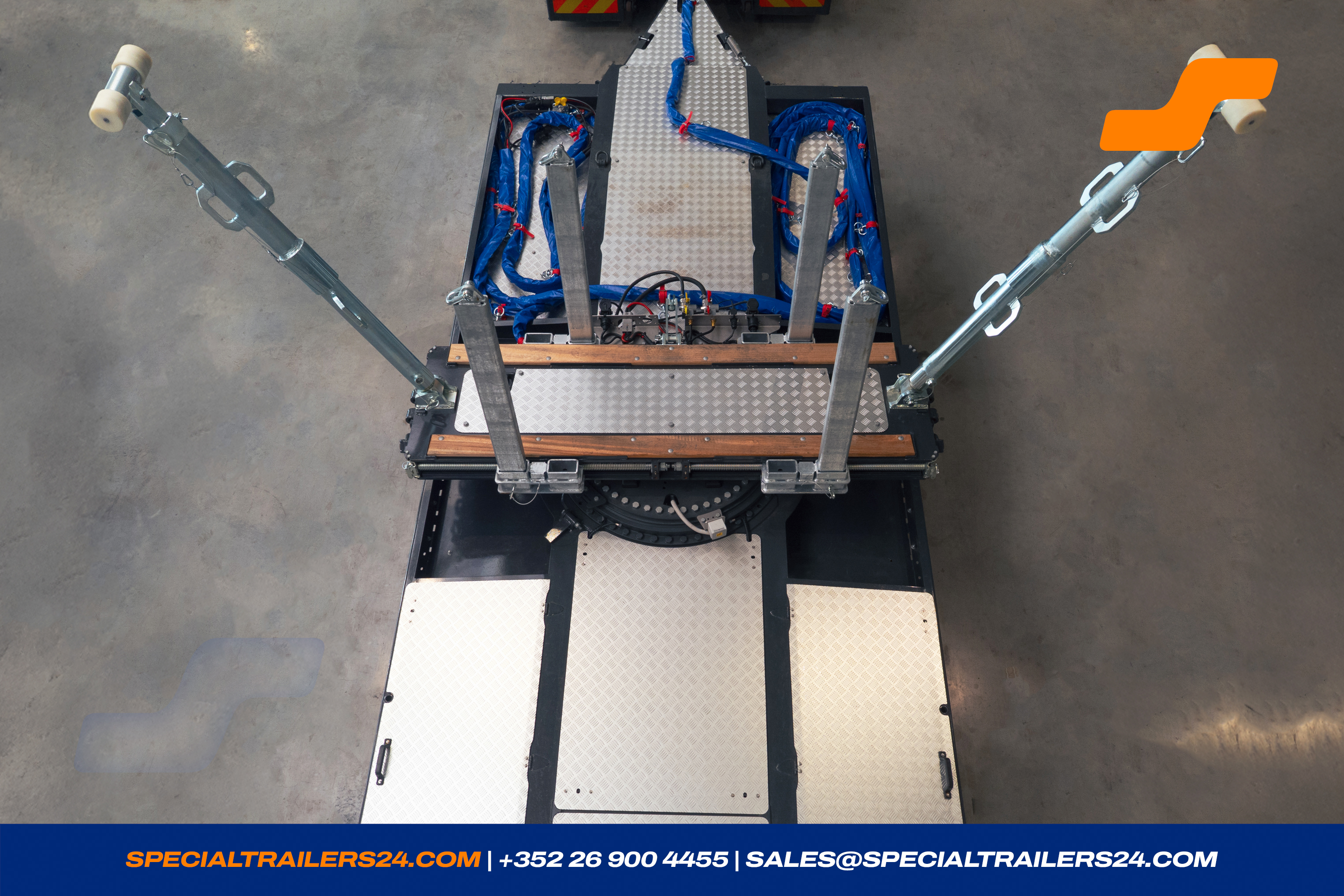

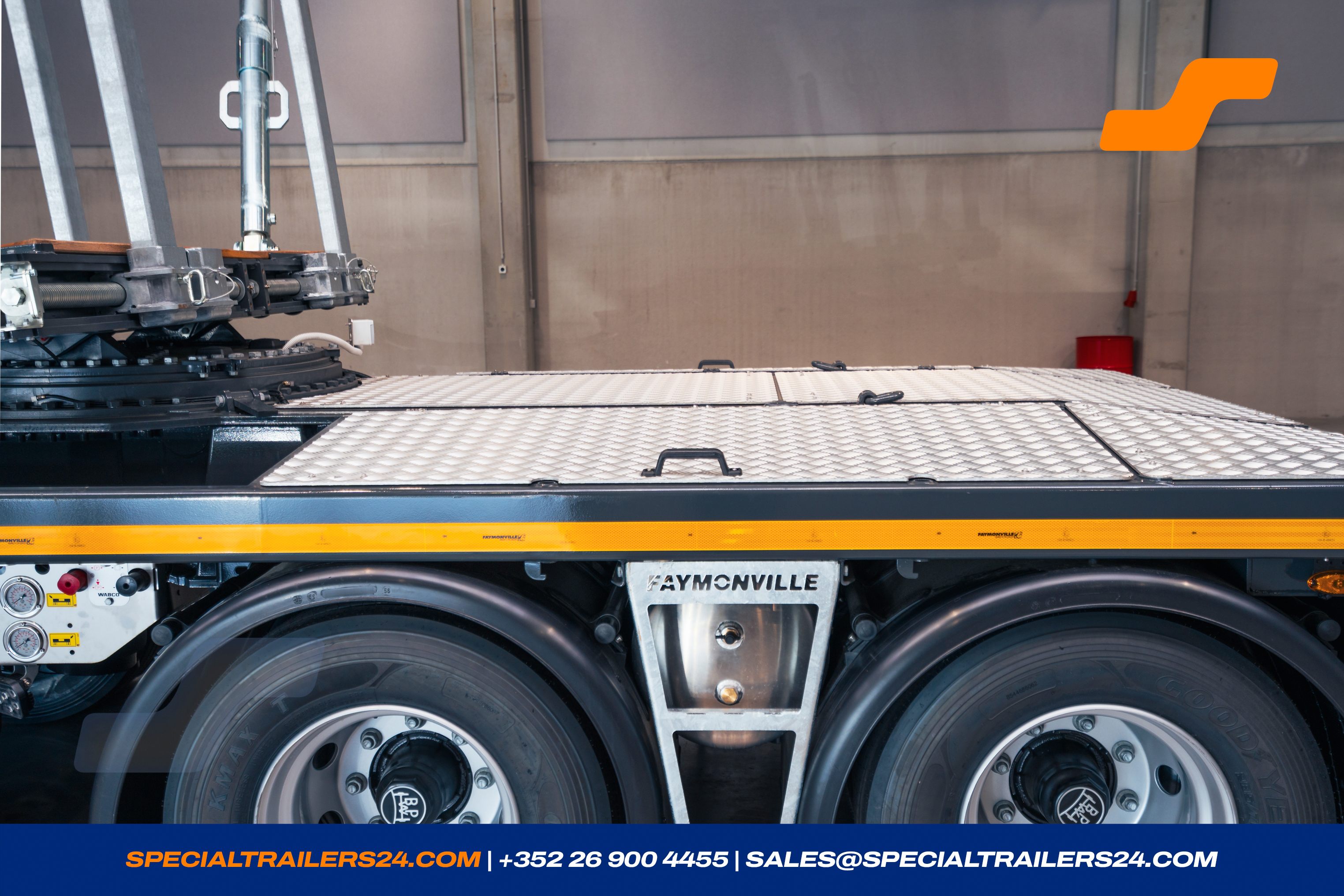

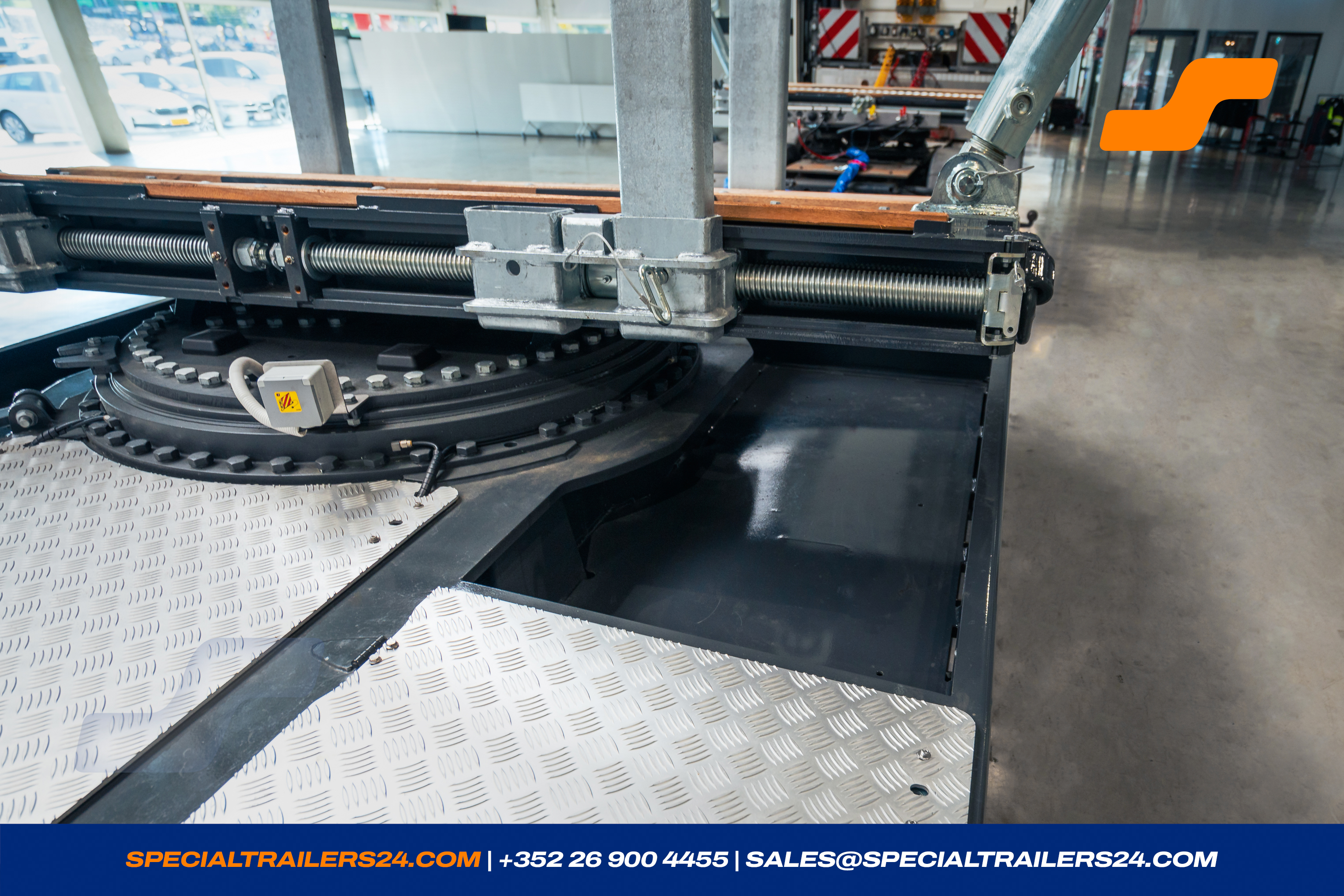

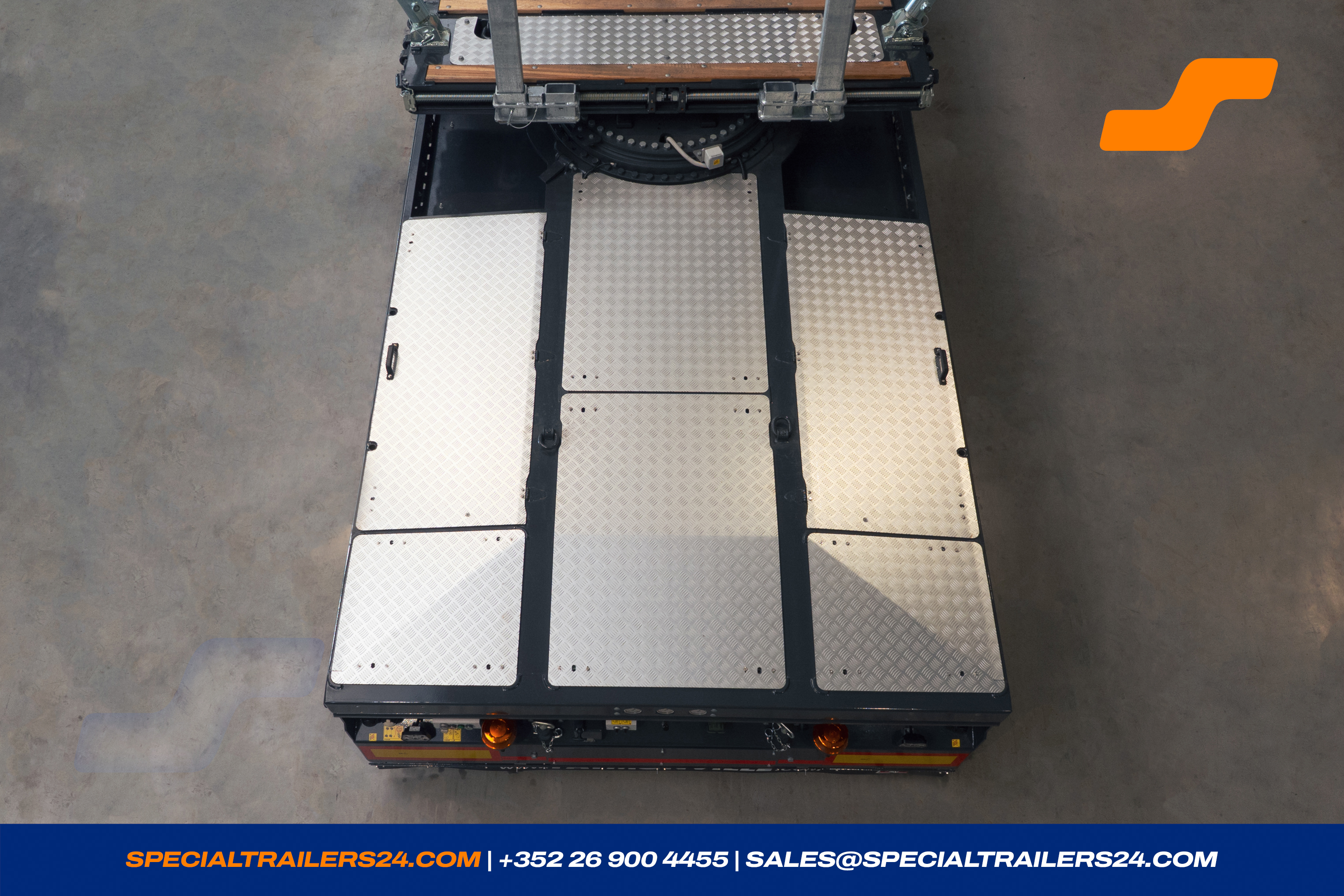

Turntable with 2 pairs of screw-adjustable double stake pockets for stakes ± 120 x 60 mm,
Stake distance crosswise min ± 220 mm and max. ± 2.050 mm.
Clear stake distances in longitudinal direction: ± 740 mm.
4 Pairs of lashing rings (LC 10.000 daN) welded on the outside of the turntable.
1 pair of lashing rings (LC 10.000 daN) welded in countersunk on top of the turntable.
1 crank.

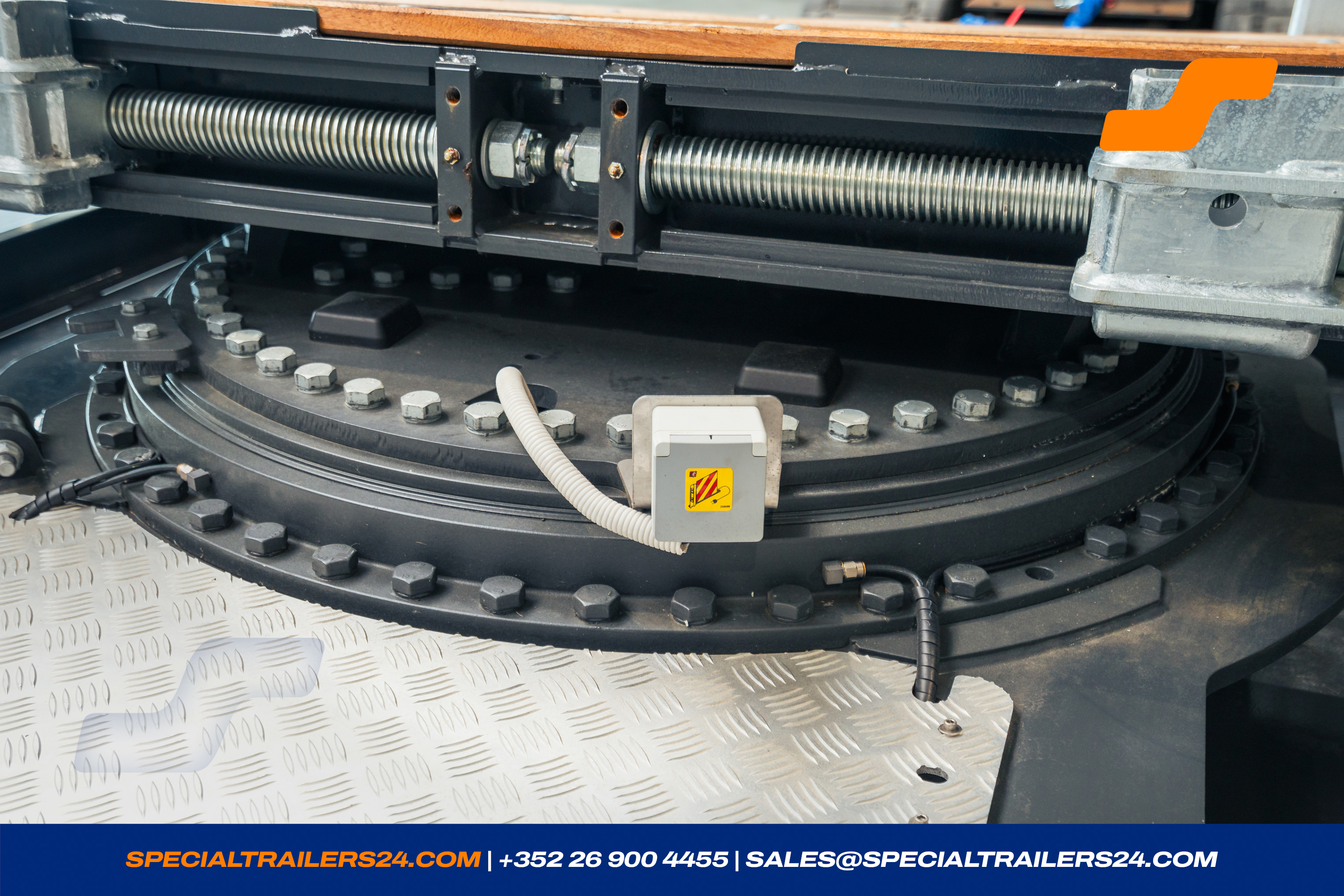

The bolster is installed with tilt articulation on a ball-bearing race ring and can be locked for empty ride. -

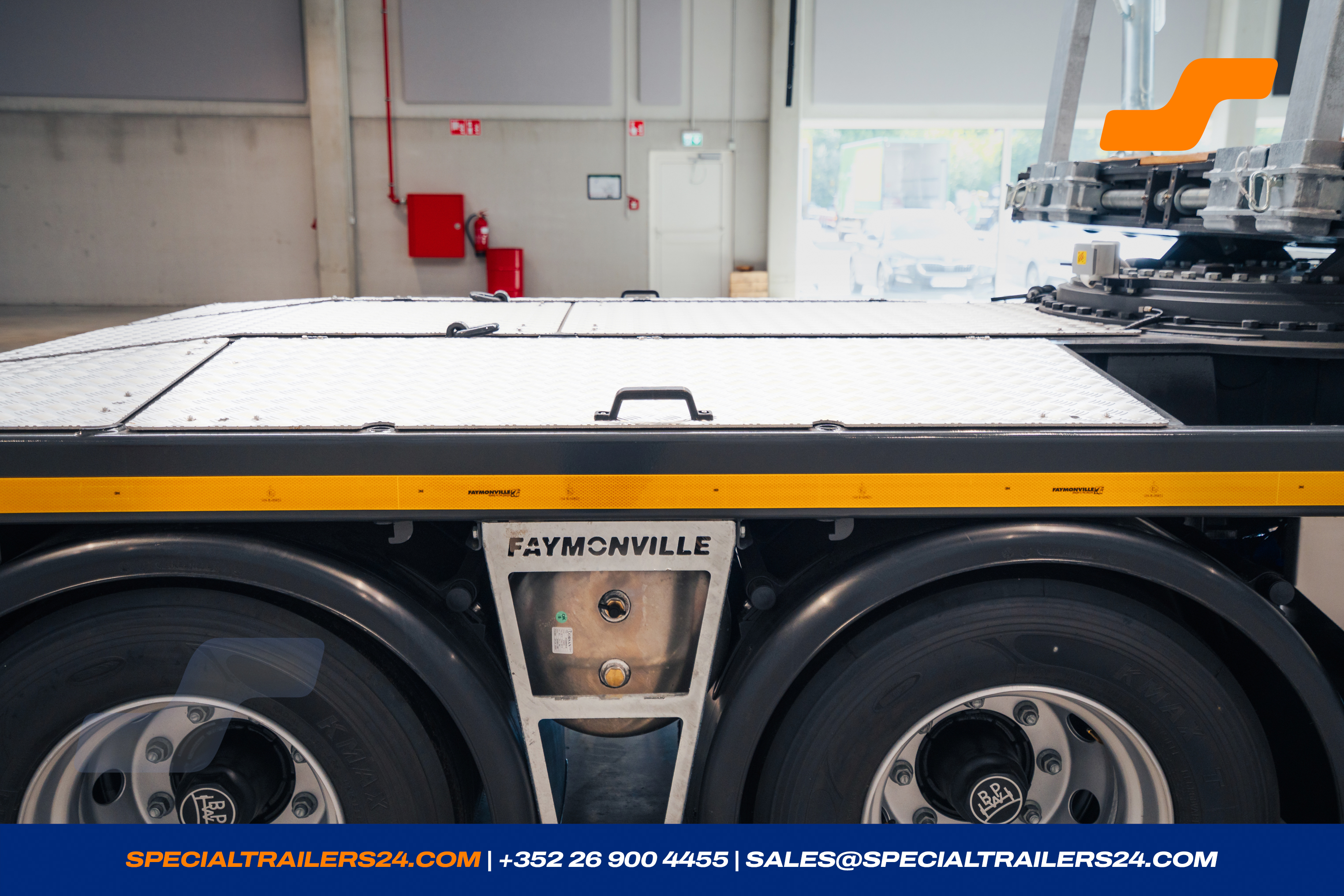

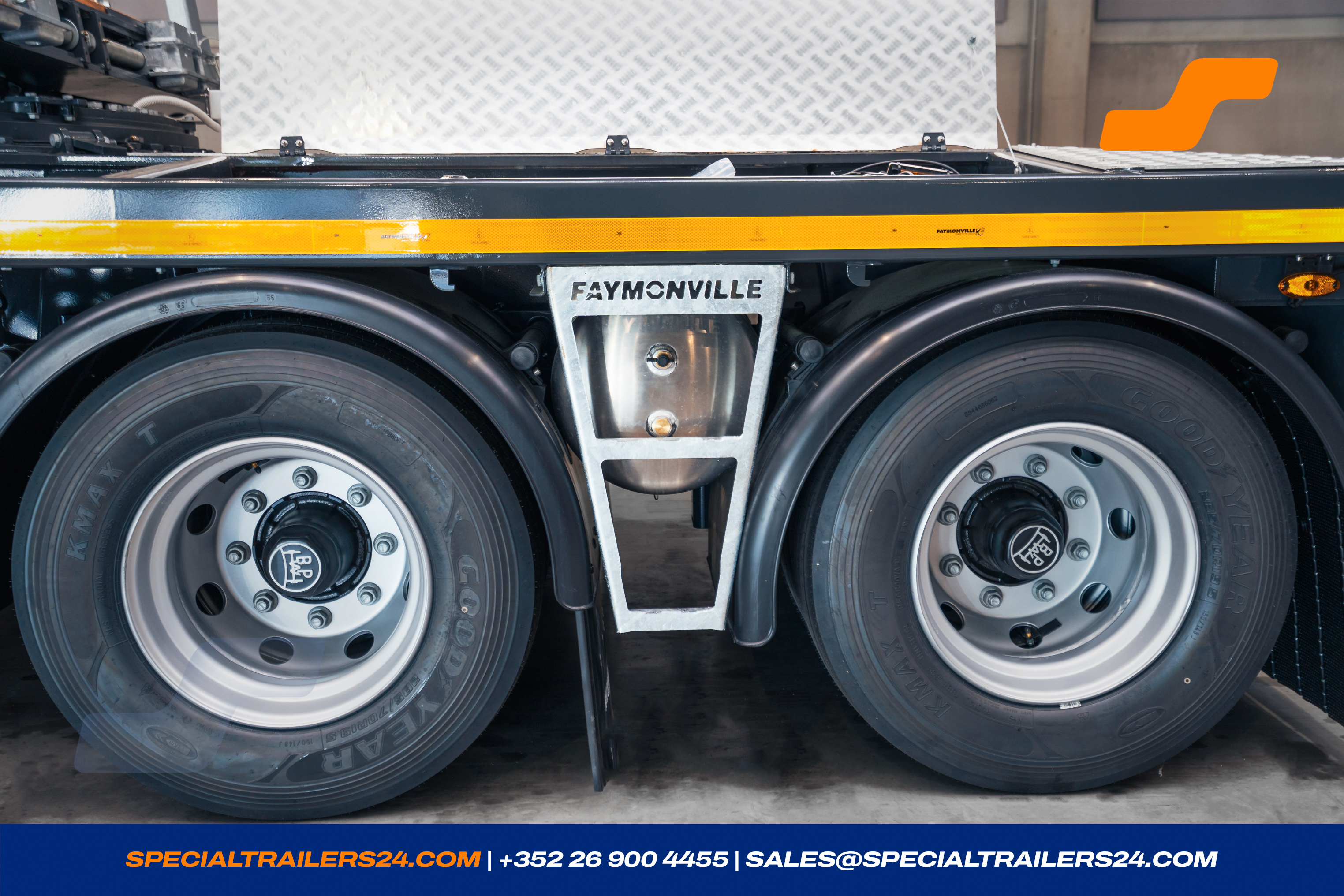

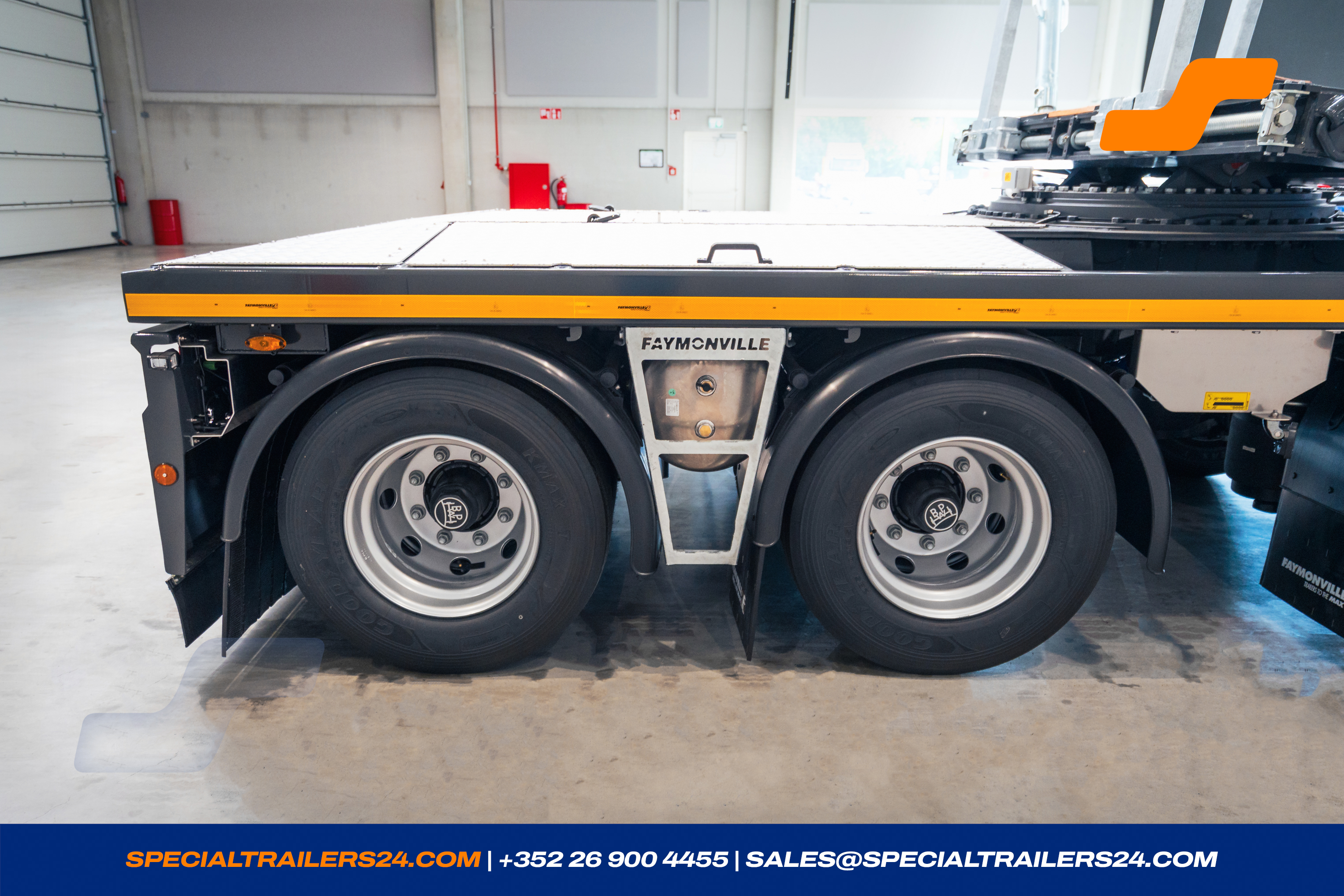

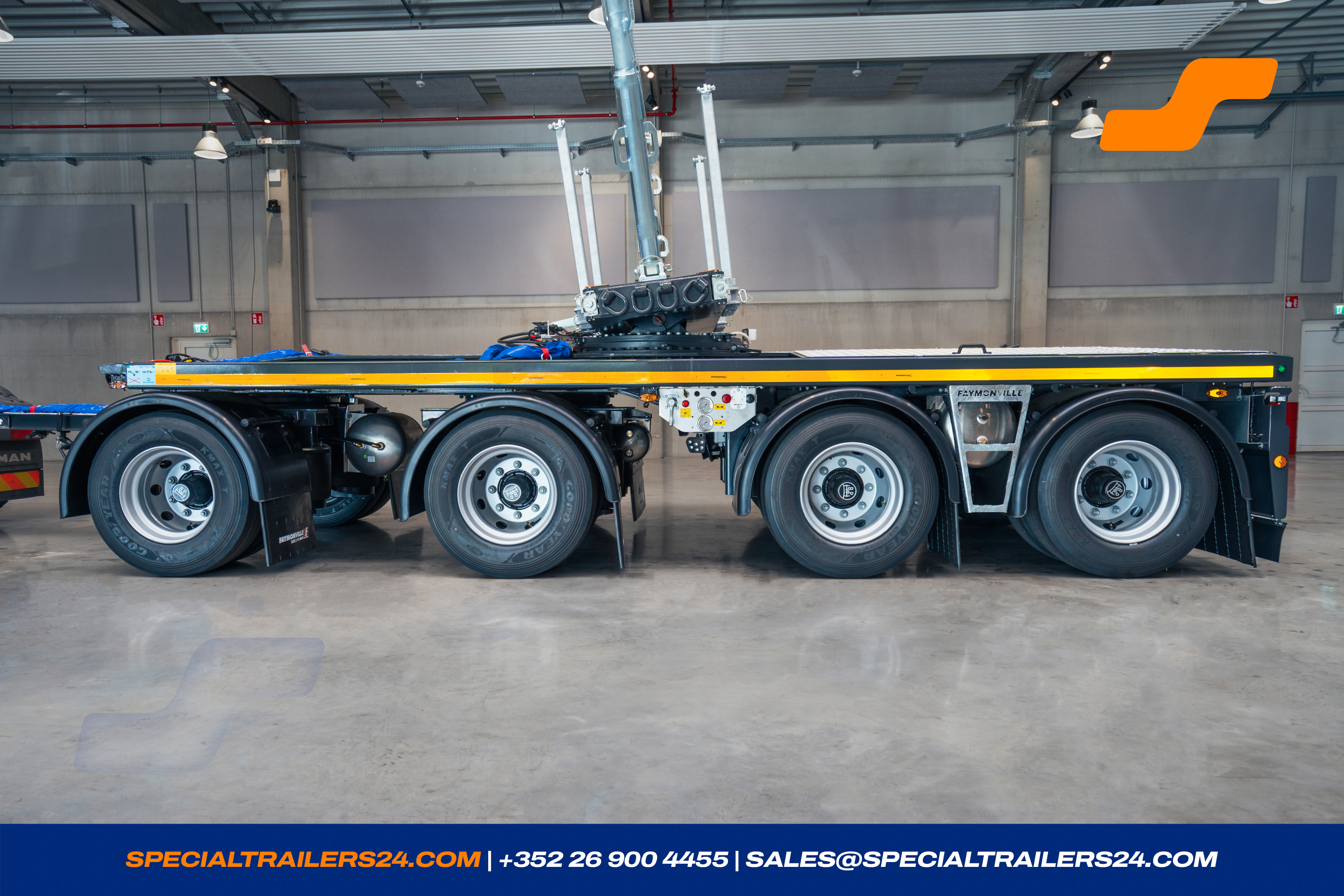

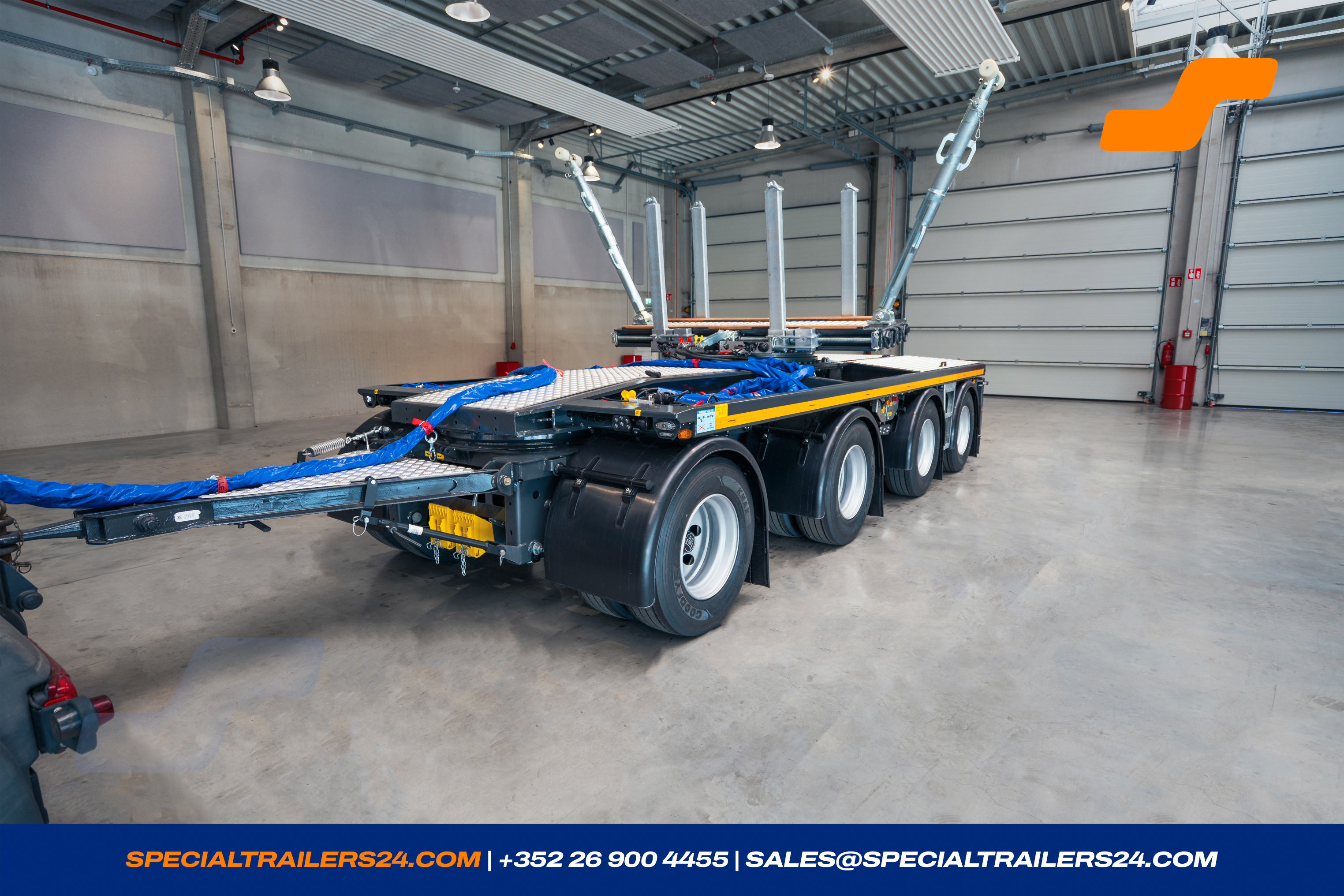

BPW axles and suspension, 1st and 2nd axles hydro-mechanically steered, mounted on double race turntables, 3td and 4th axles fix.

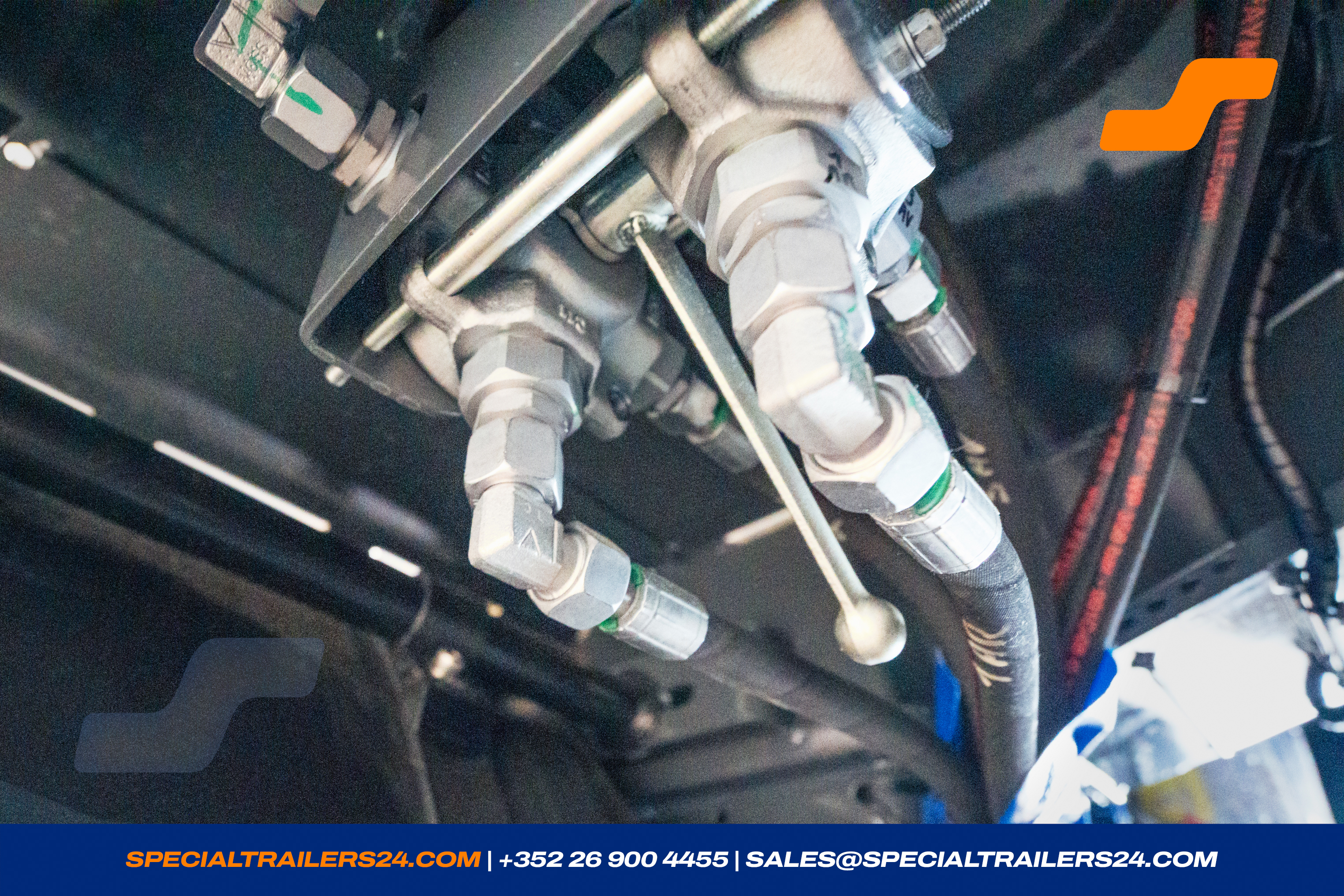

2 hydraulic cylinders for steering transmission from loading bolster to the 1st axle, incl 2 steering rods to connect 1st and 2nd axle.
Possibility to unlock the self-steering during empty trips.
Regulation of the steering aggressivity by hydraulic control valves.
Technical axle load:

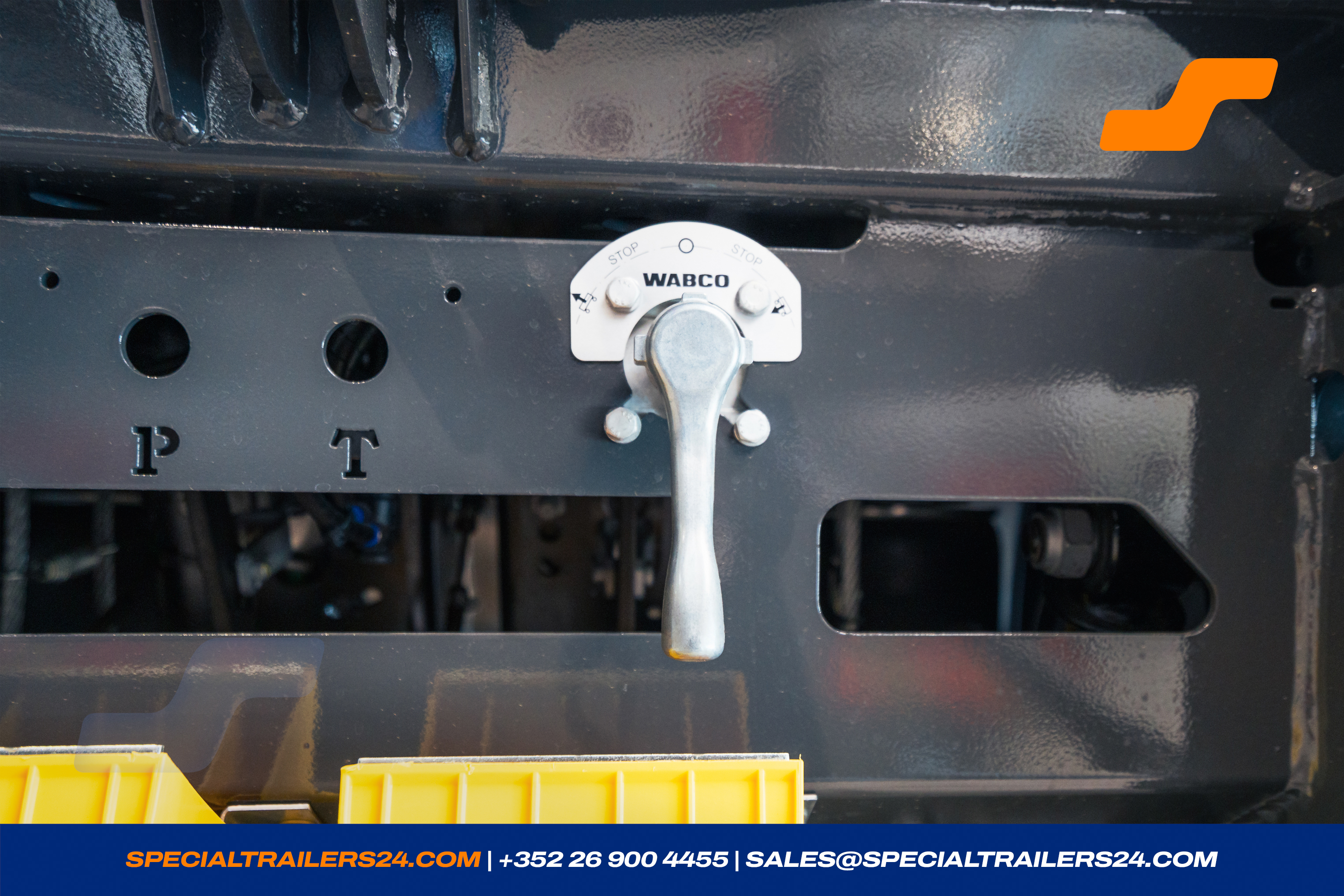

Pneumatic suspension with lifting/lowering valve.
Axle tools. -
285/70 R 19.5 3PMSF twin tyres
Brand of our choice.
Load index 150/148J -

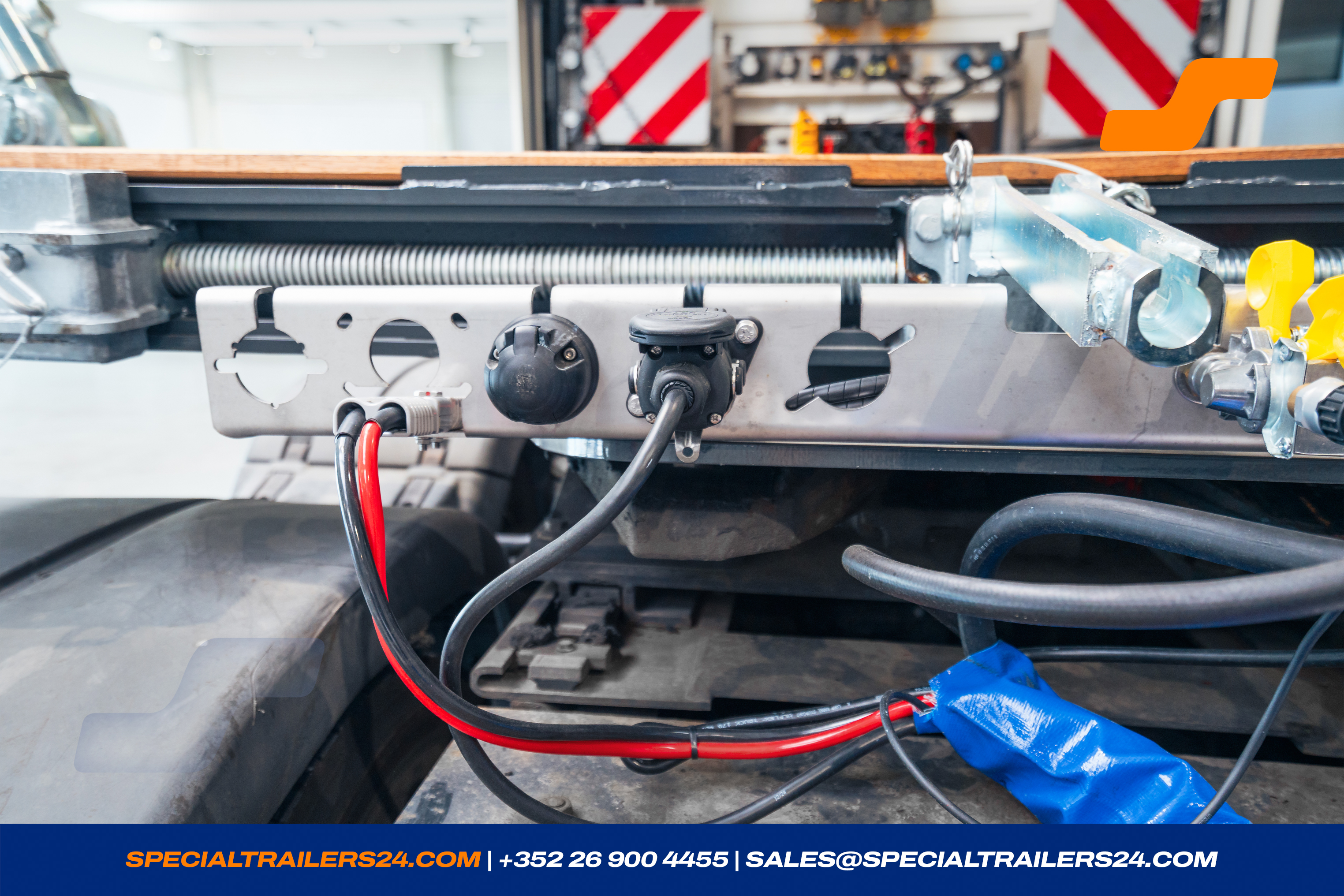

One 15-pole socket, additional on the connecting bar in front connect according to ISO 12098.
If your connection of the poles is different to the ISO norm, please inform us. -
3 kW Electro-hydraulic pomp, for the hydraulic functions of the semi-trailer.
Without installation of the supply connection on the truck. -
Supply of the electro-hydraulic unit with 2 lead-carbon batteries 250Ah-12V each
with main switch and fuse.
Battery chargers with battery indicator
Supply via 2 x 25mm² charging cable connected to the alternator of the tractor unit.
2 charging indicator lights and a low battery indicator at the rear of the vehicle.
Additional NATO-plug for battery charging at the rear side of the trailer. - 2 wheel chocks with carrier.
-

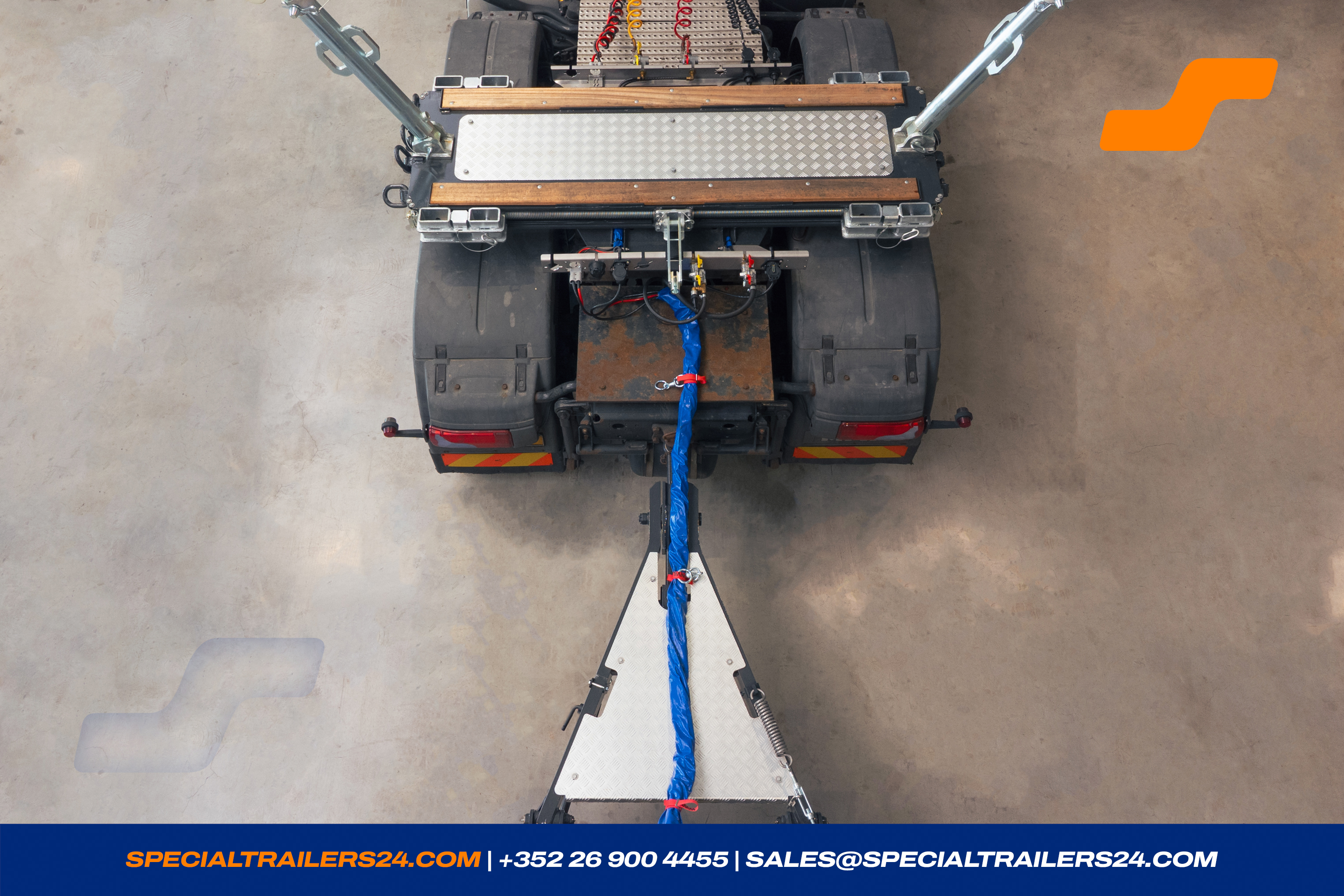

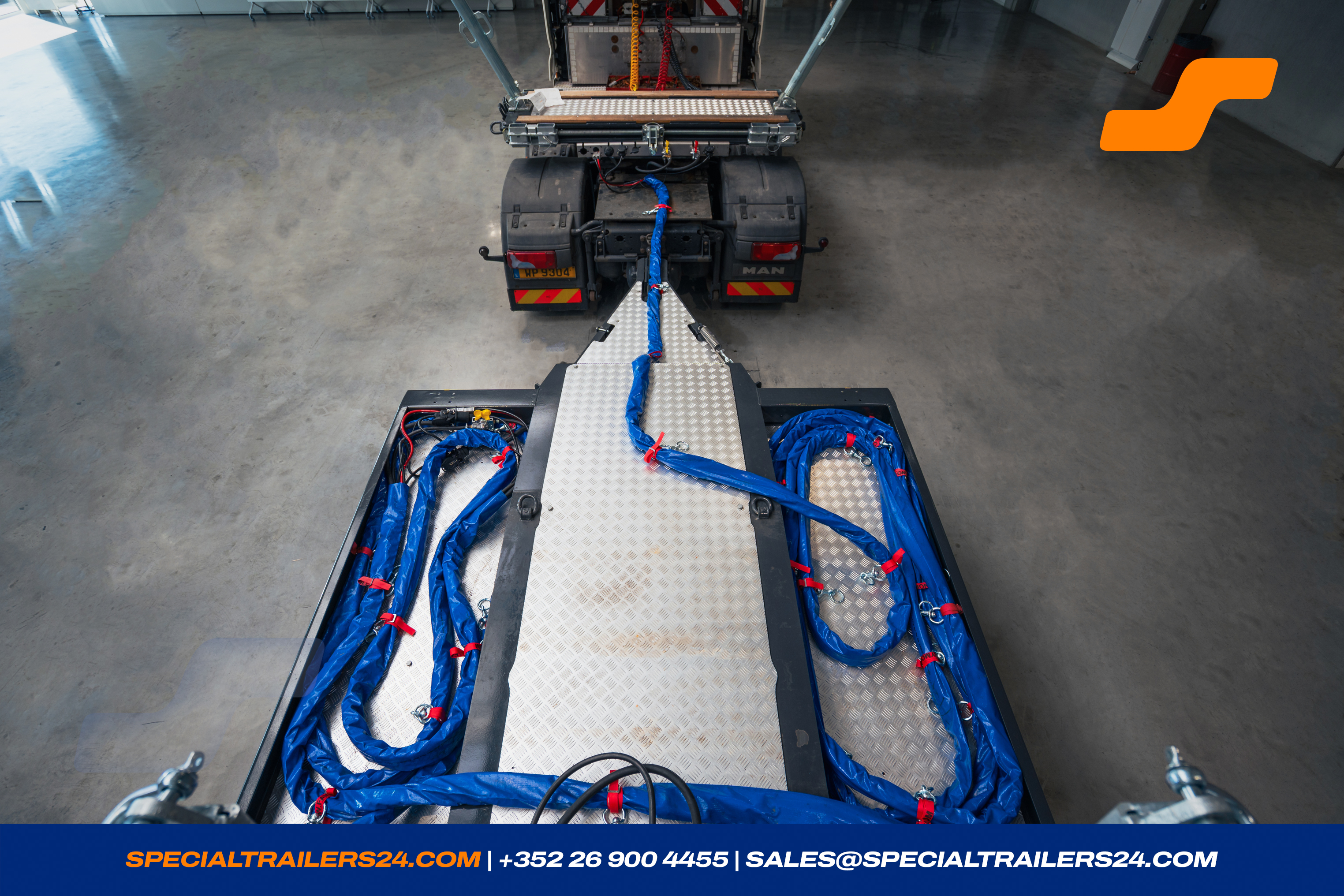

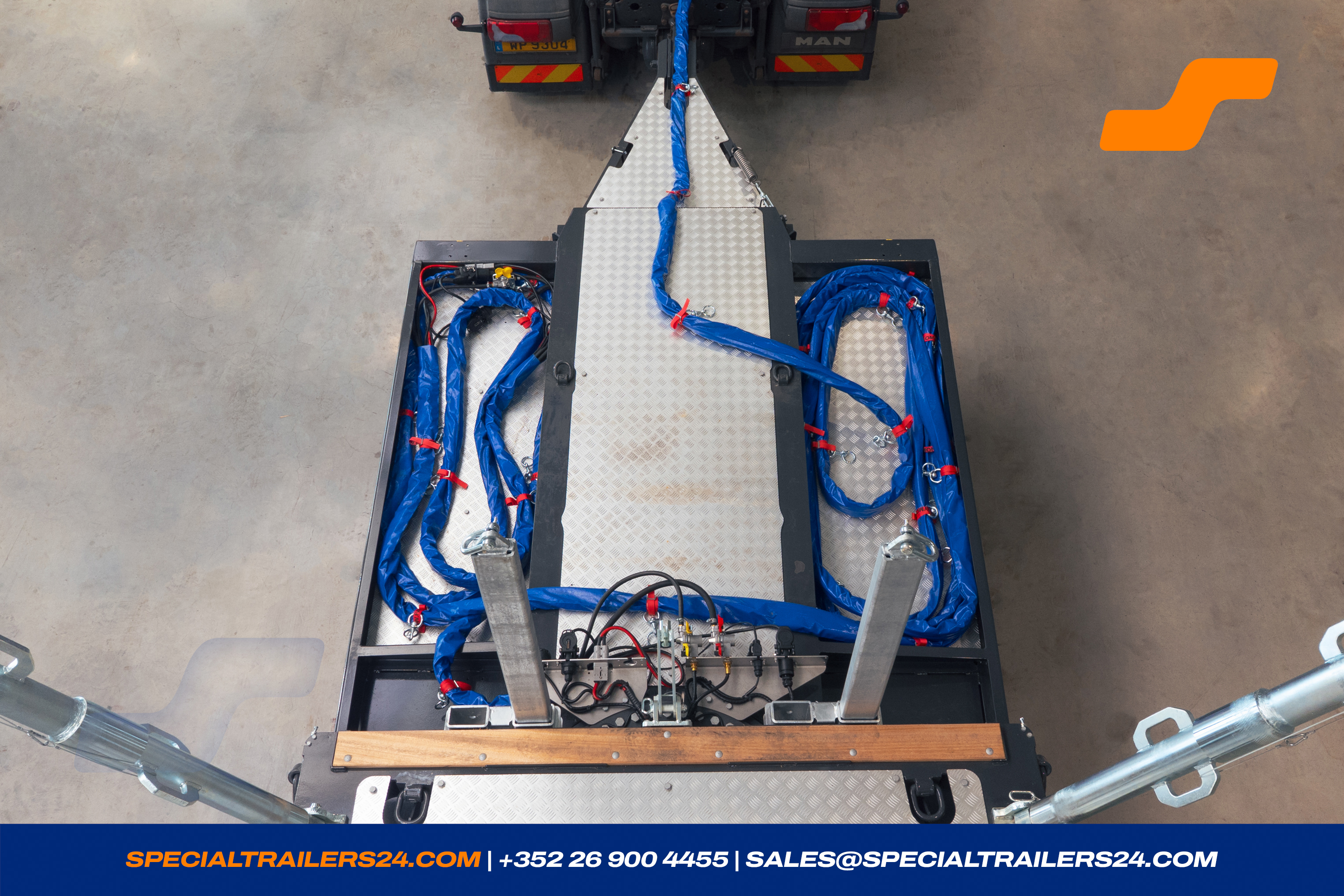

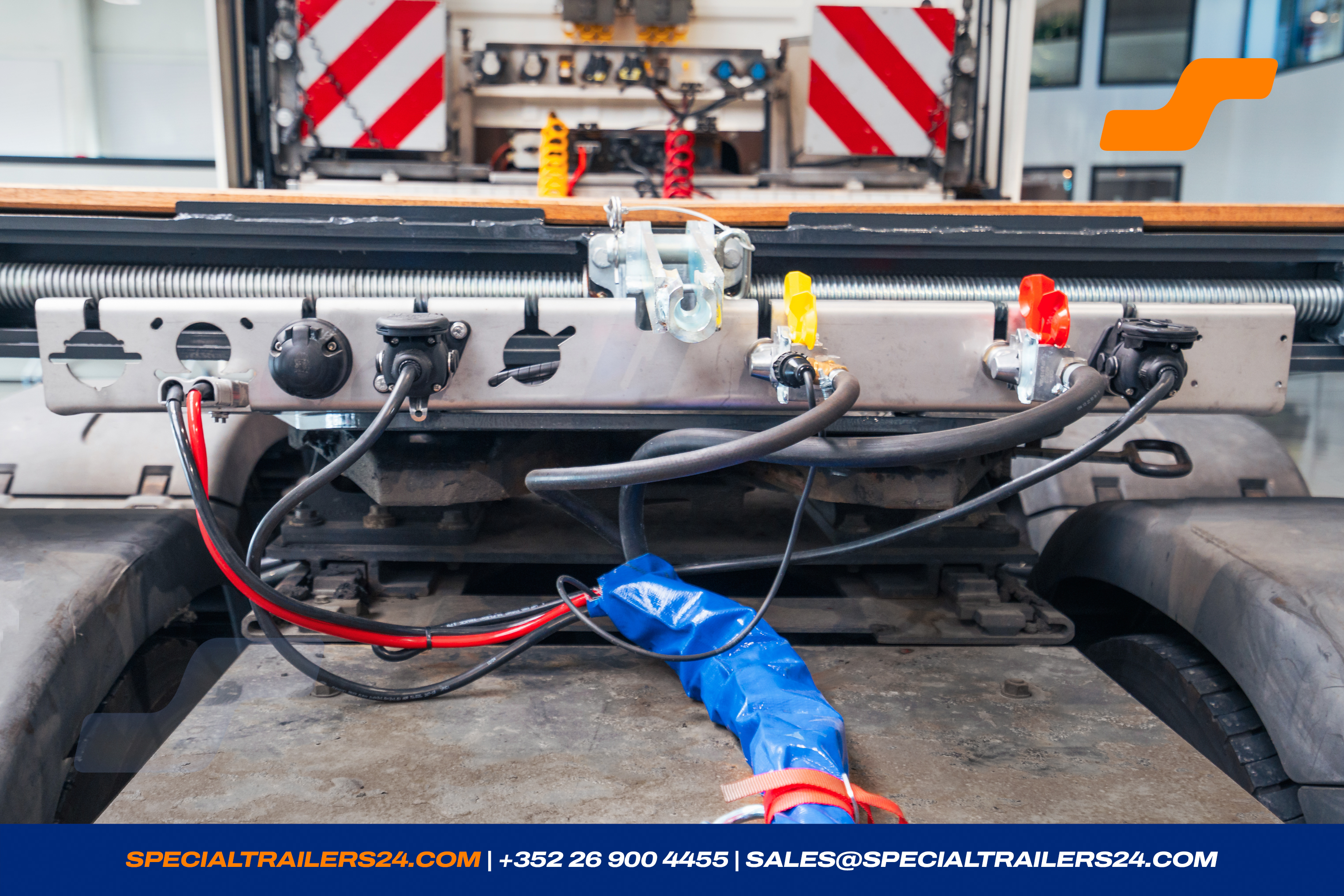

Supply lines package in 2 parts (25m+10m) with protective hose.

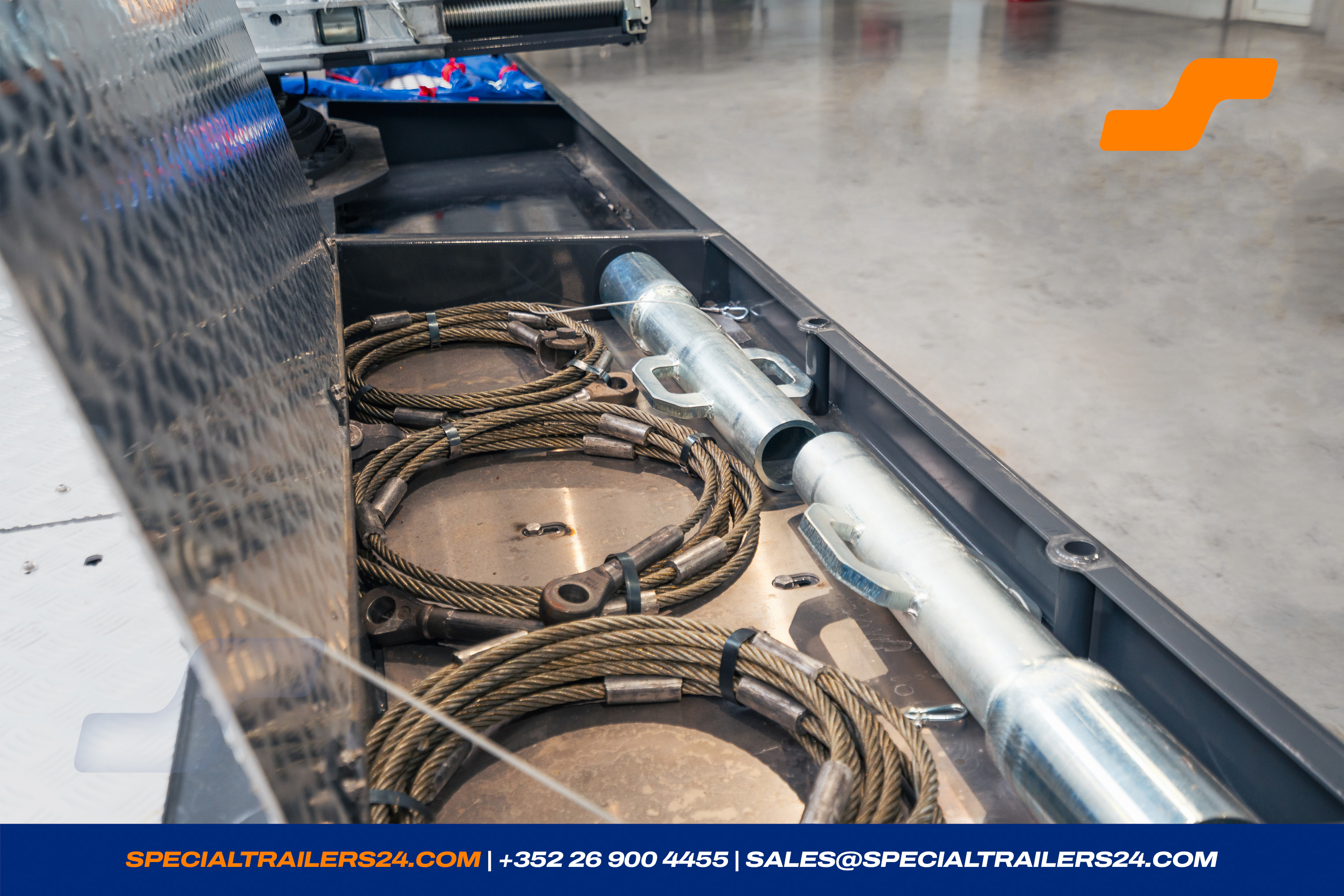

3 steel suspension cables (15m+10m+10m, dia. 14mm) with attachment points every 1.000 mm in order to adapt the length of the cable to the length of the cargo.
Including a LED light cordon. -
One ladder on the left and the right side.
2 removable handholds, to use alternatively on left or right side. - 4 LED working lamps, 2 pieces in the front and 2 pieces on the sides of the Flexmax.
-

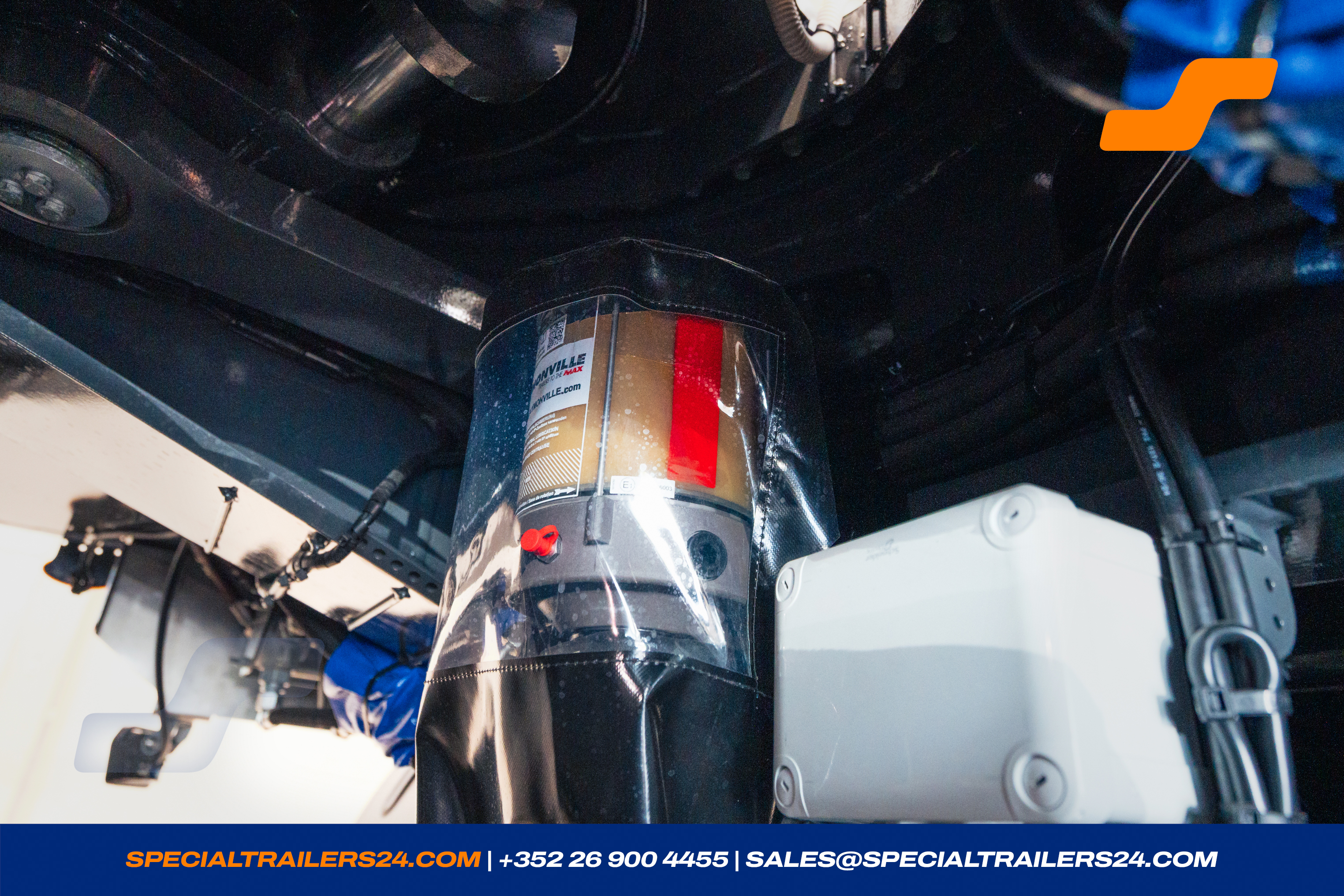

Central greasing with 1 pump, make BEKAMAX, with NLGI-2 normal grease.
Removable protection box around the (all) pump(s) of the central greasing. -
Remote steering with cable remote control and realignement control of the axles and the turntable (without connection to the truck).
Separation of the electro-hydraulic pump from the batteries at a speed of 40 km/h. - Steel ropes on the axles.
- A mud flap (www.faymonville.com) at the rear.

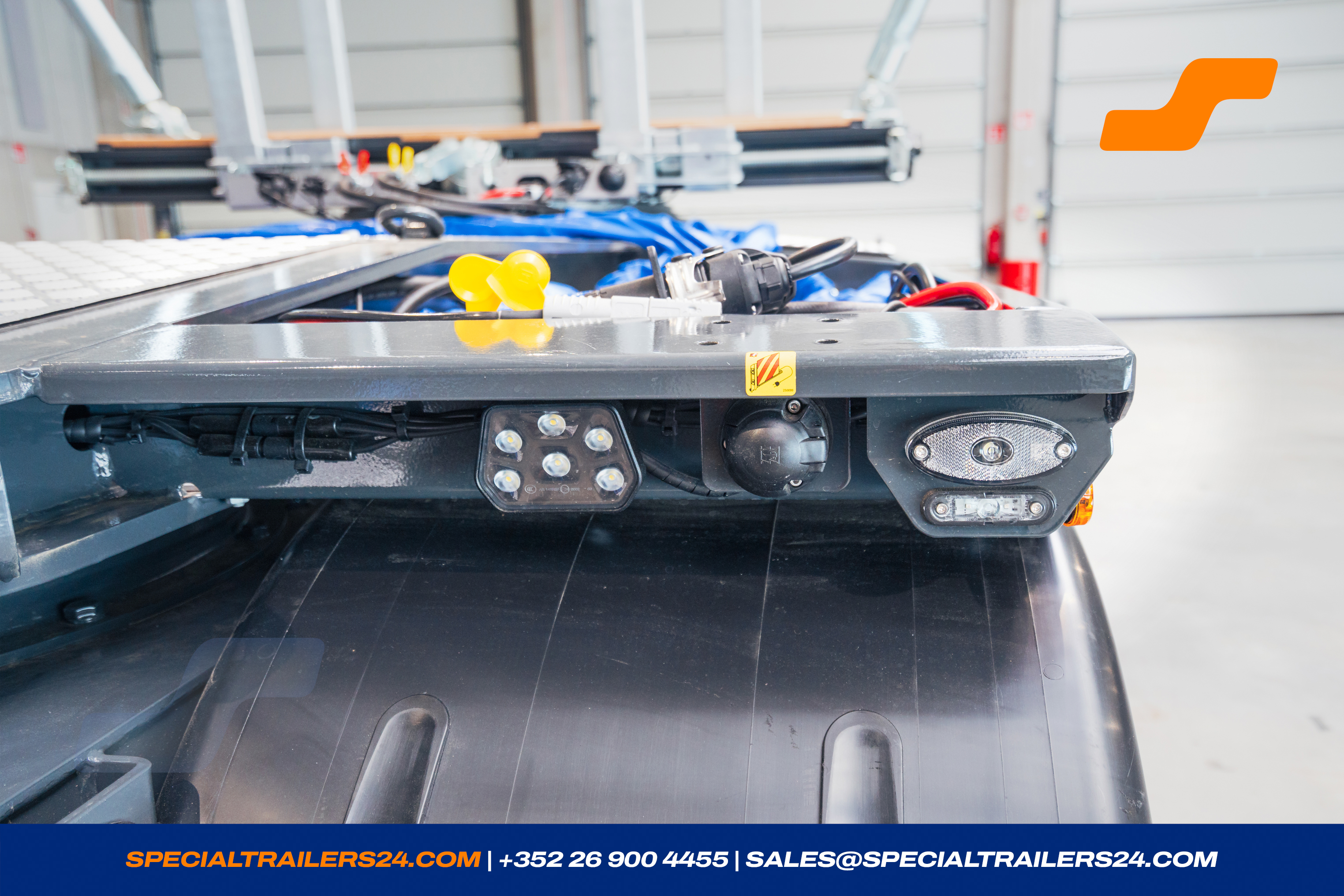

- 1 LED reversing light at the rear of the trailer, on left and right side.
- Under the FLEXMAX in front and on the rear, on the right and left one 7-pole socket for the warning boards.
-

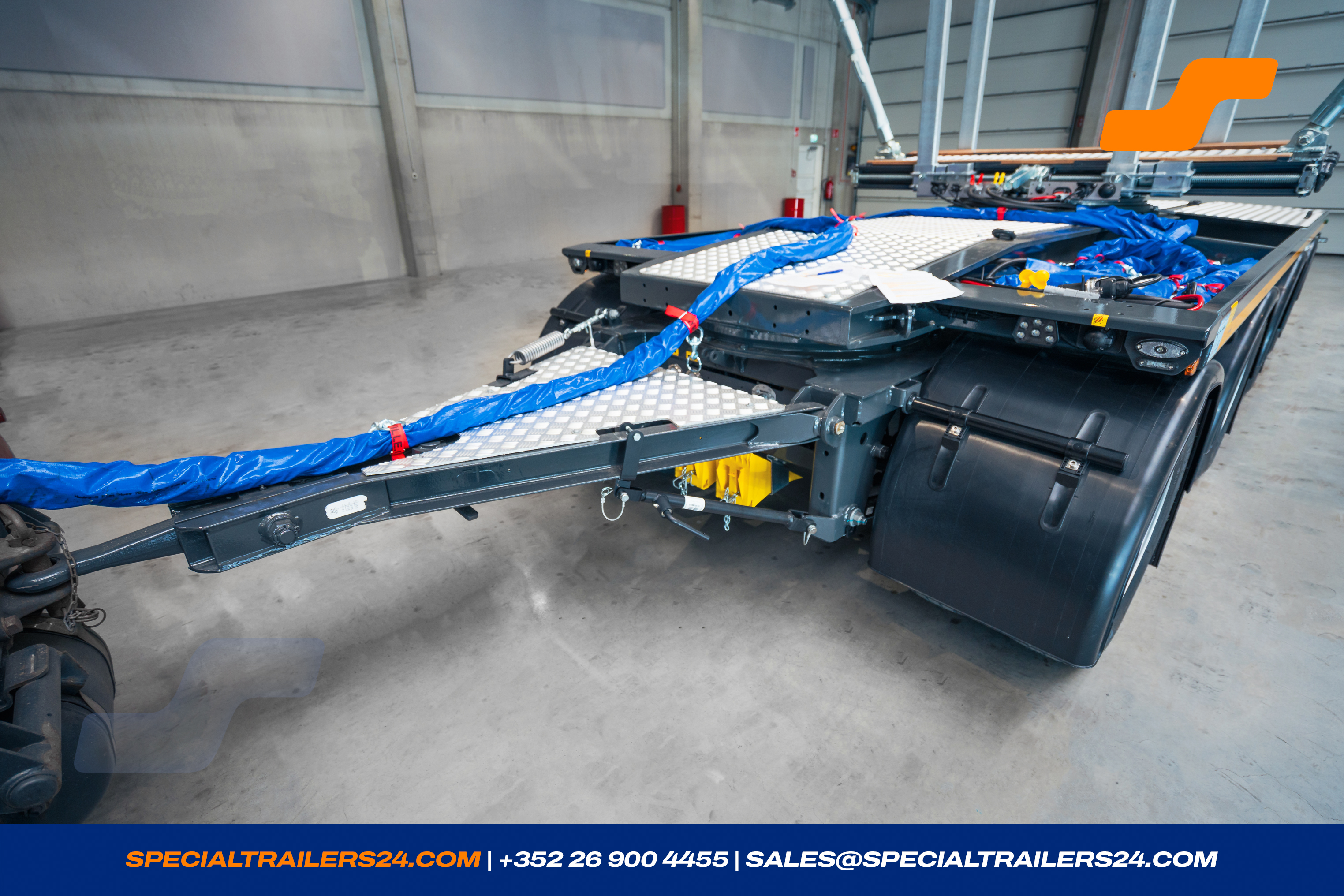

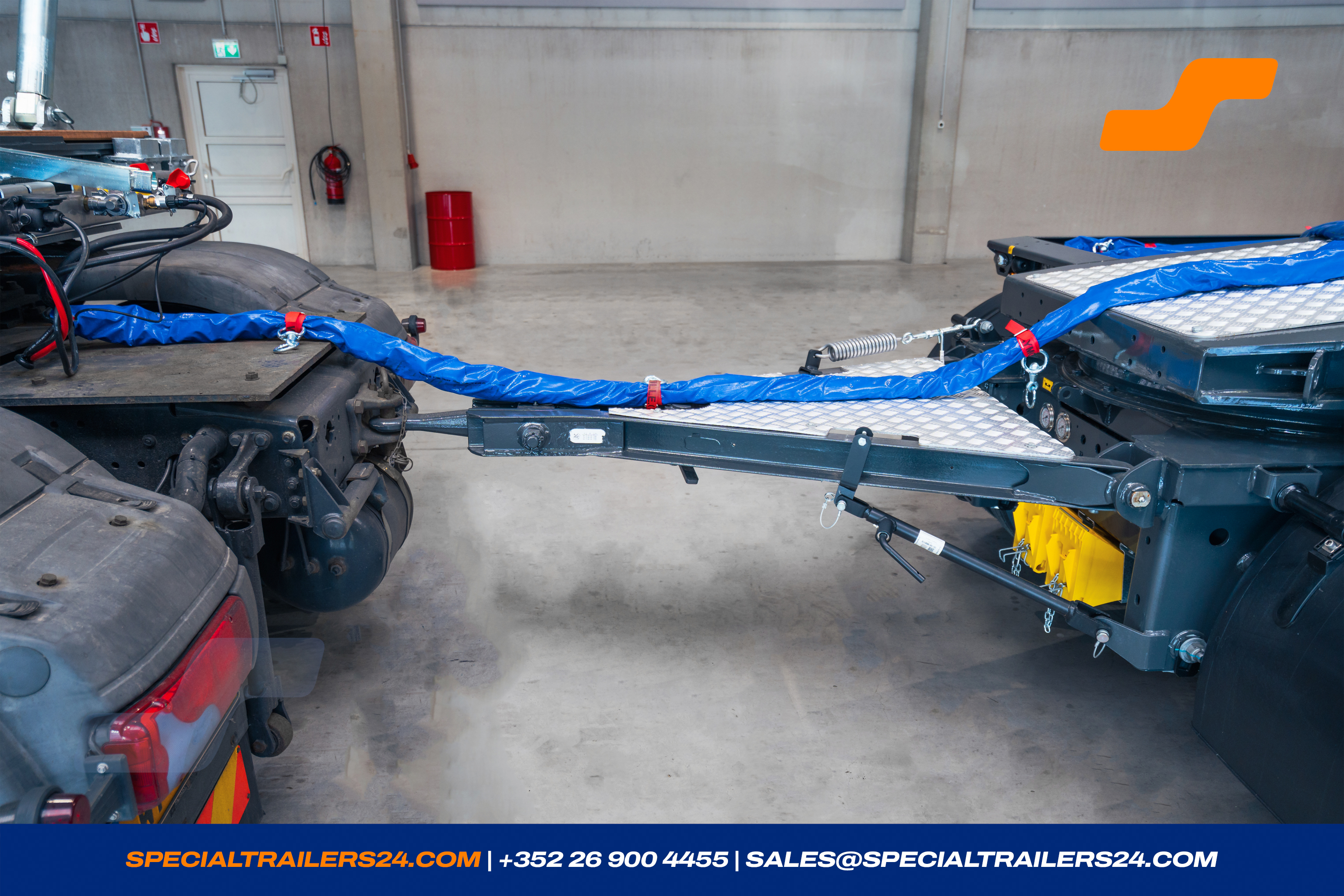

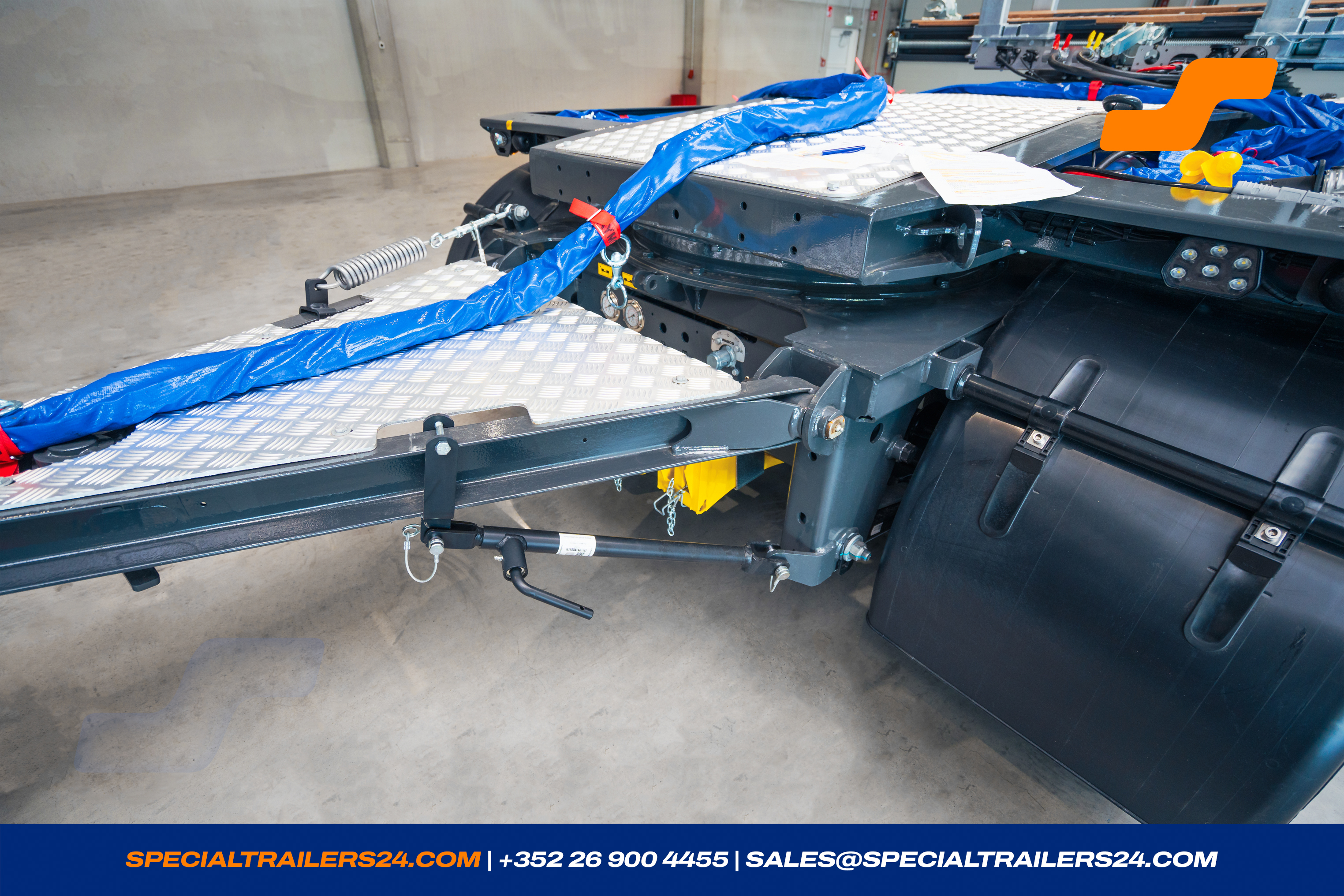

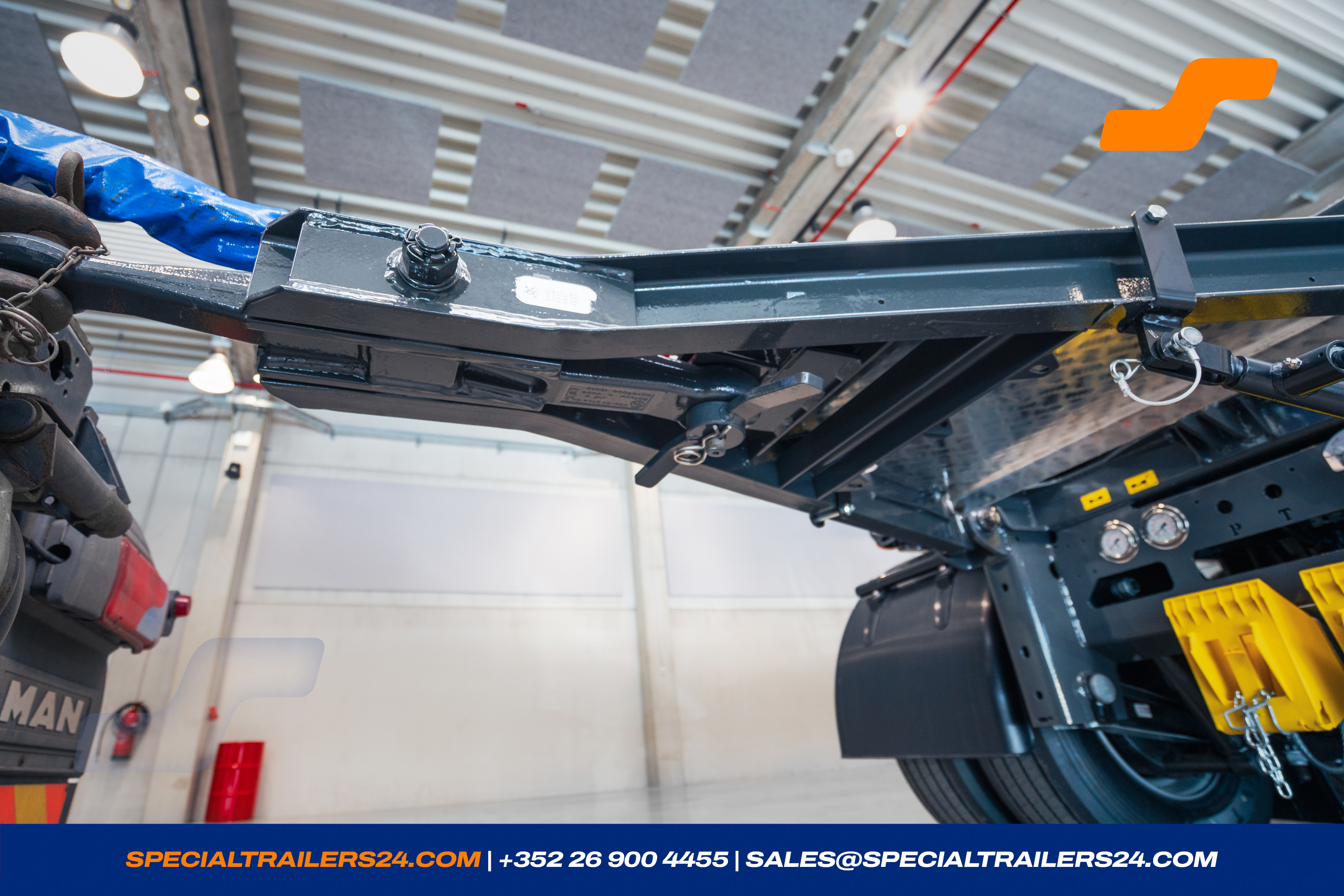

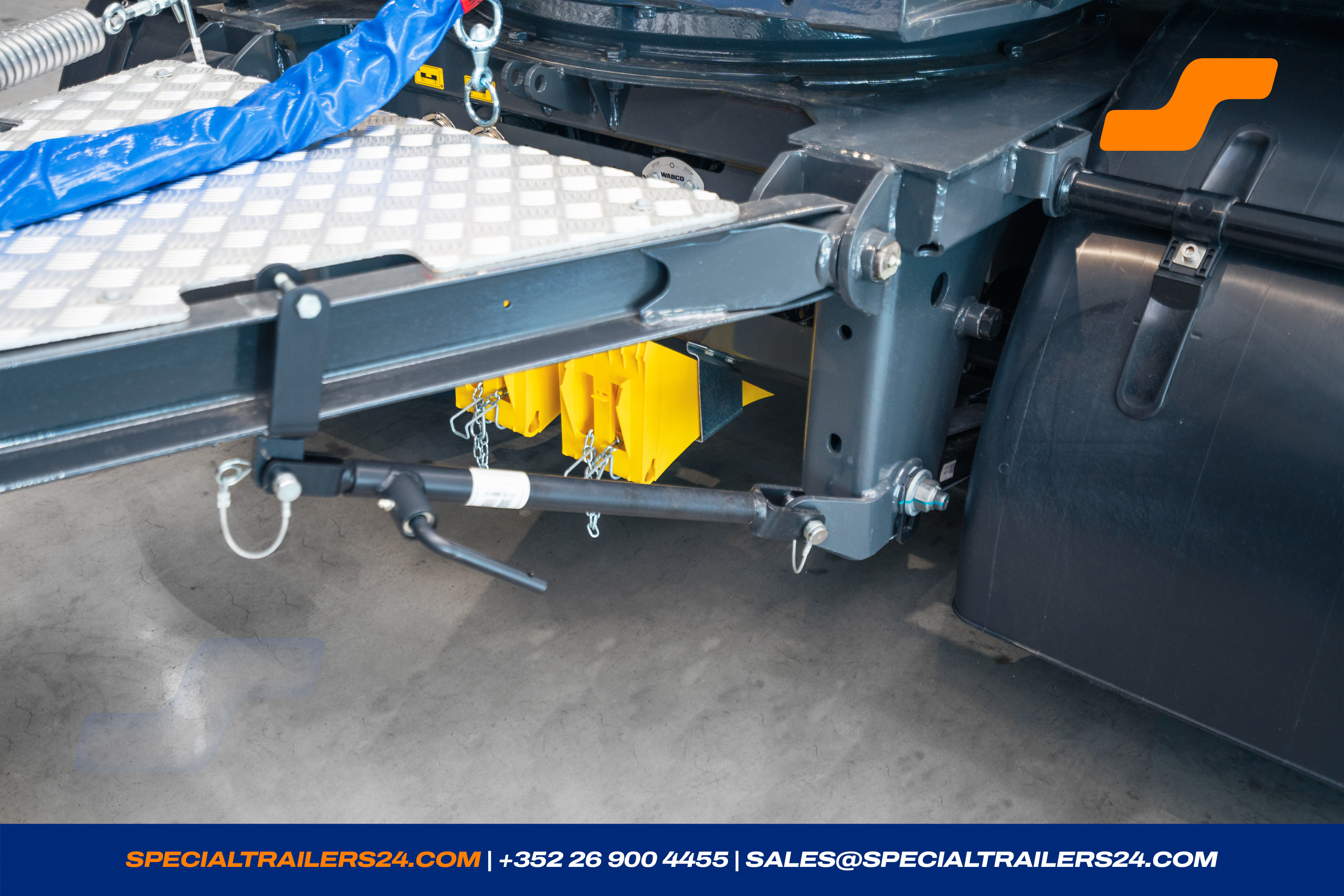

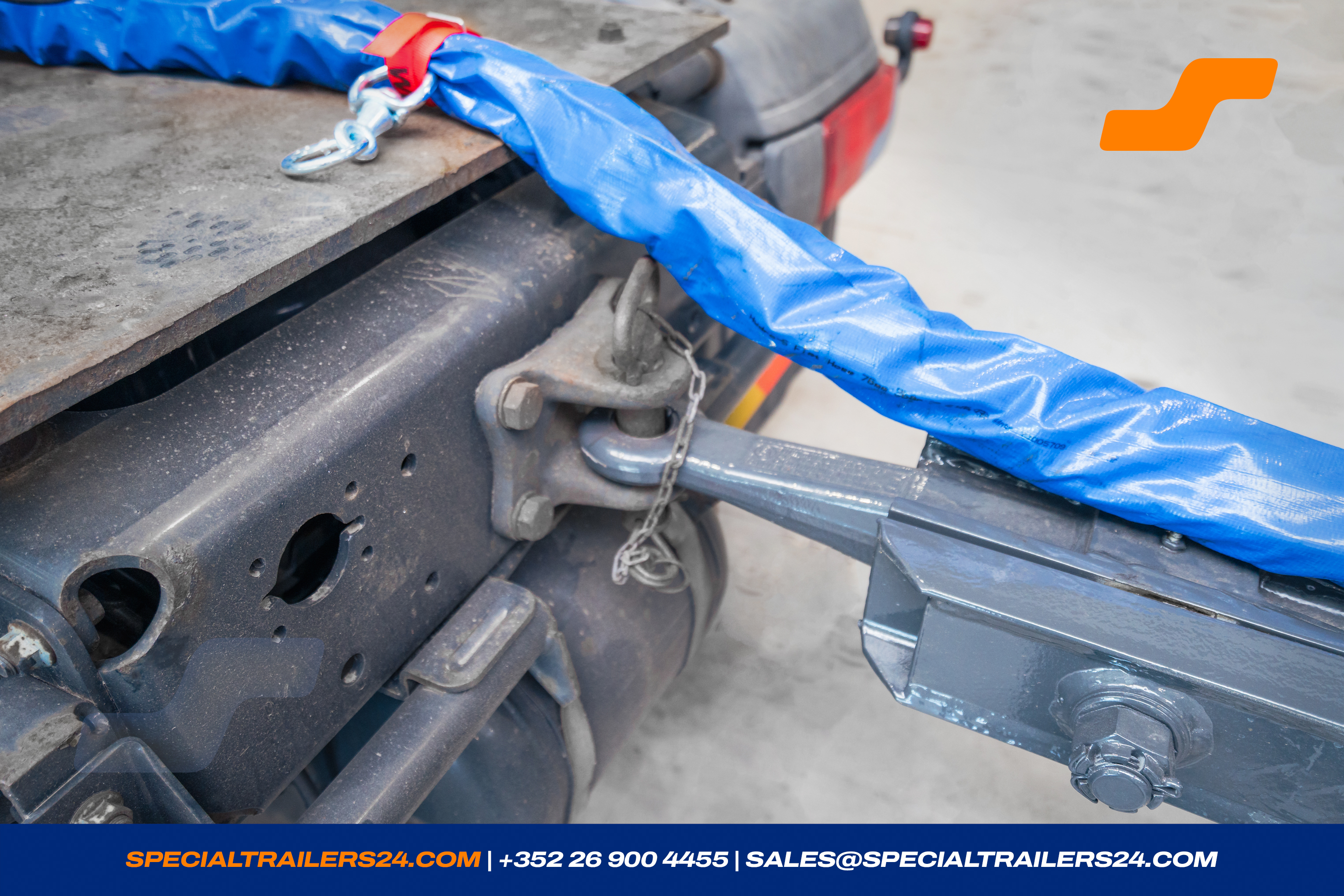

Height adjustable drawbar, length = 1.600 mm with interchangeable towing eye Ø 40mm/50mm

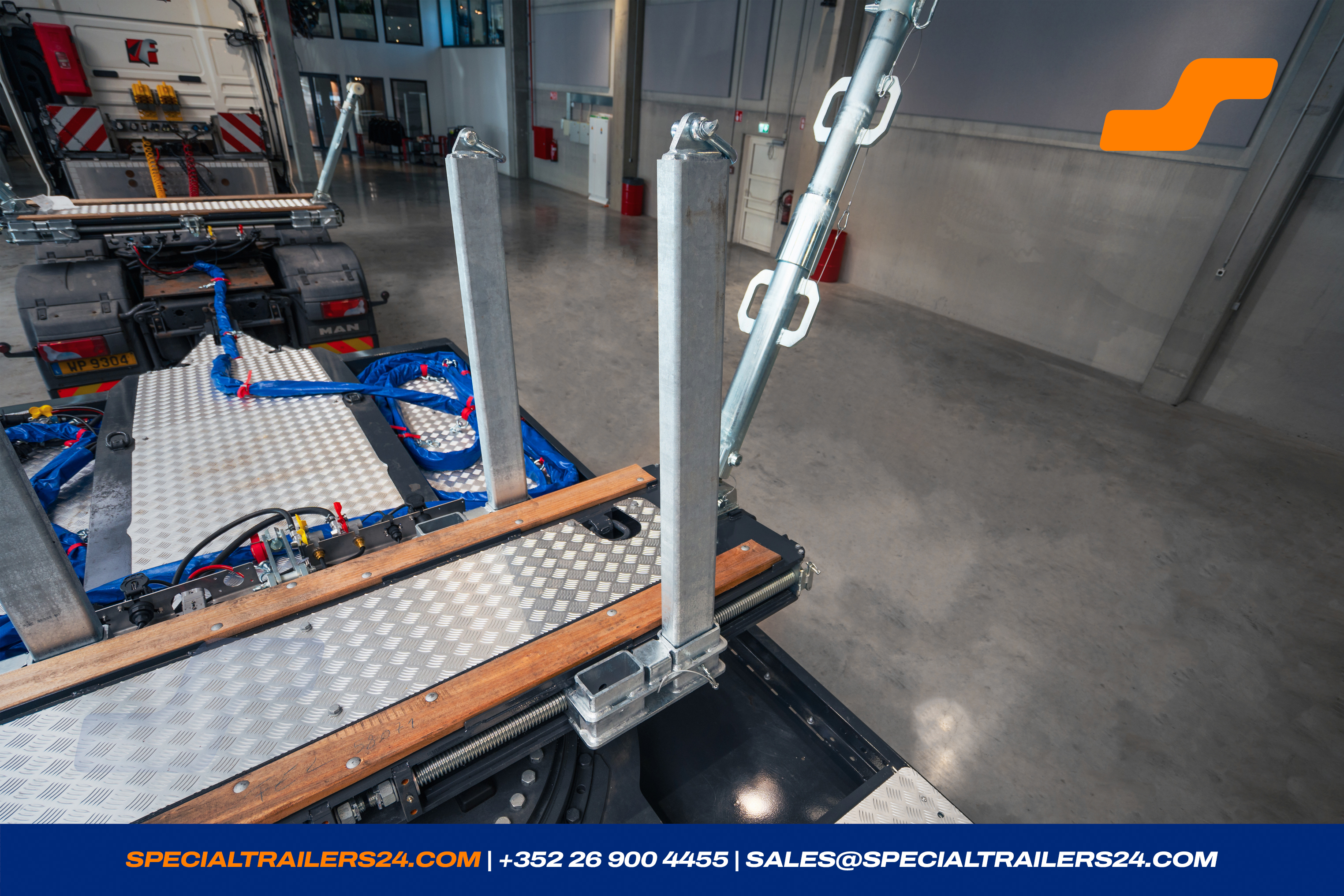

The drawbar can remains in front of the trailer during transport. - 4 stakes, 120 x 60 mm, clear length = 1.000 mm, including eyelet on the top.
-

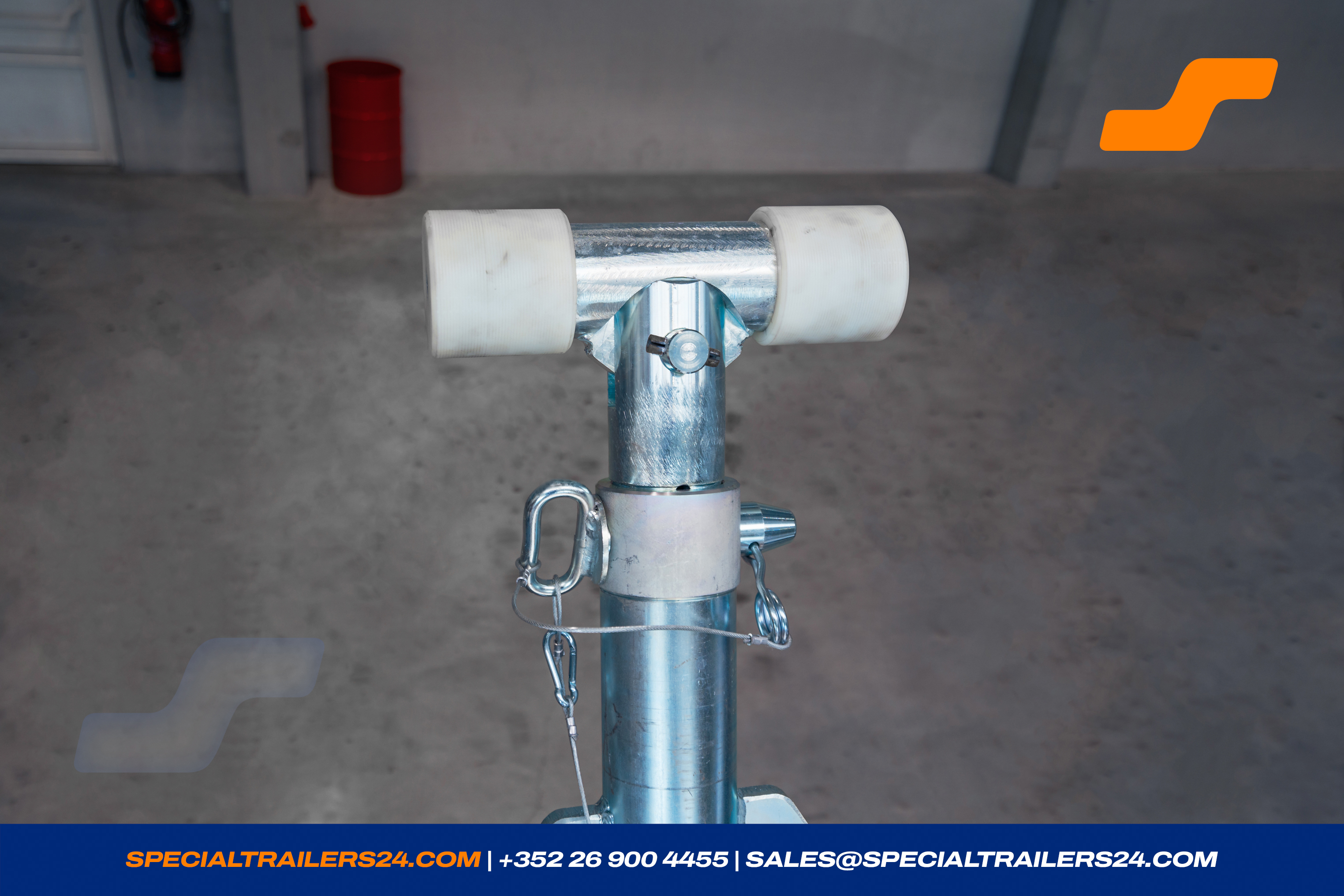

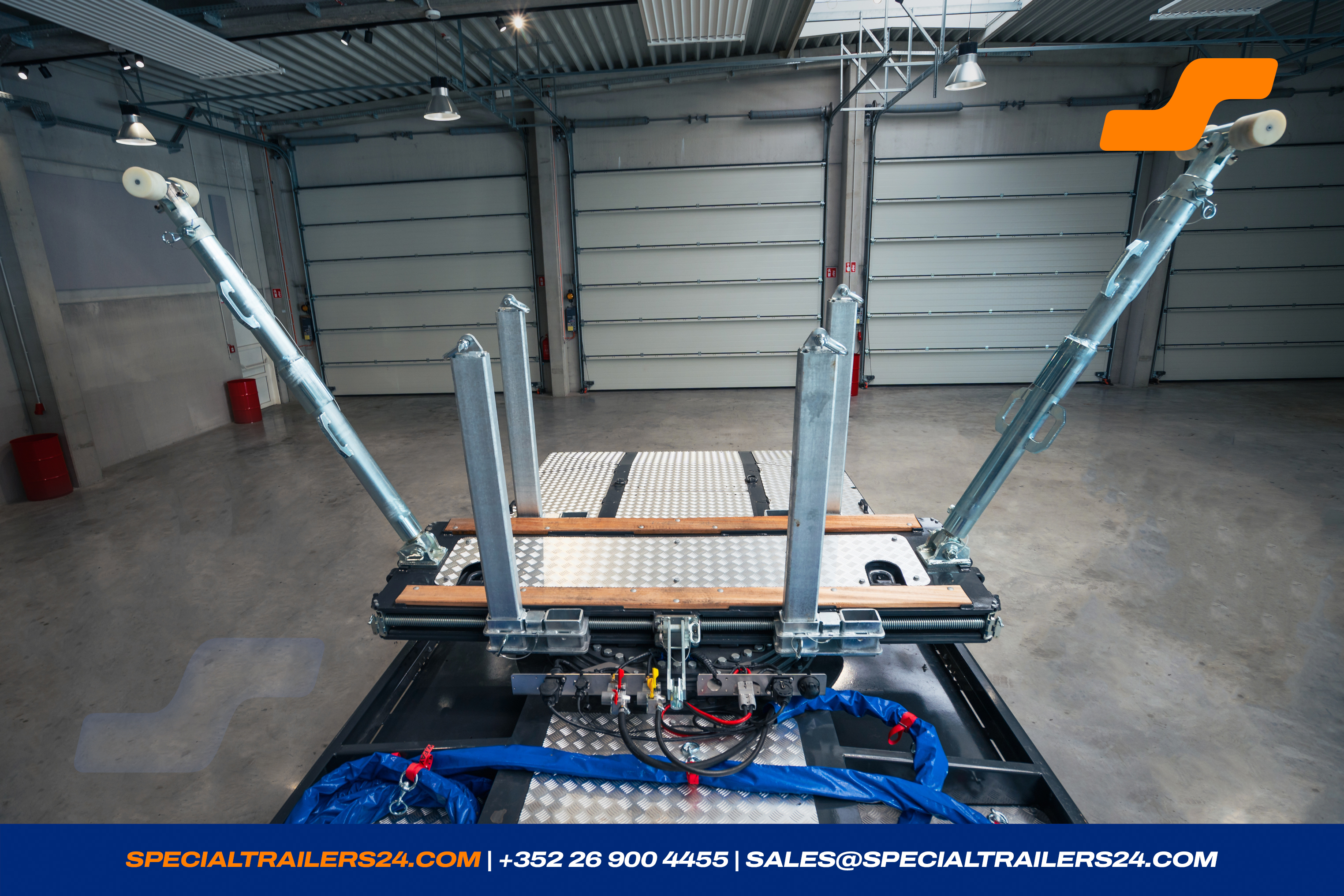

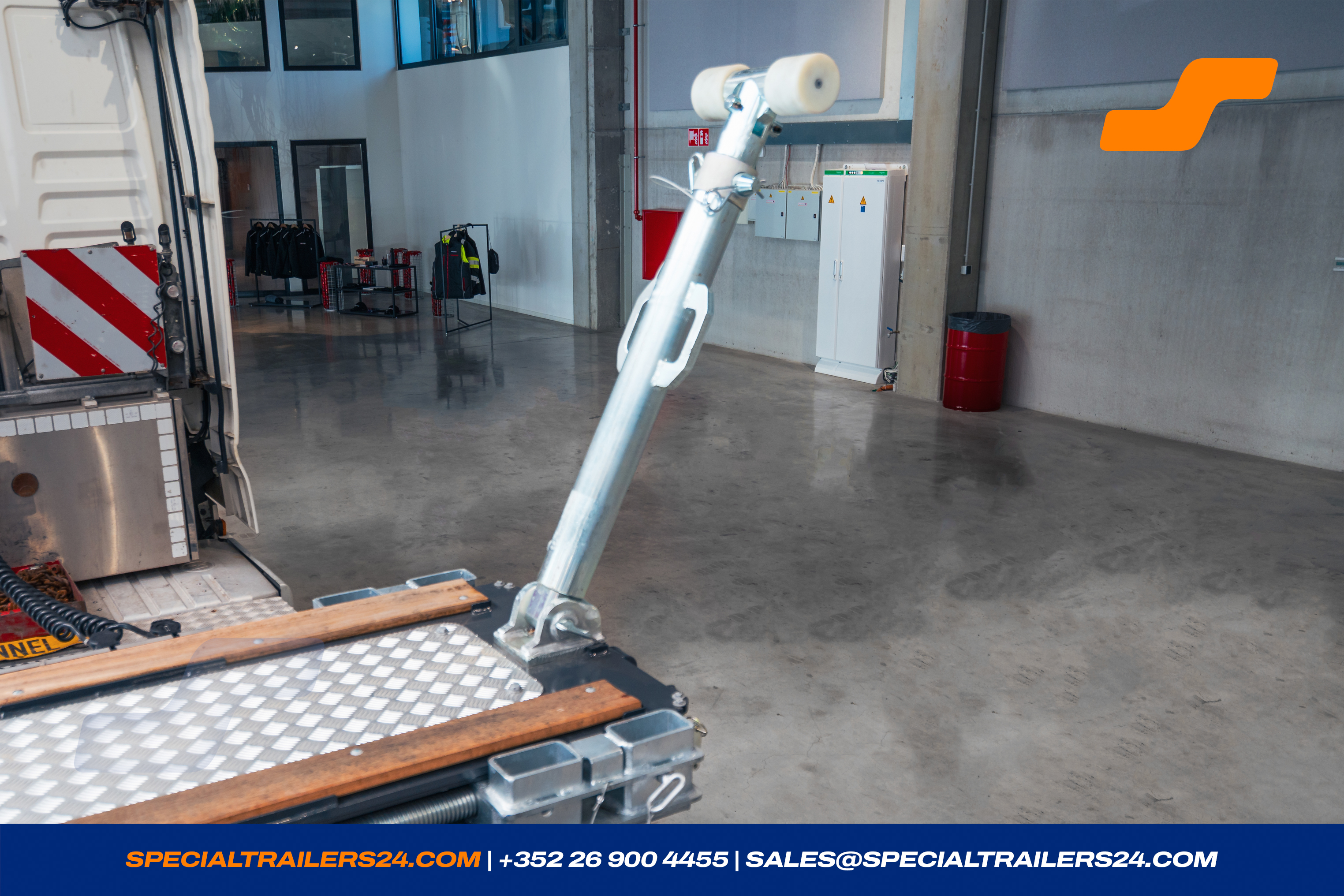

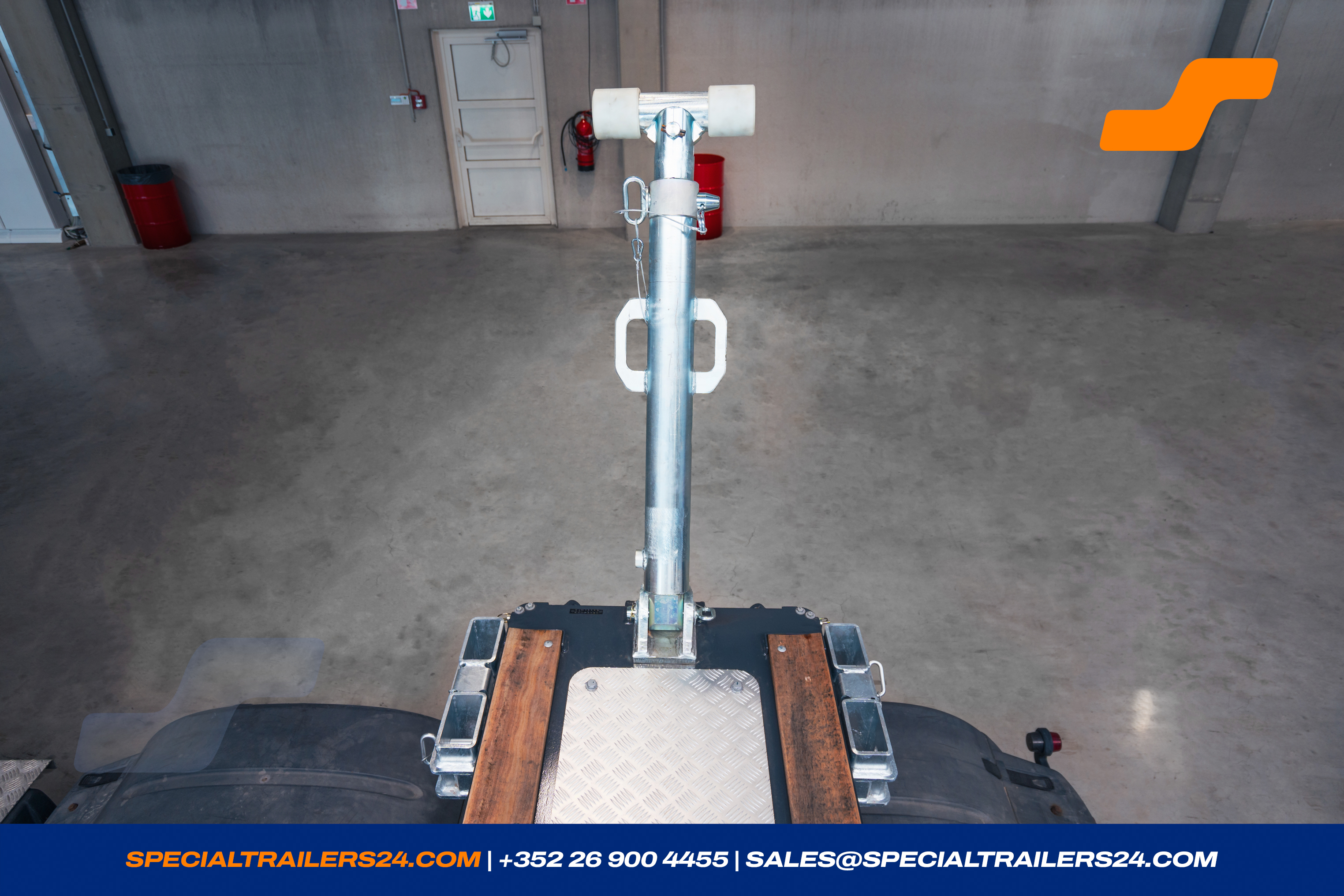

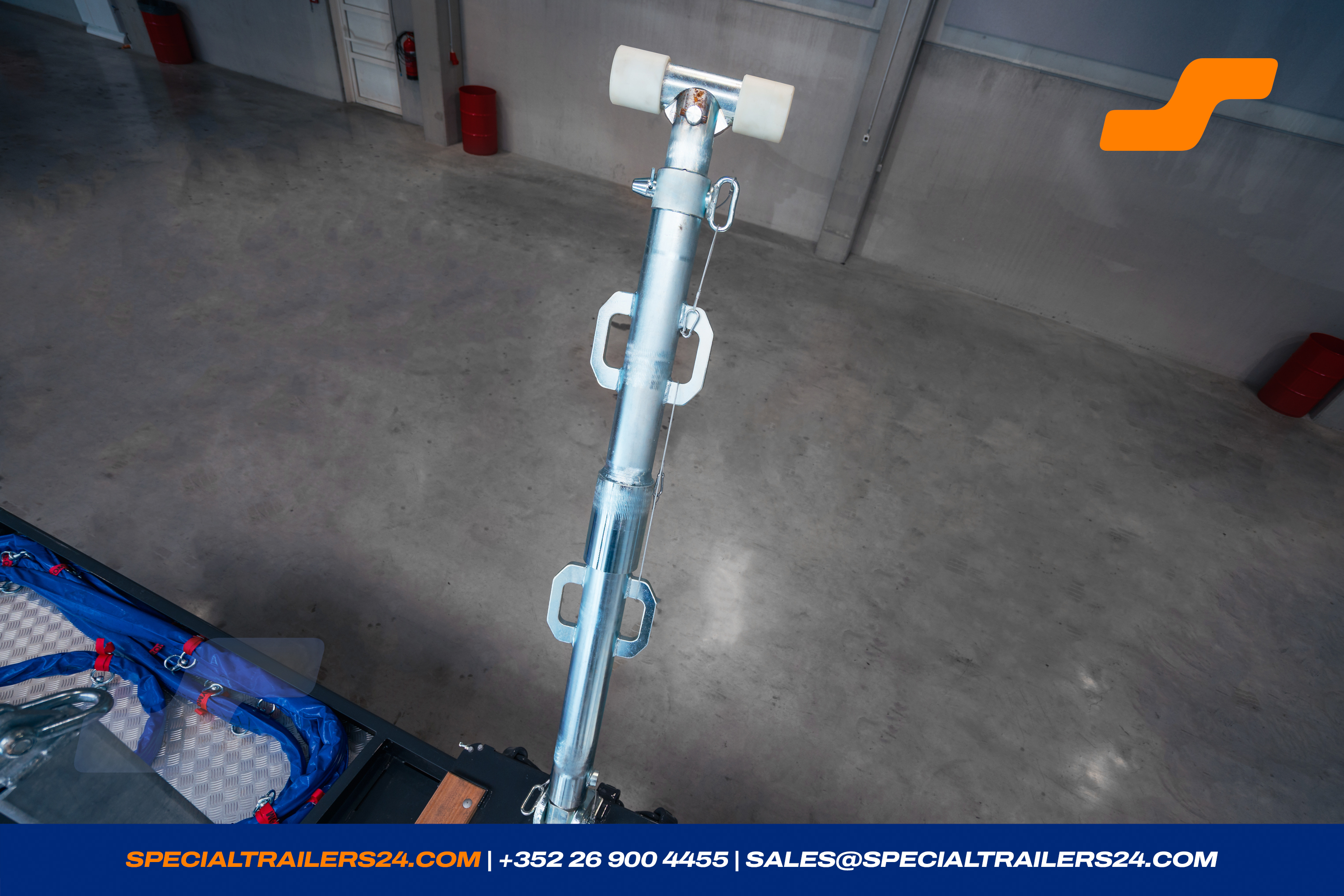

1 pair of telescopic supports to secure the load.
Length approx. 1.100 mm - 1.700 mm. -
1 pair of extensions for telescopic supports to secure the load.
Length with extensions approx. 1.700 mm - 2.200 mm. - Hydraulic steering system optimized for load-support length up to 40 m.
- 2 reinforced manoevring couplings screwed at the rear.

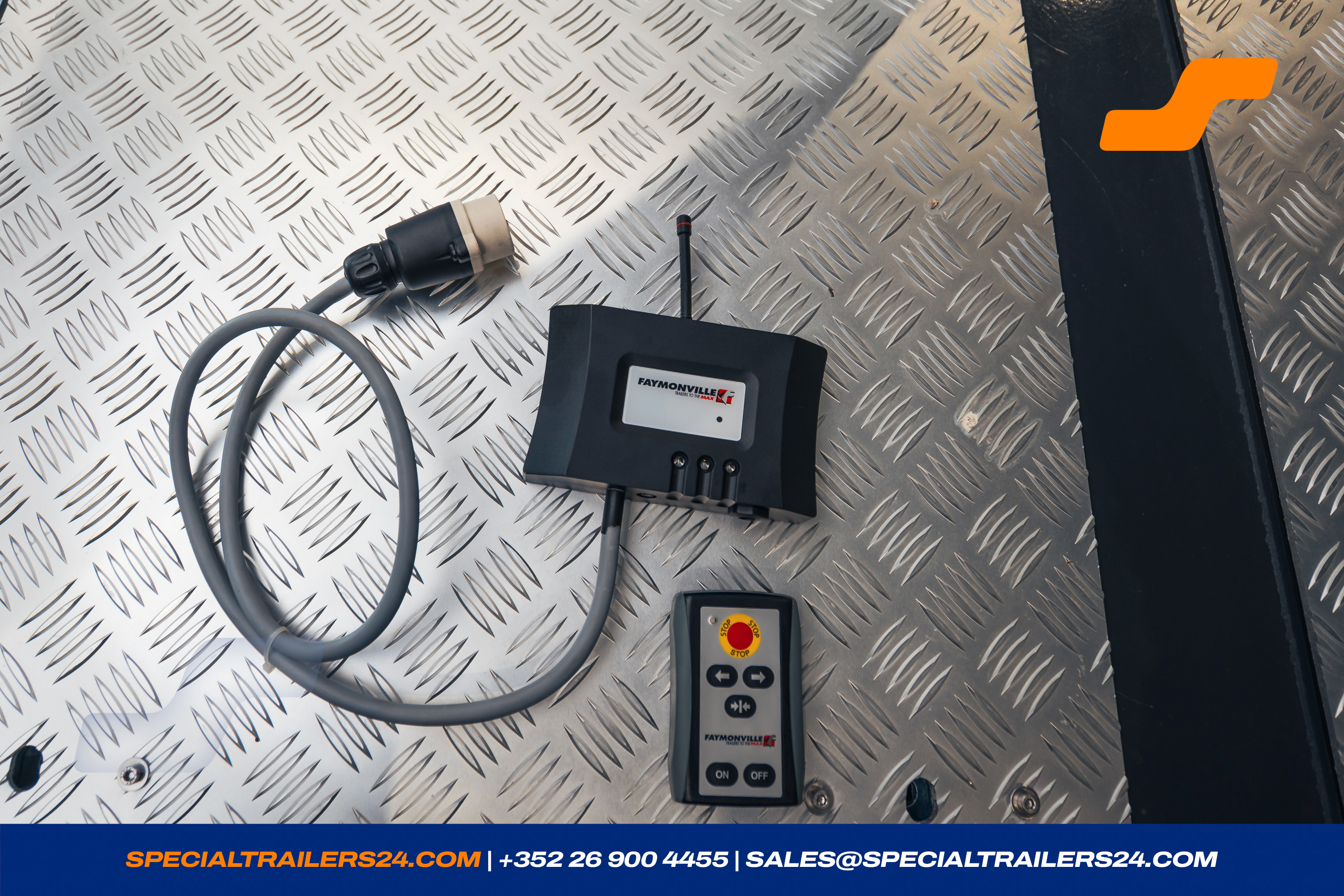

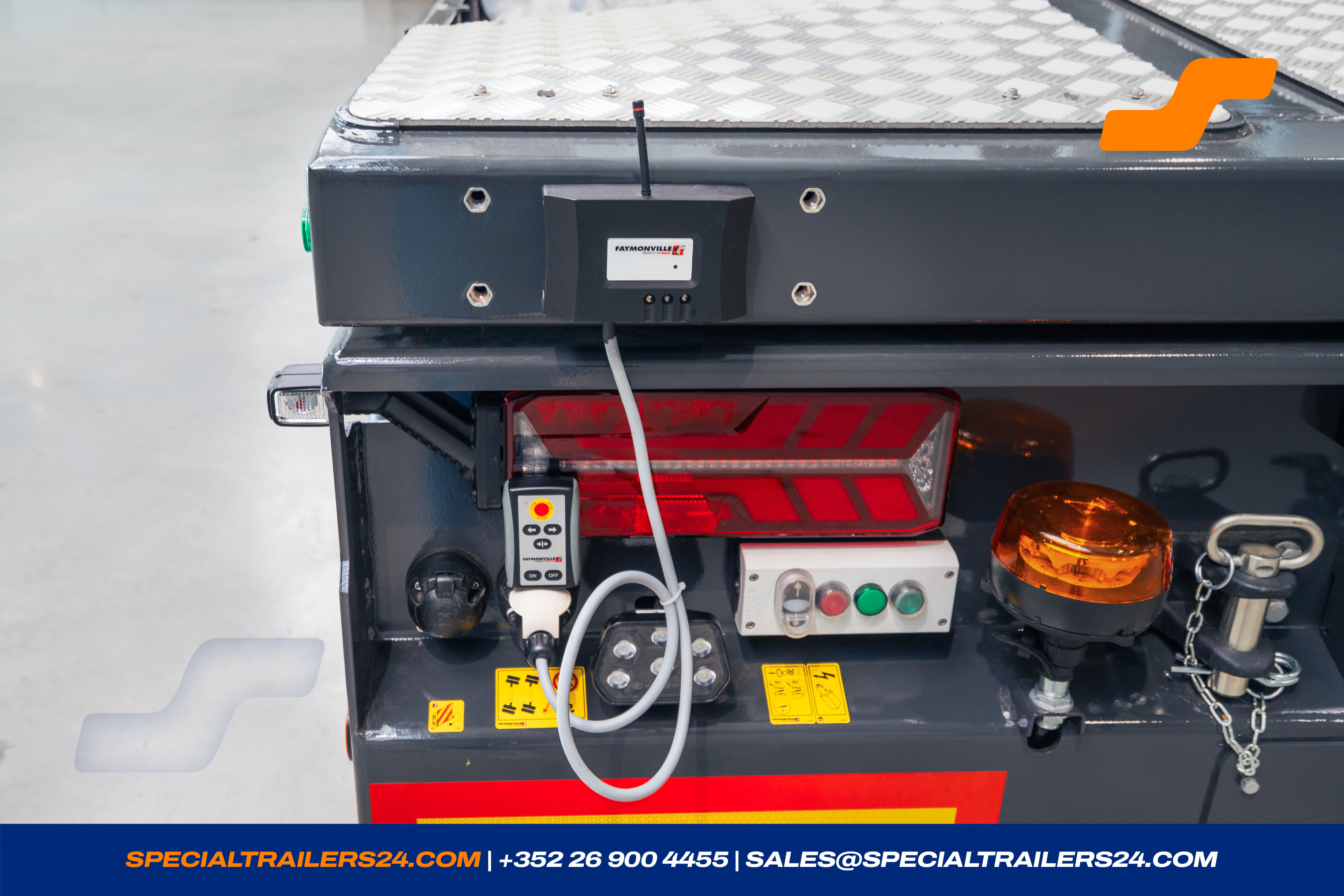

- Wireless remote control for the remote steering, in addition to the cable remote control, with optical realignment indication on the receiver.

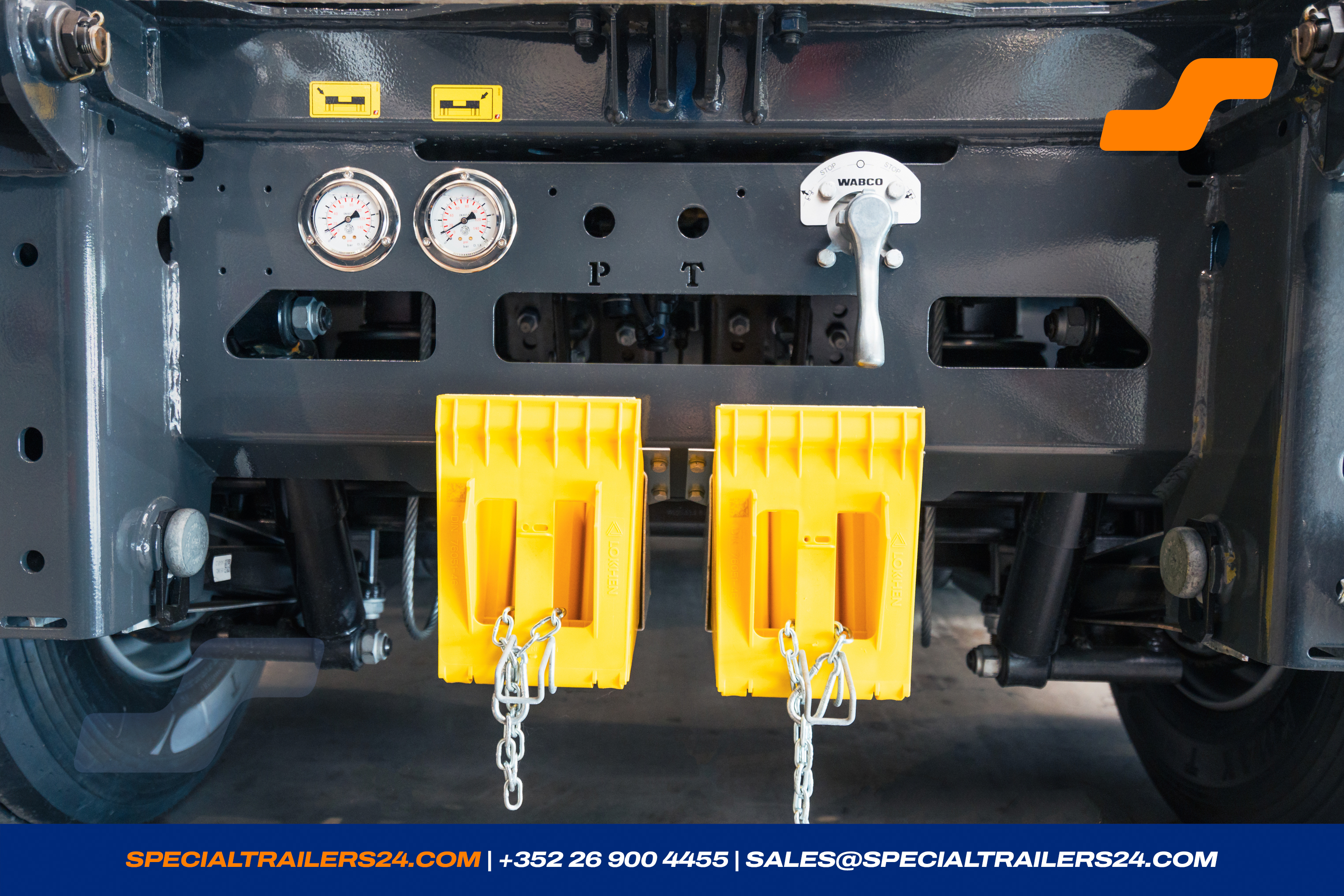

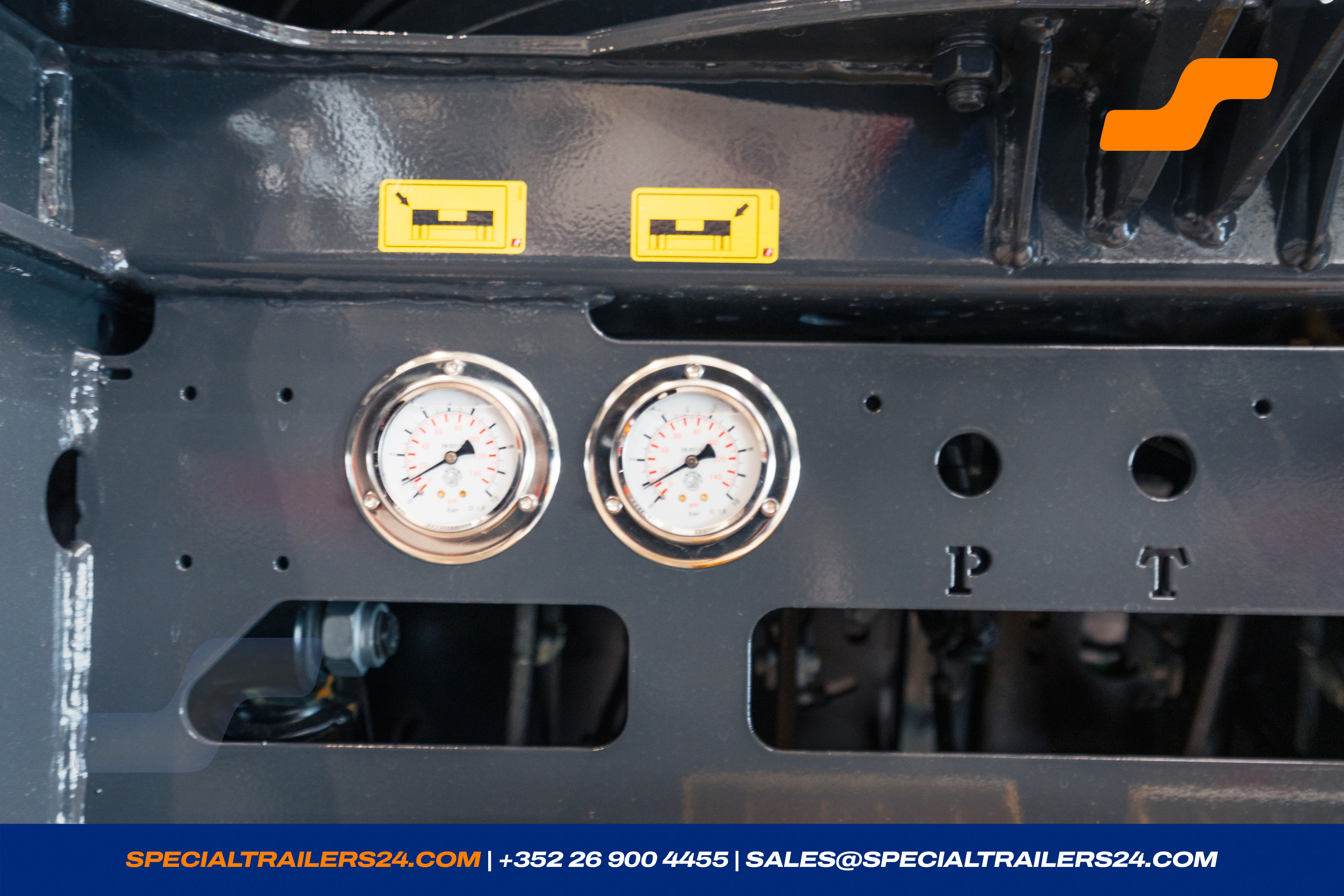

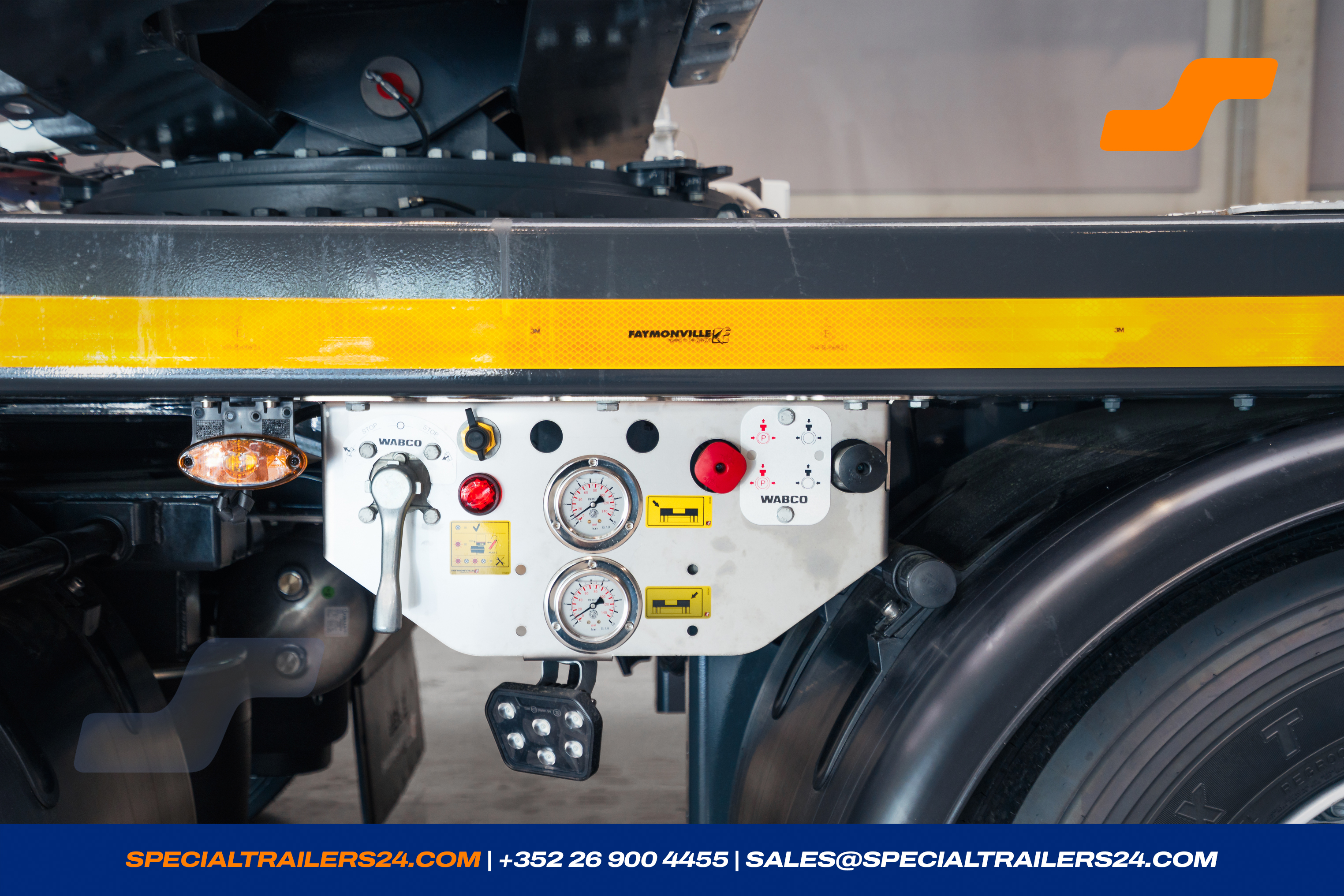

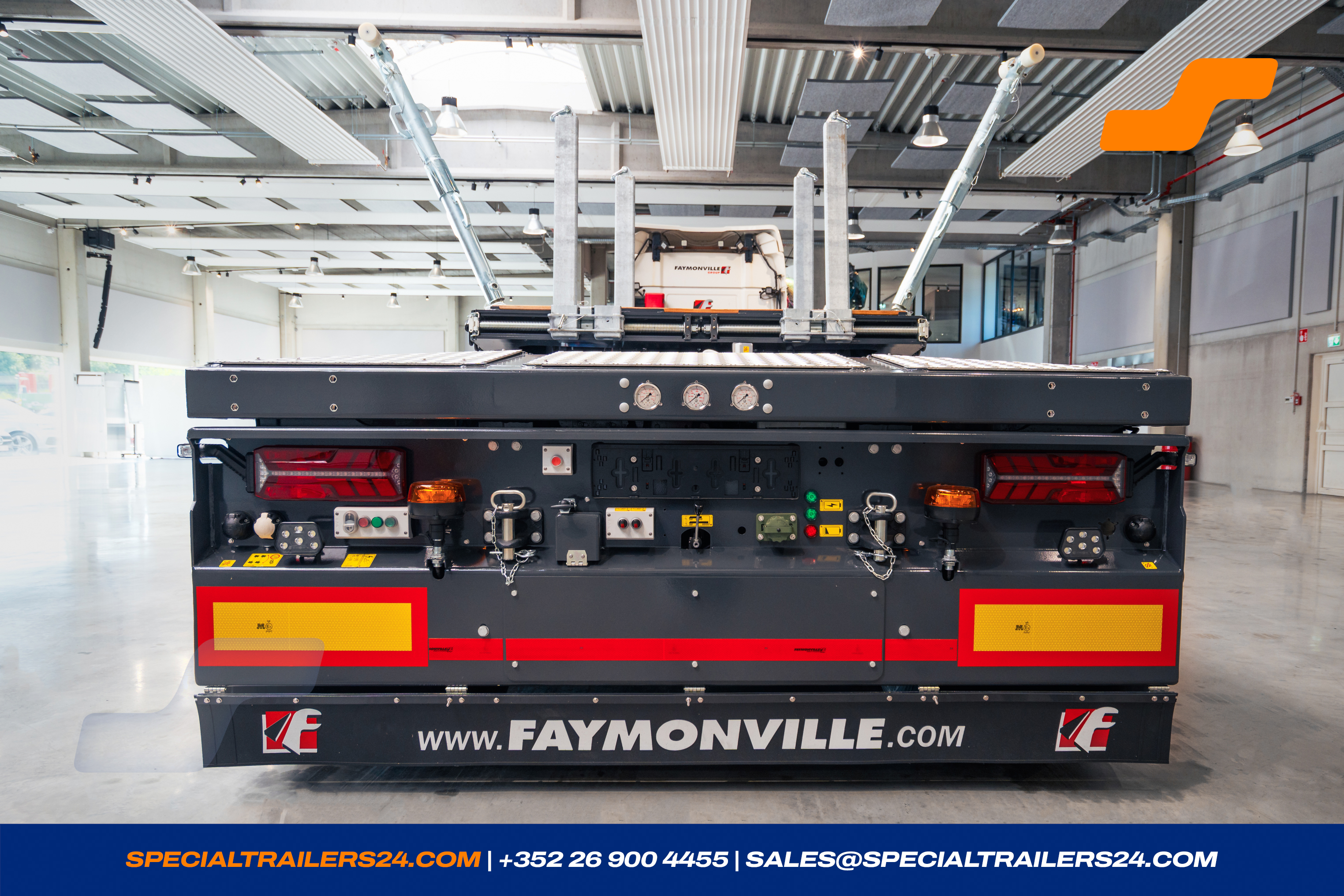

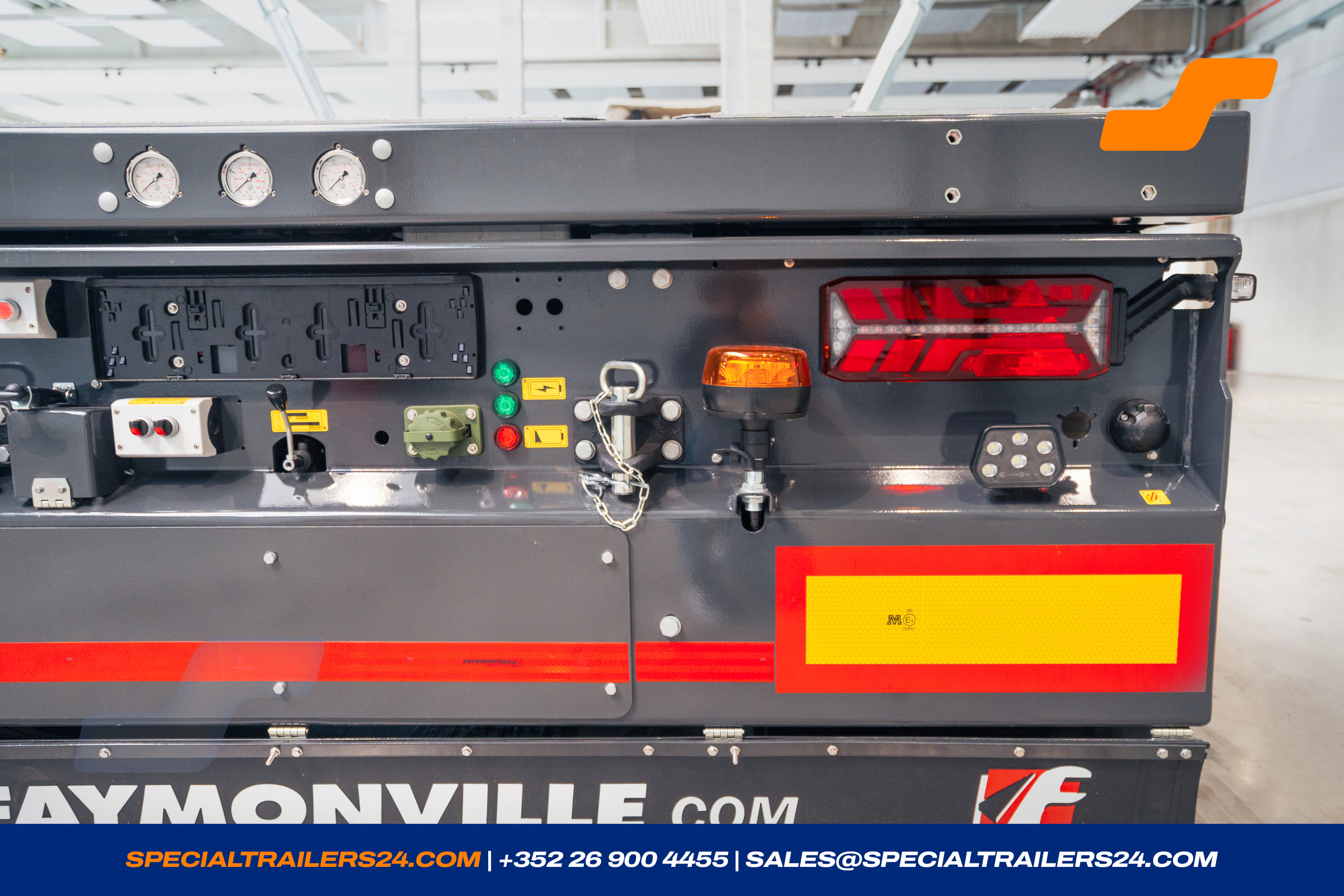

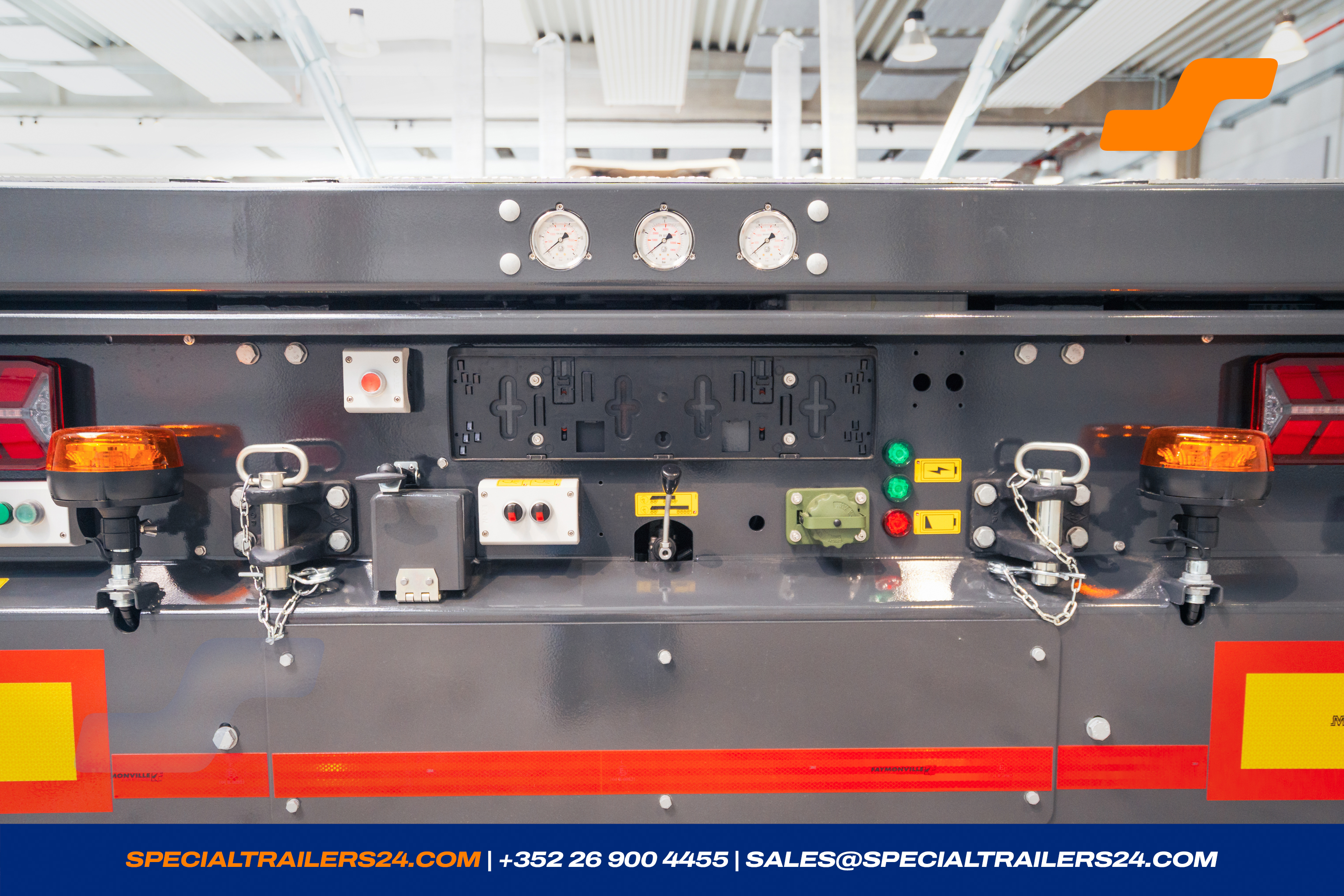

- 2 load manometers for the axle load on each side included axle load graph.
- EU-reflector at the rear end.

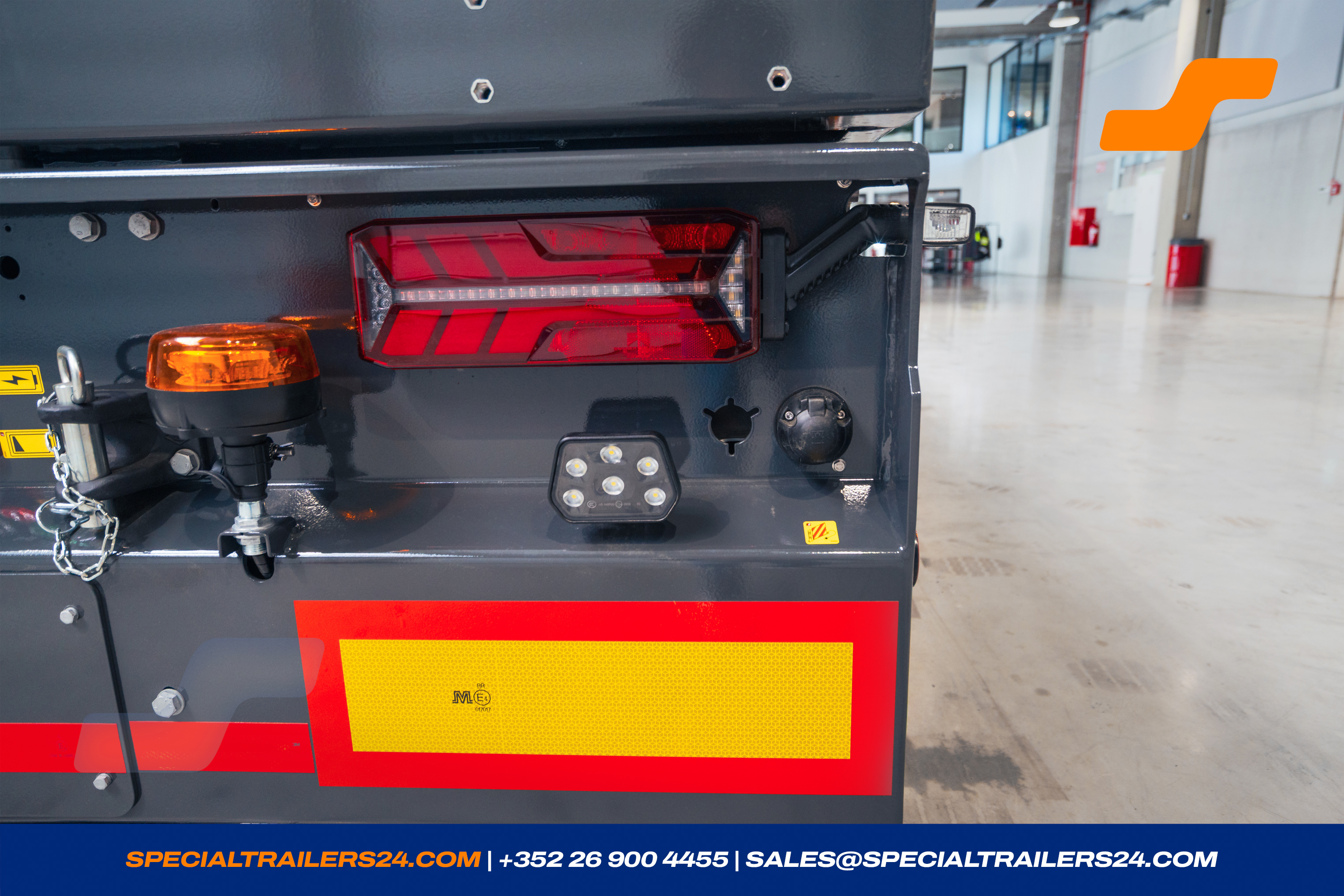

- 1 LED flashing beacon light on the left and right side at the rear of the trailer.
- 3.5 king-pin to deliver separately.
-
1 pair of telescopic supports to secure the load for the loading bolster of the truck.
Length approx. 1.100 mm - 1.700 mm. -
1 pair of extensions for telescopic supports to secure the load for the loading bolster of the truck.
Length with extensions approx. 1.700 mm - 2.200 mm.

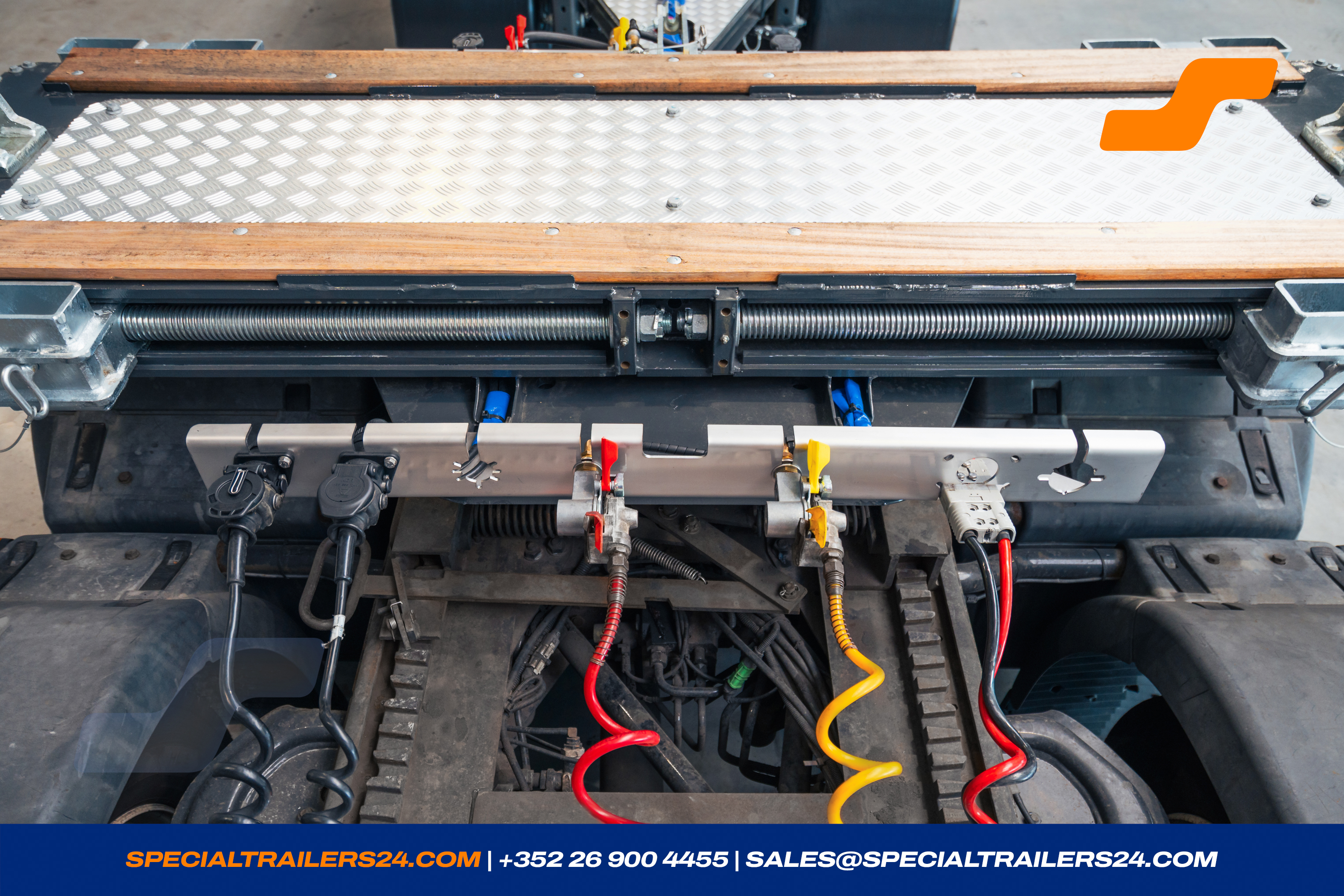

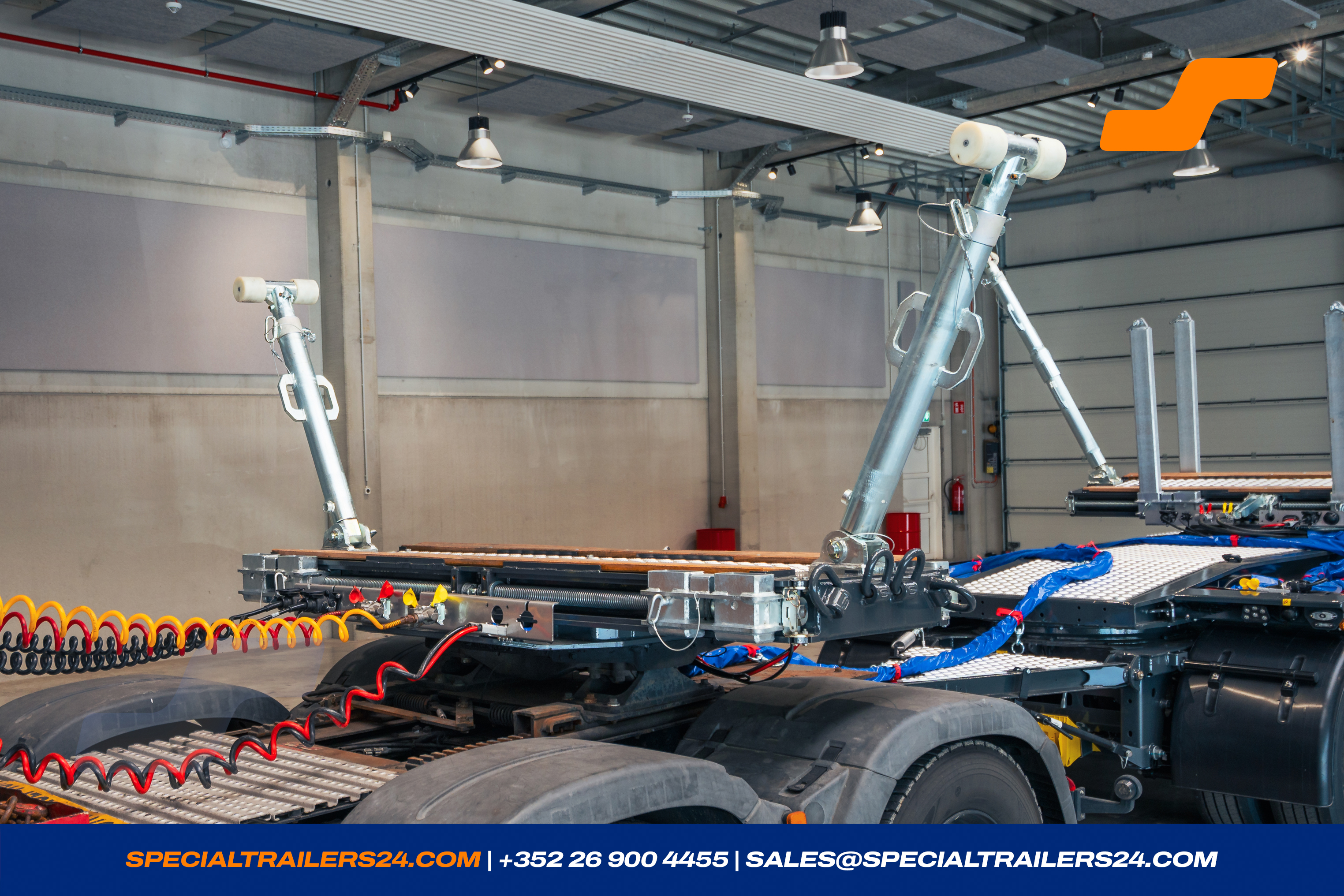

Loading bolster:
1 x Loading bolster:

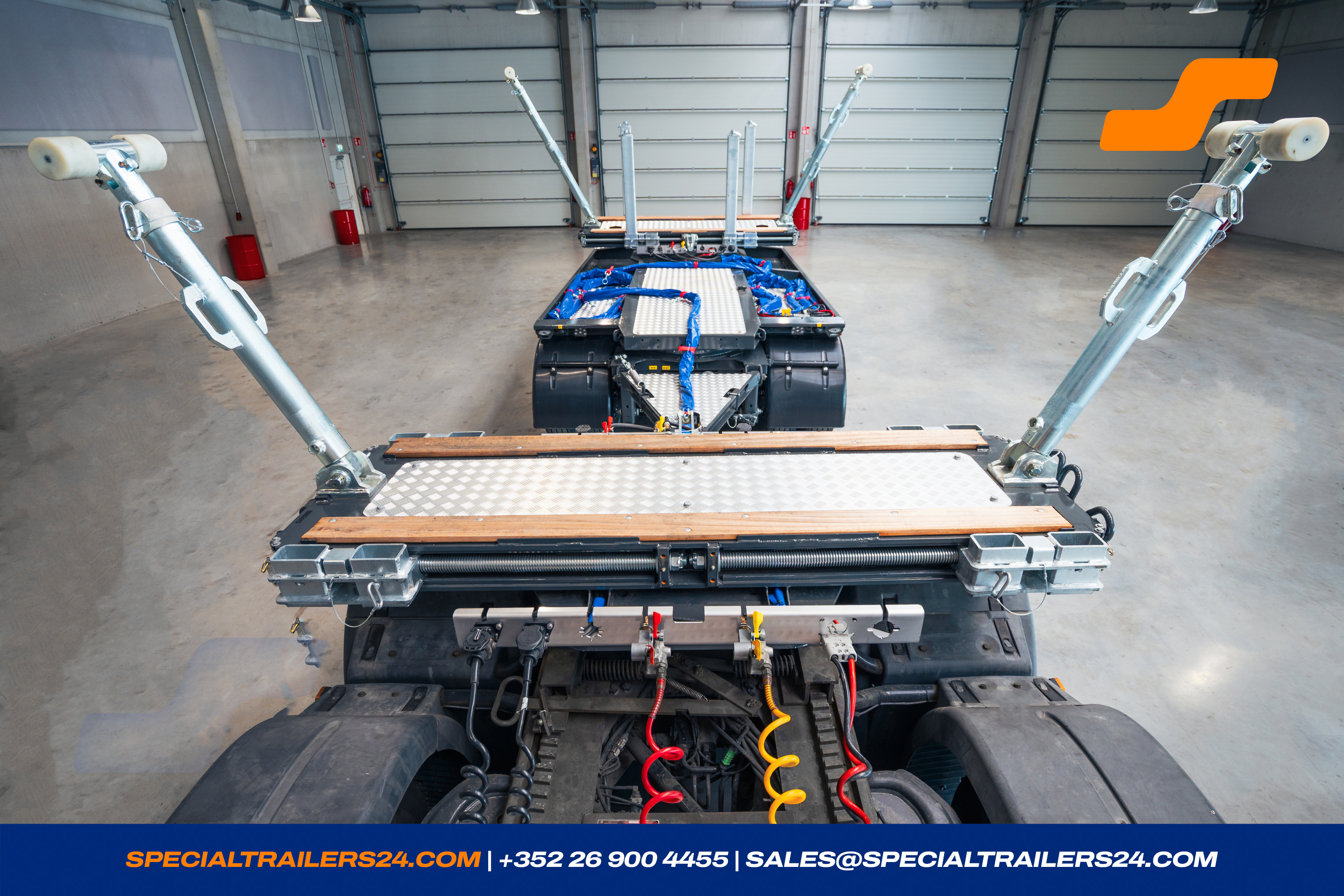

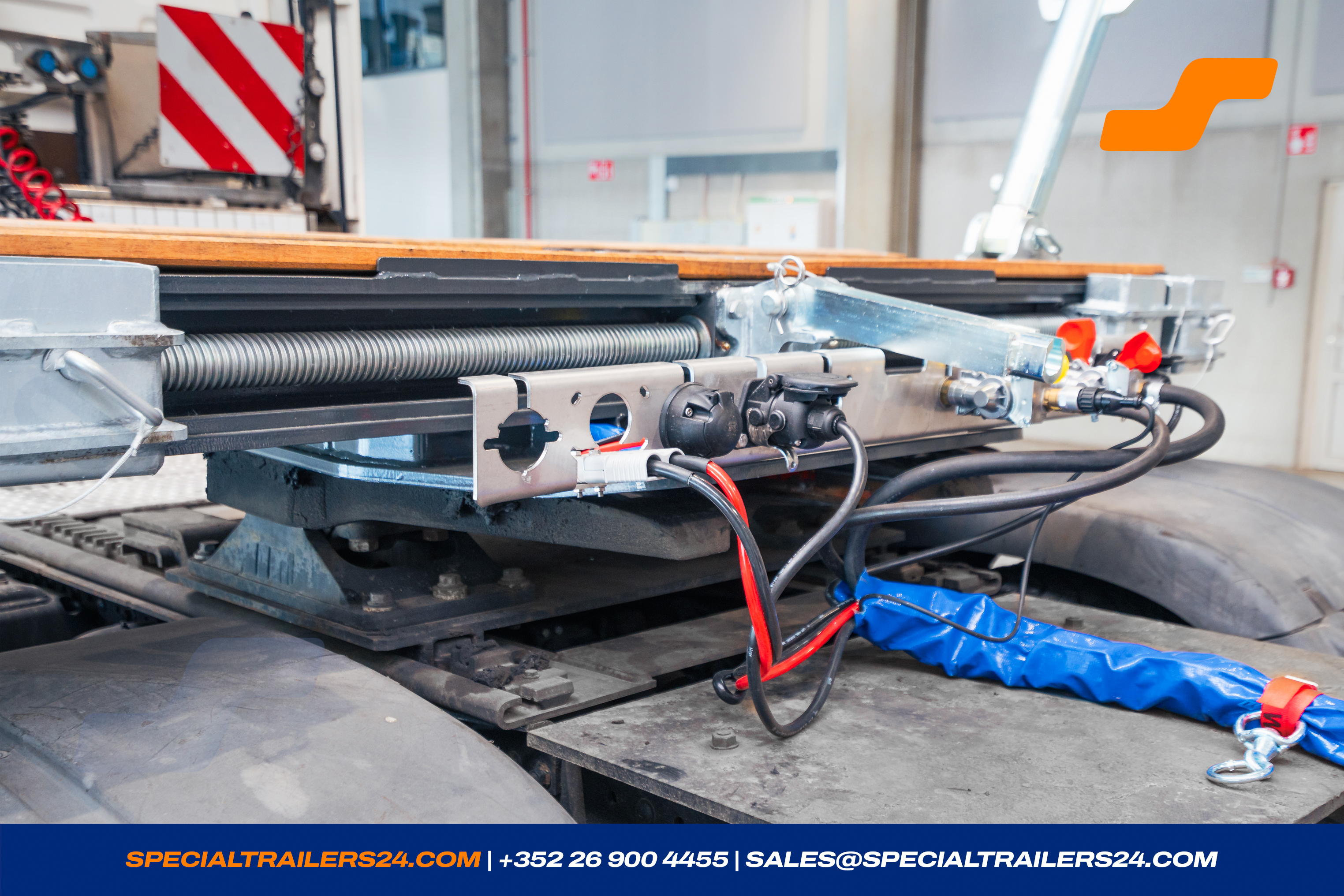

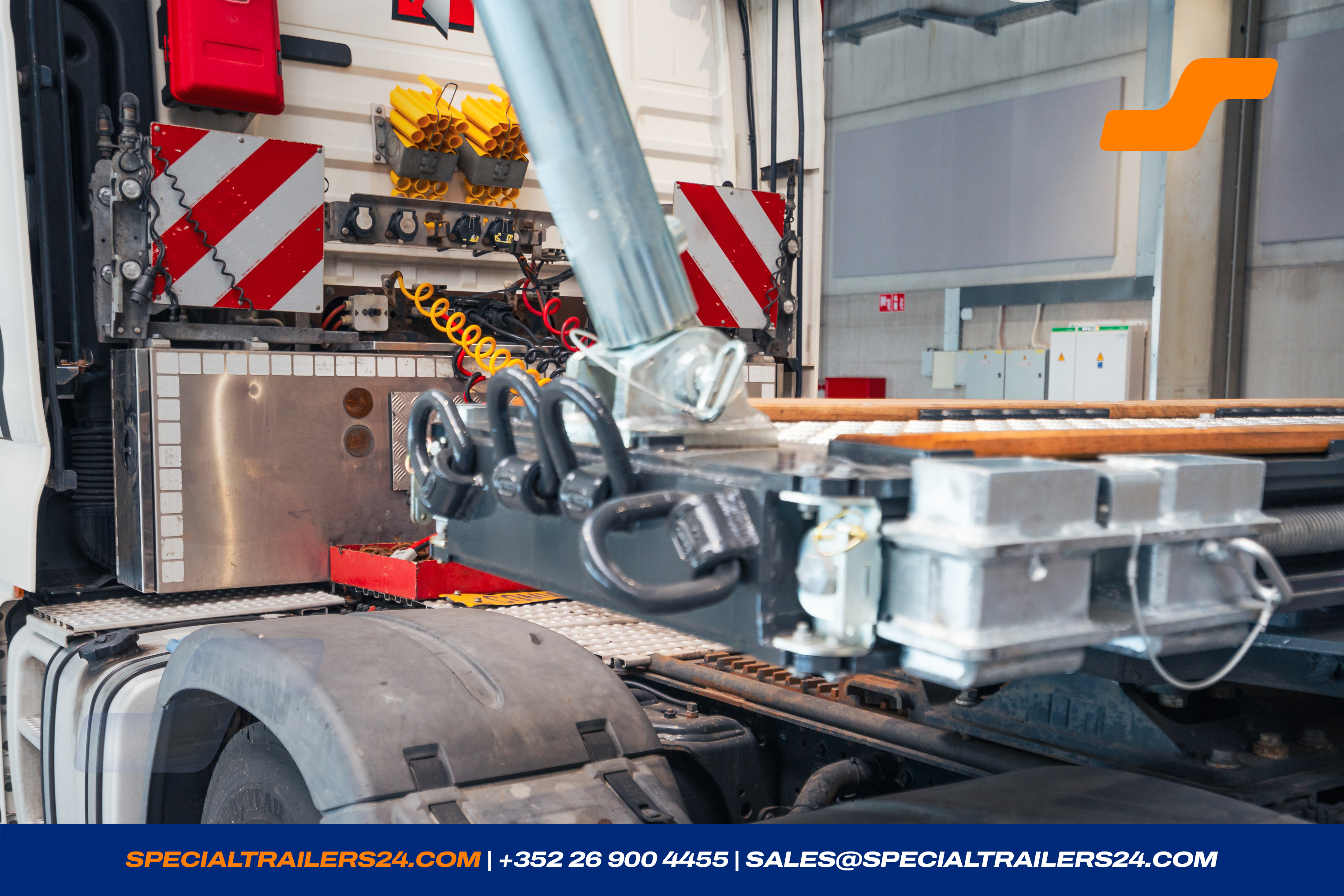

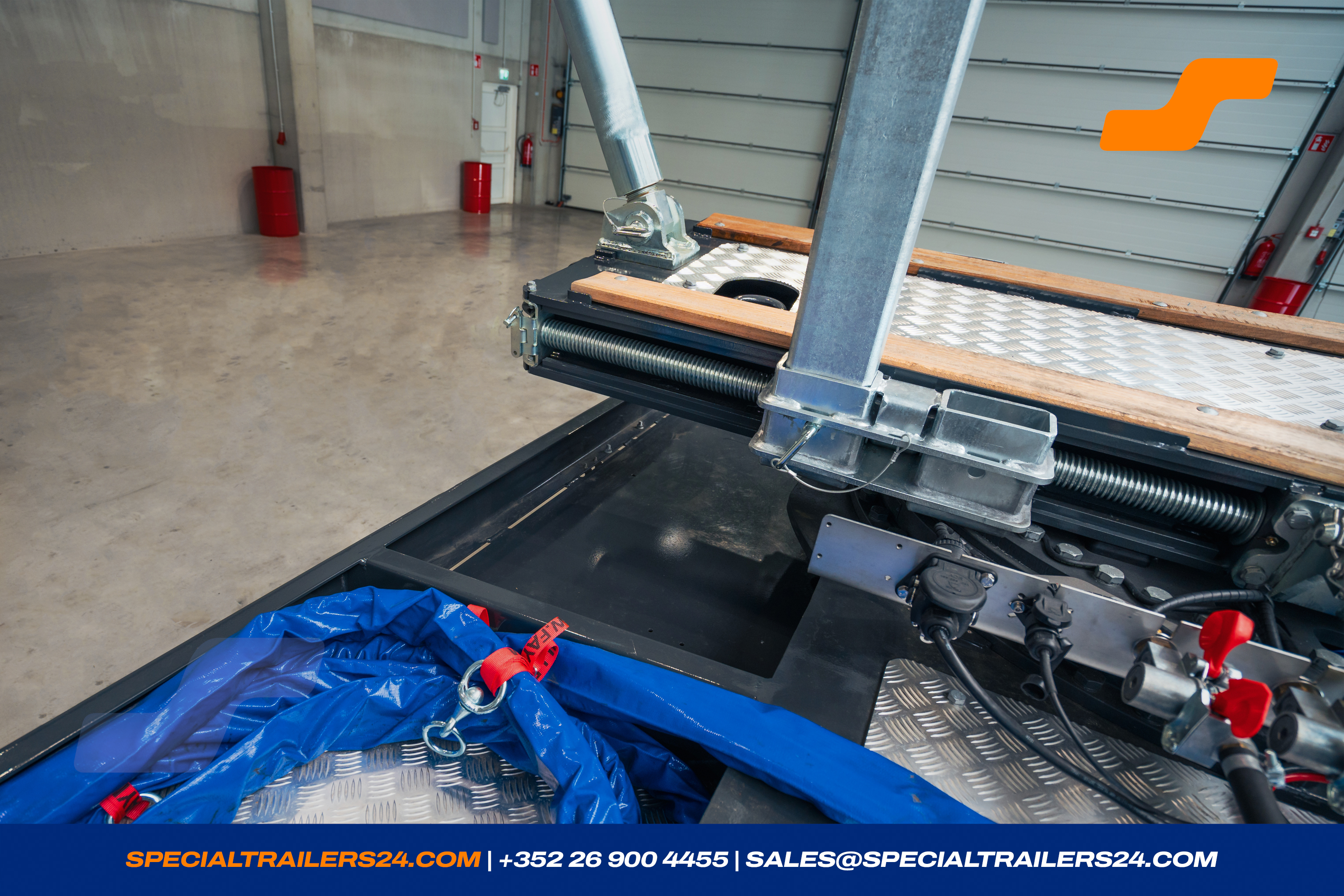

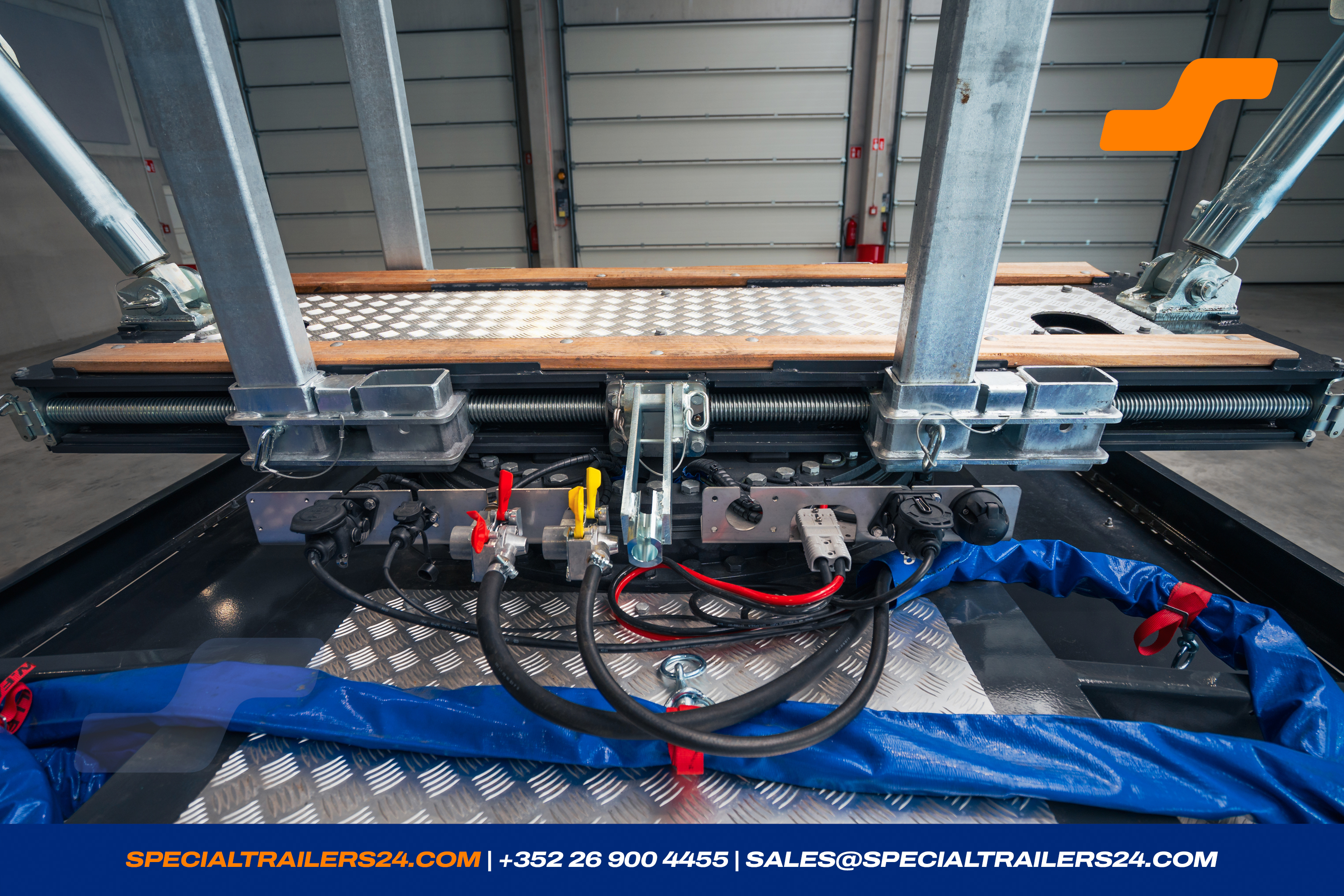

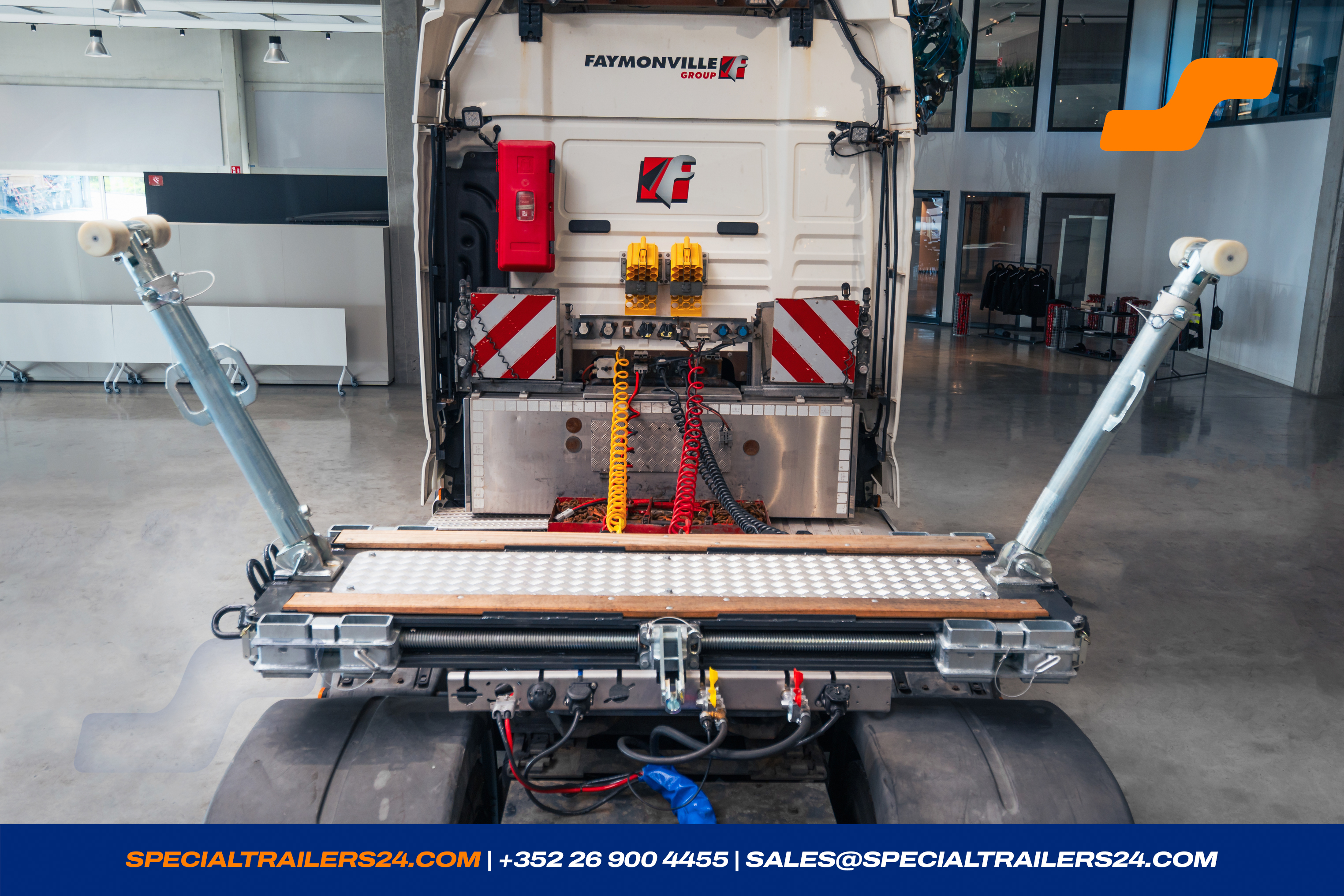

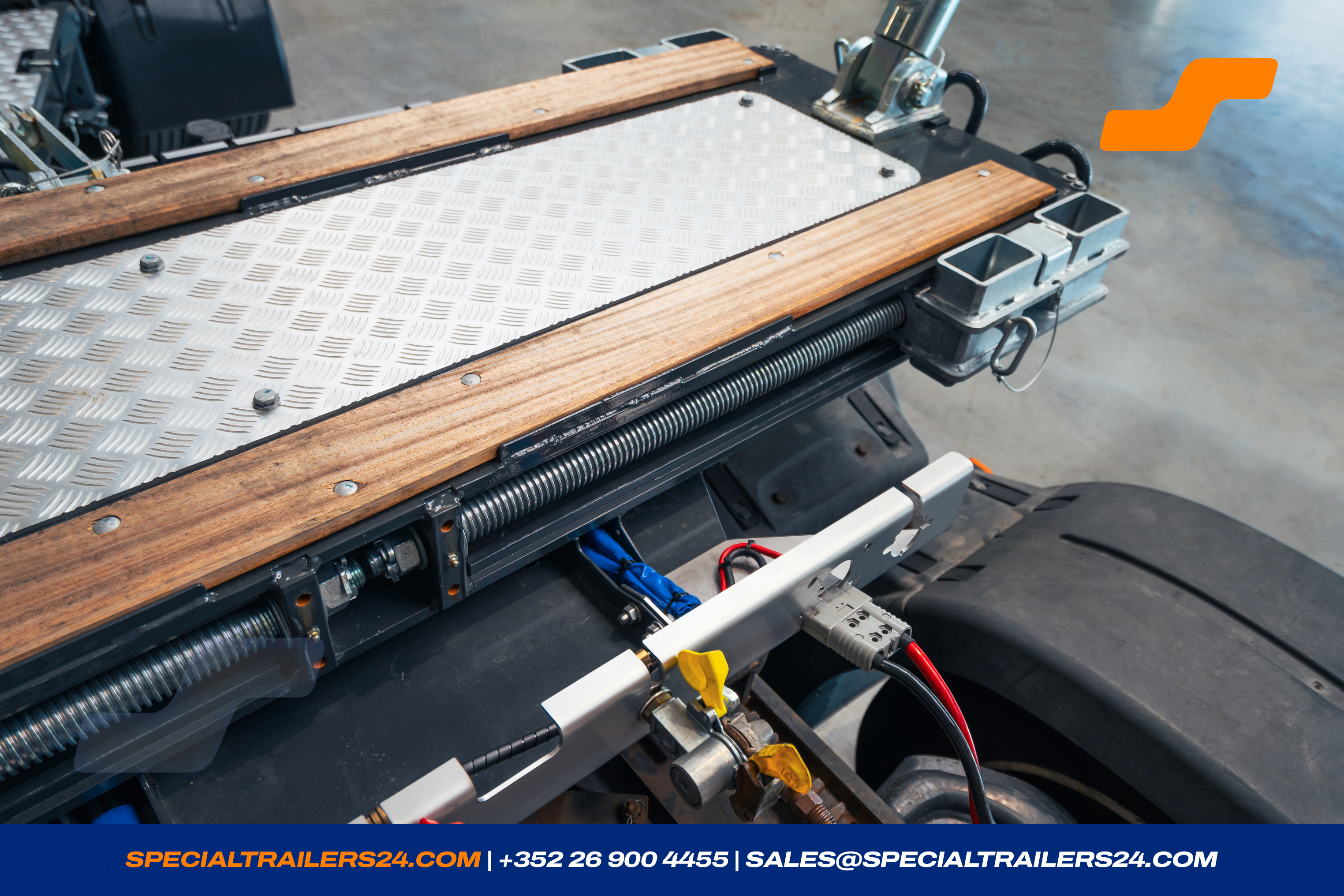

1 Loading bolster for the truck with 2 pairs of screw-type double stake pockets for stake ± 120 x 60 mm, min. ± 220 mm and max. ± 2.050 mm width.
The clear stake distances are in longitudinal direction ± 740 mm.
8 pieces of lashing rings on the side of the turntable (LC 10.000 daN).
1 crank.
** Payload: ± 50.000 kg
** Tare weight: ± 800 kg
** Total width: ± 2.550 mm
** 2 Kingpin
Accessories
1 x Accessory
FlexMAX-Accessories
- To consider : All accessories and special equipments increases the tare weight of the semi-trailer and decrease the payload.
- Manual and description :

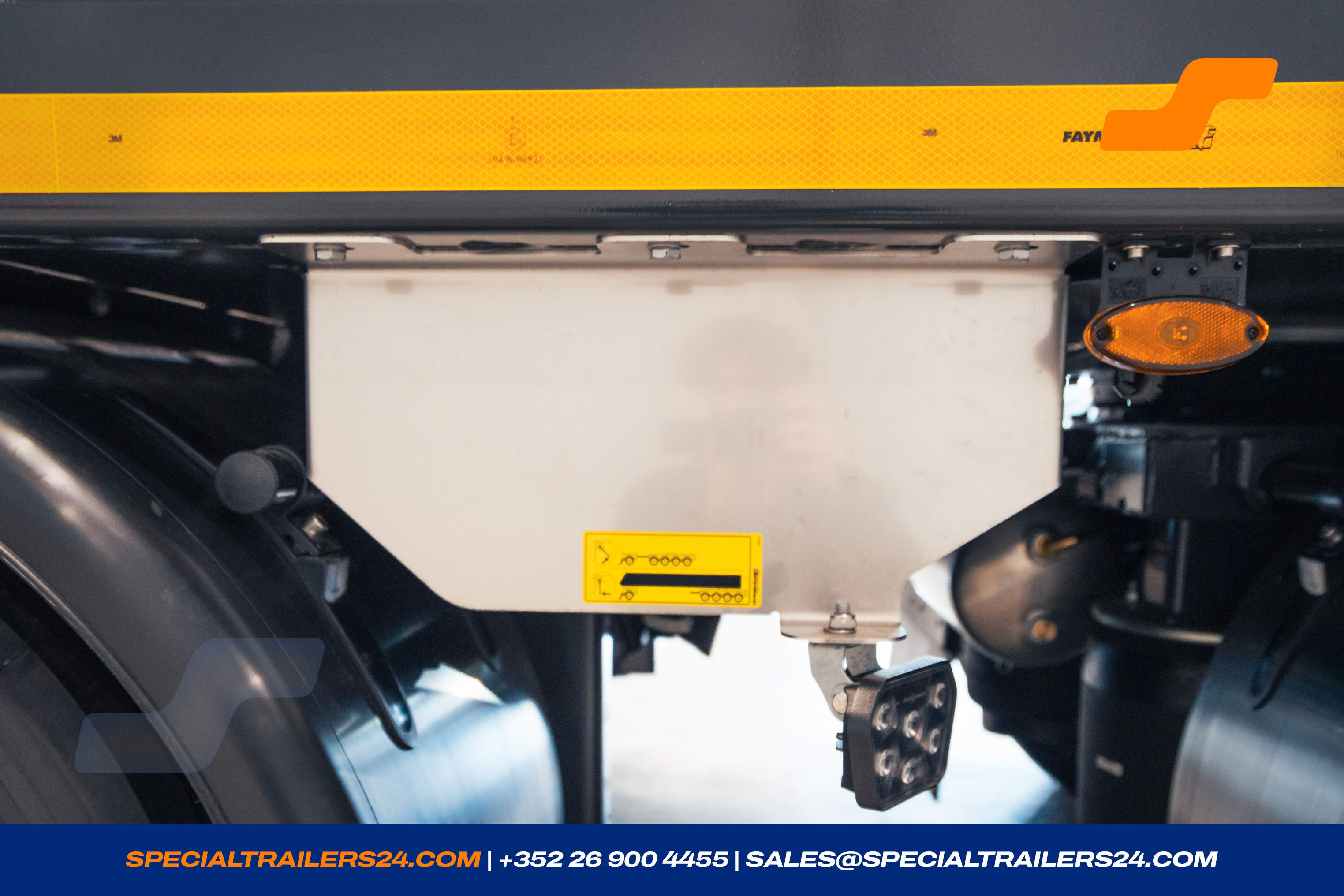

- Yellow reflective tape on both sides on the entire length according to the EU regulation.
- Red reflective tape on the rear on the entire width according to the EU regulation.
